Product Type	Canister Vacuum Cleaner
Brand	HOTPOINT
Model	SL B16 APR
Power Supply	220-240 V ~ 50/60 Hz
Power	1600 W
Filter Type	Pure Clean Hepa 13 (washable)
Filtration Efficiency	> 99.95%
Collection Capacity	Pure Clean bag (cloth) or dust container (depending on version)
Handling System	Trolley System with retractable handle
Remote Control	Remote Power Control on the handle (power adjustment and standby)
Start & Stop Function	Yes (puts on standby by inserting the brush into the housing)
Dual Clean Mode	Use with or without bag (kit provided)
Cord Length	7 m
Included Accessories	Normal/carpet brush, parquet brush, turbo brush, deluxe parquet brush, furniture brush, crevice nozzle, delicate surface nozzle
Tube Material	Telescopic metal
Filter Maintenance	Wash with water, dry completely before reinstalling
Safety	Device preventing lid closure if bag or container is improperly installed
Usage	Household use only
Weight	Approximately 5.5 kg (estimate)

Frequently Asked Questions - SL B16 APR HOTPOINT

How to change the Pure Clean bag?

Make sure the appliance is unplugged. Open the dust compartment cover by pressing the opening button. Unhook the bag holder and remove the full bag. Place a new Pure Clean bag into the holder until it reaches the bottom, then reposition the entire assembly in the compartment. Close the cover until it clicks.

How to clean the Hepa 13 filter?

Remove the rear ventilation grille by operating the tab. Take out the Hepa 13 filter. Wash it under a faucet with a gentle stream of water, holding the filter so that water flows parallel to the pleats. Let it dry completely at room temperature before reinstalling.

What to do if the vacuum cleaner does not turn on?

Check that the plug is properly inserted into the socket and that the socket is powered. Make sure the on/off button is pressed. If the problem persists, consult a Hotpoint-Ariston approved technician.

How to use the Remote Power Control?

Insert two AAA batteries into the compartment located on the handle (respect polarity). Use the +/- buttons on the handle to adjust the suction power. The Stand-by button allows you to put the appliance into standby.

How to switch from bag mode to bagless mode (Dual System)?

Unplug the appliance. Open the dust compartment cover, remove the dust container. Insert the gasket into the groove, place the motor filter grille, then install the bag holder with a Pure Clean bag. To switch back to bagless mode, remove these parts and replace the dust container.

How to clean the Turbo brush?

Remove the brush from the tube. Clean the plastic parts with a soft, dry cloth. If hair or threads wrap around the rotating brush, use scissors to cut them, being careful not to damage the bristles.

What to do if the bag full indicator lights up even though the bag is not full?

This may happen when vacuuming very fine dust (flour, etc.). The indicator lights up because the Pure Clean bag retains even fine particles. Replace the bag if necessary, otherwise continue using.

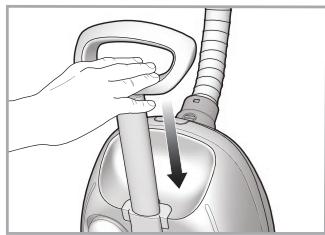

How to store the vacuum cleaner with the Trolley System?

Press the Trolley System open/close button and lower the handle until it locks. Insert the brush into the horizontal or vertical parking slot provided.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry dirt. Vacuuming liquids or wet substances may damage the appliance.

Where to find the serial number (S/N)?

The serial number is located on the rating label on the appliance. It is indicated after S/N. You will need it to contact customer service.

USER MANUAL SL B16 APR HOTPOINT

Illustration of a white vacuum cleaner with coiled hose and control panel, no text or symbols present

EN Operating instructions 15

FR Mode d'emploi 23

Illustration of a vacuum cleaner with a hand inserting a plug into it (no text or symbols visible)

Illustration of a hand holding a hose connecting a bag to a device (no text or symbols visible)

Technical illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols present)

Illustration of a vacuum cleaner with a hand inserting a plug into it (no text or symbols visible)

B

Illustration of a hand holding a small object inside a container (no text or symbols visible)

Illustration of a hand holding a tool interacting with a device inside a container (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to lift a bottle (no text or symbols visible)

C

Illustration of a handheld vacuum tube device with attached sensor and connector (no text or symbols)

Illustration of a handheld device with a coiled cable and a control panel (no text or symbols visible)

Illustration of a hand holding a flexible hose with a control panel (no text or symbols)

D

Illustration of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

E

Illustration of hands using a vacuum cleaner to clean or store air (no text or symbols visible)

Illustration of hands inserting a cable into a vacuum cleaner's air mask (no text or symbols visible)

Illustration of a vacuum cleaner with a grid-patterned internal structure and an arrow indicating assembly (no text or symbols present)

3D illustration of a vacuum cleaner with a mounted component, showing internal structure and airflow direction (no text or symbols)

F

Illustration of a hand holding a vacuum cleaner with coiled tube (no text or symbols)

Two-step illustration showing hand holding a device next to a vacuum cleaner (no text or symbols)

Illustration of a hand washing a small appliance with a lid, showing interior and exterior views (no text or symbols)

Two identical diagrams showing a mechanical device with a handle and a side panel, each with an arrow indicating rotation (no text or symbols present)

G

Illustration of a hand using a vacuum cleaner to handle a pipe (no text or symbols visible)

Illustration of a hand using a cleaning tool to clean or adjust the interior space of a portable air conditioner (no text or symbols visible)

Illustration of a hand inserting a component into a vacuum cleaner's air gap (no text or symbols visible)

Diagram of a vacuum cleaner with a handle and internal components, showing airflow direction (no text or symbols)

H

Diagram of a mechanical device with internal components and a grid panel, showing no text or symbols.

Illustration of a bottle with a plastic cover and lined paper inside, no text or symbols present

Simple line drawing of a solar panel with sun in the sky (no text or symbols)

Diagram of a vehicle interior showing engine, dashboard, and air vent (no text or symbols)

Mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a human torso with abstract curved lines and a rectangular panel (no text or symbols)

Simple diagram with a sun icon above a tilted square, no text or symbols present

Diagram of a vacuum cleaner with airflow arrows indicating motion (no text or symbols)

|

Illustration of a vacuum cleaner with handle and ventilation duct (no text or symbols)

Illustration of hands cleaning a surface with a grater and bucket (no text or symbols)

Illustration of a mechanical device with a bottle inserted into a container (no text or symbols visible)

Illustration of an open cylindrical device with a sun symbol above it (no text or symbols present)

Illustration of hands using a hairdryer to clean or adjust a component (no text or symbols visible)

J

Diagram of a vehicle interior showing structural components and airflow direction (no text or symbols)

Illustration of a plastic bag with internal compartments and a handle, no text or symbols present

Simple line drawing of a sun and a box on a horizontal surface (no text or symbols)

Diagram of a vehicle interior showing engine, dashboard, and air vent (no text or symbols)

Illustration of a robotic vacuum cleaner with internal components and a hand holding a small container (no text or symbols)

Diagram of a device with a lid and cover, showing layered structure (no text or symbols)

Simple line drawing of a sun and a rectangular object with grid-like structure (no text or symbols)

Illustration of a robotic vacuum cleaner with internal components and airflow arrows (no text or symbols)

K

Two technical illustrations of a mechanical clamp or bracket component on a grid-patterned surface (no text or symbols)

Mechanical diagram showing a lever lifting a cylindrical component (no text or symbols present)

Illustration of a hand cleaning a mechanical device with a cloth (no text or symbols)

3D rendered mechanical component with no visible text or symbols

L

3D rendering of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand using a tool to clean or wash a rectangular object (no text or symbols visible)

Mechanical component diagram showing a lever and handle assembly (no text or symbols)

M

3D rendering of a mechanical component with cylindrical parts and a curved handle, mounted on a flat base (no text or symbols visible)

3D illustration of a mechanical component with an arrow indicating direction (no text or symbols)

Hand cleaning a mechanical device with a cloth (no text or symbols visible)

Illustration of a pipette dispensing liquid into a mechanical component (no text or symbols visible)

N

Illustration of a vacuum cleaner's handle and lever mechanism (no text or symbols)

Illustration of a hand holding a small mechanical device with an upward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a handle assembly with an inset close-up view (no text or symbols)

Hand holding scissors cutting a cylindrical object (no text or symbols visible)

O

Illustration of a sofa with a roller being placed on top, no text or symbols present

Illustration of a hand cleaning a cylindrical object with an upward arrow indicating motion (no text or symbols)

Diagram of a battery cell being compressed into a flexible housing (no text or symbols)

Line drawing of a hand using scissors to cut a rolled-up cylindrical object (no text or symbols)

P

Line drawing of a finger pointing at a curved armchair (no text or symbols)

Illustration of a medical device with a magnified view of its internal structure (no text or symbols)

Q

Illustration of a medical or laboratory procedure showing a tool interacting with a small component (no text or symbols present)

Close-up of a medical or laboratory tool tip with a bulbous base (no text or symbols visible)

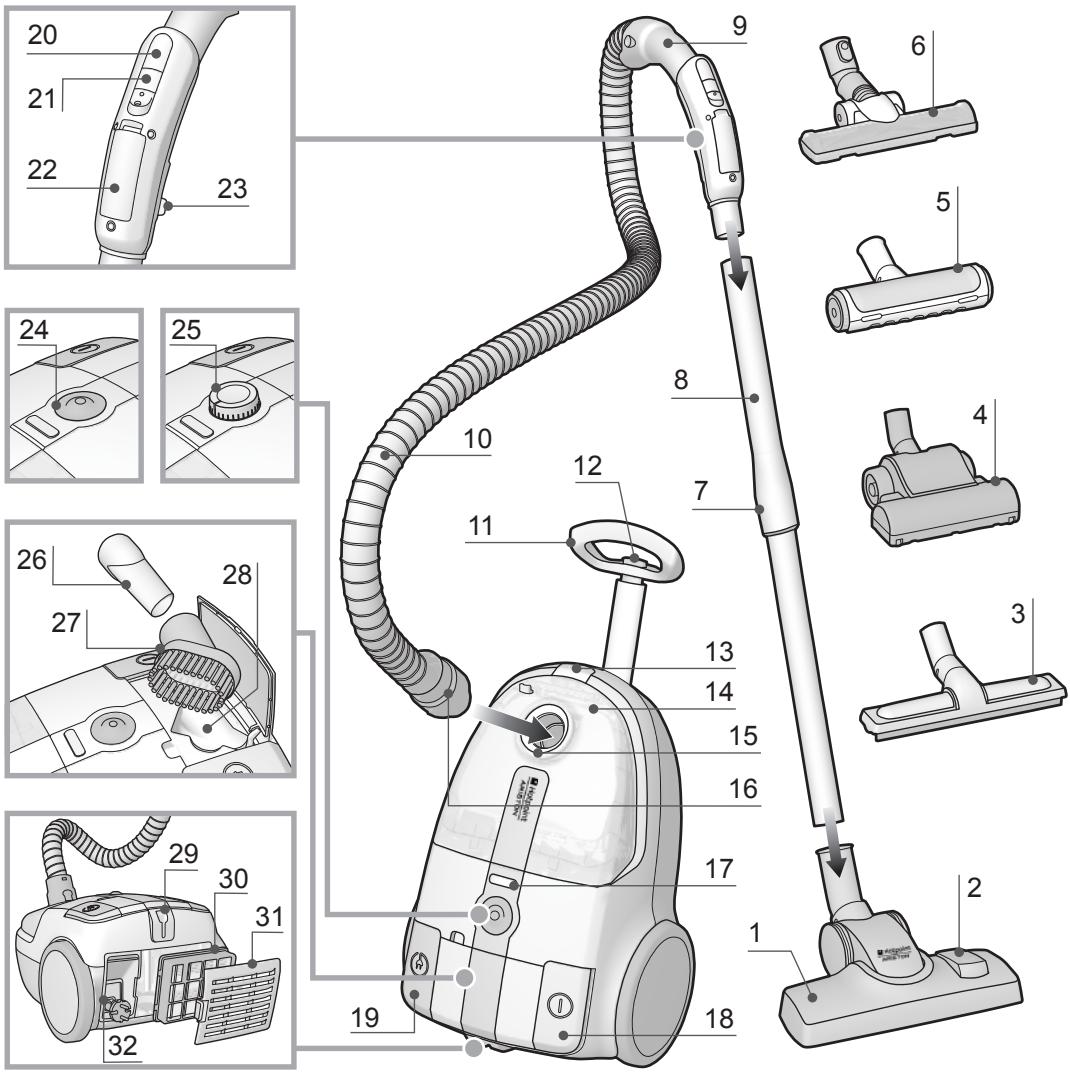

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

34 35 36 33 38 37

SL B24 AA0 | SL B22 AA0 | SL B20 AA0

SL B18 AA0 | SL B16 AA0 | SL B16 APR

39 40 41 38 42

SL C22 AA0 | SL C20 AA0 | SL C18 AA0

SL C16 ARR | SL D16 APR

DESCRIZIONE DELL'APPARECCHIO

Remote Power Control (C)

Symbolic image showing three crossed-out icons: a trash bin, a blank rectangle, and a CE license symbol.

1. Standard/Carpet brush
2. Bristle-adjustment pedal
3. Parquet brush
4. Turbo brush
5. Upholstery brush
6. Deluxe Parquet brush
7. Pipe length regulator
8. Metal extension pipe
9. Hand grip
10. Plastic hose
11. Carrying handle
12. Trolley System opening/closing button
13. Dust compartment opening button
14. Dust compartment lid
15. Suction inlet
16. Release
17. Full dust bag/container indicator
18. Start/Stop button
19. Cord-rewind button
20. Buttons +/- for electronic power adjustment
21. Standby button
22. Battery compartment
23. Air regulator
24. Remote Power Control signal receiver

INTRODUCTION

Thank you for purchasing our Trolley Power vacuum cleaner. In doing so you have opted for an effective, high performance appliance. We advise you to register this product on www.hotpoint.co.uk to make sure you are entitled to all the benefits made available by Hotpoint Customer Service.

The Trolley Power was designed to ensure optimum performance and consistent usability.

The exclusive Trolley System ensures maximum maneuverability and helps you move freely around the house without knocking against the furniture. The Remote Power Control (if available) enables you to adjust the suction power directly and effortlessly from the hand grip, with no need to bend.

This appliance was developed for household use only and should not be put to industrial use.

1. Electronic power regulator
2. Precision nozzle
3. Nozzle for delicate surfaces
4. Attachment compartment
5. Horizontal housing
6. Pure Clean Hepa 13 filter
7. Air grill
8. Power cord

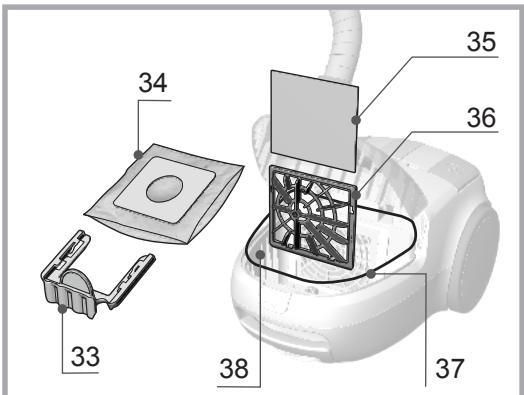

Version with dust bag:

1. Dust bag support
2. Pure Clean dust bag
3. Motor filter
4. Motor filter grill
5. Gasket
6. Dust compartment

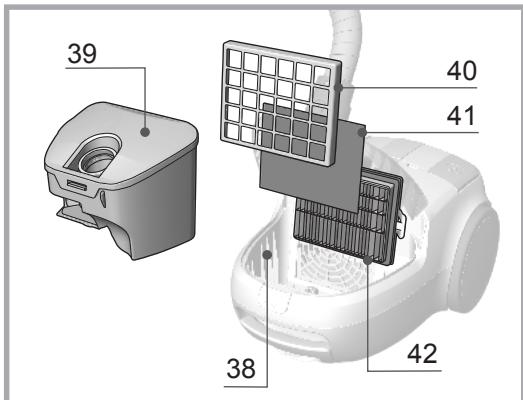

Version without dust bag:

1. Dust compartment
2. Dust container
3. Filter protection grill
4. Pre-filter
5. Pure Clean Hepa 13 filter

Before you begin using the appliance, it is important that you carefully read these instructions and keep them for further reference.

GENERAL SAFETY RULES

The safety features of your vacuum cleaner comply with the technical specifications and regulations in force.

Do not use the appliance for any use other than its intended use. Any improper use could cause damage to persons and/or property.

The voltage of your system must match the voltage of the vacuum cleaner (220-240 V). Any connection error could cause irreversible damage to the appliance and void its warranty.

- If the plug, power cord or appliance appear to be damaged or if any visible damage is found, do not operate the vacuum cleaner.

en

In such cases have it checked exclusively by Hotpoint authorised staff in order to avoid any hazardous situation.

• Regularly check the condition of the power cord.
• This appliance was not designed to be used by persons (including children) with reduced physical, sensory or mental capabilities. Nor, in addition, persons lacking experience or familiarity with the product, unless they are supervised or instructed on the use of the appliance by a person responsible for their safety.
  • Supervise children to prevent them from playing with the appliance.
• Never leave the appliance unattended when it is plugged into an electrical outlet.
• Never use the power cord to move or carry the appliance around.
  • After use, disconnect the plug from the electrical outlet and rewind the power cord.
• Do not bend the power cord and keep it away from sharp edges to avoid any damage.
• Never leave or use the appliance over or close to flames, ovens, flammable materials or other sources of heat.
• Do not use the vacuum cleaner on persons or animals. Keep the suction ends away from your body while it is in operation.
• Before changing an attachment, when cleaning or maintaining the appliance, and in any case after every use, unplug it from the electrical outlet.
• Should you suspect a failure, immediately unplug it from the electrical outlet.
• Never immerse the vacuum cleaner in water or any other liquid. Never spray any liquid substances onto the appliance.
• Do not leave the appliance in the open air and exposed to inclement weather conditions.
• For safety, we advise you to keep the vacuum cleaner always lower than your own position when cleaning the stairs.

Never suck up any liquid or damp substances as this could affect the operation of the appliance.

- Never suck up any flammable materials or incandescent objects such as ash, cigarette ends etc. Some parts of the vacuum cleaner could catch fire.

• Never suck up any sharp or cutting objects as this could damage the appliance.
• If very fine dust or powders are sucked up such as flour, etc. small electrostatic discharges could occur. When sucking up materials previously mentioned, we advise not to use the metal extension pipe, but only the plastic flexible hose and to set a low suction power level.
• For your safety, every repair or maintenance action should be carried out on the appliance only by Hotpoint authorised staff.
• No responsibility shall be accepted in case of damage resulting from any improper use of the appliance.

BEFORE FIRST USE

Remove all adhesives, protective plastic materials and cardboard packaging. Make sure all adhesive parts are removed with a soft damp cloth.

Assembling

1. Fasten the plastic flexible hose (10) to the suction inlet (15) until it clicks into place. To remove it, press the release (16) and pull it out.
2. Fit the metal extension pipe (8) into the hand grip (9) until it locks into place. Use the length regulator (7) to adjust the length of the pipe.
3. Fit the standard/carpet brush (1) or the attachment you need (see chapter "Attachments") into the end of the metal extension pipe until it locks into place.

If your appliance is equipped with a Remote Power Control, you will need to insert the batteries supplied (see paragraph "Remote Power Control" under chapter "Features").

USING

THE VACUUM CLEANER (A)

Do not use the vacuum cleaner without filters, Pure Clean dust bag, dust bag support or dust container, as the appliance could get damaged.

1. Unwind the power cord (32) and plug the appliance into an electrical outlet (220/240V).

We advise you to unwind the entire power cord (app. 7m) to avoid any eating and damage.

1. Press the start/stop button (18) to start the appliance.
2. Press the Trolley System opening/closing button (12) to extend the carrying handle (11) to the desired length until it locks into place. Then manoeuvre the vacuum cleaner using the carrying handle when cleaning the house.
3. To select the desired suction intensity (based on the model) use the +/- button and electronically adjust the power (20) of the Remote Power Control; or manually rotate the electronic power regulator (25).

We advise you to use a low suction power on delicate surfaces such as ns, fabrics, cushions etc to avoid any ge; or at least open the air regulator to e the suction effect.

1. To pause the vacuum cleaner, if this feature is available, you can use the standby button (21) on the Remote Power Control or the Start & Stop function (based on the model). Just insert the brush into its horizontal housing (29).
2. To switch off the appliance press the start/stop button again.
3. Disconnect the plug from the electrical outlet and press the cord-rewind button (19) until rewinding is complete.

Make sure the cord does not get entangled during rewinding.

1. Secure the floor head into its horizontal / vertical housing and store the appliance.

Do not start the vacuum cleaner if the plastic flexible hose is entangled, as this damage the appliance.

FEATURES

Trolley System (B)

The Trolley System allows you to move your vacuum cleaner easily when cleaning and carry it from room to room effortlessly.

1. Press the opening/closing button on the

Trolley System (12) to pull out the carry handle (11) until it locks into place at the desired length.

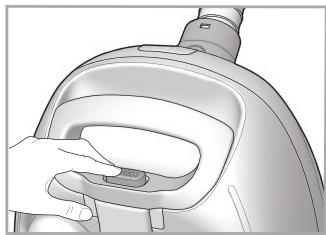

1. Having completed your cleaning, press the opening/closing button on the Trolley System and close the carrying handle until it locks into place.

Use the Trolley System's carrying handle to store the appliance, making you have correctly locked it into place.

Remote Power Control (C)

The Remote Power Control (if available) enables you to adjust the suction power directly and effortlessly from the hand grip (9), with no need to bend. When using the vacuum cleaner, you can keep it on standby by pressing the standby button (21).

To insert or change the batteries of your Remote Power Control:

1. Open the battery compartment (22).
2. Insert two AAA batteries, making sure of the positive and negative poles.
3. Close the battery compartment until it clicks into place.

Start & Stop (D)

The Start & Stop function (if available) lets you keep the vacuum cleaner on stand-by and lock the cleaning head in the park position: just insert the brush into its horizontal housing (29).

Dual System (E)

The Trolley Dual Clean version of the Trolley Power makes your use of the appliance extremely versatile because it can be used with or without dust bag. Just assemble the conversion kit in the package: it comprises a Pure Clean dust bag (34), dust bag support (33), gasket (37), and motor filter grill (36) already fitted to the motor filter (35). The assembling takes place as follows:

1. Make sure the appliance is disconnected from the electrical outlet.
2. Press the dust-compartment opening button (13) to open the dust compartment lid (14) and remove the dust container (39).
3. Fit the gasket into the special groove along the perimeter of the dust compartment (38).
4. Fit the motor filter grill (already fitted to

en

the motor filter) into the special dust-compartment guides.

1. Slide the Pure Clean dust bag into the dust bag support all the way; then place it into the special dust compartment.

The appliance is equipped with a safety device that prevents the dust arment lid from closing unless the dust container has been correctly installed.

1. Close the dust compartment lid until it clicks into place.

To use the vacuum cleaner with the dust container, remember to remove all the living parts: Pure Clean dust bag, dust bag port, gasket, motor filter and motor filter

CLEANING AND MAINTENANCE

Before cleaning or maintaining the vacuum cleaner, make sure it has been gged from the electrical outlet. Do not aggressive substances or abrasive rials to clean the appliance, its internal and attachments. Make sure it is ughly dry before using again.

Cleaning the appliance

Use a dry or slightly damp soft cloth to clean the plastic parts (body, dust compartment, flexible hose etc) and the metal extension pipe (8).

Cleaning the attachments

Before cleaning the attachments refer to the chapter "Attachments".

Cleaning the dust compartment (F)

For the routine cleaning of the dust compartment (38):

1. Press the dust-compartment opening button (13) to open the dust compartment lid (14).
2. Based on the model, remove the Pure Clean dust bag (34) or the dust container (39).
3. Clean the dust compartment by removing any residual dirt with a small brush. If needed, use a damp soft cloth, taking care to wipe all its parts entirely dry.
4. Re-place the Pure Clean dust bag or dust

container correctly and close the dust compartment lid until it clicks into place.

The appliance is equipped with a safety device that prevents the dust arment lid from closing unless the dust container has been correctly installed.

Replacing the Pure Clean dust bag (G)

We recommend always using Hotpoint original Pure Clean dust bags, because their special fabric allows optimum air filtration, maximum dust/powder retention, high performances and a long motor life.

As the Pure Clean dust bags (34) are made of fabric, they are more resistant than conventional paper bags and can retain very fine dust/powder particles more effectively, thus ensuring maximum hygiene.

We recommend replacing the Pure Clean bag as soon as the full-bag motor illuminates. Change at least once a to be always sure of the hygienic tion of your vacuum cleaner. The pores bag clogged with dust/powder particles like the motor's suction power and can be damage.

1. Make sure the appliance is disconnected from the electrical outlet.
2. Press the dust-compartment opening button (13) to open the dust compartment lid (14).
3. Release the bag support (33) and remove the Pure Clean dust bag (34).

Dispose of the dust bag in compliance with all local regulations on waste sal.

1. Slide a new Pure Clean dust bag into the dust bag support completely; then place it back into the special compartment.
2. Close the dust compartment lid until it clicks into place.

If you are finding it difficult to close the dust compartment lid, it is likely that the Clean dust bag and/or its dust bag port have not been assembled correctly. Not force the dust bag lid to close, make both parts are in the correct position to lid closure.

Cleaning the filters (H) model with dust bag

The Pure Clean Hepa 13 filter ensures maximum protection against allergens and maintains high air quality, as the air given back by the appliance is entirely free from dust/powder residues (filtering power > 99.95 %).

We advise you to clean the filter at least every 4 months to restore its filtering r. In any case we recommend replacing filter at least every year to ensure mum performance.

To clean the Pure Clean Hepa 13 filter (30):

1. Disassemble the air grill (31) using the opening tab.
2. Remove the Pure Clean Hepa 13 filter by releasing the opening tab.
3. Wash the filter under running water, taking care that the jet of water is not too strong.
4. Hold it so that the water flows parallel to its folds.
5. Let it dry at room temperature until all its parts are thoroughly dry.
6. Replace the Pure Clean Hepa 13 filter, paying attention to the position of the notches.
7. Fit the air grill into its housing until it clicks into place.

To clean the dust compartment filters (38):

1. Press the dust-compartment opening button (13) to open the dust compartment lid (14).
2. Remove the Pure Clean dust bag (34), motor filter grill (36) and motor filter (35) from the motor filter grill.
3. Clean the motor filter by washing it under running water, taking care that the jet of water is not too strong. Then gently shake water loose.
4. When cleaning the motor filter grill, remove any dust/powder residues with a small brush. If needed, use a damp soft cloth.

Make sure all its parts are thoroughly dry before replacing them.

1. Fit the motor filter into the motor filter grill again, taking care to position it gently into the special notches.
2. Slide the motor filter grill assembly into the

special guides in the dust compartment.

1. Fit the Pure Clean dust bag using the special dust bag support.

The appliance is equipped with a safety device that prevents the dust-artment lid from closing unless the dust as been correctly installed. Do not force just bag lid to close and make sure all the are in the correct position to allow you to the lid.

1. Close the dust compartment lid until it clicks into place.

Cleaning the dust container (I) model without dust bag

For the routine cleaning of the dust container:

1. Press the dust-compartment opening button (13) to open the dust compartment (14) and remove the dust container (39).
2. Open the lid and empty the dust container.
3. Remove any residual dirt by washing the dust container under running water.
4. Let it dry at room temperature until all its parts are thoroughly dry.
5. Close the dust container lid until it clicks into place and replace it into the dust compartment.
6. Close the dust compartment lid until it clicks into place.

Cleaning the filters (J) model without dust bag

This model comprises two Pure Clean Hepa 13 filters. The Pure Clean Hepa 13 filter ensures maximum protection against allergens and high air quality, because the air given back by the appliance is entirely free from dust/powder residues (filtering power > 99.95 %).

We advise you to clean the filter at least every 4 months to restore its filtering: In any case we recommend replacing the at least every year to ensure maximum romance.

To clean the Pure Clean Hepa 13 filter (30) in the back:

1. Disassemble the air grill (31) using the opening tab.
2. Remove the Pure Clean Hepa 13 filter by

en

releasing the opening tab.

1. Wash the filter under running water, taking care that the jet of water is not too strong.
2. Hold it so that the water flows parallel to its folds.
3. Let it dry at room temperature until all of it's parts are thoroughly dry.
4. Re-place the Pure Clean Hepa 13 filter, paying attention to the positions of the notches.
5. Fit the air grill into its housing until it clicks into place.

To clean the dust compartment filters (38):

1. Press the dust-compartment opening button (13) to open the dust compartment (14).
2. Remove the dust container (39).
3. Release the opening tab and then remove the Pure Clean Hepa 13 filter, pre-filter (41) and filter protection grill (40).
4. When cleaning the filter protection grill, remove any dust/powder residues with a small brush. If needed, use a damp soft cloth.
5. Clean the pre-filter by washing it under running water, taking care that the jet of water is not too strong. Allow to dry.
6. Wash the Pure Clean Hepa 13 filter under running water, taking care that the jet of water is not too strong.
7. Hold it so that the water flows parallel to its folds.
8. Let it dry at room temperature until all its parts are thoroughly dry.

Make sure all its parts are thoroughly dry before replacing them.

1. Fit the pre-filter into the special indentation of the Pure Clean Hepa 13 filter, locking both filters in place using the protection grill.
2. Fit the pre-filter, Pure Clean Hepa 13 filter and protection grille assembly onto the dust container, paying attention to the positions of the notches, until it clicks into place.
3. Re-place the dust container into the dust compartment.

The appliance is equipped with a safety device that prevents the dust

compartment lid from closing unless the dust container has been correctly installed. Do not force the dust bag lid to close it and make sure all the parts are in the correct position to allow lid closure.

1. Close the dust compartment lid until it clicks into place.

ATTACHMENTS

The attachments can either be supplied as standard features (based on the model) or be purchased separately from Hotpoint authorised centres.

Before changing an attachment, during maintenance, disconnect the plug from

the electrical socket. Do not use aggressive substances or abrasive materials to clean the appliance, its internal parts and attachments. Make sure the appliance is thoroughly dry before using it again.

Standard/Carpet brush (K)

The standard/carpet brush (1) is suitable for vacuuming hard and smooth floors as well as carpets on a daily basis. Use the bristle-adjustment pedal (2) to clean:

Hard floors

Carpets

To clean the plastic parts of the standard/carpet brush, remove the brush from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth. To clean the bristles, remove any dirt using, if needed, the precision nozzle (26).

Parquet brush (L)

The Parquet brush (3) is suitable for vacuuming delicate areas such as wooden floors. The special natural bristles enable you to use on very delicate surfaces without harm. To clean the plastic parts of the Parquet brush, remove the brush from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth. To clean the bristles, suck up any dirt using the precision nozzle (26).

Turbo brush (M)

The Turbo brush (4) is ideal for the in-depth vacuuming of short-pile carpets and removing pet hair. The rotation of the brush is operated by the vacuum cleaner's suction power. To clean the plastic parts of the Turbo brush, remove the brush from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth. Remove any

hairs or threads that got entangled in the rotating brush using scissors, taking care not to damage the bristles.

Deluxe Parquet brush (N)

The Deluxe Parquet brush (5) is suitable for vacuuming delicate and parquet floors. The brush is equipped with very delicate rotating bristles, which are operated by the vacuum cleaner's suction power, and soft wheels protecting delicate floors. To clean the plastic parts of the Deluxe Parquet brush, remove the brush from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth. To clean the rotating bristles, turn the safety lock into position and remove, then disassemble the rotating brush and start cleaning. Remove any hairs or threads that got entangled using scissors, taking care not to damage the bristles.

For your safety, never put your hands close to the suction nozzle or rotating h while operating the appliance.

Upholstery brush (O)

The Upholstery brush (6) is suitable for vacuuming surfaces such as sofas, mattresses, blankets, cushions etc. It is equipped with rotating bristles operated by the vacuum cleaner's suction power that enable you to clean in depth and remove any fur, hairs or mites from fabrics. The protection grill prevents the bristles from touching the surfaces to be cleaned, thus ensuring maximum on fabrics. To clean the plastic parts of the Upholstery brush, remove the brush from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth. To clean the rotating bristles, release the lid by releasing its fastening elements, then disassemble the rotating brush and start cleaning. Remove any hairs or threads that got entangled using scissors, taking care not to damage the bristles.

Precision nozzle (P)

The precision nozzle in the attachment compartment (28) helps you vacuum corners, crevices and other difficult-to-reach areas. To clean the precision nozzle, remove the nozzle from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth.

Nozzle for delicate surfaces (Q)

The nozzle for delicate surfaces in the attachment compartment (28) is suitable for vacuuming surfaces requiring special care such as radiators, furniture etc. Its special natural bristles enable you to use it on very delicate surfaces without any harm. To clean the plastic parts of the nozzle for delicate surfaces, remove the nozzle from the metal extension pipe (8) and wipe with a dry or slightly damp soft cloth. To clean the bristles, remove any dirt using, if needed, the precision nozzle (26).

TROUBLESHOOTING

Problem

The vacuum cleaner cannot be switched on.

The full dust bag/container indicator lights up although it is not full yet.

Low suction power.

Possible causes / Solutions

• The plug was not inserted or is not making contact.
- Change the dust bag. If large quantities of very fine dust/powder are sucked up (e.g. flour, etc), the full dust bag indicator may light up although the bag is not full yet. The reason is that the Pure Clean dust bag is able to retain very fine dust/powder particles, thus ensuring maximum hygiene.
- Clean the dust container in models without dust bag.
• Clean the filters and, if needed, replace them.
• Make sure the expansion pipe, flexible hose and brush are not blocked.

- Clean the filters and, if needed, replace them. - Make sure the expansion pipe, flexible hose and brush are

	not blocked.Change the dust bag. If large quantities of very fine dust/powder are sucked up (e.g. flour, etc), the Pure Clean dust bag may become clogged.Clean the dust container and its filters.
Remote Power not working.	Battery not charged.The batteries were positioned incorrectly inside the battery compartment. Position the two AAA batteries making sure of the positive and negative poles.Remove batteries; then position them again, making sure of the positive and negative poles.Electronic appliances or obstacles may be interfering or shielding with the infrared signal.
Small electrostatic discharges occur while sucking up.	If very fine dust or powders are sucked up such as flour, etc. small electrostatic discharges could occur. When sucking up materials previously mentioned, we advise not to use the metal extension pipe, but only the plastic flexible hose and to set a low suction power level.
The vacuum cleaner whistles or vibrates when in use.	One or more attachments were assembled incorrectly. Make sure the filters and brushes were assembled according to these instructions. In the model with dust bag make sure that the gasket is correctly in place too.The dust bag/container is full. Replace the dust bag or clean the dust container.Clean the filters and, if needed, replace them.The air regulator is open. Make sure it was closed correctly.
The dust compartment lid cannot be closed.	The Pure Clean dust bag or dust container was assembled incorrectly. Make sure it is correctly in place so that the safety lever will let you close the dust compartment lid.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimise the recovery

and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DESCRIPTION DE L'APPAREIL

Remote Power Control (C)

Brosse Deluxe Parquet (N)

Causes/Solutions possibles

hotpoint-ariston.com

Remote Power Control (C)

Remote Power Control (C)
