Brand	Blaupunkt
Model	MS35BT
Product Type	Hi-Fi System
Dimensions (W x H x D)	200 x 100 x 150 mm
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Output	2 x 20W RMS
Connectivity	Bluetooth, USB, AUX, FM
Supported Media	CD, MP3 (via USB)
Remote Control	Included
Speaker Type	2-way bass reflex
Frequency Response	60 Hz - 20 kHz
Cleaning Instructions	Wipe with a soft dry cloth; do not use solvents
Safety	Do not expose to water or high humidity; unplug during storms
Spare Parts Availability	Contact Blaupunkt service center

Frequently Asked Questions - MS35BT BLAUPUNKT

How do I pair my phone via Bluetooth?

Press the Bluetooth button on the unit or remote. Activate Bluetooth on your phone and select 'Blaupunkt MS35BT' from the list. If prompted, enter PIN 0000.

Can I play music from a USB drive?

Yes, insert a USB drive with MP3 files into the USB port. The system will automatically detect and play the files.

How do I preset radio stations?

Tune to the desired station using the Tuning controls, then press and hold the preset button (e.g., 1-10) until you hear a beep.

What should I do if the remote control stops working?

Check batteries: replace with fresh AAA ones. Ensure the IR sensor on the unit is not blocked and point the remote directly at it.

Why is there no sound from the speakers?

Check that the speakers are properly connected to the speaker terminals. Ensure the volume is turned up and the system is not muted.

How do I clean the hi-fi system?

Unplug the unit. Wipe the exterior with a soft, dry cloth. Do not use alcohol, ammonia, or abrasive cleaners.

Can I connect the system to my TV?

If your TV has an AUX output or headphone jack, connect it to the AUX input of the MS35BT using a 3.5mm audio cable.

Does the system support CD-RW discs?

Yes, the CD player is compatible with CD, CD-R, and CD-RW discs.

What is the power consumption in standby?

The standby power consumption is less than 1 W to meet energy-saving standards.

How can I reset the system to factory settings?

Press and hold the Power button for 5 seconds while the system is on. The unit will restart with default settings.

USER MANUAL MS35BT BLAUPUNKT

Enjoy it.

Bluetooth CD-MP3 player with USB and FM

Thanks for your purchase of our product. Please read through this manual before making connections and operating this product. Retain this manual for future reference.

Features:

Compatible with CD, MP3, CD-R, CD-RW, etc.

USB playback

Full function remote

FM radio

Bluetooth for audio streaming playback function

Note: The player is not compatible with all discs; some discs may not be read, caused by the disc being dirty, poor quality, etc.

What you got from package?

1 pcs x instruction manual.

1 pcs x main unit.

2 pcs x satellite speaker

1 pcs x remote control

1 x AAA battery.

IMPORTANT SAFETY INSTRUCTIONS

Caution:

To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

This mark indicates this unit belongs to class 1 laser product. The laser beam may produce radiation harm to the directly touching human body

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

This safety and operating instruction should be retained for future reference.

a. The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

b. Do not install the product in the following areas:

a). Places exposed to direct sunlight or close to radiators. b). On top of other stereo equipment that radiate too much heat. c). Blocking ventilation or in a dusty area. d). Areas where there is constant vibration. e). Humid or moist places.

c. Do not place near candles or other naked flames.

d. Operate the product only as instructed in this manual.

e. Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet: spray onto the cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 35°C.
27. ESD hints - The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

28. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2). The batteries should be drawn to the environmental aspects of battery disposal.

3). Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

• Install all batteries correctly, + and - as marked on the apparatus.
• Do not mix batteries (old and new or carbon and alkaline, etc.)
• Remove batteries when the unit is not used for a long time.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

ERP2 - (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment. After 60 minutes without any audio input, the device will automatically switch into standby mode. Follow up the instruction manual to resume the operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 60 minutes the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.), in order to resume playback. Please contact the local service center if the problem remains.

Warning

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. To prevent possible hearing damage, do not listen at high volume levels for long time periods respectively a sudden high volume level.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.

COMPACT DISC MAINTENANCE

1. Always use a compact disc bearing the mark as shown.
2. Notes on handling discs

• Store discs in their case when not in use. - Do not touch the reflective recorded surface. • Do not stick paper or write anything on the surface.

• Store the disc in its case. - Do not expose discs to direct sunlight or high temperatures, high humidity or dusty

1. Cleaning a disc
2. Should the disc become soiled, wipe off dust, dirt and fingerprints with a soft cloth. • The disc should be cleaned by wiping in a straight line from the center to the edge.

FROM THE CENTRE TO THE EDGE

- Never use benzene, thinners, record cleaner fluid or anti-static spray.

-Be sure to keep the CD compartment door closed when not in use to keep it clean from dust and other contaminants.

-Do not touch the lens.

NOTICE

This product complies with the radio interference requirements of the European Community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene

foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a

specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries, and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Thank you for purchasing our model. Please read and reference this manual carefully before operating the unit. Please keep the manual for future operation reference.

What you have in the packaging.

1 x main unit

2 x satellite speaker

1 x remote control

1 x RCA to 3.5mm stereo audio cable

1 x FM pig tail antenna

1 x user manual

1 x warranty card

(Please unpack the box carefully to avoid damaging the contents.)

Control locations

Main unit front panel

1. Stop
2. Power
3. Play/pause
4. CD door
5. Source
6. Earphone jack
7. Next
8. Eject
9. Previous
10. USB port
11. Display
12. Volume knob

Rear panel

1. Audio output (RCA jack)
2. FM antenna socket
3. Line in (RCA jack)
4. Speaker output terminal
5. Satellite speaker

Remote control

1. Standby 2. Digits button 3-4. Volume +/-
2. Previous/next/fast-forward/fast-rewind button
3. Pause
4. A-B
5. CD/USB mode
6. Source
7. Random
8. Search
9. Program
10. Intro
11. Memory
12. Loudness 16-17. FM frequency manual +/- 18-21. Treble & bass adjustment
13. Repeat
14. Stop
15. Play
16. Mute 26-27. Channel +/-
17. EQ
18. GOTO
19. Eject
20. Reset
21. Bluetooth

System and power setting

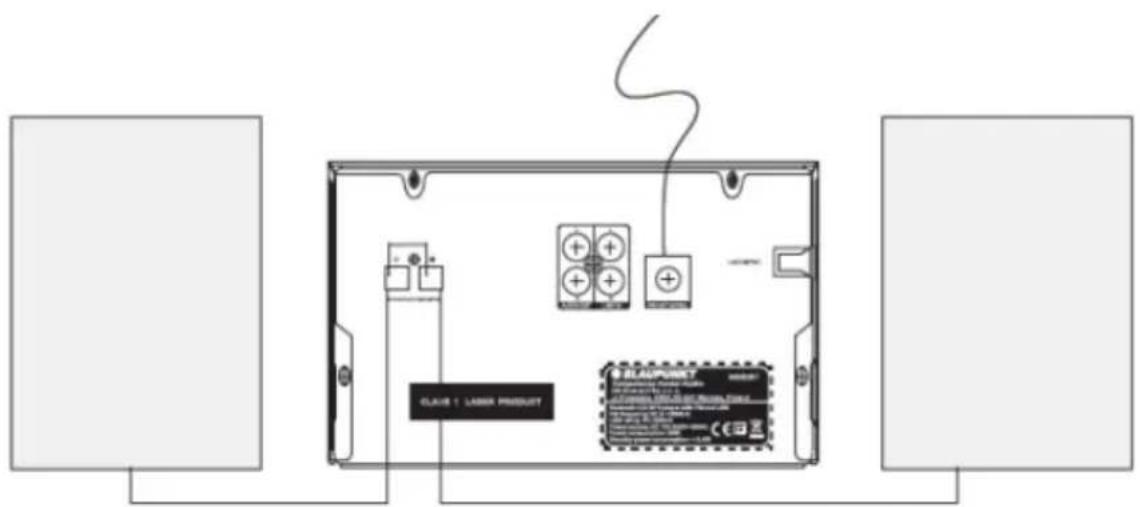

1. Using the attached speaker wire of the satellite speaker, connect it to the speaker output terminal on the main unit. Then connect the other satellite speaker in the same way.
2. Using the supplied FM pigtail antenna, plug it into the FM socket on the rear panel of the main unit, and fully extend the FM antenna to get better reception.

1. Please check if the power source corresponds to the rated voltage specified on the back panel of the main unit. If it does not match, please consult your dealer or service center.
2. Insert the attached AC power plug into the wall outlet to get power. The front panel power LED will light up in red when the power is ready.

Remote control battery installation

Open the battery door and insert 2 x AAA batteries into the compartment; please make sure the polarity of the batteries aligns with the positive and negative symbols engraved in the compartment. Then close the battery door.

Notes:

a. The best working distance for the remote control is within 7 meters without any obstacles in between. Aim the remote control at the sensor located on the left corner of the display during operation. b. The sensitivity of the remote control will weaken when the battery power is low. Replace it with fresh batteries for operation. c. Please remove the batteries if the remote control will not be used for a long time. d. Please dispose of the batteries in an environmentally friendly way. Refer to local government regulations for details.

General operation

1. Power on/off and standby: The red power LED will light up when you connect it to AC power successfully; please remove the AC plug for complete power off. Press the power button on the front panel or remote control to switch between standby and on.
2. Mute: Press the MUTE button on the remote control to silence the sound output; press it again to resume playback. You can also resume playback by pressing the volume +/- button.
3. Source: Press the SOURCE button repeatedly to switch the play mode between CD, USB, FM radio, Line in, and Bluetooth. You can also enter Bluetooth mode directly by pressing the BT button on the remote control.
4. Volume adjustment: Press the VOL+/- button to increase or decrease the output volume.
5. Treble & bass adjustment: Press the TREBLE +/- and BASS +/- buttons for treble and bass adjustment.
6. Sound equalizer: Press the EQ button to switch the playing equalizer mode between ROCK, Classic, POP, Jazz, and EQ off.
7. Loudness: Press the "LOUDNESS" button to enhance the bass level.
8. Selection by digits/10+ button

Fast select the relative track in CD and USB playback mode after keying in the relative digits number from the remote control.

Fast pick up the preset FM station in FM radio mode.

Press the 10+ button for fast selection. For example, to select track number 25, press the 10+ button twice, then press 5.

1. Play, pause and stop: In CD/USB/Bluetooth mode, press the play and pause button to pause or resume the playback; In CD and USB mode, press the stop button to stop the playback, and press play button for music resuming.
2. Selection by previous and next button: Press it to skip to last or next track playback; Press and hold it to fast-forward or fast-rewind playback track, and release it to resume the playback in CD and USB mode.
3. Fast-forward and fast-rewind: Press and hold it to fast-forward or fast-rewind the current track, and release it to resume the playback in CD and USB mode.
4. Repeat and random playback: In CD and USB mode, press repeat button repeatedly for repeat one, repeat all and repeat off selection; press random button for random and random off selection.
5. Channel +/-: Press it to pick up last and next preset FM station.
6. CD disc eject: Press it to load a CD or close the CD door.
7. Intro: press it to playback the first 10 seconds of each track in CD and USB mode. Press it again to cancel the Intro function.
8. System reset: In standby mode, press the button in 5 seconds to reset the audio and factory setting include EQ, treble, bass, preset FM station and volume etc.

CD playback operation

This product includes CD playback functionality, which can play CD discs in CD/CD-R-RW/MP3 audio formats (DVD not included). Before starting CD playback, please check if there are any dirty spots or scratches on the CD disc; otherwise, the CD may not be read properly or may produce noise.

1. Press the source button to enter CD mode.
2. Press the eject button to open the CD door, and load the CD disc into the CD tray; press the eject button again to close the CD door. The unit will start to read and play the CD automatically.
3. A-B repeat function: During CD playback, press the A-B button first to define the start point of the track you want to repeat; press the A-B button again to define the end point of the track; then the unit will repeat play the music between the start and end points. Press the A-B button again to cancel the function.
4. Create your own playlist (program 20 tracks for CD disc, and 99 tracks for MP3 disc)

a. In CD playback mode, press the stop button first; then press the program button to start the program operation. b. The VFD display will show "000 P01"; press the digit buttons to select the track you want to be programmed. c. Press the program button again to confirm, then the display will show "000 P02". d. Repeat steps b-c until "FULL" shows on the display. e. Then press the play button to start the programmed track playing. f. To cancel and remove the programmed playlist, press the stop button again, or eject the CD disc.

1. You can also achieve play and pause, stop, mute, repeat and random, track selection by previous & next or digit buttons, EQ, fast-forward and fast-rewind functions, etc., during CD playback. Please reference the general operation part of this manual.

FM radio operation

Before starting FM radio listening, please check if the FM antenna is plugged into the socket properly; fully extend the FM antenna or move the unit next to a window for better FM reception.

1. Auto scan and preset radio station: Press the source button repeatedly to enter FM radio mode; press the search button on the remote control, or press and hold the play/pause button on the front panel to auto scan and preset radio stations. The unit can save up to 30 (max) stations.
2. Preset station selection: In radio mode, press the CH- and CH+ buttons to select and play the previous and next preset stations; or enter the preset station number directly to quickly select a station.
3. Manual tuning or auto scan: Press the FF- or FF+ button to increase or decrease the frequency by 0.05 MHz per step from the current station; press and hold the FF- or FF+ button to auto scan for available FM stations in the upward or downward frequency direction, and it will stop and play the available station automatically.
4. Quick access to a specific FM station: Press the GOTO button and enter the frequency number using the digit buttons on the remote control to skip to and play the specified FM station. For example, to listen to FM station 104.30 MHz, press the GOTO button first, then enter 1-0-4-3-0 on the remote control; the unit will then play the 104.30 MHz station.
5. Manual station memory: Use the FF- & FF+ or GOTO button to tune to the favorite station you want to save; press the memory button on the remote control first, then press the CH- and CH+ buttons to select the preset station number, and press the memory button again to confirm the selection. Repeat the operation to save other stations.

USB operation

The product includes USB playback function which can decode and play music from a USB storage device. Before starting the operation, please copy MP3 format music onto a USB stick. The maximum supported USB stick capacity is 32 GB.

1. Press the source button repeatedly to enter USB mode; plug the USB stick into the USB port; the unit will start playing music automatically after showing the folder and track number within a few seconds.
2. In USB mode, you can use the play and pause, stop, mute, repeat and random, track selection via previous & next or digit buttons, EQ, fast-forward and fast-rewind functions, etc. Please refer to the general operation section of this manual for instructions.

Notes:

a. Connecting the USB stick via a USB extension cable for playback is not recommended, as it may produce noise or intermittent sound due to audio data loss during transfer. b. Decoding and playback of all MP3 format music is not guaranteed. c. The maximum supported USB device is 32GB. d. Some USB sticks may take a little longer to start playback; please note that this is not a malfunction.

Bluetooth operation

This product includes Bluetooth function which can wirelessly play music from other Bluetooth devices.

1. Press the source button repeatedly to enter Bluetooth mode, then the blue LED will flash continuously, indicating that the unit is ready to pair.
2. Enable the Bluetooth function and scan on your Bluetooth device (please refer to the device manual for operation), and check the available Bluetooth devices on the list.
3. Select "BP MSS35BT" for pairing.
4. A notice sound will come out from the speaker after the Bluetooth pairing is successful. Also, the blue LED will become steady.
5. Select and play the music from your Bluetooth device, then the music will come out from the micro system.
6. Press the previous/next button to select the last and next track during playback.
7. In Bluetooth mode, you can achieve play/pause, mute, EQ, loudness, treble and bass adjustment, etc. Please refer to the general operation section of this manual for operation.

Notices:

a. All Bluetooth devices are not guaranteed to pair successfully due to different designs and brands. b. The best working distance for Bluetooth is within 10 meters without any obstacles in between. c. The unit can only pair and work with one Bluetooth device at a time. d. Please quit the current Bluetooth pairing before pairing with another device, otherwise the "BP MSS35BT" will not show on the device list.

Line in/MP3 link operation

In order to wire playback the music from other players or sources, please follow the below operation.

1. Using the supplied audio cable (3.5mm stereo to RCA connector), connect the line-in jack (RCA type) of the main unit, and the other 3.5mm stereo connector to the line-out jack of the external player.
2. Select the music and play, then the sound will output from the micro system.
3. In line-in playback mode, the main control is on the external player side. However, you can also control the volume and mute the sound on the micro system side.

Audio out and headphone

1. Audio out: Using the supplied audio cable, connect to the audio out jack (RCA type) of the main unit, and the other 3.5mm stereo connector to the aux-in jack on another speaker device. Then the sound will output both on the micro system and the external speaker device. Please note that the main control is on the micro system side during audio out playback.
2. Headphone: Plug the headphone connector into the headphone jack on the front panel. The sound will then be silenced in the micro system but output from the headphone. Adjust the volume setting on the micro system or headphone to get a comfortable sound level for listening.

Specification

Power source: AC 110-240V, 50/60 Hz

CD compatible: CD/CD-R-RW/MP3

FM frequency: 87.5-108.0 MHz

USB rating: 5V, 500mA, 2.0 version, supported up to 32GB storage device

Bluetooth: V2.1+EDR, within 10 meters for operation.

RMS output power: 2 x 20W

Audio S/N: 80dB

Treble & bass: -10dB\~+10dB

Power consumption: 60W

Standby power consumption: < 0.5W

(Note: the above specification may be revised without prior notice.)

Troubleshooting

1. Cannot power on the unit

a. Please check if the AC power cord was connected to the wall outlet properly.

b. Please contact the service center if the problem remains.

1. No sound output.

a. Please try to adjust the volume.

b. Please check if you selected the correct play mode.

c. Please contact the service center if the problem remains.

1. The CD disc cannot be read, or intermittent sound during playback.

a. Please try to replace and play another CD disc with CD/CD-R-RW/MP3 format music.

b. Please try to clean the CD disc due to dirty spots or scratches.

c. Please contact the service center if the problem remains.

1. Background noise during FM playing.

a. Please fully extend the FM antenna and try adjusting its direction.

b. Please move the unit closer to the window.

c. Please switch to another station to listen.

1. Intermittent sound during Bluetooth playing.

a. Please try moving your Bluetooth device closer to the unit.

b. Please try turning off the Bluetooth function and pairing it again.

1. The remote control does not work well.

a. Please close and direct the remote control toward the sensor for operation.

b. Please replace the battery with a fresh one due to weak battery power.

1. The micro system is out of control.

a. Please try removing the AC power plug and powering on again.

b. Please try resetting the micro system.

CLASS 1 LASER PRODUCT

HANDLE DISCS ONLY AS SHOWN

Notes:

Notes:

FM frequency: 87.5–108.0 MHz

IMPORTANT SAFETY INSTRUCTIONS

DANGER OF ELECTRIC SHOCK! DO NOT OPEN!

Warning:

Notes:

CLASS 1 LASER PRODUCT

HANDLE DISCS ONLY AS SHOWN IN THE FIGURE

1. Storage

DO NOT STORE DISCS NEAR HEAT

4. Cleaning the disc

CORRECT

INCORRECT FROM THE CENTER TO THE EDGE

Notes:

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.

Enjoy it.
