Brand	Sunstech
Model	HPBT220
Product Type	Bluetooth Headset
Bluetooth Version	Bluetooth V4.1
Bluetooth Profiles	A2DP, AVRCP, HSP, HFP
Effective Range	Up to 10 meters (open space)
Talk Time	Up to 6 hours
Music Play Time	Up to 5 hours
Standby Time	Up to 180 hours
Input Voltage	5 V (via micro USB)
Charging Time	Approximately 1 hour 30 minutes to 2 hours
Weight	14 g
Box Contents	Bluetooth headset, USB charging cable, user manual, 3 pairs of ear tips (S/M/L), 1 pair of ear fins
Main Functions	Bluetooth pairing, call commands (answer/hang up), track control (previous/next/pause), volume control, voice assistant, multilingual voice prompts
Voice Prompt Languages	English, Spanish, French, Chinese
Care and Cleaning	Clean with a soft, slightly damp cloth. Do not use abrasive products. Disconnect before cleaning.
Safety Precautions	Do not expose to heat, moisture, dust. Do not disassemble. Use only original accessories.
Warranty	2 years from the date of purchase
Country of Manufacture	China
Certifications	R&TTE 1999/5/EC, RoHS 2011/65/EU

Frequently Asked Questions - HPBT220 Sunstech

How to pair the HPBT220 headset with my phone?

Make sure Bluetooth on your phone is enabled. Turn off the headset, then press and hold the multifunction button (2) for 6 seconds until the indicator flashes red and blue rapidly. Select "HPBT220" from your phone's Bluetooth device list. If a code is requested, enter 0000.

How to recharge the HPBT220 headset?

Use the supplied micro USB cable. Plug the small end into the base of the right earbud (R) and the other end into a USB power adapter (not included) or a computer. A full charge takes approximately 1 hour 30 minutes to 2 hours. The red light turns off and the blue light turns on when the battery is full.

What is the battery life of the HPBT220 headset?

Battery life is up to 6 hours of talk time and 5 hours of music playback. Standby time can reach 180 hours.

How to change the voice prompt language?

When the headset is on, briefly press the Volume + and Volume - buttons simultaneously. The system will automatically switch to another language among English, Spanish, French, and Chinese.

How to skip to the next or previous track?

To skip to the next track, press and hold the Volume - button (4) for 3 seconds. To return to the beginning of the track, press and hold the Volume + button (3) for 3 seconds. To skip to the previous track, repeat the operation a second time.

What to do if the headset does not connect?

Check that the headset is charged and turned on. Make sure Bluetooth on your device is enabled and you select the correct model (HPBT220). If the problem persists, reset the pairing by turning off the headset and repeating the pairing procedure.

Are the HPBT220 headsets water resistant?

No, they are not water resistant. Avoid exposure to rain, moisture, or any liquid. Do not use in the rain.

How to clean the HPBT220 headset?

Use a soft, dry cloth. If necessary, slightly dampen the cloth. Never use abrasive products or solvents. Turn off and disconnect the headset before cleaning.

What is the warranty on the Sunstech HPBT220 headset?

The warranty is 2 years from the date of purchase. It does not cover damage due to misuse, improper installation, or repairs by unauthorized persons. Keep the receipt for any claims.

Can I use a charger other than the one provided?

It is recommended to use the original USB cable and a suitable power adapter (5V). Using an unsuitable charger may damage the headset. Ensure the input voltage is 5V.

USER MANUAL HPBT220 Sunstech

Line drawing of two hair blower devices with grid-patterned headsets and stand (no text or symbols)

STEREO BT EARPHONES

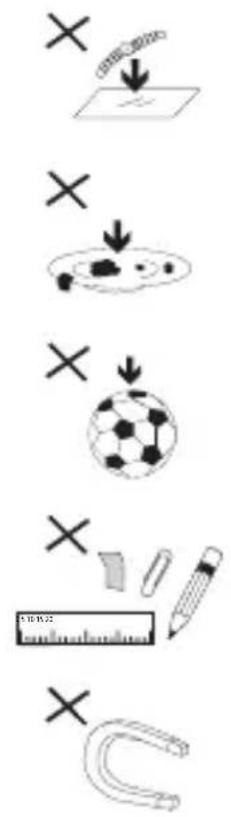

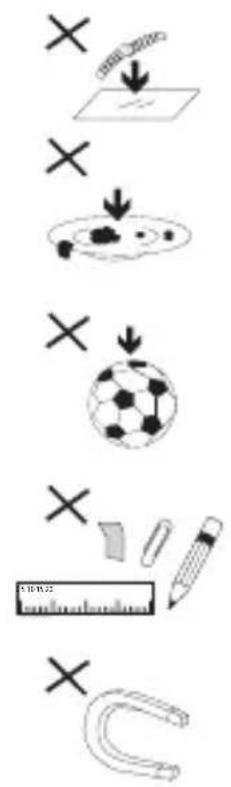

1-DO NOT place objects on top of the device, as objects may scratch the device.

2-DO NOT expose the device to dirty or dusty environments.

3-DO NOT place the device on an uneven or unstable surface.

4-DO NOT insert any foreign objects into the device.

5-DO NOT expose the device to strong magnetic or electrical field.

6-DO NOT expose the device to direct sunlight as it can damage the device. Keep it away from heat sources.

7-DO NOT store your device in temperatures higher than 40^ C( 104^ F). The internal operating temperature for this device is from 20^ C( 68^ F) to 60^ C( 140^ F).

8-DO NOT use the device in the rain.

9-Please check with your Local Authority or retailer for proper disposal of electronic products.

10-The device and adaptor may product some heat during normal operation of charging. To prevent discomfort or injury from heat exposure, DO NOT leave the device on your lap.

11-POWER INPUT RATING: Refer to the rating label on the device and be sure that the power adaptor complies with the rating. Only use accessories specified by the manufacturer.

12-Clean the device with a soft cloth. If needed, dampen the cloth slightly before cleaning. Never use abrasives or cleaning solutions.

1. Always power off the device to install or remove external devices that do not support hot-plug.


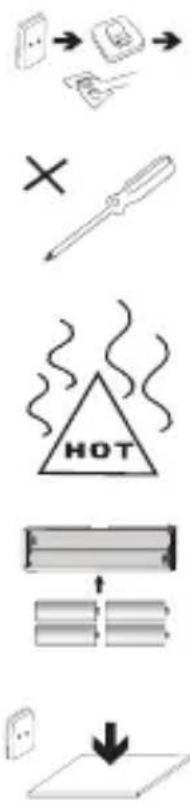

14-Disconnect the device from an electrical outlet and power off before cleaning the device.

15-DO NOT disassemble the device. Only a certified service technician should perform repair.

16-The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

17-Risk of explosion if battery replaced by an incorrect type. Dispose of used batteries according to the instruction.

18-PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily accessible.

Thank you for purchasing the stereo bluetooth headset, we hope you will be delighted with its operation. Please read this user guide to get started, and to make the best use of the headset features.

Box contents:

Bluetooth earphone

USB charging cable

User manual

-3 Pairs of Ear Tips-Small, Medium, Large (one pair already fitted)
-1 Pairs of Secure Fit Fins

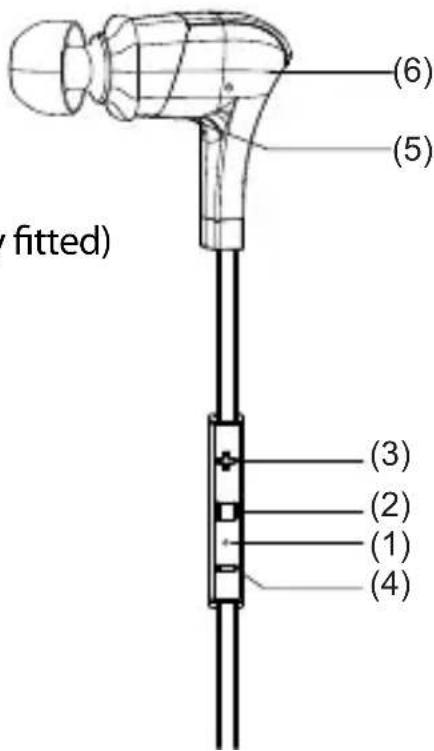

Overview:

(1)Microphone
(2)Multifunction Button
(3)Volume Up/Previous
(4)Volume Down/Next
(5)Micro USB Charging Input
(6)LED Light Indicator

Charging

Please perform one full charge prior to use

With the USB Charging Cable provided, insert the small (micro) USB section into the base of the R (right) earphone.

With the other end of the USB Cable, simply plug it into a PC or a AC USB Power Adaptor (Power Adaptor not included)

When the battery is fully charged, the red indicator will turn off and the blue indicator will turn on.

Pairing | Connecting

Pairing with Bluetooth Device

Please ensure your Bluetooth device has Bluetooth enabled Start with the earphones in off mode.

Push and hold the multi function button (2) for 6 seconds, until the light flashes red and blue rapidly. The voice prompts will notify you that you have entered pairing mode. Enter the menu of your phone / music device to pair in the Bluetooth menu.

Select "HPBT220" from your device list. Some devices may ask for a verifying code which is 0000

Turning On | Off

Turning device on and off

Turn on—Hold multi button (2) for 3 seconds, you will be prompted by a voice saying "power on" Turn off—Hold multi button (2) for 3 seconds or until you hear a series of beeps prompting you that the power is off.

Language Selection

HPBT220 supports voice prompts in English, Spanish, French and Chinese. When the headset is ON, short press the volume buttons +/- at the same time and the headset will automatically switch to another language.

Phone Controls

Answer | End Call

When your phone rings, simply press the multi function(2)button to answer Press the multi function (2) button to hang up

Track Skip Controls

Controlling Audio Tracks

< Track Back: Hold Volume+ button (3) for 3 seconds and the track will return to the start, then release Volume+ and press and hold again for 3 seconds

Track Forward: Hold Volume– button (4) for 3 seconds

Pausing Track: Press the Multifunction button (2)

Volume Control

Volume Control

Increase volume by rapidly pressing Volume+ button (3)

Decrease volume by rapidly pressing Volume-button (4)

Please note: Holding down the Volume buttons (+/-) will result in the track skipping forward or back

Specifications

Bluetooth Version	Bluetooth V4.1 (ISSC2021)
Profile	A2DP/AVRCP/HSP/HFP
Effective Range	Up to 10 meters in working distance(open space)
Working time	Up to 6 hours talk time | Up to 5 hoursmusic playback time
Standby time	Up to 180 hours standby time
Input voltage	Input Voltage: 5V
Charging time	Around 1.5-2hours
Weight	14g

Made in China

Important

1. Before charging, please check the charger suitable for Bluetooth headset.
2. Please use original battery and original USB cable. If you use other charger to charge, it may damage the headset.
3. Bluetooth headset's battery is Li-ion polymer type. Don't take it out. Protect the product against spoilage.
4. Keep your headset off when you don't use it. You need to charge three times each month in order to longer the lifespan of the battery.
5. Don't throw the device into fire.

Note

Please kindly note that the functions or operations stated in this User Manual is only applicable to devices which support Bluetooth. Please carefully read instruction of your Bluetooth devices because the operation might be different.

Warranty conditions

-The warranty of this product is for 2 years since the purchase date.

- The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

Correct disposal of this product

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsible to promote the sustainable reuse of material resources. Household user should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditionsof the purchase contract. This product should not be mixed with other commercial wastes for disposal.

DECLARATIONOFCONFORMITY

Council Directive(s) to which conformity is declared:

Directive(1999/5/EC)-R&TTE Directive(2011/65/EU) - RoHS

Application of the Standards:

EN62479:2010

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN301489-1V1.9.2(2011-09)

EN301489-17V2.2.1(2012-09)

EN300328v1.8.1(2012-06)

EN50332-1:2013

IEC62321:2013

AFEXSUNS,S.A.

Manufacturer's address: C/Pallars189,08005Barcelona

Type of equipment: BTEarphone

Trade: SUNSTECH

Model no.: HPBT220

We, the undersigned, hereby declare under our sole responsibility that the

specified equipment is in conformity with the above Directive(s) and

Standard(s)

(Signature)

Victor Planas Bas

(Full name)

General Manager (Position)

Place: Barcelona

Date: 28 - April - 2015
