Performer FC9179 - Vacuum Cleaner PHILIPS - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Philips
Model	Performer FC9179
Rated Power	1800 W
Dust Bag Capacity	4 L
Weight	5.9 kg
Dimensions (L x W x H)	440 x 290 x 220 mm
Power Cord Length	7 m
Operating Radius	9 m
Filtration Type	HEPA 13 washable filter
Noise Level	78 dB(A)
Included Accessories	Combination nozzle, crevice tool, dusting brush, parquet brush
Bag Indicator	Yes
Variable Power Control	Electronic on handle
Park & Store System	Vertical parking and horizontal storage
Replacement Bag Type	Philips s-bag (classic HyperClean)
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - Performer FC9179 PHILIPS

How do I change the dust bag in my Philips Performer FC9179?

Open the front cover, lift the bag holder, and remove the full bag. Dispose of it properly. Insert a new Philips s-bag (classic HyperClean) until it clicks into place. Close the cover.

How to clean the HEPA filter?

Remove the filter from the back of the vacuum. Tap it gently over a trash bin to remove dust. If heavily soiled, rinse it under lukewarm water (max 40°C) and let it dry completely for 24 hours before reinserting.

What should I do if my vacuum cleaner doesn't start?

First, check if the power cord is properly plugged into an outlet. Ensure the on/off button on the handle is pressed. If still not working, check the fuse or circuit breaker. If the problem persists, contact Philips service.

How to use the accessories?

Attach the desired accessory to the end of the hose or tube. The combination nozzle can be used for floors and carpets by sliding the brush up/down. The crevice tool is for tight spaces, and the dusting brush for delicate surfaces.

The cord does not retract fully. What can I do?

Make sure the cord is not tangled or twisted. Pull it out a few meters and press the cord rewind button gently, guiding the cord back. If it still jams, check for obstructions in the rewind mechanism.

Why is my vacuum making an unusual noise?

Unusual noise may be due to a blockage in the hose or nozzle, a full dust bag, or a clogged filter. Check and clear any obstructions, replace the bag if full, and clean the filter. If noise continues, inspect for foreign objects.

How to improve suction power?

Ensure the dust bag is not full and the filter is clean. Check for blockages in the hose, tube, or nozzles. Make sure the variable power control is set to maximum. Also, use the appropriate nozzle for the surface.

How to store the vacuum cleaner?

The Philips Performer FC9179 can be parked vertically by inserting the tube clip into the parking slot. For storage, you can also place it horizontally with the hose attached. Keep it in a dry place.

Where can I buy replacement bags and filters?

Replacement bags (Philips s-bag classic HyperClean) and HEPA filters are available at most electronics stores, online retailers, or directly from Philips. Use the official product code: FC8021 for bags and FC8044 for filters.

What is covered under warranty?

The standard warranty covers manufacturing defects for 2 years from purchase date. It does not cover normal wear items like dust bags, filters, or damage from misuse. Keep your purchase receipt for service claims.

USER MANUAL Performer FC9179 PHILIPS

Register your product and get support at

www.philips.com/welcome

FC9179, FC9178

PHILIPS

ENGLISH 6

БЪЛГАРСКИ 22

ČEŠTINA 39

EESTI 55

HRVATSKI 71

MAGYAR 87

ҚАЗАҚША 103

LIETUVIŠKAI 120

LATVIEŠU 137

POLSKI 153

ROMÂNĂ 169

RUSSIAN 185

SLOVAK 202

SLOVENIAN 218

SERBIAN 234

UKRAINIAN 250

PERSIAN 281

ARABIC 296

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Philips incorporates the latest technologies to create products that are good for the environment in terms of energy consumption as well as material usage. This product is partly made of bioplastics and recycled plastics. Parts made of bioplastics are environmentally friendly because they have been derived from renewable biomass sources. Some parts still need to be made of conventional plastics, but for these parts Philips tries to use recycled plastics as much as possible. This production method results in considerably less waste than the traditional method. For more information on this and other environmental efforts of Philips, please visit www.asimpleswitch.com.

The Green Performer's extremely efficient motor yields a high performance at a low power consumption.

General description (Fig. 1)

1 Cord rewind button 2 Suction power selection wheel (specific types only) 3 On/off button 4 Dustbag-full indicator 5 Hose connection opening 6 Hose with swivel connection 7 Cover release tab 8 Motor protection filter holder 9 Removable strip (specific types only) 10 Reusable dustbag (specific types only) 11 Dustbag holder 12 Dustbag 13 Rear wheels 14 Ergonomic PostureProtect handgrip (specific types only) 15 Tube release button 16 Tube release button 17 Accessory holder release levers 18 Accessory holder 19 Screw cover strip 20 Hose 21 Flexible hose connection 22 Ergonomic ComfortControl handgrip (specific types only) 23 Infrared remote control (specific types only) 24 Telescopic tube without PostureProtect handgrip (specific types only) 25 Telescopic tube with PostureProtect handgrip (specific types only) 26 Tri-Active nozzle 27 Rocker switch for carpet/hard floor settings 28 Side brush 29 Parking/storage ridge 30 Small nozzle 31 Crevice tool 32 Brush attachment 33 Hinging top handle 34 Exhaust grille

35 Parking slot 36 Mains plug 37 HEPA 13 washable filter 38 Storage grip 39 Swivel wheel 40 Storage slot 41 Type plate

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Never suck up water or any other liquid. Never suck up flammable substances and do not suck up ashes until they are cold.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and the vacuum cleaner is switched on.

Caution

• When you use the vacuum cleaner to vacuum ashes, fine sand, lime, cement dust and similar substances, the pores of the dustbag become clogged. As a result, the dustbag-full indicator will indicate that the dustbag is full. Replace the disposable dustbag or empty the reusable dustbag, even if it is not full yet (see chapter 'Replacing/emptying the dustbag').
• Never use the appliance without the motor protection filter. This could damage the motor and shorten the life of the appliance.
• Only use Philips s-bag ^™ synthetic dustbags or the reusable dustbag provided (some countries only).
• Noise level: Lc = 78 dB(A)

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

1 Take the appliance and its accessories out of the box. 2 Remove any sticker, protective foil or plastic from the appliance.

Inserting batteries (specific types only)

Batteries for the remote control are supplied with the appliance. Insert the batteries into the battery compartment in the ergonomic handgrip before you use the appliance. The batteries last at least 2 years.

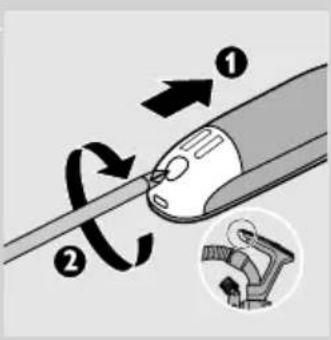

1 Use a screwdriver to loosen the screw of the battery compartment lid (1) and remove the battery compartment lid (2).

2 Insert two AAA 1.5-volt alkaline batteries into the battery compartment inside the handle.

Note: Make sure that the - and + poles point in the right direction.

3 Reattach the battery compartment lid (1) and fasten the screw with a screwdriver (2).

Preparing for use

Ergonomic advice

ComfortControl handgrip (specific types only)

• The unique ComfortControl handgrip is ergonomically designed to give you sufficient comfort during vacuum cleaning.
• To gain optimal benefit from this handgrip, it is important that you do not position your second hand on the tube. When you do so, you twist and bend your back, which could result in back problems.

PostureProtect handgrip (specific types only)

• The unique PostureProtect handgrip is ergonomically designed for 2-handed use to prevent you from placing your hand on the lower part of the tube. We recommend that you use the PostureProtect handgrip to prevent bending your back, but if you do not find it comfortable to use, you can remove it. In this case, follow the instructions in section 'Removing the PostureProtect handgrip' in chapter 'Troubleshooting'.
• Do not place your other hand on the tube. You twist and bend your spine when you do so, which could result in back problems.
• Our ergonomist advises you to adjust the length of the tube so that the hand holding the standard handgrip is at hip level.

Attaching the handgrip

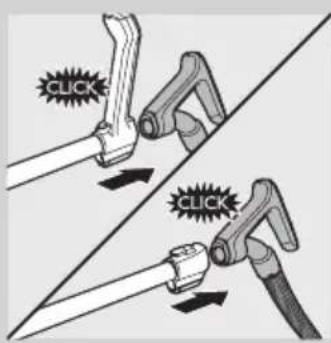

1 Attach the handgrip to the telescopic tube ('click').

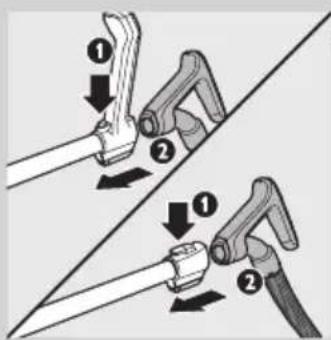

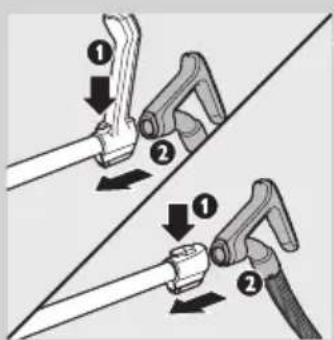

2 To disconnect the handgrip from the tube, hold the handgrip with one hand. With the other hand, hold the telescopic tube and press the tube release button (1) and pull the tube off the handgrip (2).

Note: This vacuum cleaner has been fitted with holes at the end of the handgrip. These holes may prevent objects from getting stuck or damaged when you use your vacuum cleaner without the tube or accessories supplied.

Hose

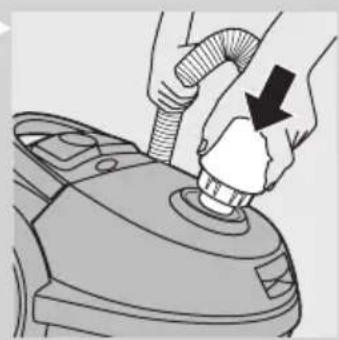

1 To connect the hose, push it firmly into the appliance ('click').

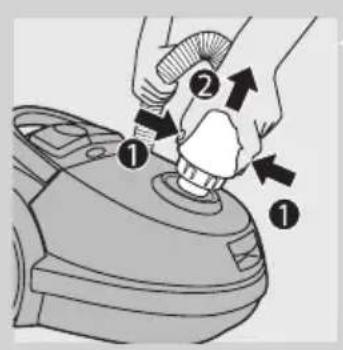

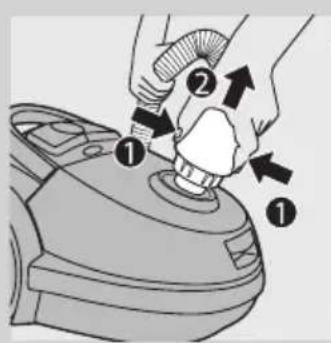

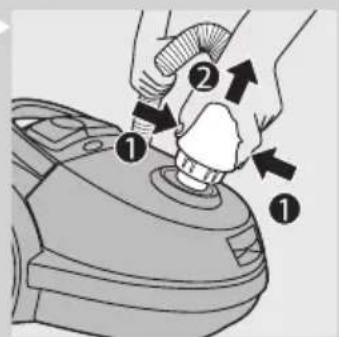

2 To disconnect the hose, push the buttons (1) and pull the hose out of the appliance (2).

Telescopic tube

1 Adjust the length of the tube in such a way that the flexible hose connection is at hip level.

2 Hold the tube so that the standard handgrip is at hip level.

3 To connect the tube to a nozzle, press the spring-loaded lock button on the tube and insert the tube into the nozzle. Fit the spring-loaded lock button into the opening in the nozzle ('click').

- To disconnect the nozzle from the tube, press the spring-loaded lock button and pull the accessory out of the tube.

Accessory holder (specific types only)

1 Slide the accessory holder with accessories onto the handgrip ('click').

2 To detach the accessory holder, squeeze the release levers together (1) and slide the accessory holder off the handgrip (2).

Crevice tool and small nozzle

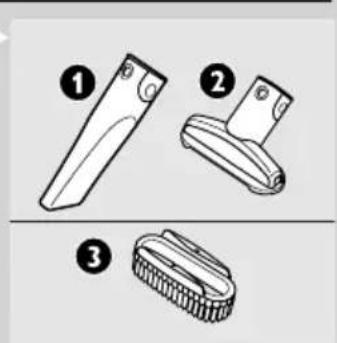

1 Connect the crevice tool (1) or small nozzle (2) with or without brush attachment (3) to the tube or directly to the handgrip.

Brush attachment (specific types only)

1 To assemble the brush attachment, slide it onto the bottom of the small nozzle ('click').

2 To disassemble the brush attachment, slide it off the bottom of the small nozzle.

Tri-Active nozzle (specific types only)

The Tri-Active nozzle is a multi-purpose nozzle for carpets and hard floors.

- The side brushes catch more dust and dirt at the sides of the nozzle and allow you to clean better along furniture and other obstacles.

- The opening at the front of the nozzle allows you to suck up larger particles.

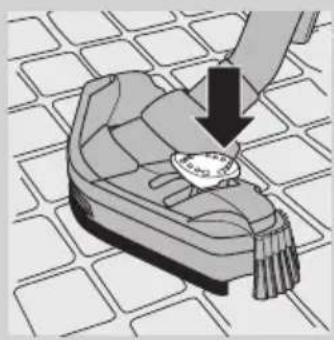

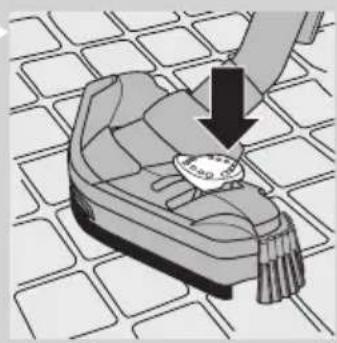

1 Use the hard floor setting to clean hard floors (for instance for tiled, parqueted, laminated and linoleumed flooring): push the rocker switch on top of the nozzle with your foot to make the brush strip come out of the housing. At the same time, the wheel is lifted to prevent scratching and to increase manoeuvrability.

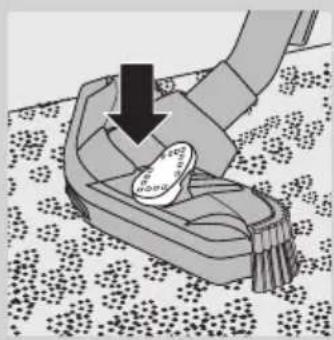

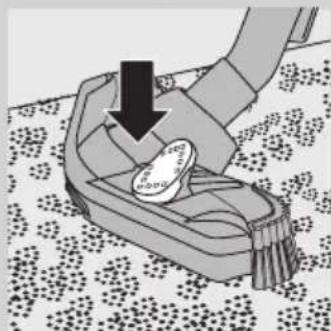

2 Use the carpet setting to clean carpets: push the rocker switch again to make the brush strip disappear into the nozzle housing. The wheel is lowered automatically.

Remote control operation (specific types only)

The remote control has three buttons with which you operate the vacuum cleaner. With the '+' and '-' buttons you adjust the suction power, and with the standby button you switch the appliance to standby mode.

Note: The functions on the remote control only work after you have switched on the appliance with the on/off switch on the appliance itself.

Note: Replace the batteries when the 'infrared active light' does not light up when you press any button. See chapter 'Replacement' to replace the batteries.

Using the appliance

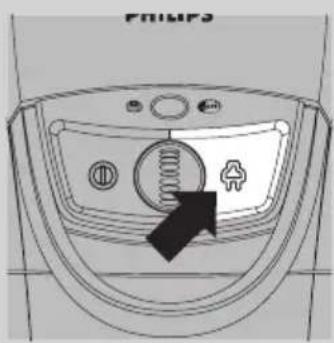

1. Pull the cord out of the appliance and put the mains plug in the wall socket. 2. To switch on the appliance, press the on/off button on top of the appliance. Tip: To avoid bending your back, press the on/off button with your foot. 3. To switch off the appliance, press the on/off button on top of the appliance.

Adjusting suction power

On appliance (specific types only)

1. During vacuum cleaning, you can adjust the suction power with the selection wheel on top of the appliance. - Use maximum suction power to vacuum very dirty carpets and hard floors. - Use minimum suction power to vacuum curtains, tablecloths, etc.

On remote control (specific types only)

1. During vacuuming, you can adjust the suction power level with the - and + buttons on the remote control. - Use maximum suction power to vacuum very dirty carpets and hard floors.

- Use minimum suction power to vacuum curtains, tablecloths, etc.

Pausing during use

1. If you want to stop vacuum cleaning for a moment, press the standby button on the remote control to switch off the appliance temporarily (specific types only).

If your appliance has no remote control, press the on/off button on top of the appliance to switch off the appliance.

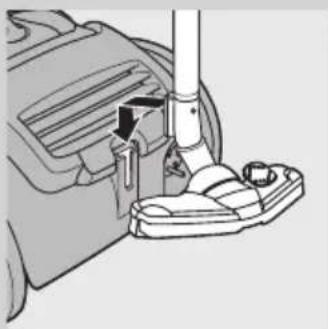

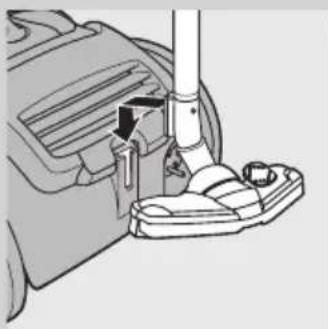

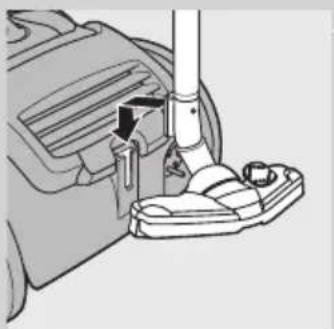

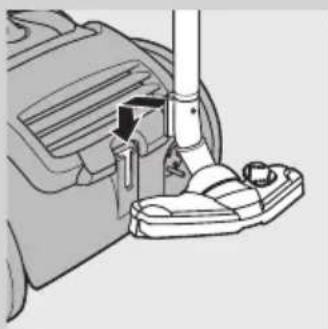

2 Insert the ridge on the nozzle into the parking slot to park the tube in a convenient position. 3 To ensure stable parking of the telescopic tube, adjust the tube to the shortest length. 4 To continue vacuum cleaning, simply press the standby button on the remote control again (specific types only).

If your appliance has no remote control, press the on/off button on top of the appliance to switch on the appliance.

Storage

1 Switch off the appliance and remove the mains plug from the wall socket. 2 Press the cord rewind button to rewind the mains cord.

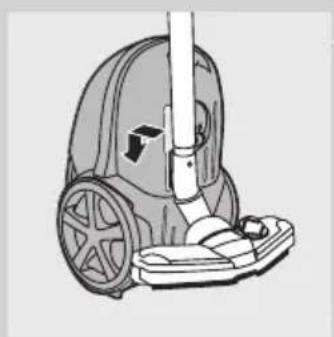

3 Put the appliance in upright position. To attach the nozzle to the appliance, insert the ridge on the nozzle into the storage slot.

- To ensure stable parking of the telescopic tube, adjust the tube to the shortest length.

4 Specific types only: Always put the Tri-Active nozzle in the carpet setting when you store it. Also prevent the side brushes from becoming bent.

Replacing/emptying the dustbag

Always unplug the appliance before you replace the disposable dustbag or empty the reusable dustbag.

Replacing the disposable dustbag

- Replace the dustbag as soon as the dustbag-full indicator has changed colour permanently, i.e. even when the nozzle is not placed on the floor.

1 Pull the cover upwards to open it.

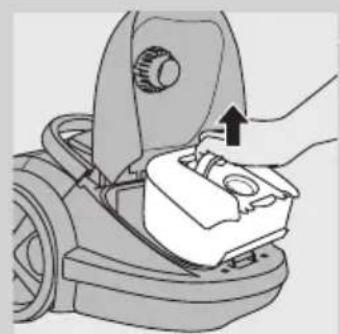

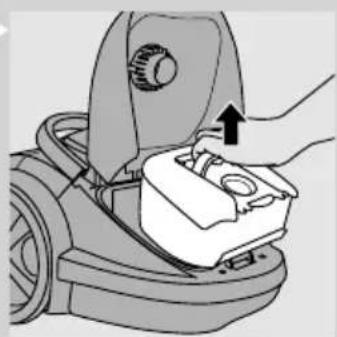

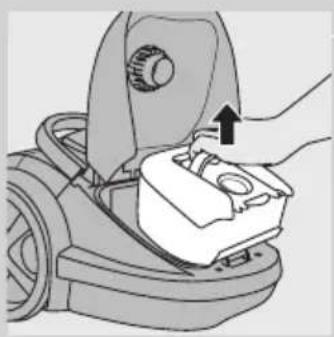

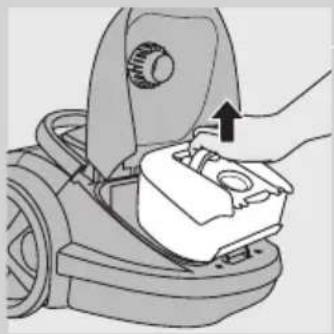

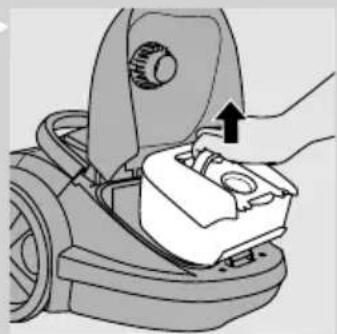

2 Lift the dustbag holder out of the appliance.

Make sure you hold the dustbag upright when you lift it out of the appliance.

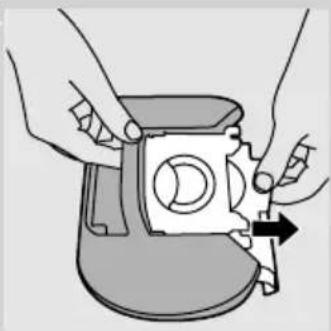

3 Pull at the cardboard tag to remove the full dustbag from the holder. When you do this, the dustbag is sealed automatically.

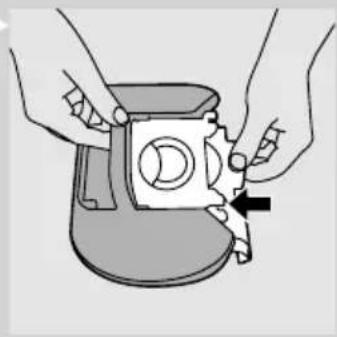

4 Slide the cardboard front of the new dustbag into the two grooves of the dustbag holder as far as possible.

5 Put the dustbag holder back into the vacuum cleaner.

Note: If no dustbag has been inserted, you cannot close the cover.

6 Push the cover downwards to close it.

Emptying the reusable dustbag (some countries only)

In some countries, this vacuum cleaner also comes with a reusable dustbag that can be used and emptied repeatedly. You can use the reusable dustbag instead of disposable dustbags.

To remove and insert the reusable dustbag, simply follow the instructions in 'Replacing the disposable dustbag'.

To empty the reusable dustbag:

1 Slide the clip off the dustbag sideways. 2 Shake out the contents into a dustbin. 3 To close the dustbag, slide the clip back onto the bottom edge of the dustbag.

Cleaning and maintenance of filters

Always unplug the appliance before you clean or replace the filters.

Permanent motor protection filter

Clean the permanent motor protection filter every time you empty the reusable dustbag or replace the disposable dustbag.

1 Remove the dustbag holder with the dustbag.

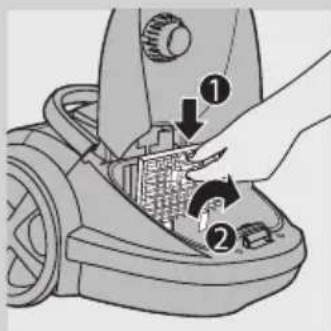

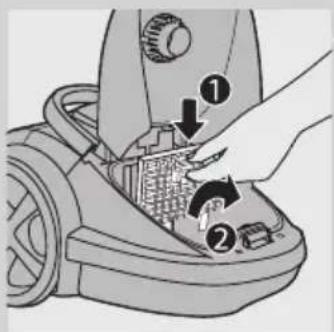

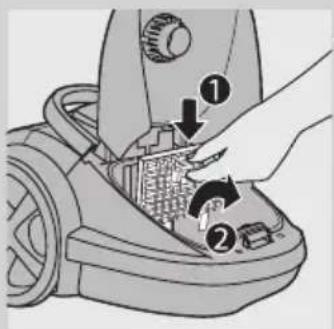

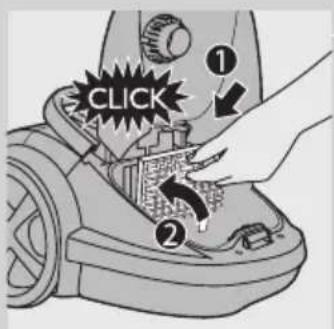

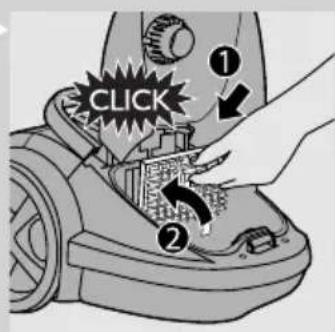

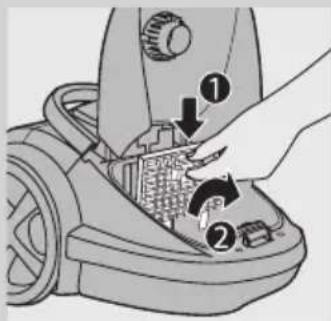

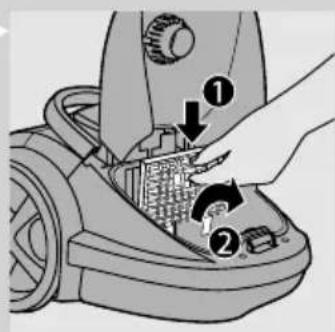

2 Press the tab at the top of the motor protection filter holder down to release it (1). Lift the filter holder out of the dustbag compartment (2). 3 Shake the filter over a dustbin to clean it. 4 Put the clean filter back into the filter holder.

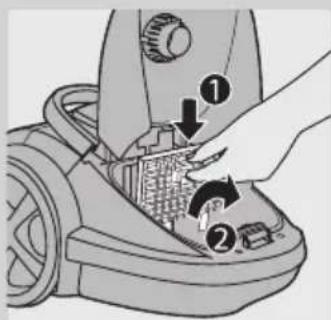

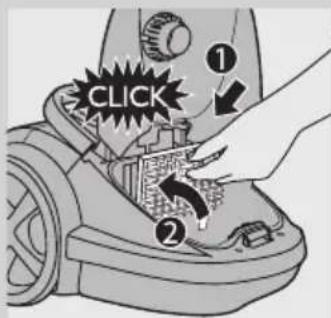

5 Fit the two lugs of the filter holder behind the ridge at the bottom to ensure that it fits properly at the top (1). Then press the filter holder home ('click') (2). 6 Place the dustbag holder with the dustbag back into the appliance and close the cover.

HEPA 13 washable filter

HEPA 13 washable filter is able to remove 99.95% of all particles down to 0.0003mm in size from the outlet air. This not only includes normal house dust, but also harmful microscopic vermin such as dust mites and their excrements, which are well-known causes of respiratory allergies.

Note: To guarantee optimal dust retention and performance of the vacuum cleaner, always replace the HEPA filter with an original Philips filter of the correct type (see chapter 'Ordering accessories').

Clean the washable HEPA 13 filter every 6 months. You can clean the washable HEPA 13 filter max. 4 times. Replace the filter after it has been cleaned 4 times.

Note: Do not clean the HEPA 13 filter in the washing machine, but follow the procedure below.

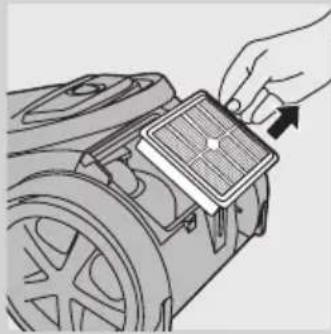

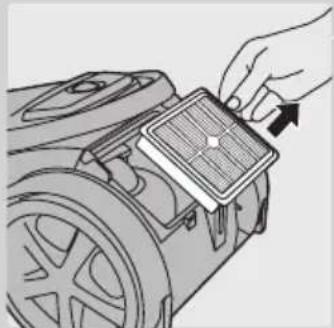

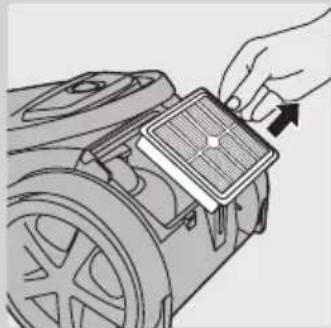

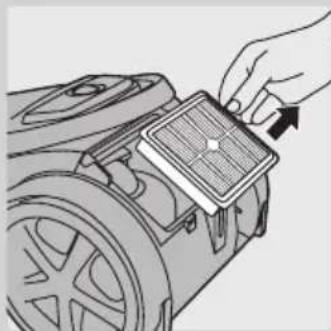

1 Hold the release tabs of the HEPA 13 filter to open and remove the filter cover. 2 Take out the washable HEPA 13 filter. 3 Rinse the pleated side of the HEPA 13 filter under a hot slow-running tap.

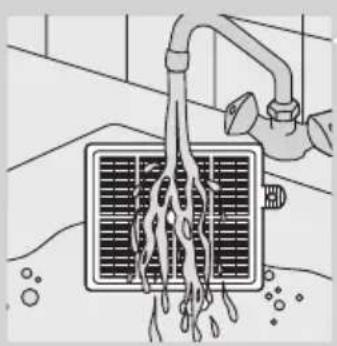

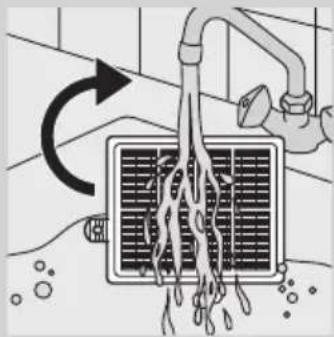

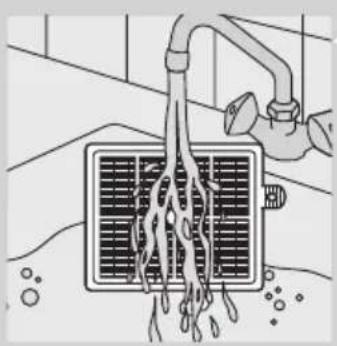

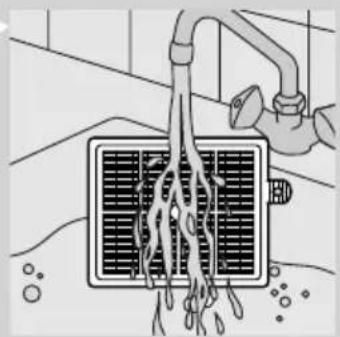

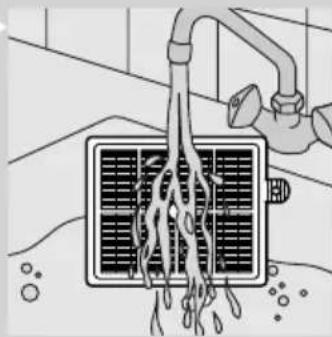

- Hold the filter in such a way that the pleated side points upwards and the water flows parallel to the pleats. Hold the filter at an angle so that the water washes away the dirt inside the pleats.

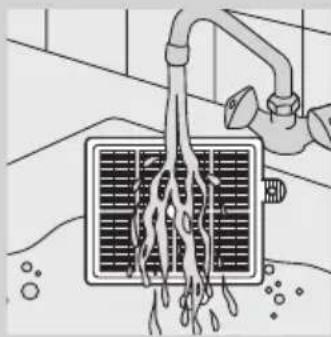

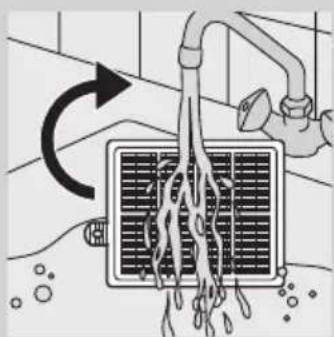

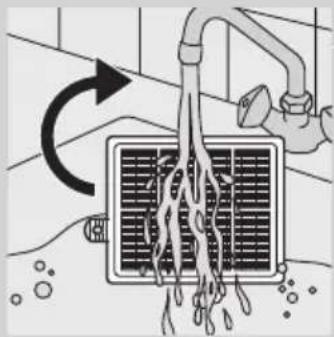

- Turn the filter 180 degrees and let the water flow along the pleats in opposite direction.

- Continue this process until the filter is clean.

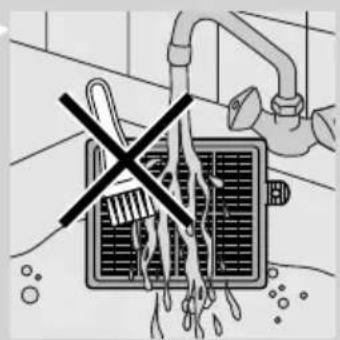

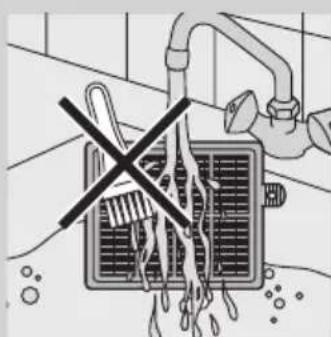

Never clean the washable filter with a brush.

Note: Cleaning does not restore the original colour of the filter, but does restore its filtration power.

4 Carefully shake the water from the surface of the filter. Let the filter dry completely for at least 2 hours before you put it back into the vacuum cleaner.

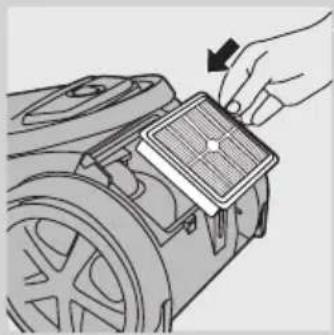

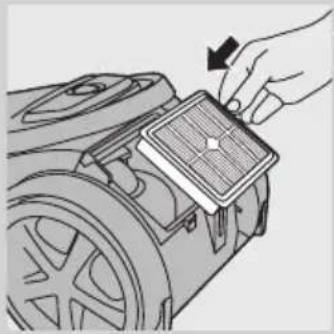

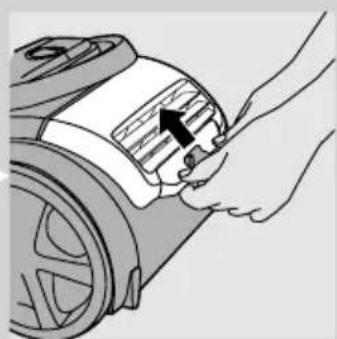

5 Put the dry filter back into the appliance.

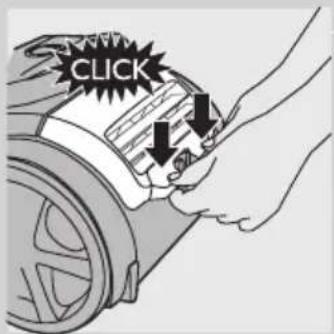

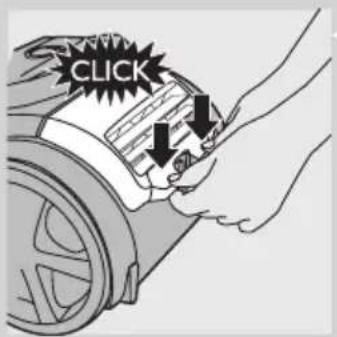

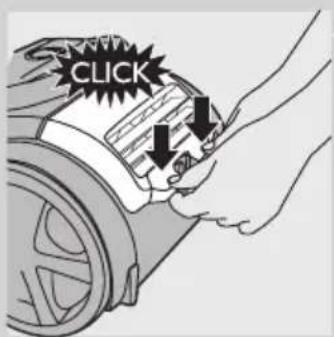

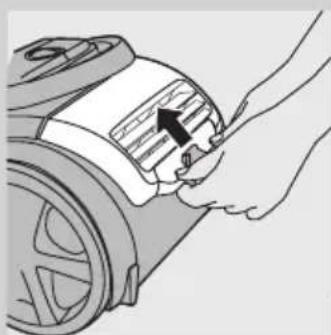

6 Reattach the top of the filter cover and then close the cover ('click') (2).

Ordering accessories

For purchasing dustbags, filters or other accessories for this appliance, please visit www.philips.com, consult the worldwide guarantee leaflet or contact the Philips Consumer Care Centre in your country.

Ordering dustbags

• Philips Classic s-bag ^TM synthetic dustbags are available under type number FC8021.
• Philips Clinic s-bag ^™ high filtration synthetic dustbags are available under type number FC8022.
• Philips Anti-odour s-bag ^TM synthetic dustbags are available under type number FC8023.
• Reusable dustbags (some countries only) are available under code number 4322 004 93290.

Note: Please visit www.s-bag.com for more information about the s-bag.

Ordering filters

- HEPA 13 washable filters are available under code number 4322 004 93350.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Specific types only

- Batteries contain substances that may pollute the environment. Always remove the batteries before discarding the appliance or handing it in at an official collection point. Dispose of the batteries at an official collection point for batteries.

Replacement

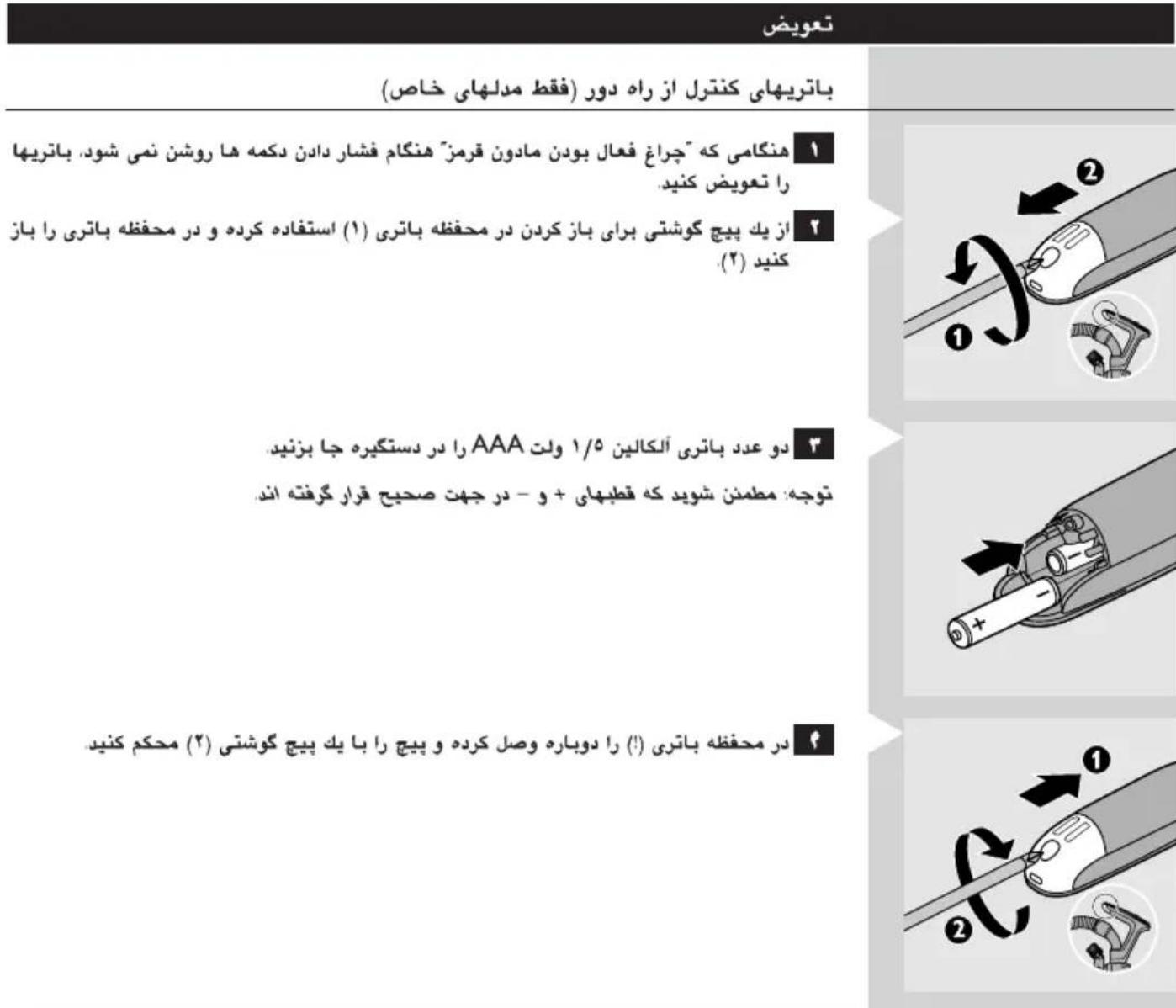

Batteries of remote control (specific types only)

1. Replace the batteries when the 'infrared active light' does not light up when you press any button.

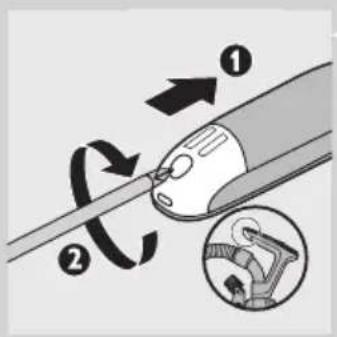

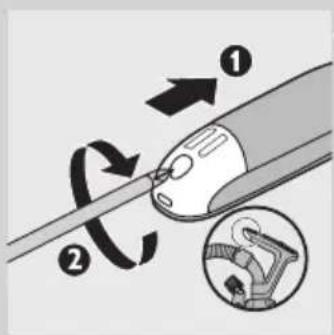

2. Use a screwdriver to remove the screw of the battery compartment lid (1) and remove the battery compartment lid (2).

3. Insert two new AAA 1.5-volt alkaline batteries into the handle.

Note: Make sure that the - and + poles point in the right direction.

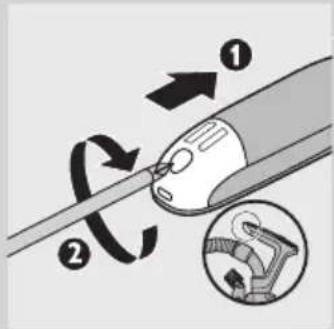

4. Reattach the battery compartment lid (1) and fasten the screw with a screwdriver (2).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The suction power is insufficient.	You have selected a low suction power setting.	Select a higher suction power setting.
	The motor protection filter is dirty.	Clean the motor protection filter.
	The HEPA 13 filter is dirty.	Clean or replace the HEPA 13 filter.

Problem Possible cause Solution

	The nozzle, hose or tube is blocked up.	To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible) the other way around. Switch on the vacuum cleaner to suck the obstruction out of the blocked-up item.
The infrared remote control (specific types only) does not function.	You have not inserted the batteries properly or the batteries are empty.	Insert the batteries properly or replace them. See chapter ‘Replacement’.

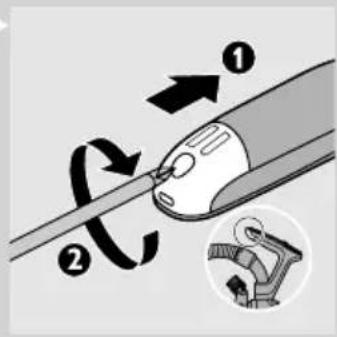

Removing the PostureProtect handgrip (specific types only)

If you do not find the PostureProtect handgrip comfortable to use, you may consider removing it.

1 Remove the screw cover strip from the PostureProtect handgrip.

2 Use a screwdriver to remove the screws of the PostureProtect handgrip. 3 Remove the PostureProtect handgrip from the tube.

Only some types

2 Insert two AAA 1.5 V alkaline batteries into the battery compartment inside the handle.

3 Put the battery compartment cover (1) back and tighten the screw with a screwdriver (2).

5 Put the dust bag holder back into the vacuum cleaner.

5 Put the dry filter back into the appliance.

2 Use a screwdriver to loosen the screw of the battery compartment cover (1) and remove the battery compartment cover (2).

4 Put the battery compartment cover (1) back and tighten the screw with a screwdriver (2).

Warranty and service

2 Remove the screws from the PostureProtect handle using a screwdriver. 3 Remove the PostureProtect handle from the tube.

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at: www.philips.com/welcome.

The remote control batteries are supplied with the appliance. Before using the appliance, insert the batteries into the battery compartment on the ergonomic handle. The batteries last at least 2 years.

1 Using a screwdriver, loosen the screw on the battery compartment cover (1) and remove the cover from the battery compartment (2).

3 Replace the battery compartment cover (1) and tighten the screw with a screwdriver (2).

ComfortControl handle (select models only)

• The unique ComfortControl handle is ergonomically designed to provide comfort during vacuuming.
• To get the most benefit from this handle, it is important not to place your other hand on the tube. Doing so twists and bends your back, which can lead to spinal problems.

PostureProtect handle (select models only)

• The unique PostureProtect handle is ergonomically designed for two hands to prevent you from holding the lower part of the tube with your hand. We recommend using the PostureProtect handle to avoid bending your back, but if it is not comfortable for you, you can remove it. In that case, follow the instructions in the "Removing the PostureProtect handle" section in the "Troubleshooting" chapter.
• Do not place your other hand on the tube. Doing so will bend and twist your spine, which can lead to back problems.
• Our experts advise you to adjust the length of the tube so that the hand holding the standard handle is at hip level.

Attaching the handle

2 To detach the handle from the tube, hold the handle with one hand. With the other hand, hold the telescopic tube and press the tube release button (1), then pull the tube off the handle (2).

2 To detach the hose, press the buttons (1) and pull the hose out of the appliance (2).

Telescopic tube

1 Adjust the length of the tube so that the flexible hose connection is at hip level.

2 Hold the tube so that the standard handle is at hip level.

To detach the accessory holder, press the release buttons (1) and pull the accessory holder off the handle (2).

Narrow crevice nozzle and small suction brush

Small brush (certain models only)

1 To assemble the brush nozzle, push it into the base of the small suction brush until it clicks.

2 To disassemble the brush nozzle, pull it out of the base of the small suction brush until it clicks.

Tri-Active suction brush (certain models only)

The remote control has three buttons to operate the vacuum cleaner. Use the '+' and '-' buttons to adjust the suction power, and the standby button to switch the appliance to standby mode.

1 To temporarily stop vacuuming, press the standby button on the remote control and the appliance will pause (certain models only).

3 Place the appliance in an upright position. To attach the suction brush to the appliance, insert the guide on the brush into the parking slot.

To ensure the telescopic tube remains stable, set it to its shortest length.

4 Certain models only: Always store the Tri-Active suction brush with the side brushes retracted. Also make sure the side brushes do not bend.

Replacing/emptying the dust bag

Always disconnect the appliance from the power supply before replacing the disposable bag or emptying the reusable bag.

2 Remove the bag holder from the vacuum cleaner.

Make sure you hold the bag upright when removing it from the appliance.

Clean the permanent motor protection filter after each emptying of the reusable dust bag or replacement of the disposable dust bag.

1 Remove the bag holder together with the bag.

1 Press the release tabs on the HEPA filter to open and remove the filter cover. 2 Remove the washable HEPA 13 filter. 3 Rinse the ribbed side of the HEPA 13 filter under a gentle stream of hot water.

- Hold the filter so that the ribbed side faces upward, and the water flows parallel to the ribs. Hold the filter at an angle so that the water rinses away the dirt inside the ribs.

5 Put the dry filter back into the appliance.

6 Replace the top of the filter cover, then close the cover ("click") (2).

Ordering accessories

To purchase dust bags, filters, or other accessories for this appliance, visit www.philips.com, check the international warranty leaflet, or contact the Philips Consumer Care Center in your country.

Ordering bags

• Philips Classic s-bag ™ synthetic dust bags are available under number FC8021.
• Philips Clinic s-bag ^TM synthetic bags with excellent filtration are available under number FC8022.
• Philips Anti-odour s-bag ^TM synthetic dust bags are available under number FC8023.
• Reusable dust bags (only in some countries) are available under code 4322 004 93290.

- Do not dispose of the appliance with normal household waste when it can no longer be used; instead, take it to a designated recycling point. This will help preserve the environment.

Only some models

2 Use a screwdriver to remove the screw from the cover (1) and take off the cover of the battery compartment (2).

4 Replace the battery compartment cover (1) and tighten the screw with a screwdriver (2).

Warranty and service

If you need service or information or if you have a problem, visit the Philips website, www.philips.com, or contact the Philips Consumer Care Center in your country (the phone number is in the international warranty leaflet). If there is no Consumer Care Center in your country, go to your local Philips dealer.

Troubleshooting

This chapter describes the most common problems you might encounter when using the appliance. If you cannot solve the problem with the information below, contact the Consumer Care Center in your country.

2 Use a screwdriver to remove the screws from the PostureProtect handle. 3 Remove the PostureProtect handle from the tube.

Introduction

The opening at the front of the nozzle sucks up larger particles.

PostureProtect handle (only on specific models)

1 Attach the handle to the telescopic tube (you hear a click).

2 To detach the handle from the tube, hold the handle with one hand. With the other hand, hold the telescopic tube, press the tube release button (1) and pull the tube out of the handle (2).

5 Put the dry filter back into the appliance.

2 Use a screwdriver to remove the screws of the PostureProtect handle. 3 Remove the PostureProtect handle from the tube.

Introduction

PostureProtect handle (only certain models)

1 Attach the handle to the telescopic tube (click).

Brush accessory (only certain models)

3 Refit the battery compartment cover (1) and tighten the screw with a screwdriver (2).

PostureProtect handle (only certain models)

2 To detach the handle from the tube, hold it with one hand. With the other hand, hold the telescopic tube and press the tube release button (1) and pull the tube out of the handle (2).

Brush (only certain models)

1 Attach the brush by sliding it onto the bottom of the small nozzle (you will hear a "click").

1 Pull the cover upwards to open it.

2 Remove the washable HEPA 13 filter. 3 Rinse the pleated side of the HEPA 13 filter under a gentle stream of hot water.

Only certain models

4 Refit the battery compartment cover (1) and tighten the screw with a screwdriver (2).

Warranty and service

Removing the PostureProtect handle (only certain models)

The batteries for the remote control are supplied with the appliance. Before using the appliance, insert the batteries into the battery compartment on the ergonomic handle. The battery life is at least 2 years.

1 Using a screwdriver, loosen the screw on the battery compartment cover (1) and remove the battery compartment cover (2).

2 Insert two 1.5-volt AAA alkaline batteries into the battery compartment on the ergonomic handle.

3 Replace the battery compartment cover (1) and tighten the screw (2) with a screwdriver.

Preparation for use

PostureProtect handle (only on certain models)

1 To connect the hose, push it firmly into the appliance (you will hear a click).

2 To disconnect the hose, press the buttons (1) and pull the hose out of the appliance (2).

Telescopic tube

1 Adjust the length of the tube so that the flexible hose connection is at hip height.

1 Attach the accessory holder with accessories to the handle ("click").

- The remote control has three buttons to operate the vacuum cleaner. Use the “+” and “-” buttons to adjust the suction power, and the standby button to switch the appliance to standby mode.

3 Place the appliance upright. To attach an accessory, insert the pin on the accessory into the storage slot.

2 Lift the bag holder out of the appliance.

4 Place the upper cardboard part of the new bag between the two grooves on the holder and push it all the way in.

5 Insert the bag holder back into the vacuum cleaner.

2 Remove the HEPA 13 washable filter. 3 Rinse the pleated side of the HEPA 13 filter under hot, slowly running tap water.

5 Place the dry filter back into the appliance.

6 Reattach the top part of the filter cover and close the cover ("click") (2).

Ordering accessories

4 Replace the battery compartment cover (1) and tighten the screw with a screwdriver (2).

Warranty and service

2 Unscrew the screws on the PostureProtect handle with a screwdriver. 3 Remove the PostureProtect handle from the suction tube.

Introduction

Congratulations on your purchase and welcome to Philips! To benefit fully from the support that Philips offers, register your product at www.philips.com/welcome. Philips uses the latest technologies to create products that have no harmful impact on the environment, in terms of energy consumption and material usage. This product is partly made of bioplastics and recycled plastics. Parts made of bioplastics have no harmful impact on the environment because they are made from renewable biological materials. Some parts still need to be made of regular plastics, but Philips strives to use recycled plastics as much as possible for their production. This production method results in significantly less waste compared to conventional methods. For more information about Philips' efforts to protect the environment, visit the website www.asimpleswitch.com. The highly efficient, environmentally friendly motor of the device enables a high level of performance with low energy consumption.

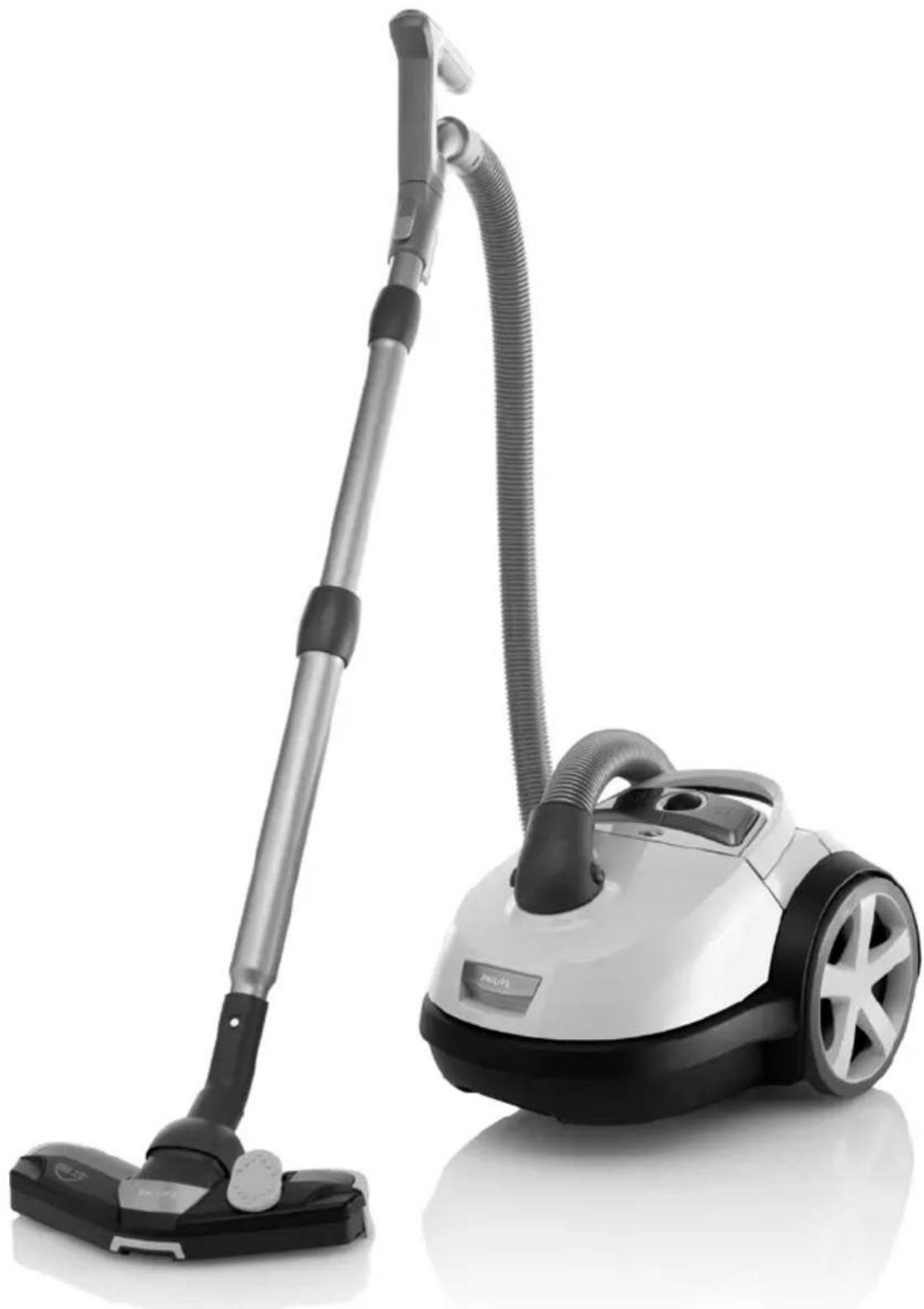

General description (Fig. 1)

1 Cord rewind button 2 Suction power selector (certain models only) 3 On/off button 4 Dust bag full indicator 5 Hose connection opening 6 Hose with swivel connector 7 Cover release tab 8 Motor protection filter holder 9 Removable strip (some models only) 10 Reusable dust bag (some models only) 11 Dust bag holder 12 Dust bag 13 Rear wheels 14 Ergonomic PostureProtect handle (certain models only) 15 Tube release button 16 Tube release button 17 Accessory holder release buttons 18 Accessory holder 19 Screw cover 20 Hose 21 Flexible hose connector 22 Ergonomic ComfortControl handle (certain models only) 23 Infrared remote control (some models only) 24 Telescopic tube without PostureProtect handle (certain models only) 25 Telescopic tube with PostureProtect handle (certain models only) 26 Tri-Active suction nozzle 27 Carpet/hard floor switch 28 Side brushes 29 Storage protrusion 30 Small nozzle 31 Crevice tool 32 Brush tool 33 Folding top handle

34 Exhaust grille 35 Storage slot 36 Plug 37 Washable HEPA 13 filter 38 Storage handle 39 Swivel wheel 40 Storage slot 41 Rating plate

Important

Read this user manual carefully before using the appliance and save it for future reference.

Danger

The batteries for the remote control are supplied with the appliance. Insert the batteries into the appropriate compartment on the ergonomic handle before you start using the appliance. The batteries will last at least 2 years.

1 Using a screwdriver, remove the screw from the battery compartment cover (1), then remove the cover (2).

2 Insert two AAA 1.5 V alkaline batteries into the battery compartment inside the handle.

Note: Make sure the + and - poles of the batteries are oriented correctly.

ComfortControl handle (certain models only)

• The unique ComfortControl handle is ergonomically designed to provide the appropriate level of comfort while vacuuming.
• To make optimal use of this handle, it is important not to place your other hand on the tube. Doing so causes you to bend your back, which can lead to back problems.

2 To remove the handle from the tube, hold it with one hand. With the other hand, hold the telescopic tube and press the tube release button (1), then pull the tube out of the handle (2).

1 To connect the hose, push it firmly into the vacuum cleaner until it clicks.

2 To remove the hose, press the buttons (1) and pull the hose out of the vacuum cleaner (2).

Telescopic tube

1 Adjust the length of the tube so that the flexible hose connection is at hip level.

2 Hold the tube so that the standard handle is at hip level.

1 Place the accessory holder with accessories onto the handle (click).

2 To detach the accessory holder, press the release buttons simultaneously (1), then remove the accessory holder from the handle (2).

Tool for narrow surfaces and small nozzle

1 Attach the accessory for narrow surfaces (1) or the small nozzle (2), with or without the brush attachment (3), to the hose or directly to the handle.

The Tri-Active nozzle is a multi-purpose nozzle for carpets and hard floors.

- The side brushes pick up more dust and dirt on the sides of the nozzle and allow better cleaning along furniture and other obstacles.

1 For cleaning hard floors, use the hard floor cleaning setting (e.g., tiles, parquet, laminate, linoleum): press the switch on top of the nozzle with your foot to extend the brushes out of the housing. At the same time, the wheel lifts to prevent scratching and increase maneuverability.

2 For cleaning carpets, use the carpet cleaning setting: press the rocker switch again to retract the brushes into the nozzle housing. The wheel will automatically lower.

- The remote control has three buttons for operating the vacuum cleaner. The '+' and '-' buttons adjust the suction power, and the 'standby' button puts the appliance in standby mode.

1 During vacuuming, you can adjust the suction power level using the – and + buttons on the remote control. - Use maximum suction power for cleaning very dirty carpets and hard floors

- Use minimum suction power for cleaning curtains, tablecloths, etc.

Pauses during use

1 If you want to pause vacuuming for a moment, press the 'standby' button on the remote control to temporarily switch off the appliance (certain models only).

If your appliance does not have a remote control, press the on/off button on top of the device to switch it off.

2 Place the protrusion on the nozzle into the hose storage slot to store the hose in a convenient position. 3 To ensure safe storage of the telescopic hose, shorten it to its minimum length. 4 To resume vacuuming, press the 'standby' button on the remote control again (certain models only).

If your appliance does not have a remote control, press the on/off button on top of the device to switch it on.

Storage

1 Unplug the vacuum cleaner and remove the plug from the socket. 2 Press the cord rewind button to retract the power cord.

3 Place the appliance in an upright position. To attach the nozzle to the appliance, insert the protrusion on the nozzle into the storage slot.

1 Pull the cover upward and open it.

2 Remove the dust bag holder from the vacuum cleaner. Make sure to keep the bag upright while removing it from the vacuum cleaner.

3 Remove the full bag from the holder by pulling the cardboard tab. When you do this, the bag will automatically seal.

2 Press the tab on the top of the motor protection filter holder to release it (1). Pull the filter holder out of the dust bag compartment (2). 3 Clean the filter by shaking it over a trash can. 4 Put the filter back into the holder.

5 Hook the two tabs of the filter holder behind the protrusion on the bottom side and make sure the top side fits properly into place (1). Then press the filter holder inward until it clicks (2). 6 Put the holder and bag back into the vacuum cleaner and close the cover.

Washable HEPA 13 filter

1 Grasp the release tabs of the HEPA 13 filter cover to open and remove its cover. 2 Remove the washable HEPA 13 filter. 3 Rinse the ribbed side of the HEPA 13 filter under a thin stream of warm tap water.

- Hold the filter so that the ribbed side faces upward, and let the water flow parallel to the ribs. Hold the filter at an angle so that the water washes away the dirt in the ribs.

- Turn the filter 180° and let the water flow through the ribs in the opposite direction.

- Continue cleaning until the filter is clean.

5 Put the dry filter back into the appliance.

6 Put the filter cover back into place, then close it until it clicks (2).

2 Using a screwdriver, remove the screws from the PostureProtect handle. 3 Remove the PostureProtect handle from the tube.

Introduction

Only certain models

Maintenance

Using the device

Ski pole tube

الحل	السبب المحتمل	المشكلة
قومي بتركيبippiارات في الوضع生产企业 أو استبدها. انتفرفصل“الاستبidal”	لم تقومي بتركيب إدخالippiارات بالشكل الملائمأوippiارات فارغة.	نظام التحكم عن بعد بالأشعة تحت الحمراء (طرز معينة youth) youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth Youth

Ideal use

Warranty and maintenance

Storage

Using the device

Connecting the handle

Preparation for use

Designer's tip
