Product Type	Motherboard
Brand	ASRock
Model	AM1H-ITX
Form Factor	Mini-ITX
Processor Socket	Socket AM1 (FS1b)
Supported Memory Type	DDR3-1600/1333/1066, non-ECC, non-buffered
Number of Memory Slots	2 x DIMM, max 16 GB
Expansion Slots	1 x PCIe 2.0 x16, 1 x mini-PCIe
Storage	4 x SATA3 6 Gb/s, 1 x eSATA
USB Ports	4 x USB 3.0 (2 rear, 2 via header), 4 x USB 2.0 (2 rear, 2 via header)
Integrated Audio	Realtek ALC662, HD Audio 7.1 channels
Integrated Network	Realtek RTL8111GR, Gigabit Ethernet
Video Outputs	1 x D-Sub, 1 x DVI-D, 1 x HDMI
Power Requirement	ATX 24-pin connector + ATX 12V 4-pin connector
Dimensions (L x W)	17 x 17 cm
Approximate Weight	0.4 kg
Operating Temperature	0°C to 50°C
Operating Humidity	0% to 85% RH, non-condensing
Cleaning	Use a dry, antistatic cloth
Typical Power Consumption	~30 W (depending on configuration)
Repairability	Soldered components; spare parts available (BIOS, capacitors)

Frequently Asked Questions - AM1H-ITX ASROCK

Which processors are compatible with the ASRock AM1H-ITX motherboard?

The motherboard accepts AMD Socket AM1 Athlon and Sempron series processors with a maximum TDP of 25W.

What type of RAM memory is supported?

It supports DDR3 non-ECC memory up to 16 GB (2 slots) at speeds of 1600/1333/1066 MHz.

Does the motherboard have an HDMI output?

Yes, it has an HDMI 1.4 output, as well as D-Sub and DVI-D.

Can I connect an additional fan?

Yes, it has a CPU fan connector (4-pin) and two chassis fan connectors (4-pin).

What are the dimensions of the board?

The motherboard is Mini-ITX form factor, measuring 17 cm x 17 cm.

Is Wi-Fi integrated?

No, Wi-Fi is not integrated. However, it has a mini-PCIe slot to add a Wi-Fi/Bluetooth card.

How many SATA ports does the board offer?

It offers 4 SATA 3 ports (6 Gb/s) and one eSATA port.

How to update the BIOS?

You can update the BIOS using the ASRock Instant Flash tool built into the BIOS or with a bootable USB drive.

Does the motherboard support virtualization?

Yes, it supports AMD virtualization technologies AMD-V which can be enabled in the BIOS.

What is the BIOS part number?

The BIOS is a 16Mb AMI UEFI chip with a multilingual graphical interface.

USER MANUAL AM1H-ITX ASROCK

Copyright©2016 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

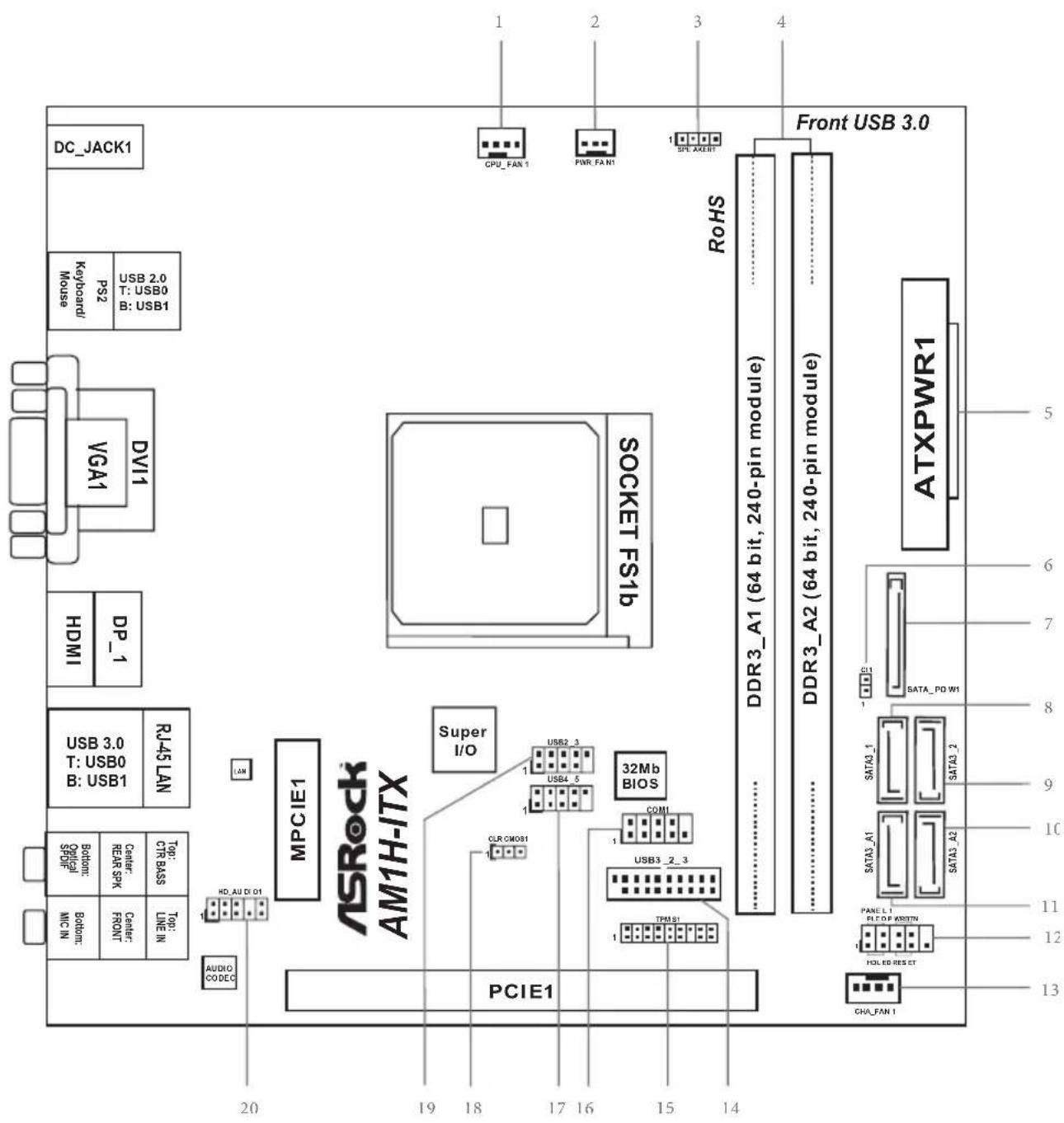

Motherboard Layout

No. Description

1 CPU Fan Connector (CPU_FAN1)
2 Power Fan Connector (PWR_FAN1)
3 Chassis Speaker Header (SPEAKER1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_A2)
5 ATX Power Connector (ATXPWR1)
6 Chassis Intrusion Header (CI1)
7 SATA Power Connector (SATA_POW1)
8 SATA3 Connector (SATA3_1)
9 SATA3 Connector (SATA3_2)
10 SATA3 Connector (SATA3_A2)
11 SATA3 Connector (SATA3_A1)
12 System Panel Header (PANEL1)
13 Chassis Fan Connector (CHA_FAN1)
14 USB 3.0 Header (USB3_2_3)

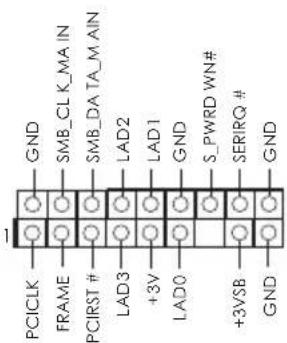

15 TPM Header (TPMS1)
16 COM Port Header (COM1)
17 USB 2.0 Header (USB4_5)
18 Clear CMOS Jumper (CLRCMOS1)
19 USB 2.0 Header (USB2_3)
20 Front Panel Audio Header (HD_AUDIO1)

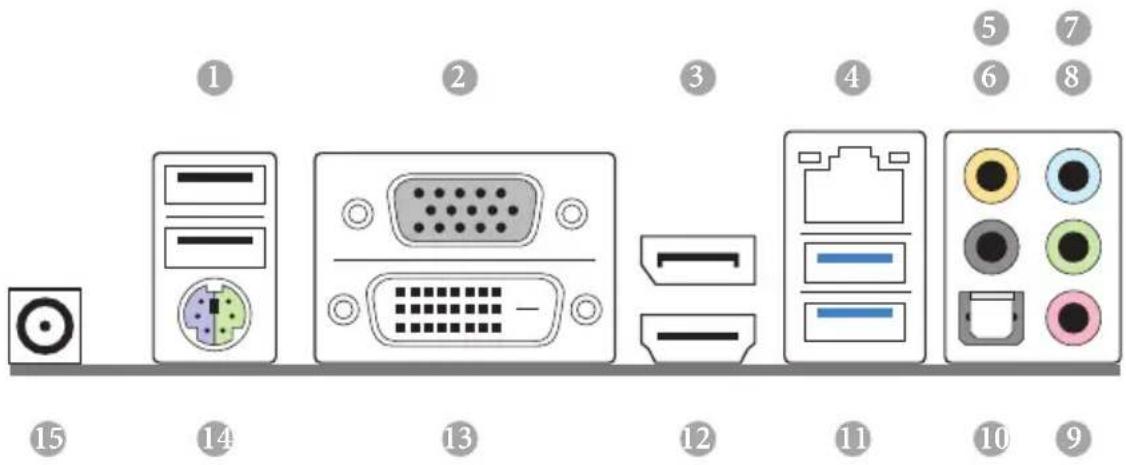

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 9 Microphone (Pink)

2 D-Sub Port 10 Optical SPDIF Out Port

3 DisplayPort 1.2* 11 USB 3.0 Ports (USB3_0_1)

4 LAN RJ-45 Port** 12 HDMI Port*

5 Central / Bass (Orange) 13 DVI-D Port

6 Rear Speaker (Black) 14 PS/2 Mouse/Keyboard Port

7 Line In (Light Blue) 15 DC Jack****

8 Front Speaker (Lime)***

* HDMI and DisplayPort 1.2 cannot output at the same time. You can only choose either one of them. Please refer to the BIOS setup option "HDMI/DP Switch" on page 42 of user manual in the support CD.
** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED		Speed LED
Status	Description	Status	Description
Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

*** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels	Front Speaker (No. 8)	Rear Speaker (No. 6)	Central / Bass (No. 5)	Line In or Side Speaker (No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find the "Mixer" tool on your system. Please select "Mixer ToolBox" click "Enable playback multi-streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front panel audio.

**** Please use a 19V power adapter for the DC jack. This jack accepts dual barrel plugs with an inner diameter of 2.5 mm and an outer diameter of 5.5 mm, where the inner contact is +19V (±10%) DC and the shell is GND.

Please refer to below hardware configuration for the estimated adapter power.

DRAM HDD	Estimated Adapter Power
1 1 41W
1 2 56W
2 2 60W

Due to the power limitation and PCIe bandwidth (x4), the VGA card is not supported.

This motherboard is available with support for either ATX or DC-in power supplies. Please do not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power for HDDs.

Chapter 1 Introduction

Thank you for purchasing ASRock AM1H-ITX motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock AM1H-ITX Motherboard (Mini-ITX Form Factor)
• ASRock AM1H-ITX Quick Installation Guide
• ASRock AM1H-ITX Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Serial ATA (SATA) Power Cable (Optional)
• 1 x WiFi Module Screw
- 1 x I/O Panel Shield

1.2 Specifications

Platform	Mini-ITX Form FactorAll Solid Capacitor design
CPU	Supports AMD AM1 Socket A-series and E-series Quad-Core/Dual-Core APU up to 25W
Memory	2 x DDR3 DIMM SlotsSupports DDR3 1600/1333/1066 non-ECC, un-buffered memoryMax. capacity of system memory: 32GB (see CAUTION1)
Expansion Slot	1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)1 x mini-PCI Express Slot* Due to the power limitation and PCIe bandwidth (x4), the VGA card is not supported.
Graphics	Integrated AMD RadeonTM R3 Series Graphics in A-series / E-series APUDirectX 11.1, Pixel Shader 5.0Max. shared memory 2GBFour graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2 (see CAUTION2)Supports HDMI with max. resolution up to 4K × 2K (4096x2160) @ 24Hz or 4K × 2K (3840x2160) @ 30HzSupports DVI-D with max. resolution up to 1920x1200 @ 60HzSupports D-Sub with max. resolution up to 2048x1536 @ 60HzSupports DisplayPort 1.2 with max. resolution up to 4K × 2K (4096x2160) @ 30HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 PortsSupports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • Premium Blu-ray Audio support
  • Supports Full Spike Protection

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Realtek RealWoW! Technology
• Supports Wake-On-LAN
• Supports Full Spike Protection
• Supports LAN Cable Detection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Rear Panel I/O

• 1 x DC Jack
  • 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports Full Spike Protection)
  • 2 x USB 3.0 Ports (Supports Full Spike Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Storage

• 2 x SATA3 6.0 Gb/s Connectors by AMD AM1 Series Socket 25W Quad-Core APU, support NCQ, AHCI and Hot Plug
• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

Connector

• 1 x COM Port Header
• 1 x Chassis Intrusion Header
- 1 x TPM Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x SATA Power Connector
• 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports Full Spike Protection)
- 1 x USB 3.0 Header by ASMedia ASM1042A (Supports 2 USB 3.0 ports) (Supports Full Spike Protection)

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 1.1 compliance wake up events
• Supports jumperfree
- SMBIOS 2.3.1 support
• DRAM Voltage multi-adjustment

Support

CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

Hardware

Monitor

• CPU/Chassis temperature sensing
• CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
• CPU Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, Vcore

os

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit

Certifica-

tions

- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

1. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ^® 8/7/XP. For Windows ^® 64-bit OS with 64-bit CPU, there is no such limitation. You can use ASRock XFast RAM to utilize the memory that Windows ^® cannot use.

2. HDMI and DisplayPort 1.2 cannot output at the same time. You can only choose either one of them. Please refer to the BIOS setup option "HDMI/DP Switch" on page 42 of user manual in the support CD.

1.3 Unique Features

ASRock A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning and a whole lot more.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few seconds, provides a much more efficient way to save energy, time, money, and improves system running speed for your system. It leverages the S3 and S4 ACPI features which normally enable the Sleep/Standby and Hibernation modes in Windows ^® to shorten boot up time. By calling S3 and S4 at specific timing during the shutdown and startup process, Instant Boot allows you to enter your Windows ^® desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Just save the new BIOS file to your USB storage and launch this tool by pressing or during POST to enter the BIOS setup menu to access ASRock Instant Flash. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

ASRock APP Charger

Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch charge up to 40% faster than before on your computer. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

ASRock XFast LAN

ASRock XFast LAN provides faster internet access, which includes the benefits listed below. LAN Application Prioritization: You can configure your application's priority ideally and add new programs to the list. Lower Latency in Game: After setting online game's priority higher, it can lower the latency in games. Traffic Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are currently transferring.

ASRock XFast RAM

ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS updating process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict internet access at specified times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.

ASRock Internet Flash

ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you without entering Windows OS. Please setup network configuration before using Internet Flash.

ASRock UEFI Tech Service

Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

ASRock On/Off Play Technology

ASRock On/Off Play Technology allows users to enjoy the great audio experience from the portable audio devices, such like MP3 player or mobile phone to your PC, even when the PC is turned off (or in ACPI S5 mode)! This motherboard also provides a free 3.5mm audio cable (optional) that ensures users the most convenient computing environment.

ASRock Dehumidifier Function

Users may prevent motherboard damages due to dampness by enabling

“Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Easy Driver Installer

For users that don't have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.

ASRock Interactive UEFI

ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and more amusement.

ASRock Fast Boot

With ASRock's exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

ASRock Restart to UEFI

Windows ^® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.

ASRock USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!

ASRock FAN-Tastic Tuning

ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.

ASRock Good Night LED

ASRock Good Night LED technology offers you a better sleeping environment by extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the Power/LAN LEDs will be switched off when the system is powered on. Good Night LED will automatically switch off the Power and LAN LEDs when the system enters into Standby/Hibernation mode as well.

1.4 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper (CLRCMOS1)

(see p.1, No. 18)

Clear CMOSDefault

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

1.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 12)

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Serial ATA3 Connectors

(SATA3_1:

see p.1, No. 8)

(SATA3_2:

see p.1, No. 9)

(SATA3_A1:

see p.1, No. 11)

(SATA3_A2:

see p.1, No. 10)

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Headers

(9-pin USB2_3)

(see p.1, No. 19)

(9-pin USB4_5)

(see p.1, No. 17)

Besides two USB 2.0 ports on the I/O panel, there are two headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.0 Header

(19-pin USB3_2_3)

(see p.1, No. 14)

Besides two USB 3.0 ports on the I/O panel, there is one header on this motherboard. This USB 3.0 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 20)

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.1, No. 3)

DUMMY SPEAKER

Please connect the chassis speaker to this header.

Chassis and Power Fan Connectors

(4-pin CHA_FAN1)

(see p.1, No. 13)

(3-pin PWR_FAN1)

(see p.1, No. 2)

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

CPU Fan Connector (4-pin CPU_FAN1)

(see p.1, No. 1)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1)

(see p.1, No. 5)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

SATA Power Connector (SATA_POW1) (see p.1, No. 7)

Please connect a SATA power cable.

Serial Port Header (9-pin COM1) (see p.1, No. 16)

This COM1 header supports a serial port module.

Chassis Intrusion Header (2-pin CI1) (see p.1, No. 6)

This motherboard supports CASE OPEN detection feature that detects if the chassis cove has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header (17-pin TPMS1) (see p.1, No. 15)

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

1 Einleitung

CMOS-löschen-Jumper

(CLRCMOS1)

Serial-ATA-III-Anschlüsse

(SATA3_1:

siehe S. 1, Nr. 8)

(SATA3_2:

siehe S. 1, Nr. 9)

(SATA3_A1:

siehe S. 1, Nr. 11)

(SATA3_A2:

siehe S. 1, Nr. 10)

Clear CMOS 점퍼

(CLRCMOS1)

(1페이지,18번항목참조)

Clear CMOS기본값

CPU

T'M

DisplayPort 1.2

4K x 2K (3840x2160) @30Hz

@30Hz

LAN

os

(CLRCMOS1)

(SATA3_1:

(SATA3_2:

(SATA3_A1:

(SATA3_A2:

1. 2.

1 简介

bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit

认证

1.3 跳线设置

清除 CMOS 跳线

(CLRCMOS1)

(见第 1 页，第 18 个)

清除 CMOS默认

此 COM1 接脚支持串行端口模块。

机箱侵入接脚

(2 针 CI1)

(见第 1 页，第 6 个)

此 COM1 標頭支援序列連接埠模組。

機殼防護標頭

(2-pin CI1)

(請參閱第1頁，編號6)

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

For the following equipment:

Motherboard

(Product Name)

AM1H-ITX / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive (2004/108/EC) and Safety Directive (2006/95/EC), the following standards are applied:

EN 55022: 2006+A1:2007
EN 61000-3-2: 2009
EN 61000-3-3:2008
EN 55024: 1998 + A1:2001 + A2:2003

IEC 61000-4-2: 2008;

IEC 61000-4-3: 2010; IEC 61000-4-4: 2010;

IEC 61000-4-5: 2005; IEC 61000-4-6: 2008;

IEC 61000-4-8: 2009; IEC 61000-4-11: 2004;

☑ EN 60950-1:2005 + A1:2009

IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011

The following manufacturer / importer or authorized representative established within the EUT is responsible for this declaration:

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

Feb. 21, 2014

(Date)
