USER MANUAL HIF-1902HP ROADSTAR

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank-you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

HIF-1902HP - REMOTE

Hand holding a device with an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a glass with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

KORREKTE ENTSORGUNG DIESES PRODUKTS (Elektromüll)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

CORRECTE AFVALVERWERKING VAN HET PRODUCT (elektrisch en elektronisch afval)

Black triangular warning symbol with exclamation mark (no text or numbers)

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

Black triangular warning symbol with a white lightning bolt symbol (no text or numbers)

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

230v\~

Simple line drawing of a plug with a screw and three pins (no text or symbols)

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Ensure all connections are properly made before operating the unit.

Stylized black-and-white illustration of a circular mechanical fan or impeller with no text or symbols

This unit must not be exposed to moisture or rain.

Simple black-and-white sun icon with radiating lines (no text or symbols)

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

LOCATION OF CONTROLS

1. DUST COVER
2. CD PLAY/PAUSE BUTTON
3. CD SKIP UP
4. CD DOWN BUTTON
5. PLAY MODE BUTTON
6. FUNCTION BUTTON
7. VOLUME KNOB
8. REMOTE SENSOR
9. RECORD BUTTON
10. CD DOOR
11. CD DOOR OPEN / CLOSE BUTTON
12. MW BAND BUTTON
13. USB SOCKET
14. FM BAND BUTTON
15. POWER ON/ OFF
16. CUE LEVER
17. POWER LED INDICATOR
18. LCD DISPLAY
19. FM STEREO LED INDICATOR
20. DIAL SCALE
21. TUNING KNOB
22. ARM LOCK
23. SPINDLE ADAPTOR
24. 33/45/78 RPM SPEED SELECTOR
25. PICK-UP HOLDER
26. CD/USB BUTTON
27. SPEAKERS
28. FM ANTENNA
29. AC CORD
30. TAPE BUTTON
31. PHONO BUTTON
32. CD STOP BUTTON
33. TAPE FF/EJECT BUTTON
34. TAPE SLOT-IN
35. TOP COVER MECHANISM
36. TURNTABLE
37. AUX-IN

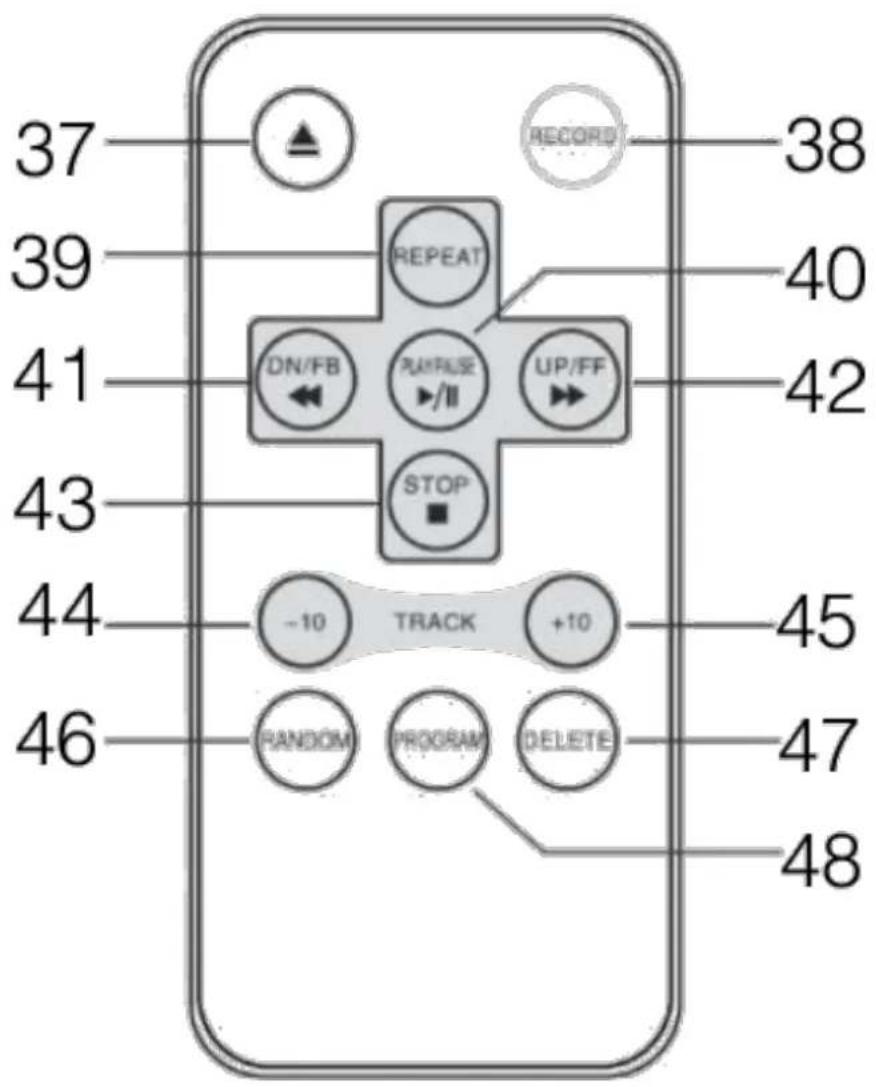

REMOTE CONTROL

1. OPEN / CLOSE CD DOOR
2. REC: in cd or phono mode, press to active recording function.
3. REPEAT BUTTON
4. PLAY/PAUSE: in cd/usb mode, press once to start playback. Press again to enter pause mode.
5. SKIP/SEARCH BACKWARD: press once to skip to previous track.press & hold for search backward.
6. SKIP/SEARCH FORWARD: press once to skip to next track, press & hold for search forward.
7. STOP: in cd/usb mode, press to stop playback or cancel the stored program.
8. 10+ Track Button
   45.10- TRACK BUTTON

3

English

1. RANDOM BUTTON: in cd/usb mode, press to active random function.
2. DELETE BUTTON
3. PROGRAM: in CD/USB mode, press to active programming function.

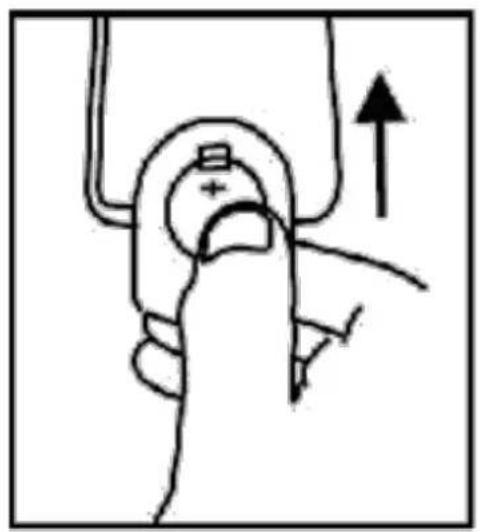

BATTERY INSTALLATION

The infra-red transmitter requires 2 pcs CR-2025 size battery for operation.

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. For your own safety read the following instructions carefully before attempting to connect this unit to the mains. Press the POWER button during 1 second to turn ON the unit. Press and hold the POWER button during 3 seconds to turn OFF the unit. When no sound is produced, the unit will switch OFF automatically after 15 minutes.

This unit is designed to operate on AC 110-240V 50Hz current only. Connecting it to other power sources may damage the unit.

Caution: to prevent electric shock disconnect from the mains before removing cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Remove the stereo carefully from the box, retaining the packaging for future use. Connect the plug to a mains power inlet 110 - 240V AC \~ 50 Hz.

MW/FM TUNER

Operation

1. Switch ON the Power Switch (15). The red Power Indicator (17) will light up.
2. Select the desired frequency band with the Band Selector (14) for FM or (12) for MW band.
3. Tune to the desired radio station by turning the Tuning control (21).

Antenna

• For FM reception there is a built-in FM antenna wire (28) at the rear of the unit. Move the wire around to obtain the best reception.
• For MW reception the signals are picked up through a built-in ferrite antenna. Your may have to orient the unit to obtain the best reception.

FM & FM-Stereo Reception

• Stereo reception is possible when the tuned FM station is broadcasting in stereo.
• When in FM Stereo mode and the station is broadcasting in Stereo, the STEREO indicator (19) lights up.

TURNTABLE OPERATION

VERY IMPORTANT!

To prevent damages from transportation, a transit screw is located at the upper right side of the turntable platform. Before start playing, use a screwdriver and turn the transit screw in clockwise direction (screw going down) completely. In case of transportation, remember to clock again this screw in counter-clockwise direction to prevent damages.

Preparation

1. Open the Record Player Cover.

2. Release the Tonearm Clamp, and remove the stylus protector.

Listening to Records

1. Press the PHONO button (31) to select the TURNTABLE function.
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central spindle when playing 17cm EP records.
3. Set the Speed Selector (24) to 33/78 or 45 rpm according to the record.
4. Release the tonearm clamp, and remove the protective cap from the stylus.
5. Lift the Tonearm with the Tonearm Lift Lever.
6. Move the tonearm to the beginning of the record, or to the start of a particular track.
7. Gently lower the tone arm onto the record with the Tonearm Lift lever to start playing.
8. When the record is finished the tonearm will automatically stop. Lift the tonearm from the record and return it to the rest.
9. To stop manually, lift the tonearm from the record and return it to the rest.

Notes: Do not stop or turn the platter manually. Moving or jarring the turntable without securing the Tonearm clamp could result in damage to the Tonearm. Replace the protective cap on the stylus when not in use.

PLAYING COMPACT DISC

To start

1. Press function selector (26) to select "CD/USB" mode.
2. Press "open/close" button (11) to open the cd door (10).
3. Place a cd with the printed side facing up inside the tray & then close the co door.
4. Focus search is performing, the first track will start playback.
5. To interrupt, press the "STOP" button (32) once, the total number of tracks compare on the lcd display (18). Press again PLAY/PAUSE to resume normal playback.

Skip/search mode (skip/search up / skip/search down)

• During play or pause mode, if "skip up" button (3) is pressed. it will go to next track and display the track no. and then remain the play or pause mode.
• During play or pause mode, if “skip down” button (3) is pressed. it will go back to the beginning of the track, original track number is display and remain the play or pause mode.
• After step 2, press "skip down" button (3) again will go to the previous track and remain the play or pause mode.
• If press and hold the “skip up/down button” (3) during cd/mp3 playabck, the playing track will go fast forward or backward until the button being released.
• To skip 10 tracks UP or DOWN press the TRACK +10 or TRACK -10 button on Remote Control.

REPEAT/RANDOM MODE

Press the REPEAT button from Remote Control or PLAY MODE from main unit to activate this function. All the tracks can be played in difference mode as follow:

• Repeat play: you can listen the desired tracks or folder repeatedly by this function.
• Random play: you can listen all the tracks or folder in a random order by this function

CD DISC PROGRAMMING

Up to 99 tacks can be programmed for mp3 (20 in CD) and play in any order. before use, be sure the system is at stop mode before programming:

1. Press cd/usb mode & stop the cd playback.
2. Press the "PLAY MODE" button, "P" will appear on lcd display (18). Moreover, it will indicate program no. and digits for track no. to be programmed.

5

English

1. Select a desired track by pressing skip or buttons (3).
2. Press the "PLAY MODE" button to store the trace into memory.
3. Repeat steps 3 and 4 to enter additional tracks into the memory if necessary.
4. When all the desired tracks have been programmed, press cd " play/pause (2) to play the disc in assigned order.
5. To cancel the programmed file, press "stop" button.

PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA

The system is able to decode and playback all mp3 /wma file which stored in the memory media with usb connecting port.

1. Set function selector (15) at cd/usb mode and then press FUNCTION button (6) to select usb.
2. Plug-in the usb plug with the face up & make sure it going into completely.
3. The system will start reading the storage media automatically after connecting, and lcd display (18) will show the total number of mp3/wma files
4. Repeat the same playback procedure as playing cd/mp3 disc as above.

REMARKS:

• The system can detect and read the file under mp3 and wma format only though the usb port.
• If connect the system to mp3 player via the usb socket, due to variances in mp3 encoding format, some mp3 player may not be able to play via the usb socket. this is not a maul-function of the system.
• Connecting the usb upside down or backwards could damage the audio system or the storage media (usb thumb drive). Check to be sure the direction is correct before connection.

LISTENING TO TAPE

1. Set the Function button (6) to "TAPE" mode. The system will start playback automatically after inserting the cassette tape.
2. Press “ TAPÉ FORWARD / ÉJECT “ Button (33) half inwards during playback mode. The tape will wind forward.
3. Slightly press the "TAPE FORWARD / EJECT" Button (33) again to resume playback.
4. Press the" TAPE FORWARD / EJECT " Button (33) completely inwards and the cassette tape will be ejected through the cassette door cover (34).

AUX IN FUNCTION

You can put the other audio products through the Aux in jack (49). Press the function button to "TAPE".

ENCODING OF CD/PHONO INTO MP3 FILE

The system is able to encode normal cd, cassette or turntable to mp3 format and recording at memory media with usb connecting port.

CD ENCODING

Encoding 1 track:

1. Perform normal playback of the cd track you want to encode & record,
2. Press "record" button (9) twice during the playback of the desire track, unit will display. Encoding is performing now.
3. Press the STOP button to finish recording the track.

Encoding 1 disc:

1. Place a cd with the printed side facing up inside the tray & then close the co door
2. Press the RECORD button (9) twice after focus search completed. unit will display "REC". Encoding is performing now.
3. After completing of encoding, unit will stop playback automatically.

Remarks:

• The recording speed is 1:1 and according to the actual plying time of the cd track.
• The system will creat a “RECORD” folder and then store the encoding track in it.
• The recording format is preset at – mp3 bit rate: 128 kbps, sampling rate: 44.1khz.
• No song title will be recorded during encoding mode.
• To interrupt the recroding, press the “ record ” button again during record mode.
• Recording will be completed only entire song being encoded, if terminate the encoding process intermediately, there is no track being recorded nor stored to the usb.

Copying of MP3/WMA file

If putting a mp3/wma disc instead of a cd-disc, the system will copy the files to the usb or sd card if press the "record" button (9). The operation procedures is same as cd encoding as stipulate on above, and the system will switch to copying mode only if mp3/wma file being read.

PHONO ENCODING

1. Insert the USB device.
2. Press the function button to "phono".
3. Start playback at phono for the track which you want to record to usb.
4. Press the RECORD button two times to start encoding.
5. The display show REC.
6. After finish of recoding, press the STOP button to stop recording.

CASSETTE ENCODING

1. Insert the USB device.
2. Press the function button to "TAPE".
3. Start playback at TAPE for the track which you want to record to USB.
4. Press the RECORD button two times to start encoding.
5. The display show REC.
6. After finish of recoding, press the STOP button to stop recording.

REMOVING OF USB / MEMORY CARD

To remove the usb, turn off the power or switch the function mode to either cd, aux or tuner first. Un-plug it by pulling out the usb socket directly.

DELETE TRACKS FROM USB

1. Insert the USB device.
2. Press the function button to "CD/USB".
3. Press the button FUNCTION to select USB device.
4. During playback or STOP condition, press the button DELETE from Remote Control to delete the current track.

SPECIFICATIONS

AC: 110-240V \~ 50Hz

FM: 87.5 - 108MHz

MW: 520 - 1620kHz

Design and specifications are subject to change without notice.

SICHERHEITSHINWEISE

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with white lightning bolt symbol (no text)

Simple line drawing of a plug with a screw and three leads (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with a white lightning bolt symbol (no text or numbers)

Simple line drawing of a plug with a screw and three leads (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Stylized black-and-white illustration of a circular mechanical fan or impeller with no text or symbols

Simple black-and-white sun icon with radiating lines (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with a white lightning bolt symbol (no text or numbers)

Simple line drawing of a plug with a screw and three leads (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Stylized black-and-white illustration of a circular mechanical fan or impeller with no text or symbols

Simple black-and-white sun icon with radiating lines (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with white lightning bolt symbol (no text)

Simple line drawing of an electrical plug with a bulb and cord (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Roadstar Management SA, via Passeggiata 7 CH 6883 Novazzano (Switzerland)
