Product type	Cylindrical island hood
Brand	Mepamsa
Model	Cylinder Isla
Dimensions (height x diameter)	120 cm x 50 cm
Net weight	12 kg
Electrical supply	220-240 V ~ 50 Hz
Motor power	250 W
Maximum noise level	65 dB(A)
Maximum airflow	800 m³/h
Number of speeds	3
Lighting	Integrated LED (2 x 3 W)
Filter type	Activated carbon filters (rechargeable) + metal grease filter
Main functions	Extraction, recirculation, remote control included, timer
Maintenance and cleaning	Clean metal filters in dishwasher monthly; replace charcoal filters every 4-6 months
Safety	Automatic shutdown in case of overheating, backdraft protection
Spare parts and repairability	Filters, LED bulbs, remote control available; estimated lifespan 10 years
General information	Island installation, outlet duct Ø 150 mm, energy class A+

Frequently Asked Questions - Cylindre Isla MEPAMSA

How to install the Cylindre Isla hood?

Installation must be carried out by a qualified professional. Fix the support to the ceiling, connect the exhaust duct (Ø 150 mm) and plug in the power supply. Follow the diagram provided in the manual carefully.

How to clean the hood filters?

The metal grease filters can be cleaned in the dishwasher at 65°C or by hand with a soft brush. The charcoal filters should be replaced every 4 to 6 months depending on usage.

The remote control no longer works, what to do?

Check the remote control batteries and replace if necessary. Make sure no obstacle blocks the signal. If the problem persists, contact after-sales service.

Why is the hood noisy?

Abnormal noise can come from a clogged filter or a poorly secured duct. Clean the filters and check the fixtures. The maximum noise level is 65 dB(A) at high speed.

Can I use the hood in recirculation mode?

Yes, the Cylindre Isla hood can operate in recirculation mode with activated carbon filters (supplied). In this case, the air is filtered and returned to the room.

How to set the timer?

Press the 'Timer' button on the remote control or control panel. The hood will automatically stop after 15 minutes. You can adjust the duration depending on the model.

What is the lighting power of the hood?

The hood is equipped with two 3 W LED bulbs, providing warm and even lighting for your cooktop.

How to replace the LED bulbs?

Unplug the hood, remove the lighting cover, unclip the defective bulb and insert the new one. Use only identical reference LED bulbs (available as spare parts).

The hood does not turn on, what to check?

Check that the appliance is plugged in and that the circuit breaker has not tripped. Make sure the remote control is working. If the problem persists, contact a technician.

Where to find spare parts for the Cylindre Isla hood?

Spare parts (filters, bulbs, remote control) are available on the official Mepamsa website or from authorized dealers. Refer to the manual for exact references.

USER MANUAL Cylindre Isla MEPAMSA

Simple line drawing of a cylindrical container with a circular base and four small circular holes (no text or symbols)

Libretto di Istruzioni Instructions Manual Manuel d'Instructions Bedienungsanleitung Gebruiksaanwijzing

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS....17
CHARACTERISTICS....18
INSTALLATION 20
USE....24
MAINTENANCE....25

Manuel d'Instructions SOMMAIRE

CONSEILS ET SUGGESTIONS ....27
CARACTERISTIQUES 28
INSTALLATION 30
UTILISATION....34
ENTRETIEN....35

Illustration of a stove with steam rising and a flame inside, crossed by a green ribbon (no text or symbols)

Ingombro

Diagram showing a cylindrical object with a base plate and a separate square component, no text or symbols present.

Connessioni

USCITA ARIA VERSIONE ASPIRANTE

CONNESSIONE ELETTRICA

Illustration of a handheld device with green leads and a rectangular panel, no text or symbols present

Hand inserting a device into a screen with a green arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a window frame with a green arrow indicating direction (no text or symbols)

Illuminazione

Hand holding a cylindrical container with a small circular component inserted, illustrating a mechanical process (no text or symbols visible)

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood: risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

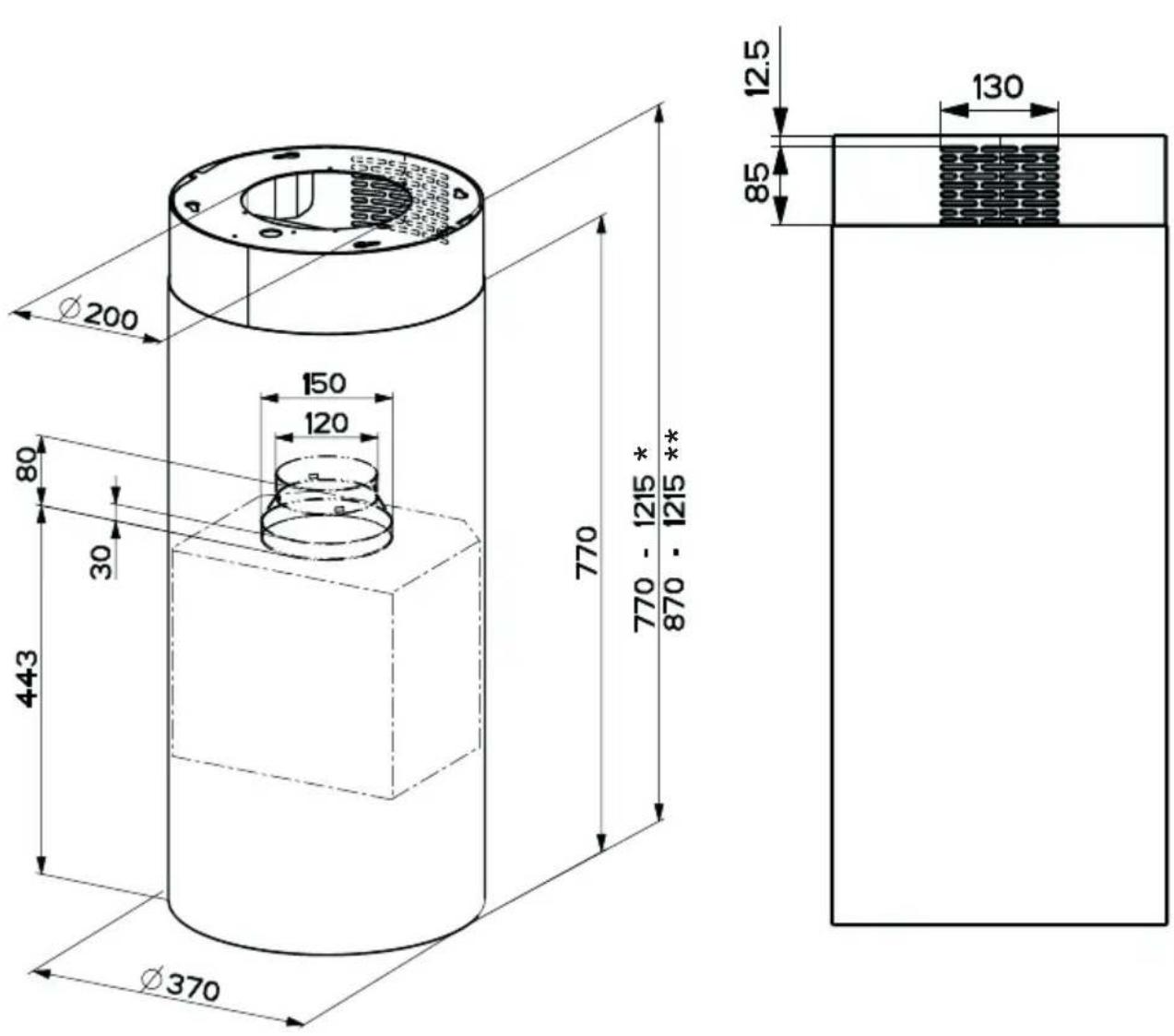

Dimensions

* Dimensions of the hood in ducting version.

** Dimensions of the hood in recycling version.

Components

Ref.	Q.ty	Product	Components
1	1	Hood	Body, complete with: Controls, Light, Blower, Filters
2		1	Chimney Upper
7.1	1	Telescopic frame	complete with extractor, consisting of:
7.1a		1	Upper frame
7.1b		1	Lower frame
9	1	Reducer	Flange ø 150-120 mm
10	1	Flange ø 120 mm
10a		1	Dumper
15	1	Recirculation	Air Outlet Connection
25		2	Pipe clamps

Ref.	Q.ty	Installation	Components
11	4	Wall Plugs ø 10
12c		4 Screws 2,9 x 6,5
12f		4 Screws M6 x 10
12g		4 Screws M6 x 80
12h		4 Screws 5,2 x 70
21		1 Drilling template
22	4	6.4 mm int. dia washers
23		4 M6 nuts
	Q.ty	Documentation
	1	Instruction Manual

Technical diagram showing a cylindrical component being inserted into a base plate with four circular holes (no text or symbols present)

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
  • Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill 10 mm(immediately insert the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill 7 mm.
• For the power supply cable feed, drill 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

- Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h, supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

PREPARATION OF THE FRAME FOR THE HOOD IN RE-CYCLING VERSION

In case the hood is used in recycling version it is necessary to prepare the frame with all the necessary connection pieces. In order to make the installation easier it is necessary to lengthen the frame:

• Unscrew the two screws 2.1 fixing the upper chimney to the frame and pull the chimney out.
• Unscrew the four safety screws placed at the top in the frame separation area. (A).
• Unscrew the eight metric screws connecting the two columns, placed on both sides of the frame (B).

Installation of components in recycling version:

• Fix the recycling air outlet piece 15 to the upper part of the frame using four 12c screws supplied with the hood.
• Fix the flange (ø120) 10 to the lower part of the recycling air outlet 15.
• Put the reducer flange 9 on the hood body outlet.
• At this point, join the flanges with a pipe. In order to calculate the height of the pipe it is necessary to estimate the height of the hood (mm) and subtract 615 mm. (H pipe = H hood-615).
• Lengthen the frame so that the pipe can be inserted. Place the pipe between the two flanges and block it. Make sure that the height of the frame is correct considering the height of the cooker hood (H frame = H hood - 184). Adjust the height of the frame and tighten again the earlier removed screws. Tighten again the safety screws in order to give more stability to the structure.
• Fix the pipe with the pipe clamps 25 supplied with the hood.

FIXING THE FRAME

- Lift the frame up, making sure that the index over the frame plate is turned forwards.

- Fit the frame slots onto the two screws inserted in the ceiling as above, and turn until reaching the centre of the adjustment slot.

- Tighten the two screws and fasten the other two screws provided; before locking the screws completely, it is possible to adjust the frame by turning it, making sure that the screws do not come out of their housing in the adjustment slot.

- The Frame must be securely fastened so as to support both the weight of the Hood and the stress caused by occasional axial pressure against the fitted Appliance. After fixing, make sure that the base is stable even when the Frame is subjected to lateral stress.

- If the Ceiling is not strong enough in the area where the hood is to be fixed, the Installer must strengthen the area using suitable plates and counterplates anchored to resistant structures.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm, the choice of which is left to the installer.

To install a 150

• To install the dumper 10a.
- Fix the pipe in position using sufficient pipe clamps (not supplied).

To install a ø 120

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the dumper 10a.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

Installing of the chimney and fixing of the hood

When the hood is installed in recycling version the chimney has to be positioned with the slots upwards. When the hood is installed in ducting version it has to be positioned in the opposite way.

• Place the chimney on the frame and fix it to the upper part of it with the earlier removed screws. When installing the hood in recycling version make sure that the slots correspond to the air outlet of the recycling air outlet piece 15.
• Open the lighting unit by slightly pulling the notch. Remove the unit from the hood by sliding the fixing pivot.
• Remove the filter pushing it towards the back side of the hood unit and simultaneously pulling downwards.
• Remove possible charcoal filters.
• In order to fix the hood body to the frame insert the 4 screws 12f in their seats. It is necessary to leave at least 4-5 mm gap between the screw heads and the frame plate.

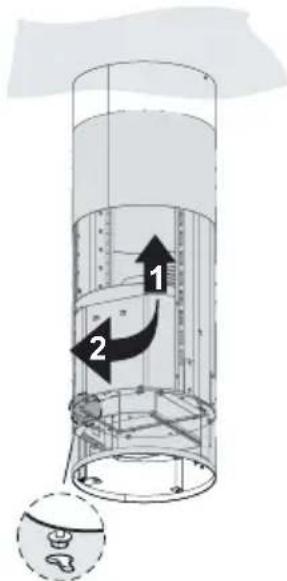

• Hook the hood canopy to the frame and turn it to the left until it reaches the stop, then lock the screws immediately to prevent the hood canopy from falling out accidentally.

ELECTRICAL CONNECTION

• Connect the Hood to the mains power supply, inserting a two-pole cut-out switch with contact aperture of at least 3 mm along the line.
• Ensure that the supply cable connector is properly inserted into the Suction device socket
• Hook up the Commands connector Cmd.
• Hook up the Spotlights connector Lux to the socket provided behind the lighting unit cover.
• For the Recirculation Version, fit the Activated Charcoal Odour Filter.
• Replace the filters and the lighting unit.

Control Panel
The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button.

KEY	LED		FUNCTIONS
L	0/1 Light	Turns lighting on and off.
T1	0/1 Motor	on	First speed.When pressed for about 1 seconds the motor is switched off.
		Flashing	24h ChangeoverThis is enabled by pressing and holding the button for approximately 5".It allows a suction level of 100 m3/h with a noise level of just 28dB(A).Can be enabled at any speed, even with the hood turned off.To disable, press and hold the button for approximately 5".
T2	Speed	on	Second speed.
	Flashing		Delay (30')Press the button for approximately 2" to enable automatic shutdown with a 30' delay. Suitable to complete elimination of any residual smells. Can be enabled at any speed and is disabled by pressing the button T1 briefly.
T3	Speed	on	Third speed.
T4	Speed	Fixed	Max. speed
		Flashing	Intensive speed.Suitable for the strongest cooking vapours and odours.The function becomes active when the button is pushed for about 2 seconds. After 10 minutes of functioning it turns off automatically. This function can be interrupted by means of pressing any of the buttons.
S1	Led	Fixed	Indicates that the Metal grease filters saturation alarm has been triggered, and the filters need to be washed. The alarm is triggered after 100 working hours. (Reset; check the Maintenance-paragraph)
		Flashing	indicates that the activated charcoal odour filter saturation alarm has been triggered, and the filter has to be replaced; the metal grease filters must also be washed. The activated charcoal odour filter is triggered after 200 working hours. (Activation and Reset; check the Maintenance-paragraph)

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type.

• Do not place the remote control near to heat sources.
  • Used batteries must be disposed of in the proper manner.

Illustration of a handheld device with green leads and a rectangular panel, no text or symbols present

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

Alarm signal reset

• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to flash.

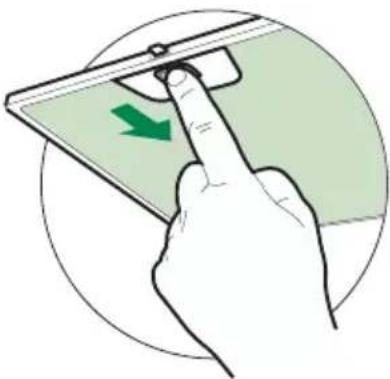

Cleaning the filters

• The filters are washable and must be cleaned when the LED S1 lights up or at least every 2 months of operation, or more frequently for particularly heavy usage.
• Open the lighting unit by pulling on the nocth.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.
• Replace the lighting unit.

Hand holding a smartphone with a green arrow pointing to the screen (no text or symbols visible)

The filter is not washable and cannot be regenerated. It must be replaced when led S1 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.

Alarm signal activation

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later date. Turn the Lights and the suction Motor off.
• Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply.
• Restore the connection by pressing and holding T1.
• Release the button. All five LEDs are turned on.
• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:

- LED flashes twice - Activated charcoal filter saturation alarm ENABLED.

- LED flashes once - Activated charcoal filter saturation alarm DISABLED.

REPLACING

Alarm signal reset

• Turn the Lights and the suction Motor off.
- Press T3 for at least 4 seconds, until indicators T1 and T4 flash to confirm.

Replacing the Filter

• Open the lighting unit by pulling on the noch
• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the fixing hooks
  • Fit the new filter by hooking it into its seating
• Replace the metal grease filters and the lighting unit.

Illustration of a hand pressing down on a window frame with a green arrow indicating direction (no text or symbols)

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Extract the lamp from the lamp holder by pulling gently.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.

Hand holding a cylindrical container with a small circular component inserted, illustrating a mechanical process (no text or symbols visible)

CONSEILS ET SUGGESTIONS

Illustration of a greenhouse with a pot and smoke, crossed by a green diagonal line (no text or symbols)

Encombrement

Technical diagram showing a cylindrical component being inserted into a base plate with four circular holes (no text or symbols present)

Branchements

SORTIE AIR VERSION ASPIRANTE

BRANCHEMENT ÉLECTRIQUE

Illustration of a handheld device with green leads and a rectangular panel, no text or symbols present

Hand holding a smartphone with a green arrow icon, enclosed in a circular frame (no text or symbols)

Illustration of a hand pressing down on a window frame with a green arrow indicating direction (no text or symbols)

Eclairage

REMLACEMENT LAMPES

Hand holding a cylindrical container with a small object inserted, no text or symbols visible

Illustration of a stove with steam rising from a pot and a flame, crossed by a green ribbon (no text or symbols)

Platzbedarf

* Abmessungen der Haube in Abluftversion.

** Abmessungen der Haube in Umluftversion.

Komponenten

Diagram showing a cylindrical object with a base plate and a separate square component, no text or symbols present.

Anschlüsse

ELEKTROANSCHLUSS

Bedienfeld

Illustration of two electronic devices with green leads and a display screen (no text or symbols)

Fettfilter

SELBSTTRAGENDER METALLFETTFILTER REINIGUNG

Hand holding a smartphone with a green arrow pointing to the screen (no text or symbols visible)

Geruchsfilter (Umluftversion)

Illustration of a hand pressing down on a window frame with a green arrow indicating direction (no text or symbols)

Beleuchtung

AUSWECHSELN DER LAMPEN

Halogenlampe 20 W.

Hand holding a cylindrical container with a small circular component inserted, illustrating a mechanical process (no text or symbols visible)

Illustration of a stove with steam rising and a flame inside, crossed by a green ribbon (no text or symbols)

Buitenafmetingen

Diagram showing a cylindrical object with a base plate and a separate square component, no text or symbols present.

Gaten boren in plafond/plank en bevestiging frame

GATEN BOREN IN PLAFOND/PLANK

Aansluitingen

LUCHTUITLAAT AFZUIGVERSIE

Bedieningspaneel

Illustration of two electronic devices with green leads and a display screen (no text or symbols)

Metalen Vetfilters

SCHOONMAAK VAN DE METALEN VETFILTERS

Hand holding a smartphone with a green arrow pointing to the screen (no text or symbols visible)

Geurfilter (filterversie)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Verlichting

VERVANGING VAN DE LAMPEN

Hand holding a cylindrical container with a small object inserted, no text or symbols visible

CE

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
