Product type	Laminator
Brand	Fellowes
Model	Jupiter 2 A3/125
Document formats	Up to A3 (max. 300 x 450 mm)
Pouch thickness	Up to 125 microns
Warm-up time	Approximately 3 minutes
Laminating speed	Approximately 300 mm/min
Laminating modes	Hot and cold
Maximum entry width	330 mm (A3)
Power supply	220-240 V, 50/60 Hz
Power consumption	Approximately 1400 W
Dimensions (L x W x H)	540 x 240 x 110 mm
Weight	5.1 kg
Auto shut-off	Yes, after 30 minutes of inactivity
Overheat protection	Yes, built-in circuit breaker
Removable rollers	Yes, for easy cleaning
Cleaning	With a dry soft cloth, use Fellowes cleaning sheets
Spare parts available	Cleaning sheets, replacement rollers
Repairability	Repairability index: 7.9/10
Warranty	2 years

Frequently Asked Questions - Jupiter 2 A3/125 FELLOWES

What types of pouches can I use with the Fellowes Jupiter 2 A3/125?

Use laminating pouches up to 125 microns in A3 format or smaller (A4, A5, etc.). For best results, use Fellowes pouches.

How to clean the laminator rollers?

Use specially designed Fellowes cleaning sheets. Run them through the machine in hot mode after removing adhesive residue. You can also clean the rollers with a damp cloth once the device has cooled down.

Can the laminator cold laminate?

Yes, the Jupiter 2 A3/125 has a cold mode for heat-sensitive documents like receipts or photos. Select cold mode on the control panel.

What to do if the laminator does not heat up?

Check that the device is turned on and the heating indicator is lit. Wait for the warm-up time (about 3 minutes). If the problem persists, check that the fuse hasn't blown and that the outlet works.

Can I laminate already laminated documents multiple times?

No, avoid re-laminating an already laminated document, as overheating could damage the film and the machine. If you want thicker protection, use a thicker pouch from the start.

What to do if the film wrinkles or bubbles?

This may be due to a pouch that is too thin or an inappropriate temperature. Use quality pouches and adjust the temperature according to thickness. For thick pouches (125 microns), use the high setting.

How to prevent documents from sticking to the rollers?

Clean the rollers regularly with a cleaning sheet. Ensure you use pouches suitable for hot lamination. Do not laminate damp or heavily inked documents.

Is the Fellowes Jupiter 2 laminator suitable for professional use?

Yes, it is suitable for semi-professional or office use, with a speed of 300 mm/min and continuous laminating capacity. For heavy use, Fellowes offers faster models.

Where can I find spare parts for my laminator?

Contact Fellowes customer service or visit their website to order cleaning sheets, rollers, or other accessories. The 2-year warranty covers manufacturing defects.

How to adjust the temperature on the Jupiter 2 A3/125 model?

The temperature is preset according to pouch thickness. For 75-100 micron pouches, use the normal setting; for 125 microns, the high setting. Refer to the manual for precise adjustments.

USER MANUAL Jupiter 2 A3/125 FELLOWES

GB Please read these instructions before use.
FR Lire ces instructions avant utilisation.
ES Lea estas instrucciones antes de usar la máquina.
DE Diese Anleitungen vor Gebrauch genau durchlesen.
IT Primo dell'uso, si raccomanda di leggere questo manuale di istruzioni.
NL Lees deze instructies zorgvuldig door voordat u de machine in gebruik neemt.
SE Läs dessa anvisningar innan du använder apparaten.
DK Læs venligst denne vejledning før anvendelse.
FI Lue nämä ohjeet ennen käyttöä.
NO Vennligst les nøye igjennom denne bruksanvisningen før bruk.
PL Przed użyciem proszę zapoznać się z niniejszą instrukcją.
RU Перед эксплуатацией устройства ознакомьтесь с содержанием данной инструкции.

GR Διαβάστε τις παρακάτω οδηγίες πριν από τη χρήση.
TR Kullanmadan önce lutfen bu talimatlari okuyen.
CZ Pred použitím si pročtěte tyto pokyny.
SK Pred použitím si prečítajte tieto pokyny.
HU Kérjük, hogy használat elött olvassa el az utasításokat.
PT Leia estas instruções antes da utilização.
BG Моля, прочетете инструкциите преди употреба.
RO Vă rugăm să citiți instrucțiunile înainte de utilizare.
HR Pažljivo pročitajte ove upute prije korištenja.
SI Pred uporabo izdelka preberite ta navodila za uporabo.
SR Pročitajte ova uputstva pre upotrebe.
AR يرجى الapplاع على الإرشادات قبل الاستعمال.
HB

CONTENTS

LOCATION OF CONTROLS 3
ENGLISH	4-6
FRANCAIS	7-9
ESPAÑOL	10-12
DEUTSCH	13-15
ITALIANO	16-18
NEDERLANDS	19-21
SVENSKA	22-24
DANSK	25-27
SUOMI	28-30
NORSK	31-33
POLSKI	34-36
РУССКИЙ	37-39

ΕΛΛΗΝΙΚΑ	40-42
TÜRKÇE	43-45
ČESKY 46-48
SLOVENSKY	49-51
MAGYAR	52-54
PORTUGUÊS	55-57
ΒЪЛГАРСКИ	58-60
ROMÂNÃ	61-63
HRVATSKI	64-66
SLOVENČINA	67-69
SRPSKI	70-72
العربية
النامع	76-78

LAMINATOR CONTROLS

QUICK START GUIDE

Illustration of a printer placed on a desk with an electrical outlet (no text or symbols)

Illustration of a printer on a desk with a paper roll and a ruler, no text or symbols present

Illustration of a kitchen appliance with a paper filter and a wall-mounted fan (no text or symbols)

Illustration of a printer with an arrow indicating print direction (no text or symbols)

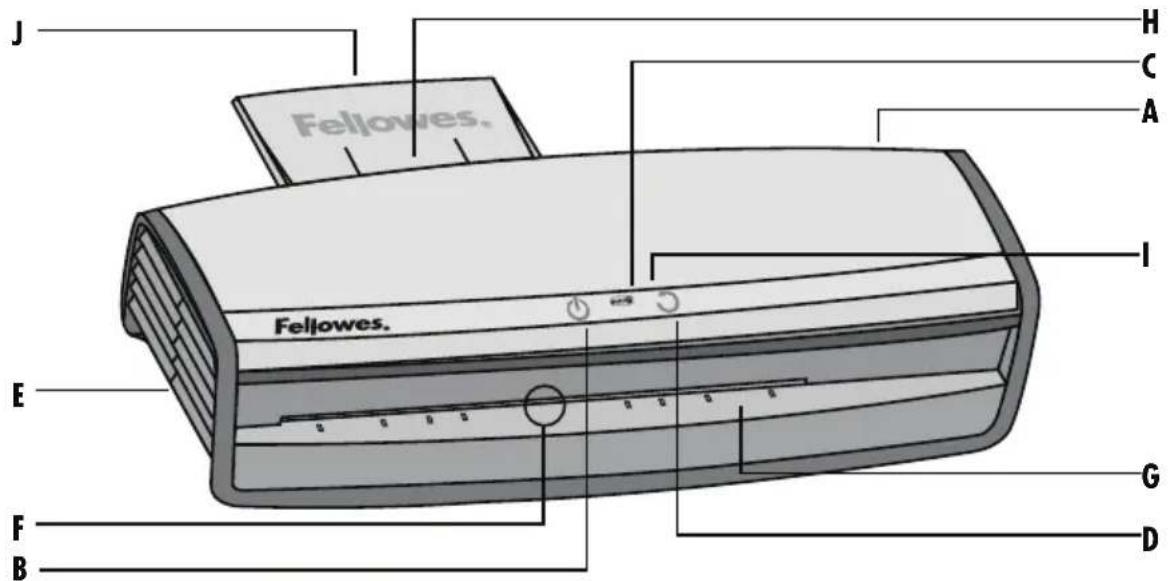

LAMINATOR CONTROLS

A	On / off switch	F	Pouch / document entry slot
B	Standby / Power on button	G	Entry shelf (illuminated)
C	Ready Button (hot/cold)	H	Pouch / document exit
D	Reverse button	I	Illuminated user interface
E	Carry handles	J	Exit tray

CAPABILITIES

Performance	Technical Data
Entry width A3 / 318mm	Voltage	220-240V
Pouch thickness (min.) 75 micron	Frequency	50-60Hz
Pouch thickness (max.) 250 micron	Wattage	1200 Watts
Estimated heat-up time 55 seconds	Amps	5.2 Amps
Cool down time 30-60 minutes	Dimensions (HxWxD)	121mm x 546mm x 172mm
Lamination speed up to 75cm/min	Net weight	6.5Kg
Number of rollers 6	Max document thickness	0.8mm
Ready indication Light & beep
Reverse/Auto reverse Yes/Yes
Clear Path / Anti-jam engine Yes
LED interface Yes
Auto Shut-off Yes (30 mins)
Photo-capable Yes
Carrier-free Yes
Exit tray Yes

IMPORTANT SAFETY INSTRUCTIONS - KEEP FOR FUTURE USE

• The machine is for indoor use only. Plug the machine into an easily accessible outlet.
• To prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or wall socket.

DO ensure the machine is on a stable surface.

DO test laminate scrap sheets and set the machine before final laminations.

DO remove staples and other metal articles prior to laminating.

DO keep the machine away from heat and water sources.

DO turn off the machine after each use.

DO unplug the machine when not in use for an extended period.

DO use pouches designed for use at the appropriate settings.

DO keep away from pets, while in use.

DO NOT leave the power cord in contact with hot surfaces.
DO NOT leave power cord hanging from cupboards or shelves.
DO NOT use appliance if the power cord is damaged.
DO NOT attempt to open or otherwise repair the machine.
DO NOT exceed the machines quoted performance.
DO NOT allow minors to use this machine.
DO NOT laminate sharp or metal objects (eg: staples, paper clips).
DO NOT laminate heat-sensitive documents (eg: tickets, ultrasounds etc) on hot settings.
DO NOT laminate an empty pouch.

FEATURES & TIPS

Advanced Pouch Tracking System

This feature will detect and alert the user if there is a mis-feed or the document has not gone completely through the machine in normal operating time, and automatically reverse the document until the jam is cleared.

AutoSense

Unique system detects pouch thickness and self-adjusts to optimal lamination setting.

'Reverse' function

To eject the laminating pouch during use, press and hold down the reverse button until the pouch has ejected from the machine.

'Auto Shut-Off' function

If the machine is not active for 30 minutes, the 'Sleep Mode' function will place the machine into standby mode. To operate the machine, press the 'Power On' button on the control panel.

• For best results, use Fellowes ® brand thermal pouches: Enhance 80, Impress 100, Capture 125, Protect 175, Preserve 250 and Cold Pouches
• This machine does not need a carrier to laminate. It is a carrier-free mechanism.
• Always put the item to be laminated into the appropriate sized pouch.
• Always test laminate with a similar size and thickness before final process.
• Prepare pouch and item for lamination. Place item within pouch centered and touching the leading sealed edge. Ensure the pouch is not too large for the item.
• If required, trim excess material from around the item after lamination and cooling.

BEFORE LAMINATING

1. Ensure the machine is on a stable surface.

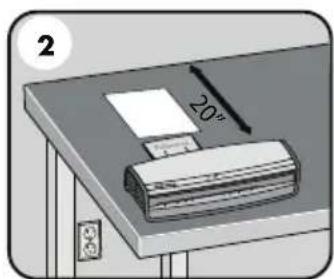

2. Check there is enough clear space (min 50 cm) behind the machine to allow items to pass through freely.

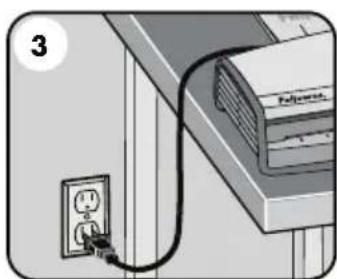

3. Plug the machine into an easily accessible main outlet.

4. Equip the Exit Tray for best laminating results.

STEPS TO LAMINATE

1. Switch the power on (located at the rear right side of the machine). The control panel buttons will flash once as part of a check light system to ensure proper function.
2. The Standby button will turn on with a soft blue glow. The machine is automatically warming up to hot lamination. Note: the laminator features AutoSense which automatically recognizes the pouch thickness you insert into the laminator.
3. When the machine is ready, the green "Ready" READY LED and entry tray LED's will come on and the machine will beep to indicate that it is ready for lamination.
4. To toggle between Cold and Hot lamination, press and hold the "Ready" button for 2 seconds. The Ready icon will blink 3 times in "Blue" when initially switched to the Cold mode to indicate that the mode has been switched then the Ready light will turn off until the machine is ready for cold lamination. Note: to use the cold setting after hot lamination you may have to wait for the laminator to cool down for 30 - 60 minutes.
5. When the machine is ready for Cold Lamination the "Ready" LED will illuminate "Blue" and the machine will beep.

6. To switch back to hot pouch laminating after cold laminating, press and hold the "Ready" LED. Wait until the ready light turns green to indicate it's ready for hot lamination before inserting pouch.

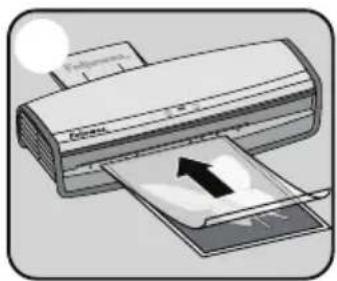

7. Place the pouch, sealed edge first, into the pouch / document entry. Keep the pouch straight and centered within the document entry, not on an angle. Use the entry markings as a guide.

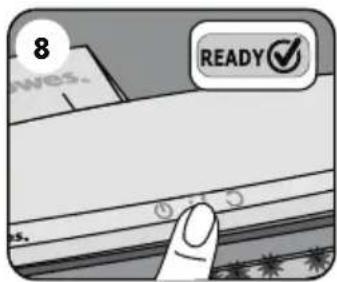

8. This unit is equipped with an Advanced Pouch Tracking System that will detect and alert the user if there is a mis-feed. If a jam is detected the machine will automatically reverse the document to help clear the jam. The reverse button will come on while auto-reverse is engaged. After this, if the jam is not completely cleared the Reverse button will blink/flash. Press and hold the reverse button while pulling on the pouch to completely remove the laminate from the machine. Once the jam is cleared the unit will return to normal operation.
9. Upon exit, the laminated pouch may be hot and soft. For the best quality and to prevent jamming remove the pouch immediately. Place the pouch on to a flat surface to cool. Take care when handling a hot pouch. Always remove laminated document before starting next laminate. For best performance/results, use the Exit Tray.
10. Turning off the Machine — If the top power button is pushed, the machine will go into cool-down mode. The heaters will turn off, but the rollers will still run until the unit reaches the desired temperature to turn off completely. This functionality reduces long term wear and tear to the unit.

TROUBLESHOOTING

Problem Possible cause Solution
No glowing ‘blue’ Power on LED Machine not switched on		Switch on machine at right rear side and at wall socket. Press power standby button
Pouch does not completely seal the item	Item may be too thick to laminate	Maximum document thickness equals .03". Pass through laminator a second time
Pouch is lost in the machine	Pouch is jammed	Machine will automatically reverse the document. If jam is not completely cleared Reverse button will blink/flash. Press and hold reverse button while pulling on pouch to completely remove pouch.
	Pouch was inserted open end first
	Pouch was not centered on entry
	Pouch was not straight upon entry
	Empty pouch was used
	Damaged rollers or adhesive on rollers
Pouch is damaged after lamination	Damaged rollers or adhesive on rollers	Pass cleaning sheets through the machine to test and clean rollers

NEED HELP?

Let our experts help you with a solution.

Customer Service... www.fellowes.com

Always call Fellowes before contacting your place of purchase, see the rear cover for contact details.

Consider registering your machine at www.fellowes.com/register to receive updates and additional information.

STORAGE & CLEANING

Turning off the Machine — If the top power button is pushed, the machine will go into cool-down mode. The heaters will turn off, but the rollers will still run until the unit reaches the desired temperature to turn off completely. This functionality reduces long term wear and tear to the unit. Unplug the machine at the wall. The outside of the machine can be cleaned with a damp cloth. Do not use solvents or flammable materials to polish the machine. Cleaning sheets can be purchased for use with the machine. When the machine is warm — run the sheets through the machine to clean any residue off the rollers. For optimum performance, it is recommended that cleaning sheets are used with the machine regularly. (Cleaning sheet order code #5320603).

PRODUCT REGISTRATION / WORLDWIDE WARRANTY

Thank you for purchasing a Fellowes product. Please visit www.fellowes.com/register to register your product and benefit from product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside of the machine. Fellowes warrants all parts of the laminator to be free of defects in material and workmanship for 2 years from the date of purchase by the original consumer. If any part is found to be defective during warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorised repair. Any implied warranty, including that of merchantability or fitness for particular purpose, is hereby limited in duration to the appropriate warranty period set forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty, please contact Fellowes or your dealer.

COMMANDES DE LA PLASTIFIEUSE

VOORDAT U GAAT LAMINEREN

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY – USCHOVAJTE NA POUŽITIE V BUDÚCNOSTI

POTREBNA VAM JE POMOĆ?

,Enhance 80, Impress 100

,Capture 125, Protect 175

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

GB This product is classified as Electrical and Electronic Equipment. Should the time come for you to dispose of this product please ensure that you do so in accordance with the European Waste of Electrical and Electronic Equipment (WEEE) Directive and in compliance with local laws relating to this directive. For more information on the WEEE Directive please www.fellowes.com/WEEE

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Declaration of Conformity

Fellowes Ltd.

Unit 2 Ontario Drive, New Rossington, Doncaster, DN11 0BF, England declares that the product model Jupiter 2 conforms with the requirements of the Restriction of Hazardous Substances Directive (2011/65/EU), the Low Voltage Directive (2014/35/EU), the Electromagnetic Compatibility Directive (2014/30/EU), the WEEE directive (2012/19/EU), and below harmonized European EN Standards.

Safety: EN60950-1: 2006/A2:2013

EMC Standard: EN55014-1:2006+A1:2009+A2:2011

EN55014-2:1997+A1:2001+

EN61000-3-2:2014

EN61000-3-3:2013

A2:2008

John Fellowes

Year Affixed: 17

Itasca, Illinois, USA

August 1, 2017
