MAGNETIC CONTACT (DS831)

The DS831 is a magnetic contact designed for installation on doors and windows. This product is a part of the Marmitek ProGuard800 series, and operates together with the ProGuard800 alarm system. When you wish to know more about the complete system, its possibilities and its settings, then you can check out the installation manual or visit www.marmitek.com.

INSTALLATION PROCEDURE

To install magnetic contacts.

1. To open the housing, insert a small screwdriver at the bottom of the unit between the front and back cover and twist the screwdriver to release the cover.

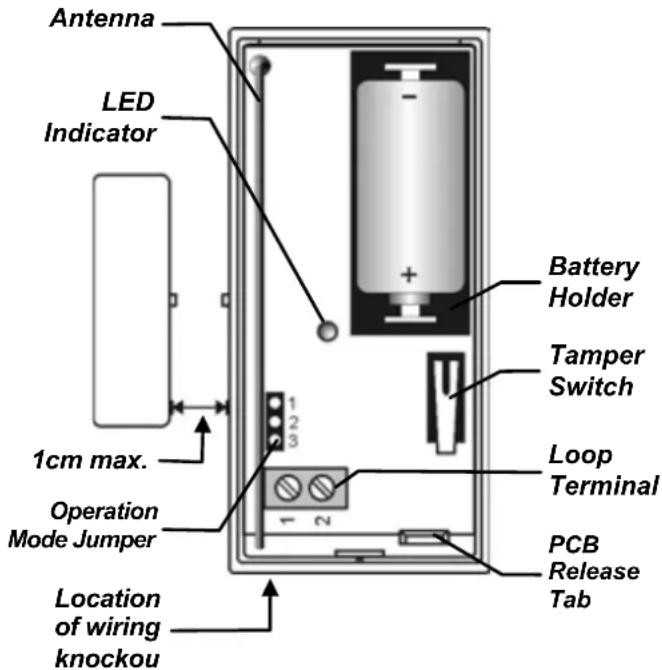

Figure B.3: EL-2601 (cover off)

1. Remove the divider separating the battery from the contacts on the battery holder. When you apply power and the Tamper switch is open, the DS831 enters Test mode during which a transmission is sent every few seconds. You can terminate Test mode by closing the Tamper switch.

Note: Due to the occurrence of voltage delay in lithium batteries that have been in storage, the batteries may initially appear to be dead. In this case, leave the unit in Test mode for a few minutes until the battery voltage level is stabilized.

When handling the PCB, do not apply pressure on the antenna.

1. From the Programming menu, select Devices, Zones [911].

2. Select the zone to which you want to register the transmitter; the system initiates Registration mode. When Save? appears on the panel's LCD display, press √.

Jumper Position	Operation Mode
Pins 1&2 Universal	Transmitter
Pins 2&3 Magnetic	Switch
Jumper Removed	Magnetic Switch/Universal Transmitter

Table B.5: Operation Mode Jumper

1. After registration, press the DS831's tamper switch to terminate Test mode.

2. Before permanently mounting the unit, test the transmitter from the exact mounting position.

3. To remove the PCB, press the PCB release tab and carefully lift the board and slide the board away from the back cover.

4. The DS831 is able to operate in three modes: Magnetic Switch, Universal Transmitter or a combination of the two. If connecting a wired contact loop (N.C.), connect the terminal block as follows: 1 - Alarm; 2 - GND. For this purpose, a wiring knockout is provided in the back cover.

5. Mount the back cover using two screws and replace the PCB. Use ISO 7050 (ST3.5 x 22) or similar countersunk screws so that the screw head will not touch the PCB – see Figure B.4.

Figure B.4: Mounting Screw Position

1. To open the magnet's housing, insert a small screwdriver into one of the pry-off slots located at either end of the magnet's back cover and lift to separate from the front cover.

2. Mount the back cover of the magnet using two screws. Make sure that the guideline on the magnet is correctly aligned with the guideline on the transmitter.

Do not install the magnet further than 1cm from the transmitter.

1. Test the transmitter, making certain that the LED is lit when opening the door/window and again when closing.

2. Close the front covers of the transmitter and the magnet.

TECHNICAL DATA

Antenna:

Built-in

Whip

Frequency:

868.35MHz

FM

Power: 3.6V 1/2 AA Lithium Battery

Current Consumption: 25mA (transmission)

10μA (standby)

Loop Input Voltage Range: 0-15VDC/AC (peak to peak)

RFI Immunity:

40V/m

Operating Temperature: 0 to 60°C

Dimensions: 65 x 30 x 25mm

Specifications may be modified without prior notice.
