QuietSet HS-1665 - Fan HONEYWELL - Free user manual and instructions

Product type	Pedestal fan (tower)
Brand	Honeywell
Model	QuietSet HS-1665
Color	White and silver
Height	130 cm
Base diameter	30 cm
Weight	5 kg
Power supply	230 V, 50 Hz
Power	40 W
Speed levels	3 speeds
Functions	Wide oscillation, 1-8 hour timer, remote control
Quiet technology	QuietSet: low noise operation
Oscillation angle	75°
Control type	Touch panel + remote control
Display	LED with speed and timer indicator
Maintenance	Clean with a soft dry cloth. Do not immerse
Safety	Anti-tip stable base, protective grille, automatic shut-off if tipped over
Spare parts available	Remote control, front/rear grille, base, motor (after-sales service)
Warranty	2 years
Certifications	CE, ROHS

Frequently Asked Questions - QuietSet HS-1665 HONEYWELL

How to assemble the Honeywell QuietSet HS-1665 fan?

Attach the base to the column, insert the rod into the main body and screw on the rear grille. Place the blades, then the front grille. Tighten the safety screws.

How to use the remote control?

The remote control allows you to change the speed, activate oscillation and set the timer. Point it at the control panel within a 5-meter range.

How to set the timer?

Press the Timer button to set a duration from 1 to 8 hours. The fan will turn off automatically at the end of the selected time.

The fan is noisy, what should I do?

Check that the blades are securely attached and the grille is properly engaged. Make sure the fan is on a level surface. The QuietSet technology ensures quiet operation under normal use.

How to clean the fan?

Unplug the appliance. Use a soft dry cloth to dust the grille and blades. For deep cleaning, disassemble the grilles and wash them with soapy water, then dry them completely before reassembling.

Can I use the fan outdoors?

No, the Honeywell QuietSet HS-1665 is designed for indoor use only. Exposure to humidity or bad weather may damage the appliance.

The fan does not turn on, what should I check?

Make sure the outlet is working and the power cord is properly plugged in. Check that the main switch is in the on position. If the problem persists, contact customer service.

How to replace the remote control?

The remote control is a spare part available from Honeywell after-sales service. Refer to the model number to order a replacement part.

Does the fan oscillate automatically?

Yes, press the Oscillation button to activate or deactivate the left-to-right movement. The oscillation angle is 75°.

What is the height of the fan?

The Honeywell QuietSet HS-1665 is approximately 130 cm in height, allowing optimal air distribution in the room.

USER MANUAL QuietSet HS-1665 HONEYWELL

Two electric fans standing upright, one with a three blades and the other with a three-blade fan (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS FAN

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

FOR US MODELS ONLY - This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

1. Use this fan only as described in this manual. Other use not recommended as it may cause fire, electric shock or injury to persons.

2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.

3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.

4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized

QUIETSET™ WHOLE ROOM STAND FAN

HS-1650 Series

HS-1660 Series

outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

1. Close supervision is necessary when any appliance is used by or near children.

2. Turn the fan OFF and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.

3. To disconnect the fan, first turn the unit OFF, grip the plug and pull it from the wall outlet. Never pull the plug by the cord.

4. Do not operate the fan in the presence of explosive and/or flammable fumes.

5. Do not place the fan or any parts near an open flame, cooking or other heating appliance.

6. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).

7. Avoid contact with moving fan parts.

8. The use of attachments not recommended by the manufacturer may be hazardous.

9. Place the fan on a dry level surface.

10. Do not hang or mount fan on a wall or ceiling.

11. Do not operate if the fan housing is damaged.

12. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

13. Do not operate any fan with a damaged cord or plug. Discard any damaged fan, return the fan to the retailer where the fan was purchased, or request a return authorization to return to Kaz, Inc. for examination and/or repair.

14. Do not run fan cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord

under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid State Speed Conrol Device

FUSED SAFETY PLUG - FOR US MODELS ONLY

This fan features a fused safety plug which is designed to cut off electric current to the fan if an electrical fault occurs. Please see below for more information on how to properly use your fan and replace the safety plug fuse, if needed.

USER SERVICING INSTRUCTIONS

1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
2. If your fan loses power and you suspect that the fuse on your fan has blown, you should first remove the spare fuse holder attached to the cord plug (Fig. 1). Remove the spare fuse from the plastic spare fuse holder, and set the spare fuse aside (Fig. 2).

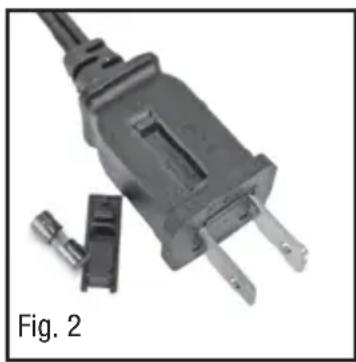

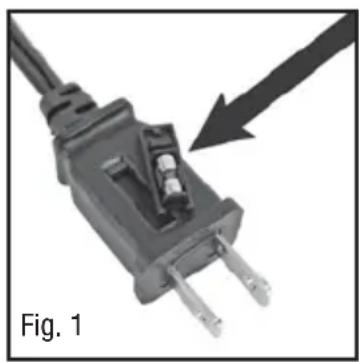

3. You can gain access to the blown fuse by sliding open the door found on the side of the plug. Slide the door outward until the blown fuse is fully visible (Fig. 3).

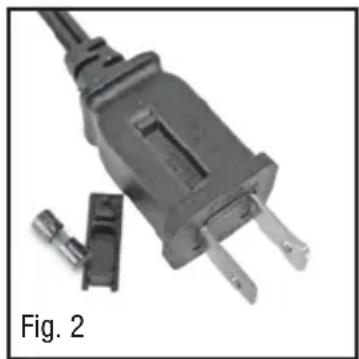

4. Carefully remove the blown fuse and snap the replacement fuse into place. Risk of fire. Replace fuse only with 2.5 Amp, 125 volt fuse (provided with product). Fully close the fuse door by sliding back into place. Discard the blown fuse. The plug should now be ready for normal use.
5. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged.
6. If you need further information on how or when to replace the fuse in the safety plug, please contact Kaz Consumer Relations Department by visiting our website at www.kaz.com or calling 1-800-477-0457.

Close-up of a black electrical plug with two terminal leads, showing internal components and an arrow indicating direction (no text or symbols on the plug itself)

Close-up of a black electrical plug with two metal pins, labeled 'Fig. 2' (no other text or symbols)

Close-up of a black electrical plug with a white arrow pointing to its internal component, labeled 'Fig. 3' (no other text or symbols)

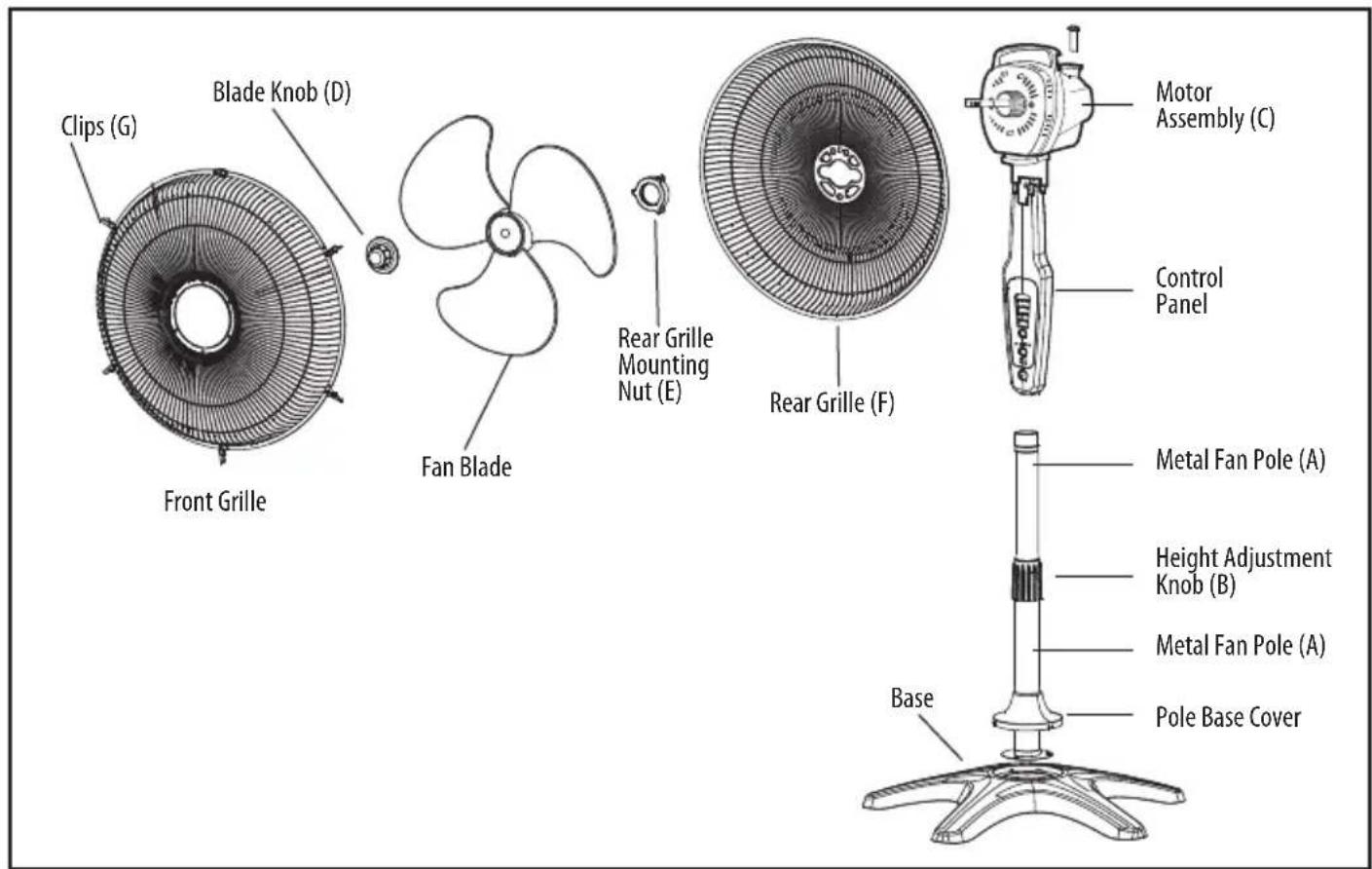

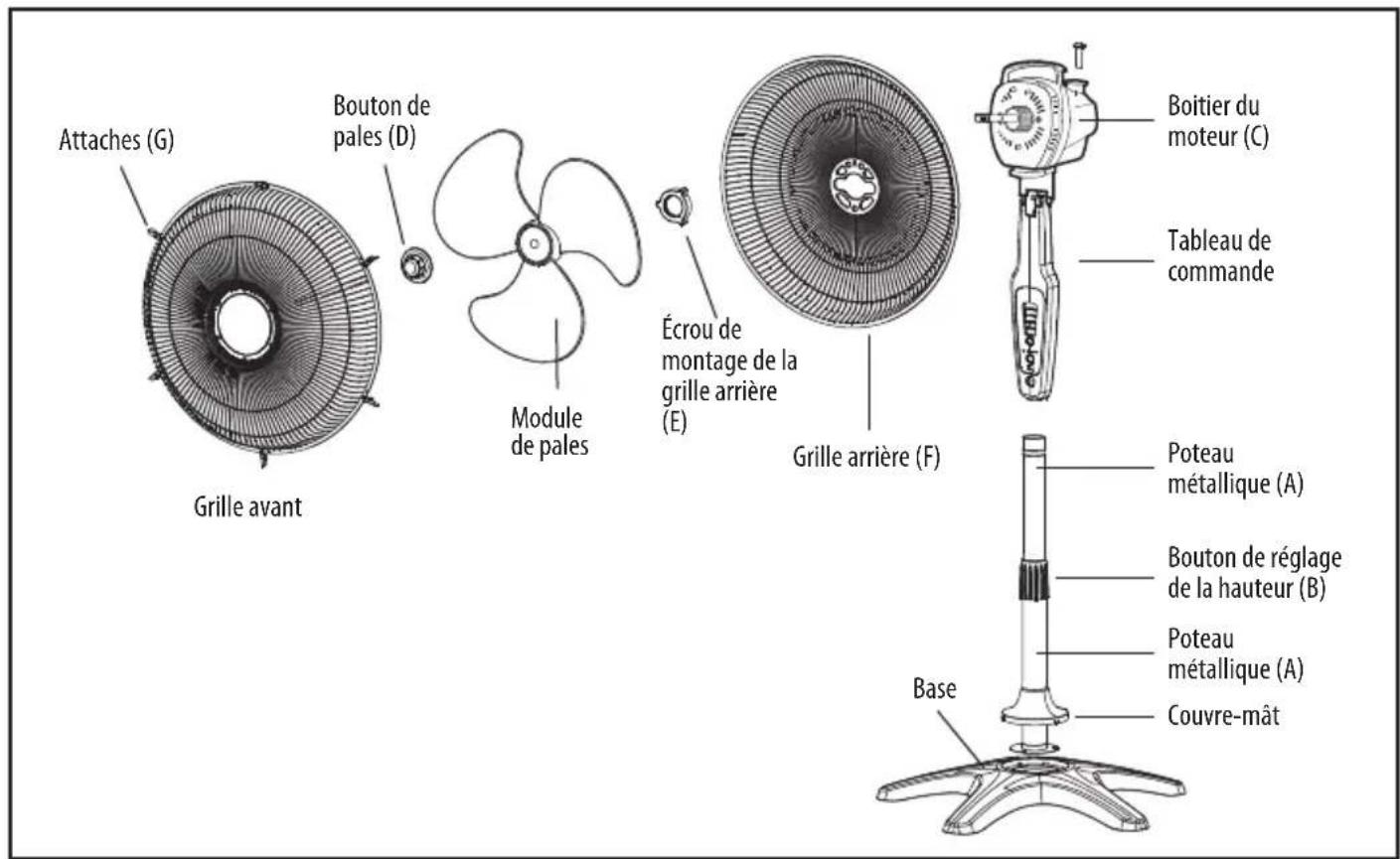

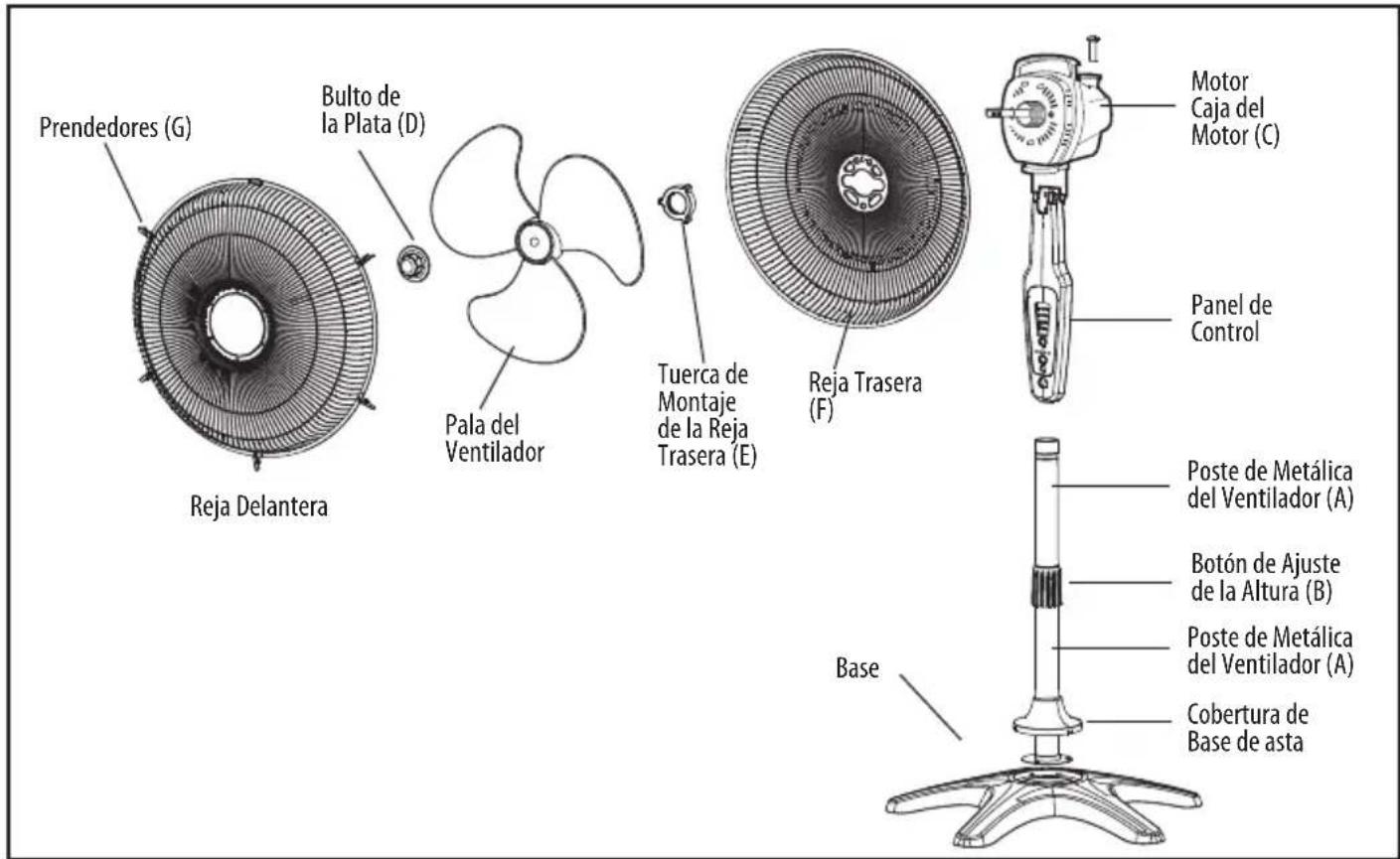

A. Base Assembly

• Place base on a flat surface
• Fit bottom of Metal Fan Pole (A) into circular recess in fan base (Fig.2).

B. Securing the Fan Pole to the Base

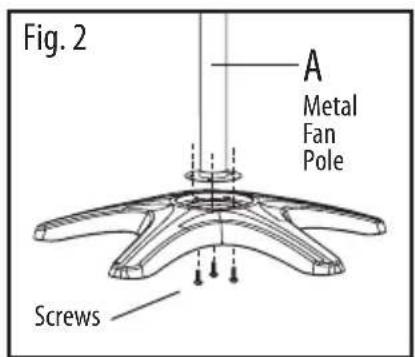

• Align 3 screw holes at the base of Metal Fan Pole (A) with the 3 holes at the base.
• Secure the Metal Fan Pole to the base by inserting and tightening the 3 screws in the 3 holes on the bottom of the base (Fig. 2).
• Slide the Pole Base Cover into place in the base and turn COUNTER-CLOCKWISE until it snaps securely into place.

C. Determining the Height of the Fan

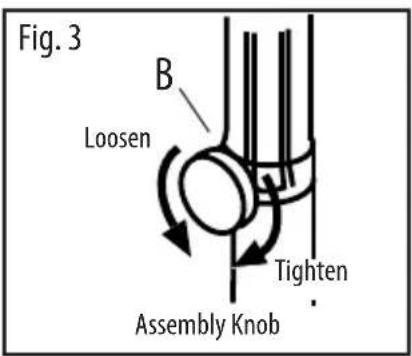

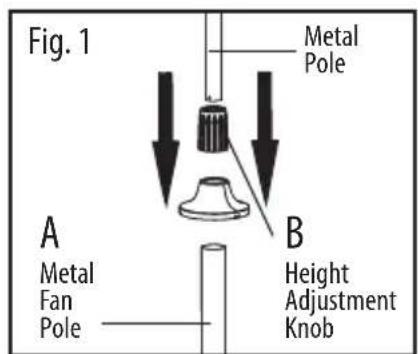

• Turn the Height Adjustment Knob (B) in a COUNTER-CLOCKWISE direction so that the Knob loosens around the Metal Pole Extension.
• Pull the Metal Pole Extension out of the Metal Fan Pole to the desired height.
• Turn the Height Adjustment Knob (B) in a CLOCKWISE direction to tighten and secure the Metal Pole Extension into place at the desired height.

D. Assembling the Upper Portion of the Fan

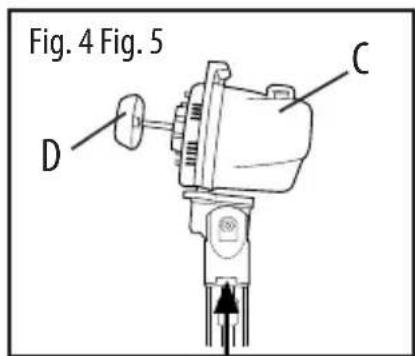

- Place the Motor Assembly (C) onto the Metal Pole Extension and secure it by turning the Assembly Knob CLOCKWISE (Fig. 3).

Note: If turning the assembly knob CLOCKWISE does not secure the motor assembly to the metal pole extension, turn the Assembly Knob COUNTER-CLOCKWISE until the metal pole extension can slide further into the Motor Assembly. Then, turn the assembly knob CLOCKWISE to secure it to the metal pole extension.

• Circular Rear Grille Mounting Nut will come attached to the Motor Assembly. Remove it by turning COUNTER-CLOCKWISE. You will re-attach the Rear Grill Mounting Nut later (Fig. 4).

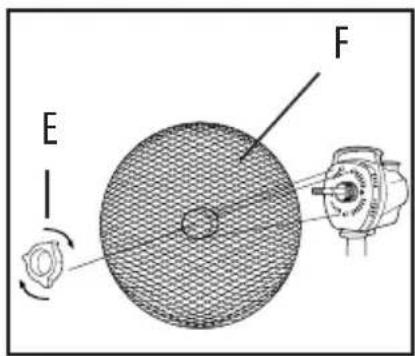

• Place the Rear Grille onto the Motor Housing, making sure the 2 holes in the center of the Rear Grille fit over the 2 raised knobs on the Motor Housing. Now place the Rear Grille Mounting Nut (E) onto the center of the fan, and tighten by turning it CLOCKWISE (Fig. 5).

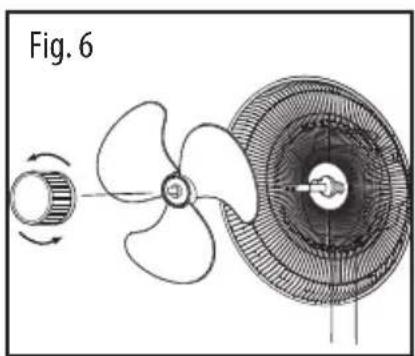

• Align hole in center of Fan Blade with the screw extending from the Motor Assembly. Make sure that the 2 slots on the back of the Fan Blade align with the bars extending from the shaft surrounding the screw attached to the Motor Assembly. Then push the Fan Blade into place. Now push the Blade Knob on the center of the Fan, and tighten by turning the Blade Knob COUNTER -CLOCKWISE (Fig. 6).

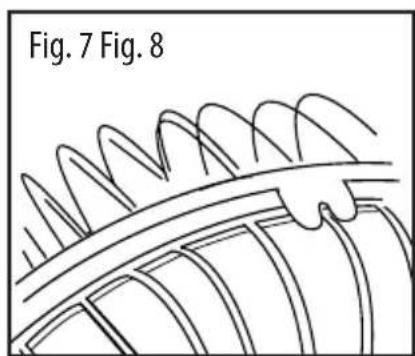

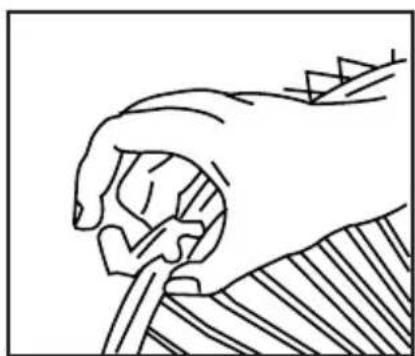

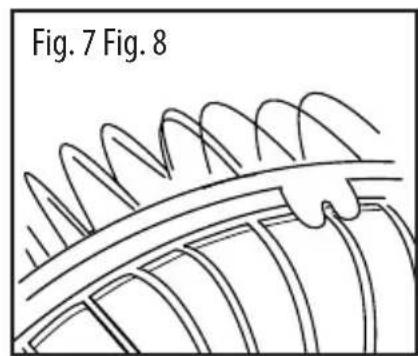

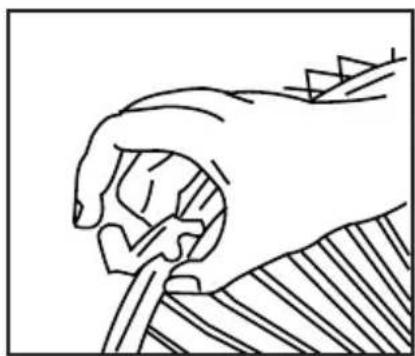

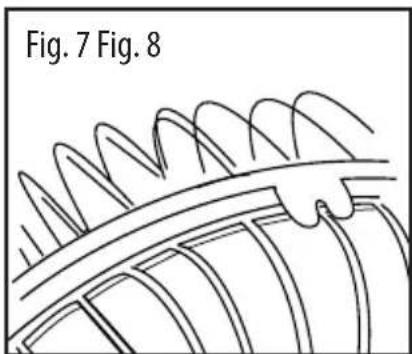

• Properly align the Front Grille with the Rear Grille (Fig. 7). To secure the Front Grille onto the fan, raise the built-in clips around the Front Grille, and fasten these clips onto the Rear Grille (Fig. 8).

Diagram of a propeller and fan assembly (no text or labels)

Technical line drawing of a turbine blade with helical blades (no text or symbols)

Line drawing of a hand gripping a tool, no text or symbols present

ASSEMBLY INSTRUCTIONS (continued)

REMOTE CONTROL BATTERY INSTALLATION/REPLACEMENT INSTRUCTIONS

A. Remove battery door by sliding downward in direction of arrow.
B. Insert 2 AAA batteries into the remote following the directional guides in the recessed slots (Fig. 9). Batteries are included.
C. Replace battery door by sliding upward opposite of arrow direction until door snaps in place.

NOTE: DO NOT MIX OLD AND NEW BATTERIES. DO NOT MIX ALKALINE, STANDARD (CARBON-ZINC) OR RECHARGEABLE (NICKEL-CADMIUM) BATTERIES.

SEE RECYCLERS IN YOUR AREA FOR PROPER DISPOSAL OF BATTERIES.

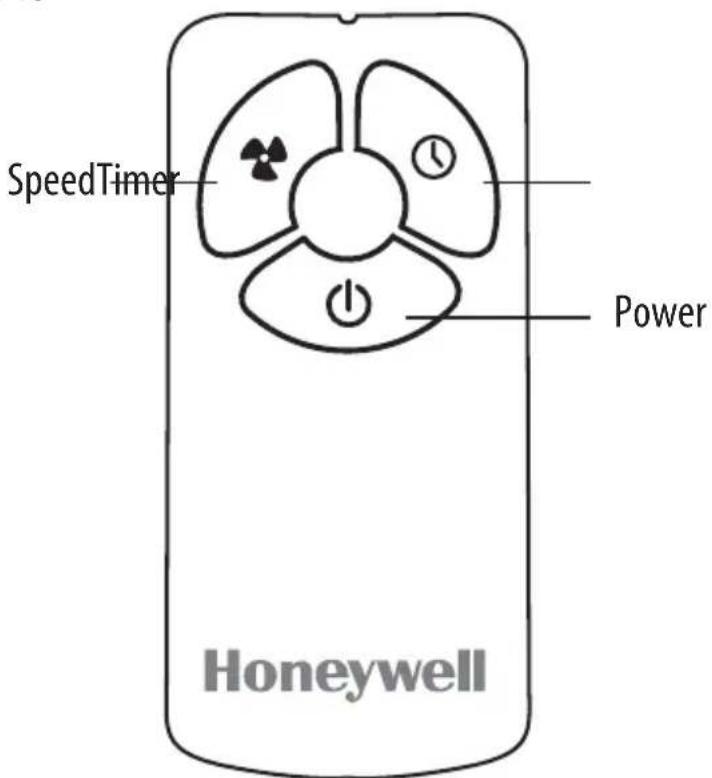

HS-1655, HS-1665 SERIES FAN OPERATION

ON/OFF

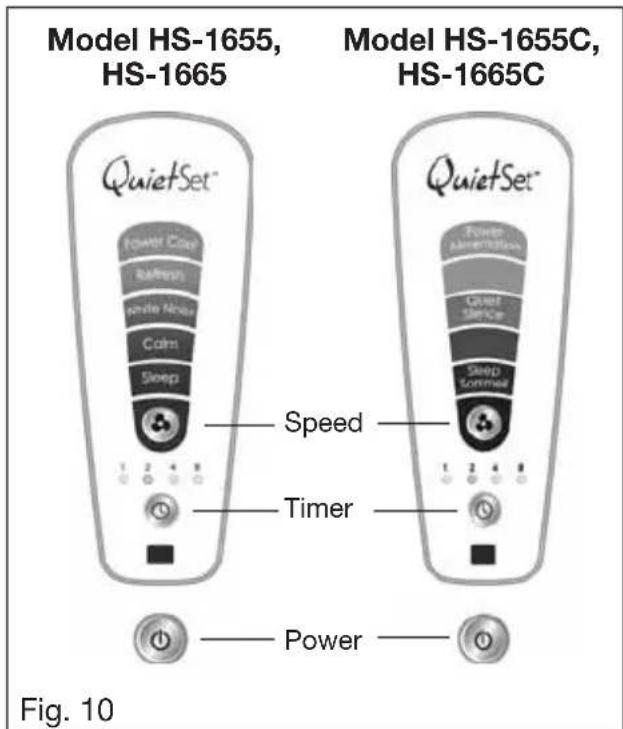

To turn fan on, press the Power button (⏻) located at the bottom of the control panel (Fig. 10).

SPEED CONTROL

To adjust the speed up or down, press the Fan Speed button (♣) repeatedly to increase level (Fig. 10).

TIMER

Choose from 1, 2, 4, or 8 hour settings by performing the following function (Fig. 10):

• 1 hour: Press the Timer button (💡) once.

• 2 hours: Press the Timer button twice.

• 4 hours: Press the Timer button a third time.

- 8 hours: Press the Timer button a fourth time.

Press the Timer button a fifth time to turn the Timer feature off.

OSCILLATION

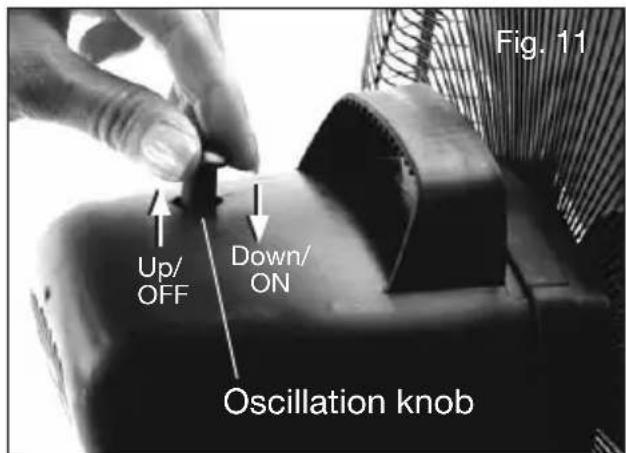

• Oscillation Knob is located on the top panel of the Motor Assembly behind the Carry Handle.
• To START fan oscillation, push the Oscillation Knob DOWN.
• To STOP fan oscillation, pull the Oscillation Knob UP.(Fig. 11).

HS-1655, HS-1665 SERIES REMOTE CONTROL OPERATION

ON/OFF

Press the Power button (⏻) once to turn the fan on. Press the Power button a second time to turn the fan off (Fig.12/13).

SPEED CONTROL

To adjust the speed up or down, press the Fan Speed button (repeatedly to increase level (Fig.12/13).

TIMER

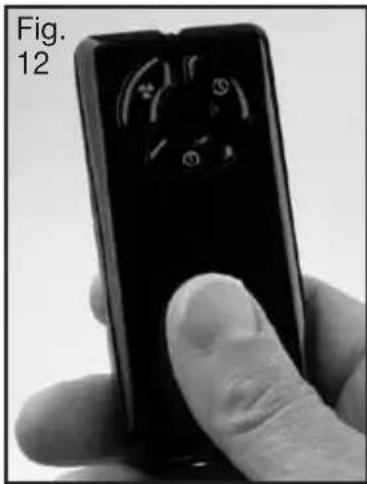

Choose from 1, 2, 4, or 8 hour settings by performing the following function (Fig.12/13):

• 1 hour: Press the Timer button ( Ⓤ ) once.
• 2 hours: Press the Timer button twice.
• 4 hours: Press the Timer button a third time.
• 8 hours: Press the Timer button a fourth time.

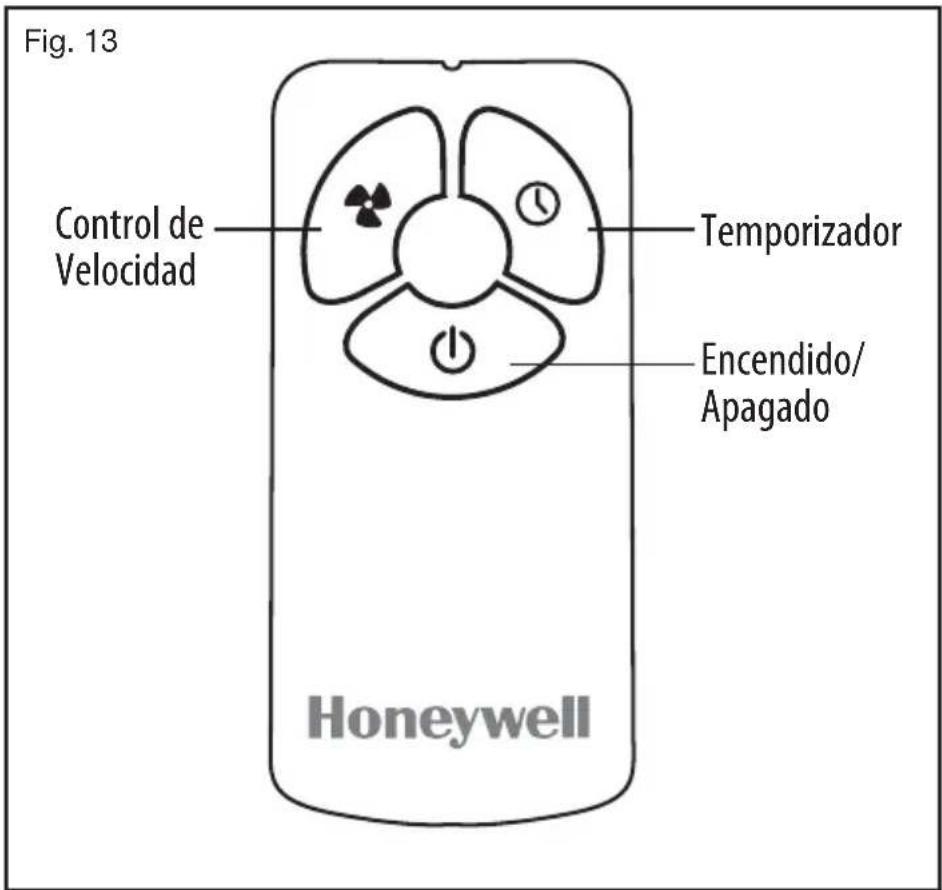

Press the Timer button a fifth time to turn the Timer feature off (Fig. 12/13).

Close-up of a finger holding a dark, illuminated object with abstract internal patterns (no text or symbols visible)

Fig. 13

USER SERVICING INSTRUCTIONS

CLEANING AND STORAGE

• Be sure your fan is in the OFF position.
• Unplug the fan before cleaning.
• Use only a soft, damp cloth to gently wipe the fan clean.
• DO NOT immerse the fan in water and never allow water to enter the Motor Housing.
• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

REMOVAL OF THE FRONT GRILLE FOR CLEANING

• Remove the Front Grille by releasing the Grille clips.
• Unscrew the Blade Knob by turning it CLOCKWISE (REVERSE THREAD).
• Pull the Fan Blade away from the Motor Housing.
• Gently wipe the Fan Blade and Grilles with a soft, damp cloth.
• Assemble the fan by following the last three steps in the ASSEMBLY INSTRUCTIONS.

STORAGE

- For storage disassemble and clean the fan carefully as instructed. Store the fan in its original box. You may also leave the fan fully assembled and covered with plastic to protect it from dust. Store your fan in clean, dry place.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz USA, Inc.

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE FAN OR PERSONAL INJURY.

1 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 1 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ USA, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz USA, Inc. will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz USA, Inc..

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz USA, Inc. with a brief description of the problem. Include proof of purchase and a \10 US/\15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

In U.S.A.:

Kaz USA, Inc.

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.

Two electric fans standing upright, one white and one black, with no visible text or symbols.

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

LISEZ CES CONSIGNES DE SÉCURITÉ AVANT L'EMPLOI ET GARDEZ-LES

Close-up of a black electrical plug with two leads and a black arrow pointing to its tip, labeled 'Fig. 1' (no other text or symbols)

Close-up of a black electrical plug with two terminal leads, partially detached and labeled 'Fig. 2' (no other text or symbols visible)

Close-up of a black electrical plug with a downward arrow indicating a component, labeled 'Fig. 3' (no other text or symbols)

Technical line drawing of a propeller and fan assembly (no text or symbols)

Technical line drawing of a turbine blade with helical blades (no text or symbols)

Line drawing of a hand holding a tool, with no visible text or symbols

INSTRUCTIONS DE MONTAGE (SUITE)

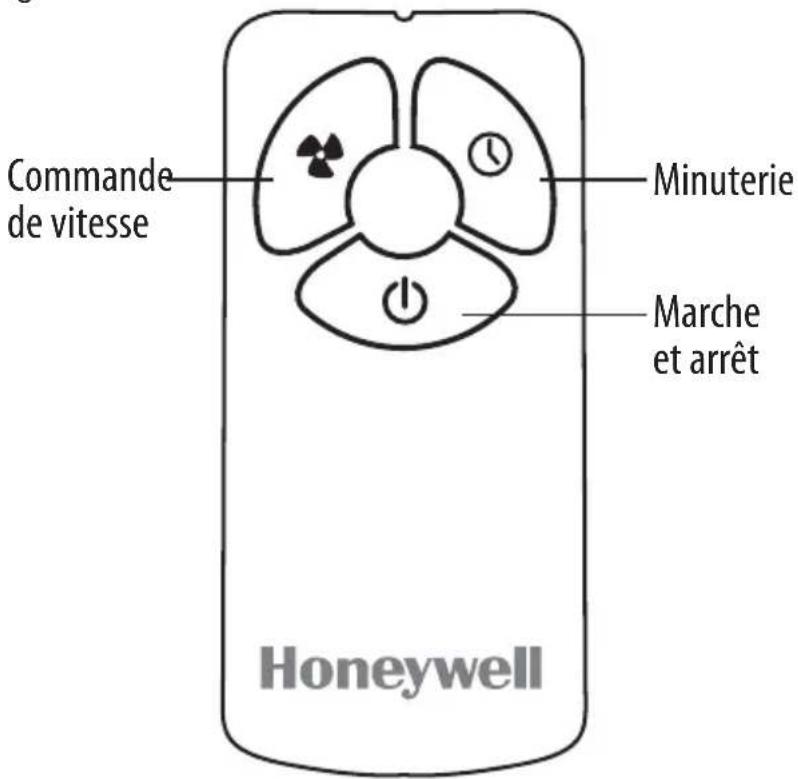

MISE EN PLACE DES PILES DE LA TÉLÉCOMMANDE/INSTRUCTIONS DE REMPLACEMENT
