Product Type	LED Lamp
Brand	AXIS
Model	T90A01
Dimensions (L x W x H)	200 x 150 x 100 mm
Weight	500 g
Power Supply	Mains 220-240 V AC, 50/60 Hz
Power	10 W
Luminous Flux	800 lumens
Color Temperature	4000 K (neutral white)
Protection Rating	IP44
Main Functions	LED lighting, integrated motion detector, mode selection (night light, full power, timer)
Material	Aluminum and polycarbonate
Installation	Wall mounting or on stand (included)
LED Lifespan	25,000 hours
Maintenance and Cleaning	Unplug before cleaning. Use a soft, dry cloth. Do not use solvents.
Safety	Do not look directly at the light source. Do not immerse in water. Suitable for indoor and sheltered outdoor use.
Spare Parts and Repairability	Built-in non-replaceable LED. No spare parts available. In case of failure, replace the unit.
Warranty	2 years
Package Contents	Lamp, wall mount, screws and anchors, user manual

Frequently Asked Questions - T90A01 AXIS

How to install the AXIS T90A01 lamp?

Attach the wall mount using the provided screws and anchors. Clip the lamp onto the mount. Plug the power cable into a mains socket.

Can I use the lamp outdoors?

Yes, the lamp has a protection rating IP44, suitable for outdoor use under cover (not directly exposed to rain).

How to adjust the motion detector?

The detector is pre-programmed. Turn the knob located under the lamp to adjust sensitivity and lighting duration (from 10 seconds to 5 minutes).

What to do if the lamp does not turn on?

Check that the socket is working and the fuse has not blown. Ensure the selected mode is not timer. If the problem persists, contact customer service.

Does the lamp flash normally?

A slight flicker may occur when turning on. If the flickering persists, unplug the lamp for 10 seconds then plug it back in.

How to clean the lamp?

Unplug the lamp. Use a soft, dry cloth. Never use abrasive products or solvents.

What is the lifespan of the LED?

The LED has an estimated lifespan of 25,000 hours, which is about 11 years of daily use of 6 hours.

Can I replace the LED bulb?

No, the LED is built-in and not replaceable. At the end of its life, the entire lamp must be replaced.

Does the lamp get hot?

Slight heating is normal during operation. Do not cover the lamp and ensure ventilation around the unit.

How to contact AXIS customer service?

Check the official AXIS website to find technical support contact information. Have the model number T90A01 ready.

USER MANUAL T90A01 AXIS

This guide provides instructions for installing the AXIS T90A 2x/3x/4x. The contents of this guide are as follows:

1. Package Contents. See below
2. Installation, on page 5
3. Setup, on page 6
4. PSU specifications, on page 7
5. Power Supply Features, on page 8
6. Technical drawings, on page 9

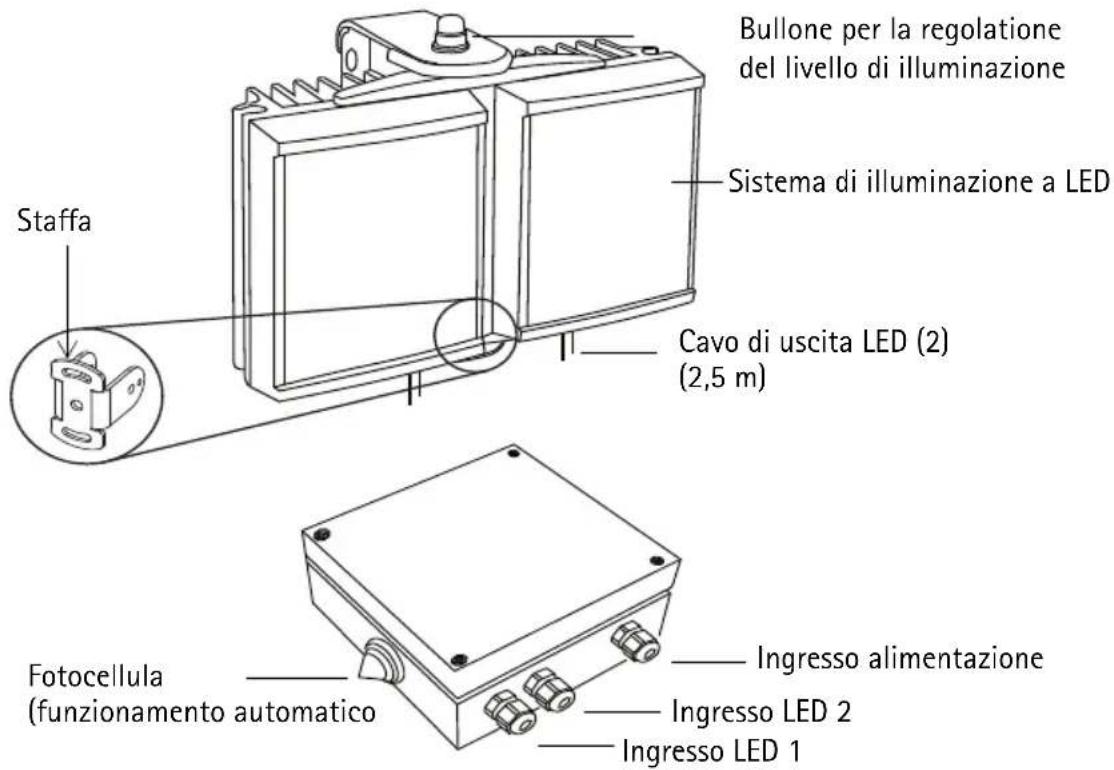

Package Contents

• AXIS T90A Illuminator with bracket
• Power Supply (PSU)
• Installation guide (this document)

Overview

Specifications subject to change without notice.

Installation

Follow these installation procedures:

1. Mount the illuminator.
2. Mount the PSU.
3. Extend or reduce the lead length as you wish.

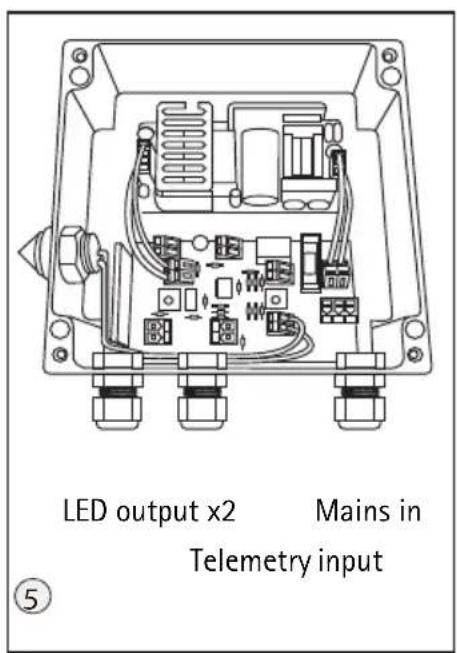

4. Connect the LED output.

5. Connect the mains.

6. Adjust the PSU and telemetry if required. (Telemetry input is used when you require to remotely control the illuminator.)

Setup

Follow these instructions to set up the illuminator.

1. It is recommended that you set the illuminator up at night.
2. Adjust the illumination vertically so you light up the target area.
3. Adjust the illumination horizontally via Adaptive Illumination to match illumination to the camera's field of view.
4. Tighten all connections.

Simple line drawing of a person holding a wall-mounted device with a crescent moon and clock, no text or symbols present.

CAUTION: Do not fully loosen bolt

Match illumination to camera's field of view

PSU specifications

Infra-red series

	AXIS T90A 4x AXIS	T90A 3x AXIS T90A	2x AXIS T90A 1x
Input AC 100-240 universal < 80W		AC 100-240 universal <40W	AC 100-240 universal < 20W	AC 100-240 universal < 10W
Fuse 2.5A anti-surge 2.5A anti-surge		1A anti-surge 1A anti-surge
Output 4.4A @	13.5V 2.4A @ 13.5V	1A @ 13.5V 0.5A @ 13.5V
Adjustable Power	10% - 100% 10% -	100% 10% - 100% 10% - 100%
Weight 1.85 kg	1.65 kg 0.9 kg 0.8 kg
Dimensions L x W x D	160 x 160 x 81 160 x 160 x 81 160 x 100 x 61 160 x 100 x 61
Drilling Dimensions	4 x M4 holes @ 145 x 123mm	4 x M4 holes @ 145 x 123mm	4 x M4 holes @ 145 x 63mm	4 x M4 holes @ 145 x 63mm

White-light series

	AXIS T90A 4x AXIS	T90A 3x AXIS T90A	2x AXIS T90A 1x
Input AC 100-240 universal < 80W		AC 100-240 universal <40W	AC 100-240 universal < 20W	AC 100-240 universal < 10W
Fuse 2.5A anti-surge 2.5A anti-surge		1A anti-surge 1A anti-surge
Output 4.4A @	14V 2.8A @ 14V 1.4A	@ 14V 0.7A @ 14V
Adjustable Power	10% - 100% 10% -	100% 10% - 100% 10% - 100%
Weight 1.85 kg	1.65 kg 0.9 kg 0.8 kg
Dimensions L x W x D	160 x 160 x 81 160 x 160 x 81 160 x 100 x 61 160 x 100 x 61
Drilling Dimensions	4 x M4 holes @ 145 x 123mm	4 x M4 holes @ 145 x 123mm	4 x M4 holes @ 145 x 63mm	4 x M4 holes @ 145 x 63mm

Power Supply Features

The following are the power supply features:

• Adjustable photocell
• Adjustable power
• Telemetry input
  • Photocell following contact (premium only)
  • 12V DC output (premium only)

Power supply diagrams

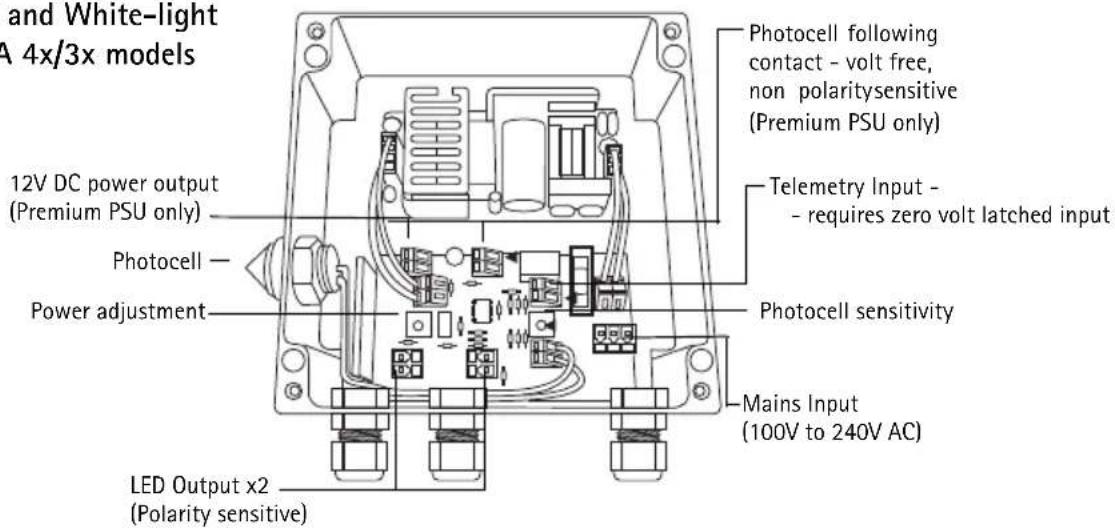

Infra-Red and White-light AXIS T90A 4x/3x models

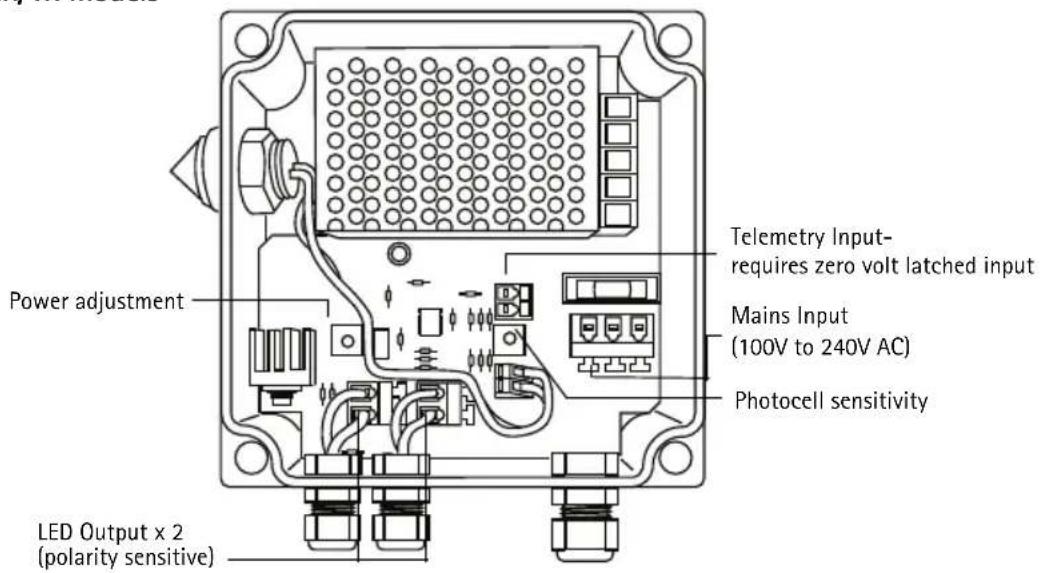

Infra-Red and White-light AXIS T90A 2x/1x models

Technical drawings

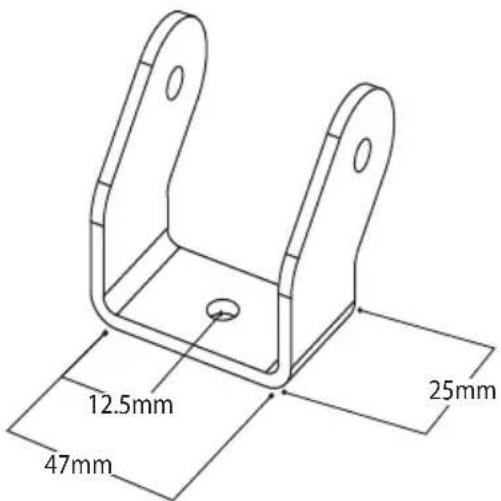

Standard brackets

Optional brackets
Dome mount Pole mount

Wall mount
PTZ mount

For more information on optional brackets please see www.axis.com

Simple line drawing of a person reaching toward a wall-mounted device with a crescent moon nearby (no text or symbols)

Supports en option

Technical line drawing of a rectangular electronic device with three connectors and mounting holes (no text or symbols)

Simple line drawing of a person reaching toward a wall-mounted device with a crescent moon nearby (no text or symbols)

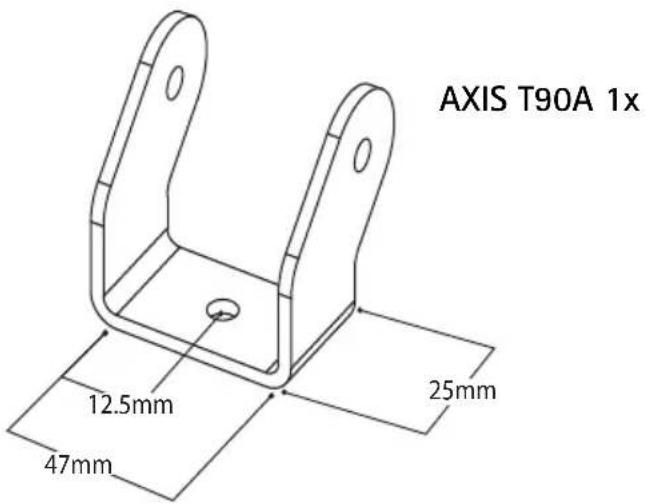

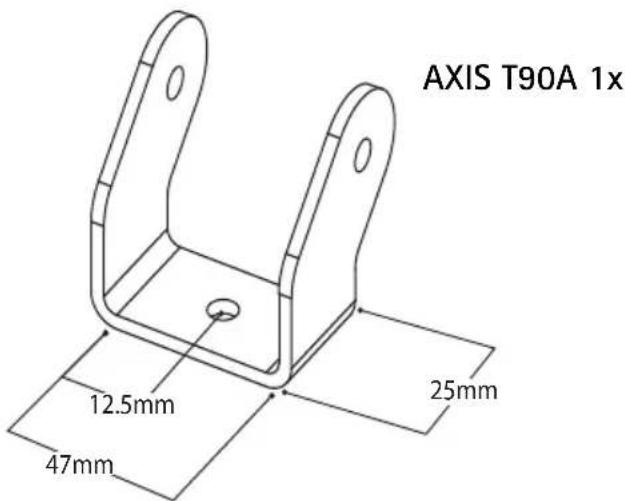

AXIS T90A 1x

Line drawing of a battery with two compartments and a labeled component 'Illuminat' (no other text or symbols)

Line drawing of a rectangular electronic device with three connectors and mounting holes (no text or symbols)

Alimentatore (PSU)

Simple line drawing of a person holding a wall-mounted device with a crescent moon and clock, no text or symbols present.

di illuminatione

Staffe opzionali

Line drawing of a dual-panel battery with a labeled component (no text or symbols on the diagram itself)

Line drawing of a rectangular electronic device with three connectors and mounting holes (no text or symbols)

Simple line drawing of a person reaching toward a wall-mounted device with a crescent moon and clock (no text or symbols)

Mechanical diagram showing a pulley system with rotating components and directional arrows (no text or labels)

Zona para iluminar

Soportes opcionales

AXIS T90A Printed: August 2008

© Axis Communications AB, 2008

Part No. 32718
