Product Type	Optical Smoke Detector
Brand	EBODE
Model	eSD18
Dimensions	100 mm diameter, 45 mm height
Weight	150 g (without battery)
Power Supply	1 9V battery (included)
Sensor	Photovoltaic (infrared smoke detection)
Sound Level	85 dB at 3 meters
Main Functions	Smoke detection, audible alarm, test/silence button, flashing LED indicator
Low Battery Indicator	Audible beep every 40 seconds
Operating Temperature	0 °C to 40 °C
Relative Humidity	10% to 90% (non-condensing)
Installation	Ceiling or wall mounting (mounting kit included)
Maintenance and Cleaning	Dust with a soft brush vacuum cleaner once a month
Safety	Certified EN 14604, CE marking
Replacement Batteries	Standard 9V battery (e.g., Duracell, Energizer)
Estimated Lifespan	10 years (device) / 1 year (battery)
Warranty	2 years
Package Contents	Smoke detector, mounting bracket, wall plugs, screws, 9V battery, user manual

Frequently Asked Questions - eSD18 EBODE

How to install the EBODE eSD18 smoke detector?

Fix the mounting bracket to the ceiling or wall using the provided wall plugs and screws. Insert the 9V battery, then twist the detector onto the bracket until it clicks. Press the test button to verify operation.

When should the battery be replaced?

Replace the battery as soon as the device emits a beep every 40 seconds (low battery indicator). Use a new high-quality 9V battery.

What to do in case of a false alarm?

Press the test/silence button to temporarily silence the alarm. Ventilate the room if smoke or steam caused the activation. The device will resume normal operation after a few minutes.

How to test the detector?

Press the test button until you hear the alarm sound (85 dB). Release the button: the alarm should stop. Perform this test once a month.

Where to place the eSD18 smoke detector?

Install it on the ceiling, in the center of the room, at least 30 cm from walls and corners. Avoid kitchens, bathrooms, and garages to limit false alarms.

What is the lifespan of the detector?

The device has a lifespan of 10 years. After this period, replace it entirely (even if it seems to work). The battery should be changed every year or as soon as the low battery signal appears.

How to clean the smoke detector?

Use a vacuum cleaner with a soft brush to dust the slots of the housing once a month. Do not use cleaning products or water.

Is the eSD18 detector compatible with series installation?

No, this model is a standalone detector. For networked installation, choose communicating models. Each detector operates independently.

What to do if the detector emits irregular beeps?

Check the battery status: if it is low, replace it. If the beeps persist, clean the detector. In case of malfunction, contact customer service.

Is the eSD18 detector under warranty?

Yes, it comes with a 2-year warranty from the date of purchase. Keep the proof of purchase for any claims.

USER MANUAL eSD18 EBODE

Wireless Smoke Detector

White circular device with ventilation slots and a small handle (no text or symbols visible)

eSD18

User guide 2
Bedienungsanleitung 7
Gebruikershandleiding 12
Användarmanual 17
Guide utilisateur 22
Manual do utilizador 27

Contents

1. CONFORMITY OF USE
2. INTRODUCTION
3. INSTALLATION INSTRUCTIONS
4. USING THE SMOKE DETECTOR
5. REGISTERING THE DETECTOR WITH THE BSS880 HOME PROTECTOR & CONSOLE
6. REGISTERING WITH THE SC28 HOME PROTECTOR
7. REGISTERING WITH THE BS800 HOMEGUARD

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product, or any changes to the product, is forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner's manual.

Safety Warnings

• Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity.
• Do not disassemble any part of the product: the device contains live parts and no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.
• Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. When inserting batteries, please be sure the polarity is right. Make sure that the batteries are not short circuits and are not disposed in fire (danger of explosion).

In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.

2. Introduction

Thank you for purchasing the ebode eSD18. Get warned by smoke emission and intervene on time to avoid damage caused by smoke and fire. The ebode eSD18 smoke detector has an optical sensor for fast response and is powered by a 9 Volt battery (not included). The eSD18 is easy and quick to assemble and has a test button for function check. Place the eSD18 on every floor of your home for maximum security. Upon detection of smoke, the eSD18 will sound an alarm of 85DB. The eSD18 can be used stand-alone, and also has the option to be connected to an X-10 alarm BS800 (HomeGuard) and Protector Plus (BS880 / BS880 and 4/7).

3. Installation instructions

Recommended Installation Locations

We recommend the installation of a Smoke Combination Detector in the following locations illustrated below. For maximum protection we suggest an alarm be installed on each level of a multilevel home including every bedroom, hallway, finished attic and basement. Put an alarm at both ends of a bedroom, hallway or large room if the hallway or room is more than 30ft.(9.1m) long. If you have only one alarm, ensure it is placed in the hallway outside of the main sleeping area, or in the main bedroom. Verify the alarm can be heard in all sleeping areas. Locate an alarm in every room where someone sleeps with the door closed. Mount the alarm on the ceiling in the centre of the room. Ceiling mounting is preferred in ordinary residential construction. When mounting an alarm on the ceiling, locate it at a minimum of 4"(10cm) from the side wall. If installing the alarm on the wall, at a minimum of 4"(10cm) and a maximum of 12"(30.5cm) below the ceiling (see diagram below).

Figure 1.1

Where not to mount the detector

Do not install in garages, kitchens, furnace rooms or bathrooms and install at least 15 feet (5m) away from any fuel burning appliance. Do not install within 3ft (0.9m) of the following: The kitchen door or a bathroom that contains tub or shower, forced air ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high air flow areas. Avoid excessively dusty, dirty or greasy areas. Dust, grease or household chemicals contaminate the alarm's sensors, causing it to malfunction. Do not place the alarm where drapes or other objects can block the sensor. Smoke must be able to reach the sensors to accurately detect these conditions. Do not install in peaks of vaulted ceiling, "A" frame ceilings or gabled roofs. Avoid installing the detector in damp and humid areas. Install at least one foot away from fluorescent lights; electronic noise may cause false alarms. Extreme temperatures will effect the sensitivity of the Smoke Alarm. Do not install in areas where the temperature is below 40 degrees Fahrenheit (4.4 Celsius) or above 100 degrees Fahrenheit (37.8 Celsius). Place the detector away from doors and windows that open to the outside.

4. Using the Smoke Detector

Installing the battery

Connect a 9-volt battery to the connector. Do not use a rechargeable battery. The battery will fit only one way. Be sure the battery connector is securely attached. Place battery into battery pocket (see picture 1.2).

Alarm

A continuous beeps will sound when smoke is detected. One "chirp" every 30 seconds will be an indication that the battery is low or the unit is malfunctioning. In case of a low battery level, replace the battery as soon as possible. As you install the battery, the unit will sound "chirp" to indicate the battery is installed properly.

The red LED will flash in conjunction with the alarm beep. I.e., the red LED will flash during an alarm and a low battery mode chirp.

Testing the detector

Press the test button on top of the smoke detector or on the inside "Test Button 1" (see picture 1.2) for several seconds to test the detector's electronics. The alarm will sound.

Note, Do this weekly to ensure correct functioning.

Technical Specifications

Input Voltage: DC 9V

Static Current: <30uA

Alarm Current: <30mA

Operating Temperature: -10^ 50^

Operating Humidity: <95% RH

Installation Method: Ceiling mounted

Detecting Area: 60m2 (with 4 meters height)

LED Frequency: once per 5 seconds

Alarm Output: Sound & Flash Alarm

Sensor: Infrared Photocell

Sensitivity: m=0.15 - 0.5dB/m

Low Voltage Prompt: 7.5V

5. Registering the Detector with the BSS880 Home Protector & Console

The detector can be registered in two different modes, being either as a Remote or as a Sensor, the difference between these mode is explained below.

Remote mode

When set to Remote mode, the detector will act as a remote, which means it will always trigger an alarm as soon as a fault is detected. The state of the console, being Armed or Disarmed, will make no difference. You can change the mode with the "Mode Selector Switch" showed in picture 1.2. Modes: Up is Remote Mode, down is Sensor Mode. When the detector stops detecting smoke it will disarm the consoles alarm automatically.

Sensor mode

In Sensor mode the smoke detector will act as a door/window sensor. When the alarm is disarmed and smoke is detected the smoke detector will sound an alarm and the console will sound a chime (if enabled in the console). When the alarm is armed in "Away Mode" and the smoke detector detects smoke both the alarm of the smoke detector and the alarm of the console will sound (console will only sound alarm if enabled in the console). The alarm of the console needs to be disabled with either the consoles PIN code or a remote.

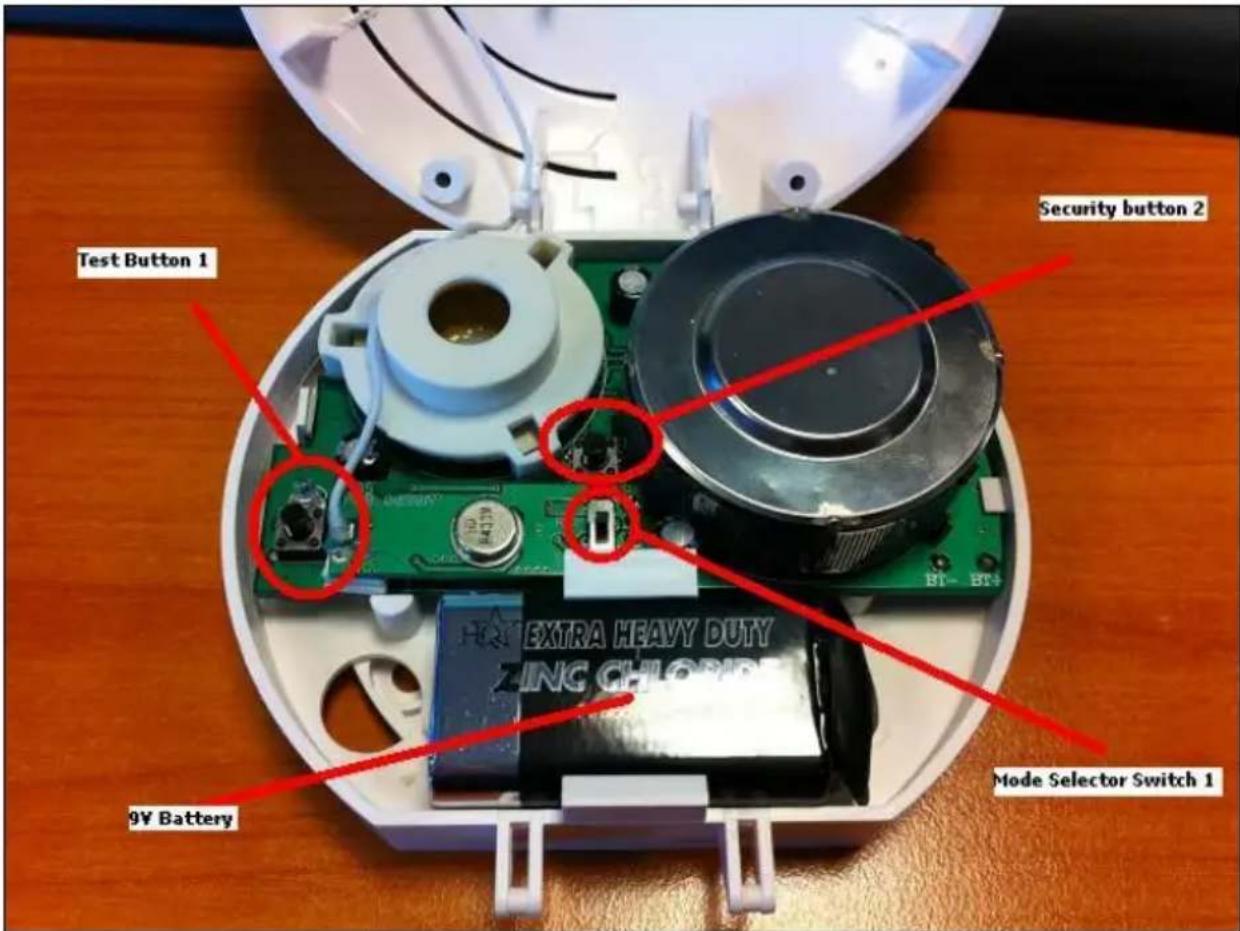

Figure 1.2

6. Registering with the SC28 Home Protector

1. Set the detector to the correct mode, being Remote or Sensor.
2. Access the menu of the console, done by either using the menu UP or DOWN button. The display now shows ENTER PIN.
3. Enter your PIN; factory default is [0000]: The display is cleared and shows a * for each number entered.
4. When the PIN code has been entered correctly, the word INSTALL will show up on the display.
5. Press OK.
6. Press the TEST button on the Detector. The console will beep to confirm. The display will either read ZONE 1 SET (when sensor mode was set) or RMOT 1 SET (when remote mode was set).

A memory space for a sensor is called a zone. If you have more than 1 sensor installed, they will be shown e.g. ZONE 2 SET, ZONE 3 SET, ... ZONE 30 SET. You can choose in which zone you want to install the sensor. If you want to install the sensor in zone 3, press 3 on the number pad before executing step 5.

It's advisable to write down which zone contains which sensor for your reference.

1. Repeat step 5 for every Detector you wish to register.

2. Press CLEAR to go back to the first menu item. Press CLEAR again to quit the menu. To confirm this choice, press 1 for Yes or 2 for No. If you choose Yes, you will quit the menu. If you choose No, you go back to the first menu item.

7. Registering with the BS800 HomeGuard

1. Set the detector to the correct mode, being Remote or Sensor.
2. Access the menu of the console, a PIN will be requested.
3. Enter your PIN, factory default is [0000]: You will hear three high tones and one low tone as confirmation. The green indicator starts flashing.
4. Press 1 on the keyboard of the HomeGuard; One high tone is given for confirmation.
5. Press the test button of the sensor; One low tone is given for confirmation.
6. Repeat step 1-3 for every Detector you wish to register.
7. Press any button on your HomeGuard keyboard to finalise the registration procedure.
   One short low tone is given and the green indicator will stop flashing.

If successive commands are not entered within a period of 15 seconds, the base station returns to normal operation. To restart the registration you must start the procedure from step1.

Note. The RF range can be affected by a number of factors including building construction, so make sure you test the detector in the desired location using the detector's main test button. The detector will sound an alarm and when in range the console will also acknowledge the detector.

Contents

Technical Specifications

Voltage: DC 9V

Preacautions de securite

DECLARATION OF CONFORMITY

Hereby, ebode declares that this eSD18 is in compliance with the essential requirements and other relevant provisions of the following Directives:

1) Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
2) Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
3) Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
4) Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
5) Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using

Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)

This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.

It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.

For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland and Liechtenstein

Product category: general consumer (category 3).

English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC
