Memory Station 2 5" 6002531 - External hard drive INTENSO - Free user manual and instructions

Product type	External hard drive
Brand	Intenso
Model	Memory Station 2.5" 6002531
Storage capacity	Varies by version
Interface	USB 3.0
Compatibility	Windows, Mac OS
Supported formats	NTFS, exFAT
Power supply	Via USB port
Dimensions (L x W x H)	Approximately 12 x 8 x 2 cm
Weight	Approximately 200 g
Housing material	Plastic
Main functions	File storage and transfer
Care and cleaning	Clean with a soft, dry cloth
Safety	Do not expose to water or moisture
Spare parts and repairability	No user-serviceable parts
General information	2.5-inch external hard drive, plug-and-play

Frequently Asked Questions - Memory Station 2 5" 6002531 INTENSO

How do I connect the Memory Station 2.5" hard drive to my computer?

Connect the provided USB cable to the hard drive and to a USB port on your computer. The device is automatically recognized on Windows and Mac.

The hard drive is not recognized, what should I do?

Check that the USB cable is properly connected. Try another USB port. On Windows, open Device Manager to see if it appears. On Mac, check in Disk Utility.

Do I need to format the hard drive before use?

The drive is usually preformatted in NTFS for Windows. For compatibility with both Mac and Windows, you can reformat it to exFAT via Disk Utility.

How do I transfer files to the hard drive?

Once connected, open the drive folder in File Explorer (Windows) or Finder (Mac). Drag and drop the files into that folder.

Can I use this hard drive with a game console?

Yes, it is compatible with PlayStation and Xbox for game storage, after appropriate formatting (exFAT for Xbox, FAT32 for PS4).

How do I maintain the hard drive?

Avoid shocks and moisture. Clean the casing with a soft cloth. Never unplug the cable during a transfer without safely ejecting the device.

What is the product warranty?

The legal warranty is 2 years. Keep the invoice. For defects outside warranty, contact Intenso customer service.

The drive heats up abnormally, is this normal?

A slight warming during operation is normal. If the temperature becomes excessive, unplug it and contact support.

How do I safely eject the drive?

On Windows, click the 'Safely Remove Hardware' icon in the taskbar. On Mac, drag the drive icon to the Trash.

What should I do if the hard drive makes strange noises?

Stop using it immediately. Back up your data if possible. Contact Intenso customer service or a data recovery specialist.

USER MANUAL Memory Station 2 5" 6002531 INTENSO

Temperatur:

Stoß, Fall:

Operating Instructions

2,5" MEMORYSTATION

Scope of Delivery

• Intenso Hi-Speed USB 2.0 hard drive
• Y- USB 2.0 cable
• Operating instructions
  • Guarantee certificate

Technical Data

External hard disk 2,5" USB 2.0

Dimensions: 13 x 78 x 127 mm

Maximal transfer 480 MBit /sec (USB 2.0)

Capacity: 1MB = 1,000,000bytes / 1GB = 1,000,000,000 bytes

Instructions for use

Temperature:

In operation: 5 °C to 55 °C

Out of service: - 40 °C to 60 °C

Relative air humidity:

In operation, out of service: 8 % - 90 %

Crush, fall

Protect the device in every operation condition from crush and fall. Do not move the device during operation.

Electrostatic discharge

It is an electrostatic discharge sensitive device. Protect the device from every kind of electrostatic discharge.

Disposal of WEEE (Waste Electrical and Electronic Equipment)

Devices marked with the WEEE logo are subject to the European Community Directive 2002/96/EC.

Waste Electrical and Electronic Equipment must be separated from household rubbish and disposed at sites that collect WEEE.

By orderly disposing WEEE you will avoid damage caused to the environment.

Installation Instructions

System Requirements:

This hard drive is compatible with the operating systems MS Windows 98 SE/ ME/ 2000/ XP/Vista/ Windows 7, Linux 2.4.x and Mac OS 10.x.

Windows 98 SE: At first please install the Win98 driver from our homepage: www.intenso.de

Please note: Your PC's hardware configuration as well as the operating system employed can influence the compatibility of the hard drive.

Hard Drive Connection:

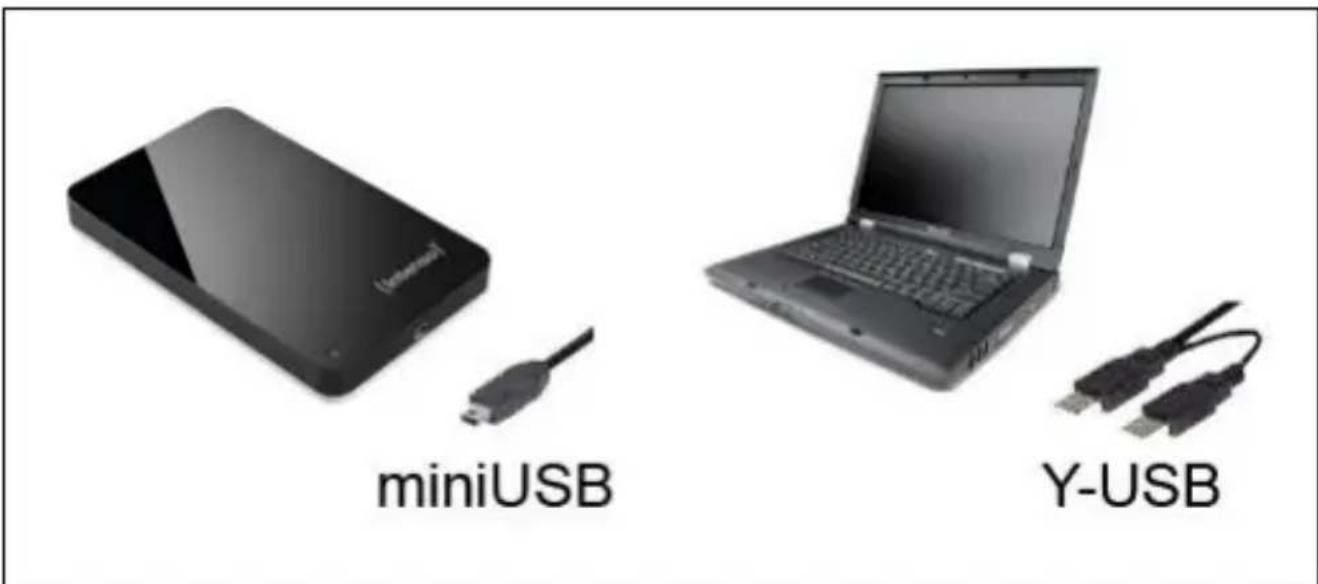

To connect an external hard drive to your computer, please use the USB cable provided. Connect the miniUSB plug with the Intenso hard drive and the two plugs of the Y-USB cable ending with your computer.

The computer automatically detects the "New Device" and installs the driver. Please wait until driver installation is completed. Your computer now shows an additional drive named "Intenso".

As soon as the hard drive is connected to your computer, the LED flashes. The LED flashes, when writing or reading procedure is carried out.

Trademark: Windows 98 / XP / Vista / Windows 7 are registered trademarks of the Microsoft Corporation. Macintosh and MAC are registered trademarks of Apple Computer. All trademarks and names of third parties are property of the respective user.

Limited guarantee conditions

The guarantee only covers the use of this Intenso product. The guarantee does not cover normal wear resulting from faulty, improper use, negligence, accidents, incompatibility or poor functionality of certain computer hardware or computer software.

Claim under guarantee does not exist in the case of noncompliance with the Intenso user manual as well as in case of improper assembly, use or defects of other devices.

Claim under guarantee does not exist in the case that the device is exposed to shock, electro-static discharge, heat or humidity beyond the product specifications.

Intenso is not liable for data loss or any other occurring indirect damages or secondary damages, for the violation of the guarantee conditions or any other damages, no matter what the reason is.

Important information:

Please note that any claim under guarantee expires, if the capacity label (= guarantee sealing) on the rear side is damaged and if the housing of the hard disk is opened.

This product is not intended for commercial use, for medical or special applications, where a failure of the product can cause injuries, fatalities or substantial property damage.

Istruzioni d'uso

2,5" MEMORYSTATION

Volume di consegna

Temperatura:

Urto, caduta

Capacité: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Température:

En service: 5 °C to 55 °C

Hors service: - 40 °C to 60 °C

Ecrasement, chute

Temperatura:

Golpe, caída

Descarga electroestática

Temperatura:

Colisões, quedas

Temperatura:

Uderzenie, upadek

Температура:

Удар, падение
