Product type	Indoor fixed network camera
Brand	Axis
Model	M1104
Dimensions (W x D x H)	110 x 60 x 42 mm
Weight	300 g
Power supply	PoE IEEE 802.3af (Power over Ethernet)
Resolution	1 MP (1280 x 800 pixels)
Video compression	H.264, Motion JPEG
Night vision	Built-in (infrared LED)
Horizontal field of view	80°
Main functions	Motion detection, live video stream, recording on SD card
Maintenance and cleaning	Clean the dome with a soft dry cloth; avoid harsh solvents
Security	HTTPS encryption, password protection, IP address filtering
Spare parts and repairability	Parts available through authorized Axis resellers; repair possible by authorized service
General information	3-year warranty, compatible with AXIS Camera Station, operating temperature: 0 to 45°C
Installation	Wall or ceiling mount, Ethernet connection

Frequently Asked Questions - M1104 AXIS

How to install the Axis M1104 camera?

Mount the camera on a wall or ceiling bracket using the provided kit. Connect an Ethernet cable for power and data (PoE). Use the Axis Discovery Tool to find the device on the network and access its web interface.

How to reset the camera to factory settings?

Press and hold the reset button (located under the cover) for about 10 seconds until the LED flashes. The camera will restart with default settings. You can also reset via the web interface in the Maintenance tab.

How to view the video stream from a smartphone?

Download the AXIS Camera Companion app or use a mobile web browser. Enter the camera's IP address (or hostname) and log in with your credentials. Make sure port 80 or 443 is accessible if you are on a remote network.

The camera does not turn on, what to do?

Check that the Ethernet cable is properly connected and that the network equipment provides PoE (Power over Ethernet). Test with another cable or a PoE injector. If the camera still does not power on, contact Axis support.

How to activate motion detection?

In the camera's web interface, go to Settings > Motion Detection. Check the 'Enable' box and adjust the detection zones and sensitivity. You can configure actions such as sending an email or recording.

What is the lifespan of the infrared LEDs?

The infrared LEDs are designed for a long lifespan, typically over 20,000 hours of continuous operation. Their brightness may gradually decrease, but they do not require regular replacement. The camera automatically adjusts the intensity.

How to update the camera firmware?

Download the latest firmware from the Axis website. In the web interface, go to Maintenance > Firmware Update. Select the downloaded .bin file and click 'Update'. Do not cut power during the update.

Can I use an SD card with the M1104?

Yes, the camera has a microSD card slot (up to 128 GB). Insert the card into the slot under the cover. You can record continuously or on motion detection. Format the card as FAT32 or exFAT via the interface.

How to clean the camera dome?

Use a soft, lint-free cloth slightly dampened with water or lens cleaner. Gently wipe the dome in circular motions. Never use solvents, alcohol, or abrasive products that could damage the coating.

Is the camera compatible with home automation systems?

Yes, the Axis M1104 supports open protocols such as ONVIF and RTSP. You can integrate it with compatible home automation systems (e.g., Home Assistant, Synology Surveillance Station). Check the Axis compatibility list for details.

USER MANUAL M1104 AXIS

Legal Considerations

Video and audio surveillance can be prohibited by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes.

These network cameras include one (1) H.264 decoder license. To purchase further licenses, contact your reseller.

Electromagnetic Compatibility (EMC)

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a different circuit to the receiver. Consult your dealer or an experienced radio/TV technician for help. Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards. See Electromagnetic Compatibility (EMC), on page 73 for more information on this product's compliance with safety standards.

Equipment Modifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Liability

Every care has been taken in the preparation of this document. Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice. Axis Communications AB makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material.

RoHS

This product complies with both the European RoHS directive, 2002/95/EC, and the Chinese RoHS regulations, ACPEIP.

WEEE Directive

The European Union has enacted a Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE Directive). This directive is applicable in the European Union member states.

The WEEE marking on this product (see right) or its documentation indicates that the product must not be disposed of together with household waste. To prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

Business users should contact the product supplier for information on how to dispose of this product correctly. This product should not be mixed with other commercial waste. For more information, visit www.axis.com/techsup/.

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:

• download user documentation and firmware updates
  • find answers to problems in the FAQ database. Search by product, category, phrases.
  • report problems to Axis support by logging in to your private support area.

AXIS M11 Series Installation Guide

This guide helps you to install the AXIS M11 Series Network Camera on your network. For further information, please see the User's Manual available on the CD, or from www.axis.com/techsup

Installation steps

1. Check the package contents against the list below.
2. Hardware overview on page 4.
3. Install the hardware on page 5.
4. Assign an IP address on page 6.
5. Set the password on page 9.
6. Adjust image and focus on page 11

Important!

This product must be used in compliance with local laws and regulations.

Package contents

Item Title/Variants
Network camera AXIS M1103	AXIS M1104AXIS M1113AXIS M1114
Camera stand
CD AXIS Network Video CD,	including prod-uct documentation, installation tools and other software.
Printed material AXIS M1103	M1104/M1113/M1114Installation GuideWarranty document

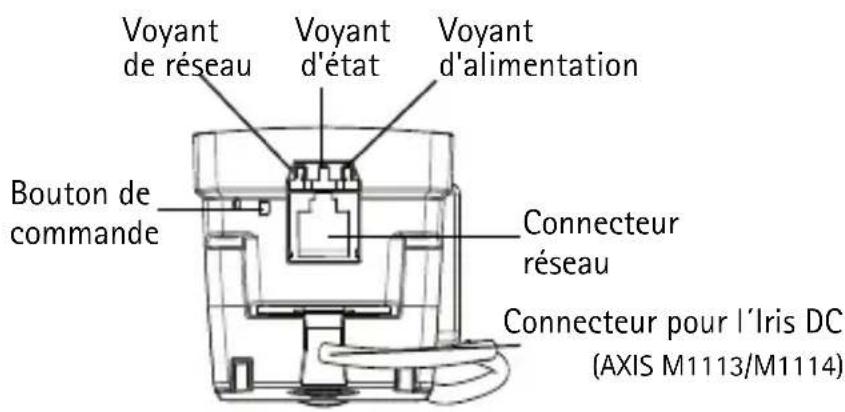

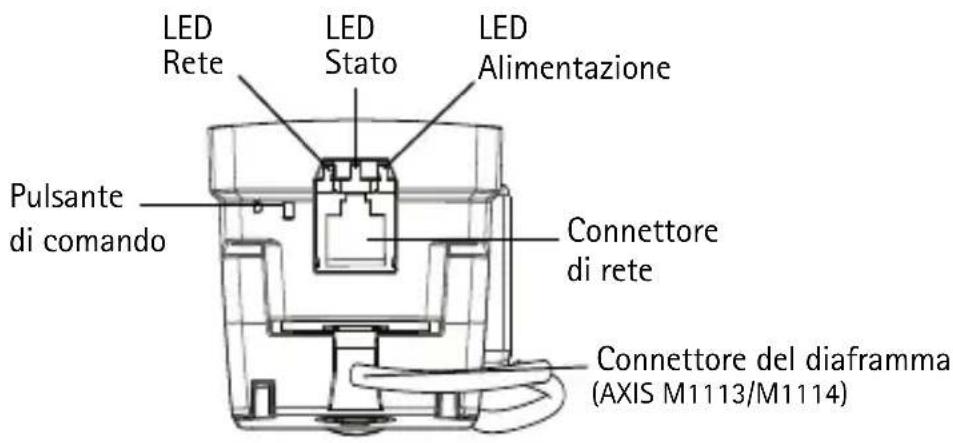

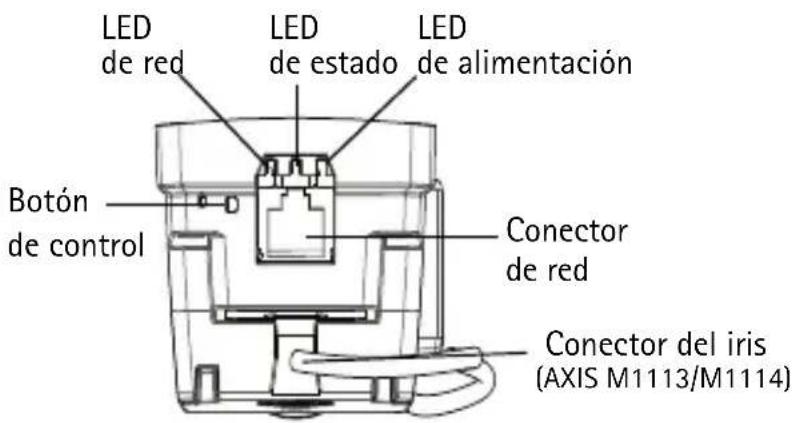

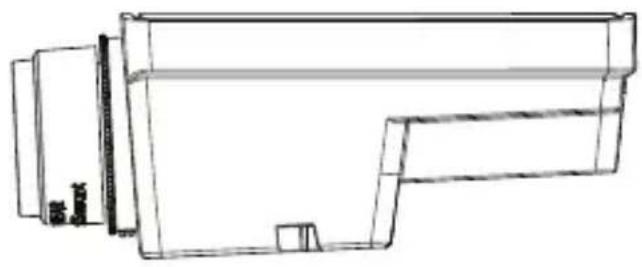

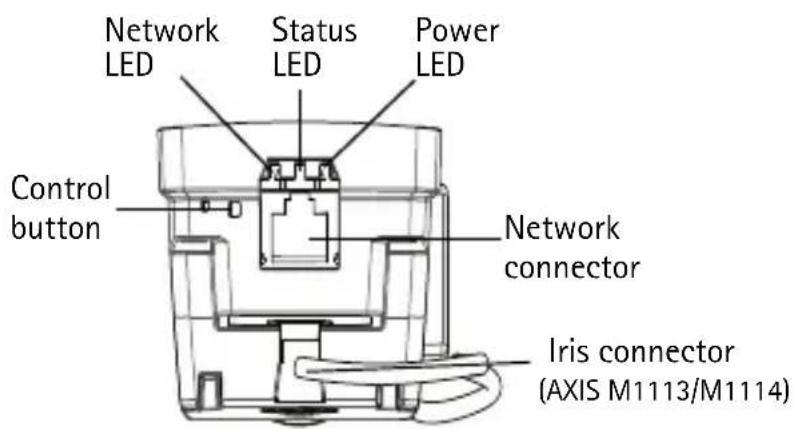

2 Hardware overview

Pure technical line drawing of a mechanical component or housing (no text or symbols)

AXIS M1103/M1104

Dimensions (HxWxD)

AXIS M1103/AXIS M1104 2.8 mm: 43 x 61 x 107 mm (1.7" x 2.4" x 4.2")

AXIS M1103/AXIS M1104 6 mm: 43 x 61 x 110 mm (1.7" x 2.4" x 4.3")

AXIS M1113: 43 x 61 x 140 mm (1.7" x 2.4" x 5.5")

AXIS M1114: 43 x 61 x 142 mm (1.7" x 2.4" x 5.6")

LED indicators

LED Color	Indication
Network Green	Green Steady	for connection to a 100 Mbit/s network. Flashes for network activity.
	Amber Steady	for connection to 10 Mbit/s network. Flashes for network activity.
	Unlit No	network connection.
Status Green	Steady green for normal operation.Note: Configure the Status LED to be unlit during normal operation, or to flash only when the camera is accessed from Setup > System Options > LED. See the online help files for more information.
	Amber Steady during startup, reset to factory default or when restoring settings.
	Red Slow	flash for failed upgrade.
Power Green	Normal operation.
	Amber Flashes green/amber during firmware upgrade.

Install the hardware

Important!

AXIS M11 Series is designed for indoor and outdoor use. To use the camera outdoors, install in an approved outdoor housing. Please see www.axis.com for more information on outdoor housings.

1. Attach the stand to the camera by screwing it on. For wall mounting, attach the stand to wall first, using 3 appropriate screws.
2. Attach the cable to the network connector (supports PoE class 1) in the camera.
3. Check that the indicator LEDs indicate the correct conditions. See table above.

4 Assign an IP address

Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. If your network does not have a DHCP server, the Network Camera will use 192.168.0.90 as the default IP address.

AXIS IP Utility and AXIS Camera Management are the recommended methods for setting an IP address in Windows. These free applications are available on the Axis Network Video Product CD supplied with this product, or they can be downloaded from www.axis.com/techsup Depending on the number of cameras you wish to install, use the method that suits you best.

Method Recommended		for Operating system
	AXIS IP UtilitySee page 7	Single cameraSmall installations	Windows
	AXIS Camera ManagementSee page 8	Multiple camerasLarge installationsInstallation on a different subnet	Windows 2000Windows XP ProWindows 2003 ServerWindows VistaWindows 7

Notes:

- If assigning the IP address fails, check that there is no firewall blocking the operation.

- For other methods of assigning or discovering the IP address of the AXIS M11 Series, such as in other operating systems, see page 12.

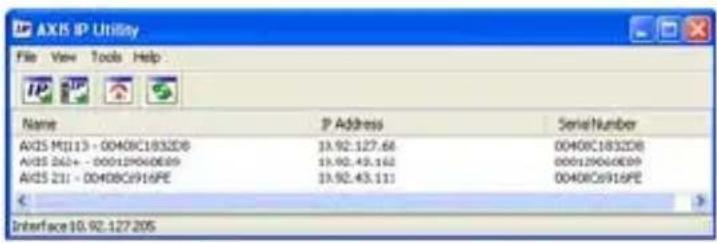

AXIS IP Utility - single camera/small installation

AXIS IP Utility automatically discovers and displays Axis devices on your network. You can also manually set a static IP address through this application. AXIS IP Utility is available on the Axis Network Video Product CD, or it can be downloaded from www.axis.com/techsup

Install the AXIS M11 Series Network Camera on the same network segment (physical subnet) as the computer running AXIS IP Utility.

Automatic discovery

1. Check that the AXIS M11 Series Network Camera is connected to the network and that power has been applied.
2. Start AXIS IP Utility.
3. When the AXIS M11 Series network camera appears in the window, double-click to open the camera's home page.
4. See page 9 for instructions on how to set the password.

Set the IP address manually (optional)

1. Acquire an unused IP address on the same network segment your computer is connected to.
2. Select the AXIS M11 Series in the list.
3. Click the button IP Assign new IP address to selected device and enter the IP address.
4. Click the Assign button and follow on-screen instructions. Note that the camera must be restarted within two minutes for the new IP address to be set.
5. Click the Home Page button to access the camera's web pages.
6. See page 9 for instructions on how to set the password.

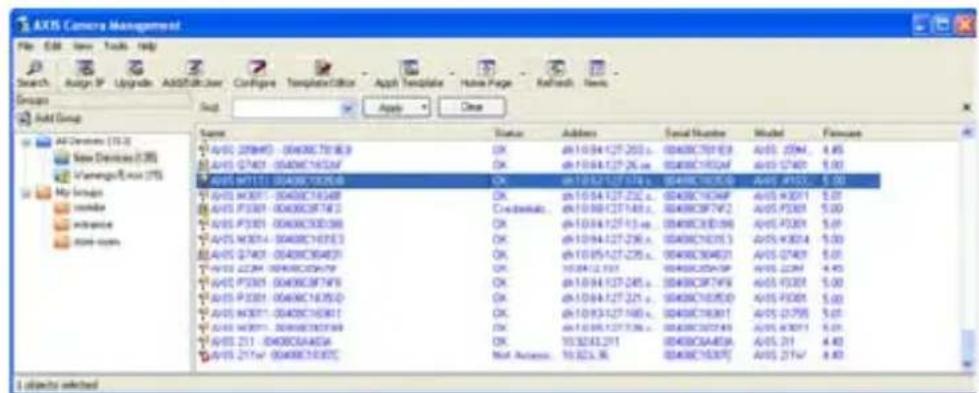

AXIS Camera Management - multiple cameras/ large installations

AXIS Camera Management can automatically discover multiple Axis devices, show connection status, manage firmware upgrades and set IP addresses.

Automatic discovery

1. Check that the camera is connected to the network and that power has been applied.
2. Start AXIS Camera Management. When the camera appears in the window, right-click the link and select Live View Home Page.
3. See page 9 for instructions on how to set the password.

Assign an IP address in a single device

1. Select the network camera in AXIS Camera Management and click the Assign IP button .IP
2. Select Assign the following IP address and enter the IP address, subnet mask and default router the device will use.
3. Click the OK button.

Assign IP addresses in multiple devices

AXIS Camera Management speeds up the process of assigning IP addresses to multiple devices, by suggesting IP addresses from a specified range.

1. Select the devices you wish to configure (different models can be selected) and click the Assign IP button
2. Select Assign the following IP address range and enter the range of IP addresses, the subnet mask and default router the devices will use.
3. Click the OK button.

5 Set the password

To gain access to the product, the password for the default administrator user root must be set. This is done in the 'Configure Root Password' dialog, which is displayed when the AXIS M11 Series network camera is accessed for the first time.

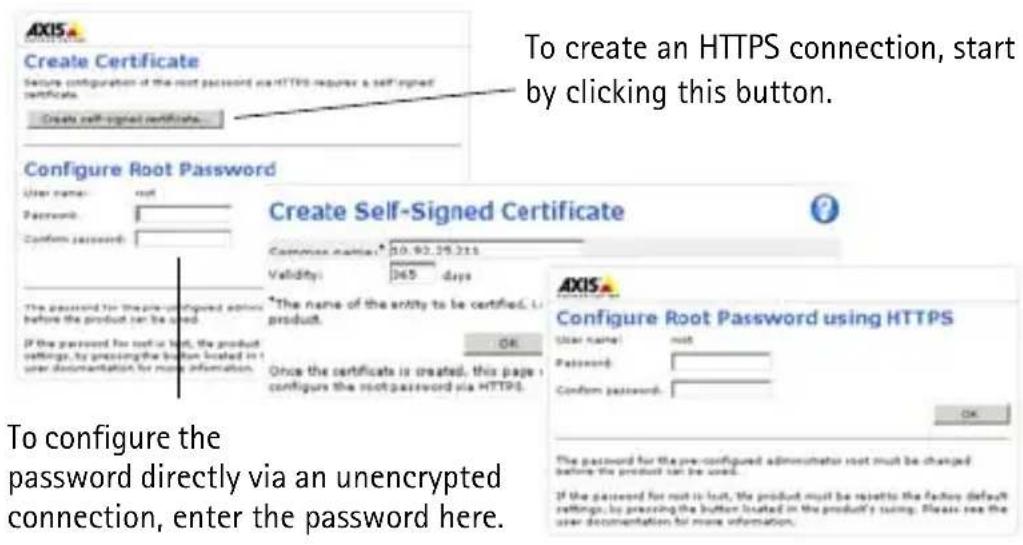

To prevent network eavesdropping when setting the root password, this can be done via an encrypted HTTPS connection, which requires an HTTPS certificate (see note below).

To set the password via a standard HTTP connection, enter it directly in the first dialog shown below.

To set the password via an encrypted HTTPS connection, follow these steps:

1. Click the Create self-signed certificate button.

2. Provide the requested information and click OK. The certificate is created and the password can now be set securely. All traffic to and from the AXIS M11 Series is encrypted from this point on.

3. Enter a password and then re-enter to confirm the spelling. Click OK. The password has now been configured.

1. To log in, enter the user name "root" in the dialog as requested
   Note: The default administrator user name "root" cannot be deleted.
2. Enter the password as set above, and click OK.

If required, click Yes to install AMC (AXIS Media Control), which allows viewing of the video stream in Internet Explorer. You will need administrator rights on the computer to do this. If required, click the link to install missing decoders. The Live View page of the AXIS M11 Series network camera appears. The Setup link to the right gives you menu options that allow you to customize the camera.

6 Adjust image and focus

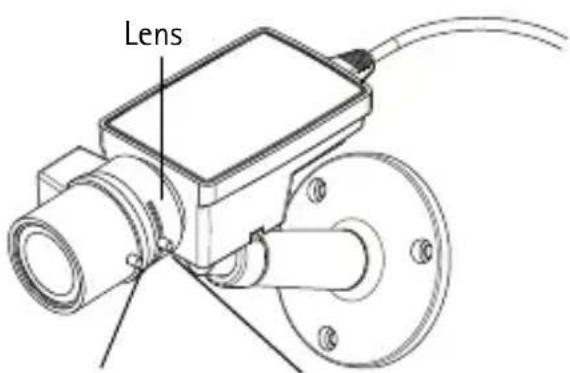

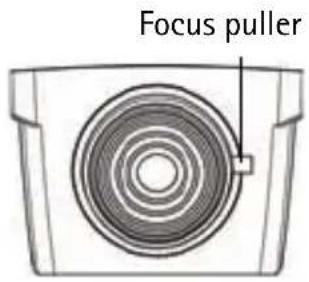

To focus AXIS M1103/M1104:

Unscrew the focus puller on the lens. Adjust the focus as required. Re-tighten the focus puller.

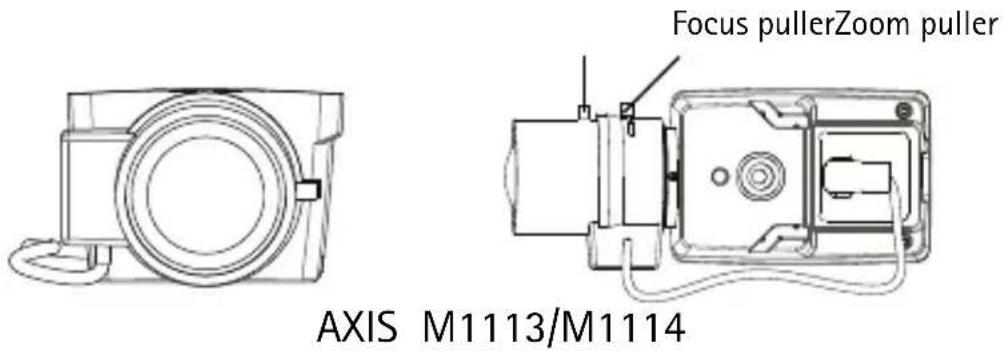

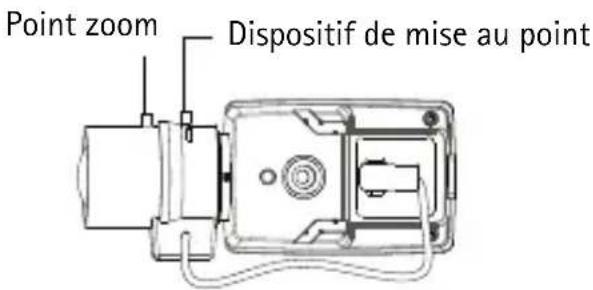

To focus AXIS M1113/M1114:

Diagram of a camera lens with concentric circular blades (no text or symbols)

Focus puller

1. Click the Setup link at the top, right in the camera's web interface and go to Basic Setup > Focus.
2. In the Focus Adjustment page set the DC-Iris to Disabled and click Save.
3. Unscrew the zoom puller on the lens by turning it anti-clockwise. Adjust the zoom setting as required. Re-tighten the zoom puller.
4. Unscrew the focus puller on the lens. Adjust the focus as required. Re-tighten the focus puller.
5. From the Focus Adjustment page, set the DC-Iris to Enabled and click Save.

Note:

- The DC-Iris should always be disabled while focusing the camera. This opens the iris to its maximum, which gives the smallest depth of field and thus the best conditions for correct focusing. When the focus is set with this method it will then be maintained in all light conditions

- The design of AXIS M11 Series allows for slight lens movement to ensure sensor alignment.

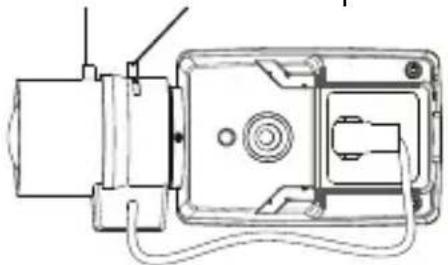

Focus puller Zoom puller

Other methods of setting the IP address

	Use in operating system	Notes
AVHS Service Connection	All To connect the camera to an AVHS service, refer to the service provider's Installation guide. For information and help to find a local AVHS Service Provider go to www.axis.com
UPnPTM	Windows (ME or XP)	When enabled on your computer, the camera is automatically detected and added to "My Network Places."
Bonjour	MAC OSX (10.4 or later)	Applicable to browsers with support for Bonjour. Navigate to the Bonjour bookmark in your browser (e.g. Safari) and click on the link to access the camera's web pages.
AXIS Dynamic DNS Service	All A free service from Axis that allows you to quickly and simply install your camera. Requires an Internet connection with no HTTP proxy. See www.axiscam.net for more information.
ARP/Ping	All See user's manual. The command must be issued within 2 minutes of connecting power to the camera.
DHCP	All To view the admin pages for the network DHCP server, see the server's documentation.

Resetting to the Factory Default Settings

To reset all parameters and the IP address to Factory Default settings:

1. Disconnect power from the camera.
2. Press and hold the Control button and reconnect power.
3. Keep the Control button pressed until the Power indicator flashes amber (this may take up to 15 seconds).
4. Release the Control button. When the Power indicator displays green (which can take up to 1 minute) the process is complete and the camera has been reset.
5. Re-assign the IP address, using any one of the methods.

Accessing the camera from the Internet

Once installed, your AXIS M11 Series network camera is accessible on your local network (LAN). To access the camera from the Internet, configure network routers to allow incoming traffic, which is usually done on a specific port:

• HTTP port (default port 80) for viewing and configuration
• RTSP port (default port 554) for viewing H.264 video streams
  Please refer to the documentation for your router for further instructions. For more information on this and other topics, visit the Axis Support Web at www.axis.com/techsup

Further information

The user's manual is available from the Axis web site at www.axis.com or from the Axis Network Video Product CD supplied with this product.

Visit www.axis.com/techsup to check if there is updated firmware available for the AXIS M11 Series. To see the currently installed firmware version, see Setup > About in the camera's web pages.

Technical line drawing of a mechanical component with concentric circular features (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

AXIS M1103/M1104

Line drawing of a camera frame (no text or symbols)

Technical line drawing of a mechanical component with concentric circular features (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with concentric circular features (no text or symbols)

Pure technical line drawing of a mechanical component or housing (no text or symbols)

AXIS M1103/M1104

Diagram of a circular device with concentric rings and a small protrusion (no text or symbols)

Technical line drawing of a mechanical component with concentric circular features (no text or symbols)

Pure technical line drawing of a mechanical component or housing (no text or symbols)

AXIS M1103/M1104

Line drawing of a camera with lens and side mount (no text or symbols)

Botón de enfoque

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

AXIS M1113/M1114

Dimensions (HxWxD)

AXIS M1103/AXIS M1104 2.8 mm: 43 x 61 x 107 mm (1.7" x 2.4" x 4.2")

AXIS M1103/AXIS M1104 6 mm: 43 x 61 x 110 mm (1.7" x 2.4" x 4.3")

AXIS M1113: 43 x 61 x 140 mm (1.7" x 2.4" x 5.5")

AXIS M1114: 43 x 61 x 142 mm (1.7" x 2.4" x 5.6")

Indicadores LED

Diagram of a circular fan or vent with concentric rings, no text or symbols present

Botón de enfoque

USA – This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

Canada - This Class B digital apparatus complies with Canadian ICES-003. Europe - C€ This digital equipment fulfills the requirements for radiated emission according to limit B of EN55022, and the requirements for immunity according to EN55024 residential and commercial industry.

Japan – This is a class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual

Australia – This electronic device meets the requirements of the Radio communications (Electromagnetic Compatibility) Standard AS/NZS CISPR22.

A급 기기 (업무용 정보통신기기)

AXIS M11 Series Network Camera Printed: April 2010

© Axis Communications AB, 2010 Part No. 39146
