Product type	FM stereo receiver
Brand	Renkforce
Model	SAP-702
Dimensions (W × H × D)	430 × 140 × 300 mm
Weight	5.2 kg
Power supply	230 V ~ 50 Hz
Power consumption	80 W max
Standby consumption	< 0.5 W
FM frequency range	87.5 – 108.0 MHz
Number of channels	2 channels (stereo)
Output power	2 × 50 W RMS (4 Ω)
Audio inputs	3 × RCA, 1 × optical, 1 × coaxial
Audio outputs	2 × speakers, 1 × subwoofer
Headphone output	Yes, 6.35 mm jack
Tuner	FM with RDS
Main functions	FM radio, audio playback, equalizer, timer, alarm
Remote control	Yes, included
Display	Backlit LCD screen
Care and cleaning	Unplug before cleaning; use a dry, soft cloth
Safety	Do not expose to moisture; ensure proper ventilation
Spare parts and repairability	Replacement fuse available; professional repair recommended

Frequently Asked Questions - SAP-702 Renkforce

How to connect my Renkforce SAP-702 receiver to an audio source?

Use the RCA, optical, or coaxial inputs on the back of the device. Select the corresponding source using the Source button on the front panel or remote control.

What to do if the receiver does not turn on?

Check that the power cable is properly plugged in and the outlet works. If the problem persists, the internal fuse may be faulty; replace it with a fuse of the same rating (see manual).

How to adjust the equalizer?

Press the EQ button on the remote control to access presets (Rock, Pop, Jazz, etc.) or use manual mode to adjust frequency bands via the +/- buttons.

Can I use the receiver with 8 ohm speakers?

Yes, the SAP-702 supports speakers from 4 to 8 ohms. Make sure to respect the rated power to avoid overload.

How to memorize a FM station?

Tune to the desired station, then press the MEM button and choose a preset location (1 to 30) using the +/- buttons. Confirm by pressing MEM again.

The remote control does not work, what to do?

Check the batteries (2 × AAA) and replace if necessary. Make sure no obstacles block the infrared sensor on the front panel. If the problem persists, reset the remote control by removing the batteries for 30 seconds.

How to clean the receiver?

Unplug the device before cleaning. Use a soft, dry cloth to dust the exterior. Never use chemicals or liquids.

The sound is distorted, what to check?

Check the speaker connections (polarity). Make sure the volume is not too high and the audio source is not saturated. Test with a different source to isolate the problem.

How to use the sleep timer?

Press the Sleep button on the remote control to set the duration (10, 20, 30, 60, 90 minutes). The device will turn off automatically after the selected delay.

Where to find the complete user manual?

The manual is available for free download in PDF format on the website notice-facile.com on the product page for SAP-702 Renkforce.

USER MANUAL SAP-702 Renkforce

Abstract star-shaped logo with five circular elements and two stylized human figures (no text or symbols)

renkforce

Bedienungsanleitung

Operating Instructions

Mini Amplifier SAP-702

Item No. 346384 Page 15 - 27

Notice d'Emploi

Amplificateur Miniature SAP-702

www.business.conrad.at

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

1. Introduction....16
2. Intended Use 17
3. Explanation of Symbols 17
4. Safety Information ....18
5. Set-Up 19
6. Connection and Control Elements ......20
7. Connection 21

a) Connecting the RCA Inputs....21
b) Connecting the Loudspeaker Outputs....22
c) Connecting the Power Supply 23

1. Operation....24

a) Switching On/Off 24
b) General Functions....24
c) Operation with External Devices....24

1. Handling 25

2. Maintenance....25

3. Cleaning 26
4. Troubleshooting....26
5. Technical Data....27
6. Disposal....27

1. Introduction

Dear Customer,

Thank you for purchasing this product.

This product complies with the national and European legal requirements. We kindly request the user to follow the operating instructions, to preserve this condition and to ensure safe operation!

These operating instructions relate to this product. They contain important information concerning commissioning and handling. Please bear this in mind when passing on the product to a third party. Keep these operating instructions for future reference!

All company names and product names are trademarks of the respective owner. All rights reserved.

United Kingdom: Fon. +49 9604 / 40 88 80

Fax [phone]

e-mail: [e-mail]

Mon to Thurs 8.00am to 4.30pm

Fri 8.00am to 2.00pm

2. Intended Use

The miniature amplifier is intended for use in private music systems.

The device serves to amplify low-level audio signals.

This is achieved by connecting the miniature amplifier between the signal source to be amplified and the loudspeakers.

This product is only approved for connection to 230 V/50 Hz alternate current. It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in bathrooms, must be avoided.

Any use other than that described above will damage this product and involves the risk of short circuits, fire, electric shock, etc.

The product must not be modified or converted, and the casing must not be opened.

The safety instructions must be observed at all times.

Observe all safety instructions in these operating instructions!

3. Explanation of Symbols

The lightning symbol in a triangle warns you against unprotected live components or elements inside the housing or "live" connection points. Touching these components or connections can lead to fatal injuries.

Lines may only be installed at these connections by a specialist, or ready-for-connection lines must be used.

The device contains no parts that require servicing by the user. Therefore, never open the device.

The exclamation mark symbol on the device indicates that the user should read these operating instructions prior to using the product.

The "Arrow" symbol indicates special advice and operating information.

4. Safety Information

of damage caused by non-compliance with these safety instructions the warranty / guarantee will become void. We do not assume any responsibility for consequential damage!

Nor do we assume any liability for damage to property or personal injury caused by improper use or failure to observe the safety notices. In such cases the guarantee/warranty will be void.

Dear Customer, The following safety notices are intended not only for the protection of the device but also for the protection of your health. Please read the following items carefully:

• The unauthorized conversion and/or modification of the product is inadmissible for safety and approval reasons (CE).
• All persons operating, installing, setting up, commissioning or servicing this device must be trained and qualified appropriately and observe these operating instructions.
• This device is a safety class II product. Only connect the miniature amplifier to a regular mains socket (230 V/50 Hz).
• The device must be set up correctly. Please also follow these operating instructions.
• When setting up the product, make sure that the mains cable is not pinched or damaged by sharp edges.
• If the miniature amplifier or its connecting cable are damaged, do not touch them. First, power down the respective mains socket (e.g. via the circuit breaker) and then pull the mains plug out of the mains socket carefully. Do not use the product anymore afterwards but bring it to a specialised workshop.
• This product is not a toy and should be kept out of the reach of children! Children cannot judge the dangers involved when handling electrical devices.
• Do not place any containers with liquid, e.g. buckets, vases or plants in the immediate proximity of the product. Liquids could get into the device and impair its electrical safety. There also is a high risk of fire or of a life-threatening electric shock. If this is the case, first power the respective socket down (e.g. switch off circuit breaker) and then pull the mains cable from the socket. Disconnect all cables from the device. After that, the product must no longer be used; take it to a specialist workshop.
• Never touch the mains plug of the miniature amplifier with wet or damp hands. There is a risk of fatal electric shock!
• Make sure the device is sufficiently ventilated when in operation. Do not cover the ventilation openings with any magazines, blankets, curtains or similar. Keep a minimum distance of approx. 15 cm to other objects.
• Do not expose the device to any high temperatures, dripping or splashing water, strong vibrations or heavy mechanical stress.

• Do not place any open sources of fire such as burning candles on the device.
• Consult an expert when in doubt as to the operation, the safety or the connection of the device.
• Do not operate the device unattended.
• Only use the device in a moderate climate, and avoid a tropical environment.
• Do not leave packaging material unattended. It may become a dangerous toy for children.
• Please observe the additional safety instructions in each individual section of these operating instructions as well.
• Comply with the safety and operating instructions of any other appliances that are connected to the device.
• If you are not sure about the correct connection or if questions arise which are not covered by the operating instructions, please do not hesitate to contact our technical support or another specialist.

5. Set-Up

When selecting the installation site, consider the room conditions, meaning the location of the next outlet, etc. Also prevent direct sunlight, vibrations, dust, heat, cold and dampness. Keep the device away from strong transformers or motors.

Place the miniature amplifier on a stable, horizontal surface. There must be enough space around the device for air circulation to permit dissipation of the generated heat. Therefore, only place the miniature amplifier on a level surface and not on carpets, etc. Do not cover up the ventilation slots in the casing.

If you do not heed these instructions, the device may be damaged.

Do not drill extra holes or screw any extra screws for mounting purposes into the case. This will damage the device.

Because of the variety of used lacquers and polishes for furniture, the device base might leave residues on furniture due to a chemical reaction. Therefore, the device should not be placed on valuable furniture surfaces without suitable protection.

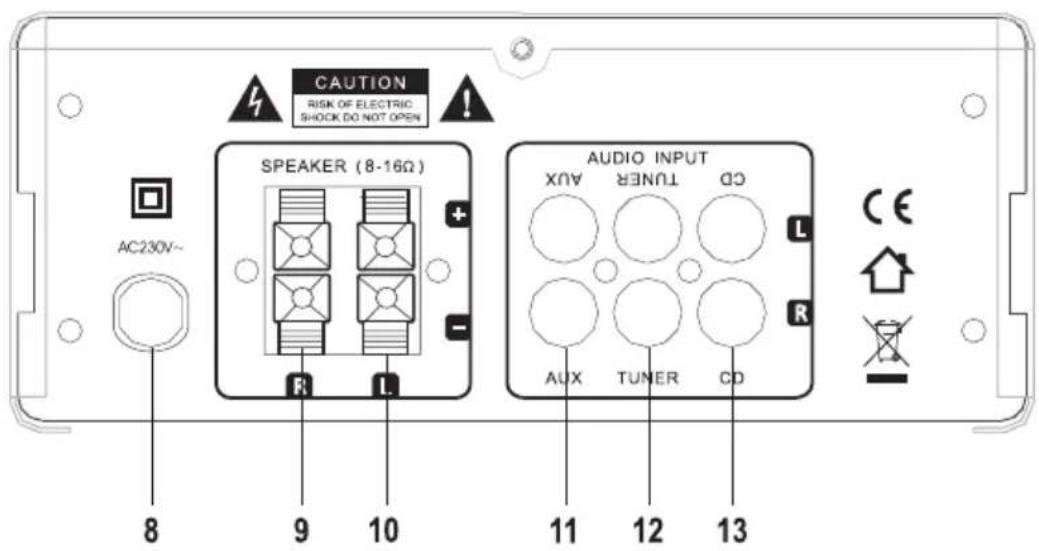

6. Connection and Operating Controls

(1) VOLUME control
(2) Input selection switch
(3) POWER indicator
(4) Mains switch
(5) BALANCE control
(6) BASS control
(7) TREBLE control

(8) Power cable
(9) Speaker output R
(10) Speaker output L
(11) AUX Connection
(12) TUNER connection
(13) CD connection

7. Connection

Make sure that the mains plug is unplugged before connecting the device and that the volume control VOLUME (1) is set to minimum (left stop). Before connecting the device, turn off all other equipment to be connected to the miniature amplifier.

a) Connecting the RCA Inputs

For the connection of the RCA inputs, only use suitably shielded RCA cables. The use of other cables might cause interferences.

To avoid distortion or mismatching that may damage the device, only sources with a RCA output may be connected to the RCA inputs of the miniature amplifier.

You may connect devices with a LINE output level, a CD player or cassette deck, to the stereo RCA inputs of the miniature amplifier.

These inputs are not suitable for the direct connection of a record player. In this case, you have to switch an equalizer pre-amplifier upstream.

• The white RCA socket of the miniature amplifier is connected to the left RCA output of the respective control source (e.g. CD player).
• The red RCA socket of the amplifier is connected to the right RCA output of the respective control source (e.g. CD player).

AUX Connection (11)

This is where you connect the RCA output sockets of a cassette recorder, video recorder, satellite receiver, etc.

TUNER connection (12)

Connect the RCA outputs of the radio to these connections.

Connection CD (13)

Connect the RCA outputs of the CD player to these connections.

b) Connecting the Loudspeaker Outputs

The line towards the loudspeakers must be a bifilar cable. Insulate all connecting terminals. Ensure there are no sharp edges which could damage the cables.

Only use loudspeakers with a sufficiently high load capacity (see "Technical Data").

Connect the loudspeakers directly to the miniature amplifier.

Do not use headphone adapters or distribution boxes. If you are unsure about anything, please contact a specialist.

Make sure that all loudspeakers have the correct polarity, i.e. the plus and minus signs must match.

This amplifier has been designed for a loudspeaker impedance of 8-16 Ohm on each channel. Only connect one loudspeaker to each output.

- To open the loudspeaker clamps, press the red/black plastic surface. Slide the stripped end of the loudspeaker cable into the aperture and release the plastic surface. The loudspeaker cable is clamped and good contact is guaranteed.

Diagram of a cable being inserted into a multi-blocked structure with directional arrows indicating flow (no text or symbols)

Connect the right loudspeaker pair to the speaker output R (9):

• Connect the (+) pole of the right loudspeaker to the red speaker clamp.
• Connect the (-) pole of the right loudspeaker to the black speaker clamp.

Connect the left loudspeaker pair to the speaker output L (10):

• Connect the (+) pole of the left loudspeaker to the red speaker clamp.
• Connect the (-) pole of the left loudspeaker to the black speaker clamp.

c) Connecting the Power Supply

The miniature amplifier's mains switch (4) must be switched off.

- Connect the mains plug of the power cable (8) to a socket (230 V/50 Hz) of the public power supply network.

Connection example:

8. Operation

Please note that sound controls that are turned up very high already require very high performance of the amplifier even at medium volume and can easily oversteer it. This results in distortions that may damage the loudspeaker.

In case of high volumes and/or highly turned-up sound controls, check for distortions and turn down the volume control or the sound controls immediately to prevent damage to the loudspeakers.

a) Switching On/Off

• Check again that all connections are correct.
• Turn the VOLUME control (1) to the left stop.
• Switch on the miniature amplifier with the mains switch (4) (set switch to ON position).
• The POWER (3) indicator is lit.
• To turn the amplifier off, turn the volume control VOLUME (1) back to the left stop and then turn the miniature amplifier off with the mains switch (4) (put the switch to the OFF position).

If you do not observe this sequence, the loudspeaker of the miniature amplifier could be damaged.

b) General Functions

• Turn the sound control (1) clockwise until you reach the desired volume.
• With the control BALANCE (5), set the volume balance between the left and the right loudspeaker channels. In the central position, playback takes place at the same volume via both loudspeakers. Turning clockwise reduces the volume of the left loudspeaker. Turning counter-clockwise reduces the volume of the right loudspeaker.
• With the control BASS (6), set the intensity of the bass playback.
  Bass playback is amplified when turning the control clockwise. Bass playback is dampened when turning the control counter-clockwise.
• With the control TREBLE (7), set the intensity of the treble playback.
  Treble playback is amplified when turning the control clockwise. Treble playback is dampened when turning the control counter-clockwise.

c) Operation with External Devices

• Switch on the signal sources such as CD players, cassette decks etc.
• With the input selection switch (9), select the desired input source (e.g. CD player).
• Start playback on your input source, if required.

9. Handling

• Never connect the power plug immediately after the device has been taken from a cold to a warm environment. The resulting condensation could destroy the device.
  Allow the device to reach room temperature before connecting it. Wait until the condensation water has evaporated.
• Never pull on the power cable. Only unplug it by pulling on the plug.
• Unplug the power supply if you do not use the device for an extended period of time.
• For safety reasons, disconnect the mains plug from the mains socket in case of a thunderstorm.
• Do not listen to excessively loud music over an extended period of time. This may damage your hearing.

10. Maintenance

Periodically check the technical safety of the miniature amplifier, e.g. check for damage to the power cable or the housing.

If you have reason to believe that the device can no longer be operated safely, disconnect it immediately and make sure it is not unintentionally operated. Pull the power plug out of the power socket!

It must be assumed that safe operation is no longer possible if:

• there is visible damage to the device or to the power line
  • the device no longer works
• the device has been stored for a long time under unfavourable conditions or
  • after the device has been exposed to extraordinary stress caused by transport

Always observe the following safety instructions before cleaning or servicing the miniature amplifier:

Live components may be exposed if covers are opened or components are removed.

vice must be disconnected from all power sources before any servicing or repair work is carried out.

Capacitors inside the device may still carry voltage even though they have been disconnected from all power sources.

Only qualified experts familiar with the hazards involved and the relevant regulations may perform repairs.

11. Cleaning

The device should only be cleaned with a soft, dry cloth or brush from the outside.

Never use any aggressive cleansing agents or solvents since these may damage the surface of the housing or impair its operation.

12. Troubleshooting

In purchasing the miniature amplifier, you have acquired a product which uses state-of-the-art technology and is operationally reliable. Nevertheless, problems or errors may occur.

Therefore, we would like to describe how to eliminate possible errors here:

Please observe the safety instructions.

No sound is audible:

• A device in the playback chain is not turned on.
• The wrong input was selected on the miniature amplifier.
• The VOLUME control (1) is set to the left stop.

One channel does not work:

• An RCA cable was disconnected from the source device (e.g. the cassette recorder) or the RCA inputs (11-13).
• The balance control BALANCE (5) is turned on the miniature amplifier.
• A loudspeaker cable was disconnected from the loudspeaker clamp.

The sound is distorted:

• The miniature amplifier input receives an excessive signal.
• The volume is set too high and the loudspeakers distort.
• The controls BASS (6) or TREBLE (7) are set too high.

No bass is audible:

• One loudspeaker is connected the wrong way.
• The BASS control (6) on the miniature amplifier is set to minimum.

Playback is without treble:

- The TREBLE control (7) on the miniature amplifier is set to minimum.

Repairs other than those described above should only be carried out by an authorised specialist.

13. Technical Data

Supply voltage: 230 V/50 Hz

Power consumption: 60 W

Input sensitivity: 330 mV

oudspeaker impedance: 8-16 Ohm

Output power: 2 x 20 W RMS at 8 Ohm

Distortion factor: ....<0,2 %

Frequency response: 20-25,000 Hz

S/N ratio: >78 dB(A)

Sound control: ....+/-6 dB (Bass/Treble)

Dimensions: 170 x 65 x 200 mm

Weight: 2.4 kg

14. Disposal

Electronic devices are recyclable waste and must not be disposed of in the household waste! Dispose of the product according to the applicable statutory provisions at the end of its service life.

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

© Copyright 2013 by Conrad Electronic SE.

GB Legal notice

These operating instructions are a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).

All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.

These operating instructions represent the technical status at the time of printing. Changes in technology and equipment reserved.

© Copyright 2013 by Conrad Electronic SE.

© Copyright 2013 by Conrad Electronic SE.

NL Colofon

© Copyright 2013 by Conrad Electronic SE. V4_1213_01
