USER MANUAL TVVR41110 ABUS

ABUS Digitalrekorder TVVR41100 / TVVR41110 / TVVR41120

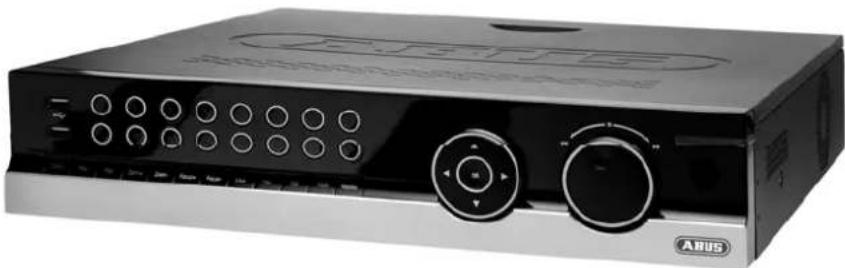

Exterior view of a black and silver electronic device with circular buttons and a brand logo (no readable text or symbols beyond branding)

These user manual contains important information for installation and operation.

This should be also noted when this product is passed on to a third party.

Therefore look after these operating instructions for future reference!

A list of contents with the corresponding page number can be found in the index.

Français

ESC 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P " A S D F G H J K L a Z X C V B N M ← Space Enter

Exterior view of a modern white building with a red logo on the roof, surrounded by greenery and trees (no visible text or symbols on the building itself)

Exterior view of a modern multi-story building with glass facade and surrounding greenery (no visible text or signage)

,Network Time Protokoll'

,Universal Serial Bus'

86444 Affing (Germany)

ABUS Digital Recorder TVVR41100 / TVVR41110 / TVVR41120

Exterior view of a black and silver electronic device with circular control knobs and a 'ABUS' logo (no readable text beyond branding)

User manual

Version 1.0

CE

English

These user manual contains important information for installation and operation.

This should be also noted when this product is passed on to a third party.

Therefore look after these operating instructions for future reference!

A list of contents with the corresponding page number can be found in the index.

i Pay attention to the information in the separate quick guide, plus the notes on the CD and in the accompanying documentation on “Web server control” and “Clients Software”. These can be found on the Internet under www.abus-sc.com.

Device overview

See System operation on page 13.

Front

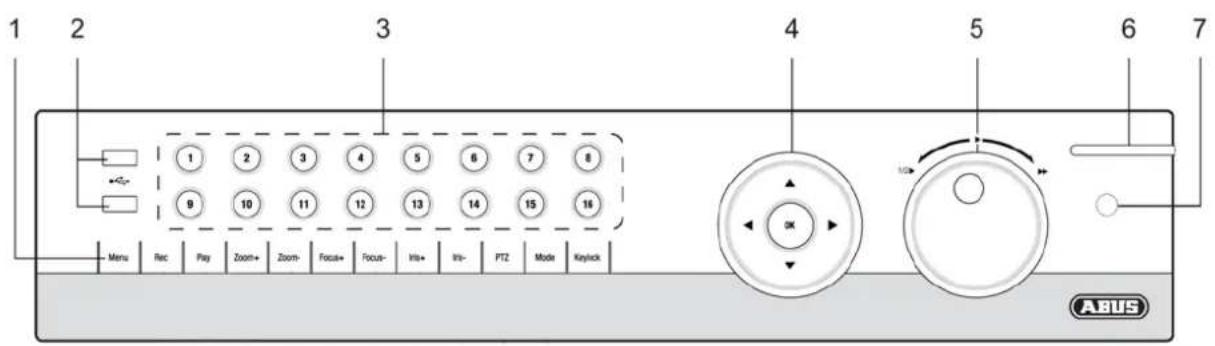

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Menu Rec Play Zoom+ Zoom- Focus+ Focus- Iris+ Iris- PTZ Mode Keylock OK 1/2 ABUS

Rear

VIDEO OUT 8 9 10 11 12 13 14 15 16 10 11 12 13 14 15 16 17 POWER 12V mm VGA RS-232 LAN LOOP OUT RES: 485 ALARM OUT ALARM IN 12V mm

TVVR41100 and TVVR41110 are similar to above diagram.

Remote control (TVAC40930 optional available)

47 21 DEV ABC DEF 3 1 2 GHI JKI MHO 4 5 6 PORS TUV WXYZ 7 8 9 0 46 PLAY 23 45 44 24 MENU VOC/AMCO P/REV 25 43 26 42 27 41 LESCO 28 40 39 30 29 38 37 31 36 32 33 35 F1 ROOM ZOOM F2

Device overview....67

Quick guide 72

Before you start....72

Installing the HDD....72

Establishing the connections 72

Configuring the device 72

Important safety information....73

Explanation of symbols....73

Proper use 73

General information 73

Power supply 73

Overloading / overvoltage....74

Cables....74

Installation location / operating environment ....74

Remote control....74

Care and maintenance....75

Accessories....75

Putting into operation....75

Children and the device 75

Introduction....76

General information 76

Unpacking the device....76

Scope of delivery 76

System operation....77

General information 77

Operating elements on the device....77

Connections on the rear of the device....78

Operating elements on the remote control 78

Mouse operation....79

On-screen keyboard 80

Starting the device 80

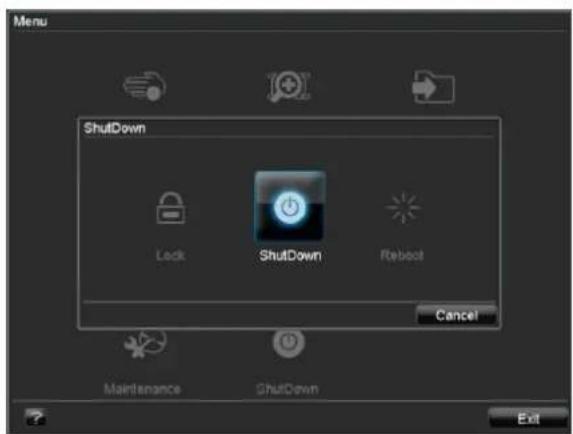

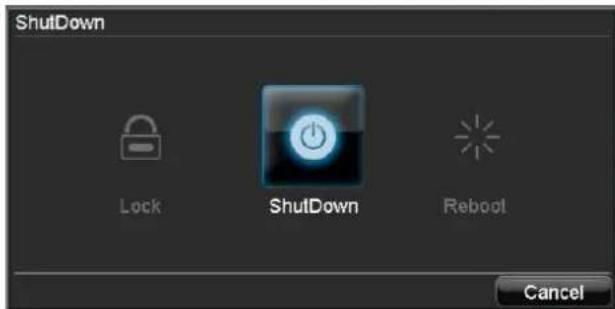

Switching off, locking and rebooting the device....80

Status displays....81

General information 81

DVR status LED 81

Camera selection keys – status LED....81

Displays on the monitor 81

Setup wizard....82

Setting up the system 82

Setting up the administrator....82

General Settings 82

HDD Management 83

Record Settings 83

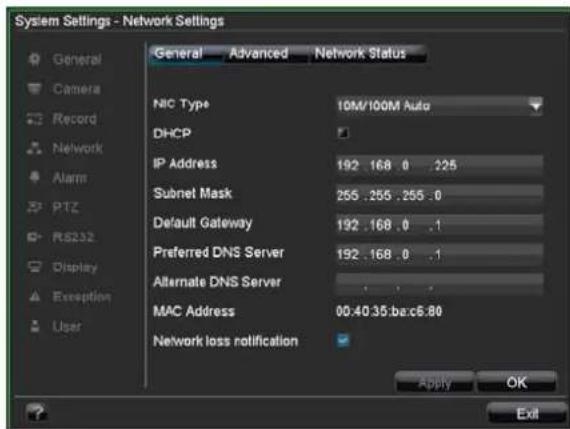

Network Settings....83

Live view 84

Overview 84

Status symbols 84

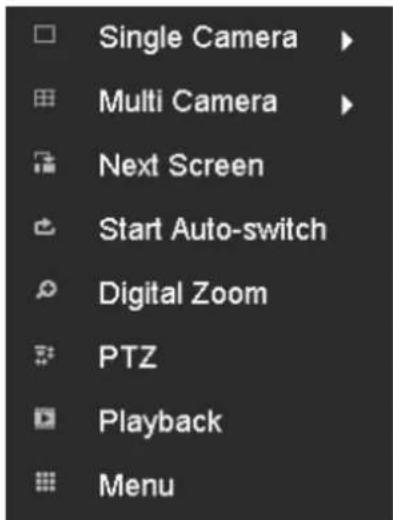

Pop-up menu for mouse operation....84

Digital Zoom....85

System Settings....86

Setting the camera output....86

Record Settings 87

Set-up....87

General settings....87

Advanced settings 87

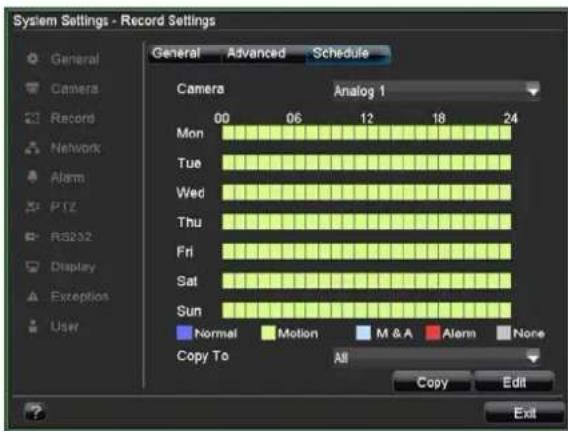

Schedule 87

Manual Record....88

Playback....89

General information 89

Playback screen 89

Using the control panel 89

Playback through video search....89

Playback: Advanced video search....90

Playback from the live view screen....90

PTZ control....91

General information 91

Using the PTZ control panel 91

Pop-up menu for mouse operation....91

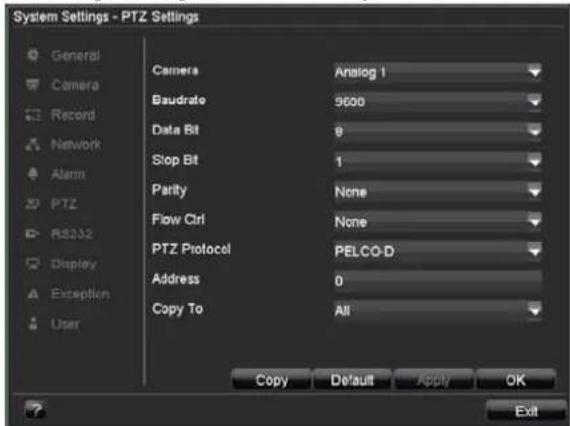

PTZ Settings 92

Preset Settings....92

Tour Settings....93

Call a tour set in the PTZ-Camera....93

Pattern Settings 94

Device menu....95

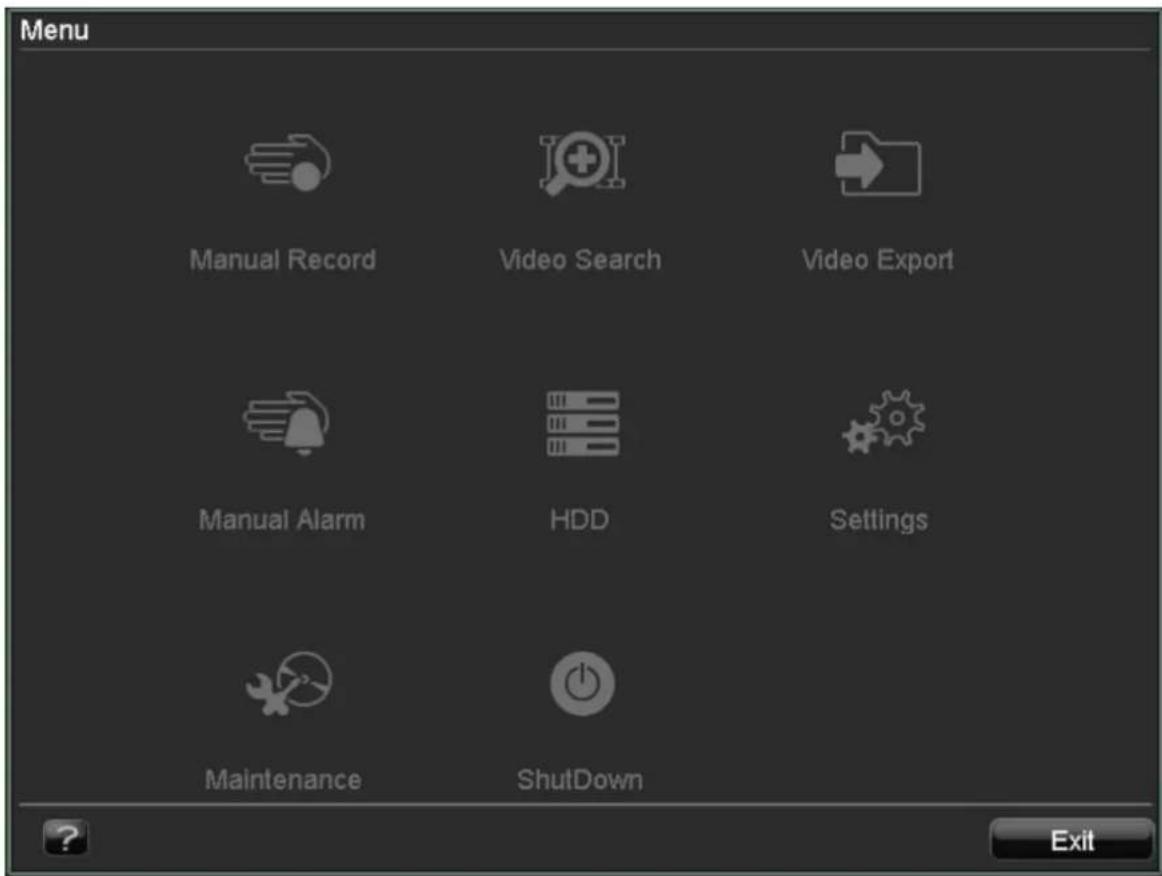

Menu overview....95

Menu description 95

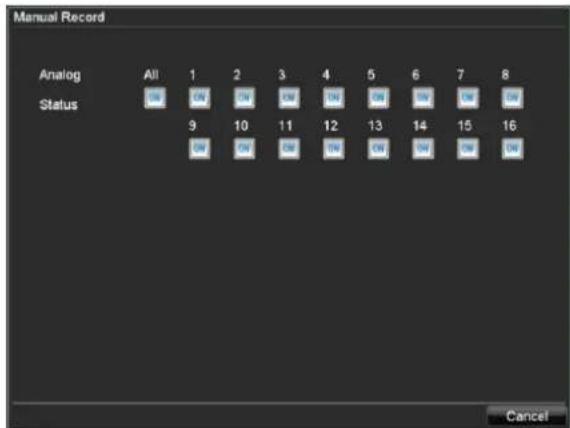

Manual Record....96

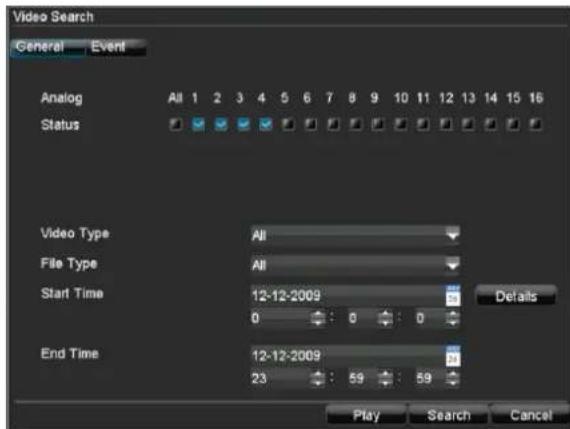

Video Search 96

Parameters for Video Search 96

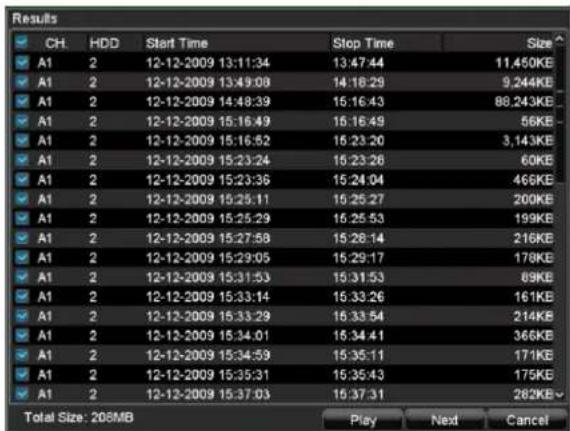

Results....97

Video Export 98

Manual Alarm....99

HDDs....99

Installing the HDD....99

Initialising the HDD 100

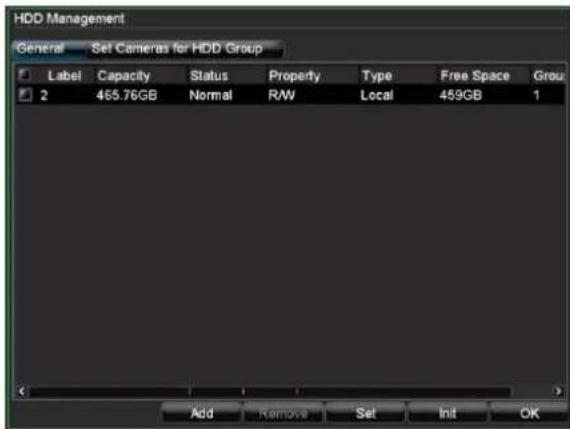

HDD Management parameters....100

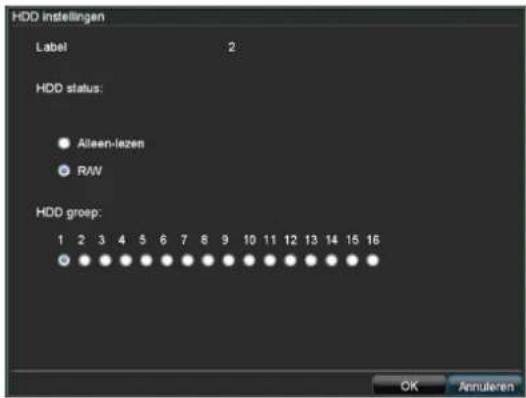

Setting the HDD....100

Checking the HDD status ....101

Setting up the HDD alarm....101

System Settings....102

Overview....102

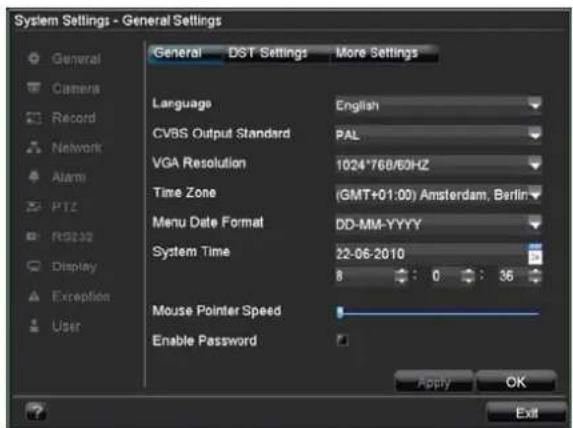

General Settings....102

System Settings: Camera....103

Setting up of zones....104

Zones: Schedule and notification ....104

System Settings: Record 105

System Settings: Network....105

System Settings: Alarm 105

System Settings: PTZ....105

System Settings: RS232....105

System Settings: Display....105

System Settings: Exception....106

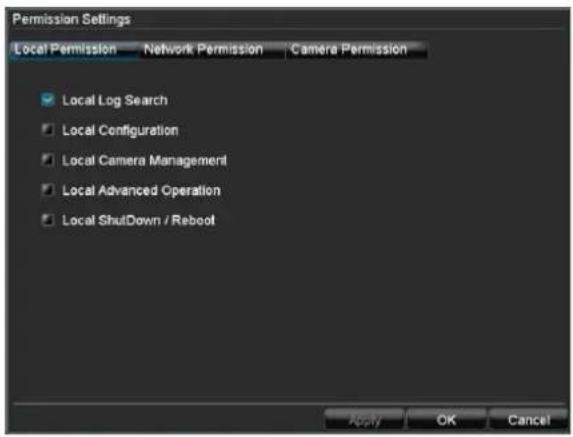

System Settings: User 106

Maintenance ....108

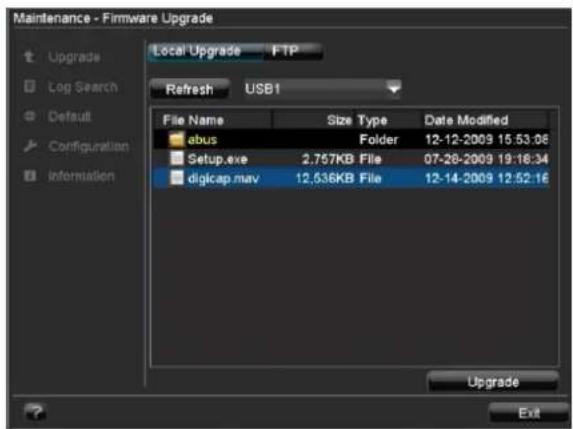

Upgrading the device....108
Log Search 109
Default Settings 110
Import / Export Configuration....110
Information....110
Shutdown 110

Network....111

General information ....111

Terms and definitions ......111

Network layout....112

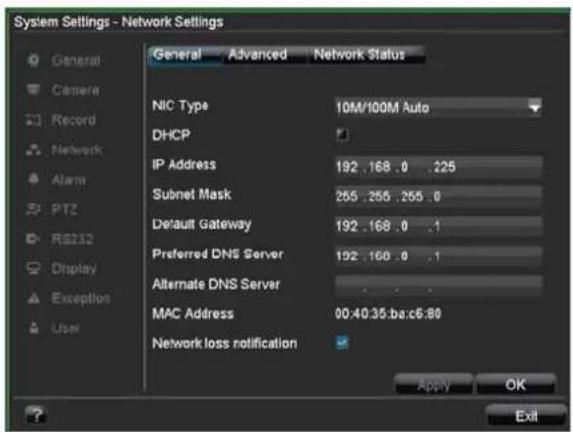

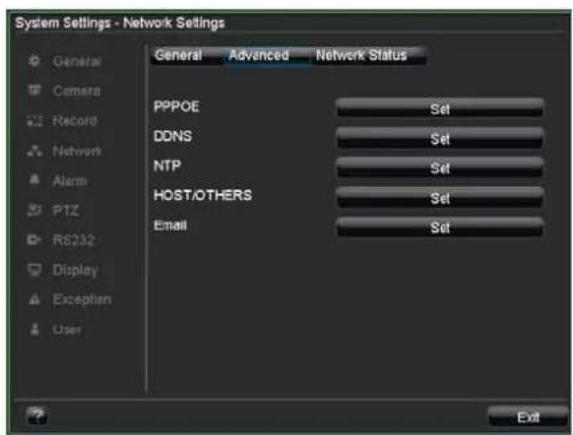

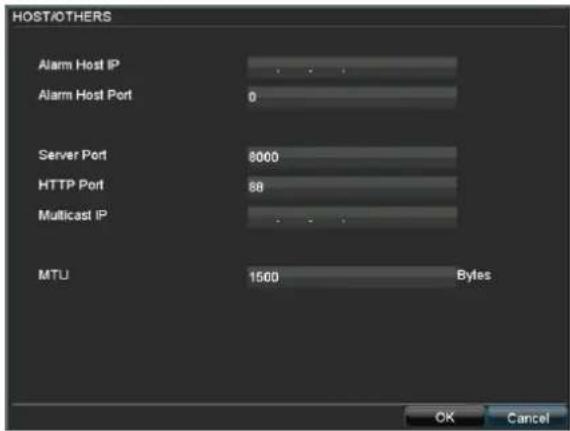

Network configuration....112

Alarm....116

Alarm overview 116

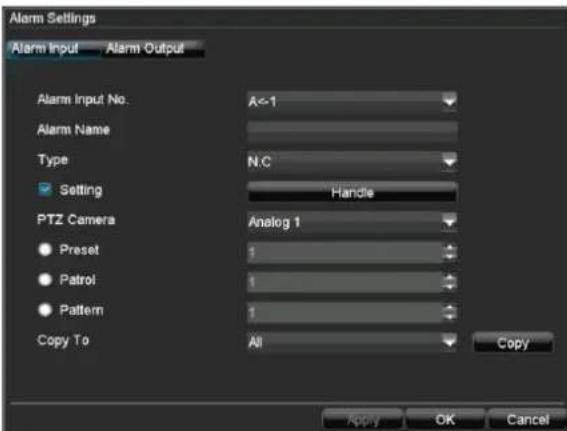

Alarm Input 116

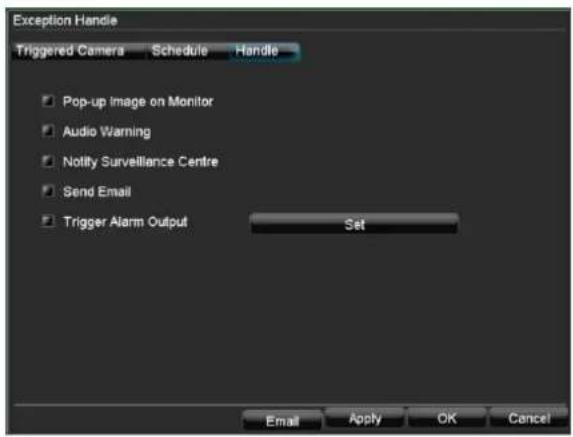

Each triggered alarm can be handled individually....116

Alarm Output....118

IP alarm module....118

Troubleshooting....119

Device cleaning and care....119

Note....119

Index....120

Technical data....121

HDD storage capacity....122

Disposal 123

Information on the EU directive on waste electrical and electronic equipment 123

Information on handling batteries 123

Important information on disposing of batteries....123

Information on the European RoHS directive 123

Glossary....124

Overview of specialist terms....124

Internal HDD 126

Quick guide

Before you start

The following preparatory steps must be made:

1. Pay attention to the general information, safety information and notes on setting up and connecting the device (see page 9).
2. Check the contents of the package for completeness and damages.
3. Insert the batteries into the remote control.

Note

Pay attention to the information in the separate quick guide.

Installing the HDD

Warning

Switch off the device and disconnect it from the mains power supply. Pay attention to the required earthing of the device to avoid static discharge.

1. Install one or more HDDs (see the separate quick guide).
2. Firstly, establish the connection to the motherboard using the red data cable (small connector).
3. Connect the power supply cable (large 5-pin connector).
4. Check that the connections are secure.
5. Close the housing.

Note

Only use HDD's that are approved for video recording and 24/7 usage.

Establishing the connections

Note

Pay attention to the minimum radius when laying cables. Do not kink the cable.

1. Connect the analogue cameras with BNC connections 1 to 4/8/16.
2. Connect the audio connections.
3. Connect the sensors to the alarm inputs.
4. Connect the monitor to the VGA or BNC connection.
5. Connect the mouse to the USB port.
6. Establish a connection to the mains power supply.
7. Switch on the device using the POWER switch on the rear. The DVR status display on the front of the device lights up.

Configuring the device

Note

Pay attention to the information in the separate quick guide.

• Proceed through the individual steps in the setup wizard (see page 18).
• The following settings are configured in sequence:
  • Language selection for the user interface
• Administrator setup
• General settings (date, time etc.)
  • HDD management (initialisation etc.)
  • Network settings
• Camera management

Note

Subsequent changes to the date and time can lead to the loss of data!

Note

Check the ABUS homepage (www.abus-sc.com) if for this device any firmware updates are available and install these

- Pay attention to the menu overview on page 32, plus the notes and explanations on basic system operation on page 13.

Pay attention to the notes on the following:

Live view	Page 20
Playback	Page 26
PTZ	Page 28
Data backup	Page 35
Troubleshooting	Page 56

Important safety information

Explanation of symbols

The following symbols are used in this manual and on the device:

Symbol Signal word Meaning

Warning Indicates a risk of injury or health hazards.

Warning Indicates a risk of injury or health hazards caused by electrical voltage.

Important Indicates possible damage to the device/accessories.

Note Indicates important information.

The following labels are used in the text:

Meaning

1. ... Set of tasks or instructions with a defined sequence in the text
2. ...
3. ... Set of points or warnings without a defined sequence in the text
4. ...

Proper use

Only use the device for the purpose which it was designed and built for. Any other use is considered inappropriate.

This device may only be used for the following purpose(s):

- This digital recorder is used in combination with connected video signal sources (B/W and colour cameras, IP cameras) and video output devices (CRT or TFT monitors) for object surveillance.

Note

Data storage is subject to national data-protection guidelines.

During installation, inform your customers regarding the existence of these guidelines.

General information

Before using the device for the first time, read the following instructions carefully and pay attention to all warnings, even if you are already familiar with electronic devices.

Warning

All guarantee claims become invalid for damages caused by non-compliance with these operating instructions.

We cannot be held liable for resulting damages.

Warning

We cannot be held liable in the event of material or personal damage caused by improper operation or non-compliance with the safety information.

All guarantee claims are invalid in such cases.

Keep this manual in a safe place for future reference.

If you pass on or sell the device, you must also include this user manual.

This device has been manufactured in accordance with international safety standards.

Power supply

• Only operate this device through a power source which supplies the mains power specified on the type plate.
• If you are unsure of the power supply at the installation location, contact your power supply company.

Warning

Avoid data loss! Always use an uninterruptible power supply (UPS) with overvoltage protection.

• Disconnect the device from the mains power supply before carrying out maintenance or installation work.
• The on/off switch does not completely disconnect the device from the mains power supply.
• To disconnect the device completely from the mains power supply, the plug must be disconnected from the mains socket. Therefore, the device should be positioned so that direct and unobstructed access to the mains socket is guaranteed at all times and the plug can be disconnected immediately in an emergency.

- To avoid the possibility of fires, the plug should always be disconnected from the network socket if the device is not used for long periods. Disconnect the device from the mains power supply before impending electrical storms, or use an uninterruptible power supply.

Warning

Never open the device on your own! There is a risk of electric shocks! If it is necessary to open the device, consult trained personnel or your local maintenance specialist.

- The installation or modification of a HDD should only be made by trained personnel or your local maintenance specialist.

Warning

The installation of additional equipment or modification of the device invalidates your guarantee if not carried out by trained personnel. We recommend having the HDD installed by a maintenance specialist. Your guarantee is invalidated in the event of improper installation of the HDD.

Overloading / overvoltage

• Avoid overloading of mains sockets, extension cables and adapters as this can result in fires or electric shocks.
• Use overvoltage protection to prevent damages caused by overvoltage (e.g. electrical storms).

Cables

- Always hold cables by the connector, and do not pull the cable itself.

- Never touch the mains cable with wet hands, as this can lead to a short circuit or electric shock.

- Never position the device, furniture or other heavy items on the cable. Ensure that the cable does not become kinked, especially on the connector and sockets.

- Never knot the cable, and do not tie it to other cables.

- All cables should be laid so that they cannot be stepped on or cause an obstruction.

- A damaged mains cable can cause a fire or electric shock. Check the mains cable from time to time.

- Never modify or manipulate the mains cable or plug.

- Do not use plug adapters or extension cables that do not conform to the applicable safety standards, and do not make alterations to power supply cables or mains cables.

Installation location / operating environment

• Position the device on a firm, level surface and do not place any heavy objects on the device.
• The device is not designed for operation in rooms subject to high temperatures or moisture (e.g. bathrooms), or in excessively dusty rooms.
• Operating temperature and ambient humidity: -10 °C to 55 °C, maximum 85% relative humidity. The device may only be operated in moderate climate conditions.

Ensure the following:

• Sufficient ventilation must be present at all times (do not place the device in a storage rack, on thick carpets, on a bed or anywhere where the ventilation slots are covered. Make sure that a gap of at least 10 cm is present on all sides).
• The device must not be exposed to direct heat sources (e.g. heaters).
• The device must not be exposed to direct sunlight or strong artificial light.
• The device must not be placed in close proximity to magnetic fields (e.g. loudspeakers).
• Naked flames (e.g. candles) must not be placed on or near the device.
• Contact with spraying or dripping water and aggressive liquids must be avoided.
• The device must not be operated in close proximity to water, and must not be submerged under any circumstances (do not place objects containing water on or near the device, such as vases or drinks).
• Foreign objects must not penetrate the device.
• The device must not be exposed to strong variations in temperature, as this can lead to condensation and electrical short circuits.
• The device must not be exposed to excessive jolts or vibrations.

Remote control

- Remove all batteries if the device will not be used for a sustained period, as these can leak and damage the device.

Care and maintenance

Maintenance is necessary if the device has been damaged. This includes damage to the plug, mains cable and housing, penetration of the interior by liquids or foreign objects, exposure to rain or moisture or when the device does not work properly or has fallen.

• Disconnect the device from the mains power supply before maintenance (e.g. cleaning).
• If smoke develops or unusual noises or odours are detected, then switch off the device immediately and pull the mains plug from the socket. In such cases, the device should not be used until it has been inspected by a qualified technician.
• Maintenance work should only be carried out by qualified specialists.
• Never open the housing on the device or accessories. There is a risk of fatal injury due to an electric shock when the housing is opened.
• Clean the device housing and remote control with a damp cloth.
• Do not use solvents, white spirit or thinners as these can damage the surface of the device.
• Do not use any of the following substances:
• Salt water, insecticides, solvents containing chlorine or acids (ammonium chloride) or scouring powder.
• Gently rub the surface with a cotton cloth until it is completely dry.

Warning

The device works under dangerous voltages. The device must only be opened by authorised specialists. All maintenance and service work must be carried out by authorised firms. Improper repairs can expose device users to the risk of fatal injury.

Accessories

- Only connect devices that are suitable for the intended purpose. Otherwise, hazardous situations or damage to the device can occur.

Putting into operation

• Observe all safety and operating instructions before putting the device into operation for the first time.
• Only open the housing to install the HDD.

Warning

When installing the device in an existing video surveillance system, ensure that all devices are disconnected from the mains power supply and low-voltage circuit.

Warning

If in doubt, have a specialist technician carry out assembly, installation and connection of the device.

Improper or unprofessional work on the mains power supply or domestic installation puts both you and other persons at risk.

Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Children and the device

• Do not allow children access to electrical devices. Never allow children to use electrical devices without supervision. Children may not be able to accurately detect possible risks. Small parts can be life-threatening if swallowed.
• Keep batteries away from small children. Call for medical assistance immediately if a battery is swallowed.
• Keep packaging materials away from children (danger of suffocation).
• This device should not be used by children. If used improperly, spring-loaded parts can be ejected and cause injuries to children (e.g. eye injuries).

Introduction

Dear customers,

Thank you for purchasing this product.

This product complies with current domestic and European regulations. Conformity has been proven, and all related certifications are available from the manufacturer on request (www.abus-sc.com).

To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions!

Read the entire operating manual carefully before putting the product into operation and pay attention to all operating and safety information!

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

In the event of questions, please contact your local maintenance specialist or dealer.

Disclaimer

These operating instructions have been produced with the greatest care. Should you discover any missing information or inaccuracies, please contact us under the address shown on the back of the manual. ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and operating instructions at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for direct or indirect damages resulting from the equipment, performance and use of this product. No forms of guarantee are accepted for the contents of this document.

General information

In order to use the device correctly, read this user manual carefully and keep it in a safe place for later use.

This manual contains instructions on recorder operation and maintenance. Consult an authorised specialist if the device needs to be repaired.

Unpacking the device

Handle the device with extreme care when unpacking it.

The packaging is made of reusable materials, and should always be passed on for recycling.

We recommend the following:

Paper, plastic packaging, cardboard and corrugated cardboard should be disposed of in the appropriate recycling containers.

If recycling containers are not available in your local area, then you can dispose of these materials as domestic waste.

If the original packaging has been damaged, inspect the device. If the device shows signs of damage, then return it in the original packaging and contact the manufacturer.

Scope of delivery

• ABUS digital recorder
• Mains cable
• SATA cable and screws for HDD
• Bracket and screws for server racks
• Software CD
• User manual
• Quick guide

System operation

General information

The device can be controlled as follows:

• Using the operating elements on the front of the device
  • Using the remote control
  • Using the USB mouse

Operating elements on the device

i

Note

Pay attention to the overview on page 3.

No.	NameFunction
1	Recorder operating keys:MENU:Calls up the main menuSwitches the key tones on and off (press and hold down for 5 seconds)REC:Calls up the menu for manual recordingPLAY:Opens the playback menuZOOM+:Zooms in on the image section in PTZ modeZOOM-:Zooms out of the image section in PTZ modeSwitches the video output in live mode: Monitor – Spot Monitor or Video Out – Video Spot OutFOCUS+:Sets the focus in PTZ modeFOCUS-:Sets the focus in PTZ modeIRIS+:Opens the irisIRIS-:Closes the iris in PTZ modePTZ:Activates the PTZ controlMODE:Switches the screen viewKEYLOCK:Locks the control keys
2	USB ports:For external USB 2.0 devices (e.g. mouse, external disk drive or DVR burner)

No.	NameFunction
3	Camera selection keys (1, 2, 3...):Displays the camera status:White: Camera is connectedBlue: Connected camera is recordingNot lit: No camera connectedIn the live view:Selects the camera and displays the full-screen view
4	Directional keypad:During playback:▲, ▼ Sets the speed◀, ▶ Previous / next dayIn the live view:Selects the channelIn menus:NavigationOK key:Press and hold for 5 seconds to switch the device on and offConfirms the selectionTicks / unticks the boxesDuring playback:PLAY/PAUSEIncreased/ decreased playback speed:Normal playback speed
5	Jog Shuttle:During playback:Outer ring (shuttle ring) change playback speedInner ring to play single frames in single modeIn menus:Inner ring moves the cursor upwards / downwardsOuter ring moves the cursor left / rightIn the live view:Selects the channel
6	DVR status LED:Displays the device status:White (constantly lit): System status is OKWhite (flashing): System status is OK, recording settings are stored, surveillance mode is activeBlue (constantly lit): At least one camera is currently recordingRed (constantly lit): System maintenance required
7	IR receiver:For the remote control

Connections on the rear of the device

Note

Pay attention to the overview on page 3.

No.	NameFunction
8	MAIN: BNC video outputWhen using a VGA monitor: Scalable live display.When using no VGA monitor: The main video signal is displayed.VIDEO SPOT OUT: BNC video outputThe video spot signal is emitted as full screen.
9	VIDEO IN: BNC inputs
10	AUDIO IN: Cinch inputsAssigned to camera inputs 1 - 4
11	LINE IN:Cinch audio input (is not recorded, only for network transmission)AUDIO OUT:Cinch audio output (synchronised with main video signal output)
12	RS-232:Serial port – no functionality
13	VGA:VGA monitor connection (9-pin), video output signal
14	LAN:Ethernet LAN connection
15	LOOP OUT:Connection for looped video signals (cable available separately)
16	ALARM IN:RS-485 connection for PTZ camerasMax. 16 alarm inputsALARM OUT:Max. 4 relay outputs
17	Power switch and 12 VDC power connection
18	Connection for earthing line

Operating elements on the remote control

Note

Pay attention to the remote control diagram on page 4.

No.	NameFunction
21	DEV:Assigns the remote control with the device ID
22	Alphanumeric keys:Selects the camera (channel) in the live viewEntry of letters and digits in system fields
23	A:Changes the entry format (upper / lower case, symbols, digits)
24	PLAY:Starts playback
25	VOIP:Not used
26	PREV:Changes the screen display in the live view
27	Navigation keys:During playback:▲,▼Sets the speed◀,▶Previous / next dayIn the live view:Selects the camera (channel selection)In menus:Navigation
28	ESC:Not used
29	Not used
30	Not used
31	Zoom +:Zooms in on the image section in PTZ mode
32	F1:In lists:• Selects all available options
33	Zoom -:Zooms out of the image section in PTZ mode
34	F2:Switches between tabs
35	IRIS-: In PTZ mode:• Closes the iris
36	Focus-: In PTZ mode:• Brings the image section into focus
37	IRIS+: In PTZ mode:• Opens the iris
38	Focus+: In PTZ mode:• Brings the image section into focus
39	◀II: Pause / reverse playback
40	■: Stops playback
41	PTZ:Switches on PTZ control
42	Enter ▶II:• Confirms the selection• Ticks / unticks the boxesDuring playback:• PLAY/PAUSESingle play mode:• Advances by a single frame
43	MENU:• Calls up the main menu• Switches the key tones on and off (press and hold down for 5 seconds)
44	REC:Opens / starts manual recording

No.	NameFunction
45	INFO:Switches to another monitor in the live view
46	EDIT:General use:Activates the text entry; backspace in text fields
47	POWER:Switches on/off (hold down for 5 seconds)

Mouse operation

i

Note

Further descriptions in these operating instructions are made with the mouse.

The device is suitable for use with a USB mouse. Connect the mouse to the USB port.

Button	Function
Left Single-click:Selection in menu, activation of an entry field or tabDouble-click:Switches between the screen display of single and multiple images in the live view and during playbackClick and drag:In PTZ mode: Camera controlSet-up of alarm areas or zones
Right Single-click:Calls up the pop-up menu
Scroll wheel	In the live view:Shows previous / next cameraIn menus:Scrolls through the menus

On-screen keyboard

The on-screen keyboard appears after clicking on a text entry field with the mouse:

ESC 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L a Z X C V B N M ← Space Enter

The keys have the same function as on a computer keyboard.

• To enter the character, left-click the mouse.
• To finish data entry, press Enter.
- To delete the character in front of the cursor, click on ←.
- To switch between upper and lower case, click on the framed a symbol. The current setting is displayed above the keyboard.
- To cancel the entry or exit the field, press ESC.

Starting the device

Important

The device must only be operated with the mains power specified on the type plate.

For safety reasons, use an uninterruptible power supply (UPS).

After the device has been connected to the power supply and the main switch on the rear of the device is switched on, the DVR status LED lights up.

1. The device carries out a self-test during the start-up procedure.
2. The setup wizard appears. Exit the wizard to access the live view.

Switching off, locking and rebooting the device

Click on "Shutdown" in the main menu. The overview appears.

Shutdown Lock Shutdown Reboot Cancel

1. To switch off the device, select ShutDown and confirm by pressing Yes. The device is then switched off. Do not press any keys during the shutdown procedure.
2. To lock the system, select the corresponding Lock symbol on the left. The user interface is now locked and a password must be entered to access the menu.
3. To reboot the device, select the corresponding Re-boot symbol on the right. The device is then re-booted.

Switching on the device

- Press and hold the OK key for 5 seconds to switch the device back on.

Status displays

General information

The following status displays indicate the current operating state:

• LEDs on the front of the device
• Acoustic signal tones
- Icons (display elements) on the monitor

i

Note

Pay attention to the information in the separate quick guide.

DVR status LED

State Function
White (constantly lit):	System status is OK
White (flashing):	System status is OK, recording settings are stored, surveillance mode is active
Blue (constantly lit):	At least one camera is currently recording
Red (constantly lit):	System maintenance required

Camera selection keys – status LED

State Function
Off: No camera connected
White (constantly lit):	Camera is connected
Blue (constantly lit):	Camera is currently recording

Displays on the monitor

The device shows the date and time, camera name and whether a recording is in progress.

• Continuous recording: Blue "R"
• Event recording: Red "R"

Setup wizard

Setting up the system

The setup wizard guides you through the necessary basic system settings. The DVR is then set up for recording and surveillance.

Note

All detailed settings can be found in the device menu (see overview on page 32).

The language selection appears after switching on for the first time:

Wizard Language English Next Cancel

1. Click the entry field and select the desired language from the list. Click on Next to continue. The following query appears:

Wizard Start wizard when DVR starts? Next Cancel

- Click on "Next" to start the wizard.

Note

After the system is set up, you can untick the box. The setup wizard is then no longer started automatically.

Setting up the administrator

Warning

Note down the admin password. The following password is preset

“1 2 3 4 5”

Wizard Admin Password New Admin Password New Password Confirm Previous Next

1. Click the entry field and enter your admin password.
2. To assign a new password, tick the box next to New Admin Password.
3. Enter the new password and confirm in the field below.
4. Click on Next.

General Settings

1. Click on "Enter" in the next window.

System Settings - General Settings General DST Settings More Settings Language English CVBS Output Standard PAL VGA Resolution 1024*768/60HZ Time Zone(GMT+01:00) Amsterdam, Berlin Menu Date Format DD-MM-YYYY System Time 22-06-2010 8 0 36 Mouse Pointer Speed Enable Password APPV OK Exit

1. Enter the system time (date and time). Click on Apply to accept the data. Exit the setting by pressing OK, then click on Next.

HDD Management

1. Click on "Enter".

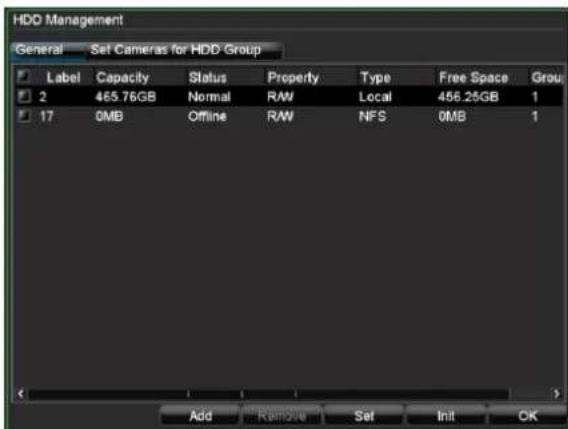

HDD Management General Set Cameras for HDD Group Label Capacity Status Property Type Free Space Grou 2 465.76GB Normal RAW Local 459GB 1 Add Remove Set Init OK

1. To set up a new HDD, tick the box and then click on Init.

Warning

All data on the drive is deleted!

1. Confirm the prompt by pressing OK. The HDD is then set up for operation. The progress is displayed on the status bar.
2. Exit the setting by pressing OK, then click on Next.

Record Settings

1. Click on "Enter".

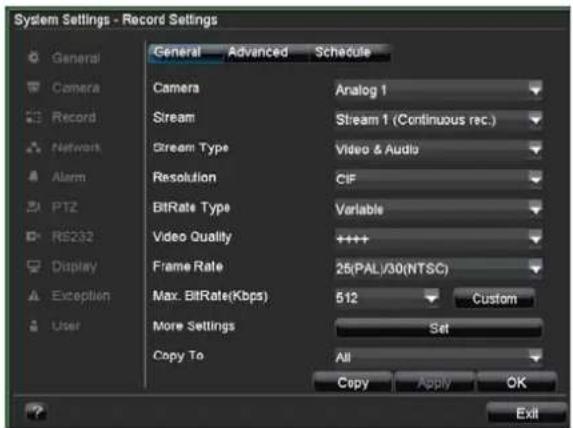

System Settings - Record Settings General Advanced Schedule Camera Analog 1 Stream Stream 1 (Continuous rec.) Stream Type Video & Audio Resolution CIF BitRate Type Variable Video Quality ++++ Frame Rate 25(PAL/30(HTSC) Max. BitRate(Kbps) 512 Custom More Settings Set Copy To All Copy Apply OK General Camera Record Network Alarm P1Z RS232 Display Exception User Exit

1. Select the camera in the "General" tab and specify the settings.
2. Click on the "Schedule" tab and then on Edit.

Balance Settings - Reset Settings Camera Image Photo Audio True False False True False False True False False True False False Copy To Auto1 Auto2 Auto3 Auto4 Auto5 Auto6 Auto7 Auto8 Auto9 Auto10 Auto11 Auto12 Auto13 Auto14 Auto15 Auto16 Auto17 Auto18 Auto19 Auto20 Auto21 Auto22 Auto23 Auto24 Auto25 Auto26 Auto27 Auto28 Auto29 Auto30 Auto31 Auto32 Auto33 Auto34 Auto35 Auto36 Auto37 Auto38 Auto39 Auto40 Auto41 Auto42 Auto43 Auto44 Auto45 Auto46 Auto47 Auto48 Auto49 Auto50 Auto51 Auto52 Auto53 Auto54 Auto55 Auto56 Auto57 Auto58 Auto59 Auto60 Auto61 Auto62 Auto63 Auto64 Auto65 Auto66 Auto67 Auto68 Auto69 Auto70 Auto71 Auto72 Auto73 Auto74 Auto75 Auto76 Auto77 Auto78 Auto79 Auto80 Auto81 Auto82 Auto83 Auto84 Auto85 Auto86 Auto87 Auto88 Auto89 Auto90 Auto91 Auto92 Auto93 Auto94 Auto95 Auto96 Auto97 Auto98 Auto99 Auto100

Process Settings Enable Schedules Out All Day Type Type 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 3 3 4 5 6 7 8 9 10 11 12 13 14 4 4 5 6 7 8 9 10 11 12 13 5 5 6 7 8 9 10 11 12 13 6 7 8 9 10 11 12 13 7 8 9 10 11 12 13 8 9 10 11 12 13

1. Tick the "Enable Schedule" box and All Day. Recording is then switched on for the entire day.

2. Exit the setting by pressing OK. The settings are displayed in colour in the schedule overview.

3. To transfer this schedule to other cameras, first select the camera (or "All" if all cameras should have the same settings) and confirm by pressing Copy.

4. Exit the setting by pressing OK, then click on Next.

Network Settings

1. Click on "Enter".

System Settings - Network Settings General Advanced Network Status NIC Type 10M/100M Auto DHCP IP Address 192 .168 .0 .225 Subnet Mask 255 .255 .255 .0 Default Gateway 192 .168 .0 .1 Preferred DNS Server 192 .168 .0 .1 Alternate DNS Server MAC Address 00:40:35:ba:c6:80 Network loss notification Apply OK Exit

Note

To check whether DHCP can be selected (or if you have to set the IP address and other settings manually), consult your network administrator.

1. DHCP activated: If DHCP is set up in the network router, then tick the DHCP box. All network settings are then made automatically.
2. DHCP not activated: Enter the data manually (IP address, subnet mask and default gateway = IP address of the router).

A typical address specification is as follows:

IP	address:		192.168.0
Subnet	mask:		255.255.255.0
Default	gateway:		192.168.0.1
Preferred	DNS	server:	192.168.0.1

1. Exit the setting by pressing OK, then click on Next.

Live view

Overview

The live view starts automatically after the device is switched on.

You can also go back to the live view by pressing the Menu key repeatedly.

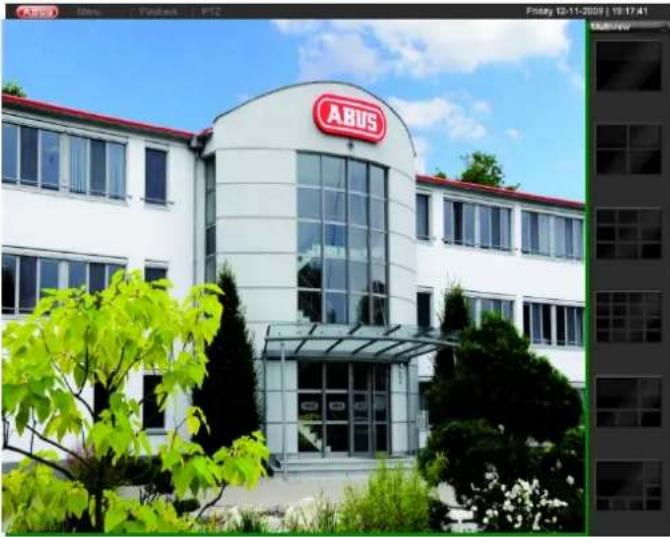

Exterior view of a modern white building with a red logo on the facade, surrounded by greenery and trees (no visible text or symbols on the building itself)

The following menus are found in the screen header:

- Menu

- Playback

- PTZ

The view pop-up menu is found on the right. The time and date are displayed on the right.

• To open the view pop-up menu, click on the rectangular symbol at the top-right of the menu bar.
• Click on one of the symbols to switch between the different views.

The signals of the connected cameras are displayed on the main screen.

- By double-clicking the left mouse key, you can display the camera image as a full-screen view or switch back to the original view.

Status symbols

- The following symbols are displayed depending on the operating status of the device:

Symbol	Meaning
	Event detectedMotion detection, alarm triggered by sensor, HDD error etc.
R	Red: RecordingEvent recording
R	Blue: RecordingContinuous recording

Pop-up menu for mouse operation

i

Note

Press the right mouse button when the cursor is positioned on a live image.

The following settings can be made. The arrow pointing to the right indicates that a sub-menu is opened for selection:

Single Camera Multi Camera Next Screen Start Auto-switch Digital Zoom PTZ Playback Menu

Single Camera Full-screen view for selected camera
Multi Camera Various camera layouts
Next Screen Displays the next camera(s)
Stop Auto-switch	Starts the camera sequence
Digital Zoom Zooms in on the image section
PTZ Activates PTZ mode
Playback Switches to playback mode
Menu Opens the main menu

i

Note

Stop Auto-switch:

Specify the delay in the image sequence in the display settings.

Digital Zoom

This function opens an image which has been enlarged by four times.

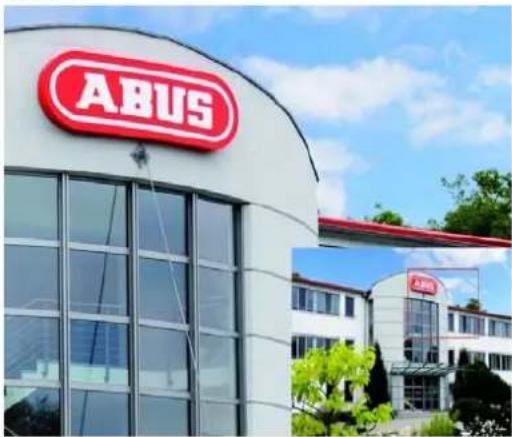

Exterior view of a modern building with the ABUS logo on the facade (no additional signage visible)

• Left-click the mouse in the small image window and pull a frame around the image section to be zoomed in on whilst holding the button down.
• The selected section is then digitally zoomed.
• To exit the image, first right-click the mouse and then left-click on "Exit".

System Settings

Note

The live view can be set as follows.

Open the main menu, then click on "System Settings" and then "Display Settings":

System Settings - Display Settings General Camera Record Network Alarm PTZ PG232 Display Exception User Video Output MAIN Mode 4 * 4 Dwell Time Not Switch Camera Order Set Enable Audio Output Event Output Port Video Spot Out Event Dwell Time 3s ABRY OK Exit

Video Output VGA, monitor, AUX (CVBS)Selects the connection where the settings should be changed
Mode Various camera layouts
Dwell Time	Switching time between the individual cameras in “Stop Auto-switch”
Camera Order Camera order in the live view
Enable Audio Output	Activates / deactivates audio output on the video output
Event Output Port	Used to assign a monitor for event output
Event Dwell Time	The period where the event is displayed on the assigned monitor (in seconds)

Note

VGA monitor connected:

A connected VGA monitor automatically becomes the main monitor where the audio output is also assigned. The BNC output Video Spot Out output displays the cameras in sequence and in full screen.

If during the boot process of the DVR the VGA cable is not connected, the main video signal is displayed at BNC output MAIN. Connect the VGA cable and reboot the DVR in order to display the main video signal at the VGA output.

No VGA monitor connected:

The main video signal is displayed at BNC output MAIN. The BNC output Video Spot Out output displays the cameras in sequence and in full screen.

Setting the camera output

Up to 16 cameras can be set simultaneously in the live view.

1. Click on "Set".

Camera Order Mode 4 X 4 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 A8 9 A9 10 A10 11 A11 12 A12 13 A13 14 A14 15 A15 16 A16 OK Cancel

1. Select the display mode.

- 1 × 1

- 2×2

- 3 x3 etc. (the overview changes according to your settings)

1. The camera signal is assigned to the corresponding image section using the navigation keys.

- "X" means that this camera is not displayed.

1. Click on OK to accept the settings.

Note

The output at the spot monitor is always in full screen.

Record Settings

Set-up

Open the main menu, then click on "System Settings" and then "Record Settings":

System Settings - Record Settings General Advanced Schedule Camera Analog 1 Stream Stream 1 (Continuous rec.) Stream Type Video & Audio Resolution CIF BitRate Type Variable Video Quality ++++ Frame Rate 25(PAL)/30(NTSC) Max. BitRate(Kbps) 512 Custom More Settings Set Copy To All Copy Apply OK Exit

General settings

The following settings can be made in the "General" tab:

Camera	Camera to be set
Stream	Stream 1: Properties for continuous recordingStream 2: Properties for event recordingStream 3: Properties for network transmission
Stream Type	VideoVideo & Audio
Resolution	4 CIF2 CIFCIF
BitRate Type	In general, the higher the bit rate, the more storage space is required.Variable:Static image – low bit rate; dynamic image – high bit rateConstant:Bit rate remains constant (at maximum bit rate)
Video Quality	There are various quality levels:+: Low quality+++++: High quality
Frame Rate	Number of images saved per second.The maximum number is dependent on the set resolution.
Max. BitRate (Kbps)	Defines the maximum bit rate for the “Constant” bit rate type

More Settings	Detailed settings
Pre-alarm	Recording period before an alarm (in seconds)
Post-alarm	Recording period after an alarm (in seconds)
Expiration	Period (in days) after which the recording is deleted automatically at 00:00. The event remains in the log file.0: Recordings are not deleted automatically
Copy To	Copies the selected settings to other cameras (all or selected)

1. Select the camera.

2. Select the stream where the specifications should be defined:

- Stream 1 (Continuous)

- Stream 2 (Event)

- Stream 3 (Network)

1. Define the recording parameters for the corresponding stream (see table).

2. Under "More Settings", select the period for the pre-alarm, post-alarm etc.

- Select the cameras where you wish to copy the settings under "Copy To", then confirm by pressing "Copy".

Advanced settings

In the "Advanced" tab, you can specify whether older recordings are deleted when the HDD memory is full.

Schedule

The schedule is used to specify the recording times and triggers (recording type) for the cameras. Click on the "Schedule" tab:

System Settings - Record Settings General Advanced Schedule Camera Analog 1 00 06 12 18 24 Mon Tue Wed Thu Fri Sat Sun Normal Motion M & A Alarm None Copy To All Copy Edit Exit

In the OSD, the hours of the respective days are listed from left to right (the days are listed from top to bottom). A colour key is shown underneath the days (i.e. the recording periods in the schedule are shown in colour according to the trigger (recording types)).

Colour symbol Key
Blue Normal recording: Period in hours
Green Motion detection
Light blue Motion detection and alarm
Red Alarm
Grey No selection
Green and red Motion or alarm

1. Select the camera to be set up, then click on "Edit":

Record Settings Enable Schedule Days All Week All Day 1 0 0 0 0 2 0 0 0 0 0 3 0 0 0 0 0 4 0 0 0 0 0 5 0 0 0 0 0 6 0 0 0 0 0 7 0 0 0 0 0 8 0 0 0 0 0 Type Time Type Time Type Time Type Time Type Time Type Time Type Time Type Time Apply OK Cancel

1. Tick the "Enable Schedule" box.
2. In the drop-down menu next to "Days", either specify the day to be set or select "All Week".
3. Tick or untick the "All Day" box. When "All Day" is selected, defined times cannot be entered. The setting then applies for the entire day.
4. To make specific time settings, untick the "All Day" box.

5. Specify the recording type in the drop-down menu:

6. Time

7. Motion detection

8. Alarm
   • Motion detection or alarm
   • Motion detection and alarm

9. When making a specific time setting, you can define up to 8 time periods (each from 00:00 to 00:00). The times in the individual periods must not overlap.

Note

The "Time" recording type defines the time window where a recording is made.

The other events (e.g. motion detection and/or alarm) only trigger the recording after the specific event has occurred.

- The camera settings can be copied and applied to all cameras in the "Schedule" tab.

- Select the camera under "Copy" (or select "All"), then confirm by pressing "Copy".

1. Exit the settings in the recording screen by pressing OK.

Manual Record

1. Press REC to start manual recording:

Manual Record Analog All 1 2 3 4 5 6 7 8 Status 9 10 11 12 13 14 15 16 OW OW OW OW OW OW OW OW Cancel

1. Select the camera to start manual recording by clicking the corresponding button.

Note

Click "All" to record all connected cameras.

Playback

General information

Playback can be made in three different ways:

• Through the video search in the main menu
- From the live view
• Through the log file in the maintenance menu

i

Note

The buttons „previous file/day/event“ are used differently depending on the playback mode:

Normal playback:

By pressing the button the playback jumps to the previous/next day.

Video Search:

By pressing the button the playback jumps to the previous/next event day.

Video Export:

By pressing the button the playback jumps to the previous/next file.

Playback screen

Playback is controlled on the control panel:

① ABUS ② Kameras Analog Analog Kamera 01 Kamer Kamer 04 Kamer 05 Kamer 06 Kamer 07 Kamer 08 Kamer 09 Kamer 10 Kamer 11 Kamer 12 Kamer 13 Jun 2010 So Mo Di M Do Fr Sa 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Wiedingabe 22-06-2010 00:00:00 00:00 04:00 08:00 11:00 16:00 20:00

No.	Area
1	Running playback with date and time
2	Used to select the camera for feedback

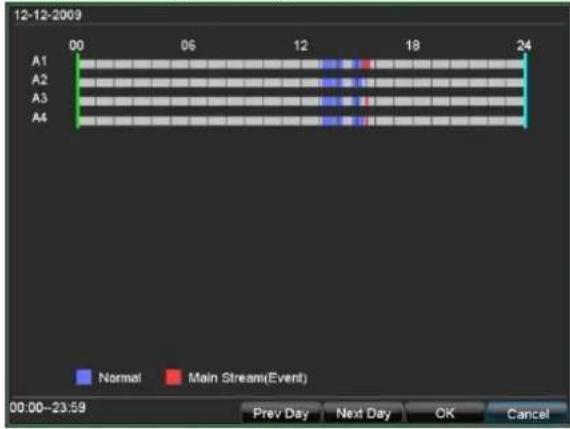

3	Calendar with recording type (see right)
4	Control panel with time bar

Using the control panel

The control panel is used for controlling the running play-back. The symbols have the following meaning:

Widergobe 22-06-2010 00:00:00 00:00 04:00 08:00 12:00 16:00 20:00 1 2 3 4 5 6 7 8 9 10 11 12 13

No.	Meaning / function
1	Switches audio playback on/off
2	Defines the start and end point of a video for data backup
3	Previous file/day/event
4	Goes back 30 seconds
5	Play
6	Stop
7	Advances 30 seconds
8	Fast-forward
9	Slow-motion advance
10	Next file/day/event
11	Time bar:Click on the time bar with the mouse to continue playback from another pointTo start playback from a specific time, click on the slider and drag it to the required time
12	Recording typeBlue = Continuous recordingRed = Event recording
13	Exits playback
1	Hides the control panel

i

Note

You can zoom in on the screen image.

• Right-click in the running playback.
- Select "Zoom".
- Zoom mode is now active (see page 21).

Playback through video search

In order to play recorded events, they must first be found. Open the main menu and then click on "Video Search" in the "General" tab:

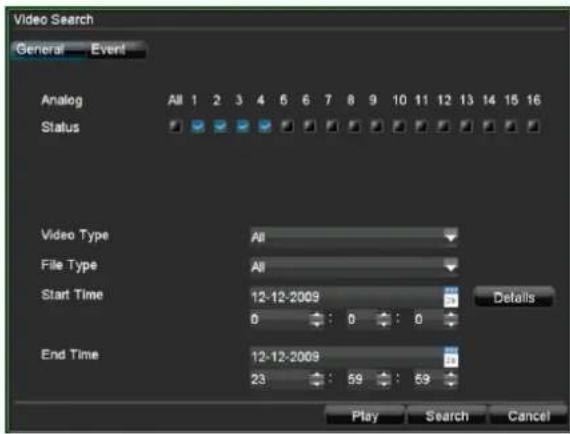

Video Search General Event Analog All 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Status Video Type All File Type All Start Time 12-12-2009 Details 0 : 0 : 0 End Time 12-12-2009 23 : 59 : 59 Play Search Cancel

The following settings are available:

Camera Camera to be set
Video Type	Schedule, motion detection, alarm or motion detection and/or alarm, manual recording, all
File Type Locked, unlocked, all
Start Time End Time	Enter the date and time
Details Opens the detailed view.The cameras are listed in sequence. The colour key shows the corresponding recording type. You can then access the recordings by going to the day after or day before. The markings on the time bar can be moved using the mouse to limit the time period for the search.

• Click on Search to search for recordings with the corresponding settings. The results are then shown:

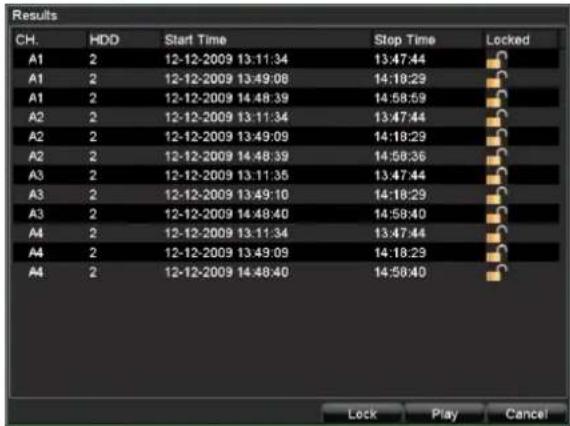

Results CH. HDD Start Time Stop Time Locked A1 2 12-12-2009 13:11:34 13:47:44 A1 2 12-12-2009 13:49:08 14:18:29 A1 2 12-12-2009 14:48:39 14:58:59 A2 2 12-12-2009 13:11:34 13:47:44 A2 2 12-12-2009 13:49:09 14:18:29 A2 2 12-12-2009 14:48:39 14:58:36 A3 2 12-12-2009 13:11:35 13:47:44 A3 2 12-12-2009 13:49:10 14:18:29 A3 2 12-12-2009 14:48:40 14:58:40 A4 2 12-12-2009 13:11:34 13:47:44 A4 2 12-12-2009 13:49:09 14:18:29 A4 2 12-12-2009 14:48:40 14:58:40 Lock Play Cancel

- Select the recording by clicking on the line and then on Play.

Playback: Advanced video search

- In the "Video Search" screen, click on the "Event" tab to search for specific recordings which were triggered either by an alarm or motion detection.

- Enter the search criteria (e.g. date, time, alarm inputs, cameras) to carry out the search.

Playback from the live view screen

Click on playback whilst the live view screen is shown:

Playback is controlled on the control panel:

i

Note

Playback starts with the recording of the last five minutes.

The playback screen is divided into four areas:

Kameras Analog Analog Kamera 01 Kamera 02 Kamera 03 Kamera 04 Kamera 05 Kamera 06 Kamera 07 Kamera 08 Kamera 09 Kamera 10 Kamera 11 Kamera 12 Kamera 13 Jun • + 2010 + So Mo Di M Do Fr Sa 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Wiedergabe 32-04-2016 09:00:00 00:00 04:00 08:00 12:00 20:00

No.	Area
1	Running playback with date and time
2	Camera menu
3	Calendar with recording typeBlue = Continuous recordingRed = Event recording
4	Control panel with time bar

1. Select the camera in the camera menu.

2. Click on the calendar to select a specific recording according to the date and time.

3. Control the playback as follows:

• Using the control panel
- Using the mouse (click on the time bar and drag the slider – use the colour key on page 25 to help with the assignment)

PTZ control

General information

PTZ control is used to access individual PTZ cameras and control them manually.

i

Note

When using ABUS PTZ-Cameras there is the option to configure tours directly in the camera. The advantage is that other control devices, e.g. keyboard, can call the tours as well.

- In order to open the menu of ABUS PTZ-Cameras enter Preset 95. By using the navigation buttons you can move within the menu.

Using the PTZ control panel

PTZ Camera 6 1 2 3 4 5 6 7 8 9 0 Speed 3 Zoom Focus Iris 1 2 3 4 5 7

No.	Meaning / function
1	Selects and displays the PTZ camera
2	Call presets
3	Call tours
4	Keypad
5	Speed
6	Zoom, focus and iris adjustment
7	Exits the PTZ control

Pop-up menu for mouse operation

i

Note

Press the right mouse button when the cursor is positioned on a live image.

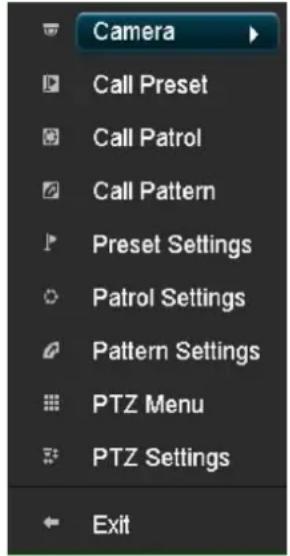

The following settings can be made. The arrow pointing to the right indicates that a sub-menu is opened for selection:

Camera Call Preset Call Patrol Call Pattern Preset Settings Patrol Settings Pattern Settings PTZ Menu PTZ Settings Exit

Camera PTZ camera	a selection
Call Preset Selects	the set preset
Call Patrol Selects	the specific patrol
Call Pattern Selects	the defined pattern
Preset Settings See	page 29
Patrol Settings See	page 30
Pattern Settings See	page 30
PTZ Menu Opens the PTZ menu
PTZ Settings	Displays the hardware parameters of the connected camera
Exit Exits the PTZ control

PTZ Settings

The following settings are necessary on the PTZ camera:

System Settings - PTZ Settings General Camera Record Network Alarm PTZ RS232 Display Exception User Camera Analog 1 Baudrate 9000 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol PELCO-D Address 0 Copy To All Copy Default Apply OK Exit

The settings are used for configuring the camera on the corresponding connections.

1. Select the installed camera.
2. Enter the data of the connected camera.
3. The address (ID) is used to clearly identify and control the PTZ camera.
4. If several cameras of the same type are connected, then you can copy the settings to the other connections.
5. Exit the settings by pressing "Apply" and "OK".

i

Note

Compare the settings with the technical data of the connected camera.

If a connected camera does not work correctly, then check the entered parameters (baud rate, data bit etc.).

Preset Settings

Presets are previously defined locations of a PTZ camera. Various positions can be defined for each PTZ camera. The cameras can then pan and tilt quickly to the corresponding locations.

- Select the camera in the control panel, then click on "Preset Settings" in the pop-up menu:

PTZ Control Preset Patrol Pattern No. 01 Preset Name Enabled 02 Preset 1 No 03 Preset 2 No 04 Preset 3 No 05 Preset 4 No 06 Preset 5 No 07 Preset 6 No 08 Preset 7 No 09 Preset 8 No 10 Preset 9 No 11 Preset10 No Call Set Clear All Clear OK

1. Pan, tilt and zoom the camera to the desired position.
2. Select "Preset 1" from the list.
3. Click on "Set". The position is now set as "Preset 1".
4. Repeat steps 1–3 to define further presets.
5. Exit the settings by pressing "Apply" and "OK".

i

Note

When using ABUS PTZ-Cameras with the Pelco-D protocol some presets are predefined and cannot be used.

Preset Beschreibung
1~64, 100~200	Calls preset 1~64 &, 100~200
65 Display preset Status
66 Starts Auto Scan
67 Auto Flip mode On/Off
68 Camera reset
69 Digital Slow Shutter function On/Off
71~78 Calls tour 1~8
81~88 Calls pattern 1~8
91 Calls zero Position
92 Freezes image
93 BLC-Function On/Off
94 Switches between day / night / auto mode
95 Calls OSD menu
96 Focus adjust
97 Enable/Disable all alarms

Further information can be found in the manual of the PTZ-Camera.

Tour Settings

Patrols are defined tours from position to position that are accessed in sequence on the PTZ camera. The individual positions are presets, which should be set as detailed above. The cameras can then each be moved in sequence to the corresponding positions at a defined speed, where they remain for a set period of time.

Setting a tour within the DVR

Select the camera in the control panel, then click on "Patrol Settings" in the pop-up menu:

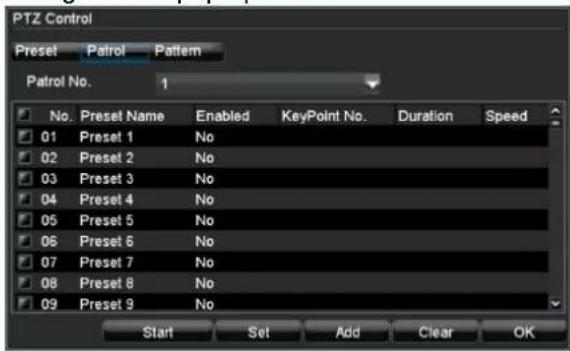

PTZ Control Preset Patrol Pattern Patrol No. 1 No.Preset Name Enabled(KeyPoint No.Duration Speed 01 Preset 1 No 02 Preset 2 No 03 Preset 3 No 04 Preset 4 No 05 Preset 5 No 06 Preset 6 No 07 Preset 7 No 08 Preset 8 No 09 Preset 9 No Start Set Add Clear OK

1. Activate the patrol number.

2. Select an active, set preset from the list by ticking the box.

3. Click on "Set".

PTZ Control Presel Patrol No. KeyPoint Settings No. 1 Preset Name Preset1 KeyPoint No. 1 Duration 5 Speed 7 Start Set Add Clear OK Cancel

1. Set the key point number, duration and speed.

• KeyPointNo.: Sequence

- Duration: Time that the PTZ camera waits at a position (in seconds)

• Speed (0–7): Speed of camera movement

1. Accept the settings by pressing "Add".

2. Repeat steps 1–5 to define further patrols.

3. Exit the settings by pressing OK.

i

Note

A patrol consists of at least two preset positions. You can set several patrols for one camera.

The set patrol can be tested as follows: Click on "Start" and monitor the patrol. You can stop the patrol at any time and repeat the patrol settings (e.g. to make corrections).

Call a tour set in the PTZ-Camera

You can also configure tours directly in the camera. The advantage is that other control devices, e.g. keyboard, can call the tours as well. Further information on configuring tours in the PTZ-Camera can be found in the PTZ-Camera manual.

To call the tour you can call a predefined preset or setup a tour in the DVR.

1. Activate the patrol number.

2. Select a predefined preset:

Preset	Beschreibung
71 Starts tour 1
72 Starts tour 2
73 Starts tour 3
74 Starts tour 4
75 Starts tour 5
76 Starts tour 6
77 Starts tour 7
78 Starts tour 8

1. Click on "Set".

2. Accept the settings by pressing "Add".

3. Exit the settings by pressing OK.

Pattern Settings

Patterns are defined tours from position to position that are accessed in sequence on the PTZ camera. Patterns are recorded live. The system saves the parameters used whilst you move and adjust the cameras in sequence to the corresponding positions at a defined speed.

- Select the camera in the control panel, then click on "Pattern Settings" in the pop-up menu:

PTZ Control Preset Patrol Pattern No. 01 Pattern Name Pattern Status Enabled Pattern 1 Stop No Run Pattern Run Record OK

1. Select the pattern number.
2. Click on "Run Record" to start the pattern recording.
3. Using the control panel, adjust the camera position and settings that you wish to record as a pattern.
4. The recording is made until "Stop Record" is clicked.

i

Note

• Start the recorded pattern by calling up the pop-up menu (right-click in the live view of the PTZ camera).
• Click on "Run Pattern" and click on the desired pattern. The PTZ camera now starts moving to the individual positions. After running through the entire pattern, the process is started again.

Device menu

Menu overview

The following overview shows all menus used to set and control the device.

• When the mouse cursor is pointed at a menu, it is marked and a short description of the menu is shown at the bottom.
• Click on the menu to open it.
• Click "Exit" to close the menu overview.

Menu Manual Record Video Search Video Export Manual Alarm HDD Settings Maintenance Shutdown Exit

Menu description

Menu Description See		page...
Manual Record Starts or finishes manual recording on selected cameras. 33
Video Search Parameter-based search for recordings started by events (e.g. alarms, motion detection).		33
Video Export Function for exporting saved recordings to USB media. 35
Manual Alarm Manual switching of alarm outputs for testing functionality. 36
HDD Used for initialising or managing installed HDDs (assigning read/write functions, cameras, network HDD management etc.).		36
Settings Used for managing all device settings (General, Camera, Record, Network, Alarm, PTZ, RS232, Display, Exception, User).		39
Maintenance Device maintenance (new firmware update, log search, import/export configuration, reset to factory defaults etc.).		45
Shutdown Used to lock, shut down and reboot the device. 47

Manual Record

Manual Record Analog All 1 2 3 4 5 6 7 8 Status 0# 0# 0# 0# 0# 0# 0# 0# 0# 9 10 11 12 13 14 15 16 0# 0# 0# 0# 0# 0# 0# 0# 0# Cancel

i

Note

Only active cameras can be selected for manual recording.

The recording starts immediately.

1. Select the camera by ticking the corresponding box.
2. After a camera has been selected, the box changes to ON.
3. Click "All" to select all cameras.

i

Note

Starting manual recording on the control panel:

• Select the camera.
• Press the REC key.

Video Search

Video Search General Event Analog All 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Status Video Type All File Type All Start Time 12-12-2009 0 : 0 : 0 End Time 12-12-2009 23 : 59 : 59 Details Play Search Cancel

Parameters for Video Search

“General” tab
Analog Overview	of analogue camerasUsed for searching the selected cameras
Video Type Continuous	Motion detectionAlarmMotion detection or alarmMotion detection and alarmManual recordingAll
File Type Unlocked	LockedAll
Start Time Date and time
End Time Date and time
“Event” tab
Event Type Alarm input, motion detection
Start Time Date and time
End Time Date and time
Analog Overview of camerasUsed for searching the selected cameras
Event Type Alarm input
Start Time Date and time
End Time Date and time
Alarm Input Selection of the triggered alarm input

1. Set the parameters that should be used for searching for a recording.
2. When searching in the "General" tab, you can open the overview by pressing "Details":

12-12-2009 A1 A2 A3 A4 00 06 12 18 24 Normal Main Stream(Event) Prev Day Next Day OK Cancel 00:00-23:59

• The recordings on the selected cameras are displayed by day and according to the following colours.
• Blue: Normal
• Red: Event
• You can move the green and blue markers with the mouse to view the recording at a specific time.
• You can scroll through the recordings by day (day after or day before).
• Start playback by pressing "OK". The playback screen opens.
• The control panel is used to control the process.

Playback 25%

i

Note

See also the description on page 27.

Results

After making a search, the results screen is displayed:

Results
CH.	HDD	Start Time	Slop Time	Locked
A1	2	12-12-2009 13:11:34	13:47:44
A1	2	12-12-2009 13:49:08	14:18:29
A1	2	12-12-2009 14:48:39	15:16:43
A1	2	12-12-2009 15:16:49	15:16:49
A1	2	12-12-2009 15:16:52	15:23:20
A1	2	12-12-2009 15:23:24	15:23:28
A1	2	12-12-2009 15:23:36	15:24:04
A1	2	12-12-2009 15:25:11	15:25:27
A1	2	12-12-2009 15:25:29	15:25:53
A1	2	12-12-2009 15:27:58	15:28:14
A1	2	12-12-2009 15:29:05	15:29:17
A1	2	12-12-2009 15:31:53	15:31:53
A1	2	12-12-2009 15:33:14	15:33:26
A1	2	12-12-2009 15:33:29	15:33:54
A1	2	12-12-2009 15:34:01	15:34:41
A1	2	12-12-2009 15:34:59	15:35:11
A1	2	12-12-2009 15:35:31	15:35:43
A1	2	12-12-2009 15:37:03	15:37:31

• Highlight the searched recording.
- Click on "Lock" to protect the recording from unauthorised access.
- Click "Play" to start playback.

Video Export

Export Video Analog All 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Status Video Type All File Type All Start Time 12-12-2009 Details 0 0 0 End Time 12-12-2009 23 59 59 Export Cancel

i

Note

The export function is used to store important recordings on connected external media, such as:

• USB media
• USB HDD

• DVD writer

• Enter the parameters (see page 33).

• Click on "Details" to limit the search.
• Click on Export to start the search. The results screen is displayed.

Results CH HDD Start Time Stop Time Size A1 2 12-12-2009 13:11:34 13:47:44 11,450KB A1 2 12-12-2009 13:49:08 14:16:29 9,244KB A1 2 12-12-2009 14:48:39 15:16:43 88,243KB A1 2 12-12-2009 15:16:49 15:16:49 56KB A1 2 12-12-2009 15:16:52 15:23:20 3,143KB A1 2 12-12-2009 15:23:24 15:23:26 60KB A1 2 12-12-2009 15:23:36 15:24:04 466KB A1 2 12-12-2009 15:25:11 15:25:27 200KB A1 2 12-12-2009 15:25:29 15:25:53 199KB A1 2 12-12-2009 15:27:58 15:28:14 216KB A1 2 12-12-2009 15:29:05 15:29:17 178KB A1 2 12-12-2009 15:31:53 15:31:53 69KB A1 2 12-12-2009 15:33:14 15:33:26 161KB A1 2 12-12-2009 15:33:29 15:33:54 214KB A1 2 12-12-2009 15:34:01 15:34:41 366KB A1 2 12-12-2009 15:34:59 15:35:11 171KB A1 2 12-12-2009 15:35:31 15:35:43 175KB A1 2 12-12-2009 15:37:03 15:37:31 262KB Total Size: 208MB Play Next Cancel

- The file size of the individual recording and the total size of all found recordings are displayed.

1. Click on Export to access the export screen.

Export Refresh USB1 Free Space 962MB File Name Size Type Date Modified abus Folder 12-12-2009 15:49:54 New Folder Delete Play Format Start Cancel

1. Select the connected medium used for data storage from the drop-down menu.
2. If the medium is not displayed, click on Refresh.

- If the medium is still not displayed, disconnect it from the device and reconnect the medium again. See also the manufacturer's specifications.

1. Click on Start to start the export process. The progress of the export process is then displayed.

Export Refresh USB1 Free Space 962MB File Name Size Type Date Modified Folder 12-12-2009 15:48:54 Exporting 2/5: Cancel New Folder Delete Play Format Start Cancel

i

Note

After the storage process is completed, the data on the medium can be selected and played on the player (which was also backed up). In this way, you can check whether the export has been made successfully.

Manual Alarm

Manual Alarm No. Alarm Name IP Address Trigger A->1 Local No A->2 Local No A->3 Local No A->4 Local No Trigger Trigger All Clear All OK

Note

The menu is used to check the recording settings in the event of an alarm, to trigger alarm outputs manually and to test the settings. You can then check and correct your settings in the playback screen.

1. Select the camera by clicking the corresponding line.
2. Click on Trigger to switch on the alarm manually. Trigger then changes to No for this camera.
3. Confirm the prompt by pressing OK.
4. When Trigger All is selected, then all alarms are switched on manually.
5. Click on Clear All to switch off all alarms simultaneously.

HDDs

Note

The device manages up to four 3.5" SATA hard disk drives.

Each of the installed HDDs must be initialised before the device can be used for recording. The device only detects the HDD and its assignment after initialisation has been made.

Warning

All data is deleted from the HDD during initialisation.

Ensure a data backup has been made in good time beforehand.

Installing the HDD

1. Disconnect the device from the mains power and open the cover.
2. Observe the applicable ESD guidelines when handling electronic devices and ensure they are earthed.
3. Do not open the device in rooms with carpets or other surfaces that can become electro statically charged.
4. Avoid bodily contact with all components on the PCB.

Warning

If you have questions regarding the information or cannot find the information you need, please contact your maintenance specialist.

1. Install the HDD and then connect it.
2. Reattach the cover and connect the device to the mains power supply.
3. Switch on the device and start the HDD menu.

Initialising the HDD

HDD Management General Set Cameras for HDD Group Label Capacity Status Property Type Free Space Grou 2 465.76GB Normal R/W Local 459GB 1 Add Remove Set Init OK

HDD Management parameters

“General” tab
Label	Shows the internal connection number
Capacity HDD capacity (in GB)
Status Shows the current status of the HDD:Not initialisedNormalError
Property	Read-only: Read-only protectionR/W: Read and write
Type Local: Device HDDNFS: Network HDD
Free Space	Shows the approximate free memory for recordings
Group HDD group (1 is preset)Recordings can be assigned to groups
“Set Cameras for HDD Group” tab
Analog Overview of camerasUsed for accessing the selected camera group
IP	Overview of IP camerasUsed for accessing the selected IP camera group
Data Backup on HDD Group	1 to 8

i

Note

If the initialised HDD is not displayed, check the connections.

1. Select the HDD by ticking the corresponding box.
2. Start the process by clicking on "Init".
3. Confirm the prompt by pressing OK.
4. The status bar shows the progress of the initialisation.
5. The following appears after the process is complete.

HDD Management General Set Cameras for HDD Group Label Capacity Status Property Type Free Space Grou 2 465.76GB Normal RAW Local 456.25GB 1 17 0MB Offline RAW NFS 0MB 1 Add Rainove Set Init OK

Setting the HDD

HDD Settings Label 2 HDD Status: ● Read-only ● R/W HDD Group: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 OK Cancel

i

Note

Define which status the HDD should have:

Read-only: The HDD is write-protected. Recordings are made on the next HDD.

Warning:

If only one HDD is installed and this is set to "Read-only", then the device cannot make recordings.

R/W

At least one HDD must have the R/W status (Read/Write). Otherwise, no recordings are possible.

Checking the HDD status

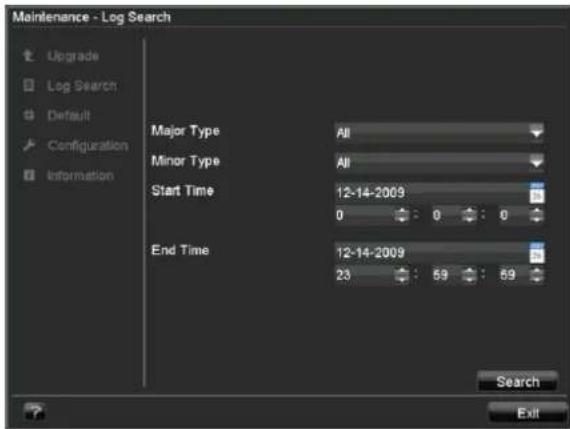

The status of each HDD can be checked in the "Maintenance" menu. S.M.A.R.T. information (Self-Monitoring, Analysis and Reporting Technology) is stored in the log data.

- Call up the log file and search according to the information/S.M.A.R.T. HDD (see page 46).

Setting up the HDD alarm

You can specify alarms to inform you of HDD errors.

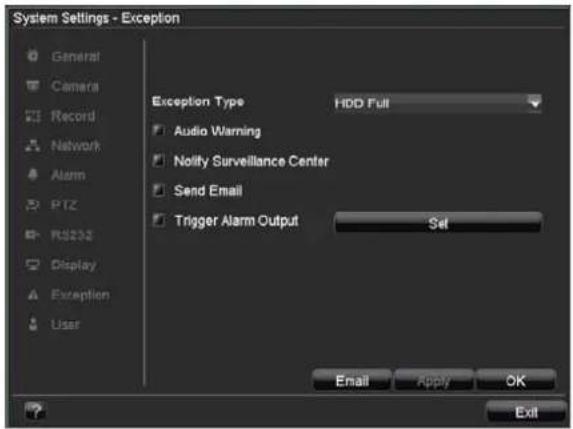

- To do this, call up "Exception" in the "System Settings" menu (see page 43).

System Settings

System Settings - General Settings General DST Settings More Settings Language English CVBS Output Standard PAL VGA Resolution 1024*768/60HZ Time Zone(GMT+01:00) Amsterdam, Berlin Menu Date Format DD-MM-YYYY System Time 22-06-2010 Mouse Pointer Speed 0 Enable Password Apply OK Exit

Note

The "System Settings" menu is used to manage all device settings.

Warning

Ensure that the date and time are set correctly. IMPORTANT:

Subsequent changes to the settings can lead to data loss!

Ensure a data backup has been made in good time beforehand.

Overview

Menu Setting	Page
General Language	video, time, date,mouse pointer, password, time zones and other settings
Camera Adding	changing and selecting analogue and IP cameras	40
Record All recording settings (type,resolution, motion detection,schedule etc.)		24
Network Required network settings(manual IP, DHCP, PPPOE,DDNS etc.) and network status overview		48
Alarm Assignment and parameterisation of detectors to alarm inputsand relay outputs		53
PTZ PTZ hardware parameters andassignment to camera inputs		28

Menu Setting Page
RS232 Parameters on the serial connection	42
Display Display settings and assignment of the event output	22
Exception Behaviour of the device in exceptional cases (HDD full, network disconnected etc.)	43
User Adding and changing users, assigning authorisation rights	43

Note

Pay attention to the instructions in the corresponding sections.

General Settings

System Settings - General Settings General DST Settings More Settings Language English CVBS Output Standard PAL VGA Resolution 1024*768/60HZ Time Zone(GMT+01:00) Amsterdam, Berlin Menu Date Format DD-MM-YYYY System Time 22-06-2010 8 0 36 Mouse Pointer Speed Enable Password Apply OK Exit

“General” tab Setting
Language Language	age on the OSD
CVBS Output Standard	PAL / NTSC
VGA Resolution	Resolution on the monitor
Time Zone GMT	(Greenwich Mean Time)
Menu Date Format	MM-DD-YYYY, DD-MM-YYYY, YYYY-MM-DD
System Time	Date and time
Mouse Pointer Speed	Set on the scroll bar (left = low speed; right = high speed)
Enable Password	Box not ticked:In order to enter a menu no password has to be entered. At access by network the password has to be entered.Box ticked:Password must be entered in order to use the menu.
“DST Settings” tab	Setting
DST Activated when box is ticked
From / To Date of DST start / end
DST Bias	Daylight Saving Time Bias: Correction of the DST to the reference time
“More Settings” tab	Setting
Device Name Unique specification of the device
Device Number	Used for unique identification when using remote control
Monitor Brightness	Scroll bar (left = darker; right = brighter)
Transparent	1:1, 3:1, 1:3 or Non-transparent – used for managing the display of the OSD in front of the background image
Menu Dwell Time	1 to 30 minutes – regulates how long the menu is shown
Activate Event Note	Displays a symbol at the bottom-left of the live image when an event occurs

System Settings: Camera

Camera Settings General Advanced Camera Analog 1 Camera Name Kamera 01 Display Camera Name Display Date Display Week Date Format MM-DD-YYYY Time Format 24-hour OSD Display Non Transparent & Not Flashing OSD Display Position Set Copy To All Copy Record Apply OK Cancel

“General” tab Setting
Camera	Selection of the camera (only previously activated cameras can be selected)
Camera Name	Clear identification of the camera (e.g. right car park, front entry gate etc.)
Display Camera Name	Box ticked / not ticked
Display Date Box	ticked / not ticked
Display Week Box	ticked / not ticked
Date Format Format of the displayed date
Time Format 12-hour / 24-hour display

OSD Display	OSD transparent, flashing, non-transparent etc.
OSD Display Position	Screen position of the OSD
Copy To	Selection of whether the settings should be copied to another camera (and if so, to which camera)
Record See page 24

1. Select "Advanced" to specify the other camera settings.

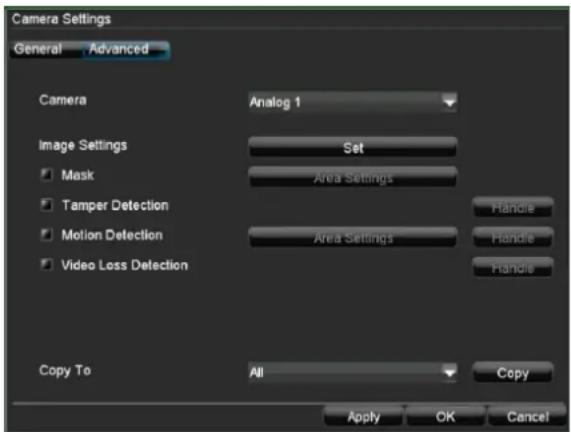

Camera Settings General Advanced Camera Analog 1 Image Settings Set ■ Mask Area Settings ■ Tamper Detection Area Settings Handle ■ Motion Detection Area Settings Handle ■ Video Loss Detection Handle Copy To All Copy Apply OK Cancel

“Advanced” tab Setting
Camera	Selection of the camera (only previously activated cameras can be selected)
Image Settings	Brightness, contrast, saturation and colour
Mask Setting up of zones
Tamper Detection Setting up of zones
Motion Detection Setting up of zones
Video Loss Detection	Activation according to the definable schedule and notification (display, acoustic alarm, notification of surveillance centre, e-mail, trigger of an alarm output)
Copy To Copies the settings

Setting up of zones

i

Note

When carrying out camera surveillance, you can define zones that should not be monitored (private zones).

You can also set up zones with special characteristics (e.g. tamper monitoring or motion detection).

1. Activate the zone by ticking the corresponding box and clicking on "Area Settings".
2. With the left mouse button held down, pull a frame around the desired zone in the live screen.

Exterior view of a modern multi-story office building with glass facade and red roof, surrounded by greenery (no visible signage or text)

1. When setting tamper monitoring and motion detection zones, you can open a pop-up menu by right-clicking the mouse. The sensitivity can be set here and the full-screen mode can be activated (for motion detection).
2. To exit the zone settings, right-click the mouse and select Exit.

i

Note

After applying the settings, the set private zone is displayed as a black rectangle in the image.

Zones for tamper monitoring and motion detection are not displayed.

Zones: Schedule and notification

i

Note

You can assign the surveillance parameters individually and control the notification type for tamper monitoring, motion detection and video loss detection.

Schedule

1. Select Schedule in the advanced camera settings.

Exception Handle Triggered Camera Schedule Handle Schedule Mon 1 0 0 24 0 2 0 0 0 0 3 0 0 0 0 4 0 0 0 0 5 0 0 0 0 6 0 0 0 0 7 0 0 0 0 8 0 0 0 0 Copy To All Week Copy Apply OK Cancel

1. Select the day and enter the schedule.

i

Note

You can define up to 8 time periods (each from 00:00 to 00:00). The times in the individual periods must not overlap.

1. Select whether the settings should be applied to all days of the week using Copy To and confirm with Copy.
2. Exit the settings by pressing OK.

Notification

1. Select Handle in the advanced camera settings.

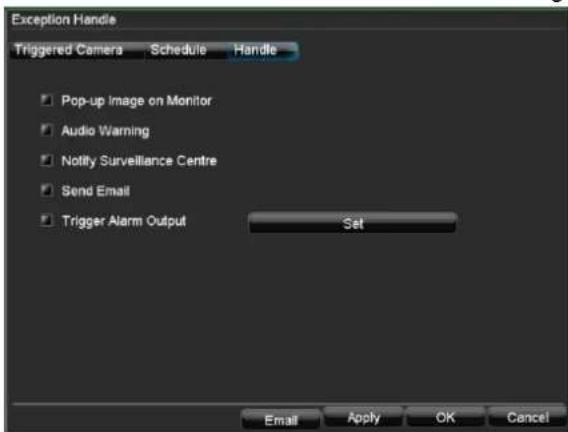

Exception Handle Triggered Camera Schedule Handle Pop-up Image on Monitor Audio Warning Notify Surveillance Centre Send Email Trigger Alarm Output Set Email Apply OK Cancel

1. Enter the notification type:

Parameter Notification
Pop-up Image on Monitor	Message appears on monitor
Audio Warning	The device emits a repeating tone
Notify Surveillance Centre	See page 51
Send Email	An e-mail is sent to a specific e-mail address (see page 51)
Trigger Alarm Output See	page 55

1. Click on Apply to accept the settings.
2. Click on OK to exit the menu.

System Settings: Record

i Note See description on page 24.

System Settings: Network

i Note See separate section on page 48.

System Settings: Alarm

i Note See separate section on page 53.

System Settings: PTZ

i Note See description on page 28.

System Settings: RS232

No function.

System Settings: Display

i Note See description on page 22.

System Settings: Exception

System Settings - Exception General Camera Record Network Alarm PTZ RS233 Display Exception User Exception Type HDD Full Audio Warning Notify Surveillance Center Send Email Trigger Alarm Output Set Email Apply OK Exit

Note

Enter the trigger under "Exception Type", for example:

• HDD Full
• Disconnected

After doing this, specify the device behaviour as detailed on page 42.

System Settings: User

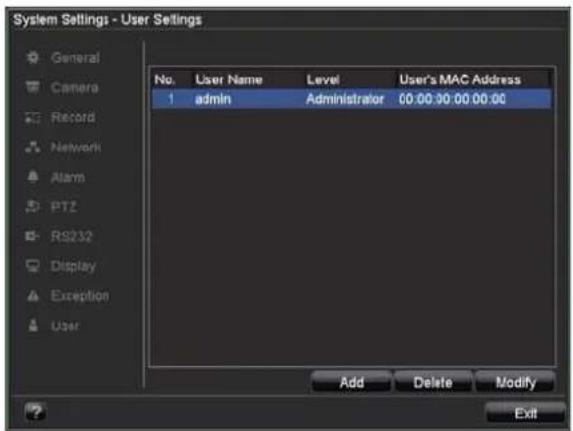

System Settings - User Settings No. User Name Level User's MAC Address 1 admin Administrator 00:00:30:00:00:00 Add Delete Modify Exit

Warning

Note down the admin password.

The following password is preset

"1 2 3 4 5"

You can add new users, delete existing users and change the settings in the "User Settings" menu.

1. To add a new user, select Add.

Add User Name user1 Password .......... Confirm .......... Level Guest User's MAC 00 : 00 : 00 : 00 : 00 : 00 Permission OK Cancel

Parameter Setting
User Name	Unique identification
Password	Access code for the device (device management)Note: Change all passwords on a regular basis, using a combination of letters and numbers. Note down all passwords in a safe place.
Confirm Enter the access code again here
Level IMPORTANT:More access rights can be set on the Manager level than on the User level.
User's MAC	MAC address of the network adapter on the PC of the corresponding userNote:This limits access to the PC whose MAC address is entered here!

1. Enter the name and password and confirm the password in the field below.
2. Select the level and enter the MAC address.

Warning

Pay attention to the instructions below on assigning access rights.

Setting the access rights

1. Control the access rights of the user by clicking on "Permission":

Permission Settings Local Permission Network Permission Camera Permission ✓ Local Log Search ✓ Local Configuration ✓ Local Camera Management ✓ Local Advanced Operation ✓ Local Shutdown / Reboot Apply OK Cancel

i

Note

The user can make the settings locally (i.e. on the device) or change the parameters.

The user can access the device via the network connection.

The "Camera Permission" tab is used to set access rights for individual cameras (network or local).

1. Switch tabs by clicking on the arrows in the tab bar:

Parameter Setting
Local Per-mission	Local Log SearchLocal ConfigurationLocal Camera ManagementLocal Advanced OperationLocal ShutDown / Reboot
Network Permission	Network Log SearchNetwork ConfigurationNetwork Camera ManagementControl Serial ConnectionsVideo Output ControlTwo-way AudioAlarm ControlNetwork Advanced OperationNetwork ShutDown / Reboot
Camera Permission	Remote Live ViewLocal Manual RecordingStart Remote RecordingLocal PlaybackRemote PlaybackLocal PTZ ControlRemote PTZ ControlLocal Data Export

Maintenance

Maintenance - Firmware Upgrade Local Upgrade FTP Refresh USB1 File Name Size Type Date Modified abus Folder 12-12-2009 15:53:08 Setup.exe 2.757KB File 07-20-2009 19:18:34 digicap.may 12.536KB File 12-14-2009 12:52:16 Upgrade Exit

i

Note

This menu is used for device maintenance, and should only be operated by experienced users.

Menu Setting	Pag	e
Upgrade Carri es out a firmware upgrade
Log Search	A search of recordings or in-formation (S.M.A.R.T. HDD status) can be made in the log file according to certain criteria (alarms, exceptions, operation or information).	46
Default	System reset	4

Menu Setting	Page
Configuration	Used to export or import the settings	47
Information Device information (serial number, firmware status etc.)		47

Upgrading the device

Maintenance - Firmware Upgrade Local Upgrade FIP Refresh USB1 File Name Size Type Data Modified abus Folder 12-12-2009 15:53:08 Setup.exe 2.757KB File 07-26-2009 19:16:34 digicap.mav 12.536KB File 12-14-2009 12:52:16 Upgrade Exit

i

Note

A device upgrade can be made from a USB device or over the network via FTP.

• Copy the upgrade file to the main directory of a USB stick.

• Connect the USB stick to a USB port on the device.

• Select the USB port (click on "Refresh", if necessary).

• Select the upgrade file and click on "Upgrade".
• Wait until the device reboots.
• Check the firmware status in the "Maintenance" menu under "Information".

i

Note

• Upgrades via FTP are made in the same way as detailed above. The PC must be located in the same local network.
• Set up a PC as an FTP server.
• Enter the IP address of the FTP server.

Log Search

Maintenance - Log Search Upgrade Log Search Default Configuration Information Major Type All Minor Type All Start Time 12-14-2009 0 0 0 End Time 12-14-2009 23 59 59 Search Exit

i

Note

An event search can be made according to the following main types, events and parameters:

All
- Alarm
- Exception
- Operation
• Information

Type Minor type / sub-parameter
All	-
Alarm	AllAlarm Input / OutputMotion Detection Begin / EndStart / End Tamper Detection
Exception	AllVideo Signal LossVideo Signal ExceptionLogin ErrorHDD FullHDD ErrorIP Address ConflictNetwork DisconnectedData Record FailedIP Camera Connection FailedIP Address Conflict with IP Camera

Type Minor type / sub-parameter
Operation	AllSwitch OnShutdownIrregular ShutdownLocal RebootLocal Login / Local LogoutLocal SettingsUSBLocal Recording Begin / EndLocal PTZ ControlLocal File LockedOthers
Information	AllHDD InformationHDS.M.A.R.T.Start RecordStop RecordDelete Obsolete RecordingNetwork HDD Information

1. Select the event you wish to search for in the log, then select the sub-parameter.

2. Enter the date and time under "Start Time" and "End Time", then click on Search.

3. The results are then displayed:

Log Search
Major Type	Start Time	Minor Type	Parameter
Information	12-14-2009 00:00:01	Stop Record	N/A
Information	12-14-2009 00:00:01	Start Record	N/A
Information	12-14-2009 00:00:01	Stop Record	N/A
Information	12-14-2009 00:00:01	Start Record	N/A
Information	12-14-2009 00:00:01	Stop Record	N/A
Information	12-15-2009 00:00:01	Start Record	N/A
Information	12-14-2009 00:32:30	HDD S.M.A.R.T	N/A
Information	12-14-2009 01:32:32	HDD S.M.A.R.T	N/A
Information	12-14-2009 02:32:35	HDD S.M.A.R.T	N/A
Information	12-14-2009 03:32:37	HDD S.M.A.R.T	N/A
Information	12-14-2009 04:32:41	HDD S.M.A.R.T	N/A
Information	12-14-2009 05:32:43	HDD S.M.A.R.T	N/A
Alarm	12-14-2009 06:07:50	Motion Detection Begin	N/A
Information	12-14-2009 06:07:50	Start Record	N/A
Alarm	12-14-2009 06:07:55	Motion Detection End	N/A
Information	12-14-2009 06:08:03	Stop Record	N/A
Alarm	12-14-2009 06:12:18	Motion Detection Begin	N/A
Information	12-14-2009 06:12:18	Start Record	N/A

• Click on Details to see more detailed information.
• Click on Play to start the recording for the event, when necessary.
• Click on Export to back up the log file on a USB medium.

Default Settings

Maintenance - Default Settings Upgrade Log Search Default Configuration Information System will restore factory configuration after rebooting. Continue? OK Exit

Note

In this process, the device is reset to the factory default settings.

Warning

All settings made since the start of operation are deleted (cameras, recording settings, PTZ, alarms etc.)!

Avoid data loss by backing up the settings in advance. These can be imported again following the system reset.

Import / Export Configuration

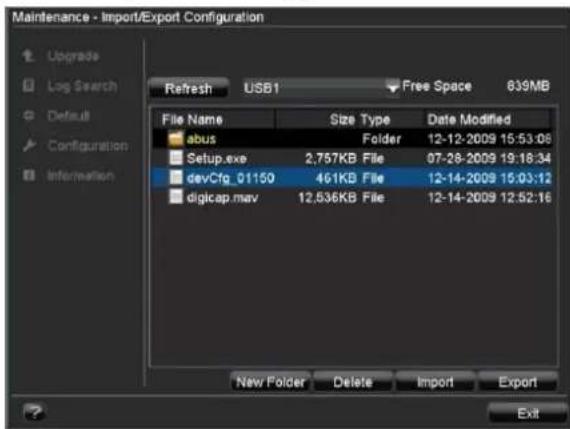

Maintenance - Import/Export Configuration Refresh USB1 Free Space 839MB File Name Size Type Date Modified abus Folder 12-12-2009 15:53:06 Setup.exp 2,757KB File 07-28-2009 19:18:34 devCfg_01150 461KB File 12-14-2009 15:03:12 digicap.mav 12,536KB File 12-14-2009 12:52:16 New Folder Delete Import Export Exit

Note

The configuration data contains all settings made on the device since the start of operation. This data can be saved on a USB medium. You can then configure another device identically, for example.

Information

Maintenance - Information Upgrade Leg Search Default Configuration Information Device Name Hybrid DVR Model TVVR 50020 Serial No. 1620091204EBRR011508797WCVU Firmware Version V1.1.0, Build 091212 Encoder Version V5.0, Build 091009 Exit

Note

The technical data of the device is displayed in the information menu.

This can be useful for support queries, for example.

Shutdown

Menu Shutdown Lock Shutdown Reboot Cancel Maintenance Shutdown Exit

Note

• Select "Lock" to lock the operating menu.
• Select "Shutdown" to switch off the device.
• Select "Reboot" to reboot the system (switch off and back on).

See also page 16.

Network

General information

Correct network settings are essential in the following cases:

• When using network cameras (IP cameras)
• When using remote control of the device and surveillance over your server

Note

Please read the following basic instructions before setting up the device.

A network is a connection of at least two network-capable devices.

Transmission types:

• Wired networks (e.g. CAT5 cable)
  • Wireless networks (WLAN)
  • Other transmission types (Powerline)

All systems have certain similarities, but can also differ in many ways.

Terms and definitions

An overview of relevant terms when using the device in a network can be found below.

Parameter Setting
IP address	An IP address is the unique address of a network device within a network.This address may only appear once within a network. Certain IP address ranges are reserved for public networks (e.g. the Internet).
Private address range	e.g. 10.0.0.0 – 10.255.255.255Subnet mask: 255.0.0.0172.16.0.0 - 172.31.255.255Subnet mask: 255.255.0.0192.168.0.0 - 192.168.255.255Subnet mask: 255.255.255.0
Subnet mask	A subnet mask is a bit mask used for making decisions and assignments during routing.255.255.255.0 is the standard subnet mask in home networks.
Gateway	A gateway is a network device which allows all other network devices to access the Internet.This can be the computer connected to the DSL modem or – usually – the router or access point within the network.

Parameter Setting
Name server	The name server is responsible for assigning a unique IP address to a web address or URL (e.g. www.google.de). Also known as DNS (Domain Name Server).When a domain name is entered into a browser, the DNS searches for the corresponding IP address of the server and forwards the query on.The IP of the provider's DNS can be entered here. However, it is often sufficient to select the IP of the gateway. This then forwards the queries independently to the provider DNS.
DHCP	The DHCP server automatically assigns the IP address, subnet mask, gateway and name server to a network device.DHCPs are available in current routers.The DHCP service must be specially set and activated (see the corresponding manual for more information).Note:When using fixed IP addresses and a DHCP server, make sure that the fixed IP addresses are outside the address range assigned by DHCP. Otherwise, problems could occur.
Port	A port is an interface used for communication by different programs. Certain ports are fixed (Telnet: 23, FTP: 21), whilst others can be freely selected. Ports are important for different applications (e.g. external access to the device over a browser).
MAC address	The MAC address (Media Access Control or Ethernet ID) is the specific hardware address of the network adapter.This is used for the unique identification of the device in a computer network.

Network layout

The device must be physically connected to the network over a CAT5 cable (see connections on page 3).

Note

Pay attention to the specific information and instructions on the network devices.

Several switches, routers and access points can be connected to each other. Firewalls and other security software can affect the network.

Warning

When using a router, the network clients (e.g. the recorder) can be connected to the Internet and vice versa.

Make sure to use protective measures to prevent unauthorised external access (e.g. firewall, changing passwords, changing ports)!

Network configuration

The device must be configured using the "System Settings" and "Network Settings" menus.

System Settings - Network Settings General Advanced Network Status NIC Type 10M/100M Auto DHCP IP Address 192 .168 .0 .225 Subnet Mask 255 .255 .255 .0 Default Gateway 192 .168 .0 .1 Preferred DNS Server 192 .160 .0 .1 Alternate DNS Server MAC Address 00:40:35:ba:c6:80 Network loss notification ADDY OK Exit

Parameter Setting
NIC Type	Set the transmission speed of the installed network card here.Tip: 10M/100/1000M
DHCP	Tick the box if the IP addresses are assigned dynamically via DHCP in the network.DHCP activated: Subsequent entry fields are inactive (parameters assigned via DHCP).Note:If the IP addresses are assigned manually, ensure that DHCP is not active (box not ticked).
IP Address	Address of the network device in the network (manual assignment)
Subnet Mask Usually 255.255.255.0
Default Gate-way	Address of the gateway for Internet access
Preferred DNS Server	Address of the Domain Name Server (usually the IP address of the gateway)
Alternate DNS Server	IP address of the alternative DNS server
MAC Address	Hardware address of the installed network card

Advanced network configuration

Specify further parameters for the network configuration in the "Advanced" tab.

System Settings - Network Settings General Advanced Network Status PPPOE Set DDNS Set NTP Set HOST/OTHERS Set Email Set General Advanced Network Status PPPOE Set DDNS Set NTP Set HOST/OTHERS Set Email Set Exit

Parameter Setting
PPPOE	PPPOE is used on ADSL connections and when using modems in Germany. Click on “Set” to enter the access data (ID and password) for your provider.
DDNS	Server for Dynamic Domain Name System management. Used for updating host names or DNS entries
NTP Network	Time ProtocolServer for time synchronisation
HOST / OTHERS	Communication and HTTP port.
Email	Used to specify the e-mail settings which are sent as an e-mail to a specific address in the event of an alarm.

Setting up PPPOE manually

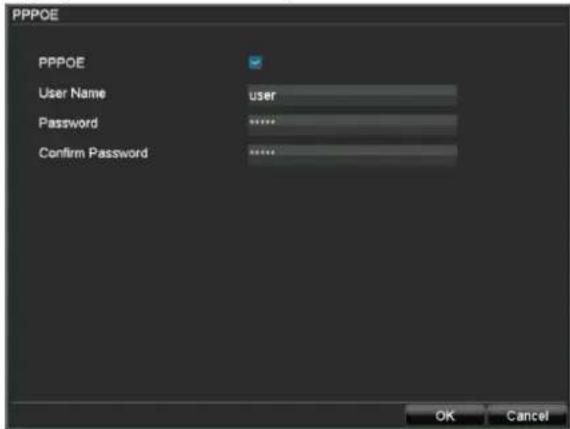

PPPOE PPPOE User Name user Password ****** Confirm Password ****** OK Cancel

1. Tick the PPPOE box, enter the user name (Internet access ID) and password, then confirm the password.
2. Apply the settings by pressing OK.

Setting up DDNS manually

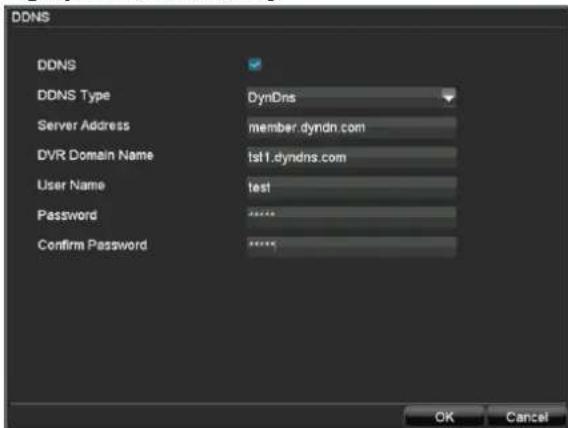

DDNS DDNS DDNS Type DynDns Server Address member.dyndn.com DVR Domain Name tst1.dyndns.com User Name test Password **** Confirm Password OK Cancel

1. To use the ABUS DDNS function, you must first set up an account under www.eytronserver.com. Please note the FAQs on the website when doing this.
2. Tick the DDNS box, enter "ABUS DDNS" as the "DDNS Type", then enter www.abus-server.com or "62.153.88.107" under "Server Address".
3. Apply the settings by pressing OK. The IP address of your Internet connection is now updated on the server every minute.

Setting up NTP manually

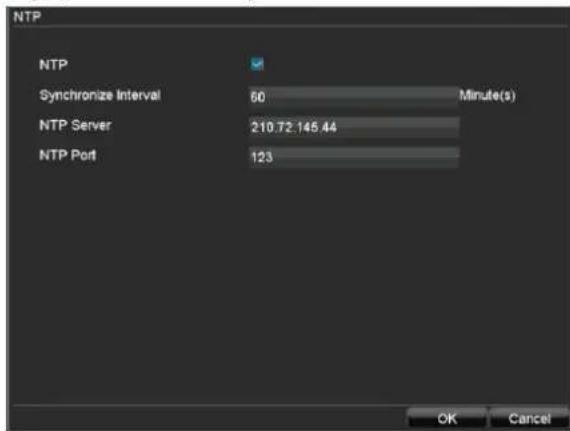

NTP NTP Synchronize Interval 60 Minute(s) NTP Server 210.72.145.44 NTP Port 123 OK Cancel

i

Note

The recorder can synchronise the time with an external server. Several server addresses are available on the Internet for this purpose.

1. Tick the NTP box and then enter the interval at which the synchronisation should be made again. Enter the IP address of the NTP server and the NTP port.
2. Apply the settings by pressing OK.

Setting the HOST / OTHERS

HOST/OTHERS Alarm Host IP Alarm Host Port Server Port HTTP Port Multicast IP MTU 1500 Bytes OK Cancel

Parameter Setting

Alarm Host IP No function

Alarm Host Port No function

Server Port Port for data communication

HTTP Port Port for web server

Multicast IP In order to minimize traffic you can enter a Multicast IP. The IP address has to match the IP address of the PC running the CMS software.

MTU Describes the max. size of the largest protocol data .

Note

Server port 8000 and HTTP port 80 are the standard ports for remote clients and remote Internet browser access.

Setting up an e-mail address

In the event of an alarm, the device can send a message by e-mail. Enter the e-mail configuration here:

Email General Advanced Server Authentication User Name Password ****** SMTP Server smtp.sina.com From Name add1 From Email Address Select Recipients To Name 1 To Name client2 To Email Address [e-mail] Test Apply OK Cancel

Parameter Setting
Server Authentication	Tick the box when authentication is made on the server of the Internet provider
User Name E-mail account at the provider
Password	Password connected to the e-mail account
SMTP Server SMTP server address of the provider
From Name Name of the sender
From Email Address	Corresponding e-mail address for the e-mail account
Select Recipients	Select three possible recipients for the e-mail
To Name Enter the name of the recipient here
To Email Address	Enter the e-mail address of the recipient here
“Advanced” tab	Setting
Attached JPEG File	Tick the box when camera images should also be sent with the e-mail as photo files
Interval	Select the interval between the individual recordings (2 to 5 seconds)
SMTP Port Enter the SMTP port here(Default: 80)
SSL	Tick the box to activate the e-mail encryption

1. Enter the parameters of the e-mail notification.
2. Click on Test to send a test e-mail.

i

Note

The device sends an e-mail to the specified recipients.

If the e-mail is not received, check the settings and correct them.

If necessary, check the spam filter of your e-mail client.

Network Status

Click on the "Network Status" tab to see an overview of the current network configuration.

System Settings - Network Settings General Advanced Network Status DHCP Status: Enable NO IP Address N/A Subnet Mask N/A Default Gateway N/A PPPOE Status: Enable NO IP Address N/A Subnet Mask N/A Default Gateway N/A Exit

Parameter Setting
DHCP Status:	When DHCP is active, the corresponding parameters are shown. “N/A” is displayed when DHCP is inactive.
PPPOE Status:	Shows whether an Internet connection is established during manual set-up.Also displays the IP address, subnet mask and defined default gateway.Note: If a router is used which is set up as the gateway / DSL modem, then the PPPOE settings of the router are used.The display then shows “N/A”.

Alarm

Alarm overview

The alarm settings regulate the type of camera surveillance in a detailed fashion and control the device behaviour (for example, in the event of motion detection or video signal loss).

- Open the "System Settings" menu and click on "Alarm" in the menu on the left.

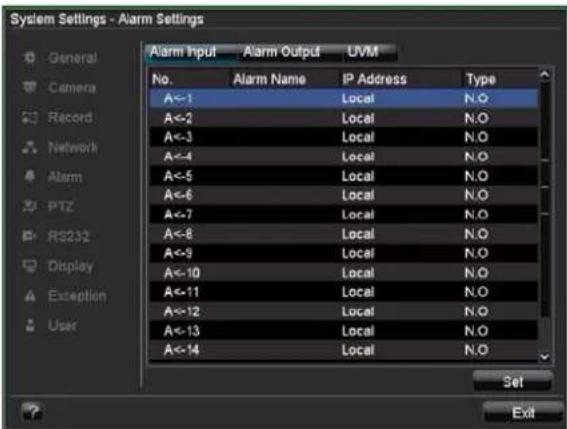

System Settings - Alarm Settings General Camera Record Network Alarm PTZ RS232 Display Exteption User Alarm Input Alarm Output UVM No. Alarm Name IP Address Type A<-1 Local N.O A<-2 Local N.O A<-3 Local N.O A<-4 Local N.O A<-5 Local N.O A<-6 Local N.O A<-7 Local N.O A<-8 Local N.O A<-9 Local N.O A<-10 Local N.O A<-11 Local N.O A<-12 Local N.O A<-13 Local N.O A<-14 Local N.O Set Exit

The available alarm detectors are then shown in the overview. The signals on these detectors can then be managed via the corresponding alarm inputs.

Alarm Input

1. Select the alarm detector by marking the corresponding line and then clicking Set.

Alarm Settings Alarm Input Alarm Output Alarm Input No. A<1 Alarm Name N.C Type Handle Setting PTZ Camera Analog 1 ● Preset 1 ● Patrol 1 ● Pattern 1 Copy To All Copy OK Cancel

Parameter Setting
Alarm Input No.	Select the alarm input to make the settings
Alarm Name	Enter a clear description here (e.g. door contact on warehouse)
Type N.O.: Normally open circuitN.C.: Normally closed circuit

Parameter Setting
Setting	Tick the box to make exception settings and notification settings (see page Fehler! Textmarke nicht definiert.).
PTZ Camera	Assignment of the PTZ camera to the camera input
Preset Patrol Pattern	Tick / untick the boxSelect the preset, patrol or pattern from the drop-down menu
Copy To Copies the	settings

1. Assign the alarm input in the drop-down menu.

2. Enter the alarm name.

3. Select the type of alarm encoder from the drop-down menu:

• N.O.: Triggers an alarm when closed
• N.C.: Triggers an alarm when opened

1. Tick the "Setting" box and click Handle.

Each triggered alarm can be handled individually.

Handle:

Exception Handle Triggered Camera Schedule Handle Pop-up Image on Monitor Audio Warning Notify Surveillance Centre Send Email Trigger Alarm Output Set Email Apply OK Cancel

Triggered Camera:

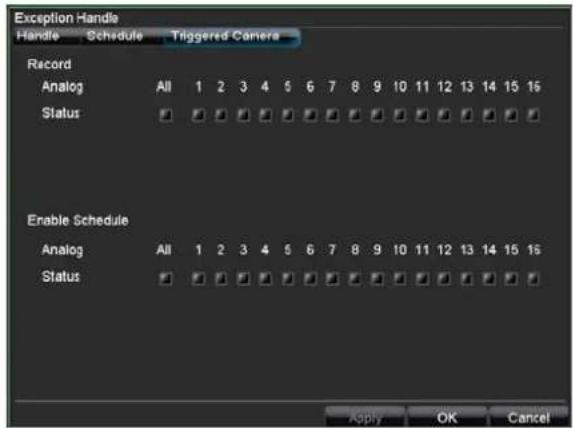

Exception Handle Handle Schedule Triggered Camera Record Analog All 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Status Enable Schedule Analog All 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Status Apply OK Cancel

Parameter Setting
Pop-up Image on Monitor	A message appears on the monitor.
Audio Warning	The device emits a repeating tone.
Notify Surveillance Centre	Sends an alarm signal to a PC with ABUS CMS software. The software must be enabled and the recorder set to surveillance mode on the PC.
Send Email	An e-mail is sent to a specific e-mail address (see page 51).
Trigger Alarm Output See	page 55.

Schedule:

Here you can define in which period of time the reaction to the alarm input shall be handled.

Parameter Setting
Record	Using this parameter, you can select which cameras should be used for recording after the alarm input is triggered.
Enable Schedule	Using this parameter, you can select on which cameras the schedule should be activated. For example, if you have installed the ABUS IP alarm module, then you can use the Secvest Key to activate guard mode in the recorder when exiting the premises. The recording mode (duration, motion detection, alarm) stored in the schedule is then used. In this way, you can activate the recorder independently from the schedule and prevent false alarms.Ensure that the schedule is not activated initially so that it is not disarmed during activation.

Alarm Output

1. Click on "Alarm Output" in the "Alarm Settings" menu.

Parameter Setting
Alarm Output No.	Select the alarm output to make the settings
Alarm Name	Enter a clear description here (e.g. siren in warehouse)
Length Length of the activated alarm
Schedule	Time-dependent control of the alarm output
Copy To Copies the settings

1. Assign the alarm output in the drop-down menu.
2. Enter the alarm name.
3. In the drop-down menu, enter the interval between the alarm input message and the signal output on the relay.
4. Select the day and enter the schedule (see page 41).
5. Copy the settings to other alarm inputs if the parameters match or if so required.

i

Note

If a network camera is used, then this must be set up correctly and network access must be possible.

Pay attention to the information under Manual Alarm on page 36.

IP alarm module

You can add up to three ABUS IP alarm modules (CASA10010) here. After successfully connecting via the network, two alarm inputs and two alarm outputs are added to each of the "Alarm Input" and "Alarm Output" tabs. The short name of the inputs is

U1<-1 / U1<-2, whilst the short name of the outputs is U1->1 / U1->2.

Click on "Add" to configure an ABUS IP alarm module.

UVM Settings UVM Name IP Alarmmodul IP Address 192.168 0.220 Manage Port 8000 Admin Name adults Password **** OK Cancel

Parameter Setting
UVM Name	A unique name for the IP alarm module can be entered here.
IP Address	Enter the IP address of the IP alarm module here.
Manage Port	Enter the port (default: 8000) of the IP alarm module here.
Admin Name	Enter the user name of the IP alarm module here (user must have administrator rights).
Password	Enter the password of the user specified above here.

After a successful connection two virtual alarm in- and outputs are added. These can only be switch by network.

i

Note

Please refer to the homepage (www.abus-sc.com) to find further installation instructions in the download section of the ABUS IP Alarm Module (CASA10010).

Troubleshooting

Before calling the Service department, read the following information to determine the possible cause of a malfunction.

Malfunction Cause Solution
No power Mains cable not connected		Connect the mains cable securely to the socket
	Power switch set to OFF Turn the power switch to ON
	No current in the power socket	Use another device on the socket, where necessary
No image Screen not set for reception		Set the correct video input mode until an image from the recorder appears
Video cable not connected properly Connect the video cable securely
Connected modem is switched off Switch on the monitor
Camera images black and white and blurred, despite colour camera being installed	If no cameras are connected when the re-corder is started, then the recorder is started automatically in NTSC mode. If only PAL colour cameras are connected, then these are displayed as black and white and blurred	Connect the cameras before starting the recorder. The recorder automatically de-tects whether a PAL or NTSC signal is present and switches to the correct mode. You can set the mode (see page 39)
No sound	Audio cables not connected properly Devices connected over the audio cables are not switched on Audio connection cable is damaged Replace the cable	Connect the audio cables securelySwitch on the devices connected over the audio cables
HDD is not working	Connection cables not connected properly HDD defective or not system-compatible Replace with a recommended HDD	Connect the cables securely
USB port not working Device not supported		Connect a compatible USB medium(USB 2.0)
Network access not possible	USB hub is in use Connect the USB medium directly
	Network cable connections are loose Network settings are incorrect (DHCP, IP address etc.)	Connect the network cableCheck the network configuration and cor-rect it, when necessary (see page 49)
Remote control is not working	Batteries inserted with the wrong polarity or are empty	Replace the batteries. To control the de-vice with the remote control, point it at the remote control sensor on the device
	Remote control too far away from the re-corder	Use the remote controller within 7 metres from the device
	Signal blocked by obstruction between the remote control and recorder	Remove the obstruction
	Lighting too bright or fluorescent tubes in use?	Switch off strong fluorescent lighting in the immediate vicinity
Recording not possible	No HDD or HDD is not initialised	Install and initialise the HDD
Sudden deactivation of the device	Temperature inside the device is too high	Clean the device and remove any obstruc-tions from the ventilation area

Device cleaning and care

Note

• Your device requires no maintenance.
• Protect the device from dust, dirt and moisture.

Index

Access rights 43

Address range 47

Admin 42

Admin Password 18, 42

Alarm 24, 45, 52

Alarm Input 52

Alarm Out 54

Alarm output 40

Alarm Output 54

Audible warning signal 40, 53

Authentication 50

Batteries 60

Camera

Setting up zones 40

Zone schedule, notification 40

Camera display Views 20

Camera keys 17

Camera output Setting 22

Camera settings 39

Configuration 46

Connections 14

Control panel 25, 26 PTZ 27

PTZ pop-up menu 27

CVBS Output Standard 38

DDNS 49

Default Gateway 48

Device menu 31

Device overview 3

DHCP 47

Disposal 60

DST Bias 39

DVR status LED 17

Dwell Time 39

Email 50, 53

E-mail 40

Enable Password 38

Encoding 23

Exception 42

Frame rate 23

FTP 44

FTP server 44

Gateway 47

General Settings menu 38

HDD 63

Alarms 37

Capacity 59

Initialising 36

Parameters 36

Safety 63

Setting 36

Status 37

HDDs 35

Host PC 50

Information 46

Installation location 10

IP address 47

Live view 20

Settings 22

Log Search

Alarm 45

MAC address 42, 47

Maintenance 44

Upgrade 44

Manual Alarm 35

Manual Record 32

Mask 39, 40

Menu 20, 31

System Settings 38

Menu overview 31

Monitor

Displays 17

Motion detection 24

Motion Detection 39

Mouse

Pop-up menu 20

Mouse operation 15

N.C. 52

N.O. 52

Name server 47

Network 47

Advanced configuration 48

Configuration 48

Email 50

Status 51

Network Status 51

Notification 40

NTP 49

On-screen keyboard 16

Operating elements 13

Playback 20, 25

Advanced video search 26

Control panel 25

From live view screen 26

Screen 25

Video search 25

Pop-up menu 20

Port 47

Post-alarm 23

PPPOE 49

Pre-alarm 23

Preset 27, 52

PTZ 20

Patrol 27

Patrol Settings 29

Pattern 27

Pattern Settings 30

Preset 27

Preset Settings 28

Settings 28

PTZ Camera 52

PTZ control 27

Reboot 46

Recording

Advanced settings 23

Manual 24

Schedule 23

Settings 23

Remote alarm 50

Remote control 4, 14

Reset 46

Resolution 23

RS232 41

Schedule 40

Scope of delivery 12

Setting menu 38

Settings

Camera 39

General 38

Setup 31

Setup wizard 18

Shutdown 46

Shutting down 16

SMTP 50

Spot Out 22

Status displays 17

Status symbols 20

Stop Auto-switch 21

Storage capacity 59

Stream 23

Subnet mask 47

Surveillance centre 40

Switching off 16

Switching on 16

Symbols 9

Synchronising 49

System Time 38

Tamper Detection 39

Time Zone 38

Upgrade 44

User 42

VGA Resolution 38

Video Export 34

Video Loss Detection 39

Video output 22

Video quality 23

Video Search 32

Parameters 32

Results 33

Zones 40

Zoom 21

Technical data

Subject is to alterations and errors. The dimensions are approximate values.

ABUS digital recorder TVVR41100 TVVR41110 TVVR41120
Video compression	H.264
Hybrid-compatible	-
Camera inputs	4 x BNC (1.0 V p-p, 75 Ω)	8 x BNC (1.0 V p-p, 75 Ω)	16 x BNC (1.0 V p-p, 75 Ω)
Camera outputs	-	8 x BNC (1.0 V p-p, 75 Ω) - TVAC41920 required	16 x BNC (1.0 V p-p, 75 Ω) - 1 x TVAC41930 required
Monitor outputs	Monitor: 1 x BNC (1.0 V p-p, 75 Ω), 1 x VGA Spot: 1 x BNC (1.0 V p-p, 75 Ω)
Operating mode	Triplex
Resolution (live view)	PAL: 704 x 576 (4CIF), NTSC: 704 x 480 (4CIF) VGA: 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 1024/60Hz
Resolution @ frame rate per camera (recording)	PAL: 352 x 288 (CIF) @ 25 fps 704 x 288 (2CIF) @ 25 fps 704 x 576 (4CIF) @ 25 fps		NTSC: 352 x 240 (CIF) @ 30fps 704 x 288 (2CIF) @ 30 fps 704 x 480 (4CIF) @ 30 fps
Total frame rate	PAL: 100 fps, NTSC: 120 fps	PAL: 200 fps, NTSC: 240 fps	PAL: 400 fps, NTSC: 480 fps
Compression levels	6
Pre-alarm/post-alarm memory	0–30 sec. / 5–900 sec.
Storage medium	2 x SATA HDD
Data backup	2 x USB 2.0
Views	1 / 4 1 / 4 / 9 1 / 4 / 9 / 16
Recording modes	Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm
Search modes	By event, date and time
Alarm inputs (NO/NC)	4 8 16
Alarm outputs	1 (Loading capacity: 12VDC/1A)	4 (Loading capacity: 12VDC/1A)	4 (Loading capacity: 12VDC/1A)
User levels	2 (max. 31 users)
Network connection	RJ45 10/100 Mbps
Parallel network access	24 camera connections
Network functions	Live view, playback, data export, settings
DDNS	√
NTP	√
PTZ control	RS-485
PTZ protocols	PELCO-D, PELCO-P, Samsung, LG-MULTIX
Alarms	Acoustic warning, OSD signal, e-mail
Audio	Audio In: 4 x Cinch (2.0 V p-p, 1000 Ω) Line In: 1 x Cinch (2.0 V p-p, 1000 Ω) – only for network transmission Audio Out: 1 x Cinch (600 Ω)
Control	USB Mouse, remote control (not included in scope of delivery)
Software	ABUS CMS software
OSD languages	German, English, French, Dutch, Danish
Power supply	12VDC
Power consumption	<10W (without HDD) <15W (without HDD) <30W (without HDD)
Operating temperature	-10 °C–+55 °C
Dimensions (WxHxD)	450 x 441 x 90 mm
Weight	≤ 8 kg (without HDD)
Certification	CE

HDD storage capacity

In addition to the actual storage capacity of the installed HDD, the required storage space for recording and surveillance depends on the set resolution and frame rate of the recording.

Continuous recording, 1 x 1 TB HDD:

Number of cameras	Resolution	FPS	Recommended bit rate	Recording time
4	CIF	25	512	41 Days, 5 Hours
4	2CIF	25	1024	20 Days, 14 Hours
4	4CIF	25	2048	10 Days, 7 Hours
8	CIF	25	512	20 Days, 14 Hours
8	2CIF	25	1024	10 Days, 7 Hours
8	4CIF	25	2048	5 Days, 3Hours
16	CIF	25	512	10 Days, 7 Hours
16	2CIF	25	1024	5 Days, 3 Hours
16	4CIF	25	2048	2 Days, 13 Hours

On the included CD you can find a program in order to calculate the required amount of memory. In addition you find this software for download on our homepage together with the ABUS CMS software.

Disposal

Information on the EU directive on waste electrical and electronic equipment

To protect the environment, do not dispose of the device with domestic waste at the end of its service life. It can be disposed of at one of the appropriate collection points in your country. Please obey your local regulations when disposing of material.

Dispose of the device in accordance with EU directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the department of your local authority which is responsible for waste disposal. Used equipment can be disposed of, for example, by your local or municipal authority, the local waste disposal company or your dealer.

Information on handling batteries

• Always insert batteries with the correct polarity. Never attempt to recharge the batteries supplied and do not throw them into naked flames under any circumstances. Do not use different batteries at the same time (old and new, alkaline and zinc-carbon etc.). Remove the batteries if the device is not used for a long period of time. If used improperly, there is a risk of explosion and leaking batteries!
• Take environmental protection into account – used batteries should not be disposed of in domestic waste! They must be taken to a collection point for used batteries.
• Make sure that batteries are kept away from small children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. If this happens, consult a doctor immediately.

• Do not charge normal batteries, heat them up or throw them into naked flames (they may explode).

• Change low batteries in good time.

• Always change all the batteries at the same time and use batteries of the same type.

Important

Leaky or damaged batteries can cause chemical burns on contact with the skin.

▶ In this case, wear protective gloves.
▶ Clean the battery compartment with a dry cloth.

Important information on disposing of batteries

Your product uses batteries which are subject to the European directive 2006/66/EC and may not be disposed of with domestic waste.

Find out about the regulations for the separate collection of batteries which apply in your country.

Proper disposal of batteries helps prevent harm to health and the environment.

Batteries that contain harmful chemicals are labelled with these signs:

Pb = battery contains lead

Cd = battery contains cadmium

Hg = battery contains mercury

Information on the European RoHS directive

The device complies with the RoHS directive.

Compliance with the RoHS directive means that the product or component does not contain more than the following maximum concentrations of the following substances in homogeneous materials, unless the substance is part of an application that is excluded from the RoHS directive:

a) 0.1% lead (by weight)
b) Mercury
c) Hexavalent chromium
d) Polybrominated biphenyl (PBB) and polybrominated diphenyl ether
e) 0.01% cadmium (by weight)

Glossary

Overview of specialist terms

1080i

HDTV image signal with 1080 pixels and interlaced display.

16:9

Cinematographic aspect ratio on widescreen displays.

720p

HDTV image signal with 1280 x 720 pixels and progressive display.

CIF

Common Intermediate Format

Originally planned for converting PAL to the NTSC standard. CIF corresponds to a video resolution of 352 x 288 pixels (2CIF = 704 x 288 pixels; 4CIF = 704 x 576 pixels).

CINCH

Socket type used for analogue audio or CVBS video signals.

CVBS

Colour, Video, Blank and Sync – The simplest variation of video signals (also known as composite video). The image quality is comparatively low.

DDNS

Dynamic Domain Name System entry

Network service which provides and updates IP addresses of its clients in a database.

DHCP

Dynamic Host Configuration Protocol

Network protocol which allows the automatic connection of devices (clients) in existing networks. DHCP servers (e.g. Internet routers) automatically assign the IP address, network mask, gateway, DNS server and WINS server (when required). Only the automatic acquisition of IP addresses must be activated for the client in this case.

Domain

Name used for the identification of websites on the Internet (e.g. www.abus-sc.de).

Dual Stream

Dual stream is a video transmission method. A high-resolution recording and lower-resolution transmission are made over the network, for example. The main stream has a 4CIF resolution and the sub-stream has a CIF resolution.

DVR

Digital Video Recorder – A device used for recording different video and audio sources (analogue, digital). The data is compressed for recording and saved on hard disk drives (HDD).

H.264

(MPEG-4 AVC) – Standard method for the highly-efficient compression of video signals. Used on Blu-ray discs or video conference systems, for example.

HDD

Hard Disk Drive

Digital data storage on computers or DVRs.

GIGABYTE

Unit of capacity for storage media (HDD, USB, SD/MMC cards).

HDVR

Hybrid DVR – DVR used for recording analogue cameras and network cameras.

http

Hypertext Transfer Protocol

Method for transmitting data across networks. Primarily used for displaying websites in a browser.

INTERLACED

Method for improving the picture quality of a video signal without consuming extra bandwidth (scan pattern on every second line).

IP address

An address in the computer network based on the Internet protocol. Allows different devices to identify themselves in a network so that they are accessed specifically.

JPEG

Compression method for photo images with minimal loss. Most digital cameras save photos in JPEG format.

MPEG

Moving Picture Experts Group – International standard for the compression of moving images. On some DVDs, the digital audio signals are compressed and recorded in this format.

NTP

Network Time Protocol

Method for synchronising the time across networks. SNTP (Simple Network Time Protocol) is also available, offering a simplified protocol.

NTSC

Standard television format in the USA. The method is different from the European PAL system in certain ways. A full-screen NTSC image is comprised of 480 visible lines and a total of 525 lines. 60 half-images are displayed per second. Compared to PAL, the system is more susceptible to colour errors.

PAL

Phase Alternating Line – European colour TV system. Uses 576 visible image lines. Together with the lines used for signal management, a full-screen image is comprised of 625 lines. 50 half-images are displayed per second. The phase position of the colour signal changes from line to line in the image.

PANEL

Interior of a flatscreen display (e.g. LCD or plasma panels).

PC

Personal Computer – Can be used as a remote site, either with the software supplied or over a browser.

Pixel

Short for “picture element”, the smallest unit for digital image transmission or display.

PIP

Picture in Picture – Where two signal sources are shown on the screen at the same time. The second signal source is stored above the first.

PPPoE

PPP over Ethernet (point-to-point protocol)

Network transmission method used for establishing a connection over dial-up lines. Used in ADSL connections, for example).

PROGRESSIVE

Method for displaying, storing or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to the interlacing used in traditional television systems.

PTZ

Pan-Tilt-Zoom

Pan, tilt and zoom function on motor-driven cameras.

RESOLUTION

Normal PAL television systems show images in 576 lines, normally with 768 pixels. HDTV works with at least 1280 x 720 pixels.

SCREEN SIZE

Size of the display from the bottom-left corner to the top-right corner in inches or centimetres.

Browser

Program for viewing websites on the Internet.

USB

Universal Serial Bus

Serial bus connection, used for connecting media whilst in operation. Maximum data rate for USB 2.0: ca. 320 Mbit/s (ca. 40 MB/s).

VGA

Video Graphics Array – Standard interface for analogue video signals in PCs (primarily deals with RGB signals).

ZOLL (inches)

Typical unit of screen size. One inch is equivalent to 2.54 centimetres. The most common sizes of 16:9 displays are 26 inch (66 cm), 32 inch (81 cm), 37 inch (94 cm), 42 inch (106 cm), 50 inch (127 cm) and 65 inch (165 cm).

Internal HDD

The internal hard disk drive (HDD) is very sensitive. Operate the device according to the following instructions in order to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss.

Note

• Do not move the device during operation.
• Moisture inside the device can condense and lead to HDD malfunctions.
• When the device is turned on, never remove the mains plug from the socket or interrupt the power supply using the safety switch.
• Do not move the device immediately after switching it off. To move the device, carry out the following steps:
• Wait until OFF has been shown on the display for at least two minutes.
• Remove the mains plug from the socket.
• Move the device.
• Data on the HDD can be lost in the event of a power failure during operation. Use an uninterruptible power supply (UPS)!
• The HDD is very sensitive. Improper use or unsuitable surroundings can damage the HDD after some years of use. This may be indicated by the playback stopping unexpectedly or visible “mosaic” effects in the image. In some circumstances, there are no prior signs of a HDD malfunction.
• In the event of a malfunction, no recordings can be played. The HDD must be replaced in this case.

ABUS Digital Recorder

TVVR41100 / TVVR41110

TVVR41120

Manufacturer:

86444 Affing (Germany)

ABUS Digitale recorder TVVR41100 / TVVR41110 / TVVR41120

Exterior view of a modern ASOS air conditioner unit with control knobs and buttons (no visible text or symbols)

PTZ-besturing....154

Algemeen....154

Besturing via de PTZ besturingstoetsen....154

ESC 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P " A S D F G H J K L a Z X C V B N M ← Space Enter

Current settings: Current settings Current Analog 1 Ma 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0

Scheme design Symbol parameters Symbol Design Reference Model (log) Type: Type 1.0 - 0.0 - 1.0 - 0.0 Type: type 2.0 - 0.0 - 1.0 - 0.0 Type: type 3.0 - 0.0 - 1.0 - 0.0 Type: type 4.0 - 0.0 - 1.0 - 0.0 Type: type 5.0 - 0.0 - 1.0 - 0.0 Type: type 6.0 - 0.0 - 1.0 - 0.0 Type: type 7.0 - 0.0 - 1.0 - 0.0 Type: type 8.0 - 0.0 - 1.0 - 0.0 Type: type

Exterior view of a modern office building with the logo of ABUS on the facade, surrounded by greenery (no visible text or symbols beyond the logo)

Exterior view of a modern building with the logo 'ABUS' on the facade, under a blue sky (no signage visible on the building itself)

Manual Alarm No. Alarm Name IP Address Trigger A->1 Local No A->2 Local No A->3 Local No A->4 Local No Trigger Trigger All Clear All OK

Opmerking

HDD Management General Set Cameras for HDD Group Label Capacity Status Property Type Free Space Group 2 465.76GB Normal R/W Local 459GB 1 Add Remove Set Init OK

HDD Management General Set Cameras for HDD Group Label Capacity Status Property Type Free Space Grou 2 465.76GB Normal R/W Local 456.25GB 1 17 0MB Offline R/W NFS 0MB 1 Add Remove Set Init OK

HDD instellen

HDD instellingen Label 2 HDD status: ● Alleen-lezen ● RW HDD groep: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 OK Annularen

i Opmerking

Exterior view of a modern multi-story building with glass facade and red roof, surrounded by greenery (no visible text or signage)

86444 Affing (Germany)

ABUS Digitalrekorder TVVR41100 / TVVR41110 / TVVR41120

Exterior view of a black and silver ABUS air conditioner unit with control knobs and buttons (no visible text or symbols on main body)

Surcharge/surtension....200

Câbles....200

Surcharge/surtension

ESC 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L a Z X C V B N M ← Space Enter

Assistant Langue Français Suivant Quilter

Layout environment Accident features Auto Beware feature cur control Type: Features 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Features True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Feature True: Value

Exterior view of a modern white building with a red logo on the facade, surrounded by greenery and trees (no visible text or symbols on the building itself)

Exterior view of a modern industrial building with 'ABUS' signage on the facade (no additional text or symbols visible)

PTZ Control Preset Pause Delta Patrol No. KeyPoint Settings No. 1 Preset Name.Preset1 KeyPoint No. 1 Duration 5 Speed 7 OK Cancel Start Set Add Clear OK

Exporter 14/622: Quitter

i

Remarque

Exterior view of a modern multi-story building with glass facade and red roof, surrounded by greenery (no visible text or signage)

Réglages système - Réglages alarme Avertisseur d'alarme Sortie de reais UVM Numéro Nom alarme Adresse IP Type A<=1 Local N.O. A<=2 Local N.O. A<=3 Local N.O. A<=4 Local N.O. A<=5 Local N.O. A<=6 Local N.O. A<=7 Local N.O. A<=8 Local N.O. A<=9 Local N.O. A<=10 Local N.O. A<=11 Local N.O. A<=12 Local N.O. A<=13 Local N.O. A<=14 Local N.O. Modifier Quitter

Configuration 31, 46

Connecteurs 14

Menu principal 20, 31

Mise à jour 44

'PPP over Ethernet' (protocole Point-to-Point)

'Universal Serial Bus'

Exterior view of a modern electronic device with control knobs and a digital display (no visible text or symbols)

Brugerhåndbog

Version 1.0

CE

Dansk

ESC 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L a Z X C V B N M ← Space Enter

• IP Address: 192.168.0.50
- Subnet Mask: 255.255.255.0
- Default Gateway: 192.168.0.1
• Preferred DNS Server: 192.168.0.1

Exterior view of a modern building with the logo of ABUS, surrounded by greenery and trees (no readable text or symbols on the facade)

I topteksten findes menuerne

• Menu
• Playback og
• PTZ.

Exterior view of a modern industrial building with 'ABUS' signage under a blue sky (no other text visible)

Søgeresultater Kanal Startlid Slutlid Sparret A1 17-06-2010 00:00:30 00:00:42 A1 17-06-2010 00:01:25 00:01:37 A1 17-06-2010 00:03:14 00:03:27 A1 17-06-2010 00:04:10 00:04:22 A1 17-06-2010 00:04:26 00:04:45 A1 17-06-2010 00:04:49 00:05:01 A1 17-06-2010 00:05:19 00:05:31 A1 17-06-2010 00:06:03 00:06:47 A1 17-06-2010 00:07:03 00:07:11 A1 17-06-2010 00:07:42 00:08:02 A1 17-06-2010 00:08:52 00:09:16 A1 17-06-2010 00:10:09 00:10:29 A1 17-06-2010 00:10:39 00:11:03 A1 17-06-2010 00:11:08 00:11:29 A1 17-06-2010 00:11:33 00:11:45 A1 17-06-2010 00:11:53 00:12:17 A1 17-06-2010 00:12:33 00:12:45 A1 17-06-2010 00:12:55 00:13:15 Boker Signing Aflut

Søgeresultater Kanal Startlid Slutid Sparret A1 17-06-2010 00:00:30 00:00:42 A1 17-06-2010 00:01:25 00:01:37 A1 17-06-2010 00:03:14 00:03:27 A1 17-06-2010 00:04:10 00:04:22 A1 17-06-2010 00:04:26 00:04:45 A1 17-06-2010 00:04:49 00:05:01 A1 17-06-2010 00:05:19 00:05:31 A1 17-06-2010 00:06:03 00:06:47 A1 17-06-2010 00:07:03 00:07:11 A1 17-06-2010 00:07:42 00:08:02 A1 17-06-2010 00:08:52 00:09:16 A1 17-06-2010 00:10:09 00:10:29 A1 17-06-2010 00:10:39 00:11:03 A1 17-06-2010 00:11:08 00:11:28 A1 17-06-2010 00:11:33 00:11:45 A1 17-06-2010 00:11:53 00:12:17 A1 17-06-2010 00:12:33 00:12:45 A1 17-06-2010 00:12:55 00:13:15 Boker Segning Afstul

Dataeksport Kanal Startlid Slutlid Starrelse A1 17-06-2010 00:00:30 00:00:42 300KB A1 17-06-2010 00:01:25 00:01:37 315KB A1 17-06-2010 00:03:14 00:03:27 309KB A1 17-06-2010 00:04:10 00:04:22 315KB A1 17-06-2010 00:04:26 00:04:45 330KB A1 17-06-2010 00:04:49 00:05:01 202KB A1 17-06-2010 00:05:19 00:05:31 301KB A1 17-06-2010 00:06:03 00:06:47 717KB A1 17-06-2010 00:07:03 00:07:11 264KB A1 17-06-2010 00:07:42 00:08:02 426KB A1 17-06-2010 00:08:52 00:09:16 461KB A1 17-06-2010 00:10:09 00:10:29 394KB A1 17-06-2010 00:10:39 00:11:03 474KB A1 17-06-2010 00:11:08 00:11:20 240KB A1 17-06-2010 00:11:33 00:11:45 279KB A1 17-06-2010 00:11:53 00:12:17 434KB A1 17-06-2010 00:12:33 00:12:45 310KB A1 17-06-2010 00:12:55 00:13:15 413KB Strørelse I alt: 6.94GB Afspilling Naste Aflut

Export Refresh USB1 Free Space 962MB File Name Size Type Date Modified Folder 12-12-2009 15:48:54 Exporting 2/5: Cancel New Folder Delete Play Format Start Cancel

i

Henvisning

Exterior view of a modern multi-story building with glass facade and surrounding greenery (no visible signage or text)

Exception Handle Triggered Camera Schedule Handle Pop-up Image on Monitor Audio Warning Notify Surveillance Centre Send Email Trigger Alarm Output Set Email Apply OK Cancel

1. Angiv meddelelsens type:

PPPOE PPPOE Drugemann Password Genlag password OK AnSUT

Mask (privatzone) 39, 40

Meddelelse 40

Menu Indstillinger 38

Menu General Settings 38

Menuoversigt 31

Monitor Visninger på 17

User's MAC (MAC- adresse) 42

Vedligeholdelse 44 Opgradering 44

VGA Resolution (VGA-opløsning) 38

Video Loss Detection (registrering af videosvigt) 39

Video Output (videoudgang) 22

Video Quality (videokvalitet) 23

Zoner 40

Zoom 21

86444 Affing (Germany)
