Original English user manual. Keep for future use.

Introduction

Dear Customer,

Thank you for purchasing this product.

This product meets the requirements of the applicable European and national guidelines. The corresponding declarations and documents can be obtained from the manufacturer (www.abus-sc.com).

To maintain this condition and to ensure risk-free operation, you as the user must observe these operation instructions!

Before initial start-up, read through the complete operating instructions observing operating and safety instructions.

All company and product names mentioned in this document are registered trademarks. All rights reserved.

If you have any questions, please contact your installer or your local dealer!

Disclaimer

This user manual was prepared with greatest care. If you should notice omissions or inaccuracies, please inform us about these on the back of this manual given address.

The ABUS Security-Center GmbH & Co. KG assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.

The company is not liable or responsible for direct and indirect subsequent damages which are caused in connection with the equipment, the performance and the use of this product.

No guarantee for the content of this document is taken.

Important safety instructions

The warranty will expire for damage due to non-compliance with these operating instructions. We shall not be liable for any consequential loss!

We do not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions. In such cases the warranty will expire.

Dear customer,

The following safety instructions are intended not only for the protection of your health, but also for the protection of the device. Please read through the following points carefully:

• There are no parts on the inside of the product which need to be serviced. Apart from this, the license (CE) and the guarantee/warranty will lapse if you open/take the product apart.
• The product will be damaged even it falls from a low height.
• This device can be used in inside as well as outside.
• During the installation of the camera please take care that direct sunlight cannot fall onto the image sensor of the device. Please follow the installation instructions in the corresponding chapter of this user manual.

Avoid using the device under the following unfavorable ambient conditions:

• wetness or excessive air humidity
  • extreme cold or heat
• direct sunlight
• dust or combustible gases, vapors or solvents
  • strong vibration
  • strong magnetic fields, such as those found in the vicinity of machinery or loudspeakers
• the camera should not positioned with opened iris towards the sun - this can lead to the destruction of the sensor.
• the camera may not be installed on unstable surfaces

General safety instructions:

• Do not leave packaging material lying around carelessly. Plastic/foil/bags and polystyrene parts etc. could become dangerous toys for children.
• For safety reasons don't give the camera into child hands due to them being able to swallow small parts.
• Please do not insert objects through the openings into the device.
• Use only accessories which are specified by the manufacturer. Please do not connect incompatible parts to the device.
• Please pay attention to the safety instructions and user manuals of the other connected devices.
• Check the device for damages before installation. If this should be the case please do not use it.
• Please adhere to the operational voltage limitations listed in the technical data. High voltage could destroy the device and pose a health hazard (electric shock).

During the installation into an existing video surveillance system make sure that all devices are disconnected from the low and supply voltage circuit.

If in doubt allow a professional electrician to mount, install and wire-up your device. Improper or make-do electrical connection to the mains does only represent at threat to you but also to other persons.

Wire-up the entire system making sure that the mains and low voltage circuit remain separated and cannot come into contact with each other in normal use or due to any malfunctioning.

Table of contents

1. INTENDED USE 19
2. EXPLANATION OF SYMBOL....19
3. SCOPE OF DELIVERY 19
4. FEATURES AND FUNCTIONS....19
5. DESCRIPTION OF DEVICE....20

5.1 OVERVIEW – ITEM NUMBERS ...... 20
5.2 UNPACKING 20

1. MOUNTING 20

6.1 MOUNTING OF THE CAMERA 20
6.2 CONNECTORS 22
6.3 CAMERA MODULE ADJUSTMENT 23
6.4 FOKUS- UND ZOOMEINSTELLUNG.... 23
6.5 ADJUSTMENT OF IR LED INTENSITY AND CAMERA PARAMETER....24
6.6 INSTALLATION OF THE DOME HEAD 24

1. SERVICE AND CLEANING 25

7.1 FUNCTION TEST 25
7.2 CLEANING 25

1. DISPOSAL 25

2. TECHNICAL DATA 26

1. Intended use

The 550TVL dome camera is equipped with a high quality image sensor. It is used for video surveillance in internal areas in connection with a recorder or monitor.

You can find a detailed description of functions in section "4. Features and functions".

The product should not become damp or wet. The camera is only for use in dry indoor areas.

Any other use than that described above can lead to damage to the product and in addition involve other risks. This does not include operation for other applications and would in case of doing so the guarantee and any related liability will lapse. This is also the case if any unauthorized changes or additions have been made to the product.

Please read through the entire manual carefully before putting this product into operation. This operating manual contains guidelines that are important for correct mounting and operating.

2. Explanation of symbol

A flash in the triangle is used if there is danger for the health, e.g. by an electric shock.

An exclamation mark in the triangle points to an important note in this user manual which must be minded.

This symbol can be found when you are to be given tips and information on operation.

3. Scope of delivery

• 550 TVL dome camera
• Installation material (screws, pegs)
- DC 2-pin adapter
- User manual

4. Features and functions

• New light sensitive chip set for clear image in low noise environment
• Adjustable IR LEDs for surveillance in darkness (TVCC35500, TVCC35510)
• Easy Plug camera module for easy and fast installation
• 2nd video output for service purpose
  • 3 axis camera bracket

5. Description of device

5.1 Overview – item numbers

Item number	TVC	C35000	TVC	C35010	TVC	C35500	TVC	C35510
Resolution 550	TVL 550 TVL 550	TVL 550 TVL
Lens 3.6 mm	2.8~10.5 mm 3.6	mm 2.8~10.5 mm
IR	-	-		√√
Day/Night (removable IR cut filter)	-	-		√√
Voltage 12 VDC	12 VDC 12 VDC	12 VDC
Camera module

5.2 Unpacking

While you are unpacking the device please handle it with utmost care.

If you notice any damage of the original packaging, please check at first the device. If the device shows damages, please contact your local dealer.

6. Mounting

Attention!

Please disconnect the camera from power supply during the installation.

6.1 Mounting of the camera

Surface mounting

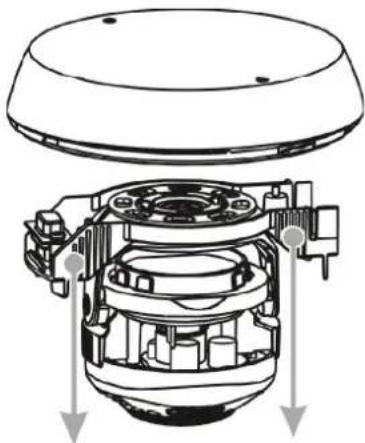

Before removing the dome head the dome head fixing screw must be removed (as factory default the screw is supplied in the package). The dome head now can be removed by anti clockwise rotation.

Technical line drawing of a mechanical component with a base and top, showing no text or symbols.

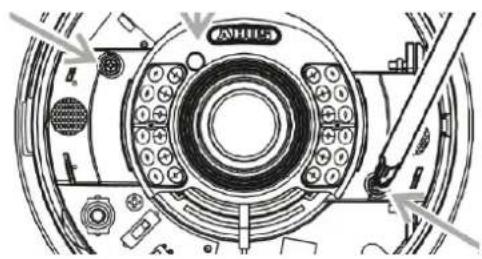

For this camera type the camera module can be removed, and it is fixed by two fixing screws. Base part of the camera and camera module are connected by a 15 pin D-Sub joint. Unscrew the fixing screws, and carefully remove the camera module.

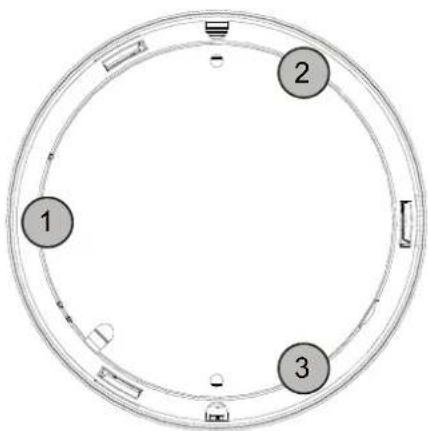

Place the base part to the desired installation position, mark the holes for fixing on the surface, and drill the fixing holes. Use the supplied screws and pegs to fix the base part on the surface. The cable rounting can be done to the side or through the base.

Technical diagram of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical device showing internal components and fluid flow arrows (no text or labels)

Flush mounting

For flush mount of this analog indoor dome camera an optional flush mount bracket is available (TVAC31010).

First remove the base cover ring by using a thin flat screw driver. Carefully move the screw driver into the small openings at the outside of the dome bottom part, and push the screw driver to the center of the dome (image, marking 1/2/3). The 3 fixing elements will be loose now, and the base cover ring can be removed carfully.

Now drill a hole of 124 mm into the ceiling panel (max. 130 mm). Plase the flush mount bracket onto the ceiling panel, and move the camera bottom part into the hole. Please use the supplied screws to fix the camera bottom part with the ceiling mount bracket (see image).

The cable routing will be performed through the ceiling.

Technical diagram of a circular device with labeled components, including top, front, and side views.

Installation of the camera module

Bring the camera module close to the base part so that the 15 pin socket and plug position will match. At the opposite side of the 15 pin joint the module will be hold in position by two fixing bars. In case socket and plug will match please press the camera module on both outside handles in direction of the base part, until the 15 pin joint is fully latched. Please screw the two fixing screws for the camera module back.

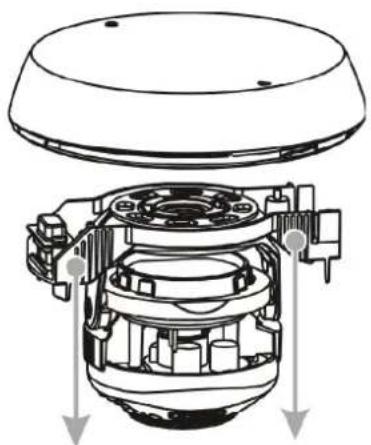

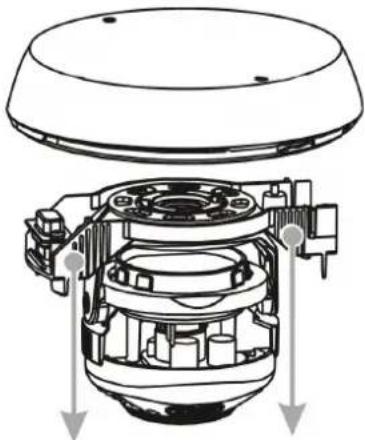

The dome head and dome head ring will be fixed on the camera bottom part by clockwise rotation. Please use the supplied fixing screw to fix the dome head/dome head ring position.

Mechanical assembly diagram showing three stages of a mechanical component with arrows indicating motion (no text or labels present)

Attention!

Please disconnect the camera from power supply during the installation.

6.2 Connectors

Before you start with the installation please make sure that the supply voltage and the nominal voltage of the camera comply together.

Power supply & video signal Video output (for service purpose)

12 VDC 2 3 OUTDOOP LOW HI MID LOW HI INTDOOR O OFF BLCO AGCO AUTOo IR OFFo O HI O DAY O AUTO

1 Video output (primäry), BNC (female), FBAS 1Vs-s
2 Power connector (round plug 5.5x2.1mm, 12 VDC) or DC 2-pin adapter
3 Videoausgang (sekundär, Service), Cinch (female) FBAS 1Vs-s

6.3 Camera module adjustment

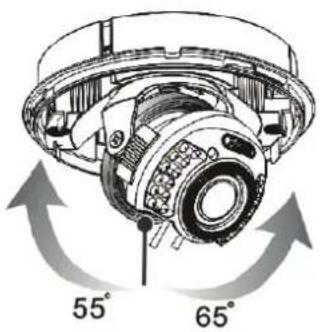

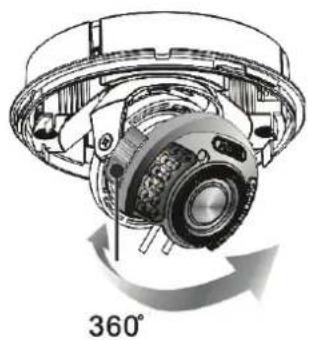

The camera module can be adjusted in 3 axis. The adjustment of the third axis often will be used on wall mount of the camera. The module rotation ( 1^st and 3^rd axis) must not be performed more than 360 degree.

Pan (1st axis)

Technical diagram of a mechanical assembly with 360° rotation indicator (no text or symbols)

Tilt (2nd axis) Rotation (3rd axis)

55° 65°

Technical illustration of a mechanical component with a 360° rotation indicator (no text or symbols on the diagram itself)

The cameras TVCC35010 and TVCC35510 are equipped with a vario focal lens. On the bottom side of the lens two adjustment handles for focus and zoom ratio are positioned. The handles additionally act as a fixing screw for the focus and zoom adjustment.

FAR NEAR WIDE TELE

The fixing handles can be rotated anti-clockwise for defixing. Please perform this with care to prevent the handles falling off the lens. Now please adjust zoom ratio and focus. Afterwards fix the handles by rotating clockwise.

Function Description / Option

Zoom ratio adjustment WIDE – Viewing angle wide, Zoom 0x (max.)TELE – Viewing angle narrow, Zoom 3.75x (max.)

Focus adjustment FAR – Focus farNEAR – Focus near

6.5 Adjustment of IR LED intensity and camera parameter

1 Iris level: Adjustment of the aperture of the auto iris lens (only for TVCC35010/ TVCC35510)

2 IR intensity: 2 levels for the IR light intensity are available (HI - 10 meter; LOW - 5 meter).

3 BLC - Back light compensation (BLC=On; OFF=BLC deactivated)

AGC – Automatic gain control (AGC=Normal; HI=AGC+6dB)

DAY – Day/night switching (AUTO=B/W mode in night mode; DAY=color mode even in night mode)

IR IR LED activation (AUTO=Automatic activation of IR LEDs in low light environment; IR OFF=IR LEDs are permanently activated)

1 OUTDOOR LOW HI MID LOW HI LOW INTDOOR OFF BLC OGCO AUTO IR OFF O HI ODAY O AUTO

6.6 Installation of the dome head

The dome head with dome head ring will be placed onto the base part in a specific position.

Please take care that the hole for the side fixing screw will be placed near the opening fort he cables.

The dome head ring will be fix by 3 handles on the base part, and it will be fixed by clockwise rotation onto the base part.

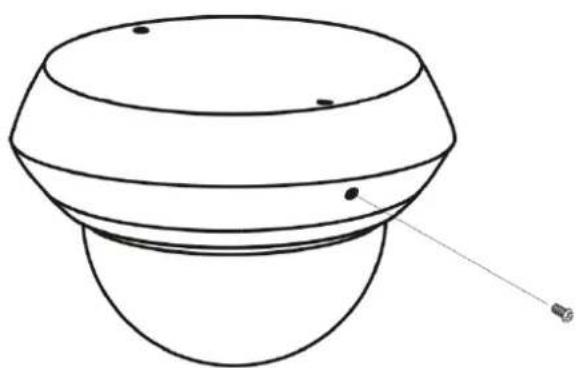

Please use the supplied fixing screw to fix the dome head/dome head ring position.

Technical line drawing of a mechanical component with a base and top, showing no text or symbols.

7. Service and cleaning

7.1 Function test

Check the technical safety of the product such as damage to the housing at regular intervals.

When it can be assumed that the safe operation is no longer possible, the product must be put out of service and precautions taken o ensure that it is not used unintentionally.

It must be assumed that safe operation is not longer possible if

• the device shows visible signs of damage
• the device no longer operates and
• has been stored for longer periods under unfavorable conditions or
• has been subjected to considerable stress in transit.

Please note:

The product is absolutely maintenance-free for you. There are no components on the inside of the product to be checked or services by you, never open it.

7.2 Cleaning

Clean the product with a clean, soft cloth. To remove severe contamination, the cloth can be dampened with luke-warm water.

Make sure that no liquids can enter the equipment as the device can be destroyed. Never use chemical detergents as they could attack the surface of the device.

8. Disposal

Products which are labeled with this pictogram may not be disposed by the domestic rubbish. Please dispose the product in accordance with the prevailing legal regulations at the end of its life time.

Please consult your dealer or dispose the product over the municipal gathering point for electric scarp.

1. Technical data

Item number	TVCC35000	TVCC35010	TVCC35500	TVCC35510
TV standard	PAL
Resolution	550 TVL
Bildaufnehmer	1/3" Sharp HQ CCD
DSP	Sharp
Picture elements (total)	795(H) x 596(V)
Picture elements (effective)	752(V) x 582(H)
Signal-to-noise ratio	48 dB
Minimum illumination (day)	0.3 Lux @ F2.0	0.3 Lux @ F2.0	0.03 Lux @ F2.0	0.03 Lux @ F2.0
Minimum illumination (night)	- - 0 Lux	@ F2.0 0 Lux @	F2.0
Day/night	Color / B/W	Color / B/W	IR cut filter removable (ICR), Color / B/W	IR cut filter removable (ICR), Color / B/W
Lens	3.6 mm, F2.0	2.8-10.5 mm, F2.0	3.6 mm, F2.0	2.8-10.5 mm, F2.0
IR LEDs	- 12 LEDs, 850nm
IR Range	- 5 / 10 m
Horizontal angle of view	71°	101.8°~27.4°	71°	101.8°~27.4°
Electronic Shutter	AES	AI	AES	AI
Synchronisationi	Internal
Automatic gain control (AGC)	20dB / 26dB (Hi)
Backlight compensation (BLC)	BLC
White balance	AWB, 2700K~9500K
Control options	4 x DIP switches, 1 x variable resistor		5 x DIP switches, 1 x variable resistor
Protection class	IP34
Video signal	2 x FBAS, 1V s-s, 75 Ohm (BNC, Cinch), 5.5x2.1mm (DC)
Operating temperature	-10°C ~ +50°C
Humidity	0~85%, not condensing
Nominal supply voltage	12 VDC
Power consumption	Max. 100 mA		max. 120 mA (IR off), max. 300 mA (IR on)
Dimension (Hx∅)	99.5 x 145 mm
Weight	290 g 330 g 320 g 360 g
Certifications	CE, RoHS, Reach

Caméra dôme 550 TVL

Close-up of a white surveillance camera with visible lens and sensor array (no text or symbols)

Version 10/2010

TVCC35000

TVCC35010

TVCC35500

TVCC35510

CE

Technical line drawing of a mechanical component with a flanged top and base (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and arrows indicating motion (no readable text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and fluid flow arrows (no text or labels)

Technical diagram of a circular device with labeled components, including top, front, and side views.

Mechanical assembly diagram showing three stages of a mechanical component with arrows indicating motion (no text or labels present)

ATTENTION!

Technical illustration of a mechanical component with a 360° rotation indicator (no text or symbols on the diagram itself)

WIDE FAR NEAR TELE

Technical line drawing of a mechanical component with a flanged top and base (no text or symbols)

Close-up of a white surveillance camera with lens and sensor modules (no visible text or symbols)

TVCC35000 TVCC35010 TVCC35500 TVCC35510 0 / 2 0 CE 1 0

Technical line drawing of a mechanical component with a base and top, showing no text or symbols.

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and fluid flow (no text or labels)

Technical diagram showing exploded and assembled views of a circular device with numbered components

Mechanical assembly diagram showing three stages of a mechanical component with arrows indicating motion (no text or labels present)

PAS OP!

Technical diagram of a mechanical assembly with 360° rotation indicator (no text or symbols)

Technical diagram of a mechanical component with 360° rotation indicator (no text or symbols on the diagram itself)

FAR NEAR WIDE TELE

Technical line drawing of a mechanical component with a flanged top and base (no text or symbols)

Close-up of a white surveillance camera with visible lens and sensor modules (no text or symbols)

Version 10/2010

TVCC35000

TVCC35010

TVCC35500

TVCC35510

CE

7.1 FUNKTIONSTEST ....61
7.2 RENG∅RING....61

1. BORTSKAFFELSE 61

2. TEKNISKE DATA....62

1. Korrekt anvendelse

Technical line drawing of a mechanical component with a flanged top and base (no text or symbols)

Technical diagram of a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Cross-sectional diagram of a mechanical device showing internal components and fluid flow arrows (no text or labels)

Loftmontering

Technical diagram showing three views of a circular device with labeled components: top view, front view, and bottom view.

Technical diagram showing mechanical assembly with exploded view and detail, including a magnified inset of internal components.

VIGTIGT!

Technical diagram of a mechanical assembly with 360° rotation indicator (no text or symbols)

Technical illustration of a mechanical device with a 360° rotation indicator (no text or symbols on the diagram itself)

6.4 Fokus- og zoomindstilling

FAR NEAR WIDE TELE

Technical line drawing of a mechanical component with a flanged top and base (no text or symbols)

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher. The operating instructions reflect the current technical specifications at the time of print. We reserve the right to change the technical or physical specifications.

© Copyright 10/2010 by ABUS Security-Center
