ELECTRIC TOOTHBRUSH DAZ 2.4 A2

GB IE

ELECTRIC TOOTHBRUSH

Operating instructions

SE

ELEKTRISK TANDBORSTE

Bruksanvisning

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB/IE Operating instructions Page 1

FI	Käyttöohje	Sivu
SE	Bruksanvisning	Sidan
DK	Betjeningsvejledning
DE/AT/CH Bedienungsanleitung Seite 65

A 1 2 3 4 5 6 7 8 9

B 10

Index	Page
Introduction	2
Intended use 2
Items supplied 2
Appliance description 3
Technical data 3
Safety Notices 4
Set-up / Wall holder 6
First use 6
Fitting / removing brush heads 7
Operation	8
Brushing one's teeth 8
Cleaning and care 11
Travelling case 12
Disposal	12
Warranty and Service 13
Importer	14

Read these operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass this booklet on to whoever might acquire the appliance at a future date.

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal.

Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Intended use

This appliance is intended for personal dental care in domestic situations. The appliance is not intended for use in commercial, industrial or medical environments. It is not suitable for animal care.

Items supplied

Before using the appliance for the first time, check to ensure that the following items are available and undamaged.

Hand element

8 Brush heads

Charging station

Travelling case

2 Screws

2 Plugs

Operating instructions

Remove all packaging materials and foils from the appliance.

Appliance description

① Brush head
② Brush holder
③ Charging station
4 Wall holder
⑤ Charge indicator
6 Pulse LED (yellow)
⑦ Soft LED (green)
⑧ "Clean" LED (orange)
⑨ On/Off switch
10 Travelling case

Technical data

Power supply: 100 - 240 V \~, 50 - 60 Hz

Power consumption : 2 W

Protectionrating

(Charging station): IP X7

Protection class: II /

Charging time: approx. 14 - 16 hours

(fi rst

Protection type

(Hand element): IP X4

Safety Notices

- To avoid damage, do not permit liquids of any kind to enter the appliance and do not submerse it in water.

- Avoid also a possible penetration by foreign objects.

- In the event of malfunction or apparent damage, make contact with our Customer Services.

- Ensure that the power cable never becomes wet or damp during operation. Place the power cable such that it cannot become trapped or damaged in any way. Risk of electric shock!

- The power cable on this appliance cannot be replaced. In the event of it being damaged the whole appliance must be disposed of.

- NEVER touch the charging station if it has fallen into water. First of all remove the plug from the wall socket! Risk of electric shock!

- Toothbrushes can be used by children and people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been given instruction in regard to safe use of the appliance and have understood the potential risks of using it.

• Cleaning and user maintenance may not be carried out by children unless they are being supervised.
• Children should not play with the appliance.
- The electric toothbrush may only be recharged with the supplied charging station. Otherwise, the appliance could be irreparably damaged.

- Do not submerse the hand element or the charging station in water or other liquids. This would cause irreparable damage to the appliance.

Set-up / Wall holder

The charging station ③ may only be operated free-standing in dry rooms.

In moist rooms, especially in the vicinity of water (bath), the charging station ③ must be firmly fixed to the wall, to protect it from falling into water.

• Pull the wall holder ④ downwards from underneath the charging station ③.
• Using the screw openings of the wall holder ④, mark the spacing for the boreholes on the wall. Check to ensure that there is a mains power socket in close vicinity.
• Before boring the holes, check to ensure that there are no electrical or water conduits behind the markings.
• Using a 5 mm drill, drill the marked holes and insert the supplied wall plugs.
• Secure the wall holder ④ using the screws.
• When you have attached the wall holder ④, guide the power cable through the right or left recess in the wall holder ④ (see magnifi cation on the fold-out side). Using the guide rails, slide the charging station ③ onto the wall holder ④.
• Ensure that the power cable is not trapped and that it lies properly in the recesses.

First use

Before taking the appliance into use check to ensure that it is in a fault-free condition. If it is not, it may not be used.

• Insert the power plug into a wall socket.
• Before the first use, clean the new brush heads ① with clear water.

• Place a replacement brush head on the brush holder ②, open the cover of the charging station ③ and slide the brush holder ② in.

• Place the hand element on the charging station ③ so that it slides onto the spike in the base.

• Allow the hand element to charge up for approx. 14 - 16 hours before using it for the first time. The charging indicator ⑤ on the front of the hand appliance glows red during the charging process.

- Use the hand element repeatedly, and without charging the battery, until the performance is noticeably weaker or the toothbrush stops working and the charge indicator ⑤ blinks red. First then recharge the battery for 14 - 16 hours. When the appliance is fully charged, the charge indicator ⑤ glows green.

- Charge and discharge the toothbrush completely 3 times. The battery will have then reached its full capacity.

- You can now leave the hand element in the charging station ③ after every use, so as to always have full power available.

For care of the batteries, we recommend the following:

When the hand element is fully charged, remove the plug of the charging station ③ from the mains power socket. First reinsert the plug into the mains power socket and recharge the hand element when the movement of the toothbrush is noticeably weaker or the charge indicator ⑤ blinks.

Fitting / removing brush heads

To remove the brush head ①, turn it clockwise and then pull it upwards.

To fit the brush head ① place it slightly offset on the hand element and then turn it anti-clockwise.

The brush head ① must engage on being put back on. To avoid damage to the appliance, use only original brush heads.

(For replacement brush heads, see the order card)

Operation

This toothbrush has 3 different performing levels:

- "Clean": normal speed level, orange LED 8

For cleaning the teeth.

- "Soft": slow speed level, green LED ⑦

For cleaning the teeth of people with sensitive gums.

- "Pulse": variable speed levels, yellow LED 6

For massaging the gums.

- Press the on/off switch ⑨ once to switch the level "Clean" on. The "Clean" LED ⑧ glows.

- Press once more to switch to the level "Soft". The "Soft" LED ⑦ glows.

- Press it a third time to switch to the level "Pulse". The "Pulse" LED ⑥ glows.

- To switch the toothbrush off, press once more on the on/off switch ⑨.

Brushing one's teeth

Warning:

Due to the unaccustomed operation some gum bleeding may initially occur, this is normal. Should this continue for more than two weeks, consult your dentist.

• Place the brush head ① on the hand element.
• Moisten the brush under flowing water.
• Apply some toothpaste to the moistened brush.

Notice

Wait until the appliance is in the mouth before switching it on, to avoid spray.

- With the on/off switch ⑨ select the desired operating level.

Notice

This toothbrush has a 30 second interval timer, so that all four jaw quadrants can be cleaned equally.

- Divide your jaw into four sections (quadrants): upper left, upper right, lower left and lower right.

1 2 3 4

- Begin in one quadrant:

Place the brush head ① on your gums and move the brush upwards / downwards from the gums to over the crown of the tooth.

Proceed in this manner on both the inside and the outside surfaces of the tooth. Start again from the gums for each individual tooth.

Do not forget the back surfaces of the rear molars.

To clean the chewing surfaces, direct the rotating brush head with light pressure over the chewing surfaces.

- After 30 seconds the toothbrush interrupts its operation briefly twice, to signalise to you that you should start to clean the next quadrant. Clean all jaw quadrants with the same technique.

• After two minutes the toothbrush stops its operation briefly 4 times. This informs you that you have complied with the dental recommendation of two minutes cleaning.
• Press the on/off switch ⑨ repeatedly until the toothbrush stops.
• First take the toothbrush out of your mouth when it has stopped.
• After use, clean the brush head ① thoroughly under running water.
• Remove the brush head ① from the hand element. Clean the drive shaft on the hand element, into which the brush head is inserted, under running water. Hold the hand element so that the water from the top can drip out of the rear outlet openings.
• Afterwards, clean the rear outlet openings: Let the water run over the handle from the rear, so that the outlet openings are free of contamination.

i Notice

Regularly massage your gums. This promotes blood circulation and thus the health preservation of the gums. Set the level at "Pulse" and guide the moistened brush over your gums with a light pressure.

Warning:

First remove the plug from the mains power socket before cleaning the charging station ③. There is a risk of receiving an electric shock!

- NEVER open the housing of the charging station ③ or the toothbrush! They cannot be resealed in a water-tight manner.

- Clean the charging station ③ only with a soft, lightly moistened cloth. Do not use detergents or solvents. They can damage the plastic surfaces.

- Remove the brush head ① from the hand element. After use, clean the brush heads ① thoroughly under running water. We recommend cleaning the brush heads ① in a standard commercial cleaning fluid for dental prosthetics every 2 - 4 weeks. After about 3 months, at the latest however when the bristles bend outwards, you should fit a new brush head ①.

- Clean the drive shaft on the hand element, into which the brush head is inserted, under running water. Hold the hand element so that the water from the top can drip out of the rear outlet openings:

Illustration of a toothbrush applying sealant to a tooth (no text or symbols)

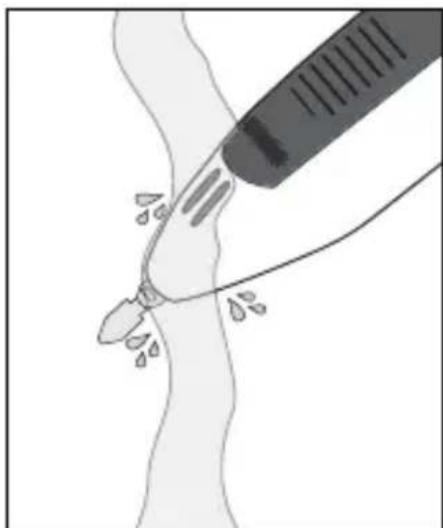

• Afterwards, clean the rear outlet openings: Let the water run over the handle from the rear, so that the outlet openings are free of contamination:

Illustration of a medical procedure showing a syringe inserted into a needle inserted into tissue (no text or symbols present)

- The brush holder ② can be cleaned without problem with water and a little liquid soap. To do this, simply lift the brush holder ② upwards.

Travelling case

Should you wish to take the toothbrush with you on a tour, you can pack both the hand element and two brush heads in the travelling case 10.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance through a registered specialist disposal fi rm or through your community waste disposal department.

Observe the currently applicable regulations.

In case of doubt, contact your local waste disposal facility.

Disposal of batteries / accumulators

Used batteries / rechargeable batteries may not be disposed of in household waste. Every consumer is statutorily obliged to dispose of batteries at a collection site of his community / city district or at a retail store. The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries / cells when they are fully discharged.

Dispose of the packaging materials in an environmentally responsible manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured. The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 79918

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 79918

Importer

KOMPERNASSGMBH BURGSTRASSE 21 44867 BOCHUM, GERMANY www.kompernass.com
