USER MANUAL KAC-X4D KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new power amplifier.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model XR-4S/KAC-X4D Serial number

US Residence Only

Register Online

Register your Kenwood product at

www.Kenwoodusa.com

WARNING

To prevent injury or fire, take the following precautions:

• Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and wiring work to professionals.
• When extending the ignition, battery, or ground wires, make sure to use automotive-grade wires or other wires with the range of 14mm^2 (AWG 6) to 21mm^2 (AWG 4) to prevent wire deterioration and damage to the wire coating.

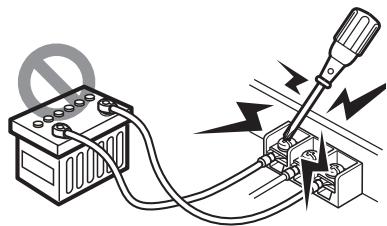

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.
• If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood dealer.
• Do not touch the unit during use because the surface of the unit becomes hot and may cause burns if touched.

CAUTION

To prevent damage to the machine, take the following precautions:

• Be sure the unit is connected to a 12V DC power supply with a negative ground connection.
• Do not open the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction.
• To prevent a short circuit when replacing a fuse, first disconnect the wiring harness.

NOTE

• If you experience problems during installation, consult your Kenwood dealer.
• If the unit does not seem to be working right, consult your Kenwood dealer.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity with regard to the EMC Directive 2004/108/EC

Manufacturer:

Kenwood Corporation

2967-3 Ishikawa-machi, Hachioji-shi, Tokyo,

192-8525 Japan

EU Representative's:

Kenwood Electronics Europe BV

Amsterdamseweg 37,1422 AC UITHOORN

The Netherlands

Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems)

Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional importer of a vehicle into an EU Member State.

Cleaning the unit

If the front panel gets dirty, turn off the power and wipe the panel with a dry silicon cloth or soft cloth.

CAUTION

Do not wipe the panel with a hard cloth or a cloth dampened by volatile solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or cause the indicator letters to peel off.

To prevent battery rise

When the unit is used in the ACC ON position without turning the engine ON, it depletes the battery. Use it after starting the engine.

Protection function

The protection function is activated in the following situations:

This unit is equipped with a protection function for protecting this unit and your speakers from various accidents or problems that can occur.

When the protection function is triggered, the PROTECTION indicator lights and the amplifier stops operating.

• When a speaker wire may be short-circuited.
• When a speaker output contacts ground.
• When the unit malfunctions and a DC signal is sent to the speaker output.

Wiring

• Take the battery wire for this unit directly from the battery. If it's connected to the vehicle's wiring harness, it can cause blown fuses etc.
• If a buzzing noise is heard from the speakers when the engine is running, connect a line noise filter (optional) to each of the battery wire.
• Do not allow the wire to directly contact the edge of the iron plate by using Grommets.
• Connect the ground wire to a metal part of the car chassis that acts as an electrical ground passing electricity to the battery's negative terminal. Do not turn the power on if the ground wire is not connected.
• Be sure to install a protective fuse in the power cord near the battery. The protective fuse should be the same capacity as the unit's fuse capacity or somewhat larger.
• For the power cord and ground, use a vehicle type (fireproof) power wiring cord with a current capacity greater than the unit's fuse capacity. (Use a power wiring cord with the range of 14mm^2 (AWG 6) to 21 mm^2 (AWG 4).
• When more than one power amplifier are going to be used, use a power supply wiring wire and protective fuse of greater current-handling capacity than the total maximum current drawn by each amplifier.

Speaker Selection

• The rated input power of the speakers that are going to be connected should be greater than the maximum output power (in Watts) of the amplifier. Use of speakers having input power ratings that are less than the output power of the amplifier will cause smoke to be emitted as well as damage.

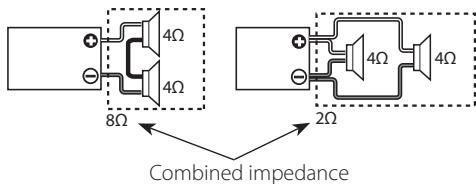

• The impedance of the speakers that are going to be connected should be 2 or greater (for stereo connections), or 4 or greater (for bridged connections). When more than one set of speakers are going to be used, calculate the combined impedance of the speakers and then connect suitable speakers to the amplifier.

Accessories

Part name	External View	Number of Items
Self-tapping screws (ø5 × 18 mm (3/16" × 11/16"))		4
Hexagon Wrench (Large)		1
Hexagon Wrench (Small)		1
Terminal cover (Power terminal)		1

Installation procedure

Since there are large variety of settings and connections possible according to applications, read the instruction manual well to select the proper setting and connection.

1. Remove the ignition key and disconnect the negative terminal of the battery to prevent short circuits.
2. Set the unit according to the intended usage.

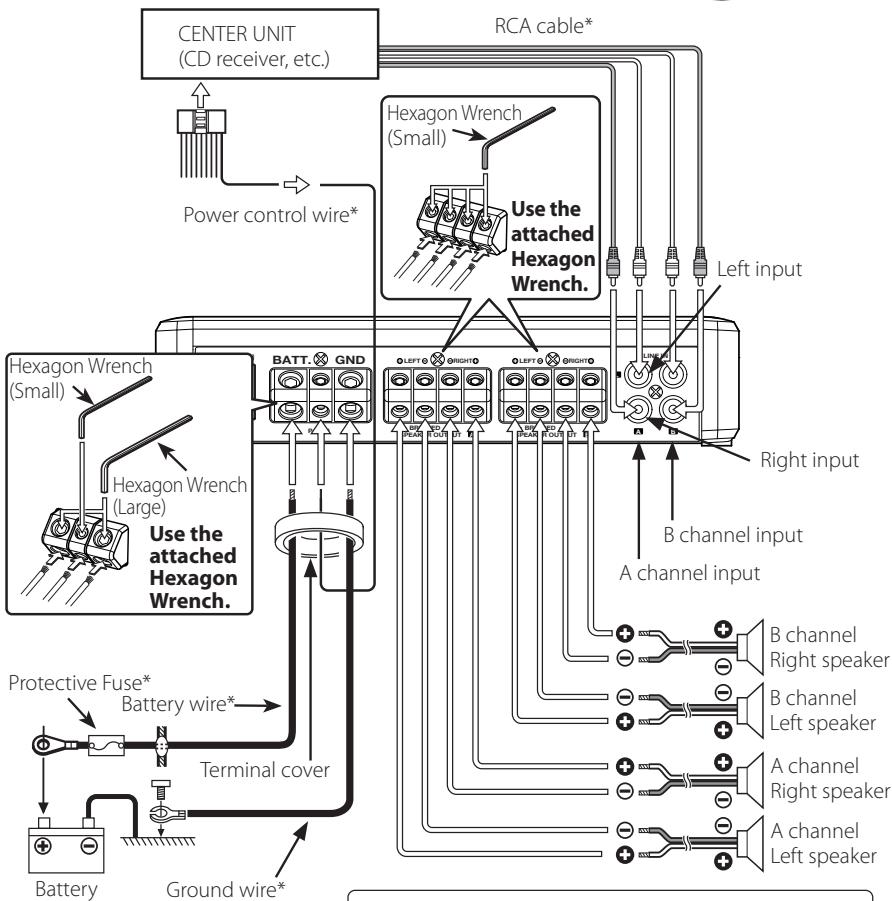

3. Connect the input and output wires of the units.
4. Connect the speaker wires.
5. Connect the power wire, power control wire and grounding wire following this order.

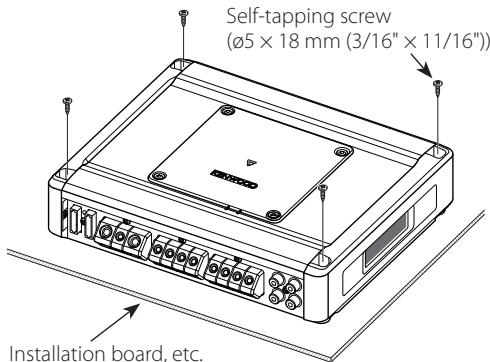

6. Install the installation fittings in the unit.
7. Attach the unit.
8. Connect the negative terminal of the battery.

Thickness : 15 mm (9/16") or more

CAUTION

• Do not install in the below locations; (Unstable location, In a location that interferes with driving, In a location that gets wet, In a dusty location, In a place that gets hot, In a place that gets direct sunlight, In a location that gets hit by hot air)
• Do not install the unit under the carpet. Otherwise heat build-up occurs and the unit may be damaged.
• Install this unit in a location which allows heat to easily dissipate. Once installed, do not place any object on top of the unit.
• The surface temperature of the amplifier will become hot during use. Install the amplifier in a place where people, resins, and other substances that are sensitive to heat will not come into contact with it.
• This unit has cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan and ducts of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.
• When making a hole under a seat, inside the trunk, or somewhere else in the vehicle, check that there is nothing hazardous on the opposite side such as a gasoline tank, brake pipe, or wiring harness, and be careful not to cause scratches or other damage.
• Do not install near the dashboard, rear tray, or air bag safety parts.
• The installation to the vehicle should securely fasten the unit to a place in which it will not obstruct driving. If the unit comes off due to a shock and hits a person or safety part, it may cause injury or an accident.
• After installing the unit, check to make sure that electrical equipment such as the brake lamps, turn signal lamps and windshield wipers operate normally.

WARNING

Remove the ignition key and disconnect the negative terminal of the battery to prevent short circuits.

WARNING

• To prevent fire caused by a short in the wiring, connect a fusible link or breaker nearby the battery's positive terminal.

CAUTION

• If sound is not output normally, immediately turn power off and check connections.
• Be sure to turn the power off before changing the setting of any switch.
• If the fuse blows, check wires for shorts, then replace the fuse with one of the same rating.
• Check that no unconnected wires or connectors are touching the car body. Do not remove caps from unconnected wires or connectors to prevent short circuits.
• Connect the speaker wires to appropriate speaker connectors separately. Sharing the negative wire of the speaker or grounding speaker wires to the metal body of the car can cause this unit to fail.
  After installation, check that the brake lamps, winkers, and wipers work properly.

About the Lead Terminals

1. Wire Thicknesses

You can use wires with the following thicknesses:

Battery wire and ground wire	AWG 4 – AWG 6
Speaker wire	AWG 8 – AWG 12

2. Strip the wire

Make a cut in the wire sheath (insulator made from vinyl, etc.) at the position 10 - 13mm (3 / 8^ - 1 / 2^ ) away from the end of the wire, and then remove the unnecessary portion of the sheath by twisting it.

3.Install the wire

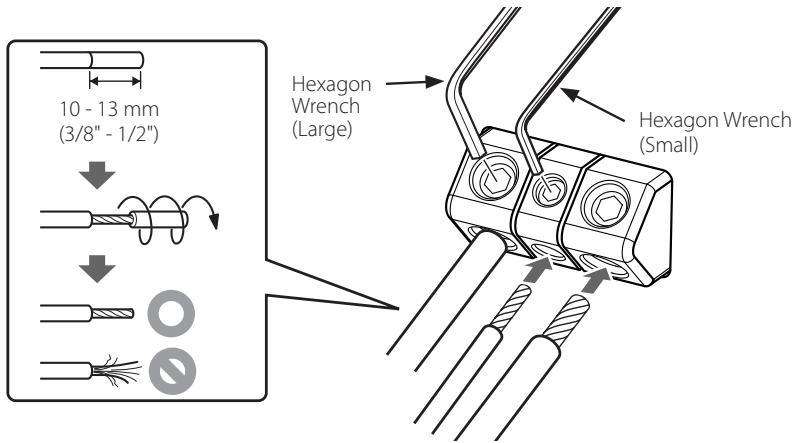

Loosen the screw using the supplied hexagon wrench. Insert the conductor of the wire in the terminal hole, and then tighten the screw.

4-channel system

Front Left speaker
Front Right speaker

Rear Left speaker
Rear Right speaker

2-channel 2 way system

Left speaker (Tweeter) Right speaker (Tweeter)

Left speaker (Woofer) Right speaker (Woofer)

2-channel + Subwoofer system

Left speaker (High pass) Right speaker (High pass)

Subwoofer (Bridged)

This is a 4 channel amplifier including 2 stereo amplifiers in a body. One amplifier is referred to as amplifier A and the other is amplifier B. This unit is compatible with a large variety of systems by combining the switches and functions described in the following.

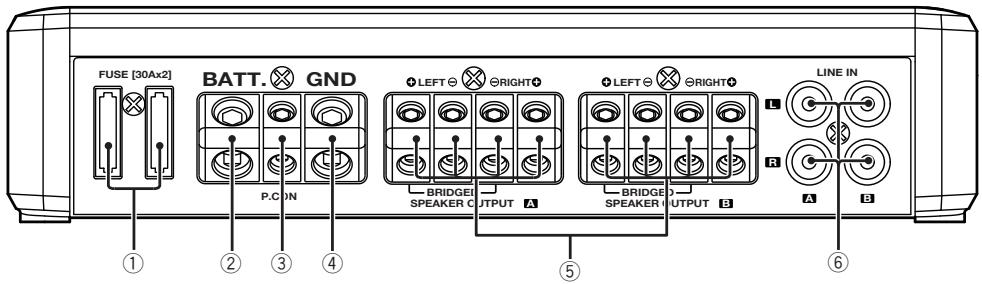

① Fuse(30A×2)

NOTE

If you can't find the specified capacity fuse at your store etc., consult your Kenwood dealer.

② Battery terminal
③ Power control terminal

Controls the unit ON/OFF.

NOTE

Controls the unit power. Be sure to connect it with all the systems.

④ Ground terminal
⑤ Speaker output terminals (A.ch/B.ch)

• Stereo Connections:

When you wish to use the unit as a stereo amplifier, stereo connections are used. The speakers to be connected should have an impedance of 2 or greater. When multiple speakers are to be connected, ensure that the combined impedance is 2 or greater for each channel.

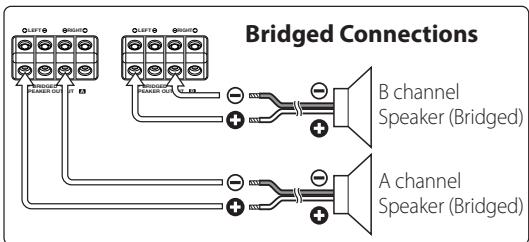

• Bridged Connections:

When you wish to use the unit as a high-output monaural amplifier, bridged connections are used. (Make connections to the LEFT channel

• and the RIGHT channel SPEAKER OUTPUT terminals.)

The speakers to be connected should have an impedance of 4 or greater. When multiple speakers are to be connected, ensure that the combined impedance is 4 or greater.

LINE IN terminal (A.ch/B.ch)

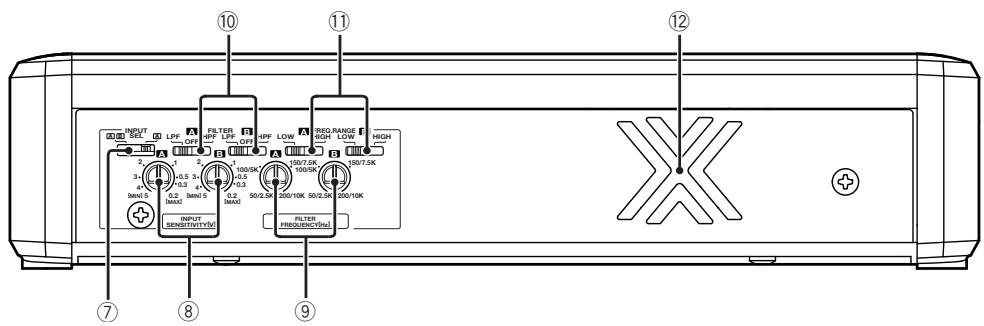

⑦ INPUT SEL. switch

This switch selects the input method of the signals to be amplified by amplifiers A and B.

- A B position:

Amplifies both of the signals input to amplifiers A and B.

A position:

Amplifies only signal input amplifier A with both amplifiers A and B.

⑧ INPUT SENSITIVITY control (A.ch/B.ch)

Set this control according to the pre-output level of the center unit connected with this unit.

NOTE

For the pre-output level, refer to the in the instruction manual of the center unit.

⑨ FILTER FREQUENCY control (A.ch/B.ch)

This control adjusts the frequency band output from this unit.

The frequency range is set with the "FREQ. RANGE" switch.

10 FILTER switch (A.ch/B.ch)

This switch allows to apply high-pass or low-pass filtering to the speaker outputs.

HPF (High-Pass Filter) position:

The filter outputs the band of higher frequencies than the frequency set with the "FILTER FREQUENCY" control.

- OFF position:

The entire bandwidth is output without filtering.

LPF (Low-Pass Filter) position:

The filter outputs the band of lower frequencies than the frequency set with the "FILTER FREQUENCY" control.

① FREQ.RANGE swtich (A.ch/B.ch)

This switch selects the range of filter frequency.

⑫ Cooling fan

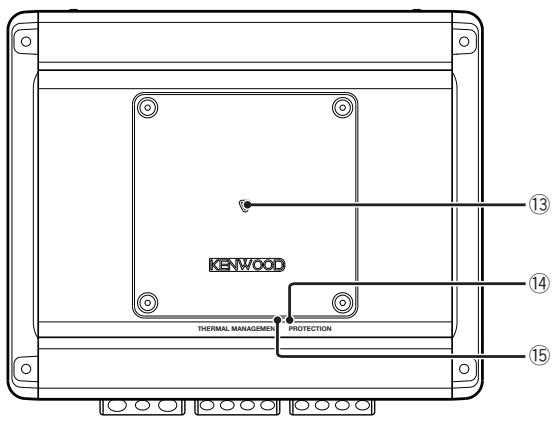

⑬ Power indicator

When the power is turned on, the Power indicator lights.

14 PROTECTION indicator

Lights this indicator when the protection function is activated. (See page 3)

15 THERMAL MANAGEMENT indicator

Lights this indicator when the internal temperature is high.

What might appear to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

PROBLEM	POSSIBLE CAUSE	SOLUTION
No sound. (No sound from one side.) (Blown fuse.)	· Input (or output) cables are disconnected. · Protection circuit may be activated. · Volume is too high. · The speaker cord is shorted.	· Connect the input (or output) cables. · Check connections by referring to <Protection function>. · Replace the fuse and use lower volume. · After check the speaker cord and fixing the cause of the short, replace the fuse.
The output level is too small (or too large).	· The input sensitivity adjusting control is not set to the correct position.	· Adjust the control correctly referring to <Controls>.
The sound quality is bad. (The sound is distorted.)	· The speakers wire are connected with wrong ⊕/⊙polarity. · A speaker wire is pinched by a screw in the car body. · The switches may be set improperly.	· Connect them properly checking the ⊕/⊙ of the terminals and wires well. · Connect the speaker wire again so that it is not pinched by anything. · Set switches properly by referring to <System examples>.

Specifications subject to change without notice.

CEA-2006

RMS Watts per channel @ 4 ohms, 1% THD+N. 120W× 4

Signal to Noise Ratio (Reference: 1Watt into 4 ohms) .73 dBA

Audio Section

Max Power Output 1200 W

Rated Power Output (+B = 14.4V)

Normal (4 Ω) (20 Hz - 20 kHz, 0.5 % THD) .120 W × 4

(4Ω) (DIN45324, +B = 14.4V). 120W×4

(2Ω) (1 kHz, 1.0% THD). 150 W × 4

Bridged (4 Ω) (1 kHz, 1.0 % THD). 300 W × 2

Frequency Response (+0, -1 dB) 20 Hz - 20 kHz

Sensitivity (rated output) (MAX.) .0.2 V

(MIN.) 5.0 V

Input Impedance. 10 kΩ

Signal to Noise Ratio 105 dB

Low Pass Filter Frequency (-12 dB/oct.)

Low Range. 50 Hz - 200 Hz (variable)

High Range. 2.5 kHz - 10 kHz (variable)

High Pass Filter Frequency (-12 dB/oct.)

Low Range. 50 Hz - 200 Hz (variable)

High Range 2.5 kHz - 10 kHz (variable)

General

Operating Voltage. 14.4 V (11 - 16 V allowable)

Current Consumption 60 A

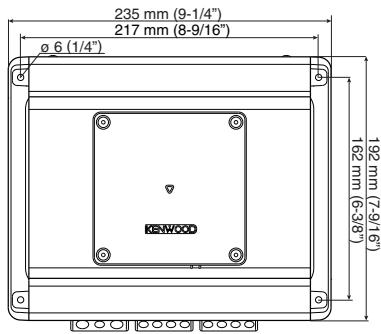

Dimensions (W× H× D) 235x52x192 mm

9-1/4 × 2-1/16 × 7-9/16 inch

Weight 3.0 kg (6.6 lbs)

AVERAGEMENT

(4Ω) (DIN45324, +B = 14,4V). 120W×4

(2Ω) (1 kHz, 1,0 % THD). 150W × 4

(Puenteada 4 Ω) (1 kHz, 1,0 % THD) 300 W × 2

Peso 3,0 kg (6,6 lbs)
