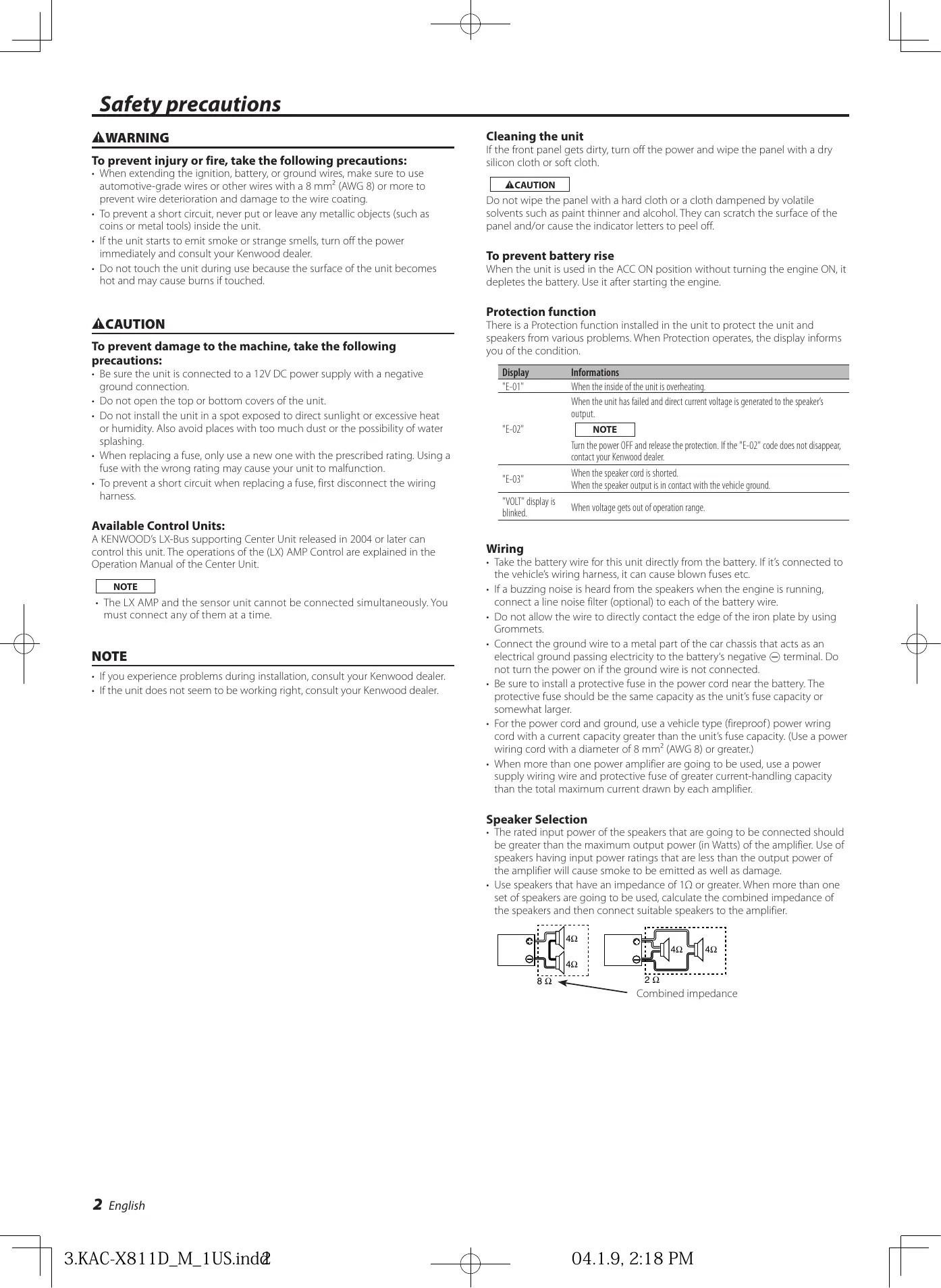

Safety precautions A WARNING To prevent injury or fire, take the following precautions: + When extending the ignition, battery, or ground wires, make sure to use automotive-grade wires or other wires with a 8 mm? (AWG 8) or more to prevent wire deterioration and damage to the wire coating. + To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. Ifthe unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood dealer. + Do not touch the unit during use because the surface of the unit becomes hot and may cause burns if touched ACAUTION To prevent damage to the macl precautions: + Be sure the unit is connected to a 12V DC power supply with a negative ground connection: Do not open the top or bottom covers of the unit. + Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing When replacing à fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction To prevent à short circuit when replacing a fuse, first disconnect the wiring harness. e, take the following Available Control Units: A KENWOOD LX-Bus supporting Center Unit released in 2004 or later can control this unit. The operations of the (LX) AMP Control are explained in the Operation Manual of the Center Unit. + The LX AMP and the sensor unit cannot be connected simultaneously. You must connect any of them at a time. NOTE + Ifyou experience problems during installation, consult your Kenwood dealer. + Ifthe unit does not seem to be working right, consult your Kenwood dealer. 2 English 3.KAC-X811D_M_IUS.ind& Cleaning the unit IF the front panel gets dirty, turn off the power and wipe the panel with a dry Silicon cloth or soft cloth. ACAUTION Do not wipe the panel with a hard cloth or a cloth dampened by volatile solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or cause the indicator letters to peel off. To prevent battery rise When the unit is used in the ACC ON position without turning the engine ON, it depletes the battery. Use it after starting the engine Protection function There is a Protection function installed in the unit to protect the unit and speakers from various problems. When Protection operates, the display informs you ofthe condition Display Informations "ET ihen te inside ofthe units overheating en te uni es failed and direct uen voltage is generated to the speakers output. “er Turn the power OFF and release the protection. the *E-02' code does not disapper, contact our Kenwood dealer. Vihen te speaker cord is short ii When te speaer output in contact with the vehice ground "OL" display is blind ‘When voltage gets out of operation range. Wiring + Take the battery wire for this unit directly from the battery. Fits connected to the vehicles wiring harness, it can cause blown fuses etc. Ifa buzzing noise is heard from the speakers when the engine is running, connect a line noise filter (optional) to each of the battery wire. Do not allow the wire to directly contact the edge of the iron plate by using Grommets. Connect the ground wire to a metal part of the car chassis that acts as an electrical ground passing electricity to the battery's negative © terminal. Do not turn the power on if the ground wire is not connected Be sure to install a protective fuse in the power cord near the battery. The protective fuse should be the same capacity as the unit fuse capacity or somewshat larger. For the power cord and ground, use a vehicle type (fireproof) power wring cord with a current capacity greater than the units fuse capacity. (Use a power wiring cord with a diameter of 8 mm? (AWG 8) or greater) When more than one power amplifier are going to be used, use a power supply wiring wire and protective fuse of greater current-handling capacity than the total maximum current drawn by each amplifier. Speaker Selection + The rated input power of the speakers that are going to be connected should be greater than the maximum output power (in Watts) of the amplifier. Use of speakers having input power ratings that are less than the output power of the amplifier will cause smoke to be emitted as well as damage. + Use speakers that have an impedance of 1 or greater. When more than one set of speakers are going to be used, calculate the combined impedance of the speakers and then connect suitable speakers to the amplifier.

285 mm Hexagon socket head cap screw (M4 x 8 mm) Hexagon Wrench Duct Cooling fan Cover Installation board, etc. thickness : 15 mm or more) Selftapping screw (5 x 18 mm) 3.KAC-X811D_M_IUS.ind& Accessories Part name Number of Items SelFtapping screws à (5 x 18 mm) Hexagon socket head cap screw à (M4 x 8 mm) Cover [Terminal cover (Power terminal) NOIRE Hexagon Wrench Installation procedure Since there are large variety of settings and connections possible according to applications, read the instruction manual well to select the proper setting and connection. 1.Remove the ignition key and disconnect the negative © terminal of the battery to prevent short circuits. 2.Set the unit according to the intended usage 3.Connect the input and output wires of the units. 4.Connect the speaker wires, 5.Connect the power wire, power control wire and grounding wire following this order. 6.Install the installation fitings in the uni. 7.Attach the unit 8.Install the terminal cover. 9.Connect the negative © terminal of the battery. ACAUTION + Do not install in the below locations; {Unstable location, In a location that interferes with driving, In a location that gets wet, In a dusty location, In a place that gets hot, In a place that gets direct sunlight, In location that gets hit by hot air) + Do not install the unit under the carpet. Otherwise heat build-up occurs and the unit may be damaged. + Install this unit in a location which allows heat to easily dissipate Once installed, do not place any object on top ofthe unit + The surface temperature of the amplifier will become hot during use. Install the amplifier in a place where people, resins, and other substances that are sensitive to heat will not come into contact with it. + This unit has cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan and ducts of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction: + When making a hole under a seat, inside the trunk, or somewhere else in the vehicle, check that there is nothing hazardous on the opposite side such as a gasoline tank, brake pipe, or wiring hamness, and be careful not to cause scratches or other damage. + Do not install near the dashboard, rear tray, or air bag safety parts. + The installation to the vehicle should securely fasten the unit to a place in which it will not obstruct driving. the unit comes off due to a shock and hits a person or safety part, it may cause injury or an accident. + After installing the unit, check to make sure that electrical equipment such as the brake lamps, turn signal lamps and windshield wipers operate normally. English 3

• Commercially available parts To prevent fire caused by a short in the wiring, Den ete) connect a fusible link or breaker nearby the 7 battery's positive terminal

+ Isound is not output normally, immediately turn power off and check connections. + Be sure to turn the power off before changing the setting of any switch Power control wire RCA cable ground terminal RCA cable* Left input - Ifthe fuse blows, check wires for shorts, then replace the fuse with one of the same rating, + Check that no unconnected wires or connectors are touching the car body. Do not remove caps from unconnected wires or connectors to prevent short circuits. € + Connect the speaker wires to appropriate speaker connectors separately. Sharing the negative wire of the speaker or grounding speaker wires to the metal body of the car can cause this unit to fail + After installation, check that the brake lamps, winkers, and wipers work properly

Not more than 14m (46 ft) Slave amplifier 7 4 English 3.KAC-X811D_M_IUS.indd c Right input Battery wire* — | Lead terminal* subwoofer (L+ R) 00 &@O@ Set the ID number of the Master amplifier to "0 You can connect up to 7 Slave amplifiers. Assign them ID numbers *1" to"7 and do not duplicate them: ACAUTION + Do not connect 2 Master amplifiers to the Center Unit. If done, you cannot control all amplifiers connected to the Center Unit + The LX AMP and the sensor unit cannot be connected simultaneousy. You must connect any of them at a time. NOTE - The total length of S-video cables you can connect is 14 meters (46 ft) maximum. If the cable length exceeds this limit, you cannot control amps from the Center Unit. - If you assign the same ID number to multiple amplifier, they malfunction when you operate any of them from the Center Unit. - fyou assign ID number "8" or "9" to a Slave amplifier, it is not recognized by the Center Unit

3.KAC-X811D_M_IUS.ind& Controls Q@ Fuse (25 A x 3) @ Battery terminal @ Ground terminal @ Power control terminal Controls the unit ON/OFF. NOTE Controls the unit power. Be sure to connect it with all the systems. Speaker output terminals AS this unit accepts speakers with à minimum impedance of 1 ohm, connect speakers with 1-ohm or higher impedance to these terminals ACAUTION The rated input of the speakers should be no less than the maximum output ofthe amplifier. Otherwise malfunction may result RCA cable ground lead terminal When using an RCA cable with a ground lead attached, connect the ground lead to this terminal 1D NUMBER switch Sets an amp identification number (ID) to be used for amplifier control from the Center Unit. Assign ID Number "0" to an amplifier when you use it as the Master amplifier. Assign ID Numbers "1" to "7" to amplifiers when you use them as Slave amplifiers. Do not duplicate these numbers NOTE After you have changed ID numbers of amplifiers, turn Off the POWER switch of the Center Unit and turn it On again. ® TO H/U terminal After you have set the Master amplifier, connect it to the Center Unit. @ REMOTE terminals Used to connect to Slave amplifiers. @ RESET button Resets the microprocessor of the unit. NOTE The values you have set with the Amplifier Control are NOT reset. @ LINE IN terminal @ LINE OUT terminal The signal that input from the line input terminal is output. 7 RS

&@ © © © @ © @0 @ Power indicator Lights when the POWER switch is turned On The indicator flashes several seconds when the POW or when the Protection function is activated. @ INPUT SENSITIVITY control Set this control according to the pre-output level ofthe center unit connected with this unit For the pre-output level, refer to the "Specifications" in the instruction manua of the center unit. © AMP CONT (amplifier control) switch Used to bypass the circuit when you do not control the sound with the Amplifier Control + ON position: Allows you to control the sound with the Amplifier Control + OFF position: Bypasses the Amplifier Control circuit. switch is turned On Ampliier control is possible even while OFF. @ PHASE switch When this switch is set "180°" (Reverse) the speaker output phase is reversed: @ BRF (band reject filter) switch When this switch is set to "-6dB"/"-12d8 frequencies in the band set with the "BRF FREQUENCY" control are rejected and eliminated. The band rejection allows to reduce resonance inside the vehicle compartment and standing waves. (page 8) @ ISF (infrasonic filter) switch When this switch is set to ON’, the inaudible, ultralow frequencies below the frequency set with the "ISF FREQUENCY" switch are cut off. This improves the reproduction performance of the speakers by eliminating unnecessary oscillations which will not become sound @ ISF FREQUENCY switch Switches the cutoff frequency when the "ISF" switch is set to "ON & LPF(Low-Pass Filter) FREQUENCY control This control adjusts the frequency band output from this unit. & B.R.F. FREQUENCY control Sets the rejection frequency when the "BRF" switch is set to "-6dB"/"-12dB" (page 8) English 5

Display mode 4 Exit Menu mode Press the [MENU] button for at least 1 second. 1 Enter Menu mode When you hold down the æ] button 3 or more seconds during ID number Press the [MENU] button. display 'AMP'), message "MEMO” is displayed and you can register the values VOLT"/'CURR"/"TEMP®/"FAN" is displayed. you have set with the Amplifier Control. To call the Amplifier Control values, hold down the [4] button 3 or more secondk during ID number display CAMP"). Then, you can recall the value when message "LOAD"is displayed. You can set up the display items as follows: 2 Select a display item Press the [-«] or [] button. The display items are switched in the following sequence. Information Default indicate the source voltage (VI indicate the curent consumption (A). Indicates the internal temperture (°C) Indictes the rotation speed afthe cofing fan n 3 steps: "FAST, "SLOW" or "OFF. Resets all values you have set to the initial (default) values. 1 Enter Menu mode Press the [MENU] button. 3 Exit Menu mode 2 Select Default mode Press the [MENU] button for at least 1 second. Press the [MENU] button. Select the "DEFA' display. When the internal temperature is -22°F/-30*C or less, "-22F/"-30C° is 3 Resets the value to its default displayed Press the [>] button for at least 2 seconds. Message *-—"is displayed, and the value is initialized 4 Exit Menu mode Separate Amp Control Press the [MENU] button for at least 1 second. You can control sounds using the Amplifier Control function of the unit. Enore_] Volume offset value can not be initialized 1 Enter Menu mode Press the [MENU] button. 2 Select the Menu item Display Demonstration Press the [MENU] button. The setup items are displayed approximately 1 second first, then the set values are displayed The "VOLT'/"CURR"/"TEMP"/"FAN" items are displayed repeatedly. Press the [MENU] button for at least 2 seconds. The indicator flashes in the Demonstration mode. 3 Adjust the Menu item Press the [4] or [>] button. Canceling he Demonstration mode . à The setup items and set values are switched as follows Press any button to cancel the Demonstration mode. Display Range Adjustment Item VOLT"/'CURR''TEMP" FAN" For he operation method refe to Display mode” Bas Center Frequency Bas level Bas Q Factor en te bass extend is set to ON, low frequency response is Q1.00/01.25/01.50/02.0 ET ONOF extended by 20%. “VOL” —20 — 0 (dB) Volume offset “EMP" FAHR (Fahrenheit) or The Fahrenheit or Centigrade temperature unit can be selected CELS (Centigrade) for the Display mode. DEFA" For the operation method refer to Default" AMP" 0 —7 The ID Number you have assigned is displayed. 6 English 3.KAC-X811D_M_IUS.indé@ a 04.1.9, 2:18 PM

Control an Amp from Center Unit You can control the sound by controlling amplifiers from the Center Unit. Messages that may be displayed on the Center Unit When you are selecting an item with the Amp Control, an error status of the amplifier is displayed on the Center Unit. 1 Enter AMP Control mode

Select the AMP Control mode by following the ‘AMP Control procedure given on the Operation Manual of the Center Unit. NOTE Use the set item and value operation buttons by following the instructions given on the Operation Manual of the Center Unit. 2 Select an amp number to operate Operate the desired set item with the Center Unit. Select the ‘AMP NO'/'AMP CONTROL NO' display. When the Center Unit is in the STANDBY mode, message "AMP OFF" is displayed and you cannot operate the set items. 3 Set an ID number of Amp to operate Set an amp's ID number on the Center Unit. You can select an ID number of "0" to "7" of connected amps 4 Select the AMP Control item for adjustment Select the desired set item on the Center Unit. 5 Adjust the AMP Control item You can set a value of each item on the Center Unit. The set items and their values are switched and displayed as follows. Display Informations *__ When the inside of the unit is overheating. Véhen te uni has failed and direct cument voltage is generated tot speakers output. Turn the POWER switch Off and release the protection. |Fthe error message continues, consult to the KENWOOD dealership. 1 When te speaker cord is shorted. MNPxE When the speaker output is in contact with the vehicle ground CAMP OFF" When you use the Amp Control in the Standby mode. Display Range Adjustment Item 'VOLT"/'CURR'/'TEMP"/"FAN" The amp state is displayed. VOL" Indicates the source voltage (V). 'CURR' Indicates the current consumption (A). “'TEMP' Indicates the internal temperature (°F/°C). FAN Indicates the rotation speed of the cooling fan in 3 steps: "FAST", "SI Bass Center Frequency Bass level Bass Q Factor ON/OFF When the bass extend is set to ON, low frequency response is extended by 20%. L'I'VOL OFFSET" —20 — 0 (dB) Volume offset LMP NO“! 0—7 Select an ID number ofthe amp you use.

6 Exit AMP Control mode Releases the Amp Control mode by the Center Unit. NOTE When you have controlled the bass or treble of the sound using the Equalizer or DSP function of the Center Unit, and when you amplify the same frequency as that controlled by the Amplifier Control the sound may be distorted due to an input overflow. 3.KAC-X811D_M_IUS.ind& Number "x" on the display indicates the amp ID number English 7

Band Reject Filter The acoustic properties of vehicle compartment tend to cause oscillation due to resonance or unclearness of sound due to standing waves at certain frequencies The band reject filter can solve the problems of resonance or unclear sound with minimum influence on the sound quality because it eliminates only the frequencies causing resonance or standing waves. 0 dB 1 Frequency Troubleshooting Guide ΠAdjustment method: The band reject filter cuts only the limited frequencies to minimize influence on the sound quality. Therefore, its effect cannot be obtained unless the cutoff frequencies are set accurately to the frequencies causing resonance and standing waves. The band reject filter can be adjusted according to what you feel through your ears, but we recommend the use of a signal generator or a spectrum analyzer with a fine frequency measurement capabilty for the adjustment. + Adjustment using a signal generator: Output a sine wave, vary its frequency to find the frequencies at which the vehicle compartment resonates or volume increases (standing waves occur), and set the BR.F FREQUENCY control to the position with which the resonance and standing waves disappear. + Adjustment using a spectrum analyzer: Output white noise (sound in which all frequencies are at a certain leve), find the peak frequency observed on the spectrum analyzer, and set the BRF. FREQUENCY control to the position with which the peak observed on the spectrum analyzer disappears. What might appear to be a malfunction in your unit may just be the result ofslight misoperation or miswiring. Before calling service, first check the following table for possible problems.

PROBLEM POSSIBLE CAUSE [SOLUTION

No sound, Input (or output) cables are disconnected Connect the input (or output cables. | Protection circuit may be activated | Check connections by referring to ‘Protection function" (Blown fuse.) } Volume is too high. } Replace the fuse and use lower volume. The speaker cord is shorted After check the speaker cord and fixing the cause ofthe short, replace the fuse The output levelis too small |: The input sensitivity adjusting controlis notsetto the correct |: Adjust the control correctly referring to Controls {or too large). position: Thesound qualityisbad. |: The speakers wire are connected with wrong © /Opolañty. |: Connect them properly checking the ® / © ofthe terminals {The sound is distorted.) and wires well A speaker wire is pinched by a screw in the car body. . Connect the speaker wire again so that it is not pinched by anything. The switches may be set improperly Set switches properly by referring to "Controls: The sound does not change |: The AMP CONT has been turned "OFF". even when you have changed it with the Amplifier Control. F Turn the AMP CONT "ON". The set value cannot be The AMP Control ofthe Center Unitis being used changed by the Amplifier Control of the unit. Release the AMP Control mode of the Center Unit. The Amplifier Control cannot |. An incorrect ID number is used for the Master amplifier. [Always set the ID number ofthe Master amplifier to "0 be operated fromthe Center |: The ID number of the amplifier has been changed. | After you have changed the ID number of an amplifier, turn Off Unit. the POWER switch of the Center Unit first, then turn it On again. 8 English 3.KAC-X811D_M_IUS.ind& c

Specifications Specifications subject to change without notice. Audio Section. KAC-X811D RMS Power Output (+8 = 144 V, CEA-2006)
