USER MANUAL 36-EL SABO

Four stylized car icons in black and white, no text or symbols present

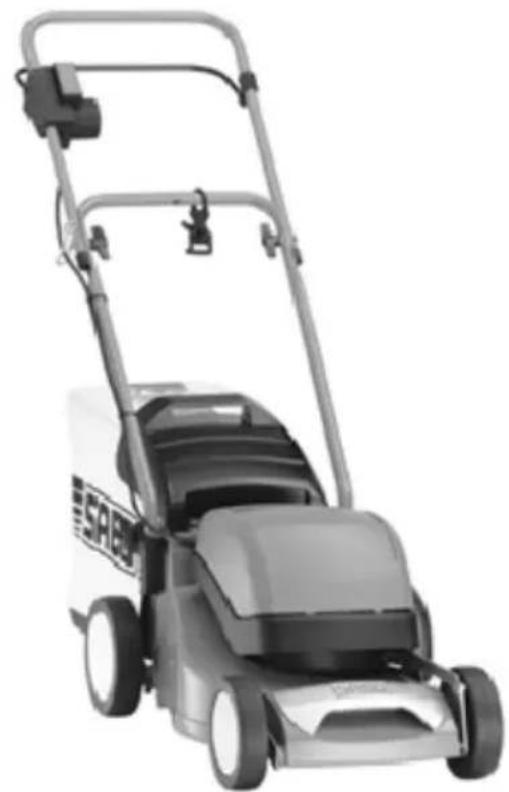

SABO 36-EL

Top-down view of a SAB lawn mower (no visible text or symbols)

Rasenmäher

Betriebsanleitung

Tondeuse à gazon

Livret d'entretien

Lawnmower

Operator's manual

Grasmaaier

When you are reading the operator's manual, please unfold the front and back page.

Nederlands

Original Instruction

Nederlands NL

Four grayscale icons showing different car and abstract shapes, no text or symbols present.

A John Deere Company

Auf dem Höchsten 22

D-51645 Gummersbach

Tel. [phone]

Exterior view of a modern multi-story building with curved facade and glass windows (no signage or text visible)

SABO VERTRAAGSPARTNER GEMEINSCHAFT SVG QUALITÄT VERBINDET

CERTIFIED IQNet MANAGEMENT SYSTEM Qualitative management ISO 9001

1 Explanation of the rating plate affixed to the machine .2

2 Introduction....2

3 Explanation of the symbols....3

4 Proper use .... 4

5 General Safety Guidelines for the hand-held rotary lawnmower (electric)....4

General safety instructions....4

Preparatory measures ....4

Handling....5

Maintenance and storage....7

6 Description of components 8

7 Preparation 8

Opening out the handle (Illustration A1 + E1 + B1) 8

Assemble the collecting sack and hang it onto the mower (Illustration Q1 + R1 + S1)....8

Adjusting the cutting height (Illustration 1) ...... 9

8 Before using the lawnmower for the first time .....9

9 Starting the machine....9

Attaching the connecting cable (Illustration C2)......9

Attaching the connecting cable to the strain relief fitting (Illustration D2) 10

Starting the motor (Illustration A2) 10

10 Switching off the Motor (Illustration F)....10

11 Emergency stopping....10

12 Grass collector....10

Operation with grass collector 10

Turbo signal (shows when the grass collector is full) (Illustration J + K) 11

Emptying the grass collector (Illustration L) ...... 11

Operation without grass collector 11

13 Mowing.... 11

Mowing on slopes....11

Handling the cable during use 11

Checking operating safety 11

Time restrictions 12

Tips on caring for your lawn 12

Mowing (Illustration M) 12

Mulching....12

What is understood by the term mulching? 12

How is the perfect grass blade cut achieved?...... 12

Converting the machine to rear ejection (Illustration U2 + S1) 13

14 Service intervals.... 13

15 Care and servicing of your lawnmower 14

Cleaning (Illustration O) 14

Storage.... 14

Collapsing the handle (Illustration A1).... 14

Transporting and securing the equipment (Illustration N) 14

Maintenance of the blade.... 14

Sharpening and balancing the blade (Illustration Q) 15

Replacing the blade 15

Servicing the wheels (Illustration S) 15

16 Troubleshooting 16

Technical data ...... see rear inner cover

Declaration of conformity .... Before Technical Data

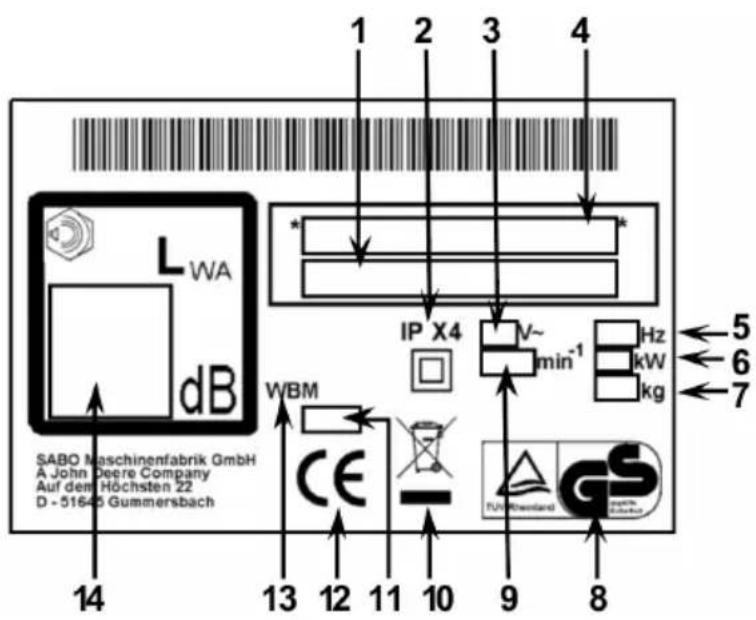

1 EXPLANATION OF THE RATING PLATE AFFIXED TO THE MACHINE

1 2 3 4 14 13 12 11 10 9 8 SABO Maschinenfabrik GmbH A John Deere Company Auf dem Höchsten 22 D - 51645 Gummersbach dB WA * * IP X4 V~ min-1 Hz kW kg WBM CE FJW Holland GS ← 5 ← 6 ← 7

1 Type designation

2 Protection type

3 Connection voltage

4 Model - and Serial number

5 Network frequency

6 Power

7 Weight

8 Tested safety

9 Motor speed

10 Electrical appliances should not be disposed of with household waste. Equipment, accessories and packaging must be disposed of in an environmentally friendly way

11 Year of manufacture

12 CE conformity symbol

13 Hand-guided lawn-mower

14 Guaranteed sound power level

GB

2 INTRODUCTION

Dear gardening fans,

Taking pride in a well-kept lawn is one thing, but if you also enjoy your gardening, it is the good quality of your gardening equipment that you have to thank. With your new SABO lawn mower, you have made an excellent choice. This combines the outstanding performance of a great traditional brand with the innovations of modern high tech. You will notice this when using the lawn mower, and be pleased when you see the perfect result achieved.

However, before starting to care for your lawn, please read and follow the important information given below.

Before starting the mower for the first time, please read these operating instructions through carefully, in order to familiarize yourself with the correct operation and maintenance of the machine, and avoid injuries or damage to your lawn mower.

Always operate the mower with care. The pictograms affixed to the mower draw attention to the most important precautionary measures. The meaning of the pictograms is explained on the cover page.

The safety instructions in these operating instructions are designated by symbols. The explanation of these symbols is given in the table overleaf.

The designations "left" and "right" always refer to the left or right side of the mower viewed from the direction of movement.

The more closely you follow the technical instructions, the more reliably your SABO lawn mower will work. We must point out that damage to the mower caused by operating errors is not covered by our warranty. Please note the following extract from our warranty conditions.

We wish you great pleasure in caring for your lawn.

	WARNINGAlways read and follow the operating instructions and general safety regulations carefully. Keep the operating instructions for reference purposes.Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.
	WARNINGKeep all persons outside the danger area!Contact with the rotating blade can cause severe injury.Objectsejected at high speed can cause severe injury.You must never mow the lawn if there are other persons nearby, especially children or animals.
	WARNINGElectric shock can lead to serious injuries.The electrical equipment must not be modified.Check the connection cable for signs of damage and ageing before you start a new mowing job. Make sure the cable can move freely, do not kink, chafe or squash it.Damaged connection cables must be replaced.Do not spray the device off with water. The electrical system could become damaged.Always have an authorised professional workshop replace, regrind and balance the blade, since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335.
	WARNINGWatch out for sharp blades! Contact with the rotating blade can cause severe foot injuries.Only start the engine when standing behind the mower.Ensure that your feet do not get under the housing.
	WARNINGWatch out for sharp blades! Contact with the rotating blade can cause severe hand and foot injuries.When the engine is running, always observe the safety distance to the machine which is maintained by the handlebar.Ensure that your hands and feet do not get under the housing.
	WARNINGObjects thrown upwards can cause serious injuries.Before mowing areas covered in leaves in particular, remove all stones, sticks, wires and other objects from the lawn.Never use the equipment with the protective devices damaged or missing.Before initial operation, check that the cutting blade screw is fastened, then examine the cutter bar for a tight fit, wear and damage every time you intend to use the mower. Have an authorised workshop replace a worn or damaged blade. Have an authorised workshop tighten the cutting blade screw.
	WARNINGElectric shock can lead to serious injuries.Keep the connection cable away from the cutting blade.When starting the mower make sure the connection cable is not near the housing.Do not mow over the connection cable.In the event of damage, switch the mower off and wait for the blade to come to a standstill, remove the plug from the mains immediately. Do not touch the connection cable before it has been disconnected from the mains supply. Damaged connection cables must be replaced.
	CAUTIONIf the mains plug is not disconnected from the mains during work on the equipment, the motor may start up and this can result in serious injuries.Switch the motor off and disconnect the mains plug before carrying out any maintenance and repair work.When servicing the cutter blades note that they can be moved even when the voltage source is switched off.Consult the operating instructions for respective cleaning or maintenance instructions.

WARNING

Contact with the rotating blade can cause severe hand and foot injury. Objects ejected at high speeds can cause severe injury.

Switch the motor off and wait until the blade comes to stop:

• if the mower has to be lifted or tilted, e.g. in order to transport it;
• when moving off the lawn onto paths or roads;
• if the machine is left unattended for any time;
  – before adjusting the cutting height;
  – before removing the collector bag;
  – before the mulch stopper is removed.

CAUTION

Contact with the sharp edges of the blade can cause severe injury.

Protective gloves must be worn at all times during maintenance and cleaning work.

4 PROPER USE

• The machine is intended solely for the mowing of grass and lawn surfaces in the course of normal garden and landscaping care (“Proper use”). Any further form of use constitutes improper use; the manufacturer accepts no liability for any resulting damage; the risk is borne solely by the user. Proper use of the machine also includes the observation of the operating, maintenance and servicing requirements specified by the manufacturer.
  • If used in public areas, parks, sports grounds, on roads and in agricultural and forest areas, special care must be taken.
• The lawnmower must not be used in particular to trim bushes, hedges and shrubs, it must not be used to cut climbing plants or plants growing on roofs and on balconies, or to vacuum or clear pavements.
• The use of any additional devices not approved by SABO is prohibited. If such additional devices are used, this invalidates the CE conformity and any warranty claims. Unauthorized modifications to this lawnmower rule out any liability on the part of the manufacturer for resulting damages.

GB

5 GENERAL SAFETY GUIDELINES FOR THE HAND-HELD ROTARY LAWNMOWER (ELECTRIC)

General safety instructions

Always read the operating instructions carefully for your own protection and to guarantee perfect function. Familiarise yourself with the operating elements and correct machine operation. Keep the operating instructions for reference purposes.

• Remember that the machine operator or user is responsible for accidents with other persons or their property.
• These operating instructions belong to the machine and must be handed over to the new owner in the event of the machine being sold.
- Never allow children and persons under 16 years of age or other persons not familiar with the operating instructions to use the machine. Local regulations can specify the minimum age of the user.
- Explain the potential hazards and how to avoid accidents to all those who are to use the equipment. This equipment may only be used, serviced and repaired by persons who are familiar with it and have been informed about the hazards.
- This equipment is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety and have received instructions from this person as to how the equipment is used. This supervisor must decide in advance whether the person with limited physical, sensory or mental aptitude is suitable for this task.

Never use the mower while persons, particularly children, or animals are nearby.

- Keep your machine safely! Unused equipment should be kept in dry, closed rooms inaccessible to children.

Preparatory measures

- When mowing you must always wear a strong pair of shoes or safety shoes and long trousers. Avoid wearing loose clothing or clothing with cords or belts hanging down. Do not mow whilst you are barefooted or wearing sandals. Wear protective goggles to protect your eyes.

Always check the area where you intend to use the machine completely for stones, sticks, wires and other foreign objects which might be picked up and ejected, before and during mowing.

If you also use an auto mower for lawn care, the following safety instructions must be heeded with regard to the working area of the auto mower:

– Before working on these areas (mowing, scarifying etc.) always check the range of the boundary wire.
- If the wires are laid in the ground they must be checked, no wires may be visible, with particular attention necessary at the charging station.
- If the boundary wires are laid above ground they should be routed tight directly on the ground and not lie loose in the grass. The wires must be sufficiently fixed using boundary staples, see the operating manual.

- The boundary staples must not project, if this is the case push them firmly in place.

- Remove any residual wires that are lying around before starting to mow.

In the cases described above, there is a risk of the wire being pulled in and wound up by the tool; this can lead to serious injury.

• Low-hanging branches and similar obstacles can injure the operator or interfere with the mowing operation. Before mowing, identify potential obstacles such as low-hanging branches, and trim back or remove those obstacles.
• In order to guarantee the proper and safe operation of garden equipment, a connection cable of the minimum quality H05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4 with a cross-section of 3 × 1 ~mm^2 and a connection plug made of or covered with rubber in accordance with DIN/VDE 0620 are required. Connection must be to a CEE 7/4 socket 230 V AC.
• When a childproof cable is used, care must be taken that the fuse works perfectly (smoothly) as otherwise the device connection plug could become damaged.
• The plug must be fitted with a 16 amp slow fuse.
  • We recommend that a residual current operated device with a maximum breaking current of maximum 30 mA or equivalent safety equipment be used.

The electrical equipment must not be modified.

The connection cable must be checked for signs of damage and ageing before every new mowing job and may only be used in a perfect condition.

• If the unit is to be operated via a generator, an authorised specialist workshop should first be consulted with regard to a suitable generator.
• Before you use the lawnmower, always check visually to see whether cutting tools, attachment screws and the entire cutting unit are worn or damaged. Worn or damaged blades and attachment screws must be always replaced to avoid any imbalance in the lawnmower.
• The condition of the pictograms must be checked every time the device is used. Worn or damaged pictograms must be replaced.

Handling

- The machine must not be operated in potentially explosive surroundings.

The connecting cable must kept away from the cutting tool. Whilst you are mowing the lawn, do not drive over the connecting cable with the machine; when guiding the connecting cable, always make sure that you are keeping a safe distance.

If the connection cable is damaged, switch the equipment off and wait for the blade to come to a standstill. Disconnect the mains plug immediately. Do not touch the connection cable before it has been disconnected from the mains supply. Damaged connection cables must be replaced.

Make sure the cable can move freely, do not kink, chafe or squash it.

• Do not wear radio or music headphones. Safe service and operation requires your full attention.
• Only mow during daylight or if the lighting is good. Always push the machine at walking pace.
• Use care when approaching blind corners, shrubs, trees, or other obstacles that may obscure vision.
- Do not move too closely to compound steps, trenches and banks. The equipment can suddenly topple over when a wheel suddenly gives way over the edge of a cliff or trench or when an edge suddenly yields.
- Please be careful when mowing underneath playground equipment (e.g. swings). The equipment could get into an unsafe position. This may result in risk of injury.
• Do not operate the equipment when you are sick, tired or under the influence of alcohol, medicine or drugs.

• Avoid using the machine if possible on wet grass, in order to avoid the danger of slipping.
  • Always make sure that you are standing securely whilst mowing slopes. Always mow at right angles to the slope, never mow straight up or down. Please be especially careful when you change direction when mowing on a slope.
• Do not mow excessively steep slopes! Mowing slopes always means additional risks. Your lawnmower is so powerful that it can mow slopes with a gradient of up to 30°. For safety reasons, however, we urgently recommend you not to exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes of more than 15°. Stability may be lost.
• Please be especially careful when turning the machine or pulling it towards yourself.
• If you walk backwards whilst using the machine, you can easily stumble so this should be avoided. Avoid unnatural body positions. Ensure that you are standing securely and keep your balance at all times.
• Always observe the safety distance to the machine which is maintained by the handlebar.
• In order to avoid the machine slipping when being carried, always hold the machine by the grip devices provided (carrying handle, housing, handlebar ends or transverse bar of the lower handlebar section). Do not grasp the machine by the ejection flap!
• Note the weight of the machine before lifting or carrying it (see technical data). Lifting heavy weights can lead to health problems.
• Never lift or carry the machine when the engine is running.
• Never operate the machine with damaged or missing safety or protective devices.

Safety devices include:

- Safety grip (1)

In case of danger, release the safety grip: the motor will be switched off and the blade come to a stop within three seconds.

The function of the safety grip must not be deactivated.

It is important to make sure that the safety grip functions correctly. If it does not, have it repaired by an authorised specialist workshop.

GB

Protective devices include:

– Housing, grass collecting bag, ejection flap (3).

The protective devices protect the user against objects being ejected at high speed.

The machine must not be operated with a damaged housing or without a properly fitted collecting bag or ejection flap on the housing.

- Housing

This protection unit protects against injuries through contact with the rotating cutting blade bar.

The equipment must not be operated with a damaged housing. Please make sure that hands and feet are not placed underneath the housing.

- Cover hose at upper part of bar (11), engine hood (4) and engine bracket (6), switch-plug combination with cable (2,12), connection cable, cutting blade screw

This protection unit protects against injuries through contact with electrical power carrying parts.

The electrical equipment must not be modified.

Damaged connection cables must be replaced. Please use a connection cable with a minimum quality of H 05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4.

In accordance with the existing standard DIN EN 60335, an insulation protection test must be made after repair and maintenance work at insulation parts.

The safety devices must not be modified.

• Start or operate the starter switch with great care and according to the manufacturer's instructions.
• During the starting process, do not switch on the drive if available.

When you start the machine, make sure that your feet are at a sufficiently safe distance away from the cutting blades.

When you start the motor, the machine must not be lying on its side or in a slanting position. If it is necessary to hold the machine at a slant, always ensure that the cutting tools are pointing away from the person using the machine, although only as far as absolutely necessary. In case of machines with side dejection, do not start the motor in standing in front of the ejection channel.

Never put your hands or feet near or under revolving parts. Always make sure that your hands or feet do not get under the housing. Always maintain a safe distance from the ejector opening.

Stop the motor, pull the plug, check that all moving parts have come to a complete standstill:

• when leaving the machine;
  – before checking the power connection;
  – before you check, clean or carry out any work on the machine;
  – before you eliminate jams or blockages in the ejection channel;
• when you hit a foreign body;
• if the machine starts to vibrate strangely.

- If a foreign object has been encountered or if the machine becomes blocked, e.g. by driving onto an obstacle, a specialist dealer must check whether parts of the machine have been damaged or deformed. Any necessary repairs must also be carried out by an authorized specialist workshop.

• If you notice unusually strong vibrations in your machine, you must have it checked by an authorized dealer.

Switch the engine off, and ensure that all moving parts have come to a complete standstill:

• if you have to lift or tilt the lawnmower, e.g. in order to transport it,
• when transporting the machine to and from the lawn
• when moving the machine off the lawn area;
• if the machine is left unattended for a few minutes;
• when adjusting the cutting height;
  – before removing the collector bag;
  – before the mulch stopper is removed.

Maintenance and storage

- Ensure that all screws have been tightened securely and that the machine is in a safe working condition.

The ejection flap must only be opened and the grass collector or mulch stopper removed when the engine is turned off.

Before you start mowing, always check the grass collecting equipment for wear or loss of functionality.

Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335. A worn or damaged blade must always be replaced.

Always have the replacement, sharpening or balancing of the blade carried out by an authorised workshop, since according to the applicable standard DIN EN 60335, an insulation test must always be carried out following repairs or maintenance work to insulating components (e.g. blade screws).

- For reasons of safety, always replace worn or damaged parts.

Protective gloves must be worn at all times during maintenance and cleaning work.

Maintenance and cleaning work may only be carried out with the motor switched off and mains plug disconnected. When servicing the cutter blades note that they can be moved even when the voltage source is switched off.

Do not clean the machine with running water or pressure cleaners. This could damage the electrical system.

For warranty and safety reasons, original replacement parts must be used at all times.

• Notes for Switzerland:

Electric appliances must only be operated if a residual current operated device with a maximum breaking current of 30 mA is also integrated into the circuit.

- Notes for Austria:

The socket coupler of the connecting cable must be splashproof.

6 DESCRIPTION OF COMPONENTS

1 Actuating grip for motor (safety grip)
2 Cable connection plug
3 Ejection flap
4 Electric motor
5 Handle for adjusting the height
6 Motor bracket
7 Cutting height indicator
8 Carrying handle front
9 Strain relief device for electric cable
10 Cable guide
11 Casing on the upper part of the bar
12 Locking button (red)

7 PREPARATION

The following parts are included in the packaging for assembly of the mower:

• Mower with preassembled handle
• Collecting bag, collecting bag frame, chute
• Tool bag with the following contents:

– Operator's manual with Declaration of Conformity
– Warranty conditions and Warranty card
- Various fixing parts.

In the unlikely event of a missing part, please contact your dealer.

Opening out the handle (Illustration A1 + E1 + B1)

— Pull the folded-up Z-shaped guide spar apart and upward A1.
- When upper and lower handle are aligned tighten the two wing-nuts by hand E1.
- Push both ends of the bottom part of the handle with the toothed plastic adapters backwards until they click into the toothed recess on the mower housing B1.

In this way, three different handle heights can be set.

• Tighten the two wing-nuts on both sides by hand B1.
• Insert the cable into the cable guide. This is to prevent the cable from being trapped when folding the handle E1.
• Fasten the cable to the lower part of the handle with the aid of cable ties from the tool bag. When folding the upper handlebar section, ensure that the cable is not trapped.

CAUTION

When you activate the bar height adjustment, when loosening the wing nuts B1 used to secure the bar bottom to the housing (only loosen sufficiently to ensure that the bar can be moved freely) and snapping the toothed plastic adaptations from the cut-out on the housing, it is possible that unintentional upsetting of the bar may occur. In addition, this may result in crushed points between the bar bottom and the housing. This may result in a risk of injury!

Assemble the collecting sack and hang it onto the mower (Illustration Q1 + R1 + S1)

• Remove the attached fixing panels from the chute Q1.
• Set the chute into the collecting bag frame at an angle. By moving the chute down press the holding bracket on either side onto the collecting bag frame Q1.
• Then press the lower holding brackets of the chute onto the transverse rod of the collecting bag frame.
• Screw the two fixing panels to the chute again R1.
• First insert the grass bag frame with the clip forward into the grass bag. Align the upper seams of the bag with the clip.
• Press the retaining profiles of the collecting sack onto the bars of the collecting sack frame R1.
• Open the ejection flap of the mower upwards.
• Pick up the collecting sack by the carrying strap, place the chute (1) at the collecting sack opening into the ejection flap and hang it in the mower casing with its two side hooks upwards S1.
• Attach ejection flap to collector.

Adjusting the cutting height (Illustration I)

Safety instruction!

See table for explanation of symbols page 3

The mower is adjusted to the lowest cutting height upon delivery.

• The cutting height is set on the left hand side of the lawnmower
• Press the red button with your thumb and move the handle of the lawnmower into the required position by moving it up or down.
• By letting go of the button, the lever locks into the required cutting height.
• The marking on the left on the adjusting rod indicates the cutting height.

IMPORTANT

Mowing at the lowest cutting height should only be carried out on level and plane lawns!

Please observe that the lower cutting height settings may only be used for optimal conditions. If you select cutting height that is too low, the turf can be damaged and under certain circumstances it can even be destroyed.

Besides the cutting height, also the moving speed influences the cutting pattern and collection result. Adapt the cutting height and moving speed to the grass height to be cut.

8 BEFORE USING THE LAWNMOWER FOR THE FIRST TIME

Safety instruction!

See table for explanation of symbols page 3

Check all screw connections for a tight fit. Tighten the screws if necessary. Attachment of the cutter bar must be checked in particular (refer here to the chapter "Cutter bar care").

The blade attachment screw must always be tightened by an authorised workshop since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335.

Make sure that all protective devices have been attached properly and are not damaged.

9 STARTING THE MACHINE

Safety instruction!

See table for explanation of symbols page 3

IMPORTANT

If the unit is to be operated via a generator, an authorised specialist workshop should first be consulted with regard to a suitable generator.

Attaching the connecting cable (Illustration C2)

NOTE

In order to guarantee the proper and safe operation of the garden equipment, a connection cable of the minimum quality H05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4 with a cross-section of 3 x 1 mm² and a connection plug made of or covered with rubber in accordance with DIN/VDE 0620 are required. Connection must be to a CEE 7/4 socket 230 V AC, slow-blow 16 A fuse.

When a childproof cable is used, care must be taken that the fuse works perfectly (smoothly) as otherwise the device connection plug could become damaged.

IMPORTANT

Cables with a cross-section of 3 x 1 mm² should only be used up to a length of 25 metres. If a connection cable with a cross-section of 3 x 1.5 mm² is used, the length of the connection cable can be up to 40 metres.

• Plug the cable into the switch/plug combination on the upper handle.
• Only then should the connecting cable be connected to the mains.
• When removing the cable always disconnect the cable plug from the mains first.

Attaching the connecting cable to the strain relief fitting (Illustration D2)

ATTENTION

The unit may not be used without the cable relief in order to prevent damages to the switch/plug combination and to the cable. The cable must be hung in the cable relief on the unit to ensure that it is fixed safely. This prevents the cable socket from being pulled off the unit. Moreover, the cable aligns itself automatically on the other side when cornering.

• Form a semi-circular loop in the cable, keep a distance of approx. 80 cm from the connection cable coupling.
  – Insert the cable from the bottom into the cable relief and loop it around the fastening post.
• Hold the cable by both ends and pull it firmly into the cable relief.

Starting the motor (Illustration A2)

Only start the engine when standing behind of the mower.

Place the mower on a level surface where the grass is not too high (high grass inhibits the start of the cutter bar and makes starting more difficult). Where this is not possible, position the mower in such a way that the cutter is facing diagonally away from the user, although only as far as absolutely necessary.

• To switch on the motor, first press and hold the red button.
• With the other hand, pull the safety grip on the upper handlebar section. The grip must be held in this position during operation.
• The red button can then be released.

IMPORTANT

If the motor does not start 5 seconds after the unit is started, then

1. Let go of the switch holder
2. Pull the plug!
3. Check the power cable
4. Check the power supply at the building (fuse)
5. Check the unit for blockages in the mowing chamber
   6 Get it checked by an authorised specialist workshop.

GB

10 SWITCHING OFF THE MOTOR (Illustration F)

To switch off the motor, release the safety grip. The motor will be switched off and the automatic blade brake stops the blade within 3 seconds.

11 EMERGENCY STOPPING

ATTENTION

Avoid injury! Motor and blade must stop within 3 seconds. If not, please contact the nearest authorized dealer.

Release the safety grip.

- The blade will stop.

- The motor will stop.

12 GRASS COLLECTOR

Safety instruction!

See table for explanation of symbols page 3

Operation with grass collector

While mowing, ensure that the collector is emptied in good time. The turbo signal on the collector will indicate when the collector should be emptied.

IMPORTANT

Make sure that the chute (1) S1 is not bent when handling the collector.

Turbo signal (shows when the grass collector is full) (Illustration J + K)

There is an indicator on the top of the collector that shows whether the collector is empty or full:

• The collector indicator inflates if the collector is empty and during the mowing J.
• If the collector is full, the indicator collapses; once this happens, stop mowing immediately and empty the collector K.

IMPORTANT

If the fabric of the grass collector is very dirty the turbo indicator will not inflate – in this case, clean the fabric immediately. The grass collector will only collect grass perfectly if it is permeable to air.

IMPORTANT

Do not clean the grass collector with hot water!

Emptying the grass collector (Illustration L)

• Switch off engine.
• Lift ejection flap.
• Unhinge the full grass collector from the mower at the carrying strap – the ejection flap closes automatically.
  – Empty the collector thoroughly whilst holding it by the carrying strap and the moulded handle on the bottom.

Operation without grass collector

WARNING

When mowing without grass collector the ejection flap on the mower housing must always be closed (flap down).

13 MOWING

Safety instruction!

See table for explanation of symbols page 3

Mowing on slopes

NOTE

The mower can be driven on banks and slopes at an angle of up to 30^ .

For safety reasons, however, we urgently recommend you not to exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes of more than 15^ . Stability may be lost.

Handling the cable during use

Prepare the cable in such a way that the machine can pull it behind easily over the lawn area already mown. When the mower is turned, the cable relief automatically places the cable on the other side of the handle bar.

Make sure that the cable is kept away from the cutting tools and does not form any loops.

Examine the mains connection cable before any mowing for signs of damage and only use it if it is in perfect condition.

Checking operating safety

Before every mowing job, make sure that the safety control bar is working perfectly. When the control bar is released, the engine and cutter bar must come to a standstill within three seconds. If this is not the case, please consult your nearest authorised workshop.

Make sure that all protective devices have been attached properly and are not damaged.

Check the upper part of the bar (insulation) for damage. If the casing should be damaged, contact the nearest authorised workshop without delay, since otherwise injuries (electric shock) can occur through touching the live parts.

To avoid risk, check the condition and firm attachment of the blade before every mowing job. The blade attachment screw must always be tightened by an authorised workshop since an insulation protection test always has to be carried out after repairs and maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335. A worn or damaged blade must always be replaced. (refer here to the chapter "Cutter blade care")

In addition, check the fan, blade coupling and fan housing every 10 operating hours for wear and a tight fit. Also check screws and nuts for a firm fit and tighten if necessary!

If the mower mechanism becomes blocked e.g. by colliding with an obstacle, have an authorised workshop check whether any parts of the mower are damaged or deformed. Always have any necessary repairs done by an authorised workshop too.

Time restrictions

The time at which lawnmowers may be used varies from region to region. Please ask the corresponding authorities before using your mower.

Tips on caring for your lawn

Mowing (Illustration M)

After 10 – 14 days every lawn starts to become overgrown. You will realize that: the often it is cut the better and stronger will it look; since, regular mowing promotes uniform growth.

Remove all strange objects (stones, wood, branches, etc.) from the lawn before each cut; pay attention still to objects lying around, also during the mowing process.

Make sure to mow only dry lawns as much as possible. When the ground is wet, turf will be damaged easily; the wheels press deep into the ground and leave ridges behind.

Once the grass has become too long, first you should mow with a higher cutting height in one direction and afterwards with a lower height you desire, you should cut across the first direction. Only cut with a sharp flawless blade so that grass holms do not fray. You obtain a clean cutting pattern when you mow at creeping speed in straight lanes. These lanes should always overlap over several centimetres so that no strips remain behind.

Only on level and plane lawn surfaces should mowing be carried out at the minimum cutting height!

Please observe that the lower cutting height settings may only be used for optimal conditions. If you select cutting height that is too low, the turf can be damaged and under certain circumstances be even destroyed.

Besides the cutting height, also the moving speed influences the cutting pattern and collection characteristic. Adapt the moving speed to the person, grounds and to the grass height to be cut. For longer grass sections, a slower moving speed should be selected.

When mowing tall grass, first select a high cutting height and afterwards carry out mowing with a lower height setting across the first direction.

Mulching

Your lawnmower can be equipped with a mulch kit. The conversion kit to a mulch system is available as an accessory from your specialist dealer (Order no, for conversion kit, see Original Replacement Parts and Accessories).

WARNING

The conversion of the mower to a mulch system should always be carried out by an authorised specialist workshop, since according to the applicable standard DIN EN 60335, an insulation test must always be carried out following repairs or maintenance work to insulating components (e.g. blade screws).

The blade bar can also become detached if the blade coupling is assembled incorrectly, which can lead to severe injuries.

What is understood by the term mulching?

When mulching, the lawn is cut and the cut blades of grass are then, immediately thereafter, chopped several times to become even smaller using the special mulch blade. This mulch blade straightens the grass blades and cuts the blades into very short segments which are then distributed evenly over the lawn surface.

The grass blade segments can now dry and rot more quickly, thus facilitating the production of humus. This enables natural fertilisation of the soil and also protects against dehydration.

Gathering and removal of cuttings is no longer necessary. The mulch concept is thus environmentally-friendly and stimulates the ecology.

How is the perfect grass blade cut achieved?

The length of the grass to be cut should not exceed 10 cm when a mulching mower is used. A maximum of 1/3 of the grass height is cut in one working cycle. If a positive result is not achieved, mulching may have to be repeated.

Mowing should be done regularly depending on the type of lawn and intensity of growth. During the strong growing phase in particular, mulch-mowing needs to be done more frequently than traditional mowing with grass collection, since the one-third rule is hard to keep otherwise.

To achieve an optimum mulching result you should reduce the machine speed for mulching compared to traditional mowing to allow the grass to remain in the mowing blade longer and thus be cut several times.

The best cutting pattern and result are achieved on a dry lawn, since wet cut grass will stick together and clump quickly.

These grass clumps will rot and mould, preventing the desired ecological cycle.

If the lawn has to be mowed in a very damp, wet state, the cut grass must be shorter i.e. the cutting height must be set 1-2 levels higher than with a dry lawn.

You will notice that if you follow these simple rules you will have a healthy lawn and can save on disposing of your grass cuttings.

If the grass should happen to be too high for mulching, the mulching mower can be converted for mowing with a grass collecting bag in no time.

Converting the machine to rear ejection (Illustration U2 + S1)

• Stop the engine.
• Lift up the ejection flap.
• Remove the mulch stopper from the duct U2.
• Hang the grass collection bag in the provided holder on the mower housing S1.

Conversion of the mulch blade system is not required! Under difficult mowing conditions (e.g. wet grass) a reduced filling level of the collection bag can result.

In order for the equipment be used once again as mulch mower, the mulch stopper must be installed again. To do this, remove the grass collection bag, introduce the mulch stopper in the ejection duct and close the ejection flap.

14 SERVICE INTERVALS

IMPORTANT

Avoid damage! Under extreme or unusual conditions, shorter servicing intervals than the ones specified below may be necessary. If you establish any problems, please contact an authorised workshop.

Carry out routine servicing on the machine in line with the following servicing intervals.

Work must be carried out at the following servicing intervals in addition to the maintenance work listed in these operating instructions.

Before initial use

• Check all screw connections for a tight fit.
• Check the cutting blade screw and have an authorised workshop tighten it if necessary.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check that all protective devices have been attached properly and are not damaged.

Before every operation

• Check the lawn area and remove any objects.
• Check the area of the boundary wires (if an auto mower is being used for lawn care).
  • Check the condition and firm fit of the blade, if necessary have an authorised workshop tighten the blade screw.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check that all protective devices have been attached properly and are not damaged.
• Check grass collecting equipment for wear or loss of functionality.
• Check the upper part of the bar (insulation) for damage.
• Check the connection cable for damage and ageing.

Every 10 operating hours

• Check all screw connections for a tight fit.
• Check the fan, blade coupling and fan housing regularly for wear and a tight fit.

After every operation

• Clean the mower.
• Check the blade for damage and wear.

Every 50 operating hours or once a year

- Lubricate the wheel bearings.

15 CARE AND SERVICING OF YOUR LAWNMOWER

Regular care is the best guarantee of long working life and trouble-free operation!

Only use original spare parts because only those guarantee safety and quality!

Safety instruction!

See table for explanation of symbols page 3

Cleaning (Illustration O)

Remove dirt and grass residue immediately after finishing mowing. Place the mower on its side and use a brush or cloth to clean.

ATTENTION

Do not put your fingers into the openings of the fan housing and hold onto the fan. If the blade bar is rotated during cleaning, there is a risk that your fingers may become caught between the fan and the fan housing!

IMPORTANT

Never spray the mower with water. This may damage the electrical systems.

Storage

Always keep the machine in a clean condition in a closed, dry room out of reach of children. Always allow the engine to cool down before you store the machine in a closed room.

Collapsing the handle (Illustration A1)

• To save storage space or for transportation, loosen the four wing nuts so that the guide tube can be folded together without resistance in a Z-shape above the engine A1.
  The toothed plastic adaptations on the bottom bar end must snap out of the cut-out on the housing.

- Do not kink nor squeeze the cable in the process.

CAUTION

When folding the bar for transport and storage purposes, when loosening the wing nuts and snapping the toothed plastic adaptations from the cut-out on the housing, it is possible that unintentional upsetting of the bar may occur. In addition, this may result in crushed points between the top and bottom part of the bar as well as the housing. This may result in a risk of injury!

Transporting and securing the equipment (Illustration N)

• If the equipment has to be carried, do not hold the ejection flap! Hold the handle at the front and at the rear N.
• Transport the equipment in the upright posture.
  – Park the means of transport on level ground so that the equipment cannot roll away before it is secured.
• Hang out the collection bag and secure it separately during transport.
• Secure the equipment with approved load-strapping means (e.g. tie-down straps with clamping elements) on or inside the vehicle. Tie-down straps are belt bands made of synthetic fibres. Every tie-down strap is designated. The label contains important details for application.
• For loaded goods that can roll, it is recommended to use direct strapping with four belts. Secure the equipment on the wheels so that it does not move during transportation.

ATTENTION

Do not tighten the belts too firmly. Fixing the equipment too firmly can cause damages.

Maintenance of the blade

A sharp blade guarantees optimum cutting performance. Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced.

Sharpening and balancing the blade (Illustration Q)

WARNING

The sharpening and balancing of the blade should be carried out only by an authorized specialist workshop, since according to the applicable standard DIN EN 60335, an insulation test must always be carried out following repairs or maintenance work to insulating components (e.g. blade screws).

An improperly sharpened or unbalanced blade can cause severe vibrations, and damage the lawnmower.

The cutting edges of the blade must only be ground down to the mark (1) (see illustration Q) on the blade (ring). Warning! Keep to a grinding angle of 30^ .

Your professional workshop can check this value - (grinding limit) for you!

WARNING

A blade by which the wear limit (marking) has been exceeded can break off and spin away; this can cause severe injuries.

Replacing the blade

WARNING

The cutter bar must always be replaced by an authorised workshop since an insulation protection test always has to be carried out after repairs and maintenance work on insulation parts (e.g. blade screw) in accordance with the applicable standard DIN EN 60335.

In addition, a wrongly assembled cutting blade coupling can allow the cutter bar to become loose, which can lead to serious injuries.

- Only use original blades for replacement purposes.

- Blades must be indelibly marked with name and/or trademark of the manufacturer or supplier and with the parts number.

Servicing the wheels (Illustration S)

Oil the bearings of the wheels once a year or every 50 operating hours.

- Remove wheel covers.

- Loosen the hexagon head nuts using a socket wrench and remove the wheels.

– After oiling the bearings, push the wheels on and tighten them again so that they still turn easily but without any play.

16 TROUBLESHOOTING

Fault	Possible	cause	Rem
If the motor does not start 5 seconds after the unit is started	No power supply.	Connect the plug C2.Check the fuse.
	Power cable damaged. Get it checked by an authorised workshop.
	Cutting height has been set too low (grass is too high and blocks the starting of the motor).	Set a higher cutting height I.Machine tilts when starting it.
	Too much grass waste in the housing.	Clean the cutting chamber of grass, ensure that the gap between fan and housing is kept clean (pull the plug first!).
	Get it checked by an authorised workshop.
Extreme vibration	Have it checked by an authorized dealer
Unclean cut, lawn is yellow	Blade blunt. Have it sharpened and balanced by an authorized dealer Q.
	Cutting height too low.	Adjust to higher cutting height I.
	Mowing too fast.	Adjust mowing speed.
	Insufficient overlapping of cuts when mowing.	Tall grass conditions may dictate that more overlapping of cuts is required.
	Lawn becomes matted.	A lawn scarifier can remedy the problem considerably
Ejection blocked	Turbo signal has not been detected J + K.	Empty the grass collector L.
	Cutting height too low for grass that is too high.	Adjust to higher cutting height I.
	Pushing mower too fast.	Adjust mowing speed.
	Grass not dry. Let grass dry.
Mulched grass appearance is poor:clumps, excessive clippings, rough cut.	Blade blunt. Have it sharpened and balanced by an authorized dealer.
	Mulching rule not followed (cut max. 1/3 of the grass height; the height of the grass to be cut must be lower than 10 cm)	Adjust to higher cutting height I.Convert mower to rear discharge U2 + S1 and mow grass first with higher cutting setting.
	Travel speed too fast.	Adjust travel speed.
	Grass build-up under deck.	Adjust to higher cutting height I.
	Insufficient overlapping of cuts when mowing.	Tall grass conditions may dictate that more overlapping of cuts is required
	Grass not dry.	Adjust to higher cutting height I.Let grass dry.

Repairs to electrical machines must always be performed only by qualified electricians. Please do not repair them yourself. In the case of faults and defects which have not been listed here, please contact the nearest authorized dealer. This applies in particular to appliances with electrical motors, as when these are repaired they must always undergo an insulation protection test.
Your authorized dealer will also help you if you do not wish to perform any of the maintenance work described here yourself.

Warning symbols and illustrations including an open book, triangular warning sign, lightning bolt, human figure, cartoon character, and walking stick.
