USER MANUAL tipmatic 1047 PFAFF

Black-and-white photo of a PFAFF 1947 industrial sewing machine with visible control panel and base (no text or symbols on the machine itself)

Diese Seite nach außen klappen Fold out this page Rabattre ce volet vers l'extérieur Girare questa pagina verso l'esterno

Sicherheitshinweise

a) Take care to avoid injury to your fingers by the needle during sewing.
b) Be sure to unplug the power cord whenever you leave the machine or wish to clean it, oil it or change mechanical and accessory parts.
c) Be sure to use only a 15-watt light bulb in the sewing lamp.
d) The drive belt must never be adjusted by anyone but an authorized Pfaff agent.

For safety rules applicable to the UK please see page 84.

Mesures de sécurité

Technical line drawing of a printer with open lid and internal compartments (no text or symbols)

Lift off the cover. Fold down the carrying handle. Tilt cover 101 backwards.

Technical line drawing of an electronic device with a circuit board, cable, and power plug (no text or symbols)

Take foot control and instruction book out of compartment N. Put back again as shown in the illustration above.

Line drawing of a cable installation with an attached plug and switch (no text or symbols)

Electrical connection: Set the foot control on the floor. Insert plug N in the machine and plug O in the wall socket.

Diagram illustrating electrical switch connections with labeled blocks and a battery symbol

Push master switch P; the sewing light goes on. Operating the foot control: The farther you press the pedal down the faster the machine runs.

Electronic foot control (slide Q) Position ▶ = half the top speed Position ◀◀ = full top speed

Technical line drawing of a mechanical assembly with no visible text or symbols

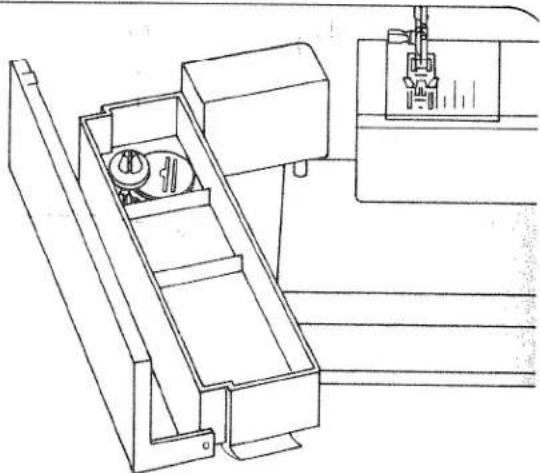

Bobbin winding preparations: Reach under the work support and swing it out toward the left.

Line drawing of a sewing machine needle and base panel (no text or symbols)

Open free arm cover 119.

Technical line drawing of a mechanical device with gears and a tool (no text or symbols)

Switch off master switch 104. Raise latch N and pull out the bobbin case. Release latch A and take out the bobbin.

Line drawing of a hand holding a circular component with a mechanical clip, and a separate circular component with a handle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

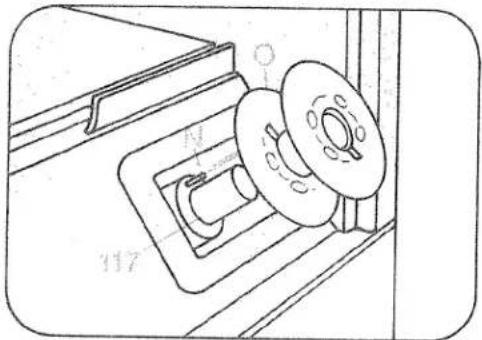

Place a bobbin on spindle 117, making sure pin N enters slot O.

Line drawing of hands operating a mechanical component with a gear-like knob (no text or symbols)

Disengaging the sewing mechanism: Hold the hand wheel steady and turn knob 103 toward you.

Technical line drawing of a mechanical assembly with rods and brackets (no text or symbols)

Swing the sewing spool holder toward the back.

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Push a spool of thread and small thrust collar P onto the holder.

Technical line drawing of a mechanical assembly with internal components and an inset view (no text or symbols)

Winding the bobbin from a second spool: tilt spool pin 125 forward. Pull the thread into guide 123 and into guide 125 as shown in the drawing, making sure that the thread passes between the guide and tension spring N. Now wind the thread a few turns around the bobbin. Push the bobbin to the right. Press the foot control to wind the bobbin. Push the filled bobbin to the left, remove it, pull the thread to the front and cut it in thread cutter O.

Important note: On spools with thread retaining slots the slot must face right when the spool is fitted.

Illustration of hands adjusting a mechanical component with a gear-like mechanism (no text or symbols visible)

Engaging the sewing mechanism: Hold the hand wheel firmly and turn disk 103 toward the back, then turn the hand wheel forward again until it snaps in.

Technical line drawing of a mechanical device interior with no visible text or symbols

Winding through the needle eye (0) Raise the sewing foot. The needle must be in its 'up' position. Place a bobbin on spindle 117. Disengage the sewing mechanism. Draw the needle thread under the sewing foot, up and into guide 125 (see drawing. Wind the thread around the bobbin a few times and push the bobbin toward the right). Press the foot control pedal and wind the bobbin. Push the full bobbin toward the left and take it out. Cut the thread in thread cutter "N".

Illustration of hands adjusting a mechanical component with a gear and adjustment knob (no text or symbols)

Engaging the sewing mechanism: Hold the hand wheel firmly and turn disc 103 toward the back, then turn the hand wheel forward again until it snaps in.

Line drawing showing three hands assembling mechanical components (no text or symbols)

Inserting the bobbin (N), with the thread unreeling toward the back. Draw the thread into slot O and into eye P.

Line drawing of a hand holding a small object, with two separate views of mechanical components (no text or symbols)

Checking the bobbin thread tension: With a brief, sharp upward movement of your hand, the bobbin must gradually slip downwards. (Turn screw Q counter-clockwise for a weaker tension, or clockwise for a tighter tension.)

Line drawing showing a hand holding a small mechanical component, with no visible text or symbols

- Switch off master switch 104. Raise latch N and push the bobbin case onto stud O as far as it will go, making sure cutout P points upwards.

Technical line drawing of two mechanical components with threaded ends and a central shaft, shown from top and side views (no text or symbols)

Placing spool of thread on pin: Place the small or medium-size unwinding collar Q in front of small spools, and the large unreeling disc R in front of large spools.

Technical diagram of a sewing machine with labeled parts and directional arrows indicating movement or assembly.

Oberfaden einlegen:

- Switch off master switch 104. With the needle positioned at the top, raise the sewing foot. Draw the thread into slot N to the left past guide P, from below into slot O and take-up lever 124 (see arrows), then back into slot O and into the right thread guide on the needle holder. Press button B (see page 20/21).

Line drawing of hands operating a sewing machine (no text or symbols visible)

Place the needle thread behind hook Q and hold it there. Pull thread 110 fully downwards.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Push the threader forward against the needle.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Place the thread in hook R from below.

Technical line drawing of a mechanical device with two views (top and bottom) showing tool paths and components (no text or symbols)

Turn the threader to the left, letting go of the thread at the same time, and allow the threader to move upwards. Pull the thread fully through the needle eye.

Technical line drawing of a sewing machine needle and fabric (no text or symbols)

Hold the needle thread taut. Turn the balance wheel towards you until the needle moves down and up again. Needle and take-up lever must be raised. Pull the bobbin thread out of the needle hole.

Technical line drawing of a sewing machine needle and fabric components (no text or symbols)

Place both threads toward the right under the sewing foot.

Line drawing of a hand using a sewing machine to adjust or install a component (no text or symbols present)

Close the free arm cover 119.

Refermer le cache 119.

Technical line drawing of a sewing machine with no visible text or symbols

Swing work support 107 back against the free arm.

Close-up of a sewing machine stitching fabric with visible stitching details (no text or symbols)

Place fabric under the sewing foot.

Line drawing of a hand holding a tool near a window (no text or symbols)

Technical line drawing of a mechanical component with dashed lines indicating assembly or alignment (no text or symbols)

Lower presser bar lifter 112. (N shows the darning position).

Line drawing of a foot pressing down on a foot pedal (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Needle thread tension 122

N = Setting mark.

Simple line drawing of a folded paper or sheet with zigzag lines, no text or symbols present.

Checking the needle thread tension:

The normal setting is in the white range between 3 and 5. The higher the

number, the tighter the tension. To

check the tension, set the machine at the zigzag stitch.

Sew a short seam. The threads should interlock in the middle of the material.

Abstract geometric pattern with wavy lines and a folded corner (no text or symbols)

Tensions des fils:

Simple line drawing of a folded paper or sheet with zigzag pattern (no text or symbols)

Abstract geometric shape with zigzag pattern and curved edges (no text or symbols)

Technical line drawing of a staircase structure with no visible text or symbols

Raise presser bar lifter 112. Remove the fabric by pulling it toward the back.

Line drawing of a sewing machine with a foot and legs, no text or symbols present

Thread cutter N. Draw the threads into the slot and pull them downwards.

106 3 2 N O A

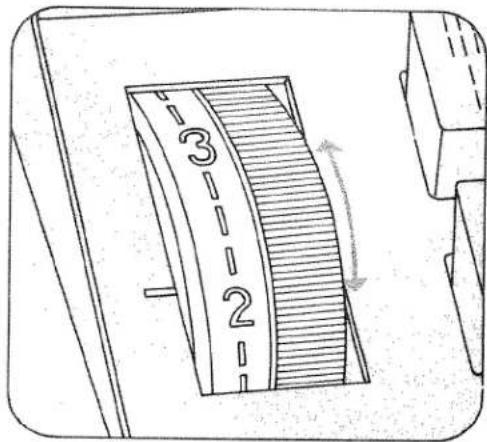

Regulating the stitch length

The numbers on stitch length control 106 indicate the stitch length in millimeters. The stitch length range is 0 to 6 mm. Turn the desired stitch length to the indicating mark "N".

Fig. O (bottom) shows how to set the stitch length control for sewing stretch stitches (red stitch symbols on push buttons).

Press button 114. As long as you hold this button the machine sews backwards.

G H I K L M 3 2 4 A B C D E F

Tipptasten:

The various models have differing numbers of finger-tip controls and programs.

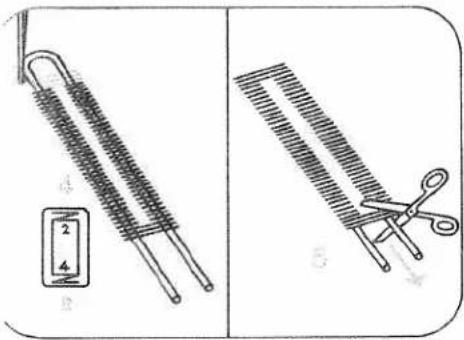

A, B, C: Buttons for buttonholing Button B is also used as clearing button for releasing the pushed buttons and for setting the left needle position (see page 26).

D Elastic triple zigzag stitch, 2 mm 2-mm zigzag stitch
E Elastic triple zigzag stitch, 3.5 mm 3.5 mm zigzag stich
F Elastic triple zigzag stitch, 5.0 mm 5-mm zigzag stitch
G Elastic triple straight stitch Straight stitch
H Pullover stitch Blindstitch
I Closed overlock stitch Joining stitch
K Overlock stitch Shell-edge stitch

L Feather stitch Elastic decorative stitch
M Honeycomb stitch Elastic stitch

On Model 1147 the fancy-stitch thumb wheel has to be disengaged in order to sew the stitches on the finger-tip buttons. To do so, set the white dot at the setting mark, see page 27.

A stitch program chart is found on the inside of the hinged top cover. This chart is also reproduced on pages 72–75 of this booklet and shows all stitches and stitch combinations together with their possible applications.

The letters of the buttons on your machine determine the programs and combinations that can be sewn.

Touches:

G H I K L M A B C D E F

I tasti automatici:

Line drawing of a hand pressing down on a mechanical component with no visible text or symbols

3 2

Selecting utility stitches

(white symbols)

Push the button required and set the stitch length between 1 and 6.

All zigzag, and utility stitches are halved in width when button G is pressed.

Hand placing a component into a storage tray (no text or symbols visible)

Technical line drawing of a mechanical component with hatched internal structure and directional arrow (no text or symbols)

Selecting stretch stitches

(red symbols)

Push the button required and turn the stitch length control as far as it will go (red symbol).

By also pressing button G, all stretch stitches can be halved in width.

Line drawing of a hand pressing down on a mechanical component with a wall-mounted electrical outlet (no text or symbols)

Utility- and stretch-stitch combinations

The various stitch combinations are shown in the chart on the inside of the hinged top cover and at the end of this booklet, together with sewing instructions. For example, if you want to sew an elastic blindstitch, push buttons M and F, select a stitch length between 1 and 4.

Diagram showing a switch and two circuit symbols labeled H and I, likely representing logic or logic gate components.

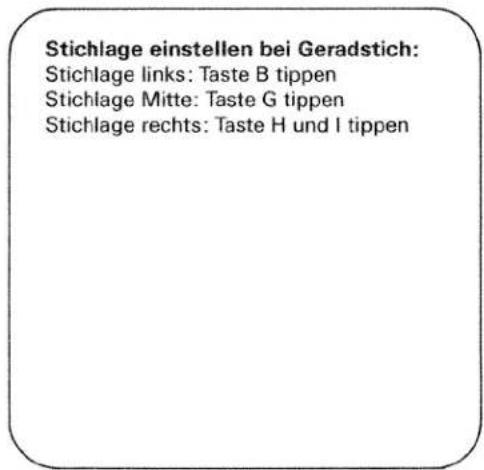

Selecting the needle position for straight stitching Left needle position: push button B Central needle position: push button G Right needle position: push buttons H and I.

a) Take care to avoid injury to your fingers by the needle during sewing.
b) Be sure to unplug the power cord whenever you leave the machine or wish to clean it, oil it or change mechanical and accessory parts.
c) Be sure to use only a 15-watt light bulb in the sewing lamp.

Mesures de sécurité

valid for United Kingdom only

The wires in this mains lead are coloured according to following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the colour coding of the terminals in your plug, proceed as follows: the wire

which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Please note:

When a 13-ampere plug is used a

3-ampere fuse has to be fitted.

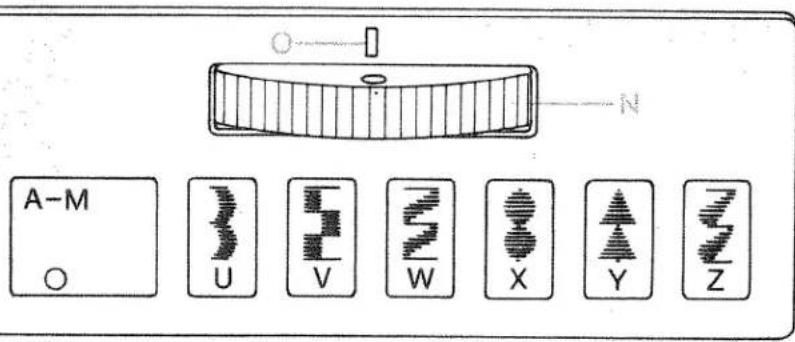

A-M U V W X Y Z

Thumb wheel for fancy stitches

(Model 1147)

Every fancy stitch is provided with a letter. Select the fancy stitch from the table. Set the corresponding letter at mark "O" by turning thumb wheel N.

For sewing utility stitches, thumb wheel N for fancy stitches must be disengaged. To do so, set the white dot at mark "O".

Image displaying a series of stylized, vertically aligned text blocks with horizontal lines and dots, possibly representing a pattern or data visualization.

Abstract pattern of wavy and straight lines with no text or symbols

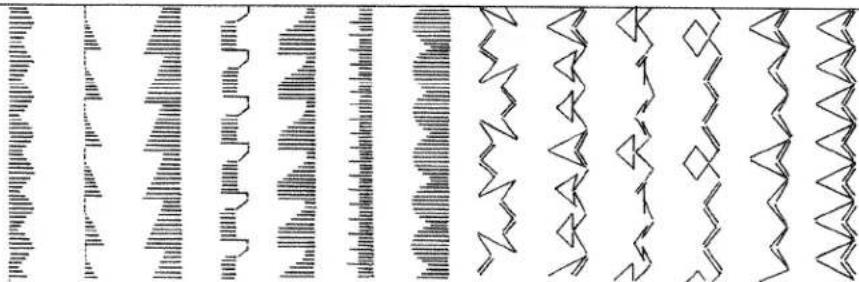

Fancy stitches and combinations, Model 1147

Pattern combinations can be produced by pressing the keys in connection with the fancy stitches.

The table shows the stitches and under them the corresponding buttons to push. If they are marked "stretch", set the stitch length control at "stretch".

Technical line drawing of a mechanical assembly with no visible text or symbols

Reach under the work support and swing it out toward the left.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with numbered parts (0–6), no readable text or symbols present.

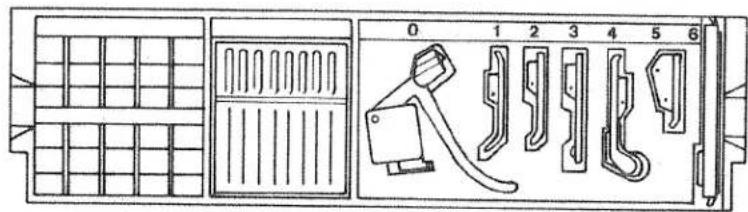

Detachable work support and accessories:

The work support can be lifted out (N). Open its lid and take out accessory box P. Underneath the box is an accessory compartment O. Illustration Q shows how to arrange sewing feet, needles and bobbins in the accessory box.

0 Darning foot
1 Standard sewing foot
2 Clear-view foot
3 Hemmer foot
4 Blindstitch foot
5 Zipper foot

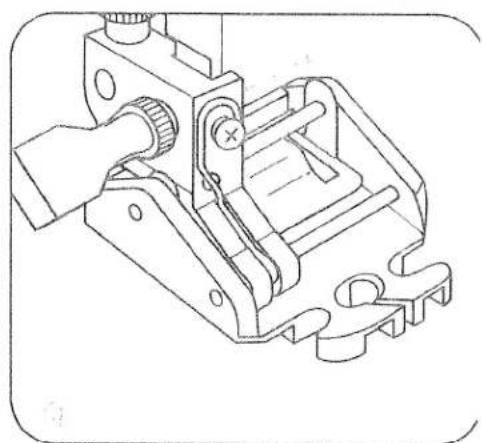

6 Buttonhole foot
7 Edge guide

Line drawing of a sewing machine needle and fabric swatch (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a sewing machine with hands operating it (no text or symbols)

Technical line drawing of a sewing machine tool (no text or symbols)

Nähfuß auswechseln:

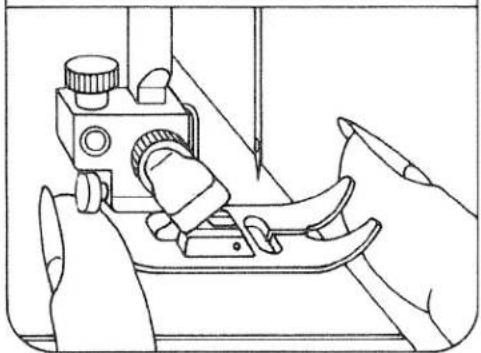

Changing the sewing foot:

- Switch off master switch 104. Pull the foot downwards at the front. The foot then comes out.

Replacing the sewing foot: lower the presser bar lifter and move the foot so that pins N snap into grooves O.

Screws P and Q are for securing accessories. R is the sewing foot retaining screw.

Technical diagram showing various mechanical component designs with Chinese labels

Sewing feet (standard accessories)

0 Darning foot 4 Blindstitch foot
1 Standard sewing 5 Zipper foot foot 6 Buttonhole foot
2 Clear-view foot 7 Edge guide

3 Hemmer foot

Pieds presseurs (accessoires standards)

Technical line drawing of a sewing machine with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Führungslineal (N):

Push the edge guide into hole O, set the required edge distance and tighten it there.

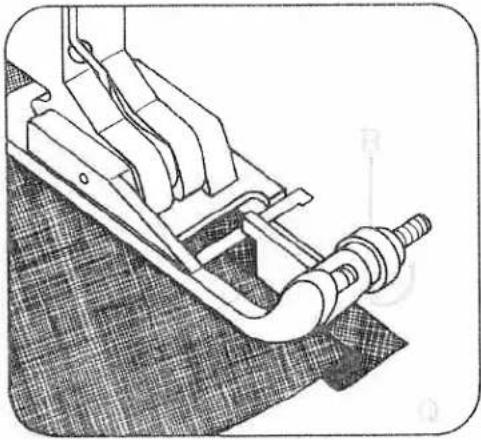

Blindstitching foot

Blindstitching (Q): turn screw R to set guide at the left. The guide is then adjusted according to the needle penetrations. The folded edge of the material runs along guide edge S.

Guide-bord (N):

Technical line drawing of a sewing machine needle and base mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Stopffuß:

Position the needle up. Push bar P to the back and hold it there. Fit the pin of the foot in hole N; at the same time, fork R engages the presser bar, and push the foot fully in. Let go of bar P, which then rests on retaining screw Q. Tighten screw O.

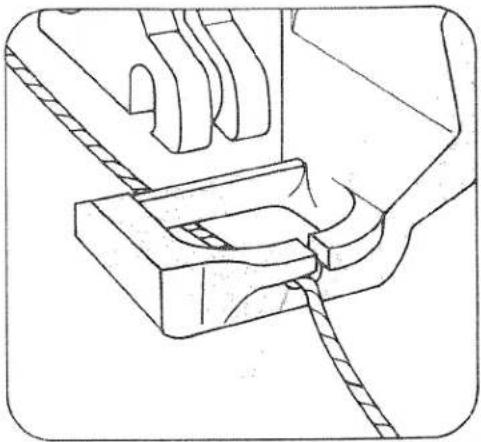

For wool darning the woollen thread is pulled into guide S.

Pied à repriser:

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Reißverschlußfuß:

Push the rear stud into slot N. Then push the foot up until it snaps in place in slot O.

The zipper foot can be moved to the left (Fig. P) or right (Fig. Q), as required.

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

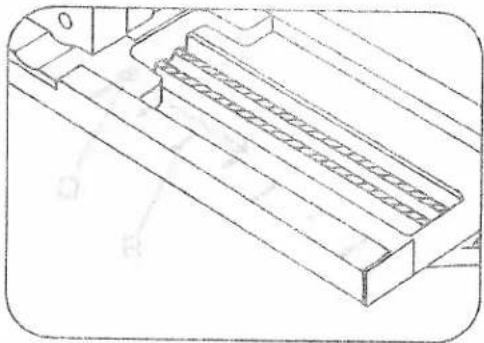

Technical line drawing of a mechanical component with internal channels and mounting features (no text or symbols)

Push button C. Set the needle thread tension at range 3 for buttonhole sewing. Attach the buttonhole foot. Set the stitch density at range N. Insert a gimp thread in the sewing foot as shown in the illustration: Place the thread over the back ridge, and pull it taut so that it is hold in tab P at the front. During sewing, arrow Q runs along scale R. This is how the buttonhole length is determined. For sewing buttonholes use light sewing thread.

Diagram of a laboratory apparatus with two U-shaped tubes and a vertical rod, accompanied by a spring scale and a magnified inset labeled 'C' (no text or symbols on the diagram itself)

2 4 B

Simple line drawing of a coiled spring or tube with a separate scale labeled '3' and letter 'A' (no text or symbols on the diagram itself)

Knopflochnähen:

Pull the bottom of the buttonhole foot forward as far as it will go.

1 Sew first buttonhole seam. Raise the needle
2 Push button B in until 4 to 6 bartacking stitches are sewn, holding the workpiece firmly, then release the button.
3 Push button A. Sew the second buttonhole seam the same length as the first.
4 Push button B in until 4 to 6 bartacking stitches are sewn, holding the material firmly, then release the button.
5 Sew a few tying stitches. Remove the fabric, pull the filler cord taut and trim.
6 Cut the buttonhole open.

Before sewing buttonholes in the garment it is recommended to sew a buttonhole as a test.

Illustration of two different types of hairpins, one with a spring and the other with scissors cutting through a sheath (no text or symbols)

Zeichnungen sind ohne Nähfuß. Drawings do not include sewing foot. Les illustrations ne montrent pas la semelle du pied presseur. I disegni sono eseguiti senza piedino.

Line drawing of a sewing machine needle and fabric (no text or symbols)

Changing the needle (System 130/705 H): Switch off master switch 104. Loosen screw N. Take out the needle. Push the needle up as far as it will go (with its flat side facing toward the back). Tighten the screw.

Technical diagram showing two views of a device with labeled parts and directional arrows indicating motion or operation.

Dropping the feed dog:

Open free arm cover 119. Push the drop-feed control toward D (feed dog dropped) or toward O (sewing position).

Illustration of a hand holding a folder next to a device with a rack and cable attachment (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted, showing internal components and mounting holes (no text or symbols)

Reinigen und Ölen:

Pull out the mains plug. Tilt the needle plate up at the back (N) and take it out (O). Clean the feed dog and the parts in the sewing hook area with a soft brush. Do not oil the machine. Only apply a drop of oil in the hook raceway (see ill.) occasionally.

Line drawing of a hand operating a mechanical device with a clip and base (no text or symbols)

Line drawing of a hand holding a cylindrical object with a dashed circular feature above it (no text or symbols)

Changing the light bulb:

Pull out the mains plug. Close the hinged top cover and swing up the carrying handle. Insert the edge guide into cutout O, push down the lamp housing and hold it there. Turn the light bulb toward N and take it out. Insert the new bulb so that its pins slide in slots P. Push it up and turn it toward O. Pull out the edge guide.

Using the adequate needle guarantees a better working up of the material.

Fabric weight: light Needle size: 60, 70, 75		Fabric weight: medium Needle size: 80, 90		Fabric weight: heavy Needle size: 100, 110, 120
Needle points
System & No.	Profile	Point & eye	Suitable for
130/705 H 70, 80		Light ball point	Universal needle for fine-meshed synthetics, fine linen, chiffon, batiste, organdy, woolens, velvet, fancy seams and embroidery work.
130/705 H-SUK 70, 110		Medium ball point	Coarse knitted fabrics, Lastex, double-jersey fabrics, Quiana and Simplex.
130/705 H-PS 75, 90		Medium ball point	Stretch-fabric needle developed especially for Pfaff. Particularly suitable for delicate stretch and knitted fabrics.
130/705 H-SKF 70, 110		Heavy ball point	Wide-meshed corsetry, Lycra, Simplex and Lastex.
130/705 H-J 90-110		Acute round point	Twill, workwear, heavy linen, blue jeans and light canvas.
130/705 H-LR 70-120		Narrow twist point	Leather, suede, calf and goatskin leathers.
130/705 H-PCL 80-110		Narrow wedge point with left-twist groove	Imitation leathers, plastic materials, plastic sheeting and oilcloth.
130 H-N 70-110		Light ball point, long eye	Seams topstitched with buttonhole silk or No. 30/3 synthetic thread.
130/705 H-WING 100		Hemstitching point	Attractive hemstitching on heavily dressed materials, organdy and glass cambric.

	System & No.	Stitch length	Stitch width	Needle spacing	Suitable for
	130/705 H-ZWI 80	2.5 mm2.5 mm	--	1.6 mm2.0 mm	Medium-wide cording
	130/705 H-ZWI 8090100	2.5 mm2.5 mm3.0 mm	---------	2.5 mm3.0 mm4.0 mm	Wide cordingExtra wide cordingExtra-wide cording
Decorative designs sewn with twin needlesBefore you start sewing, turn the handwheel and check to make sure the needles stitch into the fabric properly. In this way, needle breakage can be largely avoided.
[6463]	Decorative and zigzag patterns
	130/705 H-ZWI 808080	0.5-1.5 mm0.5-1.5 mm0.5-1.5 mm	widenarrownarrow	1.6 mm2.0 mm2.5 mm	OrnamentationsOrnamentationsOrnamentations
[5647]	Special hemstitching twin needle
	130/705 H-ZWI-Ho 80100	2.0-3.0 mm2.0-3.0 mm	very narrowvery narrow	---------	Decorative hem-stitching effect.Heavily dressed fabrics are par-ticularly suitable.

Needle not inserted correctly.

Push needle up as far as it will go, its flat shank side facing toward the back.

Wrong needle used.

Insert system 130/705 H needle.

Machine threaded incorrectly.

Check threading.

Needle too thin for thread used.

Insert thicker needle.

2. Needle thread breaks

For any of the above reasons.

See par. 1 above.

Thread tension too strong.

Regulate thread tensions.

Poor-quality or knotty thread used, or thread that has become too dry by excessive storage.

Use only good-quality thread.

3. Needle breaks

Needle not pushed up as far as it will go.

Insert new needle and push it up as far as it will go.

Needle bent.

Insert new needle.

Needle too thin or too thick.

Refer to needle table.

Needle bent and strikes needle plate because work is pushed or pulled.

Allow machine feed to work alone.

Bobbin case improperly inserted.

Only guide the material lightly.

When inserting the bobbin case, push it in as for as it will go.

4. Seam is not uniform

Tension out of adjustment.

Check upper and lower tensions.

Thread too thick, knotty or hard.

Use first-class thread only.

Bobbin thread wound unevenly.

During bobbin winding, do not hold thread in hand, but pass it through the bobbin tension stud.

Kinks appear on top and bottom of material

Thread machine properly and check both tensions.

Cause:

Remedy:

5. Machine feeds irregularly or not at all

Lint has accumulated between tooth rows of feed dog.

Remove needle plate and clean out lint.

Feed dog dropped. (Drop-feed control is at right.)

Set drop-feed control at left.

6. Machine runs with difficulty

Thread ends in hook raceway

Remove thread ends and put a drop of oil into hook raceway.

7. The machine (1147) does not sew the stitches on the push-buttons

Fancy-stitch thumb-wheel is engaged

Disengage thumb-wheel: set at white dot.

9. Important note:

Before exchanging either sewing foot or needle, switch off master switch 104. Never run a threaded machine unless there is a piece of fabric under the sewing foot. If you have to leave the machine, even for a short while, be sure to switch off the master switch. This is particularly important when children are around.

The special accessories listed below are intended for special sewing jobs.

They can be obtained from your dealer at an extra charge.

Accessory	Part. No.	Sewing Operation
Applique foot	93-035 920-91	For appliqué work
Binder (remove sewing foot holder)	98-053 484-91	For binding edges with tape
Cording foot, 5 grooves(twin needle with 1.8-2.5 mm needle gauge)	93-035 950-91	For cording work(Needle size 80,for fine cordingneedle size 70)
Cording foot, 7 grooves(twin needle with 1.4-1.8 mm needle gauge)	93-035 953-91
Cording blade (2 ea.)	93-035 952-45
Fringe sewing foot	93-035 943-91	For sewing fringes and for basting
Straight-stitch foot	98-694 803-00	For topstitching andsewing very delicateand soft fabrics (silk jersey, etc.)
Needle plate with round hole	98-694 810-00
Felling foot, 4.5 mm	93-035 946-91	For felled seams
Felling foot, 6.5 mm	93-035 948-91
Shirring foot	93-035 998-91	For shirring valances
Single-needle cording foot	93-035 915-91	For single-needle cording
Eyeletting plate	93-036 975-45	For eyeletting
Overlock foot	98-620 404-00	For finishing raw edges or for joiningelastic fabrics and simultaneouslyovercasting their edges
Hemmer foot (rolled edge), 2 mm	98-694 804-00	For hemming edges with zigzag stitches
Knitted edge foot	98-035 957-91	For sewing knitted materials
Teflon foot	98-694 801-00	For sewing plastic materials
Fancy-stitch foot	98-694 879-00	For sewing fancy patterns

Contents

Page

Bobbin winding preparations.... 4

Buttonholing 37-39

Changing the fuse 43

Changing the light bulb 42

Changing the needle 40

Changing the sewing feet. 32

Checking the bobbin thread tension 10

Checking the needle thread tension.... 16

Cleaning and oiling 41

Detachable work support and accessory box.... 30, 31

Disengaging the sewing mechanism 5

Drawing up bobbin thread.... 14

Dropping the feed dog 40

Electrical connection 2

Fancy stitches and combinations, Model 1147....28-29

Fault finding 54, 55

Finger-tip controls 20

Foot control.... 3,16

Inserting the bobbin 10

Inserting the bobbin case.... 11

Needle chart 46,47

Placing spool of thread on pin.... 11

Presser bar lifter.... 15

Regulating the stitch length.... 18

Reverse sewing.... 19

Selecting the needle position for straight stitching.... 26

Selecting stretch stitches.... 24

Selecting utility stitches 23

Sewing feet 33

Special sewing feet 34-37

Stitch program chart....72-75

Thread cutter 17

Upper threading and threading of needle.... 12,13

Utility and stretch stitch combinations 25

Winding the bobbin from a second spool.... 6,7

Winding through the needle eye.... 8,9

14	15	16	17	18	19	20
M stretch F	M stretch G	I	I D	I F	I G	K

21	22	23	24	25	26	27
K	K	I stretch	I F stretch	I G stretch	I K stretch	K stretch
D	G				D

28	29	30	31	32	33	34
K stretch D	K stretch G	K stretch M	H	H D	L C	L D

Stitch program chart

Tested in this chart are the stitch program number, the corresponding stitch and, in the lower half, the buttons to be pressed

to sew this seam pattern. For all stitch programs marked "stretch", turn the stitch length control toward "stretch" as far as it

01			02
	G	H	D	DE	E	F

03A

B

C

04stretch

G

05stretch

06M

No.	Stitch	Application
01	Straight stitch	All ordinary sewing operations and 6-mm fancy stitching operations.
02	Zigzag stitch	Edge finishing, applique work, inserting lace, button sewing, satin stitching, embroidering, darning etc.
03	Buttonholes	Just push the buttons and the buttonhole is finished. The stitch density can be regulated.
04	Elastic triple straight stitch	Seams exposed to great stress which stretch under stress.
05	Elastic triple zigzag stitch	Flat, elastic reinforcing seams, as well as sewing and mending corsetry.
06	Elastic stitch	Inserting patches and darning rips on elastic fabrics.
07	Elastic ornamental stitch	Inserting patches and darning tears on elastic materials or sewing ornamental seams on elastic fabrics.
08	Crown stitch	An ornamental seam, e.g. on night gowns.
09	Elastic blindstitch	Hemming elastic fabrics with invisible stitches.
10	Scallop stitch	For decorating handkerchiefs, for example.

ll go. For all other programs, select the tch length as desired. The individual tch programs and their application are

described in more detail in the table below.

07	08	09	10	11	12	13
L	ME	MF	MG	M stretch	MD stretch	ME stretch

14	15	16	17	18	19	20
M stretch F	M stretch G	I	I D	I F	I G	K

lo.	Stitch	Application
1	Honeycomb stitch	Sewing on elastic threads or covering seams on terry cloth.
2	Joint stitch	A durable ornamental joining seam.
3	Florentine stitch, narrow	For decorating hems, e.g. on bed linen.
4	Florentine stitch, wide	Ornamental seams, e.g. on bed linen.
5	Houndstooth stitch	Ornamental seams, e.g. on table linen.
6	Lampshade stitch, wide	Classical ornamental seam on all plain fabrics.
7	Viennese stitch, narrow	Ornamental seams, e.g. on napkins.
8	Viennese stitch, wide	Ornamental seams, e.g. on table cloths.
9	Lampshade stitch, narrow	Classical ornamental seam on plain fabrics.
20	Shell-edge stitch, wide	Effective edge finish on dainty fabrics.

21	22	23	24	25	26	27
K	K	I stretch	I stretch	I stretch	I stretch	K stretch
D	G		F		D

28	29	30	31	32	33	34
K stretch	K stretch	K stretch	H	HD	LC	LD

No.	Stitch	Application
21	Elastic edge stitch	Finishing edges that do not fray
22	Shell-edge stitch narrow	Ornamental seams, e.g. on girls' dresses.
23	Closed overlock stitch, wide	Covering folded fabric edges with a fancy seam.
24	Pennant stitch	Decorative joining seam and sewing on borders.
25	Closed overlock stitch, narrow	Sewing on dainty lace.
26	Turkish stitch	Topstitching patches.
27	Overlock stitch, wide	Elastic assembly and edge finishing seams on knitted fabrics.
28	Peacock stitch	Festive ornamental seam, e.g. on table linen.
29	Overlock stitch, narrow	Dainty border ornamentation.
30	Knurl stitch	Ornamental seams on light clothing.
31	Blindstitch, wide	Hemming heavier fabrics with invisible stitches.
32	Blindstitch, narrow	Hemming light-weight fabrics with invisible stitches.
33	Peak stitch	A dainty ornamental seam, e.g. on ladies' handkerchiefs.
34	Mound stitch	Ornamental seam, e.g. on children's napkins.

35	36	37	38	39	40	41
L	L	H stretch	H D stretch	H G stretch	L stretch	L D stretch
F

42	43	44	45	46	47	48
L stretch	L stretch	L stretch	L stretch	L stretch	L stretch	L stretch

No.	Stitch	Application
35	Viennese stitch, narrow	Ornamental seams, e.g. on table linen.
36	Lampshade stitch, narrow	Classical ornamental seam on plain fabrics.
37	Pullover stitch, wide	Elastic edge finishing seams on jersey fabrics.
38	Pullover stitch, medium	Elastic edge finishing seams on polo shirt farbrics.
39	Pullover stitch, narrow	Elastic edge finishing seams on lightweight jersey crepe.
40	Feather stitch	Decorative cover seams, e.g. on aprons.
41	Dutch stitch	Ornamental seam, e.g. on kitchen textiles.
42	Snail stitch	Ornamental seam, e.g. for bath room furrishings.
43	Loom stitch	Ornamental seam, e.g. for country-look dresses.
44	Diagonal stitch	Ornamental seam, e.g. for plain-look, modern dresses.
45	Trellis stitch	Ornamental seam, e.g. for airy ladies' dresses.
46	Twig stitch	Ornamental seam, e.g. for hiking wear.
47	Border stitch	Ornamental seam, e.g. for border ornamentations on pockets.
48	Triangular stitch	Ornamental seam, e.g. for children's night dresses.

14	15	16	17	18	19	20
M stretch F	M stretch G	I	I D	I F	I G	K

14	15	16	17	18	19	20
M stretch F	M stretch G	I	I D	I F	I G	K

21	22	23	24	25	26	27
K	K	I stretch	I F stretch	I G stretch	I K stretch	K stretch
D	G

28

29

30

31

32

33

34

K stretch

K stretch

K stretch

H

H

L

L

D

G

M

D

C

D

42	43	44	45	46	47	48
L stretch	L stretch	L stretch	L stretch	L stretch	L stretch	L stretch
F		K		E I	G K	M K

Subject to alterations in design.

Printed in West Germany.
