GB

Lawn mower 0705

INTRODUCTION

• This tool is intended for domestic lawn mowing only
  • This tool is not intended for professional use
• Check whether the packaging contains all parts as illustrated in drawing ②
• When parts are missing or damaged, please contact your dealer

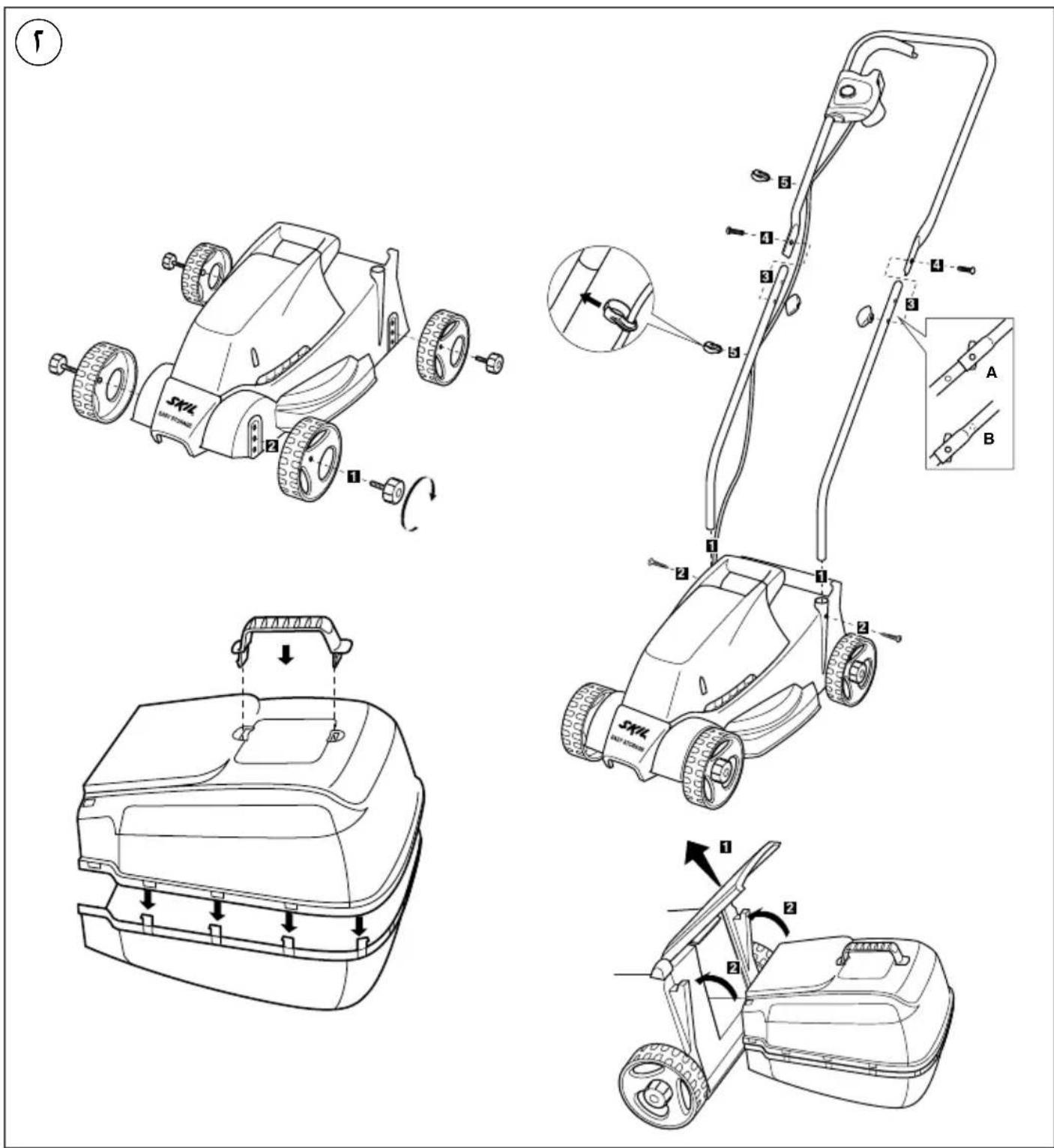

- Assembly instructions ②

- the sequence of the numbers appearing in the drawing corresponds with the sequence of the steps to be followed for assembling the lawn mower

! firmly tighten all screws and nuts

- Read this instruction manual carefully before use and save it for future reference ④

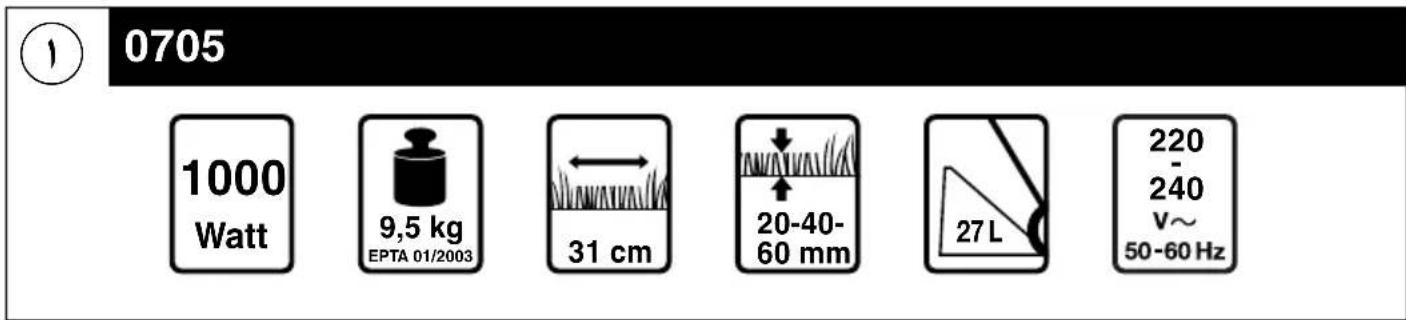

TECHNICAL SPECIFICATIONS ①

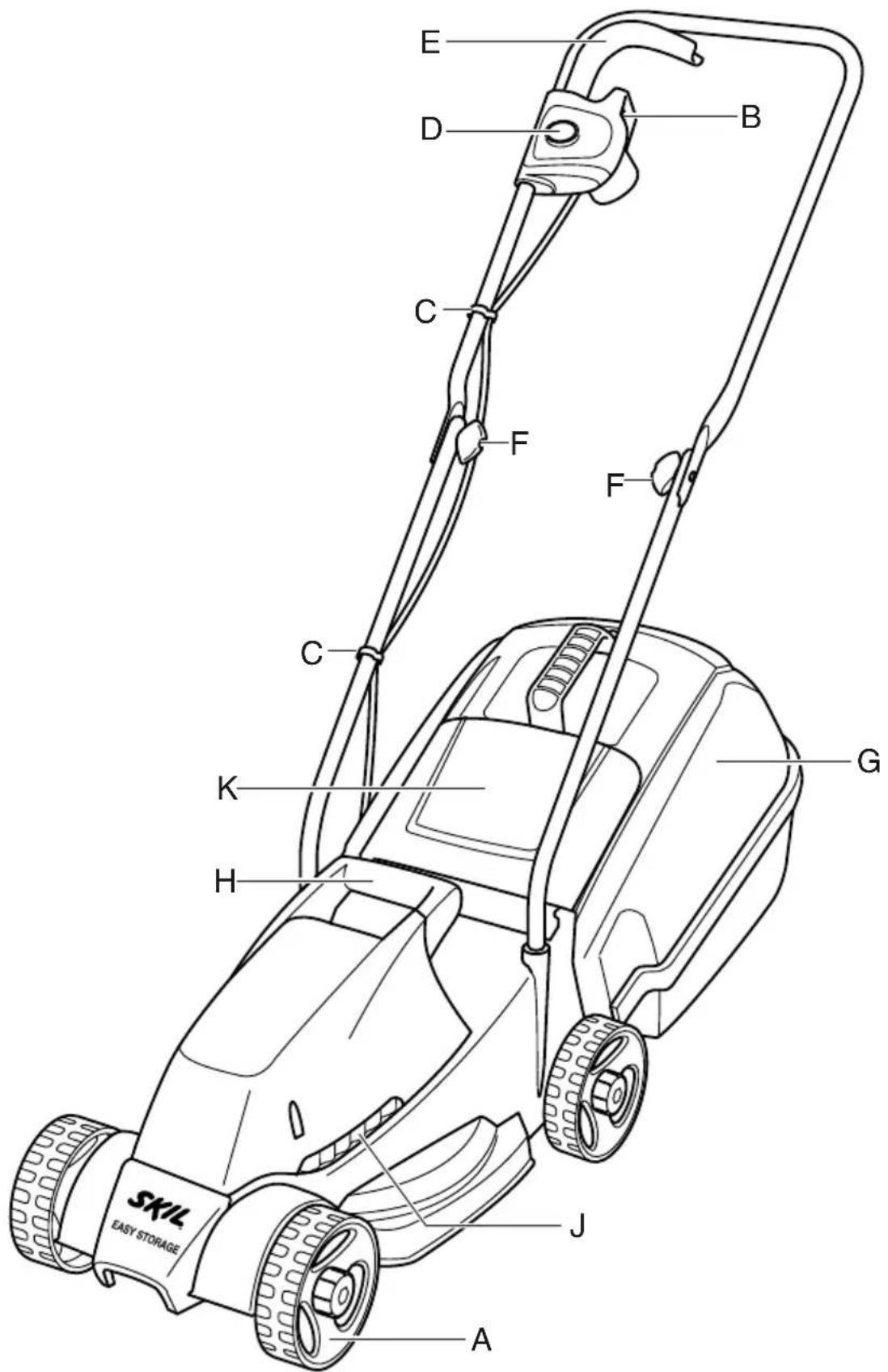

TOOL ELEMENTS ③

A Wheel
B Cord restraint
C Cord clip
D Safety switch
E Trigger switch
F Securing wing nut

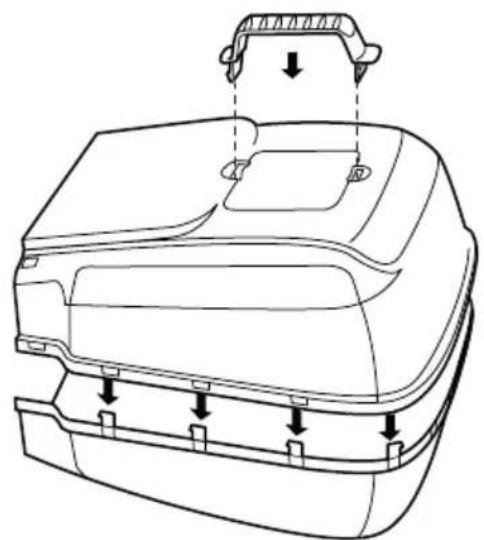

G Grass box
H Transport handle
J Ventilation slots
K Rear guard

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

5) SERVICE

SPECIFIC SAFETY INSTRUCTIONS FOR LAWN MOWERS

EXPLANATION OF SYMBOLS ON TOOL

④ Read the instruction manual before use
⑤ Double insulation (no earth wire required)
⑥ Do not expose tool to rain

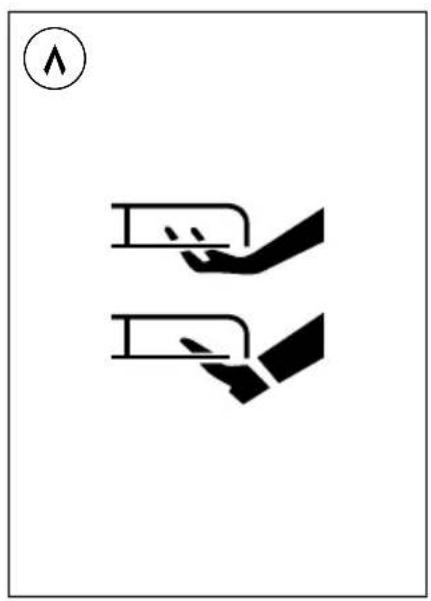

⑦ Pay attention to the risk of injury caused by flying debris (keep bystanders a safe distance away from work area)
⑧ Beware of sharp blades
⑨ Keep the (extension) cord away from the rotating cutting blade

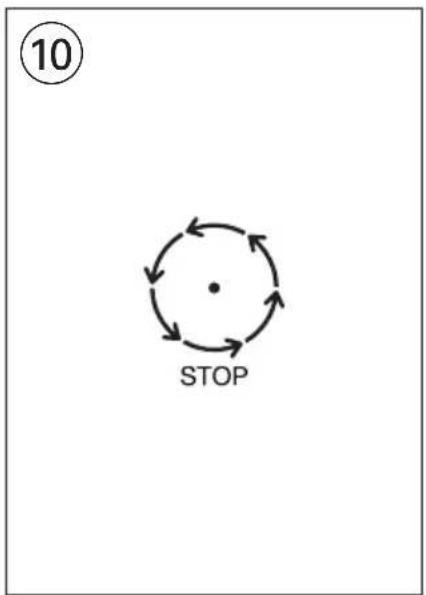

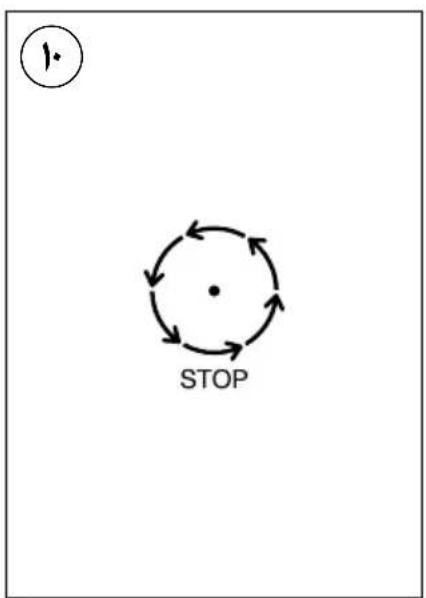

⑩ The cutting blade continues to rotate for a short time after tool is switched off (do not touch rotating blade)
⑪ Switch off and disconnect plug before cleaning/maintenance or if (extension) cord is damaged or entangled
⑫ Do not dispose of the tool together with household waste material

GENERAL

• Avoid operating the mower on wet lawns
• The user is responsible for accidents or hazards occurring to other people or their property
• Never operate the tool with a defective rear guard or defective grass box
• When operating the tool without grass box, ensure that the rear guard is in closed position (risk of injury caused by rotating cutting blade)

• Always disconnect plug from power source

• whenever leaving the tool unattended
• before clearing jammed material
• before checking, cleaning or working on the tool
• after striking a foreign object

- whenever the tool starts vibrating abnormally

ELECTRICAL SAFETY

• Inspect the cord periodically and have it replaced by a qualified person, if damaged
• When operating the tool use a residual current device (RCD) with a triggering current of 30 mA maximum
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• Only use an extension cord of types H05VV-F or H05RN-F which is intended for outdoor use and equipped with a watertight plug and coupling-socket
• Do not run over, crush or pull the (extension) cord
• Protect the (extension) cord from heat, oil and sharp edges
• Inspect the extension cord periodically and replace it, if damaged (inadequate extension cords can be dangerous)

PERSONAL SAFETY

• Do not operate the tool when barefoot or wearing open sandals; always wear sturdy shoes and long trousers
• Be familiar with the controls and the proper use of the tool
• Never mow in the direct vicinity of persons (especially children) and animals
  • Always keep hands and feet away from rotating parts
• Keep away from the discharge opening at all times
• Switch on the motor according to instructions and with feet well away from the cutting blade
• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety (local regulations can restrict the age of the operator)
• Ensure that children do not play with the tool
• Operate the mower at a walking pace only (do not run)
• Keep proper footing on slopes and do not mow extremely steep slopes
• Be extremely careful when moving backwards or pulling the mower towards you

BEFORE USE

• Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualified person; never open the tool yourself
• Thoroughly inspect the area where the mower is to be used and remove all hard objects which could be caught up and thrown by the cutting mechanism
  • Always ensure that the cutting mechanism is in good working order (have worn or damaged parts replaced)
• Keep all nuts, bolts and screws tight to be sure that the mower is in safe working condition

DURING USE

• Only mow with sufficient daylight or with appropriate artificial lighting

• Do not tilt the tool when starting or switching on the motor, except if the tool has to be tilted for starting in long grass (in this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator); always ensure that both hands are in the operating position before returning the tool to the ground

• Ensure that the cutting blade is at a complete standstill when tilting the tool for crossing surfaces other than grass and when transporting it to and from the area to be mowed

• Mow across the face of slopes (never up and down)
• Be extremely careful when changing direction on slopes
• Never pick up or carry the lawn mower while the motor is running
• Always switch off tool and disconnect plug from power source if the power supply cord or the extension cord is cut, damaged or entangled (do not touch the cord before disconnecting the plug)
• Never use the tool when cord is damaged; have it replaced by a qualified person

USE

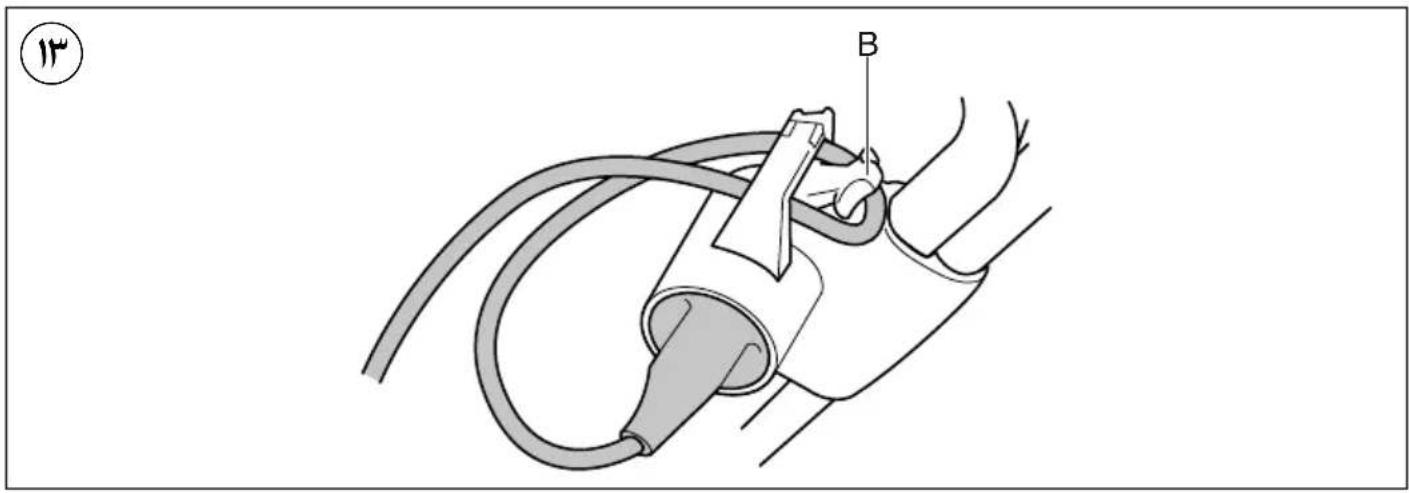

- Cord restraint ⑬

- hook the loop in the extension cord over restraint B as illustrated

- pull tight to secure the extension cord

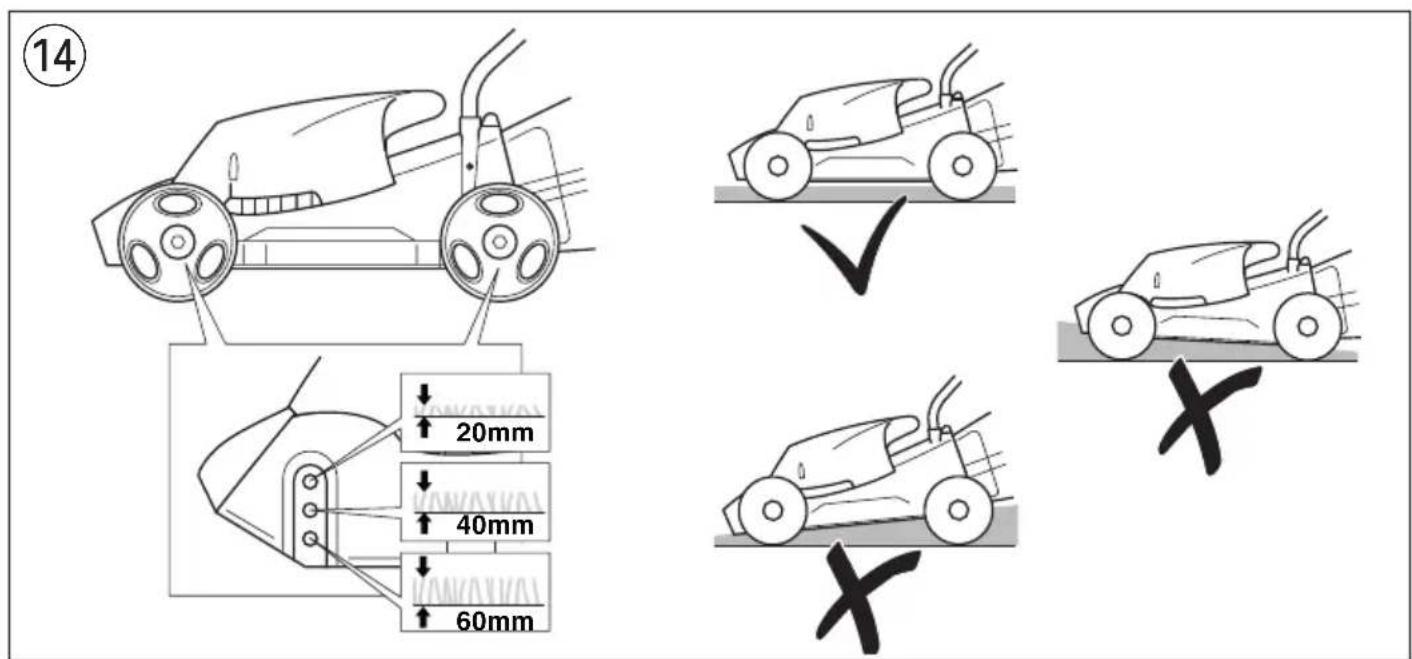

- Adjusting cutting height (20-40-60 mm) ⑭

! disconnect plug from power source and ensure that the cutting blade has stopped rotating

- turn the mower upside down

- locate the two front wheels as well as the two rear wheels into the desired cutting height position (20, 40 or 60 mm)

! ensure that the four wheels are fixed in the same cutting height position

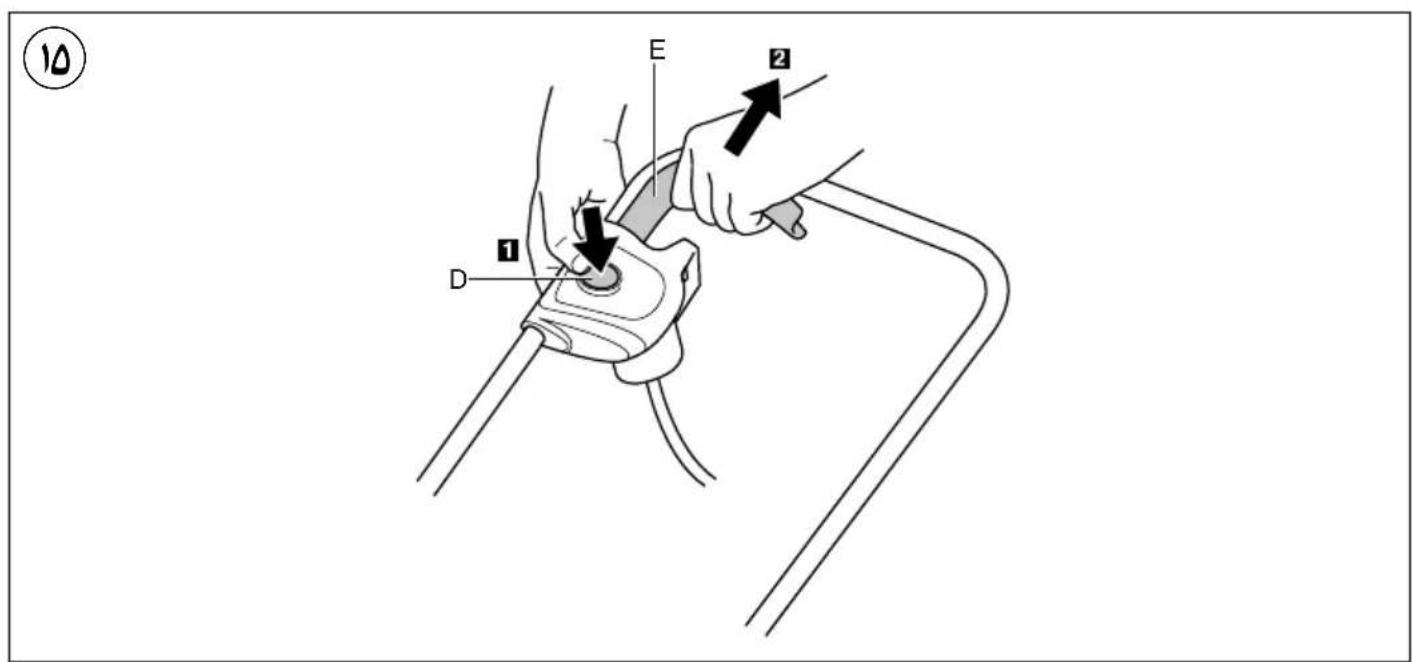

- On/off safety switch ⑮

Prevents the tool from being switched on accidentally

- switch on tool by first pressing safety switch D and then pulling trigger switch E

- switch off tool by releasing trigger switch E

! after switching off the tool the blade continues to rotate for a few seconds

- Operating instructions

- hold the mower with both hands

- place the mower on the edge of the lawn and mow in a forward direction

- reverse at the end of each turn, slightly overlapping the previous cut strip

- only use the mower on dry grass

- keep the mower away from solid objects and plants

- for mowing long grass, first set the cutting mechanism to the maximum cutting height, then to a lower cutting height

! adjust your walking pace when mowing long grass

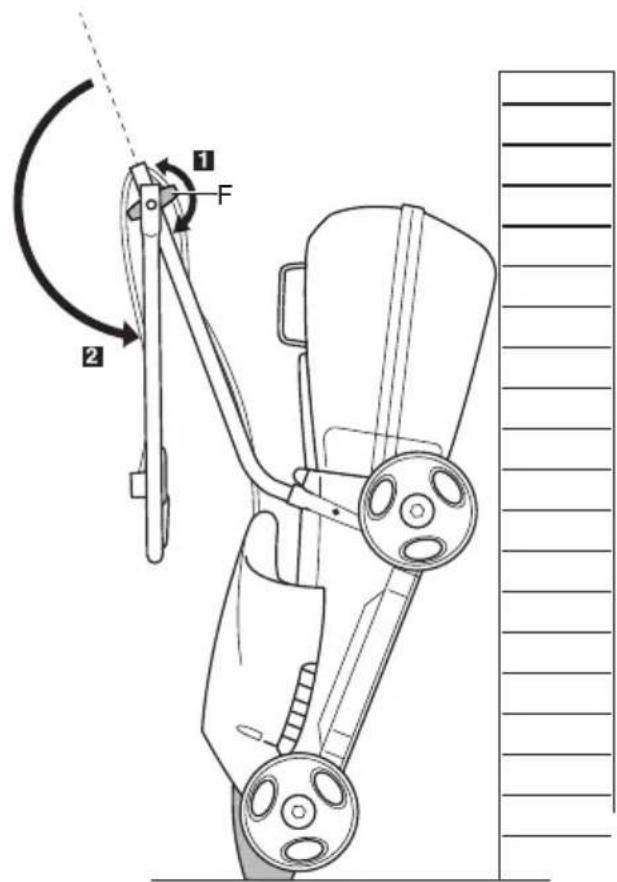

- Storage ⑯

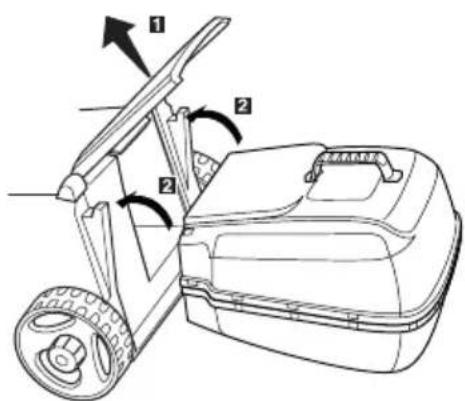

- for saving substantial storage space fold the tool handle (using wing nut F ③) and store the tool as illustrated; empty grass box first

! ensure that the (extension) cord is not trapped when folding/unfolding the tool handle (do not drop the handle)

- do not place other objects on top of the mower when stored

- store the mower indoors in a dry place

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots J ③)
- Clean the mower after each use with a hand brush and a soft cloth

! do not use water (especially no high-pressure sprays)

- remove compacted grass cuttings from the blade area with a wooden or plastic implement

- Regularly check the grass box for wear or damage

- Regularly check for worn or damaged blades and bolts and have them replaced in sets to preserve balance

- Replacing the cutting blade ⑰

! disconnect plug from power source and remove grass box G ③

! wear protective gloves

- turn the mower upside down

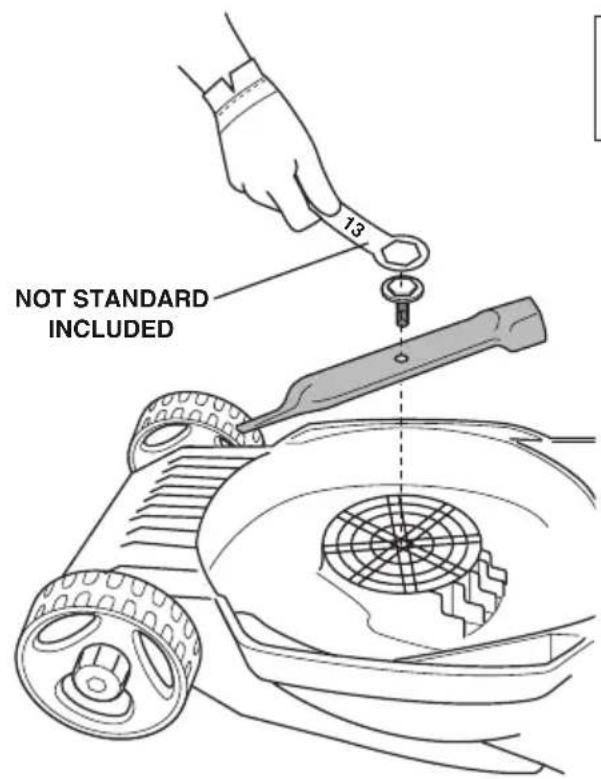

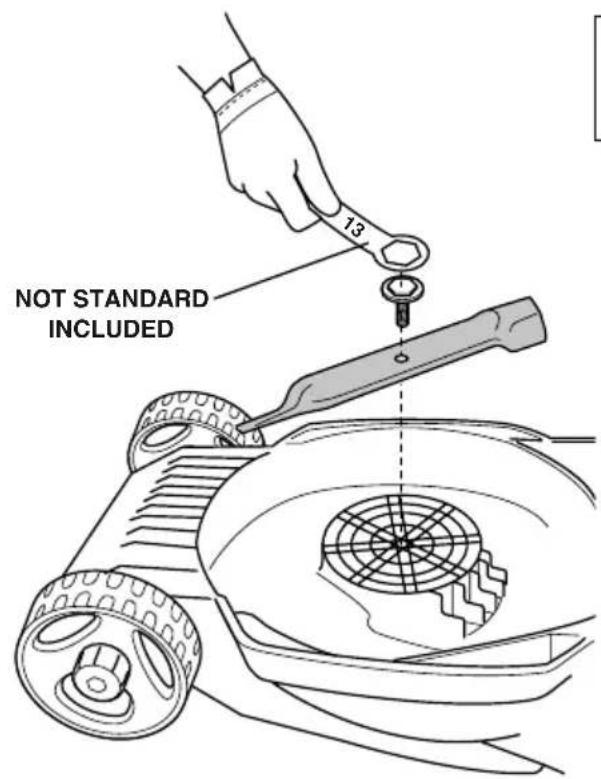

- remove/mount the cutting blade with a spanner 13 as illustrated

! only use replacement cutting blades of type GD61BX.00.06 SKB

- thoroughly clean the shaft area and the underside of the tool before mounting the cutting blade

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

TROUBLESHOOTING

- The following listing shows problem symptoms, possible causes and corrective actions (if these do not identify and correct the problem, contact your dealer or service station)

! switch off the tool and disconnect the plug before investigating the problem

★ Tool does not operate

- no power supply -> check power supply (power cable, circuit breakers, fuses)

- power supply socket faulty -> use another socket

- extension cord damaged -> replace extension cord

- grass too high -> increase cutting height and tilt tool

★ Tool operates intermittently

- extension cord damaged -> replace extension cord

- internal wiring defective -> contact dealer/service station

★ Tool leaves ragged finish or motor labours

- cutting height cut too low -> increase cutting height

- cutting blade blunt -> replace cutting blade

- underside of tool badly clogged -> clean tool

- cutting height not uniform -> set 4 wheels at same cutting height

★ Cutting blade not rotating

- cutting blade obstructed -> clear obstruction

- blade nut/bolt loose -> tighten blade nut/bolt

★ Tool vibrates abnormally

- cutting blade damaged -> replace cutting blade

- blade nut/bolt loose -> tighten blade nut/bolt

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑫ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY (€)

• We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60335, EN 61000, EN 55014 in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC, 2011/65/EU
• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

NOISE/VIBRATION

• Measured in accordance with EN 60335 the sound pressure level of this tool is 72 dB(A) and the sound power level 92 dB(A) (standard deviation: 3 dB), and the vibration 2.1 m/s ^2 (hand-arm method; uncertainty K = 1.5 m/s ^2 )
• Measured in accordance with 2000/14/EC (EN/ISO 3744) the guaranteed sound power level LWA is lower than 95 dB(A) (conformity assessment procedure according to Annex VI) Notified body : KEMA, Arnhem, NL Notified body identification number : 0344

• The vibration emission level has been measured in accordance with a standardised test given in EN 60335; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

BRUIT/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

GELUID/VIBRATIE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten Chinese characters and a small sketch, likely from a document or form.

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

LJUD/VIBRATION

Handwritten signature or name in Chinese characters

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

⑧ Pass deg for skarpe kniver

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ST∅Y/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten signature or name in a document, partially obscured by faint text.

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

MELU/TÄRINÄ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Pure abstract line drawing without any text, numbers, or symbols

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

RUIDOS/VIBRACIONES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Abstract sketch of two figures with no visible text or symbols

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

RUÍDO/VIBRAÇÕES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten Chinese characters, possibly a signature or note

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ZAJ/REZGÉS

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten Chinese characters, possibly a signature or note

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten Chinese characters, possibly a signature or note

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten signature or name in Chinese characters

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ШУМ/ВИБРАЦИИ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten Chinese characters and a small number, likely from a document or form

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

BUCI/VIBRACIJAMA

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

BUKA/VIBRACIJE

- Mereno u skladu sa EN 60335 nivo pritiska zvuka ovog alata iznosi 72 dB(A) a jačina zvuka 92 dB(A) (normalno odstupanje: 3 dB), a vibracija 2,1 m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

- Garantovani nivo jačine zvuka LWA, izmeren u skladu sa 2000/14/EC (EN/ISO 3744) niži je od 95 dB(A) (postupak za procenu usklađenosti u skladu sa Aneksom VI) Obavešteno telo : KEMA, Arnhem, NL Identifikacioni broj obaveštenog tela : 0344

- Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60335; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene

- korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti

- vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti

! zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

SLO

Kosilnica

0705

UVOD

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

Handwritten Chinese characters and a small sketch, possibly a signature or annotation

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

TROKSNIS/VIBRĀCIJA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.08.2012

ال CONDITION/الهتراز

Technical diagram of a mechanical device with labeled parts and motion indicators

IV

13 NOT STANDARD INCLUDED

Warning symbol and electrical plug diagram showing a warning sign and a plug with a circular symbol

B

12 20mm 40mm 60mm

10 E 2 D 1

Σ 0 1

Simple geometric diagram of two concentric squares (no text or symbols)

Warning sign with rain and cloud symbol, indicating no protection or rain.

Warning sign with pictogram and human figure, indicating hazard or accident risk

Two black-and-white diagrams showing hand gestures, one with a circular symbol and the other with two curved arrows (no text or labels)

9

Simple line drawing of an open book with a wrench inside, a small robot-like figure, and a circle containing the number 11 (no text or symbols on the main elements)

Symbolic image of a trash bin with a 'X' mark and a circular symbol, possibly indicating a restriction or prohibition.

E D B C F F C K H G SKIL EASY STORAGE J A

0705 1000 Watt 9,5 kg EPTA 01/2003 31 cm 20-40-60 mm 27 L 220 240 V~ 50-60 Hz

Technical diagram showing exploded and assembled views of a SXL lawn mower with labeled parts and motion arrows

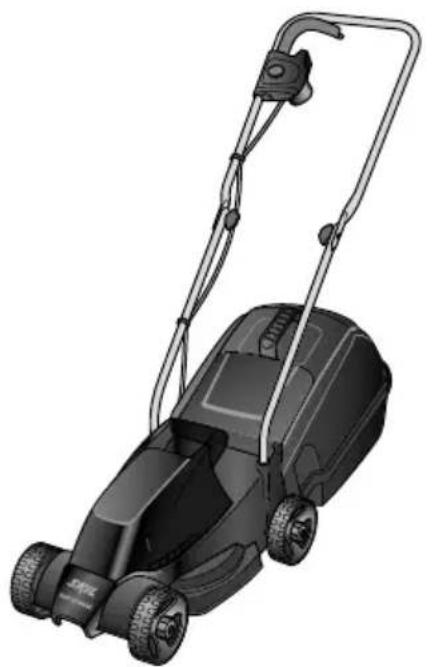

Illustration of a black lawn mower with attached handle and wheels (no text or symbols)

دليل الاستعمال AR راهنماي اصلی FA
