Product Type	Electric Lawn Mower
Brand	Skil
Model	0713 AA
Power Supply	Mains electric 230 V ~ 50 Hz
Motor Power	1200 W
Cutting Width	38 cm
Cutting Height	20 to 70 mm adjustable in 6 positions
Grass Bag Capacity	45 liters
Weight	12.5 kg
Sound Level	93 dB(A)
Vibration	5.5 m/s²
Main Features	Central cutting, grass bag, centralized height adjustment, folding ergonomic handle
Maintenance and Cleaning	Clean the housing after each use, sharpen or replace the blade once per season
Safety	Double electrical insulation, motor stops in 3 seconds, safety handle
Spare Parts and Repairability	Replacement blade, grass bag, wheels, belt available. Repairability index: 7.5/10
Warranty	2 years (extension possible)

Frequently Asked Questions - 0713 AA SKIL

How to start the Skil 0713 AA mower?

Plug the mower into a mains socket, press the safety button (located on the handle) and simultaneously pull the start handle upward. Release the safety button once the engine is running.

How to adjust the cutting height?

Use the centralized adjustment lever located on the motor cover. Turn it to the desired position among the 6 notches (from 20 to 70 mm). Stop the engine before any adjustment.

What to do if the mower does not start?

Check that the power cord is properly connected and that the residual-current circuit breaker has not tripped. Also check that the safety handle is fully pressed and that the blade is not blocked by debris.

How to clean the mower housing?

Unplug the mower and remove the blade. Use a water jet or brush to remove grass residues. Dry thoroughly before reinstalling the blade. Never use corrosive products.

When should the blade be sharpened or replaced?

Sharpen the blade at least once per season or as soon as the cut is no longer clean. Replace it if it is chipped, deformed, or if the balancing is disturbed. Use a Skil replacement blade.

What is the capacity of the grass bag?

The grass bag has a capacity of 45 liters. It is equipped with a fill indicator. Empty it regularly to avoid reducing the mower's efficiency.

How to store the mower in winter?

Clean it thoroughly, empty and clean the bag, store it in a dry place protected from frost. Fold the handle to reduce space. Unplug the power cord.

Can the mower be used on wet ground?

No, for safety reasons and to avoid damaging the motor, do not use the mower in the rain or on a soaked lawn. Wait until the grass is dry.

Where to find spare parts for the Skil 0713 AA?

Spare parts (blade, bag, wheels, belt) are available on the official Skil website, at authorized dealers, or on online spare parts platforms. Use model number 0713 AA.

What to do if the blade hits a stone or object?

Stop the mower immediately and unplug it. Inspect the blade to see if it is damaged. Replace it if necessary. Also check the housing alignment and the absence of cracks.

USER MANUAL 0713 AA SKIL

3D rendering of a lawn mower with attached lever and wheels (no text or symbols visible)

GB ORIGINAL INSTRUCTIONS 7
F NOTICE ORIGINALE 10
D ORIGINALBETRIEBSANLEITUNG 14
NL ORIGINELE GEBRUIKSAANWIJZING 18
S BRUKSANVISNING I ORIGINAL 22
DK ORIGINAL BRUGSANVISNING 26
N ORIGINAL BRUKSANVISNING 29
FIN ALKUPERÄISET OHJEET 33
E MANUAL ORIGINAL 36
P MANUAL ORIGINAL 40
I ISTRUZIONI ORIGINALI 44
H EREDETI HASZNÁLATI UTASÍTÁS 48
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 52
TR ORİJINAL İŞLETME TALİMATI 56
PL INSTRUKCJA ORYGINALNA 60
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 64

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 68
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 72
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 77
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 81
SK PÔVODNÝ NÁVOD NA POUŽITIE 85
HR ORIGINALNE UPUTE ZA RAD 89
SRB ORIGINALNO UPUTSTVO ZA RAD 93
SLO IZVIRNA NAVODILA 96
EST ALGUPÄRANE KASUTUSJUHEND 100
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 103
LT ORIGINALI INSTRUKCIJA 107
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 111
AL UDHËZIMET ORIGJINALE 115
AR دليل الاستعمال 126
④ RAHENMAI AUSLI 124

www.skil.com

①
0713

②

③

Simple geometric diagram with two nested squares, no text or symbols present

Two black hand gestures with a numbered circle (7) and no text or symbols on the gestures themselves.

Simple line drawing of an open book with a wrench inside, a tool icon with an arrow, and a numbered circle (9) in the top-left corner.

13

Pure electrical circuit lines without any symbols

14

15

16

GB

Lawn mower 0713

INTRODUCTION

• This tool is intended for domestic lawn mowing only
• This tool is not intended for professional use
- Check whether the packaging contains all parts as illustrated in drawing ②
- When parts are missing or damaged, please contact your dealer
- Assembly instructions ② -the sequence of the numbers appearing in the drawing corresponds with the sequence of the steps to be followed for assembling the lawn mower !firmly tighten all screws and nuts
- Read this instruction manual carefully before use and save it for future reference ④

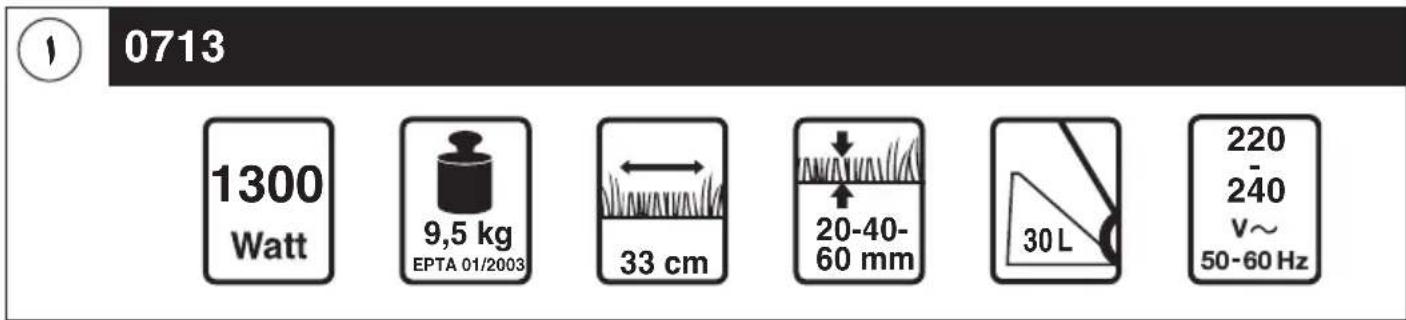

TECHNICAL SPECIFICATIONS ①

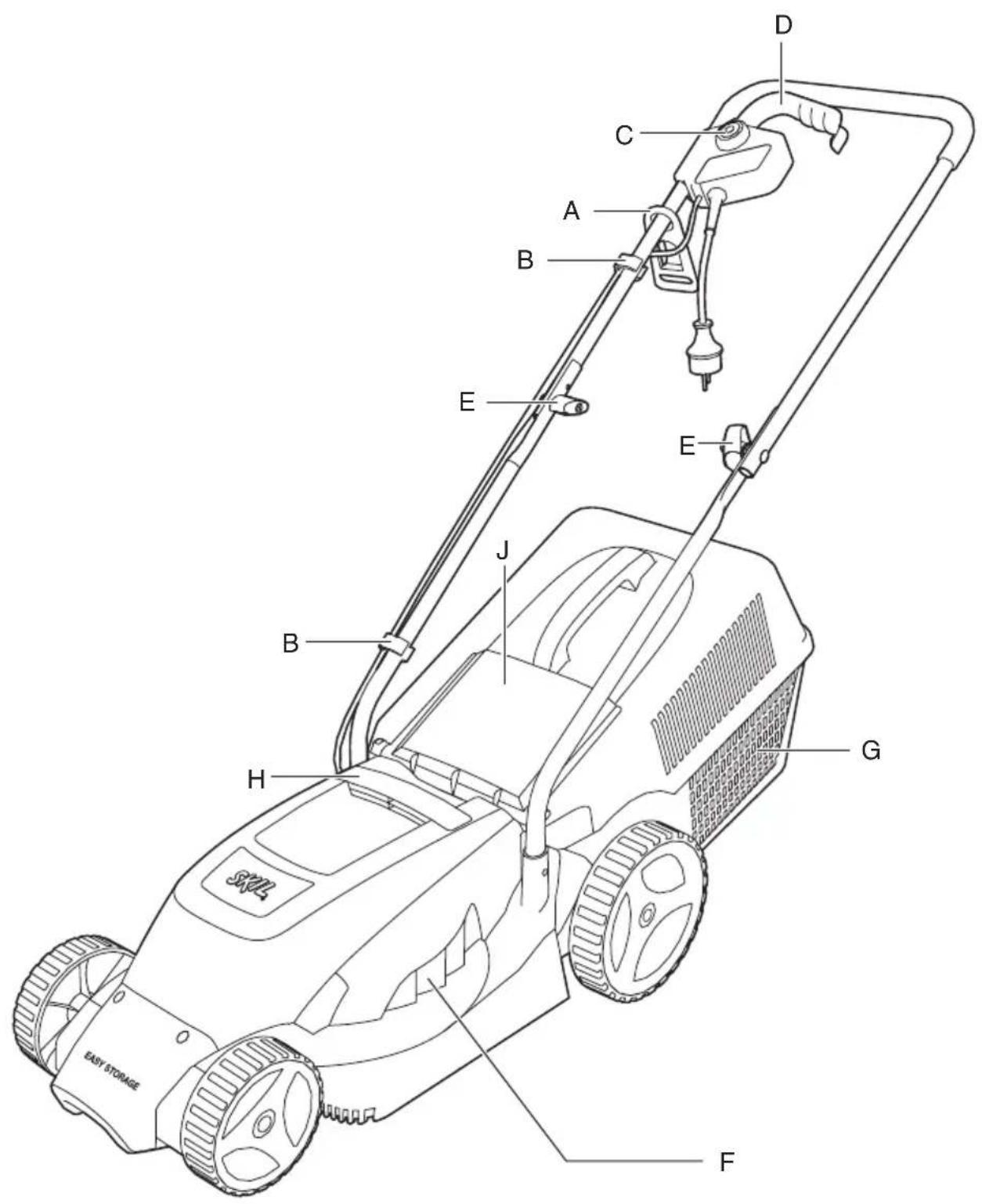

TOOL ELEMENTS ③

A Cord restraint
B Cord clip
C Safety switch
D Trigger switch
E Securing wing nut
F Ventilation slots
G Grass box
H Transport handle
J Rear guard

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded

2) ELECTRICAL SAFETY

surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY INSTRUCTIONS FOR LAWN MOWERS

EXPLANATION OF SYMBOLS ON TOOL

④ Read the instruction manual before use

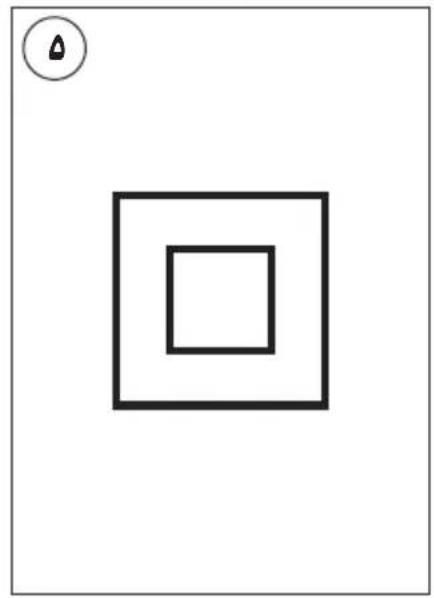

⑤ Double insulation (no earth wire required)

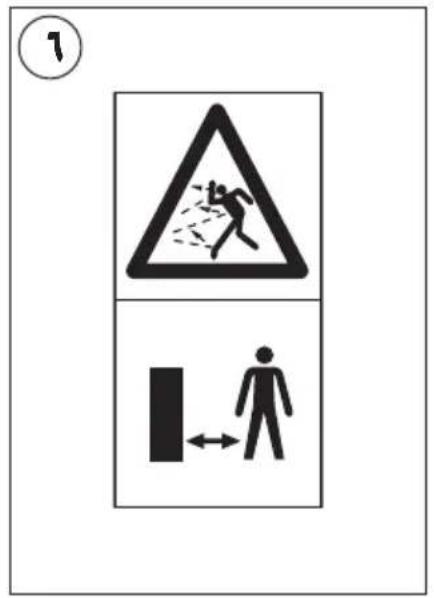

⑥ Pay attention to the risk of injury caused by flying debris (keep bystanders a safe distance away from work area)

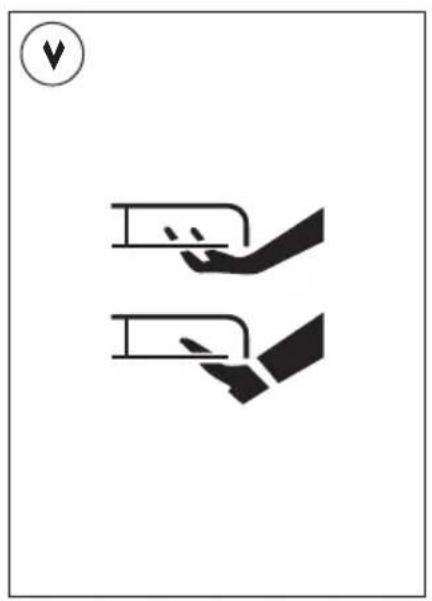

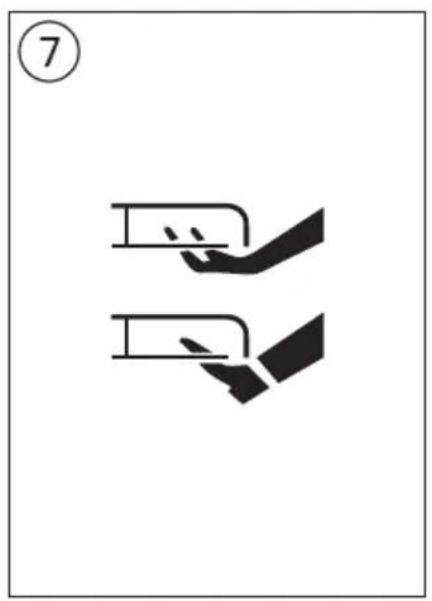

⑦ Beware of sharp blades
⑧ Keep the (extension) cord away from the rotating cutting blade
⑨ Switch off and disconnect plug before cleaning/maintenance or if (extension) cord is damaged or entangled

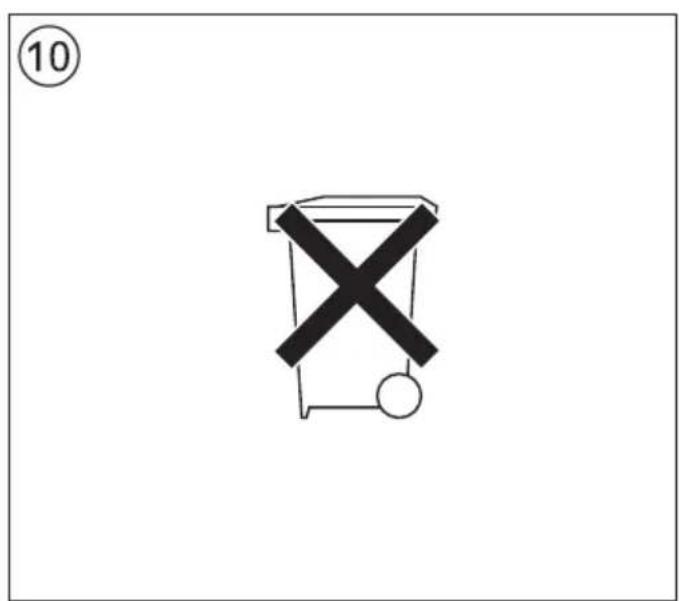

⑩ Do not dispose of the tool together with household waste material

GENERAL

• Avoid operating the mower on wet lawns
• The user is responsible for accidents or hazards occurring to other people or their property
• Never operate the tool with a defective rear guard or defective grass box
• When operating the tool without grass box, ensure that the rear guard is in closed position (risk of injury caused by rotating cutting blade)
  • Always disconnect plug from power source

-whenever leaving the tool unattended
-before clearing jammed material
-before checking, cleaning or working on the tool
-after striking a foreign object
-whenever the tool starts vibrating abnormally

ELECTRICAL SAFETY

• Inspect the cord periodically and have it replaced by a qualified person, if damaged
• When operating the tool use a residual current device (RCD) with a triggering current of 30 mA maximum
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• Only use an extension cord of types H05VV-F or H05RN-F which is intended for outdoor use and equipped with a watertight plug and coupling-socket
• Do not run over, crush or pull the (extension) cord
• Protect the (extension) cord from heat, oil and sharp edges
• Inspect the extension cord periodically and replace it, if damaged (inadequate extension cords can be dangerous)

PERSONAL SAFETY

• Do not operate the tool when barefoot or wearing open sandals; always wear sturdy shoes and long trousers
• Be familiar with the controls and the proper use of the tool
• Never mow in the direct vicinity of persons (especially children) and animals
  • Always keep hands and feet away from rotating parts
• Keep away from the discharge opening at all times
• Switch on the motor according to instructions and with feet well away from the cutting blade
• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety (local regulations can restrict the age of the operator)
  • Ensure that children do not play with the tool
  • Operate the mower at a walking pace only (do not run)
• Keep proper footing on slopes and do not mow extremely steep slopes
• Be extremely careful when moving backwards or pulling the mower towards you

BEFORE USE

• Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualified person; never open the tool yourself
• Thoroughly inspect the area where the mower is to be used and remove all hard objects which could be caught up and thrown by the cutting mechanism
  • Always ensure that the cutting mechanism is in good working order (have worn or damaged parts replaced)
• Keep all nuts, bolts and screws tight to be sure that the mower is in safe working condition

DURING USE

• Only mow with sufficient daylight or with appropriate artificial lighting
• Do not tilt the tool when starting or switching on the motor, except if the tool has to be tilted for starting in long grass (in this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator); always ensure that both hands are in the operating position before returning the tool to the ground
• Ensure that the cutting blade is at a complete standstill when tilting the tool for crossing surfaces other than grass and when transporting it to and from the area to be mowed

• Mow across the face of slopes (never up and down)
- Be extremely careful when changing direction on slopes
- Never pick up or carry the lawn mower while the motor is running
- Always switch off tool and disconnect plug from power source if the power supply cord or the extension cord is cut, damaged or entangled (do not touch the cord before disconnecting the plug)
- Never use the tool when cord is damaged; have it replaced by a qualified person

USE

• Cord restraint ⑪
  -hook the loop in the extension cord over restraint A as illustrated -pull tight to secure the extension cord

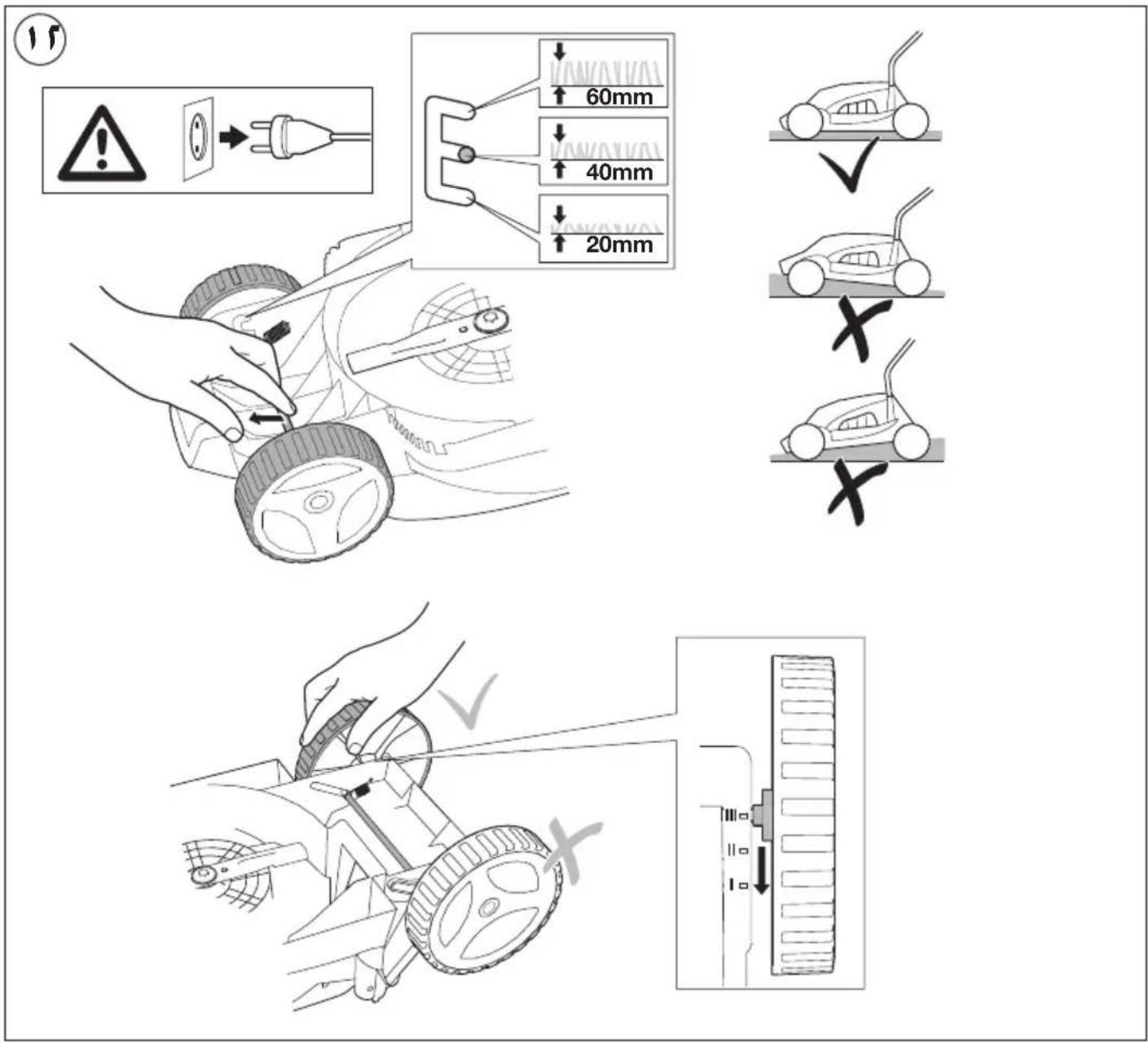

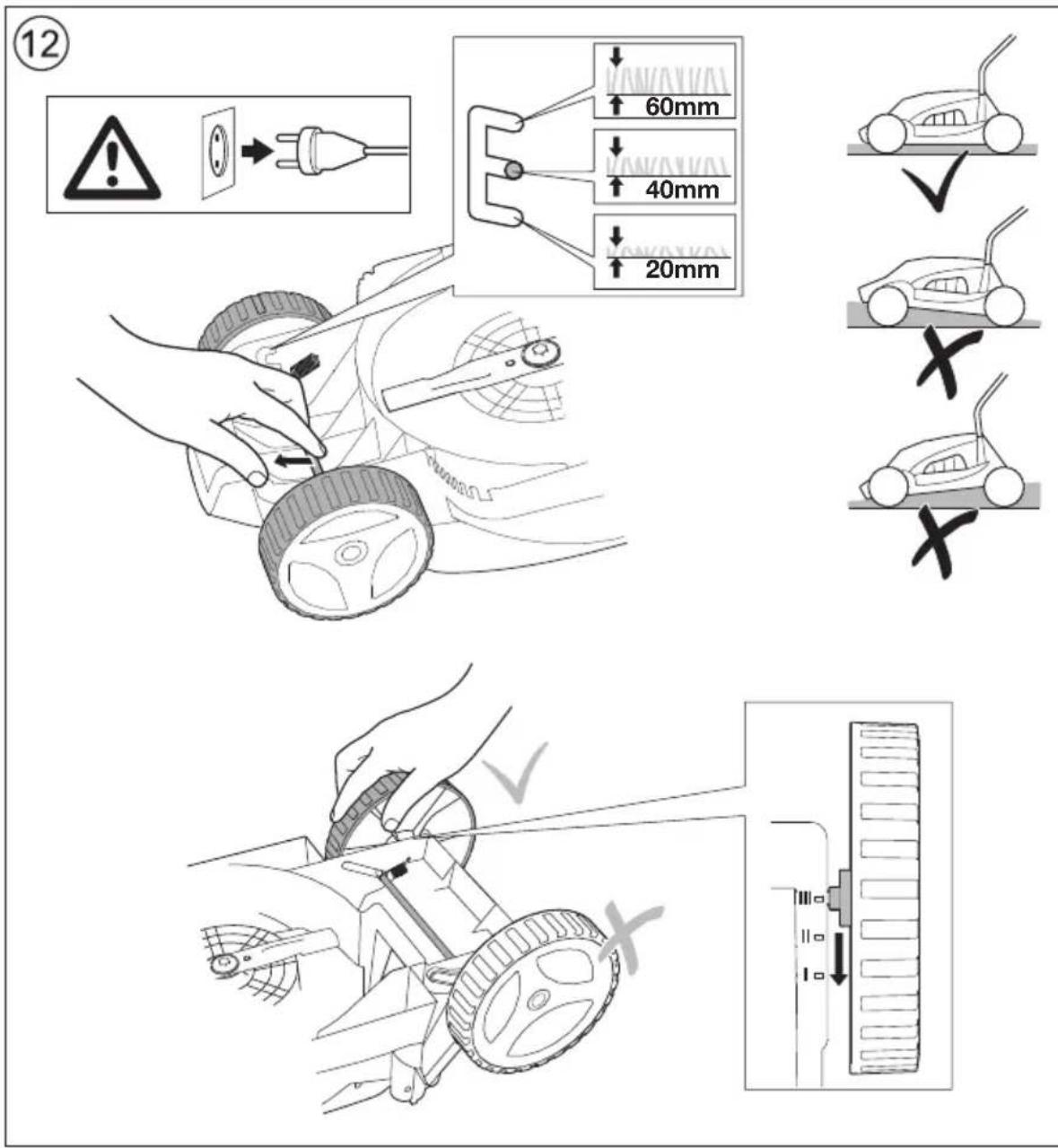

  • Adjusting cutting height (20-40-60 mm) ⑫
  !disconnect plug from power source and ensure that the cutting blade has stopped rotating
  -turn the mower upside down
  -locate the two front wheels as well as the two rear wheels into the desired cutting height position (20, 40 or 60 mm)
  !ensure that the four wheels are fixed in the same cutting height position

• Adjusting height of tool handle ⑬

I = HIGH

II = LOW

• On/off safety switch ⑭

Prevents the tool from being switched on accidentally -switch on tool by first pressing safety switch C and then pulling trigger switch D

-switch off tool by releasing trigger switch D

!after switching off the tool the blade continues to rotate for a few seconds

- Operating instructions

-hold the mower with both hands

-place the mower on the edge of the lawn and mow in a forward direction

-reverse at the end of each turn, slightly overlapping the previous cut strip

-only use the mower on dry grass

-keep the mower away from solid objects and plants

-for mowing long grass, first set the cutting mechanism to the maximum cutting height, then to a lower cutting height

!adjust your walking pace when mowing long grass

- Storage ⑮

-for saving substantial storage space fold the tool handle (using wing nut E) and store the tool as illustrated; empty grass box first

!ensure that the (extension) cord is not trapped when folding/unfolding the tool handle (do not drop the handle)

-do not place other objects on top of the mower when stored

-store the mower indoors in a dry place

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots F ③)

• Clean the mower after each use with a hand brush and a soft cloth
  !do not use water (especially no high-pressure sprays)
  -remove compacted grass cuttings from the blade area with a wooden or plastic implement

• Regularly check the grass box for wear or damage

- Regularly check for worn or damaged blades and bolts and have them replaced in sets to preserve balance

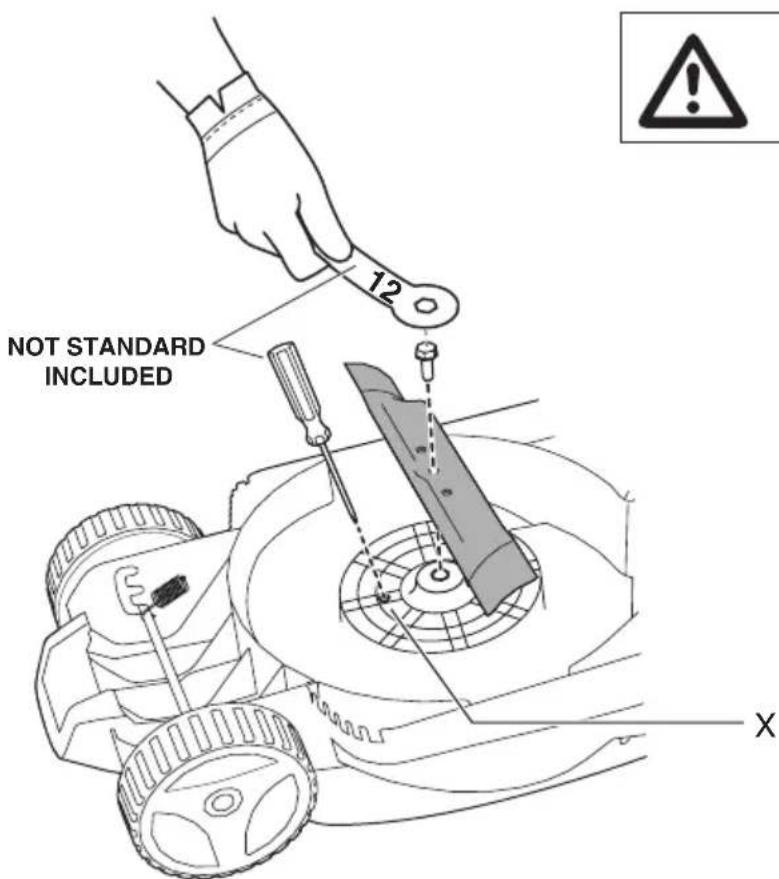

• Replacing the cutting blade ⑯

!disconnect plug from power source and remove grass box G ③

!wear protective gloves

-turn the mower upside down

-insert a screwdriver into hole X to prevent the fan from rotating

-remove/mount the cutting blade with a spanner 12 as illustrated

!only use replacement cutting blades of the correct type (SKIL spare part number 2610Z05602, marked ELM 1000-0-8)

-thoroughly clean the shaft area and the underside of the tool before mounting the cutting blade

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

TROUBLESHOOTING

- The following listing shows problem symptoms, possible causes and corrective actions (if these do not identify and correct the problem, contact your dealer or service station) !switch off the tool and disconnect the plug before investigating the problem

★ Tool does not operate

-no power supply -> check power supply (power cable, circuit breakers, fuses)
-power supply socket faulty -> use another socket
-extension cord damaged -> replace extension cord
-grass too high -> increase cutting height and tilt tool

★ Tool operates intermittently

-extension cord damaged -> replace extension cord
-internal wiring defective -> contact dealer/service station

★ Tool leaves ragged finish or motor labours

-cutting height cut too low -> increase cutting height
-cutting blade blunt -> replace cutting blade
-underside of tool badly clogged -> clean tool
-cutting height not uniform -> set 4 wheels at same cutting height

★ Cutting blade not rotating

-cutting blade obstructed -> clear obstruction
-blade nut/bolt loose -> tighten blade nut/bolt

★ Tool vibrates abnormally

-cutting blade damaged -> replace cutting blade

-blade nut/bolt loose -> tighten blade nut/bolt

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑩ will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

• We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60335, EN 61000, EN 55014 in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC, 2011/65/EU
  • Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

NOISE/VIBRATION

• Measured in accordance with EN 60335 the sound pressure level of this tool is 71 dB(A) and the sound power level 91 dB(A) (standard deviation: 2 dB), and the vibration 1.7 m/s ^2 (hand-arm method; uncertainty K = 1.5 m/s ^2 )
• Measured in accordance with 2000/14/EC (EN/ISO 3744) the guaranteed sound power level LWA is lower than 93 dB(A) (conformity assessment procedure according to Annex VI)

Notified body : TÜV SÜD Industrie Service GmbH, Munich, DE

Notified body identification number : 0036
- The vibration emission level has been measured in accordance with a standardised test given in EN 60335; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

!protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

C€13

BRUIT/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

GERÄUSCH/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

GELUID/VIBRATIE

Operations & Engineering

Olat Dijkgraat

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

LJUD/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

ST∅Y/VIBRASJON

$$ I = K O R K E A $$

$$ \mathrm{II} = \text { M A T A L A } $$

• On/off turvakytkin ⑭

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 12.08.2013

CE13

ZAJ/REZGÉS

Operations & Engineering

Olat Dijkgraat

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

ШУМ/ВИБРАЦИИ

$$ I = V Y S O K \acute {A} $$

$$ \mathrm{II} = \mathrm{NIZKA} $$

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

BUCI/VIBRACIJAMA

• Mjereno prema EN 60335 prag zvučnog tlaka ovog električnog alata iznosi 71 dB(A) a jakost zvuka 91 dB(A) (standardna devijacija: 2 dB), a vibracija 1,7 m/s ^2 (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )
• Pri mjerenju izvedenom u skladu s 2000/14/EG (EN/ISO 3744) zajamčena razina buke LWA manja je od 93 dB(A) (postupak vrednovanja usklađenosti prema Dodatku VI)

Obaviješteno tijelo: TÜV SÜD Industrie Service GmbH, Munich, DE

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima "električni alat" odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU
a) Držite Vaše područje rada čisto i pospremljeno. Nered ili neosvetljena radna područja mogu voditi nesrećama.
b) Ne radite sa aparatom u okolini ugroženoj od eksplozija u kojoj se nalaze zapaljive tečnosti, gasovi ili prašine. Električni alati proizvode varnice, koje mogu zapaliti prašinu ili isparenja.
c) Za vreme korišćenja električnog alata držite podalje decu i druge osobe. Kod skretanja možete izgubiti kontrolu nad aparatom.
2) ELEKTRIČNA SIGURNOST
a) Utikač za priključak aparata mora odgovarati utičnoj kutijici. Utikač se nesme nikako menjati. Ne upotrebljavajte adaptere utikača zajedno sa aparatima sa uzemljenom zaštitom. Ne promenjeni utikači i odgovarajuće utičnice smanjuju rizik od električnog udara.
b) Izbegavajte telesni kontakt sa uzemljenim gornjim površinama, kao što su cevi, grejanja, šporeti i rashladni ormani. Postoji povećani rizik od električnog udara, ako je Vaše telo uzemljeno.
c) Držite aparat podalje od kiše ili vlage. Prodiranje vode u električni aparat povećava rizik od električnog udara.
d) Ne koristite kabl da bi aparat nosili, obesili ili ga izvlačili iz utičnice. Držite kabl dalje od vreline, ulja, oštrih ivica ili pokretnih delova aparata. Oštećeni ili zamršeni kablovi povećavaju rizik od elektrinog udara.
e) Ako sa nekim električnim alatom radite u prirodi, upotrebljavajte samo produžne kablove koji su dozvoljeni za spoljno područje. Upotreba produžnog kabla pogodnog za spoljno područje smanjuje rizik od električnog udara.
f) Ako rad električnog alata ne može da se izbegne u vlažnoj okolini, koristite prekidač strujne zaštite pri kvaru. Upotreba prekidača strujne zaštite pri kvaru smanjuje rizik od električnog udara.
3) SIGURNOST OSOBA
a) Budite pažljivi, pazite na to, šta radite i idite razumno na posao sa električnim alatom. Ne upotrebljavajte aparat, kada ste umorni ili pod uticajem droga, alkohola ili lekova. Momenat nepažnje kod upotrebe aparata može voditi do ozbiljnih povreda.
b) Nosite ličnu zaštitnu opremu i uvek zaštitne naočare. Nošenje lične zaštitne opreme, kao maske za prašinu, sigurnosne cipele koje ne klizaju, zaštitni šlem ili zaštitu za sluh, zavisno od vrste i upotrebe električnog alata, smanjujete rizik od povreda.
c) Izbegavajte nenamerno puštanje u rad. Uverite se da je električni alat isključen, pre nego što ga priključite na struju i/ili na akumulator, uzmete ga ili nosite. Ako prilikom nošenja električnog alata držite prst na prekidaču ili aparat uključen priključujete na struju, može ovo voditi nesrećama.
d) Uklonite alate za podešavanje ili ključeve za zavrtnje, pre nego što uključite aparat. Alat ili ključ koji se nalazi u delu aparata koji se okreće, može voditi povredama.
e) Ne precenjujte sebe. Pobrinite se da sigurno stojite i održavajte u svako doba ravnotežu. Na taj

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

BUKA/VIBRACIJE

- Mereno u skladu sa EN 60335 nivo pritiska zvuka ovog alata iznosi 71 dB(A) a jačina zvuka 91 dB(A) (normalno odstupanje: 2 dB), a vibracija 1,7 m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

- Garantovani nivo jačine zvuka LWA, izmeren u skladu sa 2000/14/EG (EN/ISO 3744) niži je od 93 dB(A) (postupak ocene usaglašenosti prema Dodatku VI) Obavešteno telo : TÜV SÜD Industrie Service GmbH, Munich, DE Identifikacioni broj obaveštenog tela : 0036

- Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60335; on se može koristiti za upoređenje jedne alatke sa drugom,

kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene

-korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti

-vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti

-korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti -vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti

!zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

Kosilnica 0713

UVOD

$$ \begin{array}{l} I = V I S O K O \ \mathrm{II} = \text { N I Z K O } \ \end{array} $$

• Vklopi/izklopi varnostno stikalo ⑭

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

HRUP/VIBRACIJA

- Izmerjeno v skladu s predpisom EN 60335 je raven zvočnega pritiska za to orodje 71 dB(A) in jakosti zvoka 91 dB(A) (standarden odmik: 2 dB), in vibracija 1,7 m/s ^2 (metoda dlan-roka; netočnost K = 1,5 m/s ^2 )

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 12.08.2013

CE13

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

TROKSNIS/VIBRĀCIJA

$$ I = A U K \check {S} T A I $$

$$ \mathsf {I I} = \check {\mathsf {Z E M A I}} $$

• Ijungimo/išjungimo apsauginis jungiklis ⑭

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

БУЧАВА/ВИБРАЦИИ

$$ I = E L A R T \ddot {E} $$

$$ \mathrm{II} = \mathrm{EULET} $$

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

12.08.2013

CE13

ZHURMA/VIBRIMI

Simple line drawing of a pencil (no text or symbols)

-Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Code: -Mode

17

Simple geometric diagram with two concentric squares and a small circle containing a triangle (no text or symbols)

Two black hand gestures with arrows indicating movement, no text or symbols present

Simple line drawing of an open book with a wrench inside, a tool icon with an arrow, and a circle containing the number 9 (no text or symbols on the main elements)

آلة جزالHitsئاش

0713

3D rendering of a Skyl lawn mower with attached lever handle (no text or symbols visible)

SKIL®

دليل الاستعمال

AR

راهنماي اصلی

FA

08/132610Z04831

سکیل أروبا ب.ق - کونینانبرج 60
