Please read this operating instruction manual thoroughly.

Intended use

The monitoring set has been developed to monitor rooms. The transmitter sends acoustic and video signals from its point of installation to the receiver. Any other use is considered unintended use.

The use of this equipment does not substitute personal supervision, e.g. of a child. Users are not relieved of their personal liability.

Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location and safety information

Never lay the transmitter in a baby's/child's bed or playpen.

Ensure that the transmitter and power cable are out of reach of babies/children, i.e. they are at least one meter away.

Pay attention that the components are sufficiently well-ventilated when in operation. Do not lay a cushion, towel or such over the devices.

The devices are not intended for medical purposes. Warning and signal tones from respiratory or heartbeat monitoring equipment are not transmitted.

The installation location plays a decisive role in ensuring proper operation. Maintain a minimum distance of one meter to other electronic equipment, such as microwave ovens or hi-fi systems, since they could cause mutual disturbance.

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the equipment in potentially explosive areas.

Power adapter plug

Attention: Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the monitoring set. Ensure access to the power adapter plugs is not obstructed by furniture or such.

When using the equipment with a power adapter plug, pay attention that the plug and cable are in perfect condition. Kinked or worn cable represents the risk of a fatal accident.

Rechargeable batteries

Attention: Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity.

Power failure

In the event of a power failure, the devices only operate through battery power. Disconnect the power adapter plugs from the devices in this case.

Medical equipment

Attention: Never use the devices in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Risks to health and the environment from batteries!

Never open, damage or swallow batteries or allow them to pollute the environment. They could contain toxic and ecologically harmful heavy metals. You are legally obliged to dispose of batteries at the point-of-sale or authorised collection points where the corresponding containers are provided.

Disposal is free of charge. The above symbols indicate that the batteries must not be disposed of in domestic waste and that they must be disposed of at an authorised collection point.

Packaging materials must be disposed of according to local regulations.

Operating Elements and Indicators

2 Operating Elements and Indicators

1 Antenna (receiver)
2 LC display
3 Brightness control (+/-)
4 Power LED / Battery status LED
5 Loudspeaker
6 Volume control (+/-)
7 Charging station
8 Charging contacts
9 LCD switch, ON/OFF
10 6 V power supply socket
11 Reset button
12 Channel selector switch, 1,2,3,4 AUTO
13 Antenna (transmitter)
14 Lens
15 Power LED
16 Microphone
17 Night light
18 Light sensor for auto. night-time monitoring
19 Power supply socket
20 Pairing button
21 VOX activation switch, CAMERA/AUTO
22 Power switch, ON/OFF
23 Night light switch, AUTO/ON/OFF

3 Putting the Units into Operation

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

The data transmitted (image and/or sound) can be received publicly in the reception range!

Checking the package contents

The package contains:

one camera unit(transmitter)	one monitoring unit(receiver)	one lithium ion battery3.7 V, 1200 mA
two power adapter plugs one	charging station an operating manual

Connecting the transmitter

Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

Operating with a power adapter plug

Connect the transmitter as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

Mains power outlet

Attention: Only use the power adapter plug supplied. Ensure access to the power adapter plug is not obstructed by furniture or such.

Putting the Units into Operation

Connecting the receiver

Attention: Position the receiver with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

Operating with a power adapter plug

Connect the charging station of the receiver as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

Mains power outlet

Attention: Only use the power adapter plug supplied. Ensure access to the power adapter plug is not obstructed by furniture or such.

Operating by rechargeable battery

Slide the battery compartment cover on the rear of the receiver downwards. Insert the battery with the contacts facing down.

Lithium ion battery 3.7 V, 1200 mA

The receiver is supplied together with a rechargeable lithium ion battery (3.7 V, 1200 mA).

Registering the receiver and transmitter / Establishing a connection

The receiver and transmitter are registered. If necessary, registration can also be completed manually:

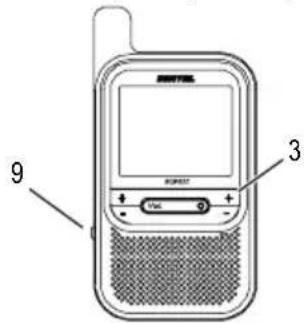

1. Press and hold the Brightness control (3) and, while doing so, switch the LCD switch (9) to ON.
2. Insert a small pointed object in the opening at position (20) to actuate the Pairing button once. The connection LED on the Camera unit flashes briefly.

5.1. Pair ID for Cam1 appears in the display.
6. Then switch the LC display switch (9) OFF and ON again.

When a connection is established, the image viewed by the lens appears in the display.

Monitoring unit (receiver)

9 3

Camera unit (transmitter)

30 20

If you use several Camera units, you must press the Pairing button the respective number of times.

4 Operating the Transmitter

Check the transmitter and receiver are working properly each time before the equipment is put into operation.

Switching the transmitter on/off

1. Set the Power switch (22) to its "ON" position. The Power LED (15) lights up red. The transmitter is now ready to operate.
2. Position the transmitter in a good position for the monitoring tasks required and align the lens to the area to be monitored.
3. To switch the transmitter off, set the Power switch (22) to its "OFF" position.
4. When the VOX switch is set to "CAMERA" (21), the image and ambient sounds are transmitted continually. When set to "AUTO" (21), ambient sounds and the image are transmitted from a sound level of approx. 50 dB.

VOX sensitivity

The VOX ^1 function causes the system to start transmitting automatically from the transmitter to the receiver immediately a voice or sound is detected.

There is a slight delay in the transmission before the receiver can reproduce the voice/sound and picture.

If no voice or sound is detected for longer than one minute, transmission is automatically interrupted.

Night vision

The integrated infrared technology enables image transmission from unlit areas. The night vision function is activated automatically when the light conditions make it necessary.

When the night vision function is activated, the screen display on the receiver turns to black and white. The transmission range is approx. 2 m in this case.

Night light

The night light can be switched on either continuously or automatically on detecting sound levels of 50 dB or more.

1. Set the Night Light switch (23) to "ON". The night light is switched on permanently.
2. Set the Night Light switch (23) to "OFF". The night light is switched off.
3. Set the Night Light switch (23) to "AUTO". The night light is switched on automatically from a sound level of approx. 50 dB.

5 Operating the Receiver

Check the transmitter and receiver are working properly each time before the equipment is put into operation.

Switching the receiver on/off

1. Set the LCD ON/OFF switch (9) to "ON". The Power LED lights up green. The receiver is now ready to operate.
2. To switch the receiver off, set the LCD ON/OFF switch (9) to "OFF".

Setting the volume

Press the (6+) button to increase the volume.
Press the (6-) button to lower the volume.
Set the required volume.

Setting the brightness

Press the (3+) button to increase the brightness.
Press the (3-) button to reduce the brightness.
Set the required brightness.

Selecting a channel

The default setting for channel selection is Channel 1. The monitoring system is capable of managing 4 transmitters at 4 different locations with one monitoring unit. Use the Channel Selector switch (12) for this.

Power LED / Battery status LED

The Power LED (4) (green) also functions as the battery status LED. It flashes orange when the battery needs to be recharged.

Reset

Use the Reset button (11) to return the monitoring system to its default settings.

6 In Case of Problems

Service hotline

Should problems arise with the monitoring set, please refer to the following information first. In the case of technical problems, please contact our hotline within Switzerland under tel. [phone] (cost with Swisscom at time of going to print: CHF 2.60/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems Solutions
Equipment does not function	- Transmitter and/or receiver are not switched on.- The battery is empty or defective.- The power adapter plugs do not make proper contact.
No reception - Transmitter and receiver are not registered.- Transmitter is too far from object being monitored, e.g. baby.Observe the minimum distance of one meter.- The receiver and transmitter are too far apart.
Reception interference - The receiver and transmitter are too far apart.- The battery power is too low.- Other electronic devices are causing interference in the field of transmission.
Beeping noise (acoustic feedback)	- Increase the distance between receiver and transmitter.- Reduce the volume on the receiver.
Noise - The battery power is too low.
Picture but no sound transmission	- Volume setting is too low.
Picture is in black and white - The night vision function is active.
The battery in the receiver cannot be recharged	- The power adapter plug does not make proper contact.

7 Technical Properties

Technical data

Feature Value
Camera (transmitter) Switch: POWER: ON/OFF	CAMERA/AUTONIGHT LIGHT : OFF/AUTO/ONSocket: 6 V DCSensor: 1 night light sensorLED: Connection/Power
Monitoring unit (receiver) Screen: 2.4" TFT LC colour display	Switch: LCD: ON/OFFChannel selection: 1,2,3,4, AUTOSocket: 6 V DCButton: Brightness (+/-)Button: Volume (+/-)LED: Power
Power supply (receiver) Power adapter plug	Input: 100-240 V AC,50-60 Hz, 150 mAOutput: 6 V DC, 800 mALithium ion battery: 3.7 V, 1200 mA
Power supply (transmitter)	Power adapter plugInput: 100-240 V AC,50-60 Hz, 150 mAOutput: 6 V DC, 800 mA
Range	Up to 300 meters under optimum conditions.Range is reduced in buildings through walls,doors etc.
Frequency range	2400 MHz
Permissible ambient temperature	0°C to 40°C
Permissible relative humidity	20% to 75%
Transmission power (TX PA power)	13 ± 1 dBm

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE mark on the device.

To view the complete Declaration of Conformity, please use the download facility on our web site www.switel.com free of charge.

8 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

SWITEL equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device.

Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the SWITEL device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

Important information

The device is equipped with an energy-save switching power supply (input voltage 230 V_AC , output voltage 6 V_DC , 800 mA).

The power consumption of the adapter (receiver) with no load is approx. 0.18 W. The average level of efficiency is approx. 69.56 %. The current consumption is approx. 3 W.

The power consumption of the adapter (transmitter) with no load is approx. 0.18 W. The average level of efficiency is approx. 69.56 %. The current consumption is approx. 1.5 W.

9 Index

C

Connecting the receiver, 44

Connecting the transmitter, 43

D

Declaration of Conformity, 48

E

Establishing a connection, 44

G

Guarantee, 49

M

Maintenance, 49

N

Night light, 45

Night vision, 45

0

Operating by battery, 44

Operating elements, 42

Operating with a power adapter plug, 43, 44

Operation, 45, 46

P

Package contents, 43

Power LED / Battery status LED, 46

Problems, 47

Problems and solutions, 47

R

Registering, 44

Reset, 46

S

Safety information, 40

Selecting a channel, 46

Service hotline, 47

Setting the brightness, 46

Setting the volume, 46

Starting up, 43

Switching the receiver on/off, 46

Switching the transmitter on/off, 45

T

Technical data, 48

Troubleshooting, 47

V

VOX sensitivity, 45

SWITEL Declaration of Conformity

This equipment complies with the European R&TTE directive.

To view the complete Declaration of Conformity, please refer to the free download available at our web site: www.switel.com

Service Hotline

In the event of technical problems, you can contact our hotline service, Tel. [phone] within Switzerland (cost via Swisscom at time of going to print: CHF 2.60/min).
