USER MANUAL Vanilla BARBECOOK

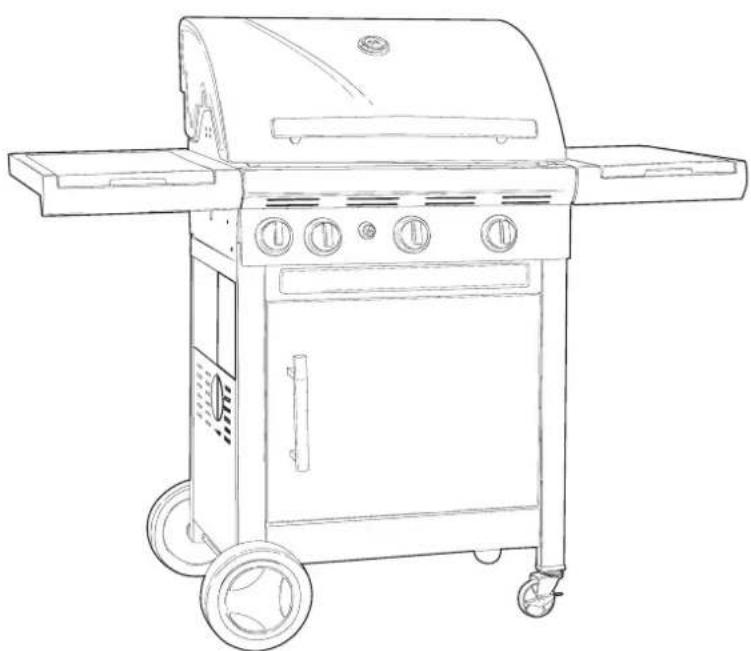

Line drawing of a portable electric grill with wheels and control knobs (no text or symbols)

KADUVA

# 223.9989.200

Line drawing of a portable gas stove with three wheels and control panel (no text or symbols)

KADUVA

# 223.9989.000

KADUVA BLACK

# 223.9988.300

# 223.9988.400

VANILLA

# 223.9988.100

# 223.9988.200

NL MONTAGE-INSTRUCTIES

Carefully read the instructions before installing the barbecue. Install the barbecue on a flat and clean base.

Note: Be careful when installing the barbecue. Tools may damage the enamelled surface. Some screws may be left over after installation.

SK POKYNY PRE MONTÁŽ

Exploded view diagram of a microwave oven with numbered components and a legend listing parts A through F, including a manual device.

KADUVA # 223.9989.000

KADUVA BLACK # 223.9988.300 / # 223.9988.400

VANILLA # 223.9988.100 / # 223.9988.200

Exploded view diagram of a microwave oven with numbered components and a legend listing parts A through F, including a manual device.

KADUVA

223.9989.200

1 227	9989.001
2 227	2092.110
3 227	2092.130
4 227	2092.040
5 227	9900.040
6 227	9989.002
7 227	2092.230
8 227	2092.290
9 227	2092.235
101 227	9900.111
102 227	9900.112
103 227	9900.113
13 227	9989.210
14	-
15 227	2092.200
16 227	2092.240
17 227	9989.003
181 -
182 227	2092.272
19 227	2092.310
20 227	2092.320
21 227	2092.280
22 227	9020.540
23 227	9020.550
24 227	9989.004
25 227	9989.005
26 227	9989.006
27 227	9989.007
28 227	2092.135
29 227	9989.008
30 227	9022.510
31 227	2092.510
32 227	2092.530
33 227	2092.520
34 227	9900.710
35 227	9989.013
36 227	9989.010
37 227	9989.011
38 227	9989.012
39 227	9989.009
40 227	9988.099
41 227	9900.731

KADUVA

223.9989.000

1 227 9989.001
2 227 2092.110
3 227 2092130
4 227 2092040
5 227 9900040
6 227 9989002
7 227 2092230
8 227 2092290
9 227 2092235
101 227 9900111
102 227 9900112
103 227 9900113
11 227 9989210
12 227 2092200
13 227 2092240
14 227 9989055
15 227 2092270
161 227 2092310
162 -
17 227 2092310
18 227 2092320
19 227 2092280
20 227 9900310
21 227 9900320
22 227 9989004
23 227 9989005
24 227 9989006
25 227 9989007
26 227 2092135
27 227 9989008
28 227 9022510
29 227 2092510
30 227 2092530
31 227 2092520
32 227 9900710
33 227 9989013
34 227 2092470
35 227 9989011
36 227 9989060
37 227 2092420
38 227 9988038
39 227 2092430
40 227 2092400
41 227 9989050

KADUVA BLACK

223.9988.300

223.9988.400

1 227	9988.001
2 227	2092.110
3 227	2092.130
4 227	2092.040
5 227	9900.040
6 227	2092.250
7 227	2092.230
8 227	2092.290
9 227	2092.235
101 227	9900.111
102 227	9900.112
103 227	9900.113
11 227	2092.210
12 227	9022.212
13 227	2092.200
14 227	2092.240
15 227	9981.016
161 227	2092.270
162 227	2092.272
17 227	2092.310
18 227	2092.320
19 227	2092.280
20 227	9020.540
21 227	9020.550
22 227	2092.580
23 227	2092.500
24 227	2092.260
25 227	9988.025
26 227	2092.135
27 227	2092.340
28 227	9022.510
29 227	2092.510
30 227	2092.530
31 227	2092.520
32 227	9900.710
33 227	2092.440
34 227	2092.470
35 227	9981.039
36 227	2092.450
37 227	2092.420
38 227	9988.038
39 227	2092.430
40 227	2092.400
41 227	2092.700

VANILLA

223.9988.100

223.9988.200

1 227	2092.100
2 227	2092.110
3 227	2092.130
4 227	2092.040
5 227	9900.040
6 227	2092.250
7 227	2092.230
8 227	2092.290
9 227	2092.235
101 227	9900.111
102 227	9900.112
103 227	9900.113
11 227	2092.210
12 227	9022.212
13 227	2092.200
14 227	2092.240
15 227	2092.300
161 227	2092.270
161 227	2092.272
17 227	2092.310
18 227	2092.320
19 227	2092.280
20 227	9020.540
21 227	9020.550
22 227	2092.580
23 227	2092.500
24 227	2092.260
25 227	2092.330
26 227	2092.135
27 227	2092.340
28 227	9022.510
29 227	2092.510
30 227	2092.530
31 227	2092.520
32 227	9900.710
33 227	2092.440
34 227	2092.470
35 227	2092.460
36 227	2092.450
37 227	2092.420
38 227	2092.410
39 227	2092.430
40 227	2092.400
41 227	2092.700

1

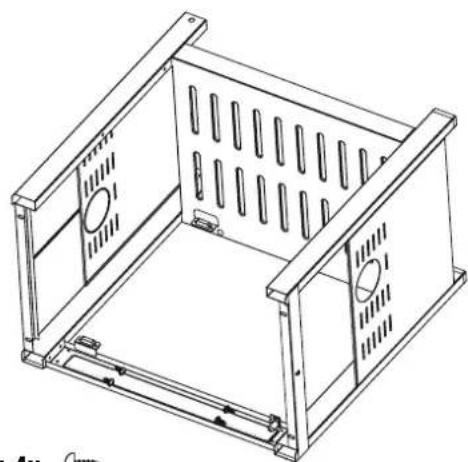

Technical line drawing of a metal frame structure with ventilation slots and mounting brackets (no text or symbols)

A: 8x

②

Technical line drawing of a rectangular metal enclosure with internal compartments and mounting brackets (no text or symbols)

A: 4x

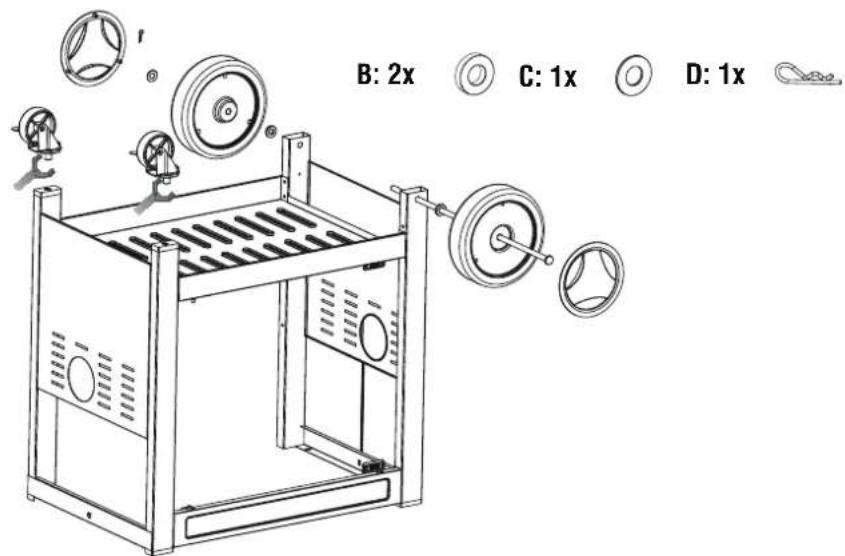

3

B: 2x C: 1x D: 1x

B: 2x

C: 1x

D: 1x

4

Simple line drawing of a rectangular panel with two circular holes and a small labeled component (no text or symbols)

E: 2x

F: 2x

G: 2x

5

Line drawing of a mechanical cart with wheels and internal components (no text or symbols)

6

Line drawing of a gas stove or boiler housing with control knobs and vented gauges (no text or symbols)

Line drawing of a portable electric stove with wheels and control panel (no text or symbols)

7

H: 2x

(8

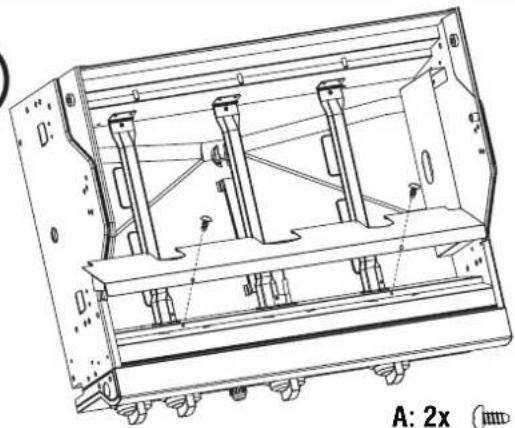

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

A: 2x

9

Line drawing of a gas stove with wheels and control panel, shown alongside two separate compartments (no text or symbols)

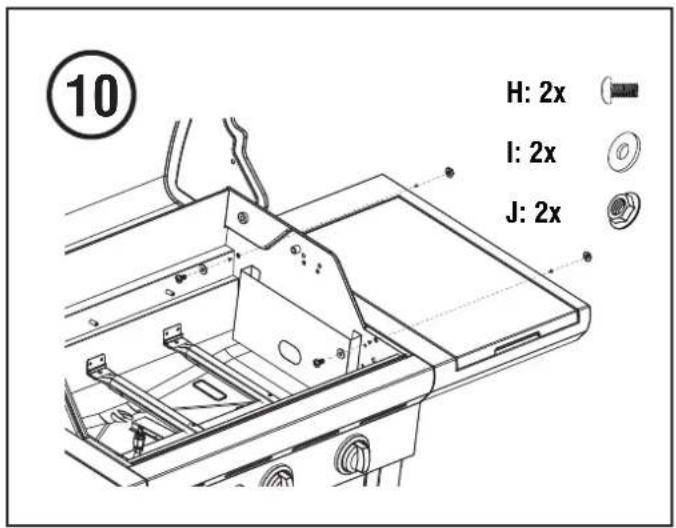

10 H: 2x I: 2x J: 2x

11 H: 1x I: 1x J: 1x

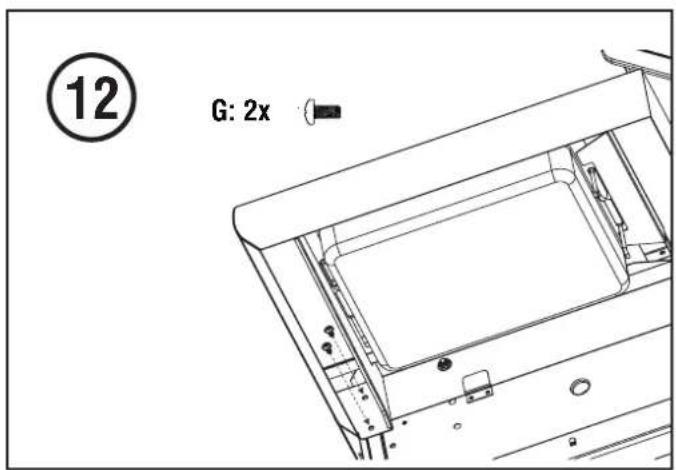

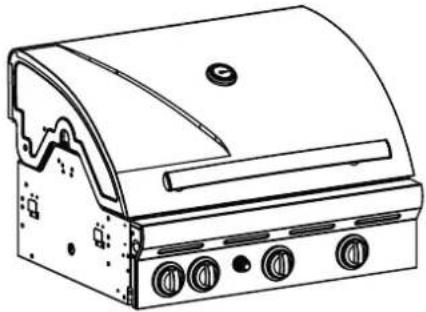

12 G: 2x

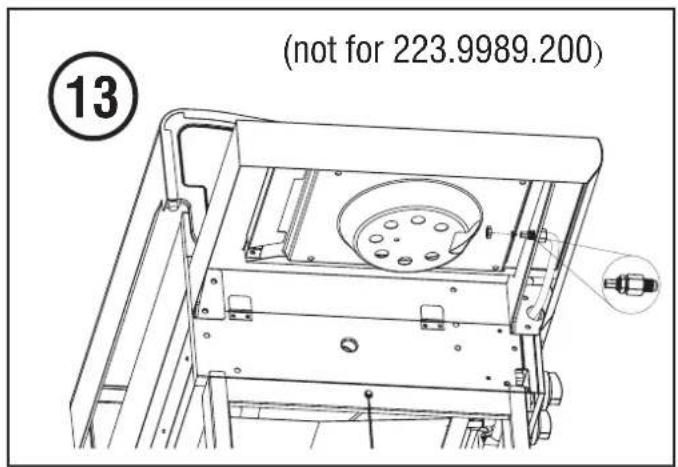

(not for 223.9989.200) 13

(not for 223.9989.200)

(not for 223.9989.200) K: 1x

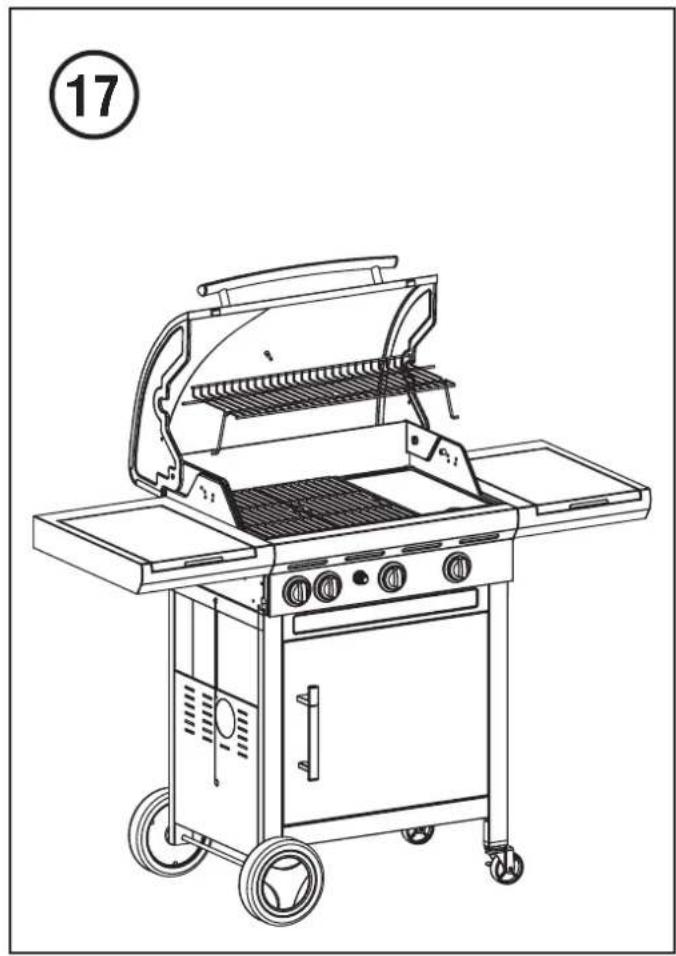

Line drawing of a gas stove grill with open doors and wheels (no text or symbols)

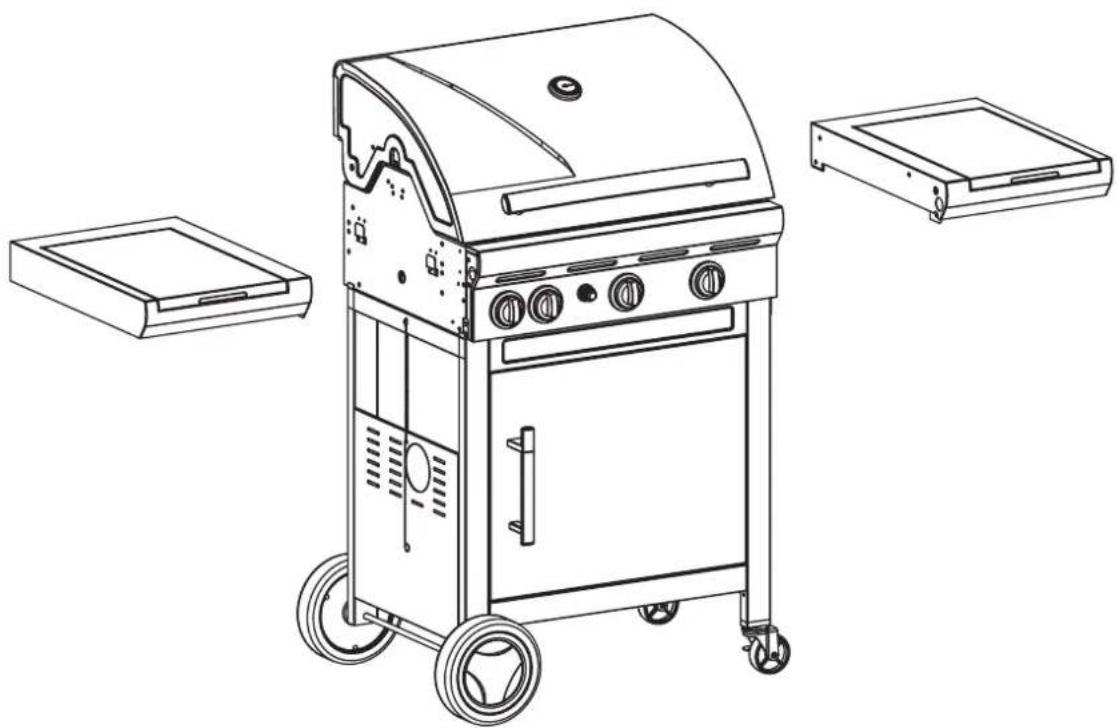

Line drawing of a portable electric grill with wheels and control panel (no text or symbols)

Technical line drawing of a multi-level kitchen appliance with wheels and internal compartments (no text or symbols)

19 + 1 x - + Not included AA battery LR 6. AM 3 1,5 V

HOSE CONNECTION 50 MBAR connection connection for FRANCE We recommend: PROPANE

NL

BELANGRIJK!

• Check if the right coupling is used. If not remove the part.
• Connect the threaded nut provided to the appliance
• Screw the hose adjusting nut onto the transition

DE

WICHTIG!

A B C D E F G C D E F G

barbecook®

VANILLA

G30 G31 G30

G31G30 G31

G30

G31

G30

G31

DK - GR - NL - NO -SE - EE - LT - LY - CY - CZ - PL - MT - HU - SI - SK

I 3B/P G30 - 30 mbar 13,7 kW

1000gr/h/863 gr/h

1000kg/w/832

gr/h/538g/n/2

3 kW/168gr/h

45 g/n gr/h

718 gr/h

2,3 kW

168 gr/h

145 gr/h

ES - GB - IE - PT

I 3P G31 - 37 mbar

13,7 kW

863 gr/h

11,4 kW

718 gr/h

2,3 kW

145 gr/h

AT - DE - CH - NL

I 3P G31 - 50 mbar

13,7 kW

863 gr/h

11,4 kW

718 gr/h

2,3 kW

145 gr/h

BE - CH - ES - FR - LU - GB - IE - IT - PT

I 3+ G30/G31 - 28-30/37 mbar

13,7 kW 1000 gr/n/863gr/h

11,4kg/g/832 gr/h

716 gr/n/2,3

kW 852 gr/h 145 gr/n/8 gr/h

2,3 kW

168 gr/h

145 gr/h

Insputer hoofdbrander - Injector brüleur principale - Injector main burner - Injektor Hauptbrenner - Iniettore bruciatore capo - Inyector para hornilla principal - Injector queimador principali - Insprutningspumpen head gasbrännaren - Den store branders dysetype - Suutin plápolittimen - Tryska hlavnich hořáků - Tryska bočných horákov Type - Typ - Tipo - Typppl: 1.00 (28 - 30 - 37 mbar) - 0,84 (50 mbar) Insputer zjbrander - Injecteur brüleur latérale - Injector side burner - Injektor Seitenkocher - Iniettore bruciatore laterale - Inyector para hornilla lateral - Injector queimador lateral - Insprutningspumpen side gasbrännaren - Side branders dysetype - Suutin sivupolittmen - Tryska bočniho hořáků - Tryska bočných horákov - Type - Typ - Tipo - Typppl: 0.75 (28 - 30 - 37 mbar) - 0,64 (50 mbar)

Merk - Marque - Marke - Brand - Marka - Značka - Mærke - Můpka - Marca - Kaubamárk - Tuotemerikki - rotna marka - Márka - Ženklas - Prežcime - Merke - Marka - Marca - Marca - Značka - Znamka - Märke Model - Appliance model - Modell des Geräts - Appliance model - Moden na yređa - Model zařízení - Maskinens model - Movtělo ovouczućs - Modelo de aparato - Seadme mudel - Laiteen malli - model uredaja - A készülék tipusa - Modello apparecchio - Prietaiso modelis - leices modelsi - Model - Model stosowania - Modelo do aparelho - Modelul aparatului - Model zariadenia - Model naprave - Anordningsmodeli Land van bestemming - Pays de destination - Landesbezeichnung - Country indentification - Identifikация на страната - Identifikace země - Identifikationsland - Xépo tautorolínçnýç - Identificador de pais - Rigítáhis - Maan tunnistus - država za identifikaciju - Származási ország - Paese - Identifikuojama šalis - Identifikacijas vaists - Opprinnelseland - Identifikacja kraju - Identificação do país - Tara de identificare - Identifikacija krajiny - Identifikacijsa država - Landsidentifikation
Land van bestemming - Pays de destination - Landesbezeichnung - Country indentifikation - Identifikация на страната - Identifikace zemé - Identifikationsland - Xépà tautomoinçyc - Identificador de país - Rigítáhis - Maan tunnistus - država za identifikaciju - Származási ország - Paese - Identifikuojama šalis - Identifikacijas vaists - Opprinneisesland - Identifikacja kraju - Identificação do país - Tara de identificare - Identifikácia krajiny - Identifikacijska država - Landsidentifikation

A B C D E F G C
A B C D E F G C D E

barbecook®

KADUVA BLACK

G30 G31 G30

G31 G30 G31

G30

G31

G30

G31

DK - GR - NL - NO - SE- EE - LT - LV - CY - CZ- PL - MT - HU - SI - SK

I 3B/P G30 - 30 mbar 13,7 kW

10001gr/h

863 gr/h

1040kg/h

23 gr/h

145 gr/h

718 gr/h

2,3 kW

168 gr/h

145 gr/h

ES - GB - IE - PT

I 3P G31 - 37 mbar

13,7 kW

863 gr/h

11,4 kW

718 gr/h

2,3 kW

145 gr/h

AT - DE - CH - NL

I 3P G31 - 50 mbar

13,7 kW

863 gr/h

11,4 kW

718 gr/h

2,3 kW

145 gr/h

BE - CH - ES - FR - LU - GB - IE - IT - PT

I 3+ G30/G31 - 28-30/37 mbar

13,7 kW

1000 gr/h

863 gr/h

11,400g

718 gr/h

2,3 gr/h

2,3 kW

168 gr/h

145 gr/h

Insputer hoofdbander - Injecteur brûleur principale - Injector main burner - Injektor Hauptbrenner - Iniettore bruciatore capo - Inyector para hornilla principal - Injector queimador principal - Insprutningspumpen head gasbrännaren - Den store branders dysetype - Suutin pläapolittimen - Tryska havnich hořáků - Tryska bočných horákov Type - Typ - Tipo - Typppi: 1.00 (28 - 30 - 37 mbar) - 0.84 (50 mbar) Insputer zijbrander - Injecteur brûleur latérale - Injector side burner - Injektor Seitenkocher - Iniettore bruciatore laterale - Inyector para hornilla lateral - Injector queimador lateral - Insprutningspumpen side gasbrännaren - Side branders dysetype - Suutin sivupolittimen - Tryska bočního hořáků - Tryska bočných horákov - Type - Typ - Tipo - Typppi: 0.75 (28 - 30 - 37 mbar) - 0.64 (50 mbar)

A: Merk - Marque - Marke - Brand - Mapka - Značka - Maerke - Mópxo - Marca - Kaubamárk - Tuotemerkki - brøna marka - Märka - Ženklas - Prežčime - Merke - Marka - Marca -Marca - Značka - Znamka - Märke B: Model - Appliance model - Modell des Geräts - Appliance model - Mojen na yepda - Model zařízeni - Maskinens model - Movršlo ovoxkuńć - Modelo de aparato - Seadme mudel - Laittean malli - model uređaja - A készülék típusa - Modello apparecchio - Prietaiso modelis - lettoes modelis - Modell - Model stosowsania - Modelo do aparelho - Modellui aparatului - Model zarladenia - Model naprave - Anordningsmodel C: Indikazovina, Puva de destination, Landshazakadrnja, Country indertifikation. Maszvzhuravuyn na zrnupava, Identifikasy

1. Lands van zostinning - 'Lagos de laudation - Landsbeziening - Sardiny identifikation - Vijamikrakapiri na trypartina - Identifikazione zemë - Identifikationsland - Xépçətauomoinçç - Identificador de país - Rigitāhis - Maan tunnistus - država za identifikaciju - Származási ország - Paese - Identifikuojama šalis - Identifikacijas valsts - Opprinnelsesland - Identyfikacja kraju - Identificação do país - Tara de identificare - Identifikácia krajny - Identifikacijska država - Landsidentifikation

Gascategorie - Type de gaz - Gaskategorie - Gas category - Kateropria na raza - Kategorie plynu - Gas categori - Katnyopia ykaçüö - Categoría de gas - Gaasilik - Kaasukategoria - kategorija plina - Gázkategória - Categoría gas - Dujú kategorija - Gázos kategorija - Gas-kategori - Rodzaj gazu - Tipo de gaz - Categoría de gaz - Kategoría plynu - Kategoría plina - Gaskategori Nominal vermogen met zijbrander - Capacité nominale avec brûleur latérale - Nominal capacity with sideburner - Nominale Kapazität mit Seitenkocher - Capacita nominale con bruciatore laterale - Capacidad nominal con hornilla lateral - Capacidade nominal con queimador lateral - Nominell kapacitet med den side gasbrännaren - Nominel ydelse med side brenders - Mitoitettu kapasiteetista svupolttimen Nominal vermogen zonder zijbrander - Capacité nominale sans brûleur latérale - Nominal capacity without sideburner - Nominale Kapazität ohne Seitenkocher - Capacita nominale senza bruciatore laterale - Capacidad nominal sin hornilla lateral - Capacidade nominal sem queimador lateral - Nominell kapacitet utan den side gasbrännaren - Nominel ydelse uden side brenders - Mitoitettu kapasiteetti ilman svupolttimen Nominal vermogen zijbrander - Capacité nominale brûleur latérale - Nominal capacity sideburner - Nominale Kapazität Seitenkocher - Capacita nominale bruciatore laterale - Capacidad nominal hornilla lateral - Capacidade nominal queimador lateral - Nominell kapacitet side gasbrännaren - Nominel ydelse side brenders - Mitoitettu kapasiteetti svupolttimen

WINNERS

PRODUCT ENGINEERING LTD 25/F Top Glory Tower, 262

Gloucester Road, Causeway Bay,

HONG KONG

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.

CE 0598

PIN: 598CL237

PRODUCT ENGINEERING LTD 25/F Top Clay Tower 262

25/F top Glory Tower, 262, Gloucester Road, Causeway Bay,

HONG KONG

C€ 0598

PIN: 508C1237

PRODUCT ENGINEERING LTD

25/F Top Glory Tower, 262,

Gloucester Road, Causeway Bay,

HUNG KONG

[Non-Text]

1

CE 05

(1)

PIN: 598CL237

Type - Typ - Tip

barbecook®

NL HANDLEIDING VOOR MONTAGE, GEBRUIK EN ONDERHOUD 17
FR NOTICE DE MONTAGE, D'UTILISATION ET D'ENTRETIEN 21
EN INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS 26
DE ANLEITUNG ZU MONTAGE, GEBRAUCH UND PFLEGE 30
EL OΔΗΓΙΕΣ ΕΓΚΑΤΑΣΤΑΣΗΣ, ΧΡΗΣΗΣ ΚΑΙ ΣΥΝΤΗΡΗΣΗΣ 35
ES INSTRUCCIONES DE INSTALACIÓN, USO Y MANTENIMIENTO 40
BG ИНСТРУКЦИИ ЗА МОНТАЖ, УПОТРЕБА И ПОДДРЪЖКА 45
ET PAIGALDUS-, KASUTUS- JA HOOLDUSJUHISED 50
FI ASENNUS-, KÄYTTÖ- JA HUOLTO-OHJEET 55
NO INSTRUKSER FOR INSTALLASJON, BRUK OG VEDLIKEHOLD 59
SV INSTRUKTIONER FÖR INSTALLATION, ANVÄNDNING OCH UNDERHÅLL 63
IT ISTRUZIONI DI INSTALLAZIONE, USO E MANUTENZIONE 68
PT INSTRUÇÕES DE INSTALAÇÃO, UTILIZAÇÃO E MANUTENÇÃO 72
DA INSTRUKTIONER OM INSTALLATION, BRUG OG VEDLIGEHOLDELSE 77
HU ÜZEMBEHELYEZÉSI, HASZNÁLATI ÉS KARBANTARTÁSI ÚTMUTATÓ 81
RO INSTRUCTIUNI DE INSTALARE, UTILIZARE ŞI ÎNTRETINERE 86
CS NÁVOD K INSTALACI, POUŽÍVÁNÍ A ÚDRŽBĚ 90
HR UPUTE ZA UGRADNJU, UPORABU I ODRŽAVANJE 95
LT MONTAVIMO, NAUDOJIMO IR PRIEŽIŪROS NURODYMAI 99
LV UZSTĀDĪŠANAS, LIETOŠANAS UN APKOPES INSTRUKCIJA 103
PL WSKAZÓWKI DOTYCZĄCE MONTAŻU, UŻYTKOWANIA I KONSERWACJI 108
SK POKYNY K MONTÁŽI, POUŽÍVANIU A ÚDRŽBE 112
SL NAVODILA ZA NAMESTITEV, UPORABO IN VZDRŽEVANJE 117

NL

HANDLEIDING VOOR MONTAGE, GEBRUIK EN ONDERHOUD

VEILIGHEIDSINFORMATIE

DIT TOESTEL IS UITSLUITEND BE- STEMD VOOR GEBRUIK BUITENSHUIS INDIEN U GAS RUIKT :

1. DRAAI DE GASTOEVOER UIT
2. DOOF EVENTUELE VLAMMEN
3. OPEN HET DEKSEL

4. BEL ONMIDDELLIJK UW GASDISTRIBUTEUR OF DE BRANDWEER ALS DE GEUR NIET VERDWIJNT

5. DE GEBRUIKER IS VERANTWOORDELIJK VOOR DE JUISTE MONTAGE EN INSTALLATIE EN HET AANGEWEZEN GEBRUIK VAN DEZE BARBECUE.

6. HET NIET NALEVEN VAN DE IN-STRUCTIES IN DEZE HANDLEIDING KAN RESULTEREN IN EEN GEVAAR-LIJKE BRAND OF EXPLOSIE.
7. HET NIET OPVOLGEN VAN DE IN-STRUCTIES IN DEZE HANDLEIDING KAN RESULTEREN IN ERNSTIGE LICHAMELIJKE LETSELS EN MATERIELE SCHADE.
8. GEBRUIK BESCHERMENDE HAND-SCHOENEN BIJ HET GEBRUIKEN VAN BIJZONDER WARME ONDERDELEN

9. WIJZIGINGEN AAN DE BARBECUE ZIJN GEVAARLIJK EN NIET TOEGESTAAN. DIT TOESTEL DIENT TE WORDEN GEINSTALLEERD OVEREENKOMSTIG DE VAN TOEPASSING ZIJNDE BEPALINGEN.

10. BERG DE FLES BUITENSHUIS OP IN EEN GOED VERLUCHTE RUIMTE

11. PLAATS DE RESERVEFLES (VOL OF LEEG) NOOIT ONDER OF NAAST EEN BARBECUE IN GEBRUIK.
12. BEWAAR OF GEBRUIK GEEN BENZINE OF ANDERE ONTVLAMBARE DAMPEN EN VLOEISTOFFEN IN DE NABIJHEID VAN DIT OF ENIG ANDER BARBECUE.

- HOUD BRANDBAAR MATERIAAL MINIMAAL 76 CM UIT DE BUURT VAN DE BARBECUE

- HOUD ALTIJD DE RUIMTE ROND UW BARBECUE VRIJ VAN ALLERHANDE BRANDBARE MATERIALEN, BENZINE OF ANDERE ONTVLAMBARE VLOEI-STOFFEN

• GEBRUIK DE BARBECUE ENKEL BUITENSHUIS IN EEN GOED VERLUCHTE RUIMTE EN OP MINIMUM 3 M VAN ELKE WONING OF GEBOUW.

• WERK NIET MET DIT TOESTEL ONDER EEN OVERHANGENDE CONSTRUCTIE OF GEBLADERTE

• GEBRUIK DE BARBECUE NIET OP EEN BOOT OF ANDER VRIJETIJDS-VOERTUIG

• GEBRUIK DE BARBECUE NIET IN EEN GARAGE, IN EEN SCHUURTJE, IN GANGEN OF ANDERE INGESLOTEN RUIMTEN
• LAAT DE BARBECUE NIET ONBE-WAAKT STAAN TERWIJL HET TOE-STEL WERKT
• BELEMMER DE STROOM NIET VAN VERBRANDINGS- EN VENTILATIE-LUCHT NAAR DE BARBECUE
  • GEBRUIK DE BARBECUE NIET ALS U ALCOHOL HEBT GEDRONKEN OF DRUGS HEBT GENOMEN
• BEREIKBARE, TOEGANKELIJKE ONDERDELEN KUNNEN ZEER WARM WORDEN. HOUD (JONGE) KINDEREN EN DIEREN UIT DE BUURT VAN HET TOESTEL.
  • VERPLAATS DE BARBECUE NIET TIJDENS HET GEBRUIK
  • GEBRUIK GEEN HOUTSKOOL, HOUT OF BRIKETTEN
  • GEBRUIK GEEN LAVASTENEN OF KERAMISCHE BRIKETTEN
• DE VENTILATIEOPENINGEN IN DE TROLLEY MOETEN ALTIJD VRIJ GE-HOUDEN WORDEN.
• DE DOOR DE FABRIKANT OF ZIJN VERTEGENWOORDIGER VERZE-GELDE ONDERDELEN MOGEN NIET DOOR DE GEBRUIKER GEWIJZIGD WORDEN.
• DE ZIJBRANDER MAG NOOIT ONT-STOKEN WORDEN ZONDER HET BESCHERMDEKSEL TE OPENEN.

GASAANSLUITING

GASFLES

Line drawing of a cylindrical gas cylinder with a labeled inlet point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

Pure mechanical diagram showing a pipe connection with hoses and a valve, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

VEILIGHEIDSINFORMATIE

Diagram showing a magnified view of insect behavior with a magnified inset (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

ONTSTEKING VAN DE BRANDERS

OFF HIGH LOW

ONTSTEKING VAN DE BRANDERS MET DE ONTSTEKER

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

ONTSTEKING VAN BRANDERS MET EEN LUCIFER

Line drawing of an open oven with a gas stove and fan (no text or symbols)

ONTSTEKING VAN DE ZIJBRANDER MET LUCIFER

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with a central component and piping (no text or symbols)

Pure mechanical diagram showing a valve assembly with tubing and components (no text or symbols)

Illustration of a mosquito pen with an inset showing its silhouette and magnified view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ALLUMAGE DES BRULEURS

OFF HIGH LOW

ALLUMAGE DES BRULEURS AVEC L'ALLUMEUR

Technical line drawing of a mechanical assembly with no visible text or symbols

ALLUMAGE DES BRULEURS AVEC UNE ALLUMETTE

Line drawing of an open oven with a lid and fan, showing internal components (no text or symbols)

ALLUMAGE DU BRULEUR LATERAL AVEC UNE ALLUMETTE

INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS

SAFETY INFORMATION

THIS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY IF YOU SMELL GAS:

1. TURN OFF THE GAS SUPPLY
2. EXTINGUISH ANY OPEN FLAME
3. OPEN THE LID

4. IF ODOUR CONTINUES, IMMEDIATELY CALL YOUR GAS SUPPLIER OR THE FIRE DEPARTMENT

5. THE USER IS RESPONSIBLE FOR PROPER INSTALLATION AND APPROPRIATE USE OF THE BARBECUE.

6. FAILURE TO COMPLY WITH THE INSTRUCTIONS IN THIS MANUAL MAY RESULT IN A DANGEROUS FIRE OR EXPLOSION.
7. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL MAY RESULT IN SERIOUS INJURIES AND MATERIAL DAMAGE.
8. USE PROTECTIVE GLOVES WHEN HANDLING PARTICULARLY HOT PARTS
9. MODIFICATIONS TO THE BARBECUE ARE DANGEROUS AND NOT PERMITTED. THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE PROVISIONS.

10. STORE THE CYLINDER OUTDOORS IN A WELL-VENTILATED AREA

11. NEVER PLACE THE SPARE CYLINDER (FULL OR EMPTY) UNDER OR NEXT TO A BARBECUE IN USE.

12. NEVER STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER BARBECUE.
13. KEEP COMBUSTIBLE MATERIAL AT LEAST 76 CM AWAY FROM THE BAR-BECUE

14. KEEP THE AREA AROUND YOUR BARBECUE AT ALL TIMES FREE FROM ANY COMBUSTIBLE MATERIALS, GASOLINE OR OTHER FLAMMABLE LIQUIDS

15. USE THE BARBECUE ONLY OUTDOORS IN A WELL-VENTILATED AREA AND AT LEAST 3 M FROM ANY DWELLING OR BUILDING.
    • DO NOT USE THIS APPLIANCE UN-DER AN OVERHANGING STRUCTURE OR FOLIAGE
    • DO NOT USE THE BARBECUE ON A BOAT OR OTHER RECREATIONAL VEHICLE
    • DO NOT USE THE BARBECUE IN A GARAGE, SHED, CORRIDORS OR OTHER ENCLOSED AREAS

• NEVER LEAVE THE BARBECUE UNATTENDED WHEN IN USE
• DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR TO THE BARBECUE
• DO NOT USE THE BARBECUE WHEN YOU HAVE CONSUMED ALCOHOL OR TAKEN DRUGS
- ACCESSIBLE PARTS MAY BECOME VERY HOT. KEEP (YOUNG) CHILDREN AND ANIMALS AWAY FROM THE BARBECUE.

• DO NOT MOVE THE BARBECUE WHEN IN USE
• NEVER USE CHARCOAL, WOOD OR BRIQUETTES
• NEVER USE LAVA ROCKS OR CERA- MIC BRIQUETTES
- KEEP THE VENT HOLES IN THE TROLLEY CLEAR AT ALL TIMES.
- PARTS SEALED BY THE MANUFACTURER OR HIS REPRESENTATIVE MAY NOT BE ALTERED BY THE USER.
- NEVER LIGHT THE SIDE BURNER WITHOUT OPENING THE LID.

GAS CONNECTION

GAS CYLINDER

Always use an approved cylinder that complies with all national provisions and standards. Check whether the cylinder can vaporize sufficient gas as specified for your barbecue model.

• We recommend this product is connected to PROPANE
• Always keep the cylinder in a stable and upright position.
- Be careful when handling the cylinder valves
- Never connect a cylinder without regulator to the barbecue.
- Never connect a non-regulated cylinder to the barbecue.
• Always close the cylinder valves when the barbecue is not in use
- If the barbecue is not equipped with a cylinder holder, place the cylinder on the ground, next to the barbecue
- Never place the spare cylinder under or next to a barbecue in use
- Never expose the cylinder to excessive heat or direct sunlight

- Change the flexible tube if required by national regulations

REPLACING THE CYLINDER

When replacing the cylinder, ensure that the control knob on the barbecue is in the OFF position and the cylinder is closed. Never replace a cylinder in the vicinity of potential ignition sources.

TRANSPORT AND STORAGE OF THE GAS CYLINDER

Although perfectly safe when handled correctly, lack of caution may result in fire and/or explosion.

To minimise the risks:

• Never store the cylinder in a building, garage or other enclosed area, but always in a well-ventilated area
• Never store the cylinder in the vicinity of another gas operated appliance, or in a very warm area, such as a car or boat
  • Always keep the cylinder out of reach for children
  • Always transport and store the cylinder in an upright position
• Do not smoke in the vicinity of the cylinder, especially during transport with a vehicle

HOSE AND REGULATOR

The hose and regulator are not supplied by the manufacturer. Only use a hose / regulator combination that complies with all local and national provisions and standards, and that is compatible with the couplings of the gas cylinder used and the gas type/nominal pressure stated on the barbecue. Keep the hose as short as possible.

• Never connect the barbecue to a non-regulated gas supply. Never try to alter the hose or regulator in any way whatsoever.
• Prior to each use of the barbecue, check the hose over its full length for any damage (cracks, tears, burnt sections) or excessive wear. When you notice any damage or wear, replace the hose before using the barbecue, in accordance with the national standards
• Fat (or any other hot substance) must never fall onto the hose, and the hose must never come into contact with any hot points on the barbecue
• The connector of the regulator must be protected when it is not connected to the cylinder
• Make sure it is not dragged along the ground as this could compromise the tightness of the connector
• Do not distort the hose when connecting or disconnecting the cylinder

- The maximum permissible length of the hose is 1.5m

LEAKAGE TEST

Line drawing of a gas cylinder with a labeled component (A), no text or symbols present

Line drawing of a mechanical device with a central component and connecting rod (no text or symbols)

C

A leakage test must be performed:

• Before the barbecue is lighted for the first time
  • Each time the cylinder is replaced or a gas part is changed
• At least once a year, preferably at the start of the season

The leakage test must be performed outdoors, in a well-ventilated area and not in the vicinity of an open flame, heat or ignition sources. No smoking! Use only a 50/50 mixture of liquid soap and water for the leakage test. Do not use a match or an open flame.

1. Once you have connected the cylinder to the barbecue and all control knobs are 'OFF', slowly open the cylinder 1 turn.
2. Rub the soap solution over all connections and components listed below.
   • The welded joints of the cylinder (Fig. A)
   • All valve connections (Fig. B)
3. Regulator coupling and connection of the cylinder (Fig. B)
   • All hose connections (Fig. C)

Check the following areas for leaks:

3. Soap bubbles indicate a leak.

1. Firmly tighten any leaky connection and repeat the test as long as a leak is indicated (close the cylinder valve when you are checking the leak).

2. Disconnect the cylinder/control valve and check that all control knobs are OFF.

3. Do not use the barbecue if you cannot repair the leak. Close the cylinder

valve, remove the cylinder and contact a qualified maintenance person for gas appliances or the gas supplier to carry out the appropriate repairs.

Note: the regulator may differ from the version shown here.

PRIOR TO FIRST USE / AFTER PROLONGED PERIOD OF NON-USE

Do not use the barbecue before you have read, understood and checked all information in this manual.

Ensure that:

• The barbecue is correctly installed
- There is no leak in the gas supply (see 'Leakage test')
- The burners are correctly installed, the venturi tubes are properly placed over the openings of the gas valves (Fig. D), and there are no obstructions (see safety information and cleaning of the burners)
• None of the gas supply hoses can come into contact with a hot surface
- Your barbecue is installed in a safe place

Technical line drawing of a mechanical component with a separate view (no text or symbols)

SAFETY INFORMATION

Natural hazards - spiders and insects: very tiny insects may crawl into the venturi tubes of the gas burners and build a web or nest (Fig. E)

E

Illustration of a flashlight emitting mosquito illustrations (no text or symbols)

that could block gas flow in whole or in part. Such a situation is indicated by a smoky, yellow flame and/or burner that can only be lighted with difficulty or not at all. The gas may eventually burn outside the venturi tube and thus cause serious damage to your barbecue.

Should this happen, immediately close the cylinder. Clean the burners as soon as the barbecue has cooled down.

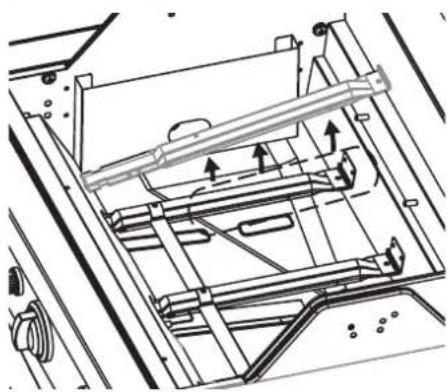

Remove the burner(s) as shown in Fig. F. Clean with a pipe cleaner or brush the venturi tubes. Put the burner back into place in accordance with the instructions. (Fig. F) After cleaning, the venturi tubes must be correctly placed back over the openings of the gas valves.

Note: damage arising from a fully or partly blocked venturi tube in a burner is not covered by the guarantee and is considered

lack of proper maintenance

F

Technical line drawing of a mechanical assembly with no visible text or symbols

Prior to lighting the burners, all checks and procedures detailed in the chapter 'Before the first use' must have been carried out.

• The lid of the barbecue must always be open when you light the burner(s)
- Do not bend directly over the barbecue when lighting the burner(s)
- The control knobs of the barbecue must be 'OFF'. Slowly open the gas cylinder valve. Before opening the control knob of one burner, wait approx. 10 seconds to allow to gas to stabilize
- Important: first light the middle burner
- As soon as one burner has been lighted, you only need to put the control knob of the other burner(s) in the position 'HIGH' to light them.
- Never try to light all burners at once

OFF HIGH LOW

LIGHTING THE BURNERS WITH THE IGNITER

• Open the lid of the barbecue
• Open the gas cylinder valve.
• Press the igniter until you hear sparks
• Holding down the igniter, press the control knob of the middle burner and turn to 'HIGH'
• If the burner does not light after 3 attempts, disconnect the gas and wait 5 minutes before trying again. This will allow the accumulated gas to escape. Try again, repeating the above steps.
• If the burner still does not light, read the chapter 'Troubleshooting Guide' to determine the cause and the

remedy, or use a match as described below.

G

Technical line drawing of a mechanical device housing with internal components and mounting holes (no text or symbols)

LIGHTING THE BURNERS WITH A MATCH

Left and right at the bottom of the burner box is a small opening that can be used to light the burners with a match, if the electronic igniter does not work. (Fig. G)

• Open the lid of the barbecue
• Place a match in the match holder provided (Fig. G)
• Hold a burning match through the hole, approx. 13 mm from the burner
• Open the gas cylinder valve.
• Push the required control knob and turn to 'HIGH'. The burner should light within 5 seconds. If not, turn the control knob off and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 5. If the burner still does not light after 3 attempts, read the chapter 'Troubleshooting Guide'

- As soon as the middle burner has been lighted, you only need to put the control knob of the other burner(s) in the position 'HIGH' to light them.

First open the lid of the side burner.

To light the side burner, use the igniter on the control panel and the control knob on the side table.

• Press the igniter until you hear sparks.
• Holding down the igniter, press the control knob of the side burner and turn to 'HIGH'
• Repeat a number of times if the burner does not light immediately.
• If the burner does not light after 5 seconds, turn the control knob to 'OFF' and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 3. If the burner still does not light, read the

chapter 'Troubleshooting Guide' or use a match as described below.

Note:

• the maximum load of the side burner is 9 kg!
- the maximum diameter of the cooking vessel is 220 mm

H

Line drawing of an open oven with a lid and internal components (no text or symbols)

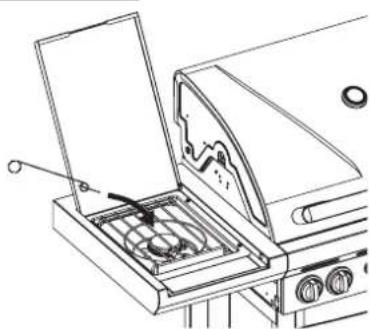

LIGHTING THE SIDE BURNER WITH A MATCH

Only for Vanilla / Kaduva Black

• Place a match in the match holder provided
• Hold a burning match approx. 13 mm from the burner (Fig. H)
• Push the control knob of the side burner and turn to 'HIGH'. The burner should light within 5 seconds. If not, turn the control knob 'OFF' and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 3. If the burner still does not light, read the chapter 'Troubleshooting Guide' to determine the cause and the remedy.

VISUAL CHECK OF THE FLAMES

HIGH LOW

If the flames of the burners jump out of the burner box when the barbecue is in use, immediately turn off the control knobs. Wait 5 minutes to allow the gas to escape before relighting the barbecue. Read the chapter 'Troubleshooting Guide' if the problem persists.

Each time you light the barbecue you should check the flames. (Fig. I) A proper flame is almost completely blue, with some yellow at the top. If the flame is abnormally small and for the most part yellow, switch off the barbecue and check the venturi tubes for obstructions, or read the chapter 'Troubleshooting Guide'.

SWITCHING OFF THE BARBECUE

• Close the gas cylinder valve
• Turn all control knobs of the burners to 'OFF'.

If you follow the above order, there will be no more pressurized gas in the system.

USEFUL TIPS FOR USE OF THE BARBECUE

USING YOUR BRAHMA FOR THE FIRST TIME

When using your gas barbecue for the first time, you must first allow the unit to run in by operating it for a short period of time without any food. To run in the barbecue, light the barbecue. Close the lid and maintain the temperature at 'HIGH' for 15 minutes. Do not open the lid during this procedure. You then open the lid and allow the barbecue to operate for another 5 minutes at 'HIGH'. The barbecue is now ready for use.

WARMING UP THE BARBECUE

Allow the barbecue to warm up before placing any food on it. Close the lid and heat the cooking surface for at least 10 minutes in the setting 'HIGH'. To bake at a lower temperature than the setting 'HIGH', turn the control knobs to the required position before placing any food on the barbecue.

COOKING TIME

The actual cooking time depends on various factors such as taste, outside temperature and wind. Experience will teach you how to estimate this time.

KEEPING FLARE-UPS UNDER CONTROL

During barbecuing, some flare-ups are natural. Too many flare-ups, however, will increase the temperature in the barbecue, thereby causing accumulated fat to ignite and cause fire.

To reduce flare-ups:

• Remove excess fat from the meat before baking
• Bake fat meat (chicken and pork) at a low setting
• Check that the hole in front of the fat drain is not blocked and the fat drip cup is not full
• Bake with closed lid to cut off the air supply and lower the heat settings

NOTE: If the lid is closed, your barbecue will retain a more constant temperature and food can be baked faster and with less energy.

Should the burner(s) go out during baking, open the lid, turn off the burner(s) and wait 5 minutes to allow the gas to escape before relighting the burner.

HOW TO PREVENT FOOD FROM STIC-KING TO THE GRID

• Rub food lightly with oil before you place it on the grid
• Or brush the grid with some cooking oil to prevent food from sticking
• Do not turn food too quickly after placing it on the grid

CLEANING AND MAINTENANCE

To prolong the lifetime of your barbecue, you should at least annually perform all of the following operations, preferably at the start of the barbecue season. Buy a barbecook ^® cover to protect your barbecue.

COOKING GRIDS AND GRIDDLES

After each use, allow the barbecue to cool down and clean the grids using a non-abrasive brush.

You can also wash grids using the special barbecook ^® enamel cleaner, a soft detergent or sodium bicarbonate. Never use oven cleaners.

BURNERS AND VENTURI TUBES

Burners and venturi tubes should be removed and cleaned at least twice a year. Thoroughly clean the venturi tubes. Open any blocked holes using a thin wire (e.g. opened paper clip). Check that the bottom of the burner box is clean and no hole is blocked. Place the burner back in accordance with the instructions and check that the venturi tubes are positioned over the exhaust valves. If the burner exhibits cracks, unusual holes or other damage, it should be replaced.

BURNING OFF

After use, you can continue to burn the appliance for 10 or so minutes without food and with the lid closed, with all burners in the position 'HIGH'. In this way, most of the dirt will be burned off, which facilitates subsequent cleaning. Allow the appliance to cool down. You can then wipe off the

burnt dust with a non-abrasive brush and clean the barbecue with soapy water.

STORAGE

Disconnect the gas from the cylinder when not in use. Store the barbecue and the gas cylinder outdoors in a well-ventilated area. Never store them in a garage, a shed or any other enclosed area, or in the vicinity of an open flame or heat source.

You can store the barbecue indoors, provided the gas cylinder is disconnected from the appliance and stored outdoors in a well-ventilated area.

The barbecue must be stored indoors during the winter season. Some tips:

• Clean the burners and rub them in with cooking oil. Wrap them in paper.
• Clean the cooking grids and rub them in with cooking oil. Wrap them in paper and store them indoors.
• Protect the barbecue with a barbecook® cover if it is stored outdoors.
• Do not store gas cylinders indoors

GUARANTEE

Your barbecook® appliance comes with a two year guarantee against all manufacturing defects. This guarantee applies from the date of purchase, provided it is used in accordance with these instructions. Your till receipt specifying the date of purchase is your certificate of guarantee.

This barbecook ^® is not suitable for commercial use.

This guarantee is limited to the repair or replacement of parts which prove defective under normal use and service.

This guarantee shall not apply to defects due to improper installation, incorrect use, alterations to the appliance, disassembly of the appliance, wear and tear, or lack of maintenance.

SOLVING PROBLEMS
Problem Probable cause Solution
Impossible to light burner (with igniter or match)	• Blocked venturi tubes • Clean venturi tubes
Not enough heat • Gas cylinder valve is not open• Venturi tubes not positioned over exhaust valves• Blocked burner openings• Cylinder is empty or almost empty• Regulator not fitted correctly on cylinder	• Open gas cylinder valve• Reinstall venturi tubes• Clean openings or fit new burner• New cylinder• Tighten up connector of regulator• Disconnect hose
Yellow flames • Venturi tubes are partly blocked• Salt on burner• The product is connected to Buthane.	• Clean venturi tubes• Clean burner• Connect the product to Propane with the right connector.
Impossible to light burner with igniter	Ignition wire not fitted properlyDefective ignition electrodeFaulty groundDefective igniter	• Check all connections• Check installation of electrodes, burner and igniter• Replace igniter
Flames jumping out of the burner box	Windy weatherCylinder almost empty	• Move barbecue with rear side pointing towards the wind• New cylinder or fill up
Excessive heat and flare-ups • Too fatty food• Blocked fat drain hole• Cooking system not positioned correctly	• Trim excess fat or reduce heat• Clean bottom of burner box and burner• Position cooking system correctly
Flames behind control panel • Blocked	venturi tubes • Shut off gas immediately, allow barbecue to cool down and clean venturi tubes
Regulator humming • Temporary situation caused by high outside temperature or full cylinder	• This is not a defect or a hazard
Incomplete flame • Plugged, leaky or rusted burner • Clean / replace burner
Warming rack does not fit	• Legs are angled too narrowly, or too widely	• The warming rack feet are adjustable. Bend them to fit into the warming rack holes.

TROUBLESHOOTING GUIDE FOR ELECTRIC IGNITION

Problem	Probable cause	Solution
No sparks when pressing the ignition; no sound	Battery not installed correctlyEmpty batteryIgnition button not installed correctlyDefective spark generator	Install battery (ensure that + and - are oriented correctly, with + at the top and - at the bottom)Replace with new AA batteryScrew off button and reinstallReplace spark generator
No sparks when pressing the ignition; sound is present	Faulty ground	Remove and reconnect all connections with spark generator and electrodes
Sparks are present but not with all electrodes and/or not powerful enough	Faulty groundSpark flashover away from burner(s)Low batteryElectrodes are wetElectrodes cracked or brokenn “sparks are present”	Remove and reconnect all connections to the spark generator and the electrodesIf sparks are present that do not originate from the burner(s), the wiring may be damaged. Replace the wiring.Replace with new AA batteryUse paper tissues to remove the dirtReplace cracked or defective electrodes

TURBO HEATING SYSTEM

An additional feature is the new Turbo Heating System: your barbecook is immediately ready to grill and the heat is distributed optimally.

Advantage: barbecook uses 20% less gas than any other gas barbecue.

DE

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

C

Technical line drawing of a mechanical component with two views (no text or symbols)

Illustration of a mosquito pen with an inset showing its silhouette (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

OFF HIGH LOW

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Line drawing of an open oven with internal components and a handle, no text or symbols present

Line drawing of a gas cylinder with a labeled inlet (A), no text or symbols present

Line drawing of a mechanical device with a central hub and connecting wires (no text or symbols)

C

Illustration of a mosquito pen with an inset showing its silhouette inside (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ANAMMA TΩN KAYΣTHPΩN

OFF HIGH LOW

ANAMMA KAYΣTHPΩN ME TON ΣΠΙΝΘΗΡΙΣΤΗ

Technical line drawing of a mechanical assembly with no visible text or symbols

ANAMMA KAYΣTHPΩN ME ΣΠΙΡΤΑ

Móvo yia to Vanilla / Kaduva Black

Line drawing of an open oven with a lid and internal fan (no text or symbols)

Line drawing of a gas cylinder with a labeled end point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with tubing and a spring-loaded base (no text or symbols)

Diagram showing a mosquito detection setup with an arrow and magnified inset (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

OFF HIGH LOW

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of an open oven with a gas stove and cooling unit (no text or symbols)

ENCENDIDO DEL QUEMADOR LATERAL CON UNA CERILLA

Technical line drawing of a mechanical component with a cylindrical shaft and a separate view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

OFF HIGH LOW

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

GAASIBALLOONI TRANSPORT JA HOIUSTAMINE

VOOLIK JA REGULAATOR

Line drawing of a cylindrical gas cylinder with a labeled end point A (no text or symbols on the object itself)

Line drawing of a mechanical device with a central component and attached tubing (no text or symbols)

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Illustration of a mosquito and a pen-like tool with a magnified inset showing the same species (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

PÖLETITE SÜÜTAMINE

OFF HIGH LOW

PÖLETITE SÜÜTAMINE SÜÜTURIGA

Technical line drawing of a mechanical assembly with no visible text or symbols

PÖLETITE SÜÜTAMINE TIKKUDEGA

Line drawing of an open oven with a lid and internal components (no text or symbols)

KÜLGPÖLETI SÜÜTAMINE TIKKUDEGA

Ainult mudel Vanilla / Kaduva Black

Line drawing of a gas cylinder with a labeled section A (no text or symbols on the object itself)

C

Technical line drawing of a mechanical component with a cylindrical shaft and a separate view (no text or symbols)

TURVAOHJEET

Technical line drawing of a mechanical assembly with no visible text or symbols

POLTINTEN SYTYTTÄMINEN

OFF HIGH LOW

POLTINTEN SYTYTYS SYTYTTIMEN AVULLA

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

POLTINTEN SYTYTTÄMINEN TULITIKUILLA

Line drawing of an open oven with internal components and a handle, no text or symbols present

SIVUPOLTTIMEN SYTYTTÄMINEN TULITIKUILLA

Vain mallille Vanilla / Kaduva Black

SKIFTE AV GASSBEHOLDER

Line drawing of a gas cylinder with a labeled section A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

Pure mechanical diagram showing a pipe connection with hoses and a valve (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

SIKKERHETSINFORMASJON

Technical line drawing of a mechanical assembly with no visible text or symbols

TENNE BRENNERNE

OFF HIGH LOW

TENNE BRENNERNE MED TENNEREN

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

TENNE BRENNERNE MED EN FYRSTIKK

Line drawing of an open oven with a lid and internal components (no text or symbols)

TENNE SIDEBRENNEREN MED EN FYRSTIKK

Kun for Vanilla / Kaduva Black

HOLDE OPPFLAMMING UNDER KONTROLL

GUIDE FOR PROBLEML∅SING FOR ELEKTRONISK TENNING

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with labeled section B (no text or symbols on the diagram itself)

Pure mechanical diagram showing a valve assembly with tubing and a spring, no text or symbols present

Technical line drawing of a mechanical component with a cylindrical shaft and a separate view (no text or symbols)

SÄKERHETSINFORMATION

Technical line drawing of a mechanical assembly with no visible text or symbols

TÄNDA BRÄNNARNA

OFF HIGH LOW

TÄNDA BRÄNNARNA MED TÄNDSATSEN

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

TÄNDA BRÄNNARNA MED TÄNDSTICKA

Line drawing of an open oven with a stove and air conditioner unit (no text or symbols)

TÄNDA SIDOBRÄNNAREN MED TÄNDSTICKA

Technical line drawing of a mechanical assembly with no visible text or symbols

ACCENSIONE DEI BRUCIATORI

OFF HIGH LOW

ACCENDERE I BRUCIATORI CON L'ACCENDITORE

Technical line drawing of a mechanical assembly with no visible text or symbols

ACCENDERE I BRUCIATORI CON UN FIAMMIFERO

Line drawing of an open oven with a lid and internal components (no text or symbols)

ACCENDERE IL BRUCIATORE LATERALE CON UN FIAMMIFERO

Soltanto per Vanilla / Kaduva Black

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Technical line drawing of a mechanical component with no visible text or symbols

C

Illustration of a mosquito and a syringe with an inset showing the insect (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

OFF HIGH LOW

ACENDER OS BICOS DE GÁS COM O DISPOSITIVO DE IGNICÃO

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

ACENDER OS BICOS DE GÁS COM UM FÓSFORO

Line drawing of an open oven with internal components and a handle, no text or symbols present

ACENDER O BICO DE GÁS LATERAL COM UM FÓSFORO

Apenas para o modelo Vanilla / Kaduva Black

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

SIKKERHEDSINFORMATION

Illustration of a mosquito and a syringe with a magnified inset showing the same insect (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

TÆNDING AF BRÆNDERE

OFF HIGH LOW

TÆNDING AF BRÆNDERE MED TÆNDER

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

TÆNDING AF BRÆNDER MED TÆNDSTIK

Line drawing of an open cooking pan with a lid and handle, no text or symbols present

TÆNDING AF BRÆNDER MED TÆNDSTIK

Kun for Vanilla / Kaduva Black

For at reducere stikflammer:

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with labeled section B (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with tubing and components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

BIZTONSÁGI INFORMÁCIÓK

Illustration of a mosquito and a pen-like device with a magnified inset showing the same species (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

OFF HIGH LOW

AZ ÉGŐFEJEK BEGYÚJTÁSA A BEGYÚJTÓVAL

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

AZ ÉGŐFEJEK BEGYÚJTÁSA GYUFÁVAL

Line drawing of an open microwave oven with a lid and fan (no text or symbols)

AZ OLDALSÓ ÉGŐFEJ BEGYÚJTÁSA GYUFÁVAL

Csak a Vanilla / Kaduva Black

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a mechanical or electrical device with no visible text, numbers, or symbols.

Illustration of a mosquito pen with an inset showing its silhouette inside (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

APRINDEREA ARZĂTOARELOR

OFF HIGH LOW

APRINDEREA ARZĂTOARELOR CU APRINZĂTORUL

Technical line drawing of a mechanical assembly with no visible text or symbols

APRINDEREA ARZĂTOARELOR CU UN CHIBRIT

Line drawing of an open oven with a lid and internal components (no text or symbols)

APRINDEREA ARZĂTORULUI LATERAL CU UN CHIBRIT

Line drawing of a cylindrical gas cylinder with a labeled section A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with a labeled section B (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a mosquito detection device with an inset showing a close-up of the insect (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

ZAPALOVÁNÍ HOŘÁKŮ

OFF HIGH LOW

ZAPÁLENÍ HOŘÁKŮ POMOCÍ ZAPALOVAČE

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

ZAPALOVÁNÍ HOŘÁKŮ POMOCÍ SIREK

Line drawing of an open oven with a stove and kitchen equipment (no text or symbols)

ZAPALOVÁNÍ BOČNÍHO HOŘÁKU POMOCÍ SIREK

Pouze model Vanilla / Kaduva Black

Technical line drawing of a mechanical or electrical device with no visible text or symbols

Provjera propuštanja mora se provesti:

• prije prvog paljenja roštilja
• pri svakoj izmjeni boce s plinom ili plinskog dijela
• najmanje jedanput godišnje, po mogućnosti na početku sezone.

Illustration of a mosquito pen with an inset showing the same insect, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

PALJENJE PLAMENIKA

OFF HIGH LOW

PALJENJE PLAMENIKA UPALJAČEM

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

PALJENJE PLAMENIKA ŠIBICOM

Line drawing of an open oven with internal components and a handle, no text or symbols present

PALJENJE BOČNOG PLAMENIKA ŠIBICOM

Samo za model Vanilla / Kaduva Black

• Stavite šibicu u držač šibice.
- Držite šibicu na udaljenosti od oko 13 mm od plamenika (sl. H).
- Pritisnite regulacijski prekidač bočnog plamenika i okrenite ga u položaj "HIGH". Plamenik bi se trebao upaliti unutar 5 sekundi. Ako se ne upali, isključite regulacijski prekidač i pričekajte 5 minuta kako bi plin izašao.
- Ponovite postupak od koraka 1 do 3. Ako se plamenik svejedno ne upali, pročitajte poglavlje "Problemi u radu" i pokušajte ustanoviti uzrok i rješenje.

VIZUALNA PROVJERA PLAMENA

|

HIGH LOW

Line drawing of a cylindrical gas cylinder with a labeled section A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

C

Technical line drawing of a mechanical component with no visible text or symbols

INFOMACIJA DÉL SAUGUMO

Illustration of a syringe with an inset showing a mosquito and a magnified view of its internal structure (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

DEGIKLIŲ UŽDEGIMAS

OFF HIGH LOW

DEGIKLIŲ UŽDEGIMAS NAUDOJANT VIDINĖ UŽDEGIMO SISTEMA

Technical line drawing of a mechanical assembly with no visible text or symbols

DEGIKLIŲ UŽDEGIMAS NAUDOJANT DEGTUKUS

Line drawing of an open oven with a lid and internal components (no text or symbols)

ŠONINIŲ DEGIKLIŲ UŽDEGIMAS NAUDOJANT DEGTUKUS

Tik su Vanilla / Kaduva Black

Line drawing of a cylindrical gas cylinder with a labeled end point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Illustration of a mosquito vectoring a pen, showing internal structure and magnified view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

DEGLU IEDEGŠANA

OFF HIGH LOW

DEGLU IEDEGŠANA AR AIZDĘDZINĀTĀJU

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

DEGLU IEDEGŠANA AR SĚRKOCINU

Line drawing of an open oven with a lid and fan, showing internal components (no text or symbols)

SĀNU DEGLA IEDEGŠANA AR SĒRKOCIŅU

Tikai Vanilla / Kaduva Black

Line drawing of a cylindrical gas cylinder with a labeled section A (no text or symbols on the object itself)

Line drawing of a mechanical device with a valve and tubing (no text or symbols)

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA

Technical line drawing of a mechanical assembly with no visible text or symbols

ROZPALANIE PALNIKÓW

OFF HIGH LOW

ROZPALANIE PALNIKÓW ZA POMOCA ZAPŁONNIKA

Technical line drawing of a mechanical assembly with no visible text or symbols

ROZPALANIE PALNIKÓW ZA POMOCĄ ZAPAŁEK

Line drawing of an open oven with a lid and internal components (no text or symbols)

ROZPALANIE PALNIKA BOCZNEGO ZA POMOCA ZAPAŁEK

Tylko Vanilla / Kaduva Black

Pure mechanical diagram showing a vertical pipe connected to a cylindrical component via tubing, with no text or symbols present.

Illustration of a mosquito vectoring a pen, showing live and dead parts (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ZAPAL'OVANIE HORÁKOV

OFF HIGH LOW

ZAPÁLENIE HORÁKOV POMOCOU ZAPAL'OVAČA

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

ZAPAL'OVANIE HORÁKOV POMOCOU ZÁPALIEK

Line drawing of an open oven with a mounted stove and gas stove (no text or symbols)

ZAPAL'OVANIE BOČNÉHO HORÁKU POMOCOU ZÁPALIEK

Iba model Vanilla / Kaduva Black

Line drawing of a cylindrical gas cylinder with a labeled component 'A' (no text or symbols on the object itself)

Simple line drawing of a mechanical device with a handle and internal components (no text or symbols)

C

Illustration of a syringe with an inset showing a mosquito and a magnified view of its internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

VŽIG GORILNIKOV

OFF HIGH LOW

PRIŽIGANJE GORILNIKOV Z VŽIGALNIKOM

Line drawing of an open oven with internal components and a handle, no text or symbols present

PRIŽIGANJE STRANSKEGA GORILNIKA Z VŽIGALICO

Samo za Vanilla / Kaduva Black

barbecook® and Aromaz® are registered trade marks of

SAEY Home & Garden N.V. Industrielaan 4 / B-8501 Heule (Kortrijk) Belgium

www.barbecook.com
