USER MANUAL NI-707540 Icidu

COMMUNICATION SUPPORT

300 Mbps SAVE UP TO 50% ENERGY ONLY 1.9W CONSUMPTION

GIGABIT ROUTER

WIRELESS 300N

300 MBPS

HANDLEIDING NI-707540

White network router with two black antennas and indicator lights (no visible text or symbols on the device body)

NEDERLANDS

INHOUD VAN DE VERPAKKING 4

TECHNISCHE SPECIFICATIES 4

TOEPASSINGMOGELIJKHEDEN 4

HARDWARE INSTALLATIE 5

ROUTER CONFIGURATIE 6

WPS 11

CE/FCC 12

GARANTIE 15

GIGABIT ROUTER WIRELESS 300N 300 MBPS

Windows Security The server 192.168.2.1 at Default: admin/1234 requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). admin ...... Remember my credentials OK Cancel

ICIDU NI-TO7540 Green Wireless Sigabit Router 360N | Home | General Setup | Status | Tools | Quick Setup The Quick Setup provides only the necessary configurations to connect your Wireless Router to your Internet Service Provider (SP) through an external cable or a DSL modem. General Setup The Wireless Router supports advanced functions like Virtual Server. Access Control, Hacker Attack Detection and DWZ. We highly recommend you keep the default settings. Status The Wireless Router's status information provides the following information about your Wireless Router Hardware/Firmware reset, Serial Number, and its current operating status. Tools Wireless Router Tools - Tools include Configuration tools, Firmware upgrade and Reset Configuration loads allow you to Backup. Restore or Restore to Factory Default setting for your Wireless Router. The Firmware upgrade tool allows you to upgrade your Wireless Router's firmware. The RESET tool allows you to meet your Wireless Router

A connection through a cable modem requires minimal configuration. When you set up an account with your Cable provider, the Cable provider and your Wireless Router will automatically establish a connection, so you probably do not need to enter anything more.

○ Fixed-IP xDSL

Some xDSL Internet Service Providers may assign a Fixed IP Address for your Wireless Router. If you have been provided with this information, choose this option and enter the assigned IP Address, Submit Mask, Gateway IP Address and DNS IP Address for your Wireless Router.

○ PPPoE xDSL

If you connect to the internet using an xDSL Modem and your ISP has provided you with a Password and a Service Name, then your ISP uses PPPoE to establish a connection. You must choose this option and enter the required information.

○ PPTP xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password, Local IP Address, Remote IP Address and a Connection ID, then your ISP uses PPTP to establish a connection. You must choose this option and enter the required information.

○ L2TP xDSL

Layer Two Tunneling Protocol is a common connection method used in xDSL connections.

Telstra Big Pond

If your Internet service is provided by Teistra Big Pond in Australia, you will need to enter your information below. This information is provided by Teistra BigPond.

Indien je over Dynamic IP beschikt klik je op “Cable Modem” je kommt dan direct in het scherm “Dynamic IP”.

○ Cable Modem

A connection through a cable modem requires minimal configuration. When you set up an account with your Cable provider, the Cable provider and your Wireless Router will automatically establish a connection, so you probably do not need to enter anything more:

O Fixed-IP xDSL

Some xDSL Internet Service Providers may assign a Fixed IP Address for your Wireless Router. If you have been provided with this information, choose this option and enter the assigned IP Address, Submit Mask, Gateway IP Address and DNS IP Address for your Wireless Router.

- PPPoE xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password and a Service Name, then your ISP uses PPPoE to establish a connection. You must choose this option and enter the required information.

○ PPTP xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password, Local IP Address, Remote IP Address and a Connection ID, then your ISP uses PPTP to establish a connection. You must choose this option and enter the required information.

○ L2TP xDSL

Layer Two Tunneling Protocol is a common connection method used in xDSL connections.

○ Telstra Big Pond

If your Internet service is provided by Talstra Big Pond in Australia, you will need to enter your information below. This information is provided by Talstra BigPond.

3. IP Address Info 1

PPPoE

Enter the User Name and Password required by your ISP in the appropriate fields. If your ISP has provided you with a "Service Name" enter it in the Service Name field, otherwise, leave it blank.

User Name : Password : Service Name : MTU : 1392 (512<=MTU<=1492) Connection Type : Continuous Connect Disconnect Idle Time-Out : 18 (1-1000 Minute) BACK OK

System WAN LAN Wireless Basic Settings Advanced Settings Security Settings Access Control FPS DoS NAT Firewall

Basic Settings

This page allows you to define ESSD, and Channel for the wireless connection. These parameters are used for the wireless stations is correct to the Access Point.

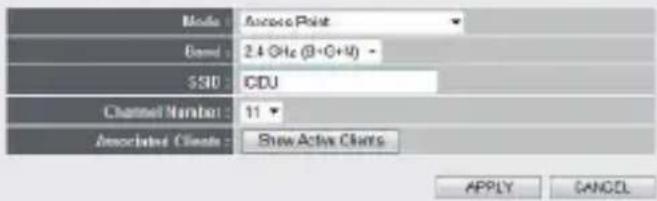

Media : Access Point Band : 2.4 GHz (0+0+1) * SSD : CDU Channel Number : 11 Associated Clients : Show Active Clients APPLY CANCEL

Save settings successfully!

You may press CONTINUE button to continue configuring other settings or press APPLY button to restart the system to make the changes take effect.

CONTINUE

APPLY

Security Settings 1 This page allows you to setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption : WPA pre-shared key WPA Unicast Cipher Suite : □ WPA(TKIP) ▼ WPA2(AES) ▲ WPA2 Mixed Pre-shared Key Format : Passphrase Pre-shared Key : 123123123123123 APPLY CANCEL

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the ICIDU network. < Back Finish Cancel

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

CE!

NATIONAL RESTRICTIONS

This device is intended for home and offi ce use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

COUNTRY RESTRICTION REASON/REMARK

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to Military Radiolocation use. band 2454-2483.5 MHz been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund

Russian Federation None Only for indoor applications

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment

a n d r e c

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV

t e c h n i c

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received,

i n c l u d i o p e r a t i

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF RADIATION EXPOSURE STATEMENT:

This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance.

GARANTIE

© Copyright 2011 ICIDU

White network router with two black antennas and indicator lights (no visible text or symbols on the device body)

LIEFERUMFANG 4

TECHNISCHE DATEN 4

ANWENDUNGSBEREICH 4

HARDWARE-INSTALLATION 5

ROUTER-KONFIGURATION 6

WPS 11

CE/FCC 12

GARANTIE 15

GIGABIT ROUTER WIRELESS 300N 300 MBPS

Windows Security The server 192.168.2.1 at Default: admin/1234 requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). admin ...... Remember my credentials OK Cancel

ICIDU NI-T07540 Green Wireless Gigabit Router 30CN Home/Some Setup Status Tools Quick Setup The Quick Setup provides only the necessary configurations to connect your Wireless Router to your Internet Service Provider (SP) through an external cable or a DSL modem. General Setup The Wireless Router supports advanced functions like Virtual Server. Access Control, Hacker Attack Detection and DWZ. We highly recommend you keep the default settings. Status The Wireless Router's status information provides the following information about your Wireless Router. Hardware/Firmware version, Serial Number, and its current operating status. Tools Wireless Router Tools - Tools include Configuration tools, Firmware upgrade and Reset Configuration tools allow you to Backup. Restore or Restore to Factory Default setting for your Wireless Router. The Firmware upgrade tool allows you to upgrade your Wireless Router's firmware. The RESET tool allows you to meet your Wireless Router.

A connection through a cable modem requires minimal configuration. When you set up an account with your Cable provider, the Cable provider and your Wireless Router will automatically establish a connection, so you probably do not need to enter anything more.

○ Fixed-IP xDSL

Some xDSL Internet Service Providers may assign a Fixed IP Address for your Wireless Router. If you have been provided with this information, choose this option and enter the assigned IP Address, Submit Mask, Gateway IP Address and DNS IP Address for your Wireless Router.

○ PPPoE xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password and a Service Name, then your ISP uses PPPoE to establish a connection. You must choose this option and enter the required information.

○ PPTP xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password, Local IP Address, Remote IP Address and a Connection ID, then your ISP uses PPTP to establish a connection. You must choose this option and enter the required information.

○ L2TP xDSL

Layer Two Tunneling Protocol is a common connection method used in xDSL connections.

○ Telstra Big Pond

If your Internet service is provided by Telstra Big Pond in Australia, you will need to enter your information below. This information is provided by Telstra Big Pond.

A connection through a cable modem requires minimal configuration. When you set up an account with your Cable provider, the Cable provider and your Wireless Router will automatically establish a connection, so you probably do not need to enter anything more:

O Fixed-IP xDSL

Some xDSL Internet Service Providers may assign a Fixed IP Address for your Wireless Router. If you have been provided with this information, choose this option and enter the assigned IP Address, Subnet Mask, Gateway IP Address and DNS IP Address for your Wireless Router.

- PPPoE xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password and a Service Name, then your ISP uses PPPoE to establish a connection. You must choose this option and enter the required information.

○ PPTP xDSL

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password, Local IP Address, Remote IP Address and a Connection ID, then your ISP uses PPTP to establish a connection. You must choose this option and enter the required information

○ L2TP xDSL

Layer Two Tunneling Protocol is a common connection method used in xDSL connections.

○ Telstra Big Pond

If your Internet service is provided by Talstra Big Pond in Australia, you will need to enter your information below. This information is provided by Talstra BigPond.

3. IP Address Info 1

PPPoE

Enter the User Name and Password required by your ISP in the appropriate fields. If your ISP has provided you with a "Service Name" enter it in the Service Name \$eld, otherwise, leave it blank.

User Name : Password : Service Name : MTU : 1392 (512<=MTU<=1492) Connection Type : Continuous Connect Disconnect Idle Time Out : 16 (1-1000 Minute) BACK OK

System WAN LAN Wireless Basic Settings Advanced Settings Security Settings Access Details DNS QoS NAT Firewall

Basic Settings

This page allows you to define ESSO and Channel for the wireless connection. These parameters are used for the wireless station to connect to the Access Point.

Mode : Access Point Band : 2.4 GHz (5+G+V) 5 SIB : CDJ Channel Number : 11 Associated Clients : Show Active Clients APPLY CANCEL

Save settings successfully!

You may press CONTINUE button to continue configuring other settings or press APPLY button to restart the system to make the changes take effect.

CONTINUE

APPLY

Security Settings This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption : WPA pre-shared key WPA Unicast Cipher Suite : WPA(TKIP) WPA2(AES) WPA2 Mixed Pre-shared Key Format : Passphrase Pre-shared Key : 123123123123123 APPLY CANCEL

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the ICIDU network. Back Finish Cancel

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

CE!

NATIONAL RESTRICTIONS

This device is intended for home and offi ce use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

COUNTRY RESTRICTION REASON/REMARK

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to Military Radiolocation use. band 2454-2483.5 MHz been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund

Russian Federation None Only for indoor applications

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment

a n d r e c

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV

t e c h n i c

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received,

i n c l u d i o p e r a t i

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF RADIATION EXPOSURE STATEMENT:

This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance.

GARANTIE

© Copyright 2011 ICIDU
