TABLE SAW

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the pictures on page 2 - 5

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Technical specifications
2. Safety instructions
3. Assembly instructions
4. Operation
5. Maintenance

1. Technical specifications

Product information

Fig. A

1. Protective cap
2. Fence
3. Bench inlay
4. Mitre handle
5. Height handle
6. Measurement set-up for fence
7. On/off switch
8. Thermic safety switch
9. Workbench

Check first whether or not the delivery has been damaged by transport and/or whether all the parts are present.

Technical data

Voltage 230 V~

Frequency 50 Hz

Power input 1700 W

No load speed 4800/min

Saw blade dimensions 254 x 30 x 2.8 mm

Number of teeth T40

Max.cutting depth 90° 73 mm

Max.cutting depth 45° 60 mm

Measurements of bench 630 x 445 mm

Weight 28.4 kg

Lpa (sound pressure level) 96.2 dB(A) K=3dB

Lpa (sound power level) 109.2 dB(A) K=3dB

Vibration level < 2.5 m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 61029-1; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

2. Safety instructions

Explanation of symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates the presence of an electrical voltage.

Immediately unplug the plug from the mains electricity in the case that the cord gets damaged and during maintenance.

Keep bystanders away.

Wear eye and ear protection.

Additional safety instructions

1. When using the saw blades with hard metal teeth (Carbon tipped) it is advisable to use blades with a negative or slightly positive cutting angle. Do not use any saw blades with deeply cut teeth. They can grip the protective cap.
2. Attention: First carefully assemble all the parts before starting work. Follow the procedure as indicated.
3. If you are not familiar with using such a machine, you would be better to be informed first by a professional, an instructor or by a technician.
4. Always clamp or press the workpiece firmly against the saw guide, before you carry out the process. The use of all possible clamping set-ups is preferable to using your hands.
5. Important: If you are holding the workpiece by hand for the process to be carried out, keep a minimum distance of 100 mm from the saw blade.
6. Always press the workpiece against the bench.
7. Keep the saw blade sharp and check regularly whether it rotates freely without abnormal vibrations. Replace the saw blade if necessary.
8. Allow the machine to rotate freely until it reaches the maximum number of revolutions, before you start the process.
9. Maintain the air inlets at the back and the bottom of the bench saw machine and electric engine for a longer machine life. Dust piles must be removed.
10. Always lock the different degree set-ups before you start processing.
11. Only buy suitable saw blades with a number of revolutions of at least 6000 revolutions per

minute.

1. Only use the correct saw blade. Too small or too big saw blades are extremely dangerous.

2. Regularly inspect the saw blade for any faults. Replace the saw blade if necessary.

3. Grease the new saw blade and clean the flanges before you assemble the new blade. Then assemble the blade in the correct direction and pull the flanges firmly using the central bolt.

4. Only use original flanges. All other types are not suitable.

5. Never work without the protective cap of the saw blade.

6. The moving part of the protective cap must also remain assembled.

7. Never grease the saw blade while it is rotating.

8. Always keep your hands removed from the track of the saw blades.

9. Never pick up the workpiece by grasping with your hands along or behind the saw blade.

10. Ensure that the workpiece never touches the saw blade before the machine has been switched on.

11. Never process metal or stone sorts with this machine.

12. Use support aids in order to support long workpieces.

13. Never use the machine in a dangerous environment, where inflammable gases or fluids are present.

14. Never leave the machine unattended without first disconnecting it from the mains voltage.

15. If you hear abnormal noises, try to trace them or take the machine to a recognized fitter, or repair company.

16. If a part is broken or damaged, replace it or repair it immediately.

17. Never stand in the track of the saw blade but stand to the left or the right of the saw bench.

18. Your hands must likewise be placed next to the track of the saw blade.

19. Always use a wooden pole instead of your hands to push the wood through the saw.

20. Always place the wood at the front of the saw bench and then push it further back.

21. For mitring only the adjustable guide must be used and the fence must be removed.

22. Never use the fence as a linear measure for cutting off beams.

23. If the saw blade is locked: first switch off the machine before you attend to the fault.

24. Avoid workpieces hitting back in your direction by taking the following measures:

• Always use sharp saw blades.
• Do not saw too small workpieces.
• Never release the workpiece before it has been completely pushed through the saw.
• Always adjust the guide parallel to the saw blade.
• Never remove the saw protection.

1. Before you continue sawing, ensure that you are standing firmly and that your hands are in the required position.
2. Never use thinners to clean the machine. Only use a damp cloth for cleaning.
3. Do not use saw blades which are damaged or deformed.
4. Replace table insert when worn.
5. Use only saw blades recommended by the manufacturer.
6. Take care that the selection of the saw blade depends on the material to be cut.
7. Connect circular saws to a dust-collecting device when sawing.
8. Use and correct adjustment of the riving knife
9. Use and correct adjustment of the upper saw blade guard.
10. Take care when slotting.

Before use, remove the transport protection:

• Disassemble the bottom plate by loosening the 4 screws.
• Remove the transport protection below motor.
• The handles for height and mitre setting of the saw blade are located in the transport protection inside the machine.
  • Reassemble the bottom plate.

Switch off the machine immediately when you discover:

• A defective mains plug or mains lead.
• A defective switch.
• Overheating of the machine.
- Smoke or odeur caused by scorched insulation.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

• As a supply for this machine always use an unloaded line and/or an extension cable with conductors of at least 1,5 mm ^2 and protected with a 16 A fuse. Be sure that this extension cable is not longer than 20 metres.
• Only connect your machine and/or extension cable to an earthed electricity mains.
• This machine can be switched to the single-phase network (230 V/50 Hz). If you are in doubt about the earth of the electricity provisions, consult an electrician first.

3. Assembly instructions

Assembly of the bench extensions Fig. F

• Before attaching the bench extensions, first remove the perforated base plate (you can now also remove and discard the motor protection materials).

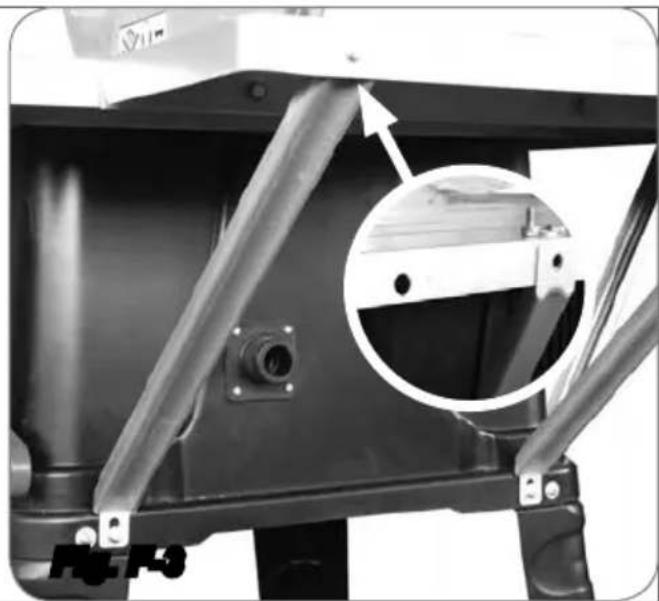

• Once the bottom side is open, you can attach the diagonal support struts to the bench saw.
• Now attach the bench extensions to the basic bench top. Next, attach the extensions to the diagonal support struts.
• Once all the extensions have been assembled, re-attach the base plate (taking care that all extensions are perfectly lined up with the basic bench top itself).
• Lastly, attach the guide rail (with ruler) to the front edge of the bench top.

Installation of the machine on a workbench or on the subframe

This machine is a stationary machine and for safety reasons must always be firmly installed and not used for mobile applications.

You can install the machine in two ways:

a. As a stationary machine on a workbench. In this case the machine must be secured to the workbench with 4 bolts.

b. As a stationary machine on the subframe. In this case the machine must be secured to the subframe with 4 bolts and the subframe anchored to the floor or to a floor plate with dimensions of at least 1 square metre

Assembly of the bench saw on the workbench Fig. B & C

Before adjusting the saw, make sure the plug is removed from the socket.

Fig. B shows the distance of the holes to be drilled in the workbench on which to fasten the machine. Drill holes of 8 mm.

Only use the machine after it has been assembled completely and it has been screwed onto the workbench or the frame.

• Fig. C shows the part to be sawn out (310 x 310 mm), so that the sawdust can fall through it and piling up is prevented! Only if you do not use an extraction system!
• Fasten the machine with bolts.
• If the frame is used, it must be fixed on the floor with four screws and the machine must be fixed on the frame with four screws. Check the screws before switching the machine on.

Assemble undercarriage

Fig. G

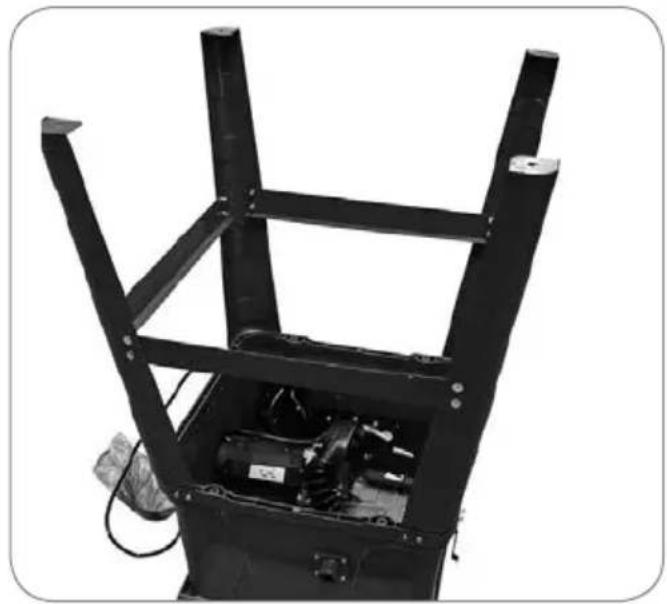

• Turn the machine upside down.
- Remove the black plastic bottom plate by unscrewing the 6 screws. (Fig. G-1).

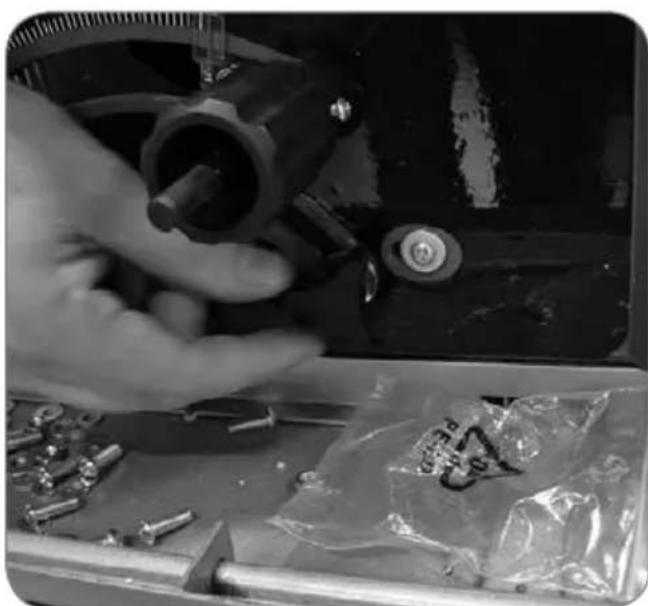

- Unscrew the adjusting knob on the front and tilt the motor (Fig. G-2), then remove the transport packing (Fig. G-3).
- Now place one by one the uprights in the casing of the sawing bench (Fig. G-4).
- Secure the uprights with 4 screws using a screwdriver, do not completely tighten the screws (Fig. G-5).

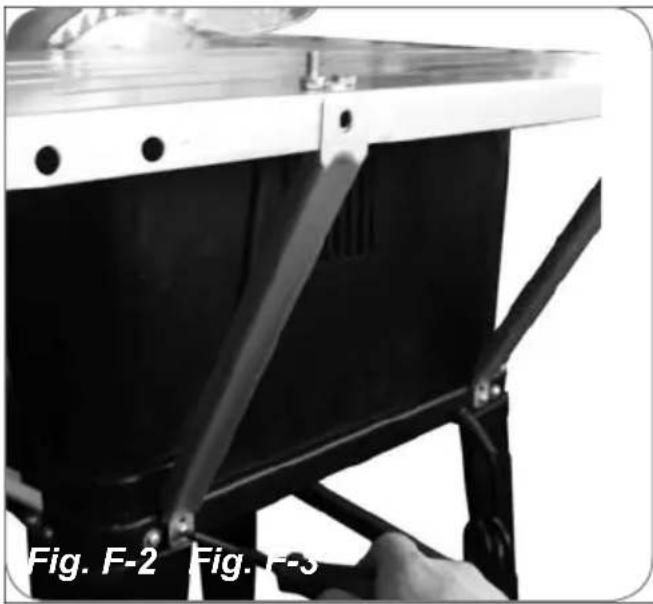

• Fit the 4 support bars, do not completely tighten the screws (Fig. G-6)
- Fit the black plastic bottom plate and screw it tight.

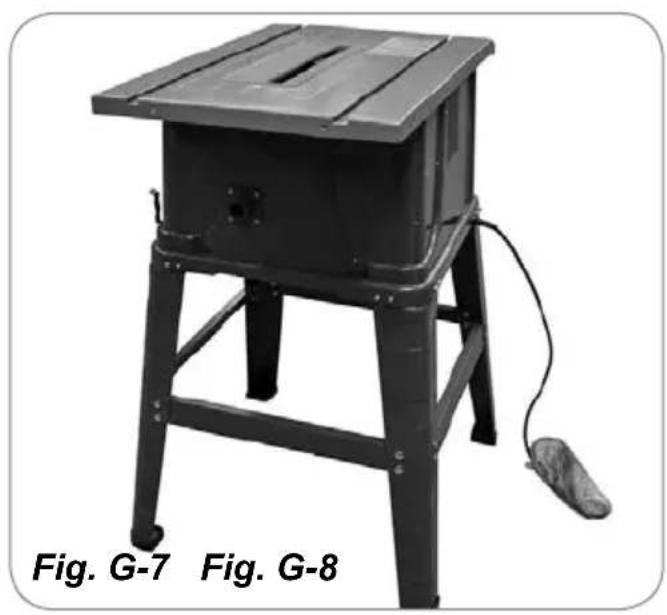

- Attach the rubber feet under the uprights (Fig. G-7).
• Turn the machine into an upright position on a flat surface and adjust the machine so that it

stands in a stable position, tighten all the nuts and bolts (Fig. G-7).

Assemble bracket/push stick

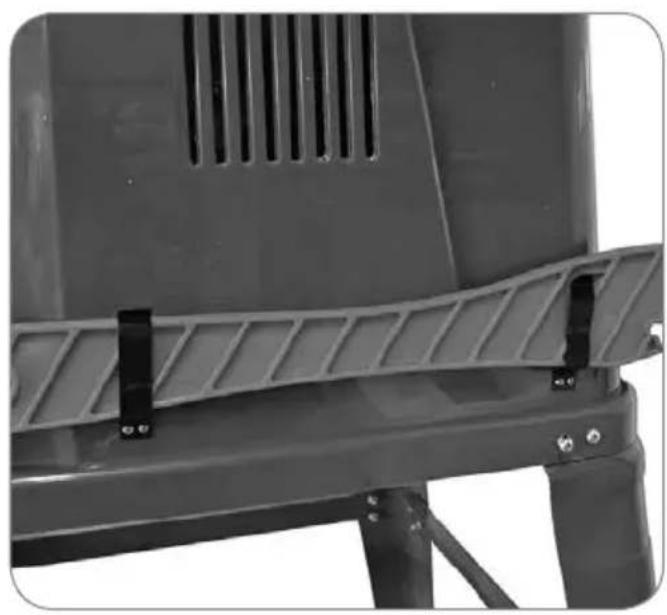

• Attach the 2 brackets onto the casing of the sawing bench and screw them tight (Fig. G-8).
• Place the push stick in the brackets.

Assembly and attachment of the rip fence Fig. D

• Attach the aluminium fence (A) to the positioning block (B).
• Now you can attach the complete rip fence to the bench top.
• Slide the rip fence via one end of the positioning rail (C) over the bench top.
• Adjust the position of the aluminium fence profile (A) such that the end corresponds to the rear edge of the saw.

Assembly of the riving knife and the protective cap

Fig. E

• Turn the saw blade completely upwards.
- Remove the bench inlay.
- Assemble the riving knife on the set-up for this purpose and use hereby the Allen screws and the filling rings. Ensure that the riving knife falls properly into the opening (= groove).
- Now put the inlay back in the bench and fasten it.
- Now assembly the protective cap onto the riving knife and use hereby the profiled nut and self-locking nut.

Now lay a lath against the saw blade and the riving knife and check whether it falls properly into the extension of the saw blade. If this is not the case: Loosen the fastening bolts and place or remove the filling rings.

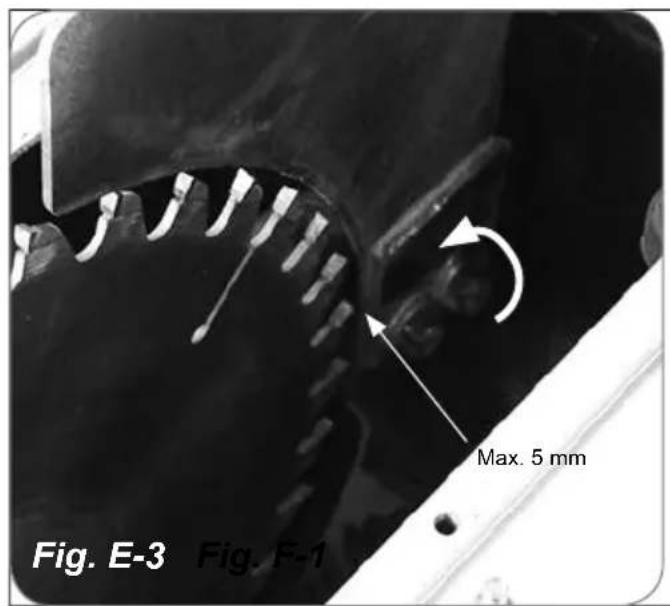

• Above the saw table the radial distance between the riving knife and the toothed rim of the saw blade shall not at any point exceed 5 mm at the depth of cut set.
• The tip of the riving knife shall not be lower than 5 mm from the tooth peak, as shown.

Assembly of the saw blade

First remove the plug from the mains before the saw blade is assembled or replaced.

• Remove the inlay from the bench. Use a screwdriver for this purpose.
• Turn the saw axle completely upwards. Remove the nut and the outside flange from the saw axle.
• Now slide the saw blade over the saw axle and now put the outside flange and the nut back. Tighten the nut by hand.
• Now use the 2 keys: one for the flange and one for the nut and now clamp it.
• Now put the inlay back in the bench and fasten it.

Mounting the push stick holders

Mount both push stick holders on the side of the machine using the bolts and rings supplied.

Use of the mitring set-up

Fig. A

By turning the handle at the side of the machine you can adjust the saw blade to a maximum of 45^ (4).

4. Operation

Working instructions

There are two types of sawing methods:

• Lengthwise sawing
Sawing the workpiece in the length of the wood grain.
• Cross-cutting or cutting off Sawing off the workpiece crosswise.

If it concerns a panel, we do not usually distinguish between the wood grain, but we name the method where we saw off a part of the width of the panel (lengthwise sawing) and when we cut off the length (cross-cutting or cutting-off).

For both sawing methods one of the fences must be used. Therefor never saw without a fence!

Attention! Before you start sawing, first check the following:

1. Is the saw blade secured?

2. Are all the locking handles secured?

3. Is the fence parallel to the saw blade?

4. Is the protective cap working properly?
5. Are you wearing safety goggles?
6. Is the saw blade not rubbing against anything?

It is absolutely necessary to take these points into consideration before you start work!

Lengthwise sawing

• Secure the fence to the correct measuring position and remove the cut-off guide from the bench carriage.
• Turn the saw blade approximately 2 mm higher than the total thickness of the wood to be sawn.
• Press the wood lightly towards the bench and let it glide against the cut-off fence.

Remain at least 3 cm. from the front of the saw blade before you switch on the engine. The side of the wood which is against the fence must be completely straight. Keep your hands at least 10 cm away from the saw track to be followed.

• Switch on the engine and wait until the saw blade has reached the maximum number of revolutions before you start sawing.
• While you press the wood against the bench and the fence, you can carefully push the wood through the saw blade without forcing it.
• Never pull the workpiece backwards. If necessary, switch off the engine first without altering the position of the workpiece.

Lengthwise sawing with a (vertical) mitre

This method is practically the same, except that the saw blade is placed at the angle required.

With this type of method the fence may only be along the righthand side of the sawblade.

Lengthwise sawing of narrow workpieces

Assume that this process is extremely dangerous.

Take all the necessary safety measures and continually push the workpiece through (until

behind the saw blade) using a synthetic aid instead of by hand.

Crosswise sawing

• Remove the fence and apply the cross-cut fence in the righthand carriage.
• Adjust the height of the saw blade (see lengthwise sawing).
• Press the workpiece against the cross-cut fence and keep at least 2,5 cm distance from the front of the saw blade.
• Switch on the engine and wait until the maximum number of revolutions has been reached.
• Press the workpiece against the fence and the bench. Carefully push the wood through the saw blade. Continue until behind the saw blade. Then switch off the engine and keep this position until the saw blade has stopped completely before you remove the wood.
• Never pull the wood back. If necessary, switch the engine off and keep the position until the saw blade has stopped completely.

Crosswise sawing with a vertical mitre

This method is practically the same, except that the saw blade is placed in the angle required.

Only place the cross-cut fence on the righthand side of the saw blade. Never saw too small pieces of wood. Never use your hands to carry out difficult operations.

Crosswise sawing with a horizontal mitre

With this method the cross-cut fence must be secured at the angle required. Keep the workpiece pressed firmly against the cross-cut fence and the bench before you start cutting off.

5. Maintenance

Make sure that the machine is not live when carrying out maintenance work on the motor.

These machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Malfunctions

In the case that the machine is not functioning properly, we give a number of possible causes and appropriate solutions below.

1. Working instructions

• The plug is not in the mains.
• The cable has been interrupted.

2. The workpieces is jamming against the riving knife during processing

• The saw blade must be aligned (Fig. E).

3. The saw cut is not smooth (frayed)

• The saw blade must be sharpened.
- The saw blade has been assembled back-to-front.
- The saw blade has become coated with resin or sawdust.
• The saw blade is not suitable for this process.

4. The workpiece is touching the back of the saw blade and is jumping out

• The riving knife must be aligned (Fig. E).
• The fence is not being used.
• The saw blade is thicker than the riving knife or the riving knife is not being used
• The saw blade must be sharpened.
- The workpiece has not been kept in its place until after sawing.
- The tension button of the cross-cut fence is loose.

5. The height and/or mitre handle is blocked

- Sawdust and dust must be removed.

6. The engine has difficulty reaching the maximum number of revolutions

• The extension cable is too thin and/or too long.
  • The mains voltage is lower than 230 V.

7. The machine is vibrating

• The machine has not been fastened onto the workbench.
  • The frame is not level with the floor.
  • The saw blade has been damaged.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation

slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact your local Ferm dealer. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Damaged and/or disposed of electrical or electronic devices must be dropped off at recycling stations intended for that purpose.

Warranty

Read the warranty conditions on the separately supplied warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

TISCHKREISSÄGE

1. Specifications techniques

Tension 230 V\~

Fréquence 50 Hz

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Exploded view diagram of a mechanical assembly with numbered components and exploded view

Spare parts list

No.	Description	Position
126011	Push stick 5
126012	Switch 11
126028	Guard complete	32 TILL 37 + 152 +153
126029	Handwheel 38 TILL 46
126030	Knob	47 TILL 50
126027	Saw blade nut	71
126016	Riving knife 75 + 77 + 78 + 41
126017	Flange set	72 + 74
126031	Rotor	98
126032	Stator	101
126033	Carbon brush holder	108
126034	Carbon brush set	109
126035	Carbon brush cap	110
126023	Measuring tape	114
126024	Position block	123 TILL 125 + 145
126025	Angle guide complete	131 TILL 138
126026	Guide complete	139 TILL 143

CE

DECLARATION OF CONFORMITY

FZT-254/1700 TABLE SAW TSM1031

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoL,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN61029-1, EN61029-2-1, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-11

2006/95/EC, 2006/42/EC, 204/108/EC, 2002/95/EC, 2002/96/EC

Zwolle, 01-06-2011

I. Mönnink

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

WWW.FERM.COM 1201-09
