Congratulations on choosing a Claypaky product!

We thank you for your custom.

Please note that this product, as all the others in the rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.

1. SAFETY INFORMATION

EN

SAFETY INFORMATION

IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link:

www.claypaky.com

Ref: FIS037 – Safety Information Tambora Rays

IT

Functional buttons LCD Display Battery Fuse 3A Anti-moisture valve Main IN Fuse 15A Neutrik PowerCON TRUE1 (IN/OUT) 5pin DMX IN/THRU Ethernet Fan CLAYPAKY Safety loop Fan

3.2 Installing the fixture

3

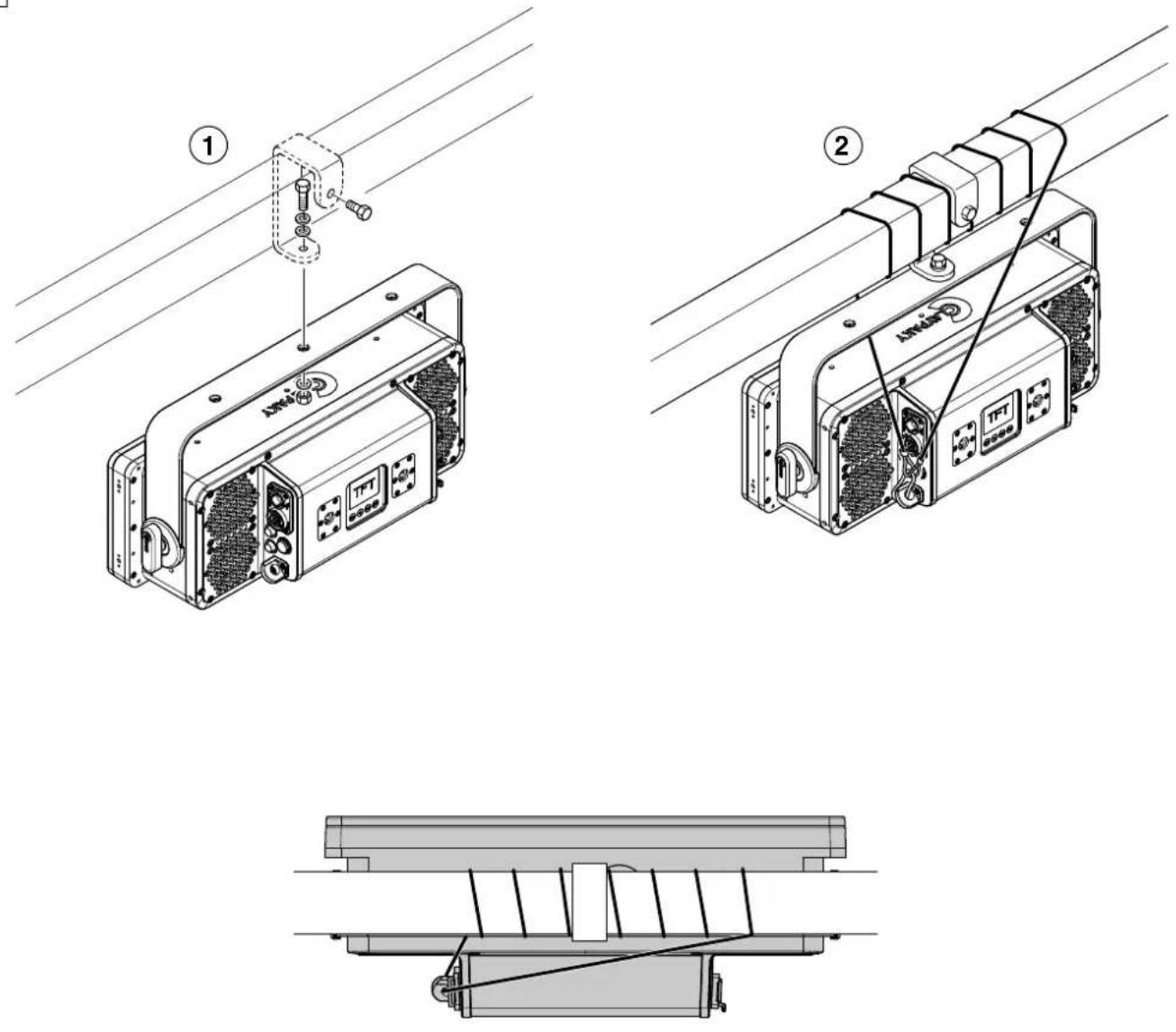

Projector installation - Fig. 3
The projector can be installed on a truss, on the ceiling or wall for floor installation is necessary to use the optional accessory part number CA3042000102.
WARNING: the safety chain must be installed except when the projector rests on the floor. (Code 105041/001 available upon request).
This must be secured to the projector support structure and then hooked to the fastening point at the centre of the fixture.
Referring to the Accessories list you can install the fixtures in many different configurations.

3.3 Connecting to mains supply

Diagram showing two installation steps of an electronic device, labeled with numbered components and directional arrows indicating assembly.

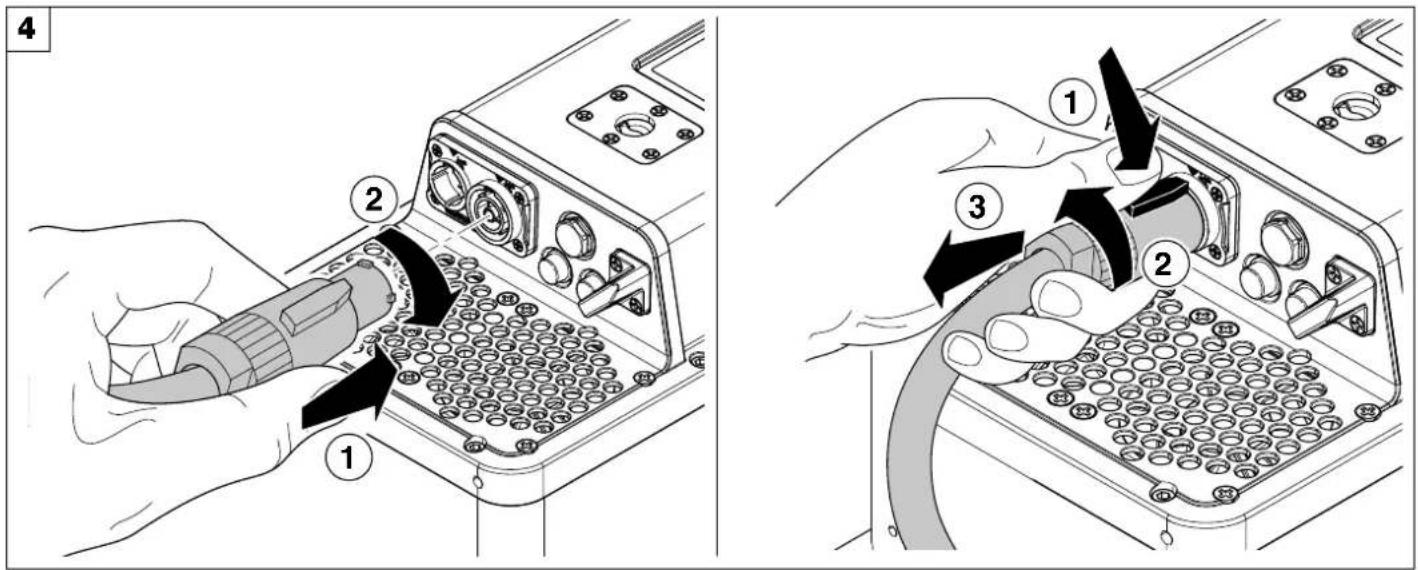

Connecting and disconnecting the power cord - Fig. 4

5 Power Supply

Connections to the power mains - Fig. 5

3.4 Connecting the control signal line: DMX / Art-Net

6 DMX 512 Ethernet DMX 512 5 PIN SCREEN SIGNAL SIGNAL

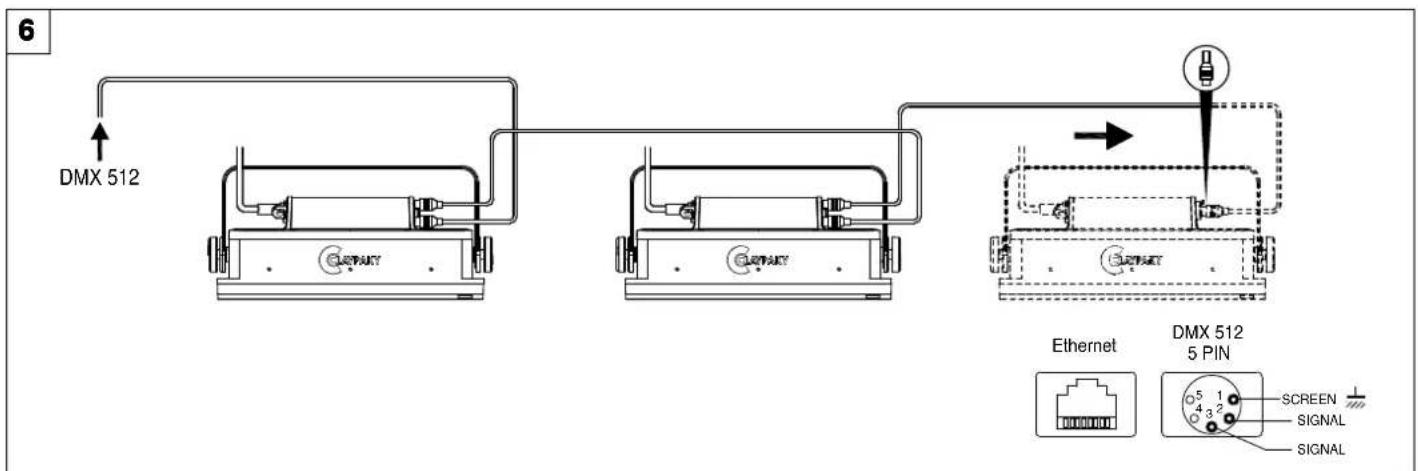

Connections to the control signal line (DMX) - Fig. 6
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ω characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. End connections must be made using XLR type 5-pin male/female connectors. A terminating plug must be inserted on the last projector with a resistance of 120 (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing must be connected to the shield braid and pin 1 of the connectors.

3.5 Switching on the fixture and basic SetUp

7

MON UP DOWN ENTER

Switching on the projector - Fig. 7

Switch-on the fixture. The projector starts the reset procedure. At the same time, the following information scrolls on the display:

The control panel (Fig. 7) has a display and buttons for the complete programming and management of the projector menu.

The display can be in one of two conditions: rest status and setting status. When it is in the rest status, the display shows the projector's DMX address. During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted that when this condition occurs, any possible value that has been modified but not yet confirmed with the ENTER key will be cancelled.

8

TAMBORA RAYS 22° 001 Standard MENU UP DOWN ENTER TAMBORA RAYS 22° Standard 001

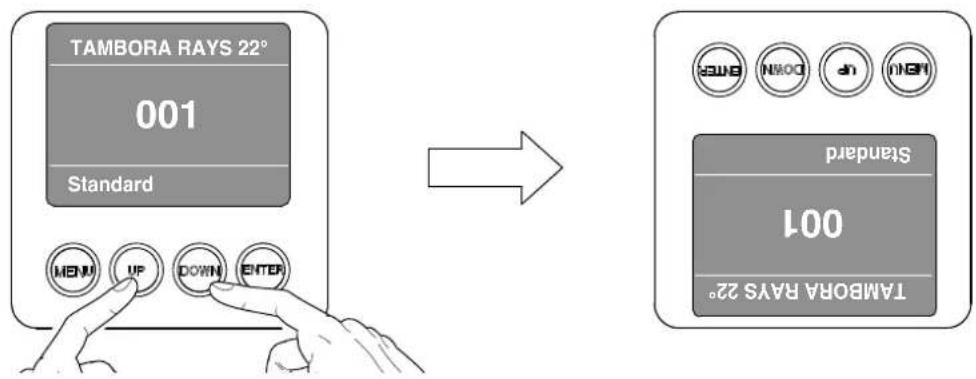

Reversal of the display - Fig. 8

To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512). The address can also be set with the projector switched off.

Functions of the buttons - Using the menu

Return to the top level

Confirms the displayed value, or activates the displayed function, or enters the successive menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

IMPORTANT: To Unlock the display press the buttons sequence UP - DOWN - UP - DOWN - ENTER.

USING THE MENU:

1) Press MENU 📂 once – “Main Menu” appears on the display.
2) Use the UP Up and DOWN Down keys to select the menu to be used:

• Setup: To set the setting options.
• Option: To set the operating options
  • Information: To read the counters, software version and other information.
• Manual Control: To trigger the test and manual control functions.
  • Test: To check the proper functioning of effects
• Advanced: Access to the "Advanced menu" is recommended for a trained technical personnel.

3) Press to display the first item in the selected menu.

4) Use the UP and DOWN Down keys to select the MENU menu items.

Setting addresses and options with the projector disconnected

The projector's DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply. All that is needed is to press ENTER to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds.

NOTE:

Claypaky guarantees the insulation of batterycontacts during the transport, required in IATA SP A199, with the removal of the fuse located on the battery power supply circuit. Before use, insert the fuse in the appropriate slot in order to use/set the functions of the display without mains power.

4. MAINTENANCE

4.1 Periodical cleaning & Caution

9

WARNING: no alcohol

Light collimation system This product contains internal light collimation system. Avoid intense light from any angle.

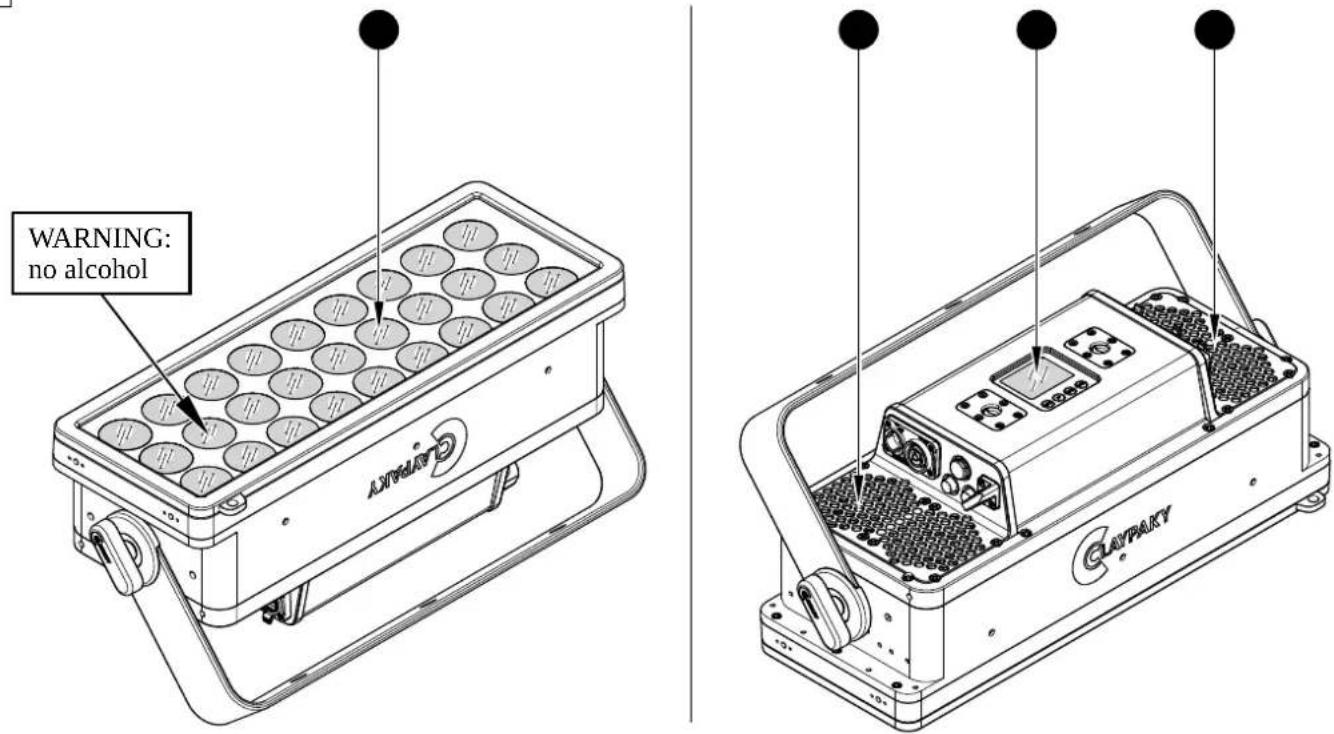

● Parts requiring frequent cleaning.

CAUTION:

- To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the working environment (air humidity, presence of dust, salinity, etc.).

Cleaning the lenses

Only use neutral soap and water to clean the lenses, then dry it carefully with a soft, non-abrasive cloth. (WARNING: the use of alcohol or any other detergent could damage the lenses). It is recommended to clean the lenses when they reach the ambient temperature.

WARNING

- IP66 fixture

- Failure to completely remove power from fixture prior to servicing can lead to serious injury or death.

For additional service information please contact [e-mail]

IMPORTANT

The screws to be removed have rubber sleeve gaskets at the threaded end of the screw. DO NOT LOOSE these. They must be reinstalled when reassembly is done. If these rubber sleeve gaskets are damaged, they must be replaced with exact original equipment (OE) parts, we also suggest to replace the rubber sleeve gasket every 2 years.

To maintain IP66 rating each cover has rubber gasket on it. If any rubber gasket is lost or damaged, it must be replaced by an original equipment (OE) part. We also suggest to replace the rubber sleeve gasket every 2 years.

At the end of maintenance operation it is suggested to use the IP Tester to verify the IP66 protection

4.2 Battery

10

Technical line drawing of a CLAYPAKY industrial control unit with no visible text or symbols on the device itself

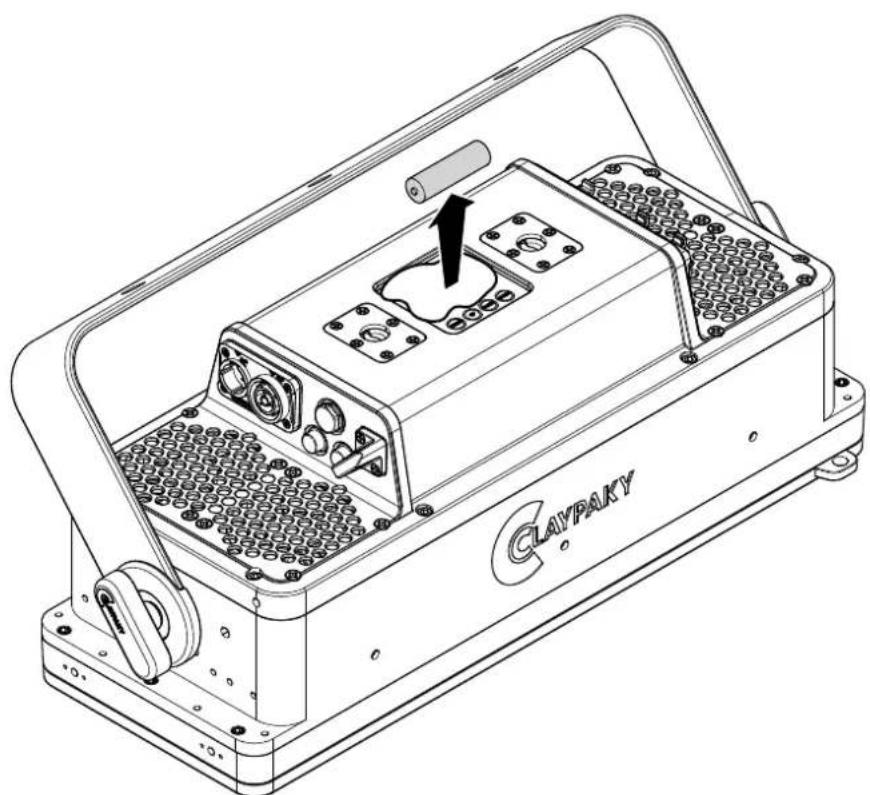

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force.

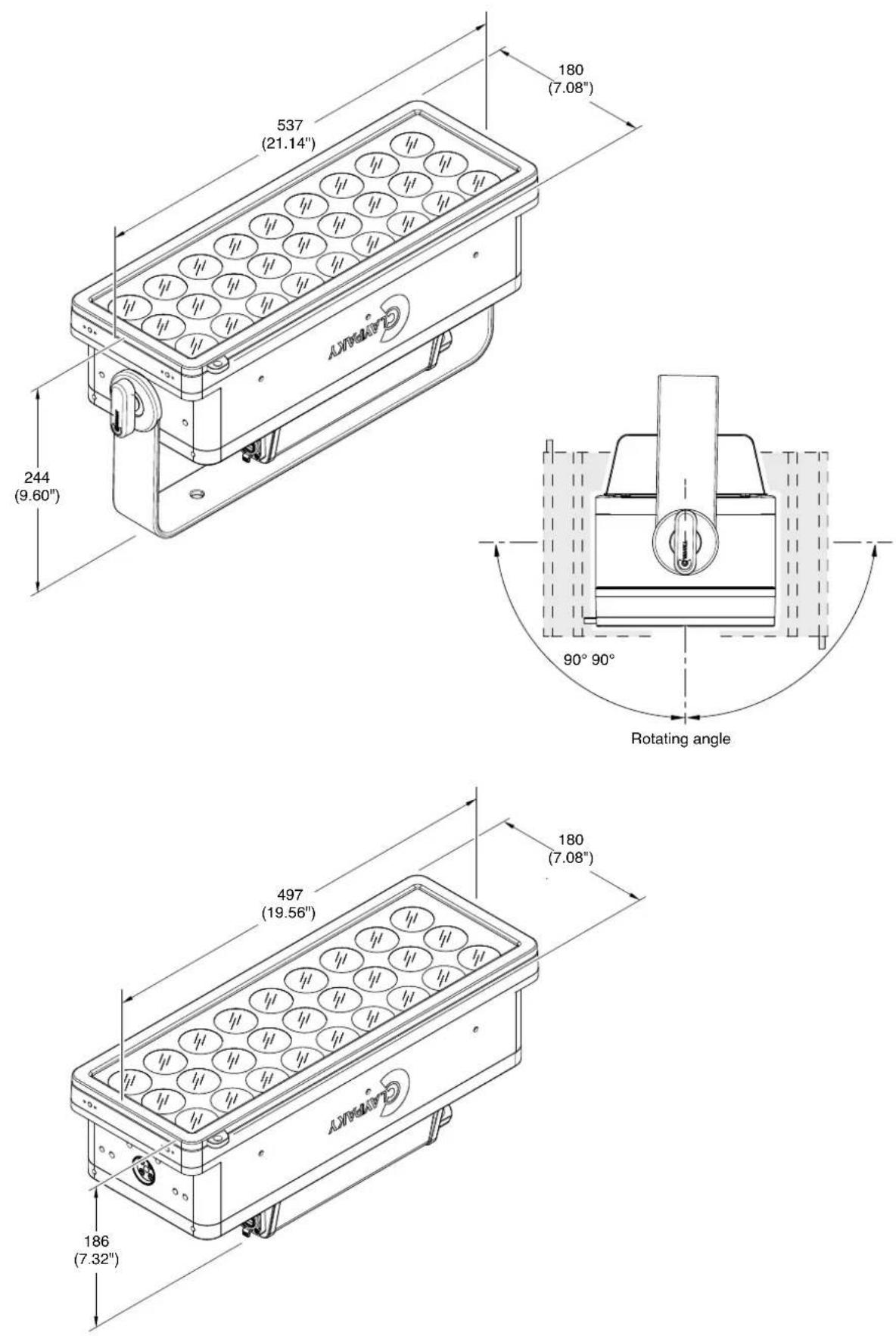

5. DIMENSIONS

1. CAUSE AND SOLUTION OF PROBLEMS

	THE PROJECTOR WILL NOT SWITCH ON					TROUBLE
	ELECTRONICS NON-OPERATIONAL
	DEFECTIVE PROJECTION
	REDUCED LUMINOSITY
	POSSIBLE CAUSES				CHECKS AND REMEDIES
●				No power supply.	Check the power supply voltage.
●			●	LED burnt out or defective.	Call an authorised technician.
	●			Signal transmission cable faulty or disconnected.	Replace the cables.
	●			Incorrect addressing.	Check addresses (see instructions).
	●			Fault in the electronic circuits.	Call an authorised technician.
		●		Optic fault.	Call an authorised technician.
		●	●	Dust or grease deposits.	Clean (see instructions).
