USER MANUAL Mini-B Sparky Aqua Claypaky
| Page | Contents |
| 2 | 1. Safety information |
| 3 | 2. Unpacking and preparation |
| 4 | 3. Installation and start-up |
| 4 | 3.1 Installing the fixture |
| 5 | 3.2 Connecting to manis supply |
| 5 | 3.3 Connecting the control signal line: DMX / Art-Net |
| 5 | 3.4 Switching on the fixture and basic setup |
| 7 | 4. Maintenance |
| 7 | 4.1 Maintenance and Caution |
| 8 | 4.2 Battery removal |
| 9 | 4.3 Opening the covers |
| 11 | 5. Dimensions |
| 11 | 6. Cause and solution of problems |
Congratulations on choosing a Claypaky product! We thank you for your custom.
Please note that this product, as all the others in the rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.
1. SAFETY INFORMATION
EN
SAFETY INFORMATION
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link:
www.claypaky.com
Ref: [FIS038 - Safety information Mini-B Sparky Aqua]
IT
Rif: [FIS038 - Safety information Mini-B Sparky Aqua]
DE
Ref: [FIS038 - Safety information Mini-B Sparky Aqua]
ES
Ref: [FIS038 - Safety information Mini-B Sparky Aqua]
FR
CONSIGNES DE SÉCURITÉ
3. INSTALLATION AND START-UP
3.1 Installing the fixture
2


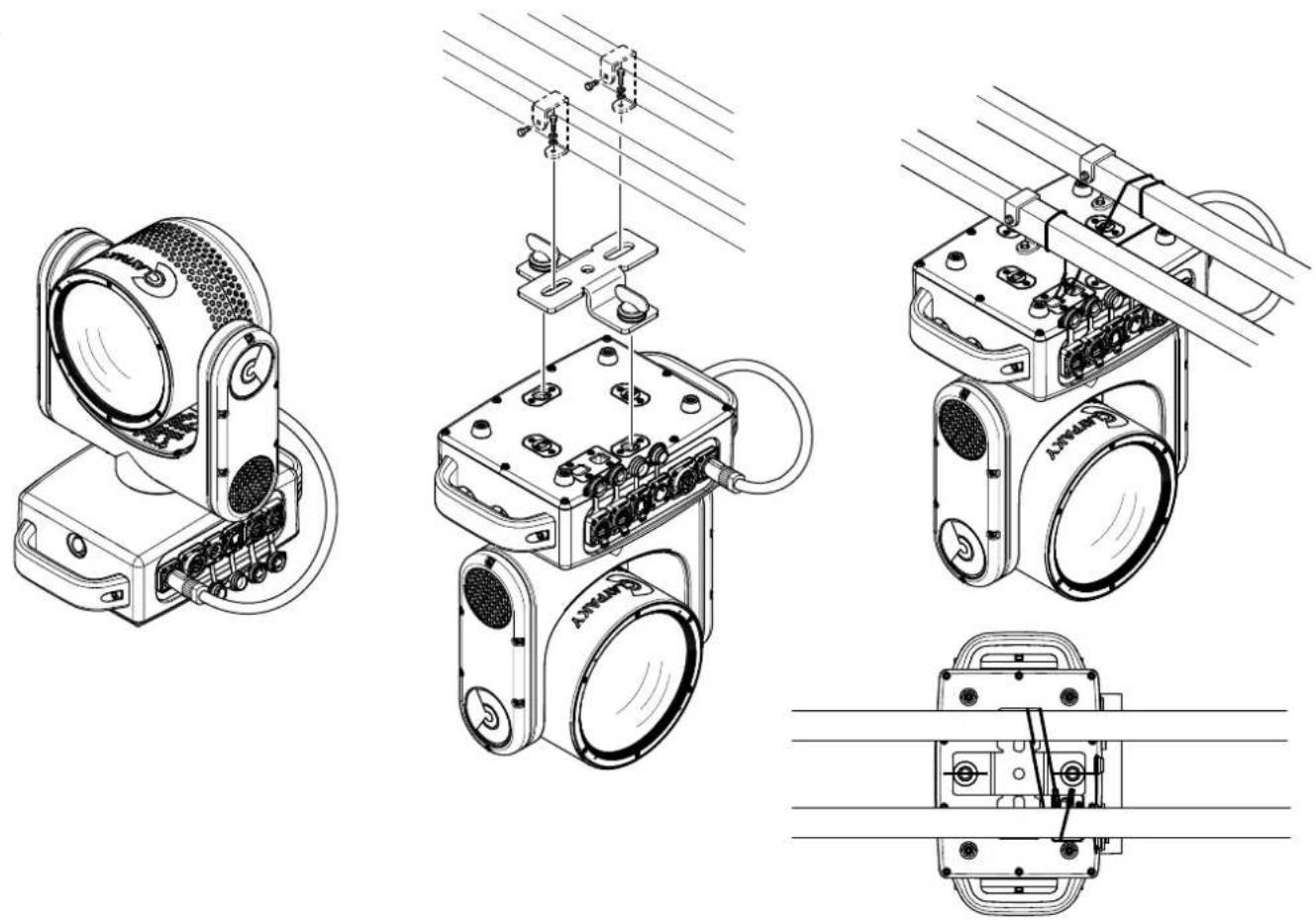

Technical line drawings of mechanical components with no visible text or symbolsInstalling the projector - Fig. 2
The projector can be installed on the floor on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105015/802 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point.
Referring to the Accessories list you can install the fixtures in many different configurations.
3


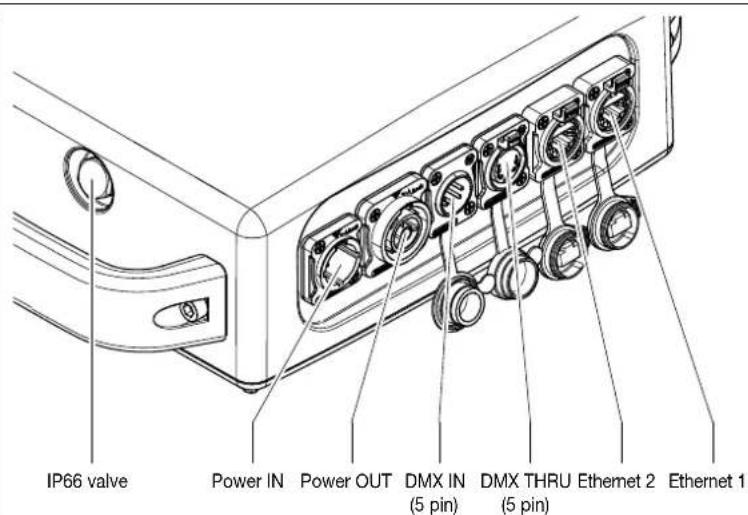

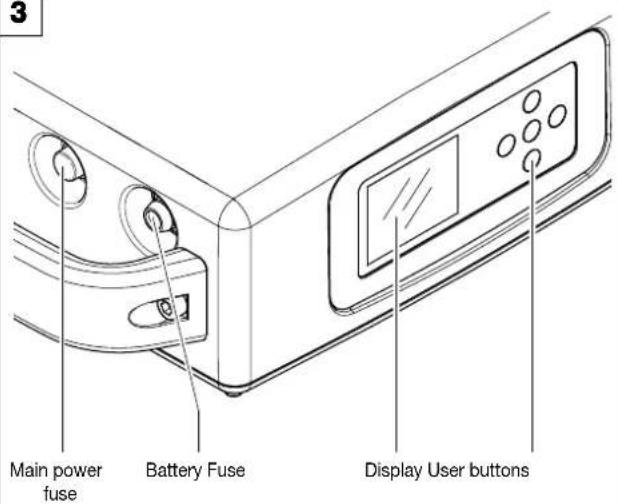

IP66 valve Power IN Power OUT DMX IN (5 pin) DMX THRU (5 pin) Ethernet 2 Ethernet 1Control panel - Fig. 3
3.2 Connecting to manis supply
4


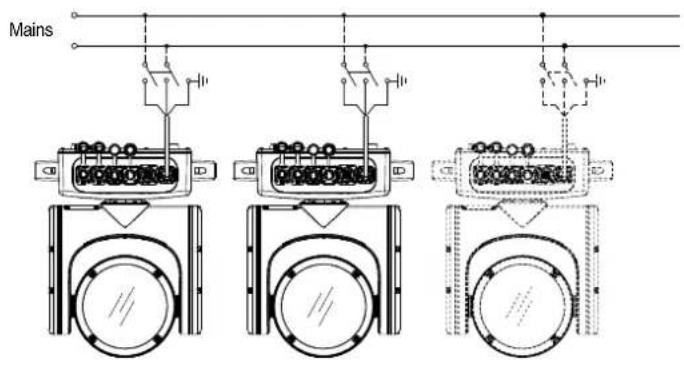

MainsConnecting to the mains supply - Fig. 4
3.3 Connecting the control signal line: DMX / Art-Net
5


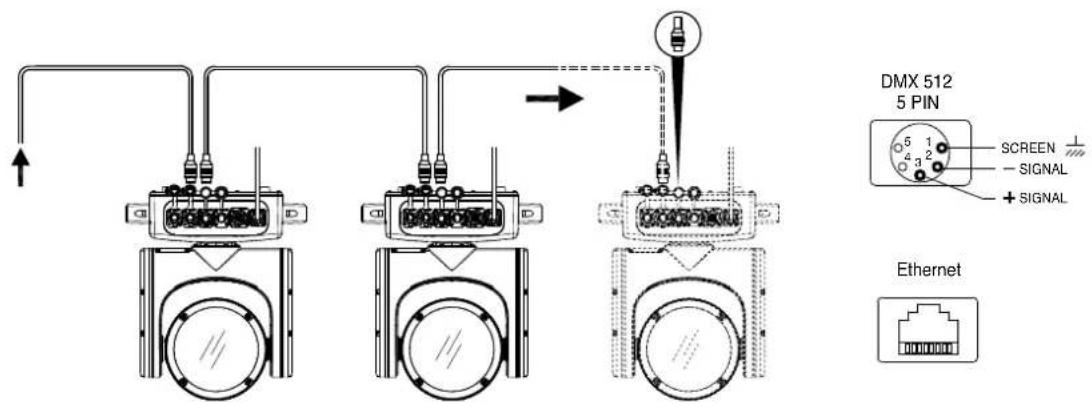

DMX 512 5 PIN SCREEN SIGNAL + SIGNAL EthernetConnecting to the control signal line (DMX) - Fig. 5
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the shield braid and to pin 1 of the connectors.
3.4 Switching on the fixture and basic setup
6
Plug the power connector. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

AYPAKY
ANARRI COMPANY
Model
Mini-B Sparky Aqua
Firmware
Version X.X.X
Date - Hour
Dmx Address xxx
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the "Home" position (Pan 128 bit - Tilt 128 bit). The control panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions: rest status and setting status. When it is in the rest status, the display shows the projector's DMX address.
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted that when this condition occurs, any possible value that has been modified but not yet confirmed with the Ⓞ key will be cancelled.
7
To activate this function, press UP ☑ and DOWN ☑ keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
IMPORTANT: If there is no DMX input signal the address displayed blinks.
Functions of the buttons - Using the menu
| OK Confirms the displayed value, or activates the displayed function,or enters the successive menu. | |
| Down Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu. | |
| Up Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu. | |
| Mode Return to the top level. | |
| Enter Enters the successive menu. |
USING THE MENU:
1) Press MODE once - "Main Menu" appears on the display.
2) Use the UP (Up) and DOWN (Down) keys to select the menu to be used:
- Setup (Setup Menu): To set the setting options.
- Option (Option Menu): To set the operating options
• Information (Information Menu): To read the counters, software version and other information. - Manual Control (Manual control Menu): To trigger the test and manual control functions.
- Test (Test Menu): To check the proper functioning of effects
- Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for trained technical personnel.
3) Press OK to display the first item in the selected menu.
4) Use the UP and DOWN keys to select the MENU items.
Setting addresses and options with the projector disconnected
The projector DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply. All that is needed is to press 📄 to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds.
4. MAINTENANCE
4.1 Maintenance and Caution
8

Light collimation system
This product contains internal light collimation system. Avoid intense light from any angle.
- IP 66 fixture
- Failure to completely remove power from fixture prior to servicing can lead to serious injury or death.
For additional service information please contact service@claypaky.it
IMPORTANT
The screws to be removed have rubber sleeve gaskets at the threaded end of the screw. DO NOT LOOSE these. They must be reinstalled when reassembly is done. If these rubber sleeve gaskets are damaged, they must be replaced with exact original equipment (OE) parts, we also suggest to replace the rubber sleeve gasket every 2 years.
To maintain IP66 rating each covers have rubber gasket on it, If any rubber gasket is lost or damaged, they must be replaced by an original equipment (OE) parts, we also suggest to replace the rubber sleeve gasket every 2 years.
CAUTION:
- It is recommended not to use compressed air with more than 4 atmospheres for cleaning the internal parts of the fixture, led board area. This is to avoid damaging electronic components.
- To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the working environment (air humidity, presence of dust, salinity, etc.).
It is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
- General cleaning of internal parts.
- Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
- General visual check of the internal components, cabling, mechanical parts, etc.
- Electrical, photometric and functional checks; eventual repairs.

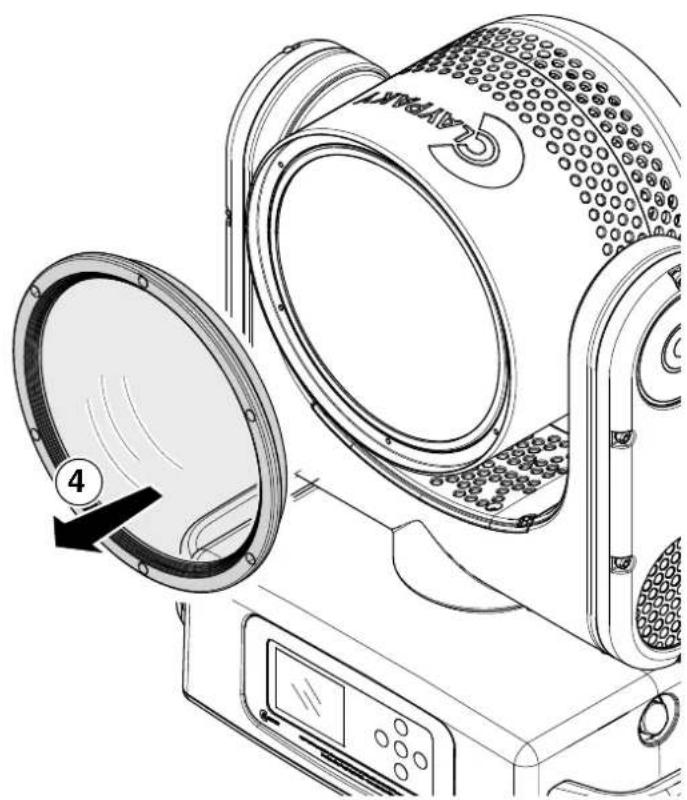

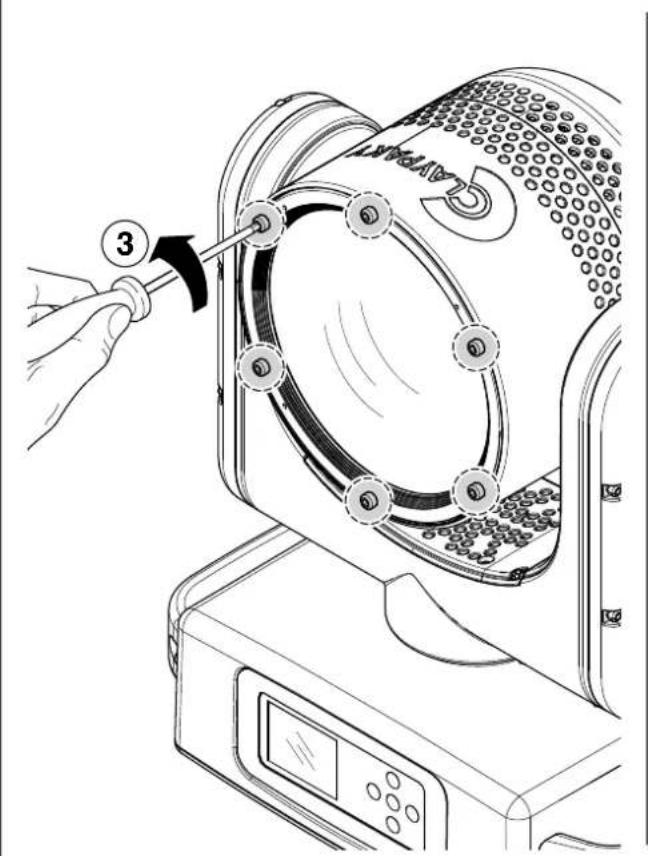

Cleaning the lenses
Only use neutral soap and water to clean the lenses, then dry it carefully with a soft, non-abrasive cloth. (WARNING: the use of alcohol or any other detergent could damage the lenses). It is recommended to clean the lenses when they reach the ambient temperature.
9


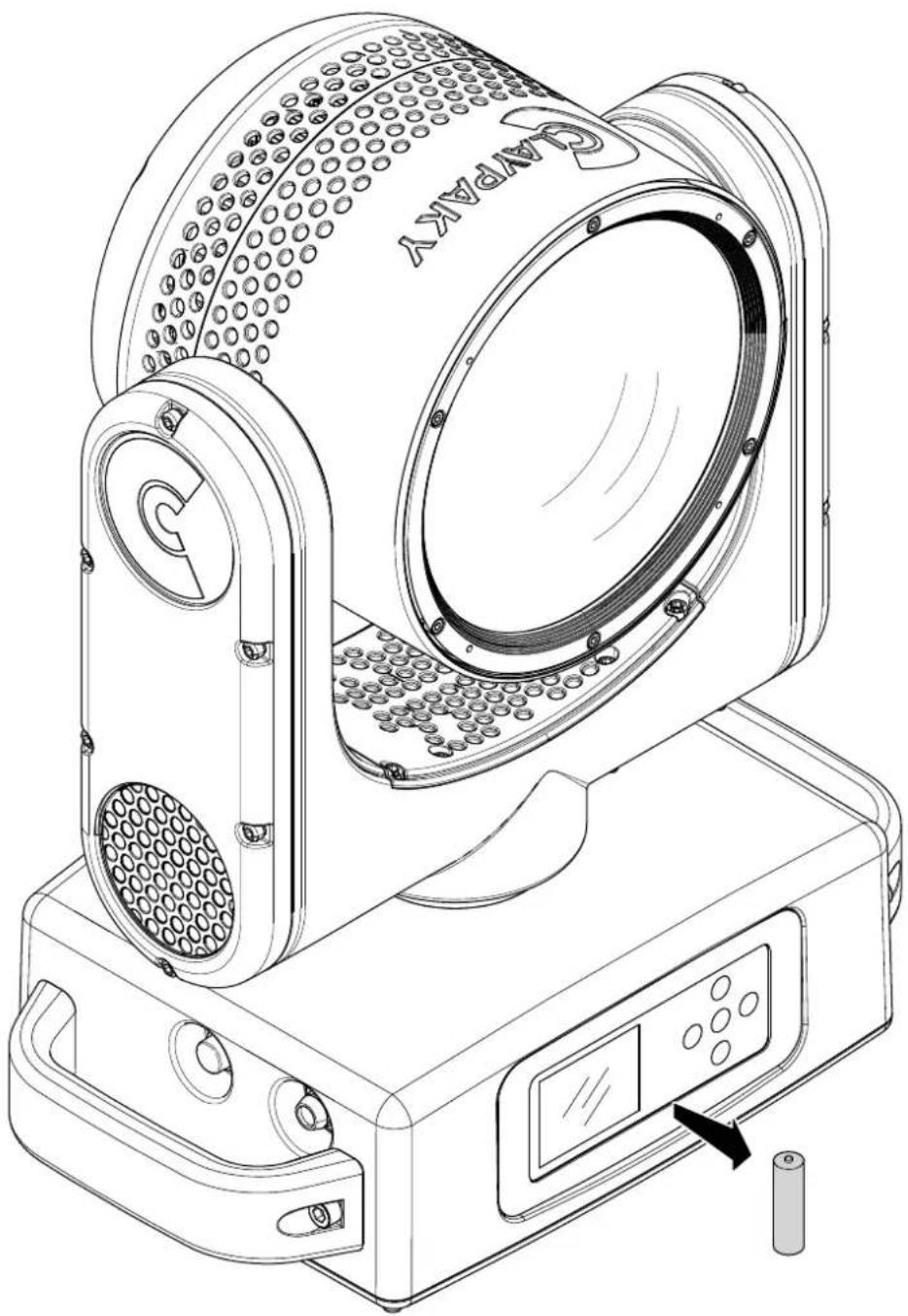

Technical line drawing of a gamma-ray diffuser with control panel and battery (no text or symbols)Battery removal - Fig. 9

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force.
10
11


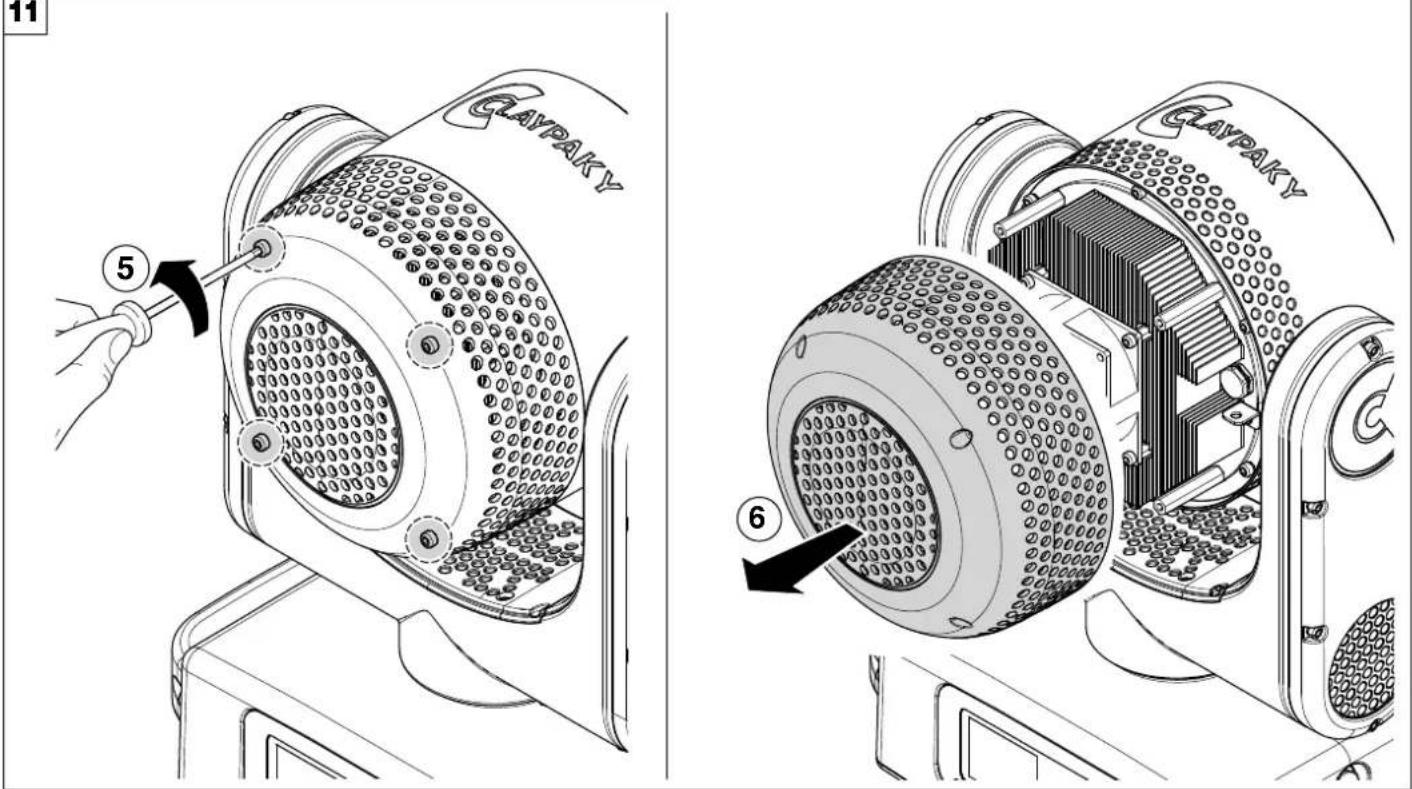

11 Clavaky 5 Clavaky 6Opening the covers - Fig. 11
5. DIMENSIONS

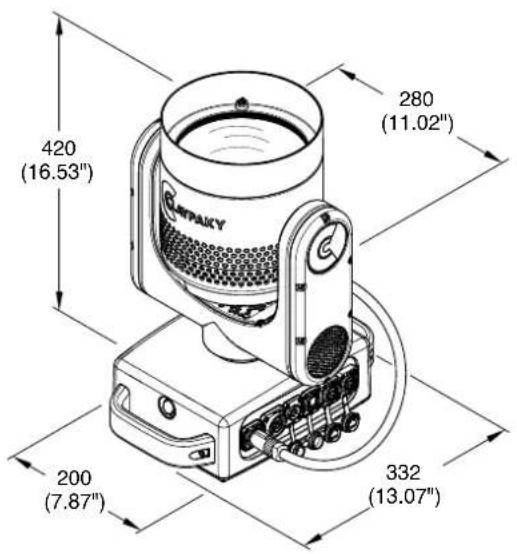

Mini-B Sparky Aqua
| THE PROJECTOR WILL NOT SWITCH ON | PROBLEMS | ||||
| ELECTRONICS NON-OPERATIONAL | |||||
| DEFECTIVE PROJECTION | |||||
| REDUCED LUMINOSITY | |||||
| POSSIBLE CAUSES CHECKS AND REMEDIES | |||||
| ● | No mains supply. | Check the power supply voltage. | |||
| ● | ● | LED exhausted or defective. | Call an authorised technician. | ||
| ● | Signal transmission cable faulty or disconnected. | Replace the cables. | |||
| ● | Incorrect addressing. | Check addresses (see instructions). | |||
| ● | Fault in the electronic circuits. | Call an authorised technician. | |||
| ● | Lenses broken | Call an authorised technician. | |||
| ● | ● | Dust or grease deposited. | Clean (see instructions). | ||
