Panify 2 CA3050 - Lighting Claypaky - Free user manual and instructions

Product Type	Moving yoke LED wash light
Brand	Claypaky
Model	Panify 2 CA3050
Light Source	60 W high-power RGBW LED
Beam Angle	10° to 60° motorized zoom
Color Mixing	RGBW additive color mixing
Control Protocol	DMX512, RDM, Art-Net (optional)
DMX Channels	12 / 16 / 24 channel modes
Movement Range (Pan)	540°
Movement Range (Tilt)	270°
Strobe	Electronic, 0-25 Hz
Dimming	0-100% linear, 16-bit
Housing	High-impact flame-retardant plastic, steel base
IP Rating	IP20 (indoor use)
Power Supply	100-240 V AC, 50/60 Hz, auto-ranging
Power Consumption	120 W max
Dimensions (L x W x H)	320 x 250 x 400 mm (head)
Weight	8.5 kg
Operating Temperature	0°C to 45°C
Cooling	Convection + forced air (low noise)
Accessories Included	Power cord, DMX cables, clamp, safety cable, manual
Maintenance	Clean lens with dry cloth; check fans and ventilation monthly
Safety Features	Auto-frozen pan/tilt, overheat protection, safety loop
Spare Parts & Repairability	LED module, fan, power supply, DMX board; replaceable by qualified technician

Frequently Asked Questions - Panify 2 CA3050 Claypaky

How do I set the DMX address on the Panify 2 CA3050?

Use the control panel: press Menu, navigate to DMX Address, set the desired address using the arrow keys, then press Enter.

What type of LED does the Panify 2 CA3050 use and can it be replaced?

It uses a 60W high-power RGBW LED. The LED module is replaceable by a qualified technician. Contact Claypaky support for spare parts.

How do I clean the lens and housing?

Use a soft, dry cloth to gently wipe the lens. For the housing, use a mild soap solution and a damp cloth. Avoid solvents or abrasive cleaners.

What is the maximum ambient temperature for safe operation?

The operating temperature range is 0°C to 45°C (32°F to 113°F). Do not use the fixture in extreme temperatures to avoid damage.

Can I use the Panify 2 CA3050 outdoors?

No, the fixture has an IP20 rating, meaning it is only suitable for indoor use. Protect it from rain, moisture, and dust.

How do I reset the pan and tilt to home position?

Press the Menu button, select Reset, then choose Pan/Tilt and press Enter. The fixture will realign to its home position.

What is the recommended maintenance schedule?

Check the ventilation grilles and fans monthly for dust buildup. Clean the lens as needed. Perform a full functional test every 3 months.

Does the Panify 2 CA3050 support RDM?

Yes, it supports RDM (Remote Device Management) for remote addressing and configuration via DMX cable.

What fuse rating should I use?

The fixture uses a 5x20 mm glass fuse rated at T1A/250V. Replace only with the same type and rating.

How do I update the firmware?

Firmware updates are performed via the DMX input using a dedicated programmer (available from Claypaky) or via RDM if supported. Consult the manual for detailed steps.

USER MANUAL Panify 2 CA3050 Claypaky

Technical line drawing of a mechanical assembly with mounting holes and a fan-like component (no text or symbols)

INDEX
Page	Contents
2	1. Safety information
3	2. Unpacking and preparation
4	3. Installation and start-up
4	3.1 Installing the fixture
6	3.2 Connecting to manis supply
7	3.3 Connecting the control signal line: DMX / Art-Net
10	3.4 Switching on the fixture and basic SetUp
12	4. Maintenance
12	4.1 Opening the covers
13	4.2 Battery removal
14	5. Dimensions
14	6. Cause and solution of problems

Congratulations on choosing a Claypaky product! We thank you for your custom.

Please note that this product, as all the others in the rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.

1. SAFETY INFORMATION

EN

SAFETY INFORMATION

IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link:

www.claypaky.com

Ref: FIS026 - Safety Information Panify

Ref: FIS039 - Safety Information Panify 2

IT

SAFETY INFORMATION Read carefully CLAYPAKY HOW TO GET YOUR USER MANUAL CLAYPAKY

Technical line drawing of two mechanical bracket components with mounting holes (no text or symbols)

2 × 183102/805

Pure diagram of two rope tied with hanging clips, no text or symbols present

POWER cable

DMX cable

Line drawing of a coiled cable with two connectors (no text or symbols)

Ethernet cable (only for Panify2)

Line drawing of a coiled cable with two connectors (no text or symbols)

Packing contents - Fig. 1

3. INSTALLATION AND START-UP

3.1 Installing the fixture

2

Technical line drawing of a mechanical assembly with mounting holes and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with inset close-ups showing internal components (no text or symbols)

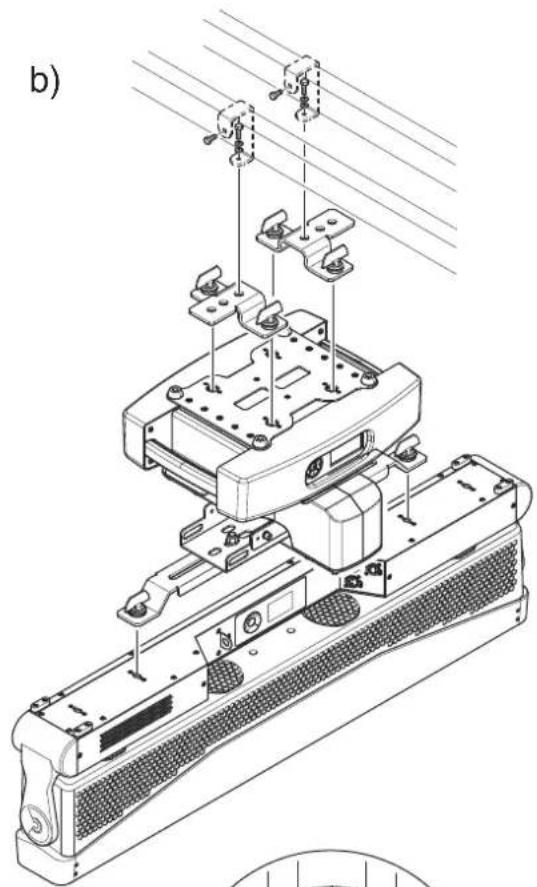

Installing the fixture - Fig. 2
The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the fixture is positioned on the floor, the provided safety cables must be installed (additional safety cables cod. 105041/003 & FUN00C/001 available upon request). Safety cables must be fitted on the fixing point on the base of the Panify and also between Panify and the fixture installed on it.
NOTE: Mounting hardware not included.

3

Patriet Display User buttons

(5 pin) IN Power OUT Fuse Power DMX IN DMX THRU EthernetDMX POWER OUT

ONLY FOR PANIFY2

FOR PANIFY2 Ethernet THRU DMX THRU (5 pin) IN Power OUT Fuse Power DMX IN (5 pin) DMX THRU (5 pin) Ethernet IN Ethernet THRU Power OUT

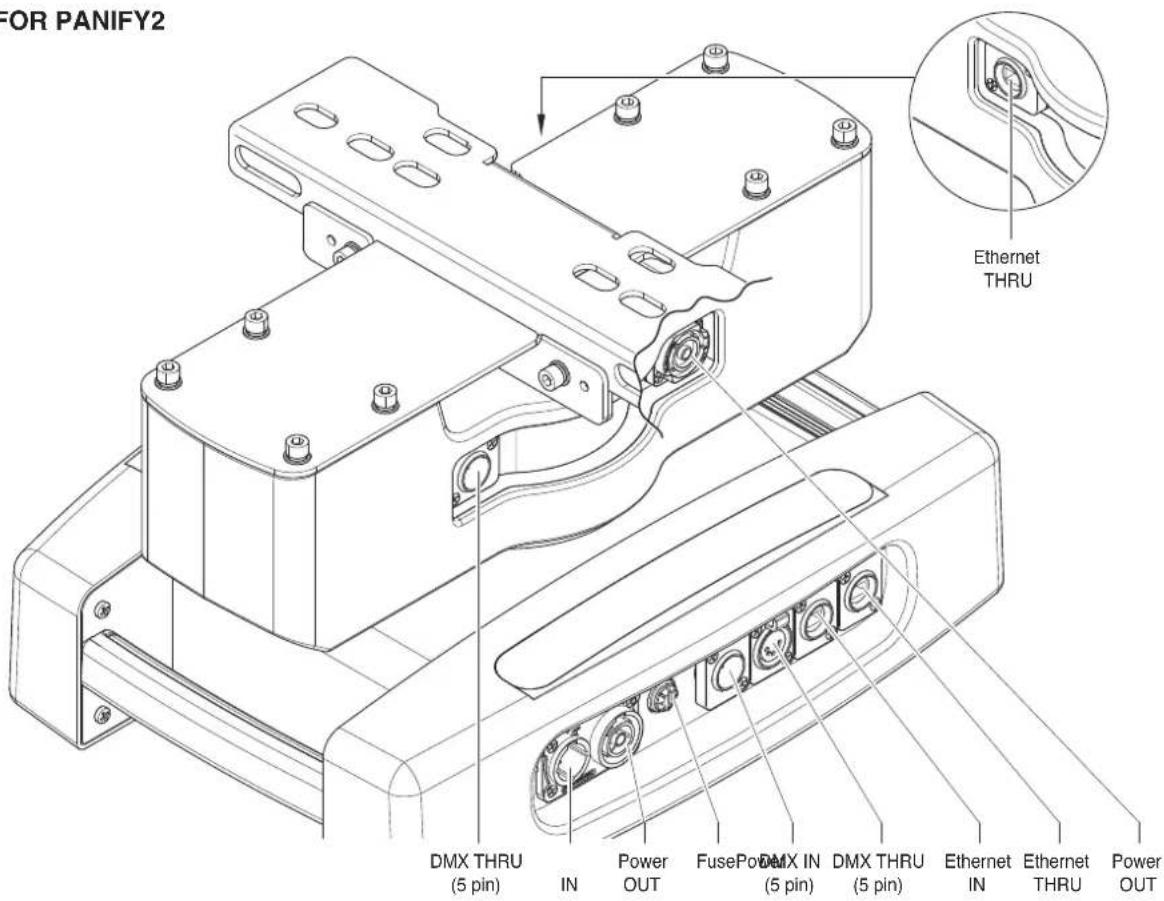

Control panel - Fig. 3

3.2 Connecting to mains supply

4

Technical diagram showing three-step installation of a device with labeled components and directional arrows indicating assembly steps.

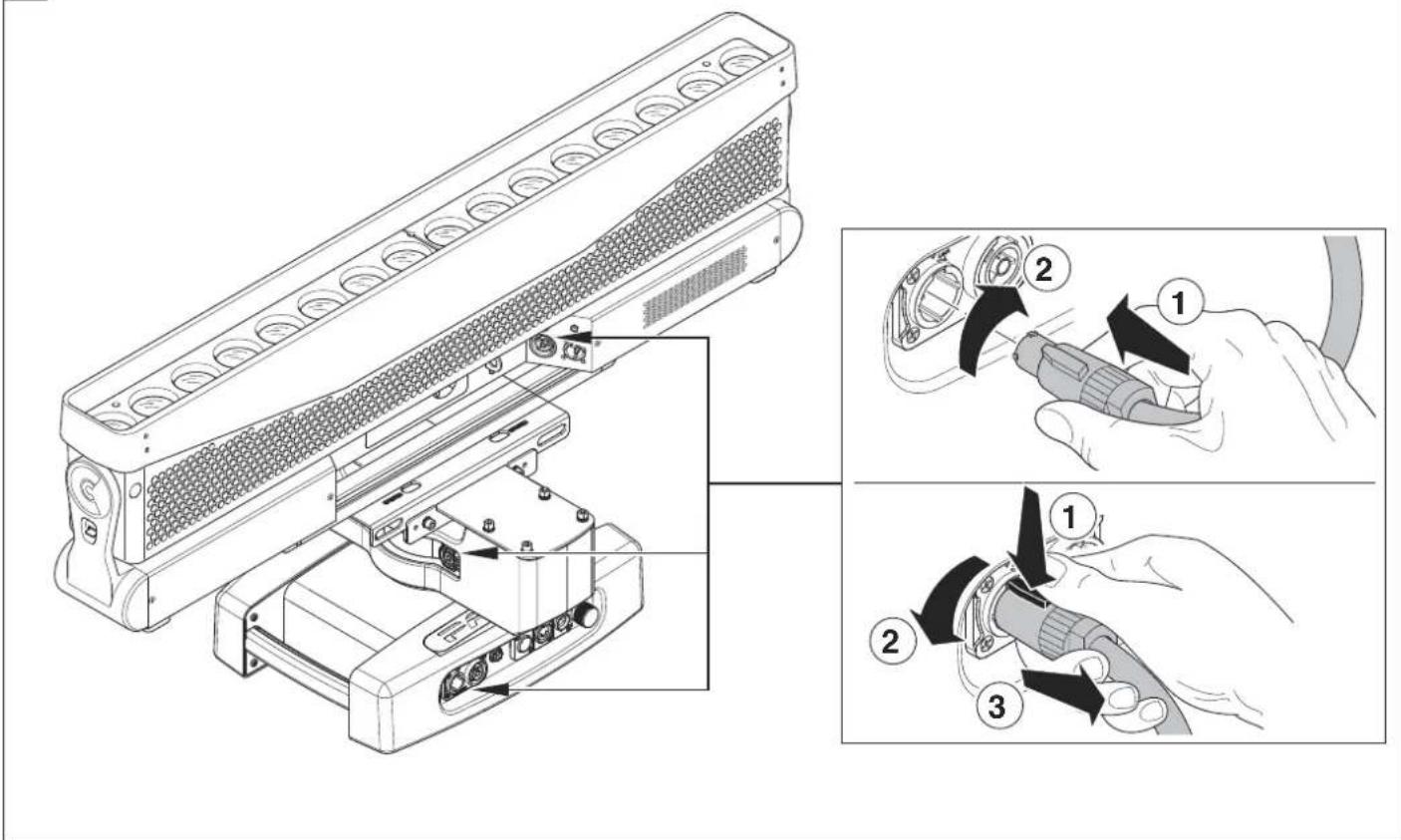

Connecting and disconnecting power cable - Fig. 4

5

Mains

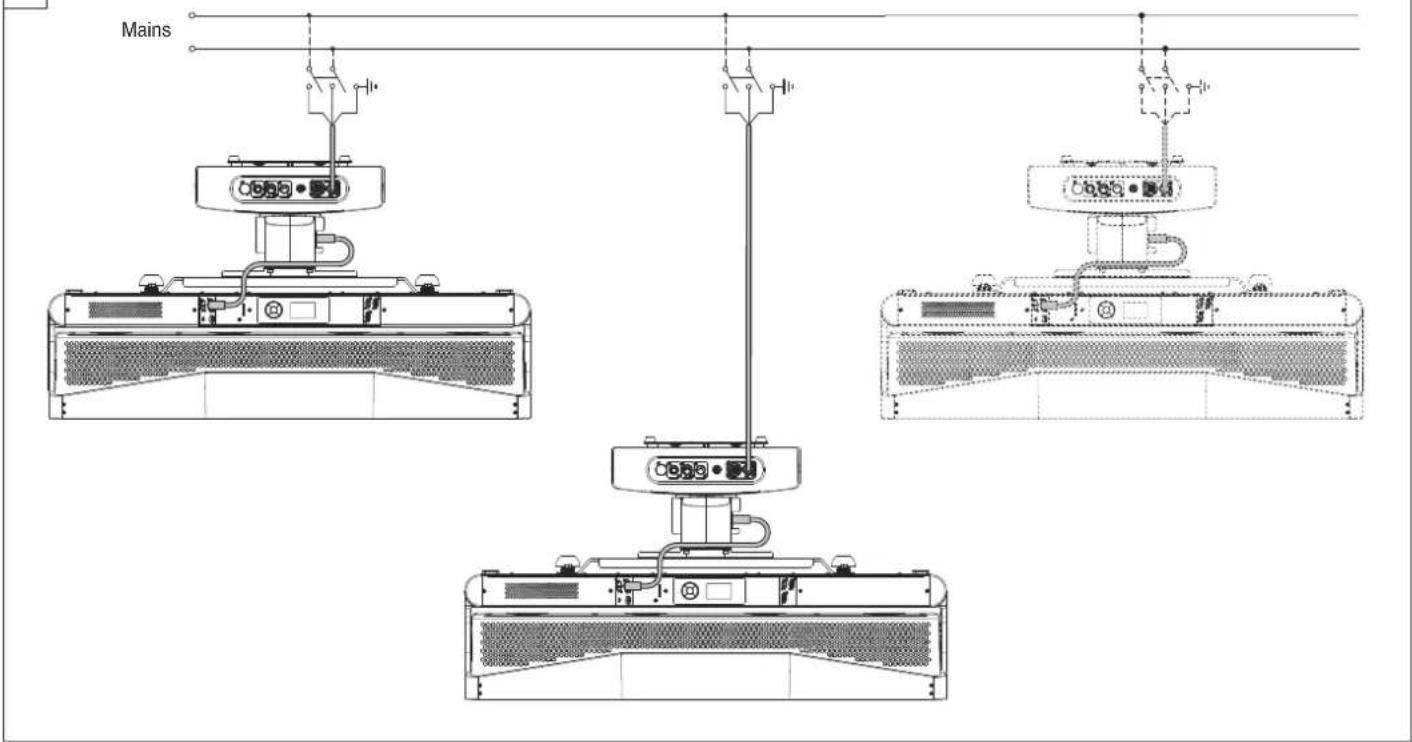

Connecting to the mains supply - Fig. 5

3.3 Connecting the control signal line: DMX / Art-Net

6

DMX 512 5 PIN SCREEN SIGNAL + SIGNAL

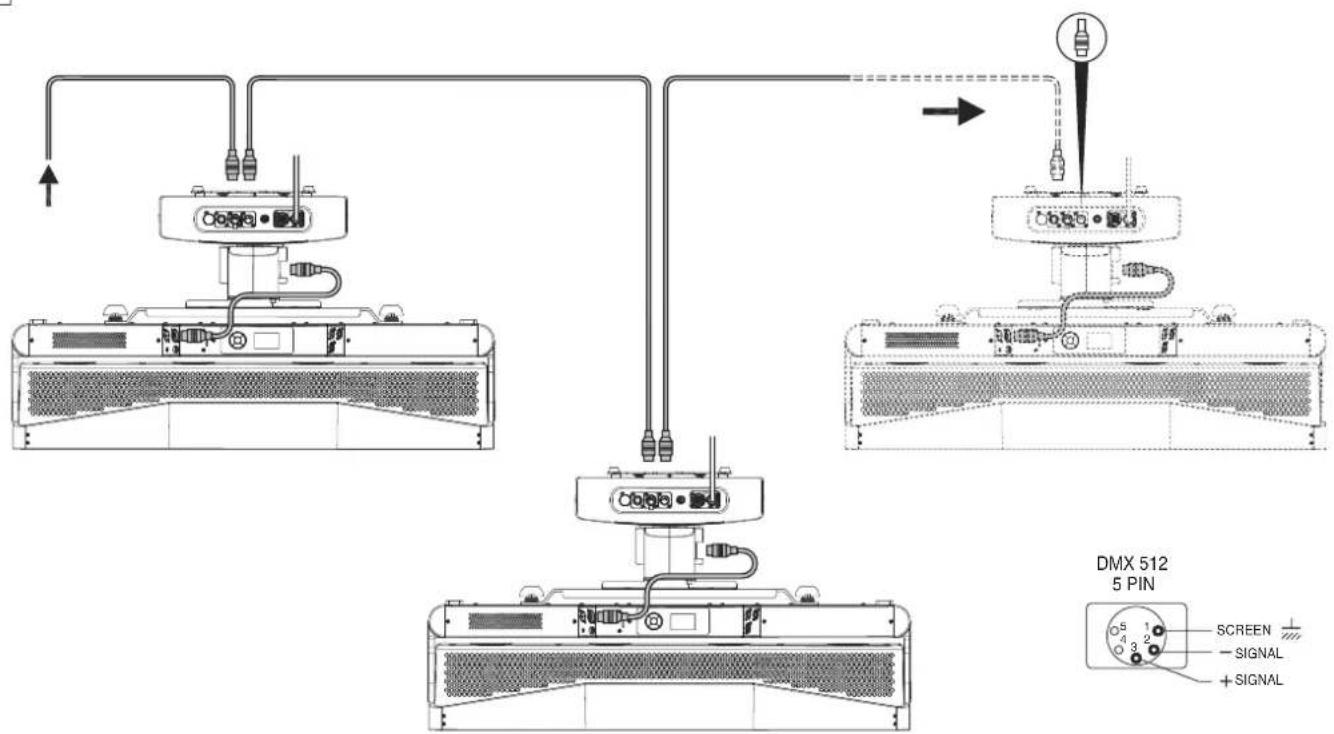

Connecting to the control signal line (DMX) - Fig. 6

Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female connectors. A terminating plug must be inserted into the last fixture with a resistance of 120Ohm (minimum 1/4W ) between terminals 2 and 3.

IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the shield braid and to pin 1 of the connectors.

7

Panify MAINS IN Panify MAINS OUT Panify MAINS THRU (You should connect other Panify) Panify MAINS IN Panify MAINS THRU (You should connect other Panify) Panify MAINS OUT (You should connect other Panify)

Fixture-Panify connections- Fig. 7

ONLY FOR PANIFY2

FOR PANIFY2 Panify 2 DMX THRU (You have to connect the fixture associated to the Panify) Panify 2 MAINS OUT (You have to connect the fixture associated to the Panify) Panify 2 Ethernet THRU (You have to connect the fixture associated to the Panify) Panify 2 MAINS IN Panify 2 MAINS OUT (You should connect other Panify) Panify 2 Ethernet THRU (You should connect other Panify) Panify 2 Ethernet IN

Fixture-Panify2 connections- Fig. 8

3.4 Switching on the fixture and basic SetUp

9

Dmx Address 1 OK

Switching on the fixture - Fig. 9

Switch-on the fixture. The fixture starts resetting the effects. At the same time, the following information scrolls on the display:

Panify

Dmx Address xxx

The control panel (Fig. 8) has a display and buttons for the complete programming and management of the fixture menu. The display can be in one of two conditions: rest status and setting status. When it is in the rest status, the display shows the fixture's DMX address.

During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted that when this condition occurs, any possible value that has been modified but not yet confirmed with the OK key will be cancelled.

10

28 OK 87 OK

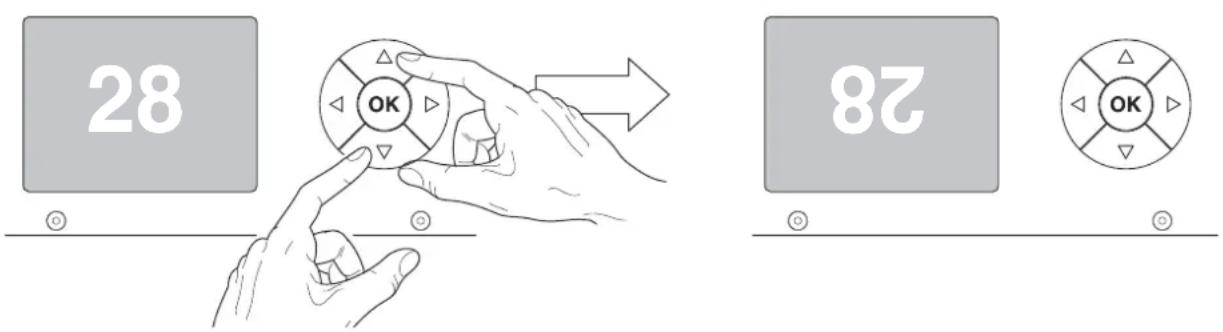

Reversal of the display - Fig. 10

To activate this function, press UP ⬆ and DOWN ⬇ keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the fixture starting address

On each fixture, the starting address must be set for the control signal (addresses from 1 to 512).

The address can also be set with the fixture switched off.

Functions of the buttons - Using the menu

Confirms the displayed value, or activates the displayed function, or enters the successive menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

DOWN

UP

LEFT

RIGHT

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Return to the top level

Return to the top level

USING THE MENU:

1) Press OK once - "Main Menu" appears on the display.
2) Use the UP ⬆ and DOWN ⬇ keys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functioning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.

3) Press Ⓞ to display the first item in the selected menu.

4) Use the UP ⬆ and DOWN ⬇ keys to select the MENU items.

Setting addresses and options with the fixture disconnected

The fixture's DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply. All that is needed is to press Ⓞ to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds.

4. MAINTENANCE

4.1 Opening the covers

WARNING

• IP66 fixture
• Failure to completely remove power from fixture prior to servicing can lead to serious injury or death.

For additional service information please contact [e-mail]

IMPORTANT

To maintain IP66 rating each cover has rubber gasket on it. If any rubber gasket is lost or damaged, it must be replaced by an original equipment (OE) part. We also suggest to replace the rubber sleeve gasket every 2 years.

Periodical cleaning

To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the working environment (air humidity, presence of dust, salinity, etc.).

It is recommended that the fixture undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:

• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical and functional checks; eventual repairs.

4.2 - Battery removal

11

Technical line drawing of a mechanical device with mounting brackets and a control panel (no text or symbols)

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force.

5. DIMENSIONS

252.8 (9.95") 385 (15.16") 295 (11.61) 390.8 (15.39)

6. CAUSE AND SOLUTION OF PROBLEMS

THE FIXTURE WILL NOT SWITCH ON				PROBLEMS
	ELECTRONICS NON-OPERATIONAL
		POSSIBLE CAUSES CHECKS AND REMEDIES
●		No mains supply.	Check the power supply voltage.
	●	Signal transmission cable faulty or disconnected.	Replace the cables.
	●	Incorrect addressing.	Check addresses (see instructions).
	●	Fault in the electronic circuits.	Call an authorised technician.
