THANK YOU for purchasing Infinity's Reference Series automotive loudspeaker components. We've organized this manual to make your installation as simple and trouble-free as possible. Please read it thoroughly before proceeding.

Remember to keep your sales receipt with this manual in a safe place so both are available for future reference.

IMPORTANT: Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Reference Series speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself; instead, ask your authorized Infinity car audio dealer about professional installation options.

WARNING: Playing loud music in an automobile can permanently damage your hearing, as well as hinder your ability to hear traffic. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

INSTALLATIONWARNINGSANDTIPS

• Always wear protective eyewear when using any tools.

- Turn off all audio systems and other electrical devices before you start. Disconnect the (−) negative lead from your vehicle's battery.

- Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.

- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.

- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines, and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.

CAUTION: In some cars, fuel tanks may be located directly beneath the rear deck. Check for adequate speaker basket clearance before considering this location!

- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.

- For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.

- If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box, or other structural elements.

- Do not mount speakers where they will get wet.

INSTALLATION

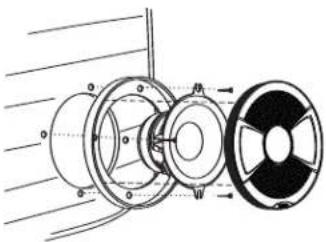

Figure 1. Mounting the 5010cs woofer with the grille.

Technical diagram of a mechanical assembly with three circular components and directional arrows (no text or labels)

Figure 2. Mounting the 6010cs woofer with the grille.

Diagram of three mechanical components with curved arrows indicating motion or flow, no text or symbols present

Note: The 6810cs is designed to replace 5" x 7" and 6" x 8" speakers installed behind existing vehicle grilles, and does not include grilles.

Figure 3. Mounting the 6010cs in 165mm speaker locations.

FOAM GASKET MOUNTING RING

INTERMOUNT III (PATENT NO. 6,505,705)

The 6010cs is packaged with two different speaker adaptor rings. These are used to install the 6-1/2" speakers in various vehicles. The metal ring can be mounted in many European vehicles, while the plastic ring can be mounted in many vehicles using 6-3/4" speaker locations or three-point mounting frames.

Figure 4. Mounting the 6010cs woofer in standard speaker locations.

FOAM GASKET

INSTALLATION

FLUSH-MOUNT

Figure 5A. Mounting the tweeter using the I-Mount™ (patent no. 5,859,917) flush-mounting kit.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Note: Aim the tweeter at the listening position by sliding the stud in the groove on the back of the tweeter cup and rotating the entire assembly in the mounting surface. Lock the tweeter in place, using the small retaining screw.

SURFACE-MOUNT

Figure 5B. Mounting the tweeter using the I-Mount surface-mounting kit.

Figures 7A through 7D. The Starfish™ tweeter mount is intended to be used when the tweeter will be installed behind a factory grille (e.g., replacing the factory tweeter behind a door panel). The Starfish will allow you to mount the component tweeter directly to the panel itself or to the area behind the panel. The six mounting tabs can be removed easily to create a number of custom configurations. The tabs of the Starfish can be screwed or glued to the mounting surface for secure installation.

Note: Check screw clearance before installing. Use glue if clearance is an issue.

Note: Not all possible mounting configurations are shown.

Figure 7A. Behind grille panel.

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or labels)

Figure 7B. Mounted to surface behind grille panel.

Mechanical assembly diagram showing a motor with rotating components and directional arrows (no text or labels)

Figure 7C. Mounted to grille panel.

Diagram of a mechanical device with rotating components and directional arrows, no text or symbols present

Figure 7D. In-dash location (may require gluing).

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

referenceseries are shown.

CONNECTIONS

Connect the speakers to the crossover and the crossover to the amplifier, observing proper polarity.

Figure 8A.

Figure 6A. TO AMPLIFIER SPEAKER OUTPUTS TO WOOFER TO TWEETER

Note: To reduce tweeter output level, connect the positive (+) tweeter wire to the -3dB terminal.

Figure 8B.

Figure 8B. BIG LUG IS POSITIVE (+) SMALL LUG IS NEGATIVE (-)

SPECIFICATIONS

5010cs

Type: 5-1/4" 2-Way Component System

Speaker Impedance: 4 Ohms

Power Handling: 75W RMS, 225W Peak

Frequency Response: 67Hz - 21kHz

Sensitivity (2.83V, 1m): 91dB

Crossover Frequency: 3.5kHz

Mounting Depth: Woofer: 2-1/4" (58mm)

Tweeter: 5/8" (16mm)

Cut-out Diameter: Woofer: 4-11/16" (120mm)

Tweeter: 1-3/4" (45mm)

6010cs

Type: 6-1/2' 2-Way Component System

Speaker Impedance: 4 Ohms

Power Handling: 90W RMS, 270W Peak

Frequency Response: 53Hz - 21kHz

Sensitivity (2.83V, 1m): 92dB

Crossover Frequency: 3.5kHz

Mounting Depth: Woofer: 2-1/16" (53mm)

Tweeter: 5/8" (16mm)

Cut-out Diameter: Woofer. 5" (127mm)

Tweeter: 1-3/4" (45mm)

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

6810cs

Type: 6" x 8"/5" x 7" 2-Way Component System

Speaker Impedance: 4 Ohms

Power Handling: 90W RMS, 270W Peak

Frequency Response: 49Hz - 21kHz

Sensitivity (2.83V, 1m): 92dB

Crossover Frequency: 3.5kHz

Mounting Depth: Woofer: 2-7/16" (62mm)

Tweeter: 5/8" (16mm)

Cut-out Diameter: Woofer: 5" x 7-1/4" (127mm x 185mm)

Tweeter: 1-3/4" [45mm]

Declaration of Conformity

CE

We, Harman Consumer Group International

1. route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the products

described in this owner's manual are in compliance

with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Harman Consumer Group International

Chateau-du-Loit France 1/05

Infinity Systems • 250 Crossways Park Drive, Woodbury, NY 11797 USA

516.674.4463 • FAX [phone] • www.infinitysystems.com

© 2005 Harman International Industries, Incorporated • Part No. REFCSOM1/05

H A Harman International Company
