USER MANUAL 612m INFINITY
6912m
Infinity®
612m 6912m


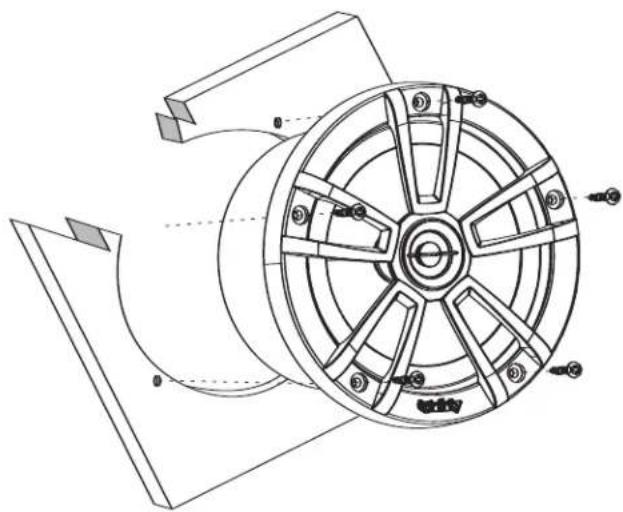

Technical line drawing of a mechanical component with radial slots and mounting brackets (no text or symbols)


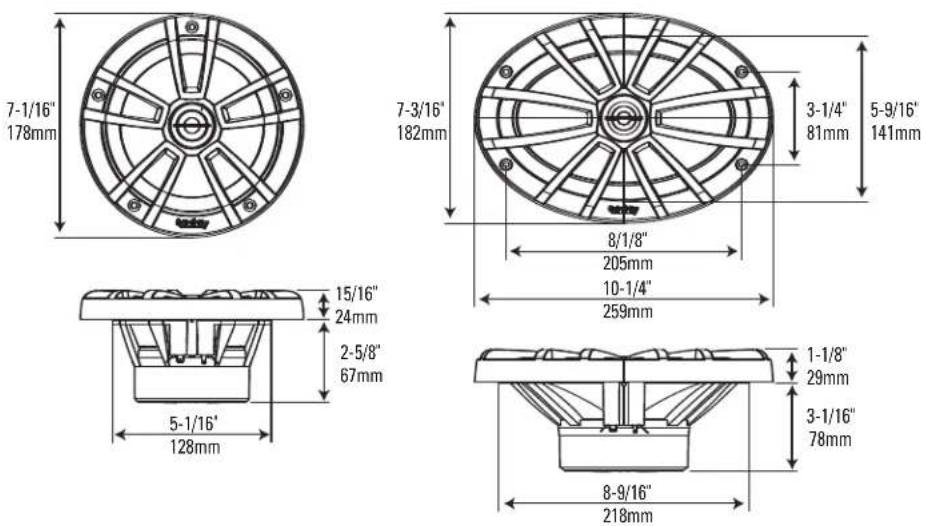

Technical line drawing of a mechanical component with two views: top shows internal gear assembly, bottom shows cross-sectional view with wiring (no text or symbols)612m 6912m
BL (T-m) 4.87 6.65
DCR (ohms) 3.14 3.34
Mms (g) 12.84 19.93
Sd (sq cm) 122.7 222.5
Cms (μm/N) 425 453
Vas (I) 9 31.5
Fs (Hz) 68 52.9
Qes 0.73 0.5
Qms
Qt
4.13 6.3
0.62 0.46
SPECIFICATIONS
| Type: | 6-1/2" (160mm) 2-Way Marine | 6" x 9" 2-Way Marine |
| Impedance: | 4 Ohms 4 Ohms | |
| Power Handling, RMS: | 75W 100W | |
| Power Handling, Peak: 225W | 300W | |
| Frequency Response: | 50Hz – 20kHz | 36Hz – 20kHz |
| Sensitivity (2.83V, 1m): | 92dB | 96dB |
612m
6912m
GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.
NOTE: These marine products are not intended for automotive applications and are not intended for connection to the mains.
WARRANTY: Infinity® marine speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity marine audio retailer can help you determine the length of your warranty. To register your product, please visit www.infinitysystems.com.
612m 6912m
Designed and engineered in the USA.
A valid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change without notice.
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA
www.infinitysystems.com
© 2008 Harman International Industries, Incorporated. All rights reserved. • Part No. INFMARR/08
Infinity is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries.
H A Harman International Company
Declaration of Conformity
CE
We, Harman Consumer Group, Inc.
2, route de Tours
declare in own responsibility that the products described in this owner's manual are in compliance with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Klaus Lebherz
Harman Consumer Group, Inc.
