USER MANUAL CLASSICA 95 HUSQVARNA

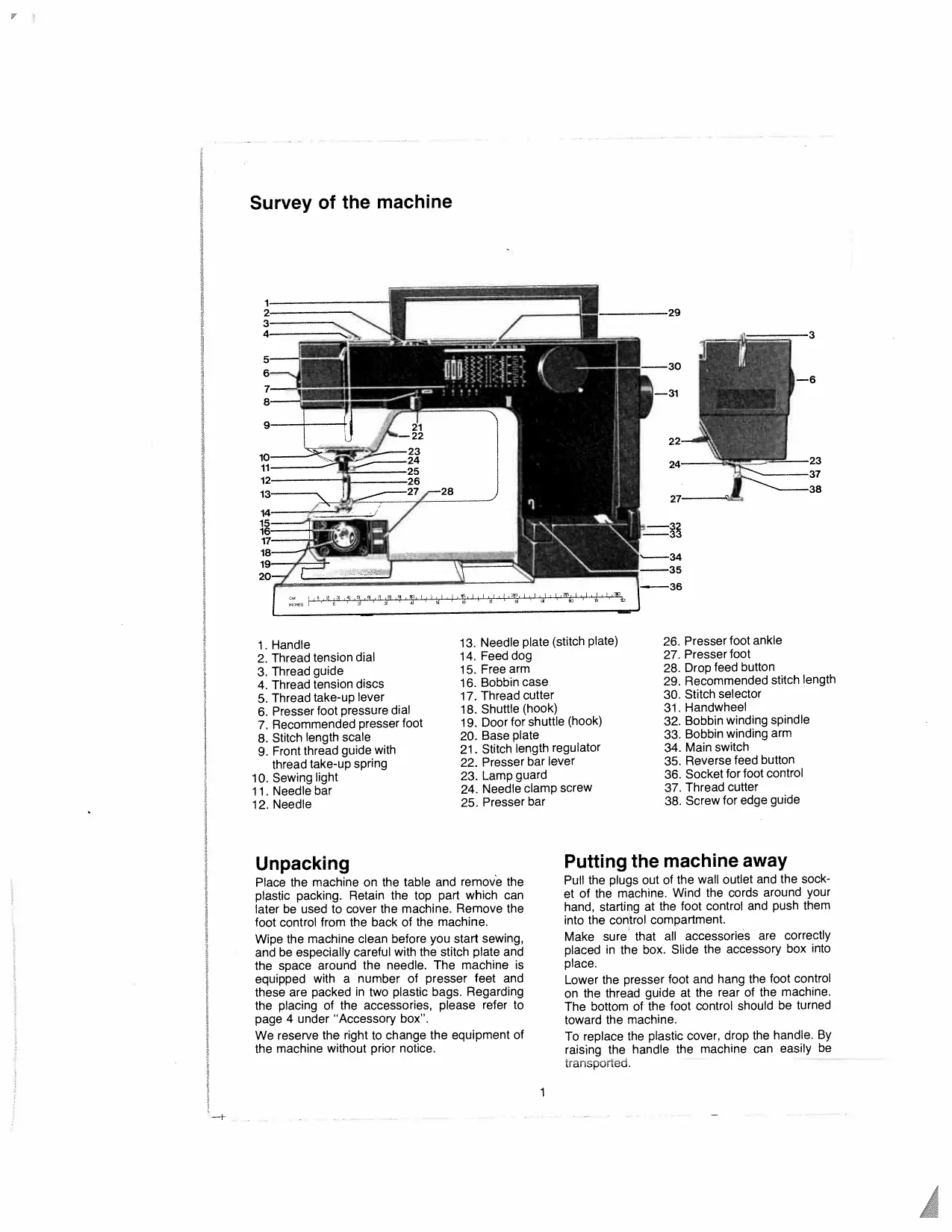

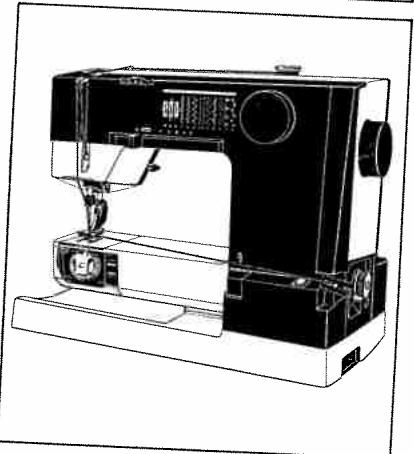

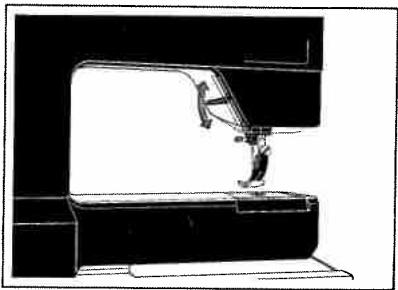

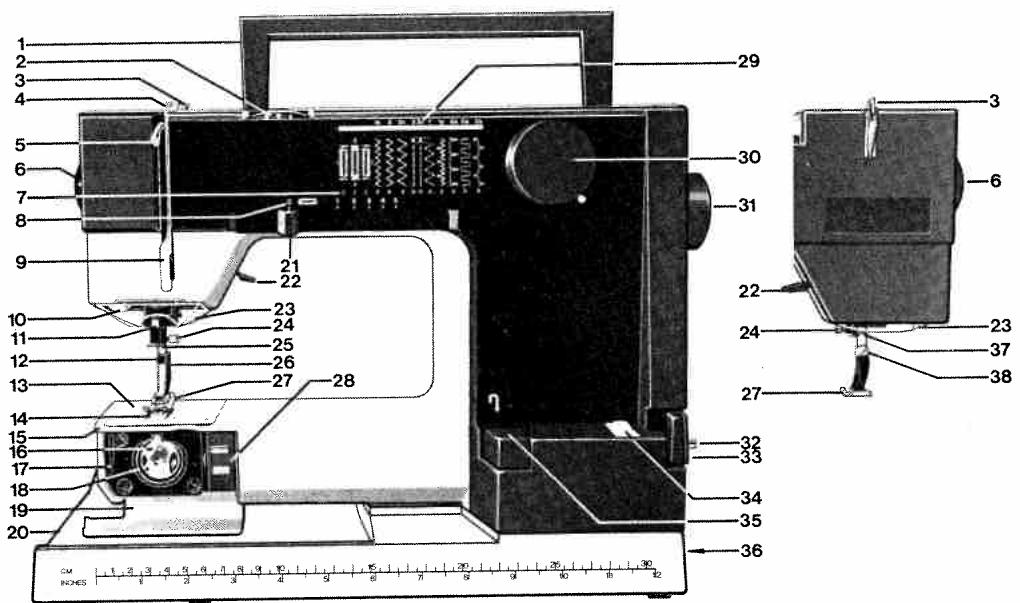

Survey of the machine Handle Thread tension dial Thread guide Thread tension discs Thread take-up lever Presser foot pressure dial Recommended presser foot Stitch length scale Front thread guide with thread take-up spring

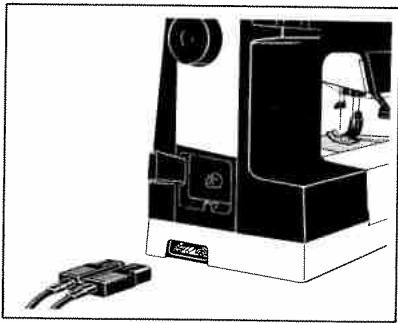

Presser foot ankle Presser foot Drop feed button Recommended stitch length Stitch selector Handwheel Bobbin winding spindle Bobbin winding arm Main switch Reverse feed button Socket for foot control Thread cutter Screw for edge guide Unpacking Putting the machine away Place the machine on the table and remove the plastic packing. Retain the top part which can later be used to cover the machine. Remove the foot control from the back of the machine. Wipe the machine clean before you start sewing, and be especially careful with the stitch plate and the space around the needle. The machine is equipped with a number of presser feet and these are packed in two plastic bags. Regarding the placing of the accessories, please refer to page 4 under ‘Accessory box”. We reserve the right to change the equipment of the machine without prior notice. Pull the plugs out of the wall outlet and the sock et of the machine. Wind the cords around your hand, starting at the foot control and push them into the control compartment. Make sure that all accessories are correctly placed in the box. Slide the accessory box into place. Lower the presser foot and hang the foot control on the thread guide at the rear of the machine. The bottom of the foot control should be turned toward the machine. To replace the plastic cover, drop the handle, By raising the handle the machine can easily be transportea. Connecting the foot control Remove the cord from the foot control and place the control under the table. Insert the foot control plug with the marking ‘UP” upward into the socket on the right-hand side of the machine. Connnecting to the wall outlet The voltage (V) and frequency (Hz) are indicated under the base of the machine. Check that these values corre spond to those of the electricity source before connecting the machine.

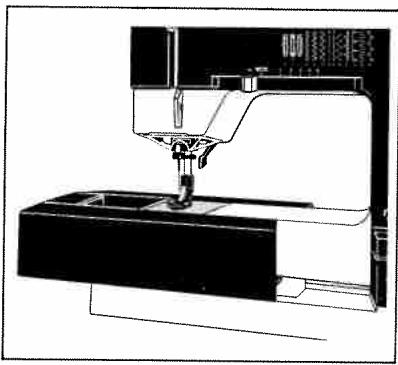

Working surface The working surface around the stitch plate consists partly of the upper side of the accessory box and partly of the machine itself, i.e. the free arm. Retain the accessory box on the machine when you require a larger working surface. Pull the accessory box to the left and remove it if you wish to use the free arm. Pant legs and sleeves can be drawn onto the free arm, making it easy to sew, mend or patch these parts. The free arm also makes it much easier to attach collars and cuffs as well as sew children’s clothes, or darn socks and stockings on the machine. Main switch The light and the machine are turned on by pressing the inner part of the main switch. Reverse feed button As long as you keep the reverse feed button depressed the machine will sew in reverse but will revert to ordinary sewing as soon as you release it. Excellent for fastening off. Presser bar lever By means of the presser bar lever at the rear of the machine, the presser foot can be raised and lowered. When raising, the presser foot will remain in the raised position, but the height can be increased by 3 mm by pushing the presser bar lever upward and holding it in this position. This is useful when you want to put garments with thick seams under the presser foot. The presser foot should be lowered while sewing. Presser foot pressure The presser foot pressure can be adjusted with the aid of a marked dial on the left side of the machine. Normal pressure is obtained by setting the dial at the white dot. The higher the number, the greater the pressure. By setting the dial at the symbol the presser foot pressure is completely released. This setting should be used when free-hand sewing with the darning foot, i.e. darning, monogramming, machine embroidery and quilting. If you turn the graded dial for the pressure foot pressure to the lowest number, it is possible to darn with presser foot Lower the feed dog and move the fabric forward, back ward and sideways by hand.

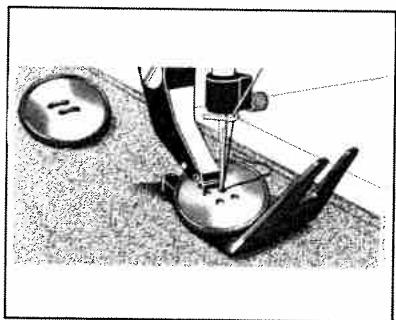

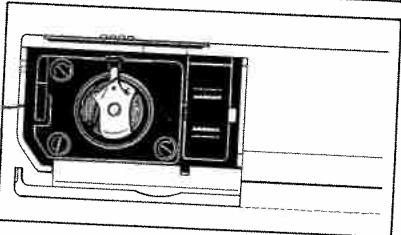

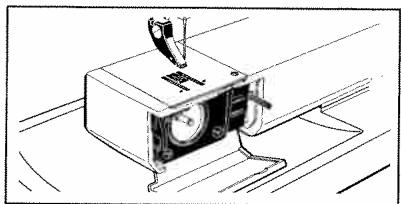

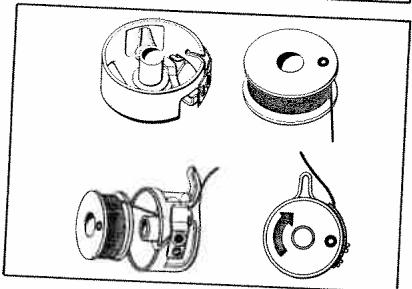

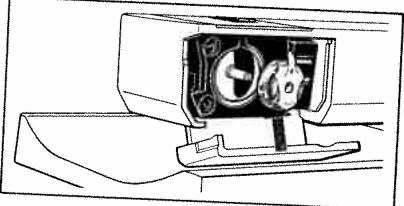

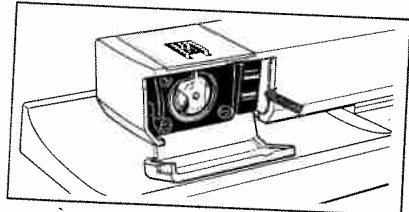

Lowering the feed dog You lower the feed dog by push push-button. In order to raise ing in the upper part of the the feed dog again push in the lower part. The feed dog should be lowe red for a certain type of darning and when sewing on buttons. It is also easier to get thick garments under the pre feed dog are not above the levelsser foot if the teeth of the of the stitch plate. Removing the bobbin case Open the door in front of the shut tle by means of the small recess on the left side. Grip the bobbin case with the thumb and index finger so that the latch is depressed and pull the bobbin case out. The bobbin will remain in the depressed. When you release case as long as the latch is the latch, the bobbin will be released. Bobbin winding Turn the empty bobbin until the small round mark on one side is outward. Slide the bobbin onto the bobb on the right side of the machine.in winding spindle located Grip the lower part of the bobb hand side of the machine and in winding arm on the rightthe presser foot and pull the turn it out to the side. Raise threa by the needle clamp through the d from the thread guide groove on the arm. Wind the thread around the bobbin from underneath. If you are a couple of times, beginning using a metal presser foot, allow the thread to go throu under the presser foot. Neve the eye of the needle and the eye of the needle to the run the thread direct from bobb the risk of bending the needle. in because you will run Hold the thread end and lightly depress the foot cont rol. you can release the thread end.As soon as winding starts Threading the lower thread When the bobbin winding is finished, place the bobbin beside its case with the mark ing upward. The thread should run as shown in the figur case without turning it around. e. Place the bobbin in its Slide the thread into the slot on the edge of the bobbin case. Pull the thread in under that the bobbin rotates in the the tension spring. Check direction of the arrow (clock wise) when the thread is pulle The thread must be pulled in the direction of the spring, otherwise the spring will be over loaded. Insertion of the bobbin case Slide the thread behind the proje and to the right. Put the bobbin ction of the bobbin case bobbin case until it clicks to ens case into place. Press the thread cutter is located to the ure that it fits properly. The left the thread end and draw the threaof the bobbin case. Hold d from underneath and up toward the thread cutter. By doing so the thread will be cut and kept in place. Shut the door oft Thread cutter On the back of the presser bar thread cutter, by means of whic you will find a notch, the threads when you have finis h you can easily cut off the hed sewing.

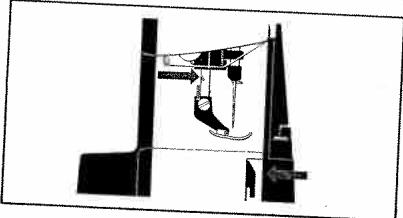

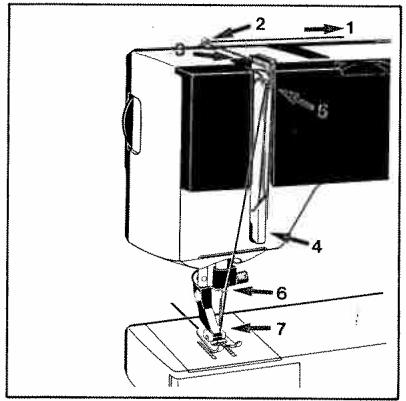

Threading the upper thread Raise the presser foot. Check that the needle is at its highest position. Place the spool of thread on the left spool pin and thread the machine for sewing. Slide the thread into thread guide 2 on the upper arm and draw it upward. Then draw the thread to the front between the tension discs 3 and down around thread guide 4. Continue threading by drawing the thread from the right into the slot on thread take-up lever 5 and draw it down to the needle, ensuring that it goes through thread guide 6. Thread the needle from the front. Due to the white color of the presser foot ankle the needle-eye is clearly seen and the threading of the needle, 7, is easier. Pull the thread under the presser foot about 15 cm (6”) toward the rear. Tension of the upper thread The thread tension dial is graduated from 0—b. The higher the number, the tighter the tension. Normal thread tension is obtained by setting the dial at the white dot. It may be necessary to adapt the thread tension to the thickness of the thread and the type of fabric. There is also a mark on the thread tension dial for the tension that is suitable for making buttonholes, for satin stitching, topstitching, embroidering, etc.

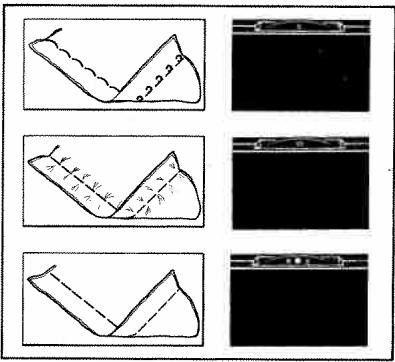

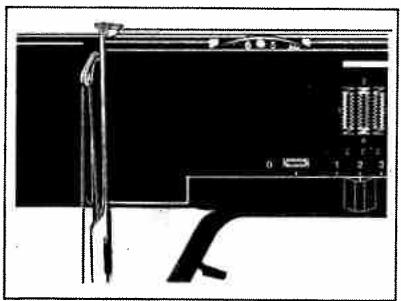

Correct and incorrect thread tension In order to easily understand the importance of correct thread tension, you can try different thread tensions by sewing on a scrap of fabric. Begin by using an excessively loose tension, i.e. set the tension dial near 0”. The lower thread lies straight and the upper thread is drawn under neath the fabric. If, however, you set the dial at the highest number, the opposite will occur, or the seam may pucker. The thread tension is correct when the threads interlock in the middle of both layers of fabric. Please note that even the best quality thread may vary in thickness. When sewing in fine fabrics, the knot may sometimes be visible. Accessory box Store the accessories in the accessory box. By placing them as illustrated, it will be easier for you to remove and replace the box. Select the correct presser foot for the type of sewing you are doing. Presser foot A is fitted on the machine at delivery and is used for straight stitching, zig-zag and other utility stitches. This foot has notches which can be used as guides when sewing. When straight stitching with the nee dle in the center position, you will have a 7 mm (¼’) seam allowance if you guide the fabric even with the outer A6”) at the inner edge and 2 mm edge of the foot; 4 mm ( (/32”) at the innermost notch. Zipper foot E can be attached to the right or to the left of the needle, making it easy to sew both sides of the zipper. The edging presser foot. Is used for overcasting with zig zag or joining fine, slippery fabrics with overcast stitch.

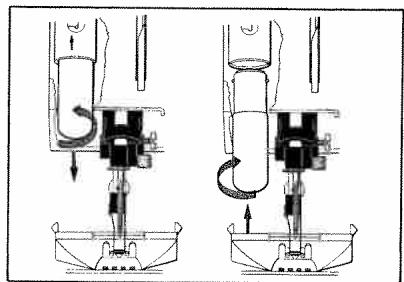

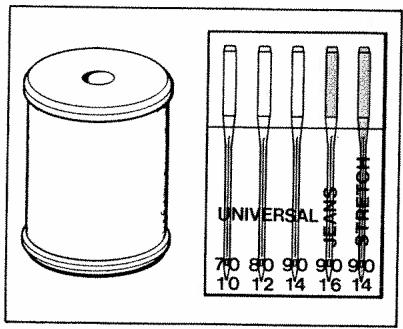

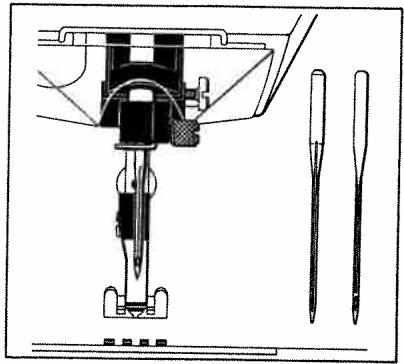

N/’ Needle and thread The machine is delivered with a spool of synthetic thread, which can be used for all types of fabrics and most seams. Mercerized cotton can also be used. For buttonholes, topstitching and darning embroidery silk No. 30—50 is recommended. Always use needles coded 1 30,705 H. The needle fitted in the machine is No. 80. Two needles for sewing in stretch fabric and denim are specially designed for the purpose. Changing the needle Even if the needles look alike there can be slight varia tions which can affect the sewing result. Be sure to use high quality needles. Only a completely undamaged needle will give perfect sewing results. Therefore, change the needle if you have the slightest reason to believe that it is bent or that the point is damaged. To remove the needle, loosen the screw in the needle clamp. With the flat side of the shank away from you, insert the new needle into the needle socket as far as it will go. Tighten the screw with the screwdriver. Stitch selection Choice of stitch length The pattern scale located on the front of the machine indicates which stitches you can sew with the machine. The stitch length can be varied between 0 and 5 mm and there are three zig-zag widths to choose from. The straight stitch can be sewn with the needle at the center or left needle position. The left needle position is suitable when sewing narrow hems and when sewing in light fabrics where the fabric is well supported in the outer edge of the needle hole. The required stitch is set by turning the stitch selector to the left or to the right until the red indicator lines up with the stitch symbol. There are figures above the stitch symbols which indicate the most suitable stitch length when sewing normal fabrics. Set the stitch length by means of the stitch length regulator. under the symbols. The symbol indicates the stitch length which is best for sewing buttonholes. Always use the recommended stitch length to start with but experiment until you arrive at the exact stitch length for the actual work you will be doing. Presser foot There are letters under the stitch symbols which indicate the most suitable presser foot for each stitch. The letter is also marked on the presser foot.

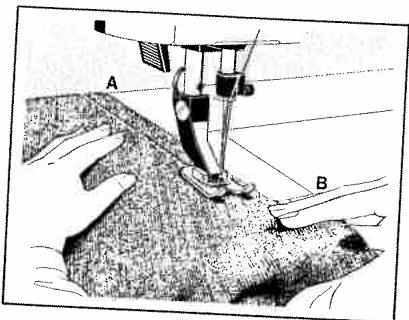

General hints The best way to hold the fabri lightly on the work at A and c is to let your left hand rest guide it forward. Hold the edg of the fabric at B with your right hand and guide the worke Do not pull the fabric—just gui and let the machine do the de it toward the presser foot feeding. When you wish to straigh t stitch, place the work so that the needle goes down in the center of the marking for the seam. When sewing zig-zag and other wide stitches, e.g. the overcast stitch place the the left edge of the needle marking for the seam along hole. Lower the presser foot, star t the machine gently and increase the speed gradua lly. When sewing fine and soft fab rics, start the seam a couple of mm (l/s”) from the edge of the fabric, to prevent it from being pulled down into the extend the seam out to the needle hole. If you wish to ver few reverse stitches and then y edge of the fabric, sew a presser foot when sewing forwhold the threads behind the ard again. Fasten off the seam by dep ressing the reverse feed but ton and sew a few reverse stitches. When the seam is finished, the work from behind and raise the presser foot, remove cut off the threads leaving least 15 cm (6”) of thread.

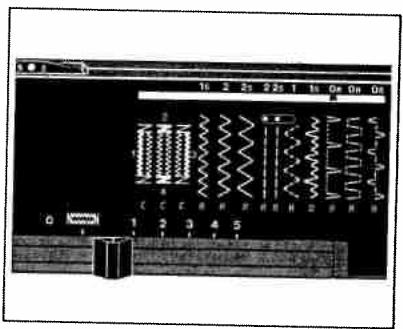

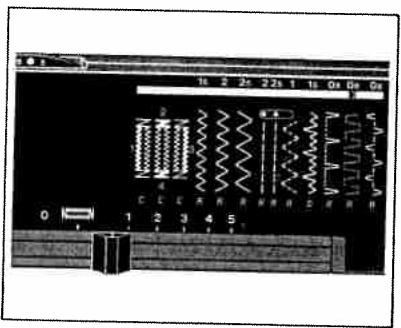

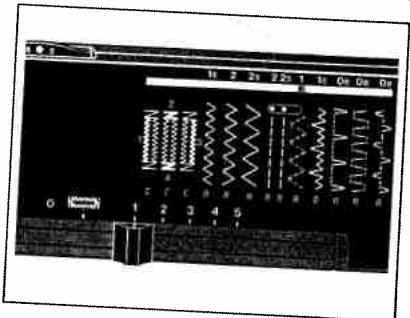

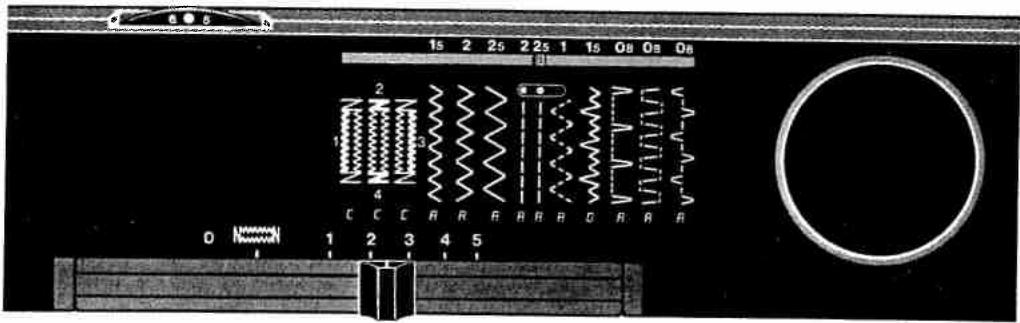

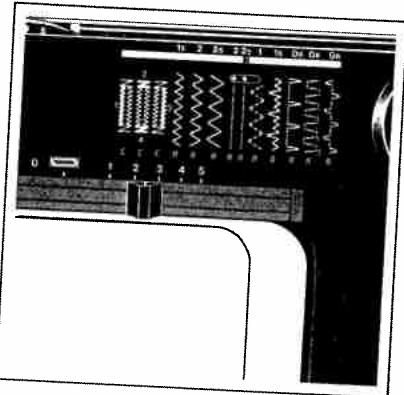

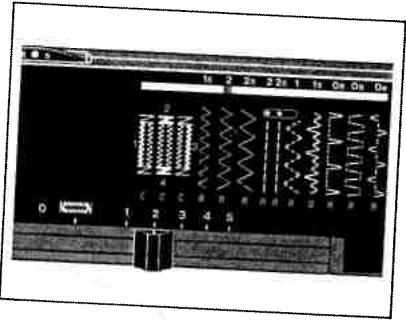

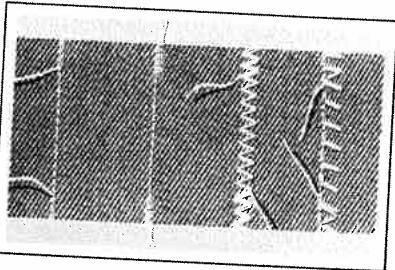

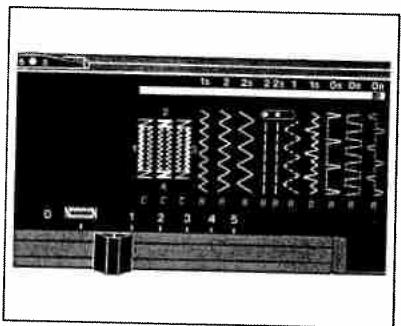

Straight stitching Check that the needle is in stitch selector to the straigh the highest position. Turn the t stitch symbol. Set the stitch length regulat or to the recommended bas setting 2.5 but experiment stitch length for the actual until you arrive at the exact work you will be doing. Increase the stitch length whe n basting and topstitching. It is even possible to do stra igh t stitching with the needle in the left needle position by turning the stitch selector one step to the left. This is very useful when sewing light fabrics. Zig-zag Check that the needle is in the choice of three zig-zag the highest position. You have widths, 1.5, 3 and 5 mm. Turn the stitch selector Recommended stitch length the required zig-zag symbol. 1.5—2.5. Zig-zag is used for sew ing on lace, gathering, bou edging, appliqués, etc. Three-step zig-zag is reco mmended for overcasting binds better and is more , as it attractive. Three-step zig-zag Check that the needle is in the highest position. Turn stitch selector to symbol ,..,, the .\.\.‘. Recommended length 1. stitch Three-step zig-zag is suit able for overcasting most rics, especially stretch, fab light rics. It has many advanta weight or loosely woven fab ges compared to ordinar zag. It is more elastic and will not pucker the edge of zig fabric. It is ideal for sew ing terry cloth and is also use the darning and mending. d for Oil Blindstitching Blindstitching is used for hemming skirts made of woven and knitted fabrics without the stitches being visible on the right side. Check that the needle is in the highest position. Set the stitch selecter at the symbol Recommended stitch length 1.5. The thicker and softer the fabric, the less visible the stitches will be. When sewing lightweight woven fabrics, is unavoidable that a small stitch will show on the right side. Fold the fabric as illustrated. As fabrics vary in thickness the presser foot 0 can be shifted sideways so that the edge guide 1 underneath may be set according to the thickness of the fabric. Be sure that the folded edge follows the edge guide 1 underneath the presser foot. Sew a few inches and check that the large zig-zag stitches catch just one thread of the folded edge. If the stitches fail to reach the fold, turn the red roller slightly toward +. If they are too far in on the fabric fold, turn the roller toward —. Overcast stitch Check that the needle is in the highest position. Turn the stitch selector to the symbol vVV The overcast stitch can be used for joining and overcast ing lightweight woven and elastic fabrics. Join and overcast directly on the edge where a 5 mm (/ie’) seam is allowed, or cut out the garmen t with a wider seam allowance, sew with overcast stitch and then trim close to the stitching. Double-action stitch Check that the needle is in the highest position. Turn the stitch selector to the symbol Use the double-action stitch for hemming and sewing overlapped seams in tricot and soft material and also for gathering with narrow, flat elastic or elastic cord. Be sure the elastic does not get stitched in by mistake but can run freely under the stitching. Overlapped seams are also recommended for sewing leather. Bridging stitch Check that the needle is in the highest position. Turn the stitch selector to the symbol Use the bridging stitch for joining two pieces of fabric with folded edges. If you would like a decorative seam, place the folded edges (without sewing them together first) a few millime ters from each other and join with bridging stitch. The bridging stitch is also useful for gathering with shirring elastic. Use the buttonhole foot C and place the shirrin elastic around its heel”.

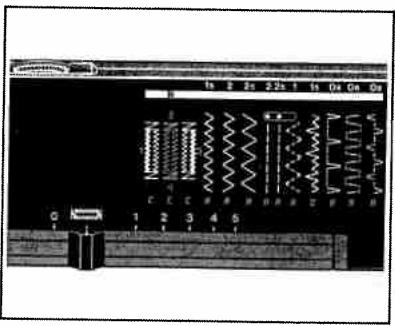

Buttonholes When sewing buttonholes, change to the buttonhole foot C. This foot has graduated markings to help you make the buttonholes the same length. Decrease the upper thread tension by turning the thread tension dial to the buttonhole symbol. Set the stitch selector and stitch length regulator at the buttonhole symbol. The finer thread you use, the more attractive and even the buttonhole will be. Make a mark on the fabric where you wish to begin the buttonhole. Always test sew a buttonhole and adjust the stitch length setting. Insert the fabric under the presser foot, remem bering that the machine will begin to sew in reverse.

Set the stitch selector to symbol 1. The machine sews the first column in reverse. Stop when you reach the correct column length. Turn to symbol 3. Sew the other column the same length as the first one.

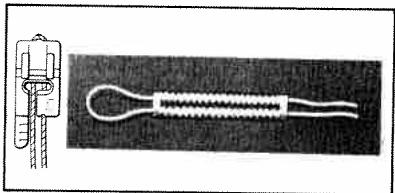

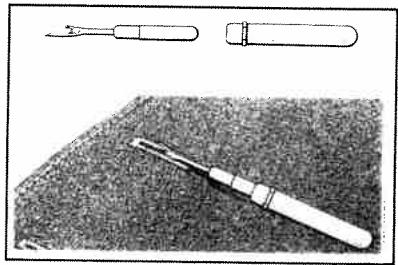

Turn to symbol 2—4. Now the machine will form the bar tack. Sew three or four stitches. Turn back to symbol 2—4. The machine will form the final bar tack. Sew three or four stitches. Turn to symbol 1 and lock the threads in the first column. Corded buttonholes A small cord can be used to sew buttonholes in elastic material, in order to keep the shape better. Attach the cord around the projection at the heel of the buttonhole foot as shown in the illustration and sew the buttonhole in the normal way, In heavy garments you can sew reinforced buttonholes by sewing the columns twice and the bar tacks the second time. Cutting the buttonhole The buttonhole knife which you will find in the accessory box, is equipped with a safety cap which, when taken off, can be pushed onto the back of the knife, providing a good handle. When you have finished sewing all the buttonholes, they must be cut open as follows: Pierce the fabric at a right angle until the curved blade edge reaches down to the buttonhole. With the knife more or less parallel to the fabric, push forward, taking care not to cut the columns of the buttonhole. The small red bead serves as a guide. Cut the buttonhole to the middle and then repeat the cut from the other direction. Sewing on buttons Lower the feed dog. Remove the presser foot, put the button in place and lower the presser bar. Set the stitch selector at the widest or intermediate zig-zag. Turn the handwheel toward you and test carefully that the needle enters the first hole and then the other hole. Sew five or six stitches. Move to the other holes and repeat. Set the needle to straight stitch in the left needle position and fasten the threads with a few stitches. When a shank” is required, use the button reed as illus trated.

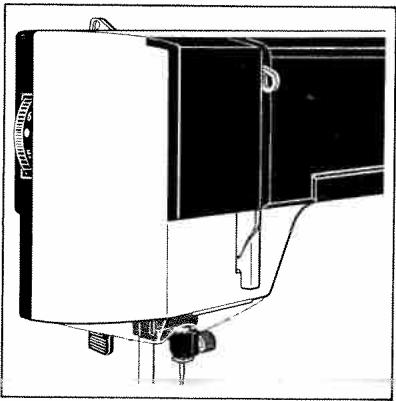

Changing the light bulb The lamp is located to the left of the needle. First remove the lamp guard. By inserting the small screwdriver in the recess at the left edge and applying slight downward leverage, you can slide the guard down to the stitch plate. To remove, press the light bulb upward. turn a quarter turn in the direction of the arrow. To insert the new light bulb, push it upward and turn it a quarter turn in the direction of the arrow. The wattage of the bulb is indicated on the rear of the machine. Care of the machine If you want to clean the machine, remove the presser foot and lower the feed dog. There is a recess in the free arm to the right above the hook cover. Push the stitch plate straight up and backward at the same time until it loosens. Clean between the teeth of the feed dog with the brush you will find in the accessory box. When replacing the stitch plate, insert it from behind into the recess in the arm. Ease the front edge up onto the small pin and continue to push it forward until it snaps into place. Belts Belt adjustment is not required. Why haven’t I got the results I expected? Always start by checking the needle An important part which needs to be changed from time to time is the needle. Always start with a new needle as soon as you discover that a seam is not what you expected. Check that it is correctly inserted. Unattractive stitches The thread tension is not correct. See page 4. The machine may be incorrectly threaded. The correct threading is shown on pages 3 and 4. Wrong upper thread. It should be of the same thickness as the lower thread. Bobbin wrongly inserted in the bobbin case. See page 3. The needle breaks You may have helped the machine to feed by pulling the fabric. The needle can easily strike against the needle plate and break. The upper thread breaks Check the thread spool to see that it has not caught in any way. The needle eye may have sharp edges which cut the thread, If so, change the needle. See page 5. The upper thread is incorrectly threaded or has too much tension. See page 4. The thread is knotted. The hole in the needle plate may be chipped and have sharp edges. Replace the needle plate. Lower thread breaks The bobbin case is incorrectly threaded or inserted. See page 3. The bobbin is overwound. Uneven thread tension This may be due to poor quality thread. Irregular bobbin winding The bobbin is not placed correctly. See page 3. The machine is not correctly threaded for bobbin winding. See page 3. The fabric puckers The upper thread tension is too tight. See page 4 for correct thread tension. The machine does not feed the fabric The stitch length is too short, Shift the stitch length regulator to a higher number. The feed dog may be lowered. Raise it by pressing the lower part of the feed dog button. See page 3. The presser foot pressure is disengaged. See page 2. The feed dog is full of dust and dirt. Clean with the brush. See instructions above.

Machine runs sluggishly Dirt or lint has fastened under the needle plate. Loosen the needle plate and brush clean be o tween the teeth of the feed dog. See instructions above. Dirt or lint has fastened in the hook. Remove the bobbin case and clean with the brush. See instructions above. We reserve the right to change the machine C equipment and the assortment of extra acces sories without prior notice, or make modifications 0 in the design or appearance of the machine. C? Such modifications however will always be to the Cd0) benefit of the user and the product.
