USER MANUAL FPWHANGER StarTech.com

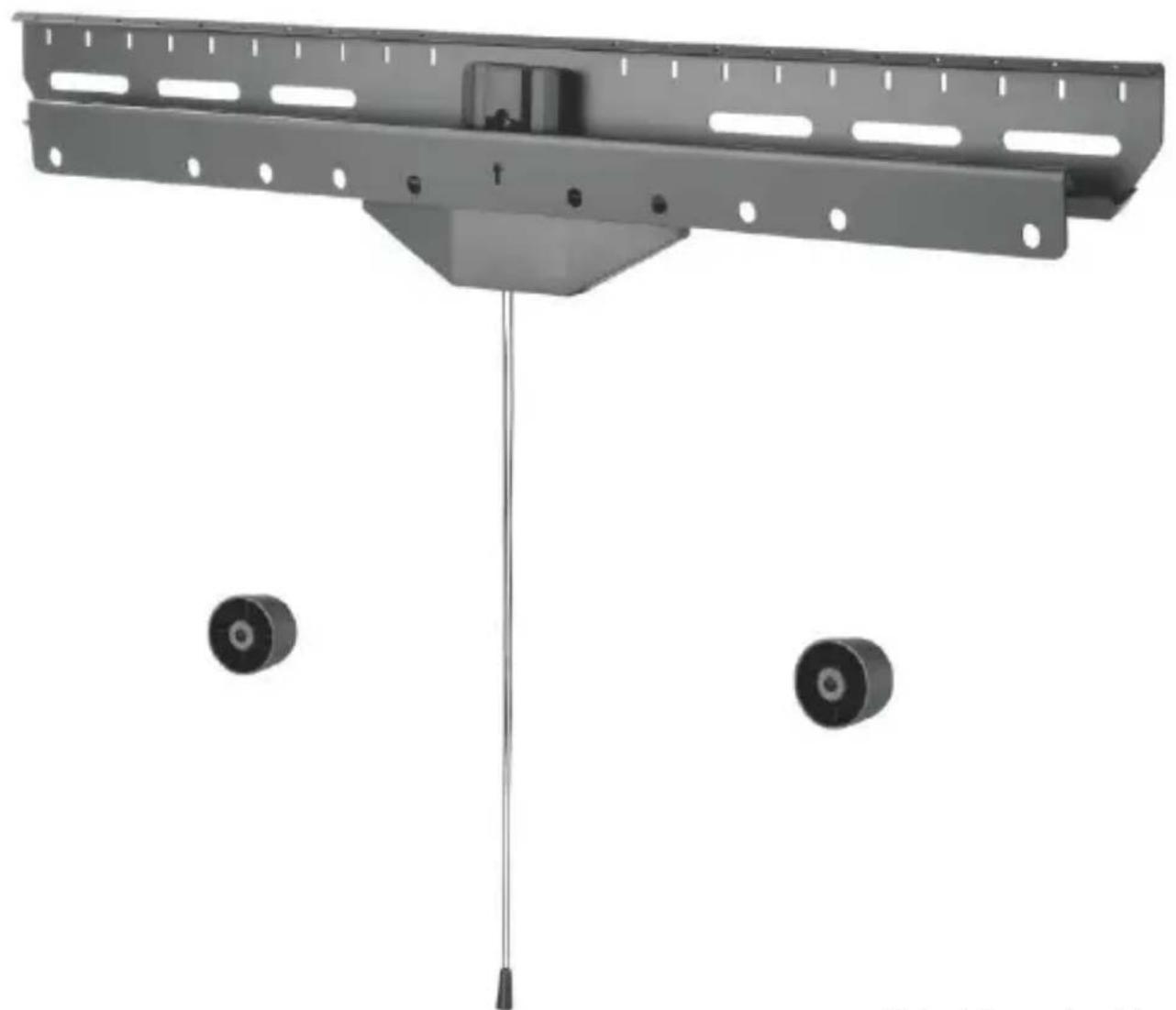

Display Mount for Stud-less Walls

Mechanical assembly with a metal frame and two circular components (no text or symbols visible)

Actual product may vary from photos

User Manual

SKU#: FPWHANGER

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Safety Statements

Safety Measures

- Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

- Never use this product if parts are missing or damaged.

- The wall structure should be capable of supporting at least four times the weight of the mounted equipment.

- The mounting hardware included with this product may not be adequate for installation on certain wall structures. Failure to comply with these warnings may result in personal injury or damage to the equipment.

- If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

- Make sure that the weight of the TV doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: Up to 110 lb. (50 kg).

Mensagens de Aviso

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Avertissements

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warnhinweise

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements....ii

Warning Statements......iii

Product Diagram....1

Front View .... 1

Side View 2

Product Dimensions ....3

Front View 3

Side View 3

Product Information......4

Package Contents ....4

Requirements 6

Technical Specifications....7

Installation 9

Fasten the Wall Mount Assembly to a Wall 9

Display Mounting Bracket Installation....11

Tilt Spacers Installation 13

Hang the TV on the Wall Mount Assembly 14

Operation 15

Remove the TV from the Wall Mount Assembly 15

Warranty Information....17

Product Diagram

Front View

1 2

Components Function
1	Wall Mount Assembly	Mount for the Display Mounting BracketEvenly distributes the weight of the TV across the Mounting Surface
2	Spacers - Large or Small	Use Spacers - Large for a 0° tiltUse Spacers - Small for a -5° tiltPrevents TV from coming into contact with the Mounting Surface

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Side View

1 2

Components Function
1	Display Mounting Bracket	Attaches to the TVHangs on the Wall Mount Assembly to mount the TV
2	Quick Release Cord	Pull the bottom of the Quick Release Cord to release the Spring Locks that hold the Display Mounting Bracket onto the Wall Mount AssemblyPull the bottom of the Quick Release Cord to reengage the Spring LocksApproximate length - 740 mm

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Dimensions

Front View

700mm 100mm 200mm 300mm 400mm 600mm min200mm-max400mm

Side View

31mm 133mm 0° or -5°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Wall Mount Assembly Qty: 1	Display Mounting Bracket Qty: 1	Tilt Spacers - Large Qty: 2	Tilt Spacers - Small Qty: 2
M5 x 14 mm Screws Qty: 4	M6 x 14 mm Screws Qty: 4	M6 x 30 mm Screws Qty: 4	M8 x 30 mm Screws Qty: 4
M8 x 50 mm Screws Qty: 4	Washers - Small Qty: 4	Washers - Medium Qty: 4	Mounting Spacers - Short Qty: 8
Mounting Spacers - Long Qty: 8	Mounting Screws Qty: 4	Concrete Anchors Qty: 4	Washers - Large Qty: 4
Nails Qty: 20

Requirements

For the latest requirements, please visit www.startech.com/FPWHANGER

• 2 and #4 Phillips® Head Screwdrivers

• Hammer
• Spirit/Bubble Level
• Mounting Surface
  • (Optional) Two People for the Installation

Technical Specifications

Type of Measurement Measurement
Screen Size	37" - 80"
Weight Capacity	Up to 110 lb. (50 kg)
VESA Compatible	100x200, 200x200, 200x300200x400, 300x200, 300x300400x200, 400x300, 400x400600x200, 600x300, 600x400

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Minimum Profile to Wall	1.2" (31 mm)
Curved TV	Compatible
Tilt Range	0°-5°
Direction Indicator	Yes

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installation

Fasten the Wall Mount Assembly to a Wall

Warnings! The Display Mount for Stud-less Walls is designed to be installed into on a drywall, wood stud, or solid concrete wall. The Mounting Hardware (Mounting Screws and Concrete Anchors) included with this product may not be adequate for installation on certain wall structures. Ensure the Drywall Surface has the structural integrity to support the weight of the Mount and TV. If you lack the necessary expertise to attach this product contact a Construction Professional to install the Display Mount for Stud-less Walls. Failure to do so may result in personal injury and/or equipment damage.

The Display Mount for Stud-less Walls is intended for indoor use only and should not be used outdoors.

There are three ways to configure the installation for the Display Mount for Stud-less Walls. See Figure 1, 2 and 3 for more details.

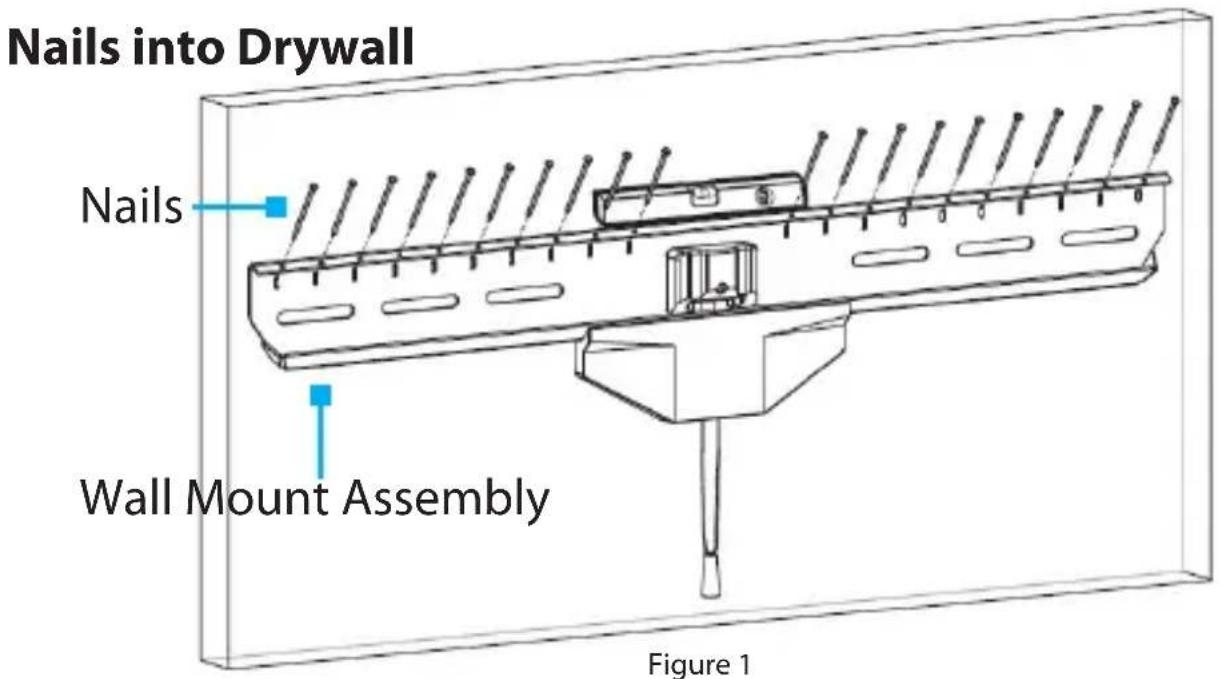

Nails into Drywall Nails Wall Mount Assembly Figure 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mounting Screws with Concrete Anchors into Concrete Wall

Concrete Anchors Washers - Large Mounting Screws Figure 2

Figure 2

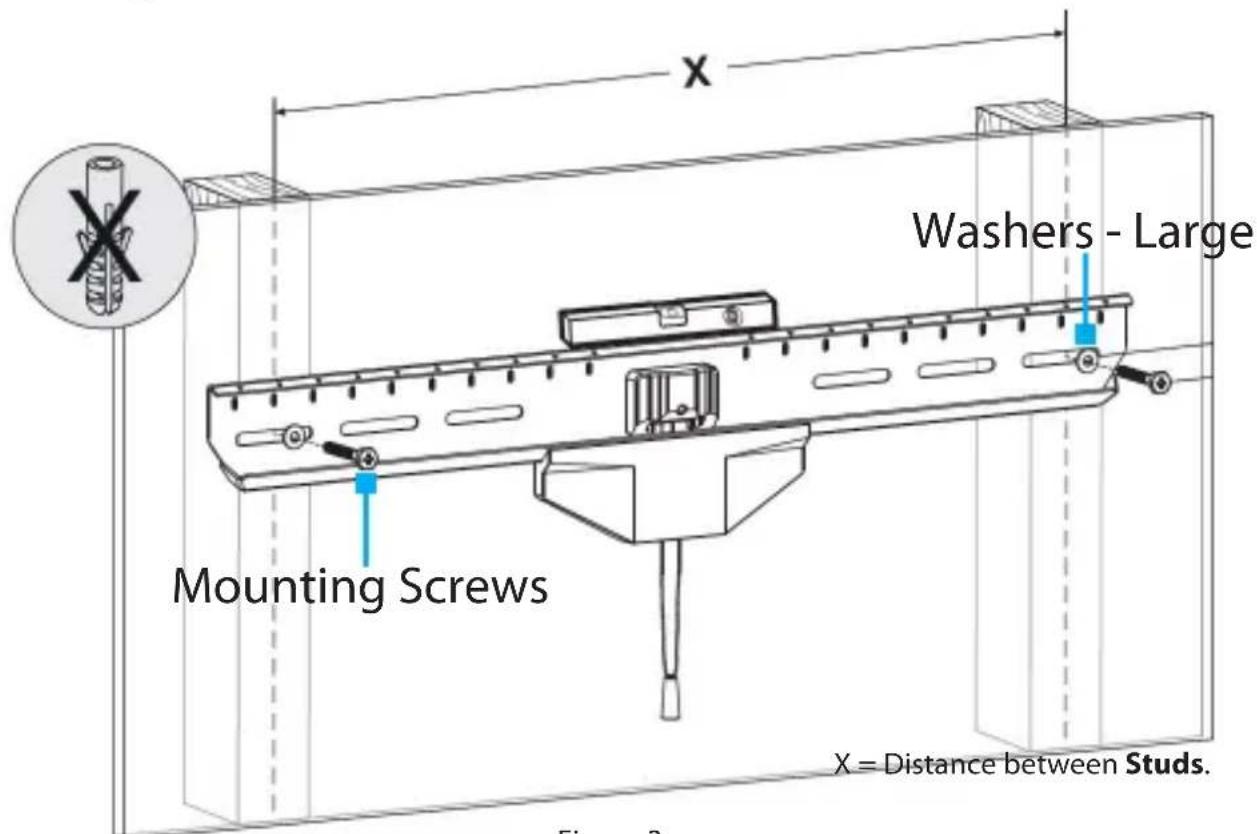

Mounting Screws into Wood Studs

Mounting Screws X = Distance between Studs. Washers - Large Figure 2

Figure 3

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Display Mounting Bracket Installation

1. Place your TV on a padded surface, screen side down, so that you can access the back of the TV.
2. (Optional) Identify and remove the pre-installed VESA Hardware from the back of the TV.

Note: Not all TVs will have placeholder VESA Hardware. Ensure you are only removing the four Screws for the VESA Mount. Do not remove any of the screws from your TV's structural assembly.

1. (Optional) To shorten the depth of the VESA Mounting Holes to ensure a correct fit for the M-Type Screws, place the necessary number of Mounting Spacers - Short and/or Long over the top two VESA Mounting Holes. Use the Spacer Combination Table to determine the number of Mounting Spacers for the application.

Screw Type Spacer Combination
M6 x 30 mm
M8 x 30 mm
M8 x 50 mm

1. Center the Display Mounting Bracket onto the back of the TV. Align the Holes in the Display Mounting Bracket over the top two VESA Mounting Holes in the back of the TV. The Direction Indicator on the Display Mounting Bracket should be pointing towards the top of the TV. (Figure 4)

Direction Indicator Display Mounting Bracket

Figure 4

1. Place a Washer - Medium onto the Display Mounting Bracket. Align the hole in the Washer - Medium with the VESA Mounting Hole. Repeat for the second VESA Mounting Hole.

2. Thread the appropriately sized M-Type Screws (ex. M5 x 14 mm Screws) through the Washers - Medium, Display Mounting Bracket, (Optional) Mounting Spacers, and into your TV. (Figure 5)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

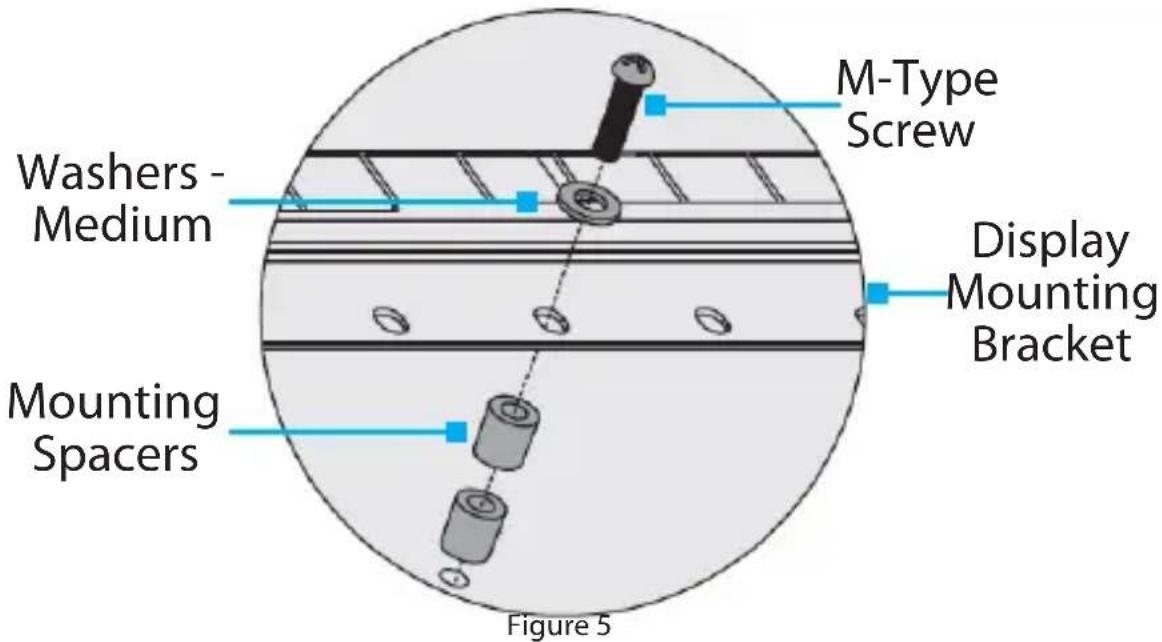

M-Type Screw Washers - Medium Display Mounting Bracket Mounting Spacers Figure 5

1. Tighten the M-Type Screws with the Phillips Head Screwdriver.

Warning! Do not over-tighten the M-Type Screws. If you encounter any unexpected resistance as you are fastening these Screws, immediately stop and attempt to use a different length of M-Type Screw.

Tilt Spacers Installation

1. (Optional) Place the necessary number of Mounting Spacers - Short and/or Long over the bottom two VESA Mounting Holes in the back of the TV. Use the Spacer Combination Table (Page 11) to determine the number of Spacers for the application.

2. Place a Tilt Spacer (Large for 0° of tilt and Small for -5° of tilt) over one of the VESA Mounting Holes. Align the hole in the Tilt Spacer with the VESA Mounting Hole. Repeat for the second VESA Mounting Hole.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Place a Washer-Medium into the hole in each of the Tilt Spacers.
2. Thread two appropriately sized M-Type Screws (ex. M5 x 14 mm Screws) through each of the Washers - Medium, Tilt Spacers, (Optional) Mounting Spacers, and into your TV. (Figure 6)

M-Type Screw Washers - Medium Tilt Spacers Mounting Spacers Figure 6

1. Tighten the M-Type Screws with the Phillips Head Screwdriver.

Warning! Do not over-tighten the M-Type Screws. If you encounter any unexpected resistance as you are fastening these Screws, immediately stop and attempt to use a different length of M-Type Screw.

Hang the TV on the Wall Mount Assembly

1. Pull the Quick Release Cord down to unlock the Spring Locks in the Wall Mount Assembly.

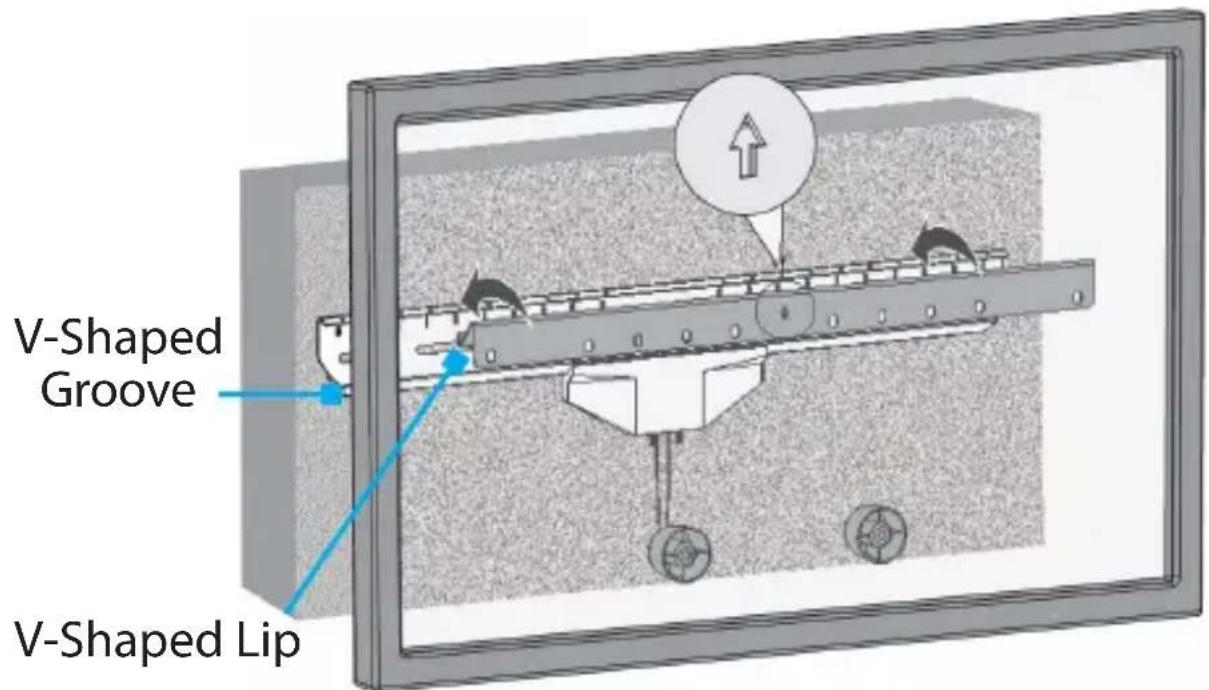

2. With two people: lift and hang the TV onto the Wall Mount Assembly. Ensure the V-Shaped Lip on the Display

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mounting Bracket fits into the V-Shaped Groove on the Wall Mount Assembly. (Figure 7)

1. Pull the Quick Release Cord down to lock the Spring Locks in the Wall Mount Assembly.

V-Shaped Groove V-Shaped Lip

Figure 7

Operation

Remove the TV from the Wall Mount Assembly

1. Pull the Quick Release Cord down to unlock the Spring Locks in the Wall Mount Assembly.

2. (Optional - Two People) Lift the TV off of the Wall Mount Assembly. (Figure 8)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical illustration of a mechanical assembly with a central shaft and two circular components, labeled Figure 8 (no text or symbols on the diagram itself)

Simple diagram showing a downward arrow pointing to a textured object inside a circle (no text or symbols)

Quick Release Cord
Figure 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a five-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
