USER MANUAL FPWMNB StarTech.com

TV Wall Mount | Digital Menu Board | Triple Display

Pure structural frame diagram with vertical supports and rectangular panels (no text or symbols)

Actual product may vary from photos

User Manual

SKU#: FPWMNB

For the latest information and specifications visit

www.startech.com/FPWMNB

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

• Wiring terminations should not be made with the product and/or electric lines under power.
• Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.
• Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Säkerhetsåtgärder

• Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.
- Make sure that the weight of the TV doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following total weight: Up to 150 kg (330 lb.).
- Never operate this product if parts are missing or damaged.
- The wall mount is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should also be capable of supporting at least four times the weight of the mounted equipment. The mounting hardware included with this product may not be adequate for installation on certain wall structures. Failure to comply with these warnings may result in personal injury or damage to the equipment.
- The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Safety Statements....2

Warning Statements....3

Product Diagram....9

Product Information....10

Package Contents 10

Requirements 13

Assembly 14

Connecting Wall Plates....14

Installing the Adapter Brackets....16

Spacer Combination 20

Mounting....20

Mounting the Display....21

Adjusting 23

Adjusting the Display Tilt 23

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

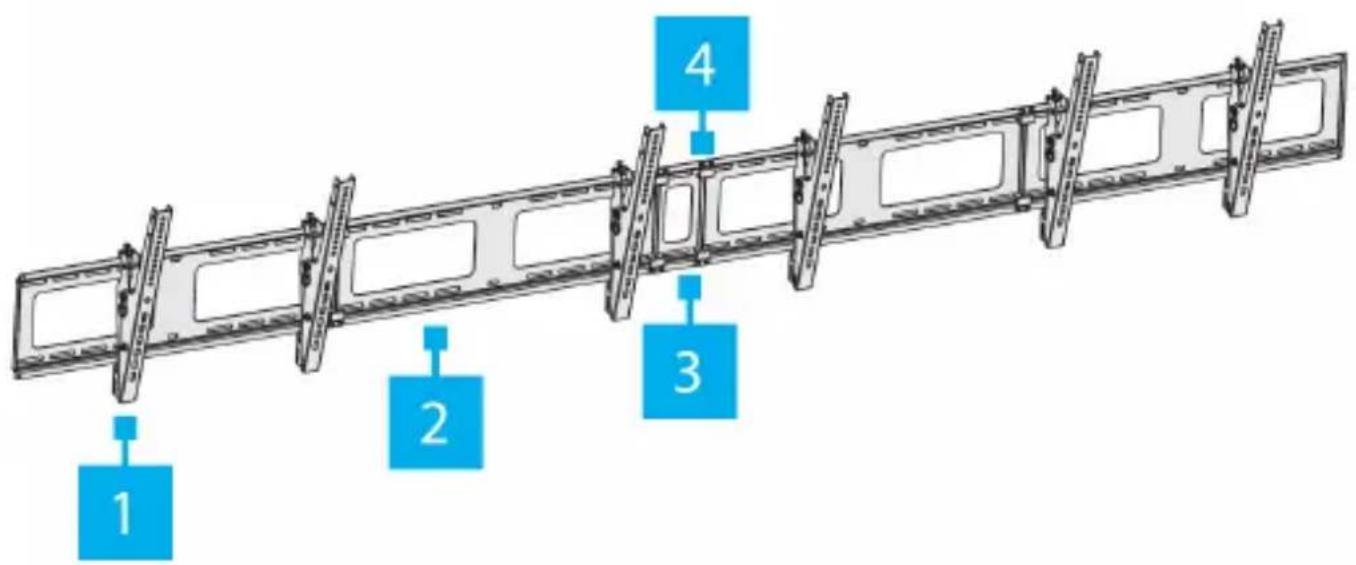

Product Diagram

1 2 3 4

1	Adapter Bracket	3	Small Wall Plate
2	Wall Plate	4	Wall-Plate Clamps

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

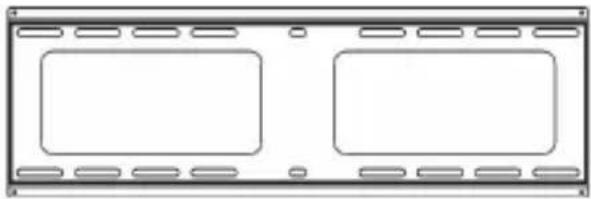

Wall PlatesQty: Four	Small Wall PlateQty: One
Adapter BracketsQty: Six	Wall-Plate ClampsQty: Eight

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Locking PinsQty: Six	M4x6 mm ScrewsQty: Sixteen
M5x14 mm ScrewsQty: Twelve	M6x14 mm ScrewsQty: Twelve
M6x30 mm ScrewsQty: Twelve	M8x30 mm ScrewsQty: Twelve

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

M8x50 mm ScrewsQty: Twelve	Plate WashersQty: Twelve
Small SpacersQty: Twenty Four	Large SpacersQty: Twenty Four

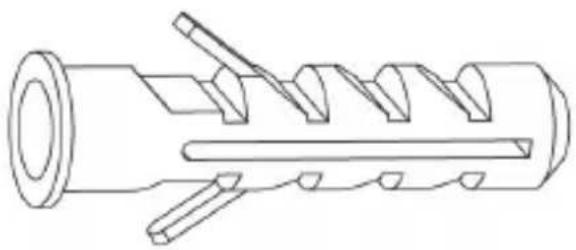

ST6.3x55 mm ScrewsQty: Eighteen	Concrete AnchorsQty: Eighteen

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Simple line drawing of a donut-shaped object with no text or symbols

D6 Washers

Qty: Eighteen

Simple line drawing of a bent pipe or tool (no text or symbols)

5 mm Hex Key

Qty: One

Requirements

• A TV compatible with VESA mounting holes patterns
- Supported patterns: 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- Level x 1
- Writing Utensil x 1
- Drill x 1
• Phillips Head Screwdriver x 1
- Ladder x 1

Assembly

Connecting Wall Plates

If the combined width of the Displays is less than 1 m (39.37") you can connect the Wall Plates together without using the Small Wall Plate.

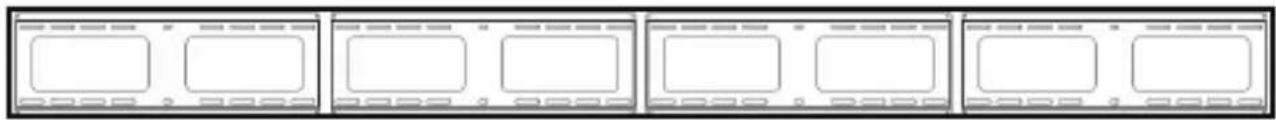

1. On a flat surface, align the four Wall Plates side by side so that the Wall Plates are touching.

Five identical rectangular panels with blank white boxes, each containing a small white rectangle and the label 'SIN' in the top row.

Wall Plates

1. Using a Wall-Plate Clamp, slide the clamp around the lip on two adjacent Wall Plates while aligning the two Screw Holes on the Wall-Plate Clamp with the Screw Hole on each of the Wall Plates.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Aligning the Wall Plate Clamp

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Insert two M4x6 mm Screws through the Screw Holes on the Wall-Plate Clamp and into the Screw Holes on the Wall Plates.
2. Using the Phillips Head Screwdriver tighten the M4x6 mm Screws.
3. Repeat steps 2 - 4 to install the remaining five Wall-Plate Clamps.

If the combined width of the Displays is greater than 1 m (39.37") you must use the Small Wall Plate when connecting the Wall Plates together.

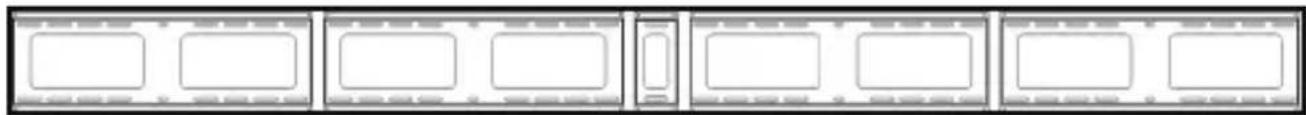

1. On a flat surface, align the four Wall Plates and the Small Wall Plate side by side so that the wall plates are touching, with the Small Wall Plate in the middle.

Pure architectural floor plan lines without any text, numbers, or symbols

Wall Plates with Small Wall Plate in the Middle

1. Repeat Steps 2 - 4 to install the remaining seven Wall-Plate Clamps.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installing the Adapter Brackets

The TV Wall Mount supports the following VESA mounting Patterns:

200x100 400x200

200x200 400x300

200x300 400x400

200x400 600x200

300x200 600x300

300x300 600x400

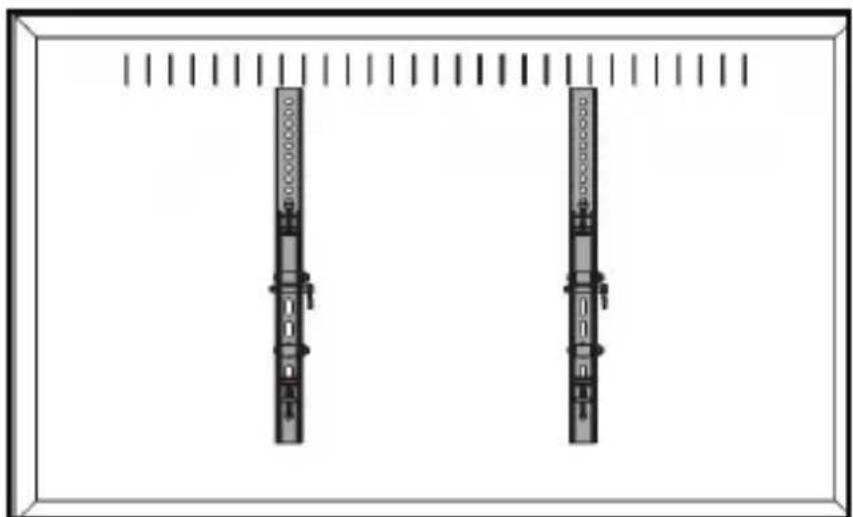

Flat Back Display

When installing the Adapter Brackets on the Displays make sure that the Locking Pins are in the 0-degree position (which is the first tilt position).

Diagram of a mechanical switch mechanism with a handle and two bolts, no text or symbols present

0-Degree Position

1. Determine the depth and diameter of the Mounting Holes

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

located on the back of the Display.

1. Align the Mounting Holes on the Adapter Brackets with the Mounting Holes on the back of the Display.

Note: Make sure that the Arrow on each of the Adapter Brackets is pointing up (toward the top of the Display).

Diagram of two vertical cylindrical mechanical components with evenly spaced pins, no text or symbols present

Align Adapter Bracket with the Display's Mounting Holes

1. Align the Plate Washer with the Mounting Holes on the Adapter Bracket.

2. Insert the M8x50 mm, M6x30 mm, or M8x30 mm Screws (depending on the hardware requirement), through the Plate Washers, Adapter Brackets, and into the Display.

Technical diagram of a mechanical assembly with a central pin and gear mechanism (no text or labels)

Installing the Plate Washer

1. Using a Phillips Head Screwdriver, tighten the screws. Do not over-tighten the screws.

Note: If you encounter resistance while tightening the screws, stop. Failure to do so may result in damages to the Display.

Recessed Mounting

1. Determine the depth and diameter of the Mounting Holes located on the back of the Display.
2. Once you determine the correct depth and diameter of the hardware needed, place the Spacers over the Screw Holes on the back of the Display.

Note: Refer to the Spacer Combination table (p. 20) for different hardware combinations.

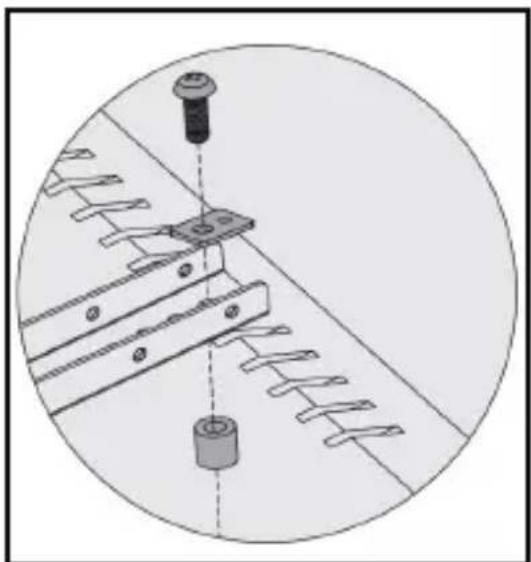

1. Align one of the Adapter Brackets with the Spacers. Place a Plate Washer over the Screw Holes on the Adapter Bracket.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Insert the M8x50 mm, M6x30 mm, or M8x30 mm Screws (depending on the hardware requirement), through the Plate Washers, Adapter Brackets, Spacers and into the Display.

Mechanical assembly diagram showing a bolt, spring mechanism, and housing (no text or labels)

Installing the Plate Washer and Spacer

1. Use a Phillips Head Screwdriver to tighten the screws. Do not over-tighten the screws.

Note: Do not over-tighten the screws. If you encounter resistance while tightening the screws, stop tightening. Failure to do so could result in damage to the Display.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Spacer Combination

Screw Type Spacer Combination
M6x30 mm
M8x30 mm
M8x50 mm

Mounting

Notes: Product mounting should be completed by a certified professional as per the local safety and building code guidelines.

Wall structures vary, and it's important to make sure that the type of structure and mounting hardware that you're using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Before installing the Wall Mount on the mounting surface, contact a professional.
2. After consulting a professional, the TV Wall Mount can be mounted using the included Mounting Hardware.

Mounting the Display

Warnings! Make sure that the weight of all three Displays doesn't exceed the weight capacity of this product. This product can support a maximum weight of 150 kg (330 lb.), 50 kg (110 lb.) per Display.

This product can support a maximum of three 50 inch Displays.

Attaching the Displays is a two-person job. Do not attempt to complete this task by yourself.

1. Carefully lift the Display and slightly tilt the top of the Display toward the mounting surface. Hook the top of both Adapter Brackets (at the same time) onto the top edge of the Wall Plate.
2. Once the tops of the Adapter Brackets are secured in place, gently lower the bottom of the Display until the bottoms of the Adapter Brackets come in contact with the Wall Plate.
3. While supporting the weight of the Display, slide the Display across the Wall Plate until it is in the desired position.

Note: Two people are required for making adjustments to the Display.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

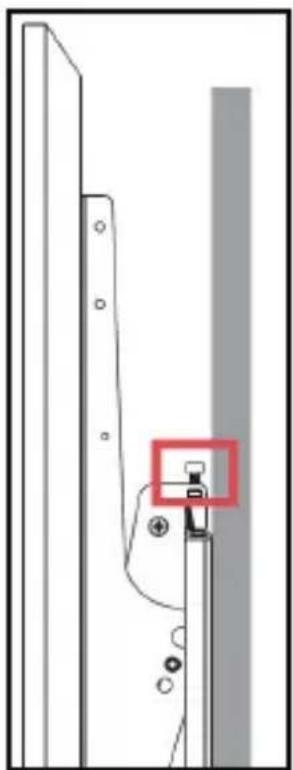

1. While one person supports the Ladder, using the 5 mm Hex Key, adjust the Height-Adjustment Screw located on the top of the Adapter Bracket, until the Display is level.

Note: Micro-adjustments can cause the Display to shift laterally along the Wall Bracket.

Technical diagram of a mechanical assembly with a highlighted component (no text or symbols)

Height-Adjustment Screw

1. Using a Phillips Head Screwdriver tighten the two screws located at the bottom of the Adapter Brackets, to secure the Adapter Brackets to the Wall Plate. Do not over-tighten the screws.

Note: If you encounter resistance while tightening the screws, stop. Failure to do so may result in damages to the Wall Bracket.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Diagram of a mechanical lifting device with pulley and lever mechanism (no text or labels)

Securing the Adapter Brackets to the Wall Plate

Adjusting

Adjusting the Display Tilt

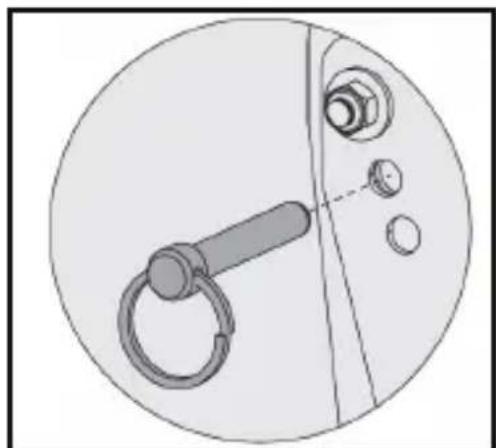

The two Locking Pins on either side of the Adapter Bracket are used to adjust the tilt of the Display from 0 to (-20) degrees.

Note: Two people are required for making adjustments to the Display.

1. While one person supports the weight of the Display, carefully pull out each of the Locking Pins located on either side of the Adapter Bracket.

2. Adjust the tilt of the Display while aligning the Adjustment Holes on the Adapter Bracket. The Adjustment Holes start

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

at 0-degrees and end at the natural position (-20) with no Locking Pin installed.

0° 5° 10° 15°

Adjustment Positions

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a five-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
