SPWS 180 A1 TALKING SCALES - Bathroom Scale SILVERCREST - Free user manual and instructions

Product Type	Talking Bathroom Scale
Brand	SILVERCREST
Model	SPWS 180 A1
Maximum Capacity	180 kg (396 lb)
Accuracy	+/- 3%
Minimum Measurable Weight	3 kg (6.6 lb)
Graduation	0.1 kg / 0.2 lb
Measurement Units	kg and lb
Power Supply	3 AAA batteries (1.5 V each, 4.5 V total)
Voice Function	Announces measured weight in multiple languages
Language Selection	Yes, via dedicated button
Volume Adjustment	Wheel, option to disable voice
Display	LCD Screen
Auto-off	Yes, after a few seconds of inactivity
Low Battery Indicator	Displays 'LO' and voice message
Overload Indicator	Displays '0-Ld' and voice message
Material	Safety Glass
Cleaning	Soft cloth and mild detergent
Warranty	3 years
Included Accessories	3 AAA batteries, instruction manual

Frequently Asked Questions - SPWS 180 A1 TALKING SCALES SILVERCREST

How to turn on the scale?

Tap the center of the scale with your foot. A sound signal will sound and the screen will display '0.0 kg' (or '0.0 lb' depending on language). The scale will announce 'The device is ready to operate'.

How to change the scale language?

Press the language selection button (mark 4) several times until the desired language appears on the left side of the screen. The change is only made during first use.

How to adjust or disable the scale voice?

Use the volume adjustment (mark 3). To disable the voice, turn the wheel completely to the right until it audibly clicks.

What is the maximum capacity of the scale?

The maximum capacity is 180 kg (396 lb). Do not exceed this limit to avoid damaging the scale.

What does '0-Ld' display on the screen mean?

The '0-Ld' display indicates an overload: the weight exceeds the maximum capacity of 180 kg. Step off the scale immediately to avoid damage.

What does 'LO' display mean?

The 'LO' display indicates that the batteries are low. Replace the three AAA batteries with new ones respecting the polarity indicated in the compartment.

How to replace the scale batteries?

Open the battery compartment (mark 1), remove the old batteries and insert three new AAA/Micro/LR03 batteries respecting the polarity (+/-). Close the compartment until it clicks.

Why doesn't the scale announce the weight?

Check that the volume is not disabled: turn the volume wheel to the left. Also ensure that the language is correctly set. If the problem persists, check the batteries.

How to clean the scale?

Clean the scale only with a soft cloth and a mild detergent. Avoid any liquid entering the scale, screen, or speaker. Do not use abrasive products.

What to do if 'Err' is displayed?

The 'Err' display indicates a measurement error. Step off the scale, wait a few seconds, then try again while staying still and without interrupting the weighing process. If the error persists, check the batteries or contact customer service.

USER MANUAL SPWS 180 A1 TALKING SCALES SILVERCREST

Index	Page
Overview of the appliance	18
Intended Use	19
Safety instructions	19
Technical Data	20
Description of the appliance	20
Items supplied	20
Using the scale	20
Warning indicators	22
Replacing the batteries	22
Usage and safe-keeping	22
Cleaning	22
Troubleshooting	23
Disposal	23
Warranty and Service	24
Importer	24

Read these operating instructions carefully before using the appliance for the first time and preserve this manual for future reference. Pass this manual on to whoever might acquire the appliance at a future date.

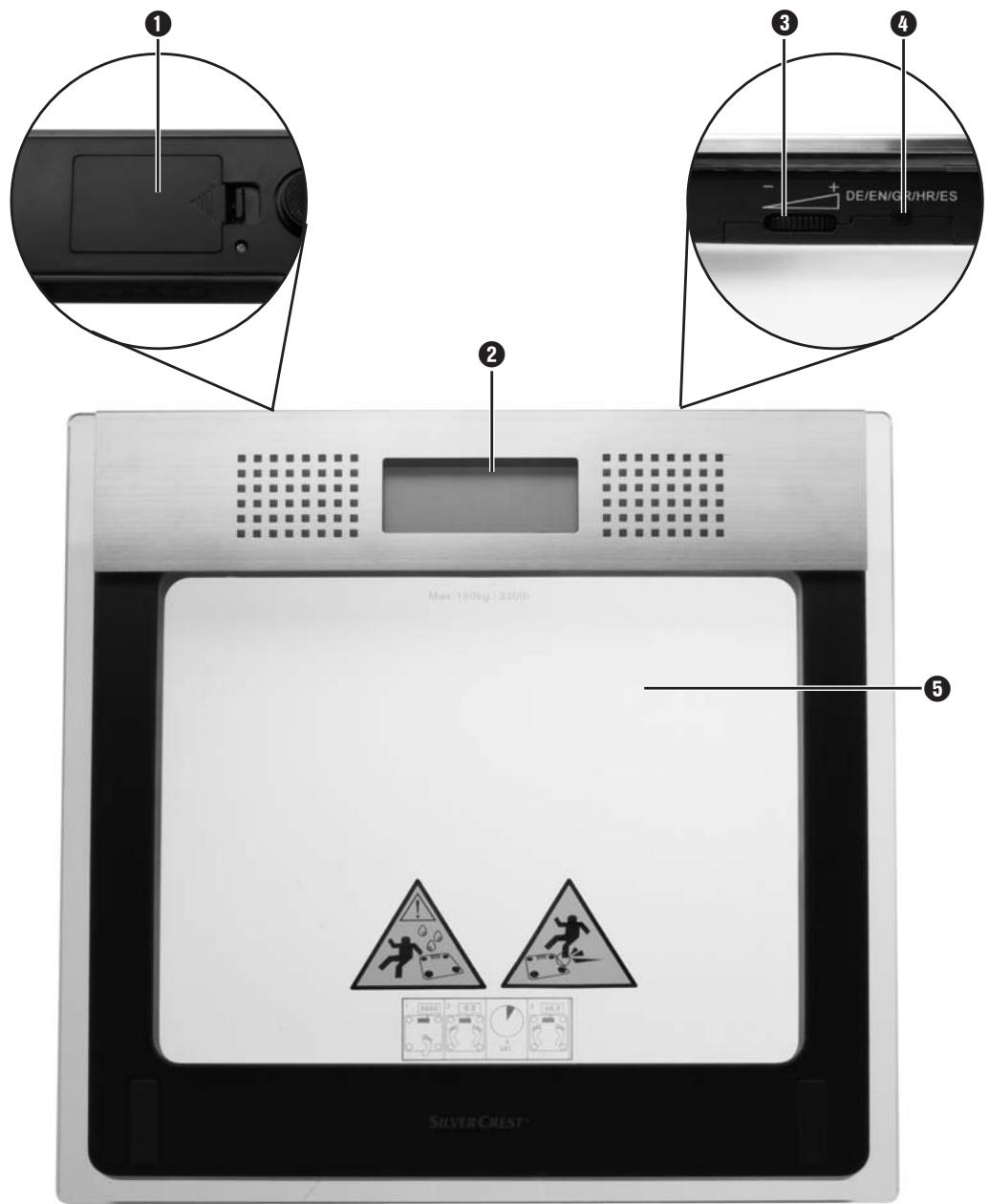

Overview of the appliance

Model example

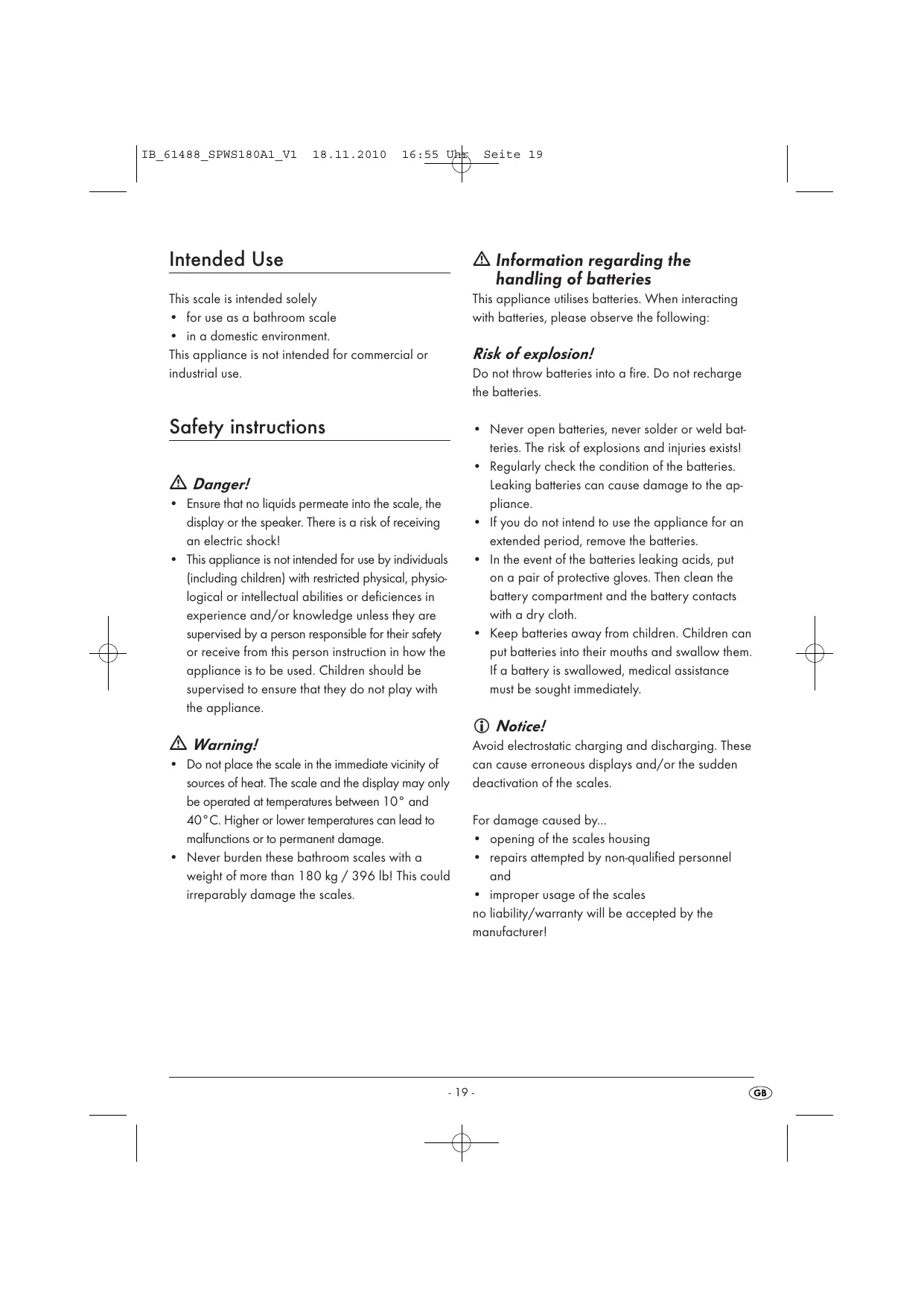

Intended Use

This scale is intended solely

for use as a bathroom scale in a domestic environment.

This appliance is not intended for commercial or industrial use.

Safety instructions

Danger!

• Ensure that no liquids permeate into the scale, the display or the speaker. There is a risk of receiving an electric shock!
• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. Children should be supervised to ensure that they do not play with the appliance.

Warning!

• Do not place the scale in the immediate vicinity of sources of heat. The scale and the display may only be operated at temperatures between 10° and 40°C. Higher or lower temperatures can lead to malfunctions or to permanent damage.
• Never burden these bathroom scales with a weight of more than 180 kg / 396 lb! This could irreparably damage the scales.

Information regarding the handling of batteries

This appliance uses batteries. When handling batteries, please observe the following:

Risk of explosion!

Do not throw batteries into a fire. Do not recharge the batteries.

• Never open batteries, never solder or weld batteries. There is a risk of explosion and injury!
• Regularly check the condition of the batteries. Leaking batteries can cause damage to the appliance.
• If you do not intend to use the appliance for an extended period, remove the batteries.
• In the event of battery acid leakage, put on protective gloves. Then clean the battery compartment and the battery contacts with a dry cloth.
• Keep batteries away from children. Children can put batteries into their mouths and swallow them. If a battery is swallowed, seek medical assistance immediately.

Notice!

Avoid electrostatic charging and discharging. These can cause erroneous displays and/or the sudden deactivation of the scales.

For damage caused by...

• opening of the scales housing
• repairs attempted by non-qualified personnel and
• improper usage of the scales, no liability/warranty will be accepted by the manufacturer!

Technical Data

Maximum weighing capacity: 180 kg / 396 lb

Tolerance range: +/- 3%

Minimum measurable weight/

Minimum Weight: 3 kg / 6.6 lb

Selectable measurement

units: kg/lb

Division: 0.1 kg / 0.2 lb

Operating temperature: 10°C - 40°C

Power supply: 4.5 V = - - =

Batteries: 3 × 1.5 VDC

(Type AAA/Micro/LRO3)

Display for weak battery

Overload indicator

Error indicator

Description of the appliance

1 Battery compartment 2 Display 3 Volume control 4 Language button 5 Safety glass

Items supplied

Scale

3 x Batteries Type AAA/Micro/LRO3

Operating instructions

Before using the appliance for the first time, check to ensure that the contents are complete and undamaged.

Using the scale

1. Open the battery compartment ①. Insert the batteries as per the polarity diagram in the battery compartment ①.
2. Close the battery compartment ①. The battery compartment lid must audibly engage.
3. Place the scale on a flat and stable surface. Ensure that neither the floor at the location of the scale nor the upper surface of the scale are wet, otherwise there is a risk of slipping!

① Notice!

This scale contains sensitive electronic components and it should therefore NOT be located:

close to sources of heat - in environments with extreme air humidity.

Warning:

Never burden the scales one-sidedly. Always step onto the scales in the middle and with both feet. Otherwise, the scales could tip and become irreparably damaged. Additionally, there is the risk of falling over!

Attention:

Never use the scale if it is wet or moist. Never step onto the scale with wet or moist feet. There would be a serious risk of slipping and personal injury!

Important:

NEVER jump onto the glass scale, this could irreparably damage it.

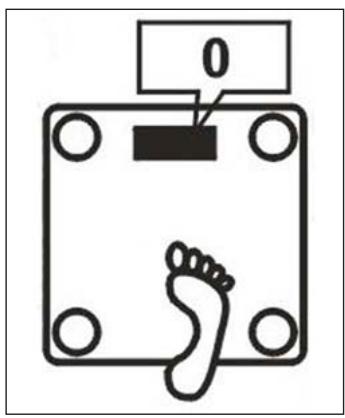

1. Tap your foot in the middle of the scale. A signal tone sounds, in the display 2 an "8" appears which "runs" from left to right. In the left of the display 2 the selected language appears. It sounds "This appliance is ready for use" and in the display appears "0.0 kg" (in English "0.0 lb").

1. Press the language button 4 repeatedly until the desired language appears on the left of the display 2.
2. Set the desired volume level using the volume control 3. To deactivate the voice, turn the volume control 3 all the way to the right until it clicks into place.

Notice!

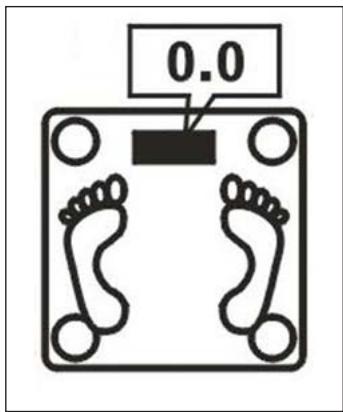

The language and the sound volume must only be adjusted on the first use. 7. Stand with both feet on the scales. Stand as still as possible and without displacing your weight.

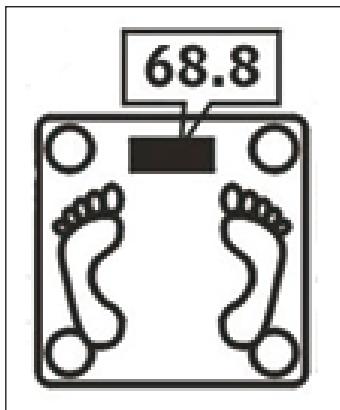

1. During the weighing process (about 5 seconds) the displayed value increases until your weight is determined.

1. When your weight is determined, the result blinks twice on the display 2 and it speaks your determined weight.

After you have stepped down from the scale it sounds "This appliance is ready for use" and you can then start another measurement. If you simply wait, the scale will indicate by a double beep that it has switched itself off.

Warning indicators

0-Ld

Should your weight exceed the maximum weighing capacity of 180 kg / 396 lb, "0 - Ld" is shown in the display ②. You should IMMEDIATELY step down from the scale, otherwise it could be damaged.

If the display 2 shows "LO" and a "battery weak" sound is emitted, you must replace the batteries.

If the display 2 shows "Err" and an "Error" sound is emitted, the scale cannot measure. In this case, step down from the scale, wait a few seconds, and then try again. Note that you need to stand still and not interrupt the weighing procedure.

Replacing the batteries

1. Open the battery compartment ① and remove the batteries.
2. Insert 3 new batteries of the type Micro/AAA/LR03, observing the polarities indicated in the battery compartment 1.
3. Close the battery compartment ①. The battery compartment lid must click audibly into place.

Usage and safe-keeping

• Avoid unnecessary battery discharge. Accordingly, do not place objects on the glass scale when it is not in use. Remove the batteries if you do not intend to use the scale for an extended period.
• Keep the scale in a clean and dry location.
• Avoid electrostatic charging.
• Your scale is a sensitive electronic device. As such, it can occasionally be disturbed by other high-frequency appliances operating in the immediate vicinity (e.g., mobile phones, CB radios, radio remote controls, and microwave ovens).

If irregular or inaccurate readings are indicated on the display ②, either move the scale away from the source of disturbance or switch off the source of disturbance while using the appliance.

Cleaning

Clean your scale exclusively with a neutral detergent and a soft cloth.

Troubleshooting

Warning of potential appliance damage:

Do not attempt to dismantle the scale or to carry out repairs yourself. You could potentially damage the sensitive electronic components.

Repairs to your scale may only be carried out by qualified service personnel!

No liability will be accepted for damage resulting from improper use and/or the opening of the appliance!

If incorrect displays appear, please verify that the correct language is set. It could be that the weight is displayed in the wrong unit (kg or lb).

In cases when nothing is indicated in the display 2, please check to ensure the batteries are installed according to their polarities. If need be, correct the batteries insertions as appropriate.

If these measures do not correct the problem, please contact the appropriate service partner for your country.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Disposal of batteries/accumulators

Used batteries/rechargeable batteries may not be disposed of in household waste. Every consumer is legally obliged to dispose of batteries at a collection site of his community/city district or at a retail store. The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries/cells when they are fully discharged.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB DES UK LTD

Tel.: [phone] (£ 0.10 / minute)

e-mail: [e-mail]

IE Kompernass Service Ireland

Tel.: [phone] (0,082 EUR/Min.)

Standard call rates apply. Mobile operators may vary.

e-mail: [e-mail]

Cyt Kompernass Service Cyprus

Tel.: [phone]

e-mail: [e-mail]

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
