| Product type | Digital scale |
| Brand | SilverCrest |
| Model | SPWE 180 A2 |
| Dimensions (L x H x P) | approx. 30 x 2,3 x 30 cm |
| Weight | approx. 1,5 kg |
| Power supply | 1 lithium battery CR2032, 3 V |
| Maximum capacity | 180 kg / 396 lb |
| Graduation | 0,1 kg / 0,2 lb |
| Measurement tolerance | ± (1 % + 0,1 kg / 0,2 lb) for 30 kg to 180 kg |
| Weight units | kg, lb, st (adjustable via button) |
| Display | LCD screen |
| Power on | By foot pressure (automatic) |
| Auto-off | Yes, after approx. 15 seconds |
| Operating temperature | +10 °C to +40 °C |
| Intended use | Domestic, weighing persons |
| Maintenance and cleaning | Clean with a dry cloth; do not use corrosive liquids |
| Safety | Do not use with wet feet; do not overload; do not jump; do not immerse |
| Spare parts | CR2032 battery (easy replacement) |
| Warranty | 3 years |
| After-sales service | Phone: 0800 919270 (France), email: targa@lidl.fr |
| Reference (IAN) | 391435_2201 |
Frequently Asked Questions - SPWE 180 A2 SILVERCREST
User questions about SPWE 180 A2 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Bathroom scale in PDF format for free! Find your manual SPWE 180 A2 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SPWE 180 A2 by SILVERCREST.
USER MANUAL SPWE 180 A2 SILVERCREST
TARGA GMBH
Coederweg 45
59494 500
GERMANY
Operating instructions and safety instructions
- 26
CLATEN PERSONENNIWEEFQSSUAI
GLAZEN PERSONENWEB
- Package contents 18
- Technical specifications .... 19
- Safety instructions .... 19
- Copyright 22
- Before you start.... 22
6.1 Activating the battery....22 - Getting started 23
7.1 Switching on the scales / measuring weight....23
7.2 Auto power off 24
7.3 Replacing the battery....24 - Troubleshooting.... 24
8.1 Nothing is indicated on the LCD display....24
8.2 "Lo" is indicated on the LCD display and the scales switch off....25
8.3 "Err" displayed on LCD screen 25
8.4 "O-Ld" displayed on LCD screen....25 - Maintenance/cleaning 25
- Environmental regulations and disposal information.... 26
- Conformity notes 29
- Warranty and service information.... 29

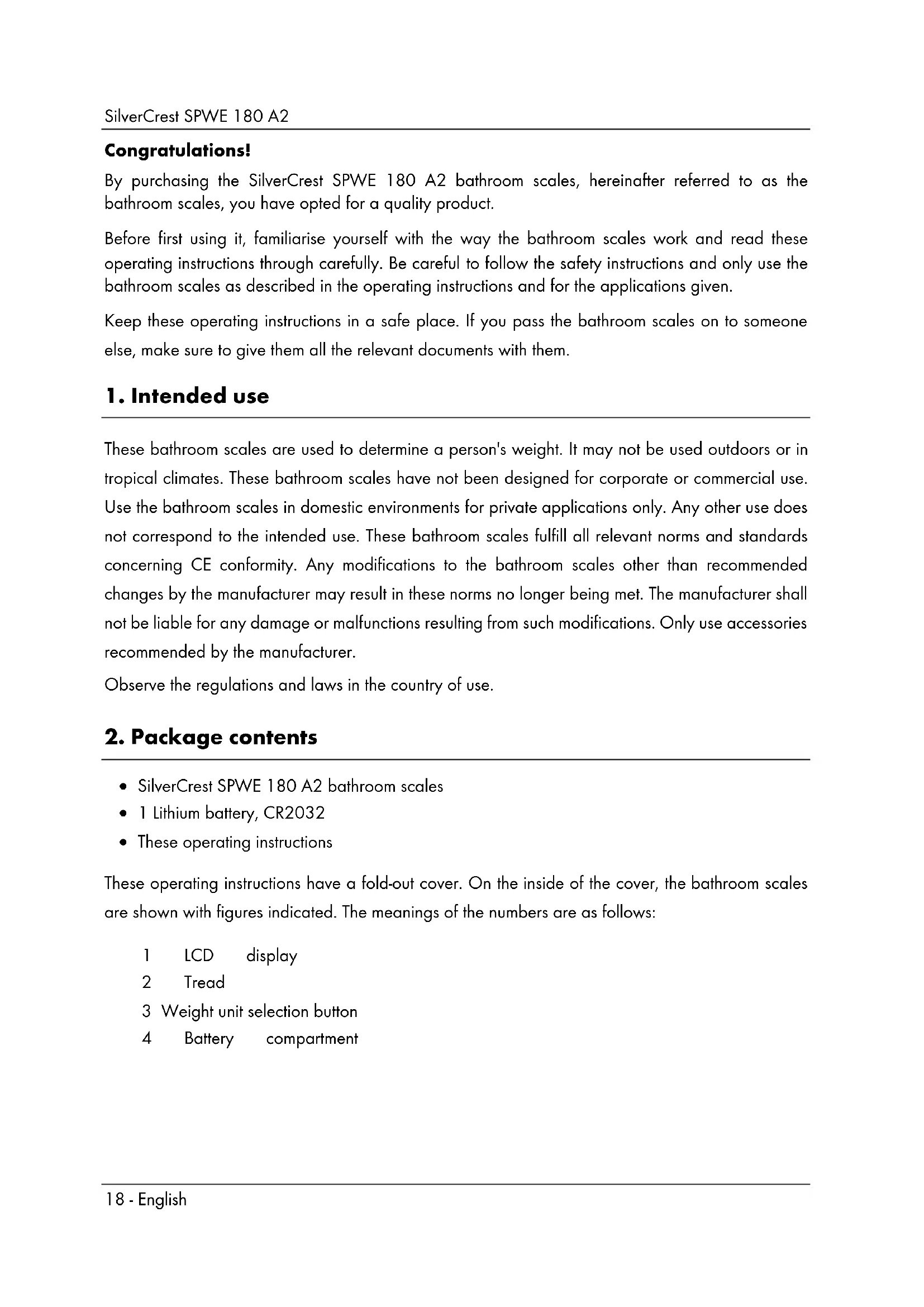

Congratulations!
By purchasing the SilverCrest SPWE 180 A2 bathroom scales, hereinafter referred to as the bathroom scales, you have opted for a quality product.
Before first using it, familiarise yourself with the way the bathroom scales work and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the bathroom scales as described in the operating instructions and for the applications given.
Keep these operating instructions in a safe place. If you pass the bathroom scales on to someone else, make sure to give them all the relevant documents with them.
1. Intended use
These bathroom scales are used to determine a person's weight. It may not be used outdoors or in tropical climates. These bathroom scales have not been designed for corporate or commercial use. Use the bathroom scales in domestic environments for private applications only. Any other use does not correspond to the intended use. These bathroom scales fulfill all relevant norms and standards concerning CE conformity. Any modifications to the bathroom scales other than recommended changes by the manufacturer may result in these norms no longer being met. The manufacturer shall not be liable for any damage or malfunctions resulting from such modifications. Only use accessories recommended by the manufacturer.
Observe the regulations and laws in the country of use.
2. Package contents
• SilverCrest SPWE 180 A2 bathroom scales
• 1 Lithium battery, CR2032
• These operating instructions
These operating instructions have a fold-out cover. On the inside of the cover, the bathroom scales are shown with figures indicated. The meanings of the numbers are as follows:
1 LCD display
2 Tread
3 Weight unit selection button
4 Battery compartment
3. Technical specifications
Operating voltage: 3 V
Battery: 1 Lithium battery, 3 V, CR2032
Units of weight: kg / lb / st (adjustable)
Maximum weight: max. 180 kg / 396 lb
Graduation: 0.1 kg / 0.2 lb
Measuring tolerance: +/- (1 % +0.1 kg/ 0.2 lb) for 30 kg to 180 kg
Auto Power Off function: yes
Dimensions (W x H x D): approx. 30 x 2,3 x 30 cm
Weight:
approx.
1,5
kg
Operating temperature: +10°C to +40°C
The technical data and design may be changed without prior notice.
4. Safety instructions
Before you use these bathroom scales for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the bathroom scales or give them away, pass on the operating instructions at the same time.
WARNING! This symbol denotes important information for the safe operation of the bathroom scales and user safety.
is symbol indicates that one must not step on the bathroom scales with wet or damp feet. The same applies if the tread is wet or damp. You could slip and injure yourself.
This symbol indicates that the bathroom scales cannot bear weights over 180 kg or 396 lb.
Otherwise, the bathroom scales could be damaged and there is a risk of injury.
This symbol denotes further information on the topic.
These bathroom scales may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or persons without sufficient knowledge or experience, providing they are supervised or they have received instructions regarding the proper use of the device and they understand the associated risks. Do not allow children to play with the bathroom scales. The product must not be cleaned or maintained by unsupervised children. Keep the packaging materials out of the reach of children. There is a risk of suffocation.
Do not step on the bathroom scales with wet or damp feet or when the tread is damp. You could slip and injure yourself.
Do not overload the bathroom scales with more than 180 kg or 396 lb. Otherwise, the bathroom scales could be damaged and there is a risk of injury.
Do not jump on the tread of the bathroom scales. Otherwise, they could be damaged and there is a risk of injury.
If smoke, unusual noises or smells are noticed, remove the battery from the bathroom scales immediately. If this occurs, the bathroom scales should not be used before they have been inspected by authorised service personnel. Never inhale smoke from a possible device fire. If you do inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health.
The bathroom scales must not be damaged in order to avoid any further risks.
⚠ Make sure that no fire hazards (e.g. burning candles) ar placed on or near the bathroom scales. Fire hazard!
Do not expose the bathroom scales to any direct heat sources (e.g. heaters), direct sunlight or artificial light. The device must not be exposed to spray or dripping water or abrasive liquids. Do not use the bathroom scales near water. The bathroom scales must especially never be immersed (do not place any containers containing liquids such as drinks, vases, etc. on the bathroom scales). Make sure that the bathroom scales are not subject to excessive impacts or vibrations. Do not introduce any foreign bodies into the device. otherwise the bathroom scales can be damaged.
Do not short-circuit the battery. Remove the battery from the device when you are not going to use it for a long period of time. If the battery has leaked, remove it to prevent damage to the bathroom scales. You can wipe off any leaked battery fluid by using a dry, absorbing cloth. Always wear protective
gloves! Avoid any skin contact. If the battery fluid comes into contact with the skin or eyes, rinse immediately with plenty of water and seek medical aid.
⚠️ Non-rechargeable batteries must not be recharged.
⚠ Do not short-circuit any battery contacts.
⚠ Batteries must be inserted respecting the correct polarity.
When it is empty, remove the battery from the device and dispose of safely.
5. Copyright
All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.
6. Before you start

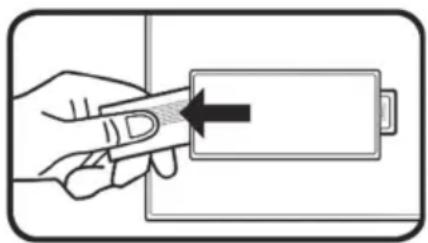

6.1 Activating the battery
7. Getting started
7.1 Switching on the scales / measuring weight
The bathroom scales must be calibrated before first use or after having been moved to ensure that they can determine one's weight exactly. To do so, step briefly on to the tread (2), step off it again and wait until the bathroom scales switch off automatically. The bathroom scales are now calibrated.
Due to the Step-On-Power function, the bathroom scales are switched on automatically when you step on the tread (2) and they start to measure your weight immediately.
To change the unit of weight, press the "Button for Setting the Weight Unit" (3). The selected unit of weight is then indicated on the LCD display (1).
Stand on the tread (2) of the bathroom scales so that your weight is evenly distributed. Remain as still as possible during the weighing process as the measurement result may be distorted otherwise. The measurement result is indicated on the LCD display (1) during the weighing process. The measurement is complete when the display flashes three times.
A solid surface is required to measure weight correctly. Thus always place the bathroom scales on a solid, horizontal floor covering and never on carpet. This can distort the measurement result.
To obtain comparable measurement results, you should always weigh yourself if possible at the same time of day (preferably in the morning). Always weigh yourself if possible under the same conditions: on an empty stomach, after having gone to the toilet and naked.
Please note that values for the stone unit of weight are not represented as decimal values. The display is divided into two segments by a colon. Only whole numbers are displayed in the "st" unit of weight to the left of the colon. The remaining weight is displayed in the "lb" unit of weight to the right of the colon.
Example: "6: 8.0 st" is shown on the display. This corresponds to 6 st and 8 lb.
7.2 Auto power off
The bathroom scales have an automatic switch-off function (Auto Power Off function).
- The bathroom scales switch off automatically approx. 15 seconds after stepping off the tread (2).
- The bathroom scales will also switch off automatically approx. 15 seconds after the weight measurement if you don't step off the scales surface (2).
7.3 Replacing the battery
Replace the battery when it is empty. To replace the lithium battery CR2032, remove the cover of the battery compartment (4) at the rear of the bathroom scales by inserting a finger into the recess on the side of the battery compartment (4). Then lift the battery compartment (4) cover upwards and remove it.
To remove the battery, push it down a bit (see the direction of the arrow in the illustration). You can then remove the battery from the holder.
Then insert a new CR2032 lithium battery. Always pay attention to the polarity. This is indicated in the battery compartment (4), and the Plus symbol on the lithium battery CR2032 must be visible, as shown in the adjoining illustration.
Next insert the battery compartment (4) cover back to its original position. The bathroom scales are now ready to use.
8.1 Nothing is indicated on the LCD display
- The CR2032 lithium battery is empty. Replace the CR2032 lithium battery with another of the same type. Please note the instructions in the "Replacing the battery" section.
- The CR2032 lithium battery is inserted incorrectly. Please note the instructions in the "Replacing the battery" section.
8.2 "Lo" is indicated on the LCD display and the scales switch off
- The CR2032 lithium battery is almost empty. Replace the CR2032 lithium battery with another of the same type. Please note the instructions in the "Replacing the battery" section.
8.3 "Err" displayed on LCD screen
- Your weight cannot be measured as you are not standing still on the tread. Try to keep as still as possible when weighing yourself.
8.4 "O-Ld" displayed on LCD screen
- The weight exceeds the maximum load of 180 kg / 396 lb (28 stone 4). Step off the tread (2) of the bathroom scales immediately to avoid damaging them.
9. Maintenance/cleaning
Repairs are required if the bathroom scales have been damaged in any way, for example if the device housing is damaged, when liquids or objects have penetrated into the bathroom scales or when the product has been exposed to rain or moisture. Repairs are also necessary if the product does not perform normally or if it has been dropped. If smoke, unusual noises or smells are noticed, remove the battery from the bathroom scales immediately. If this occurs, the bathroom scales should not be used before they have been inspected by authorised service personnel. All servicing work must be carried out by qualified specialist personnel. Never open the housing of the bathroom scales. Only use a clean, dry cloth for cleaning the device. Never use any corrosive liquids.
10. Environmental regulations and disposal information
Electrical and electronic devices are marked with a symbol of a crossed-out wheelie bin.
This symbol indicates that electrical and electronic devices may not be disposed of with normal domestic waste, but must instead be taken to a separate disposal centre. The materials contained in the old electrical devices can be reused. In addition, any old batteries, whether conventional or rechargeable, which are removable and lamps which can be removed from the old device without causing damage should be removed from the device prior to disposal.
In accordance with Section 17, Paragraph 1 and 2 ElektroG (Electrical and Electronic Device Act), we are obliged to take back old devices free of charge. You can take your old electrical devices to a local collection point for disposal free of charge. On request, we can take back the following when you purchase a new electrical or electronic device
- a heat transfer unit,
- a screen, monitor or device with a screen with a surface area of more than 100 square centimetres or
- an old device with at least one external dimension of more than 50 centimetres (large appliance)
free of charge, providing the listed devices are the same type of device and largely fulfil the same functions as the new device.
Small devices, lamps, small IT and telecommunications devices where none of the external dimensions measures more than 50 centimetres and devices which have no external dimension greater than 25 centimetres can be returned free of charge to us on purchase of a comparable new device.
Irrespective of the purchase of a new electrical device, you can return an old device with no dimension greater than 25 cm to us free of charge.
Please note that you are responsible for the deletion of any personal data on your old device.
 | The symbol of the crossed-out wheelie bin on conventional and rechargeable batteries indicates that they cannot be disposed of in normal domestic waste but must be disposed of separately.Where batteries contain toxic materials, the chemical symbol of the toxic material is shown underneath the symbol, with meanings as follows:- Pb: Battery contains lead- Cd: Battery contains cadmium- Hg: Battery contains mercuryYou are obliged by law to return used batteries. Old batteries can contain toxic materials which can be damaging to health or the environment if not properly stored or disposed of. Batteries also contain important raw materials, such as iron, zinc, manganese and nickel, which can be reused.After use, you can return the batteries to us or to a local collection point (e.g. in retail outlets or a local collection point) free of charge. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits. |
 | Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal. |
 ES/PT | |
Only relevant for France: "Sorting made easy"The product is recyclable, subject to advanced manufacturer responsibility and is sorted and collected separately. | |
 | Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials. |
 | |
| Symbol | Material | Contained in the following packaging elements for this product |
 | Polyethylene terephthalate Battery isolation strip | |
 | High density polyethylene – | |
 | Polyvinyl chloride – | |
 | Low density polyethylene – | |
 | Polypropylene – | |
 | Polystyrene – | |
 | Other plastics – | |
 | Corrugated cardboard Sales packaging and inner box | |
 | Other cardboard – | |
 | Paper – | |
 | Paper/cardboard/plastic – | |
 | Paper/cardboard/plastic/aluminium – |
11. Conformity notes
The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.
The product complies with the requirements of the applicable national directives of the Republic of Serbia.
The product complies with the requirements of the applicable national directives for Great Britain.
The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/391435_2201.pdf
12. Warranty and service information
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can
therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
- Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
- You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.
Service
GB
Phone: 0800 404 7657
E-Mail: targa@lidl.co.uk
IE
Phone: 1800 101010
E-Mail: targa@lidl.ie
MT
Phone: 800 62230
E-Mail: targa@lidl.com.mt
CY
Phone: 8009 4241
E-Mail: targa@lidl.com.cy
IAN: 391435_2201
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA GmbH
Coesterweg 45
59494 Soest
GERMANY
