USER MANUAL SNS 45 A1 SILVERCREST

Information about these

operating instructions 4

Copyright 4

Limitation of Liability. 4

Intended Use 4

Warning Notices 5

Safety 6

Safety instructions. 6

Basic safety instructions 8

Risk of electrical shocks 10

Risks from ultraviolet light

(UV-Light) 10

Risks from solvent-containing

substances 11

Appliance and

Accessories 12

Setting up and connecting to the power supply. 13

Safety instructions. 13

Items supplied and initial

inspection 13

Unpacking 14

Disposal of packaging 14

Requirements for the installation

location. 14

Electrical connection. 15

Handling and operation . . .16

Switching On and Off 16

Functions. 16

Utilisation 17

Selecting artificial nails. 17

Attaching artificial nails 18

Matching a nail set. 21

Application of the UV-Gel 22

Hardening of the UV-Gel 23

Topping up. 25

Removal of artificial nails 25

Care 26

Cleaning 27

Safety instructions. 27

Cleaning the appliance 27

Cleaning accessories 27

Exchanging the UV Lamps... 28

Troubleshooting 29

Safety instructions. 29

Malfunction causes and remedies. 30

Storage/Disposal. 31

Storage. 31

Disposing of the appliance. 31

Appendix 32

Notes on the EC Declaration

of Conformity 32

Technical data 32

Warranty 33

Service 33

Importer 34

Introduction

Information about these operating instructions

These operating instructions are a component of the Nail Studio SNS 45 A1 (hereafter designated as the appliance) and they provide you with important information about the intended use, safety, connection and operation of the appliance.

These operating instructions must be constantly kept available close to the appliance. They are to be read and applied by everyone assigned to operate the appliance and to eliminate faults in it.

Retain these operating instructions and pass them on, together with the appliance, to a possible future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limitation of Liability

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised changes or for using unapproved replacement parts.

Intended Use

This appliance is intended only for the application and fixating of artificial finger nails for manicure purposes in indoor areas and is only for domestic use. This appliance is not intended for any other use or for uses beyond those mentioned here.

WARNING

Risks from unintended use!

Risks can be engendered by the appliance if it is used for unintended purposes and/or other types of use.

Use the appliance exclusively for intended purposes.
Observe the procedures described in these operating instructions.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorized modifications or the use of non-approved spare parts will not be acknowledged.

The operator alone bears liability.

Warning Notices

In the existing operation instructions the following warnings are used:

DANGER

A warning at this risk level indicates a threateningly dangerous situation.

If the dangerous situation is not avoided it could lead to death or serious physical injuries.

Observe the directives in this warning notice to avoid the risk of deaths or serious physical injuries.

WARNING

A warning at this risk level indicates a possibly dangerous situation.

If the dangerous situation is not avoided, this could lead to personal injury.
Follow the instructions in this warning to avoid personal injuries.

IMPORTANT

A warning at this risk level signifies possible property damage.

If the situation is not avoided it can lead to property damage.

The directives in this warning are there to avoid property damage.

NOTICE

A notice signifies additional information that assists in the handling of the appliance.

Safety

This appliance complies with the statutory safety regulations.

Incorrect usage can, however, lead to personal and property damage.

Safety instructions

WARNING - RISK OF INJURY!

UV appliances may not be used by:

People who suffer from skin cancer or are predisposed to it,
People, who are taking light-sensitivity enhancing drugs,
People under 18 years of age,
People with a tendency towards freckles,
People with a naturally red hair colour,
People with unusual skin discolourations,
People with more than 16 moles (with a minimum diameter of 2mm ) on their body,
People with atypical moles (atypical moles are asymmetrical moles with a diameter of more than 5mm and different pigmentation plus irregular border areas; if in doubt, consult your doctor),
People who are suffering from sunburn,
People who do not tan in the sun without skin burns,
People who quickly suffer from skin burns in direct sunlight,
People who have frequently suffered from a severe sunburn during their childhood,
People who suffer from skin cancer or are suffering from this disease or are susceptible to skin cancer,
People with a first-degree relative who is suffering or has already suffered from a melanoma (skin cancer),
People who, due to a light sensitivity ailment, are in physicianly or medical treatment,
People who absolutely cannot tan at all, or who cannot tan without getting sunburned, when they are exposed to the sun,
People who are easily sunburned when they are exposed to the sun,
during pregnancy.

The irradiation should not exceed the minimal erythema dose (MED). If erythema (skin redness) occurs several hours after irradiation there should be no further applications made. In this case, the next irradiation should not take place before one week after the date of the skin redness.
If unexpected side effects such as itching occur within 48 hours after the first application of the UV appliance, you should consult a doctor before receiving further UV irradiation.
Recommended irradiation timetable, stating the time-period and intervals.
The appliance may not be used if the timer is not working properly.
Use only lamps of the specified type. The use of a UV lamp from another manufacturer or of a different type will lead to the revocation of the warranty.
UV radiation from the sun or from UV appliances can cause both skin and eye damage, which may be irreversible. These biological effects depend on the quality and quantity of the radiation and on the skin and eye sensitivity of the individual person.
- The skin can suffer from sunburn after excessive exposure to radiation. Too frequent UV radiation from the sun or UV appliances can lead to premature skin aging and cause an increased risk of skin cancer. This risk increases with increasingly cumulative UV exposures. UV radiation at a young age increases the subsequent risk of skin cancer.
UV radiation can lead to injuries to the eyes and skin, such as premature skin aging and even skin cancer. Read these operating instructions carefully. Some medications or cosmetics increase the sensitivity to UV radiation.
The unprotected eye can suffer superficial inflammation and, in some cases, excessive exposure may cause damage to the retina. Frequently repeated exposures can lead to cataracts.
In the event of individually identified sensitivity or allergic reactions to UV radiation, you should first seek medical advice before beginning the irradiation.
Certain ailments or the side effects of certain drugs may be exacerbated by UV irradiation. If in doubt, consult your doctor.
There should be a period of at least 48 hours between the first two exposures.

• Avoid sunbathing and use of the appliance on the same day. This could lead to skin irritation.
  Pay heed to the instructions on the irradiation time, time intervals for the irradiation and the distance to be from the lamp. If you do not, it could lead to skin irritation.
• Consult your doctor if persistent tumours or ulcers form, or changes in moles come about or sores develop.
• Protect sensitive skin areas, such as scars, tattoos and the genitals, from irradiation.
• Do not carry out more than 5 treatments per day. This could lead to skin irritation.
• Remove cosmetics and sun care products before using the appliance. If you do not, it could lead to skin irritation.

NOTICE

If in any doubt, consult your doctor about the possible applications before using the appliance.

Basic safety instructions

The power cable on this appliance cannot be replaced. In the event of it being damaged the whole appliance must be disposed of.
A repair to the appliance during the warranty period may only be carried out by a customer service firm authorised by the manufacturer, otherwise no additional warranty claims can be considered for subsequent damages.

ATTENTION - PROPERTY DAMAGE

Protect the appliance from moisture and the penetration of liquids.

NEVER immerse the appliance in water or place the appliance in the close vicinity of water and DO NOT place objects filled with liquids (e.g. vases) onto the appliance.

Do not place any objects on the appliance.
Do not operate the appliance close to open flames (e.g. candles).

Avoid direct solar radiation.
Always pull the plug itself out of the mains power socket, do not pull it with the power cable.
In the case of a malfunction occurring or a thunderstorm, disconnect the plug from the mains power socket.

WARNING - RISK OF INJURY

Before use check the appliance for visible external damage. Do not put into operation an appliance that is damaged or has been dropped.
This appliance is not intended for use by individuals with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
Children should be supervised to ensure that they do not play with the appliance.
Never look directly into the UV lamps. It could cause injury to the eyes!
Always keep the appliance and all accessories out of the reach of children.
Pay heed to the instructions given on the containers of all substances used.
Repairs should only be carried out by authorised specialist companies or by the Customer Service Department. Incorrect repairs can result in significant risks for the user. In addition, warranty claims become void.
Defective components may only be replaced with original replacement parts. Only by using these replacement parts can it be guaranteed that they comply with the safety requirements.

Risk of electrical shocks

DANGER

Potentially fatal risk of electrical shocks!

Upon contact with live wires or live components there is a potentially fatal risk!

Pay heed to the following safety information to avoid a potentially fatal risk from electrical power:

The power cable on this appliance cannot be replaced. In the event of it being damaged the appliance must be disposed of.
Do not instal the appliance in the bathroom.
Connect the appliance exclusively to a correctly fused mains power socket.
Do not touch the appliance and the plug with wet hands.
NEVER place the appliance in water.

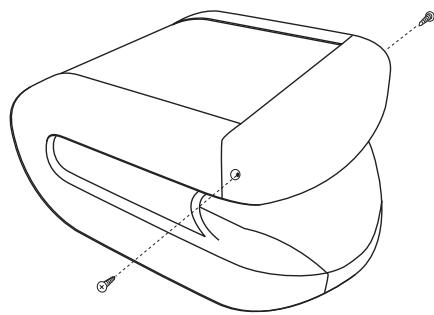

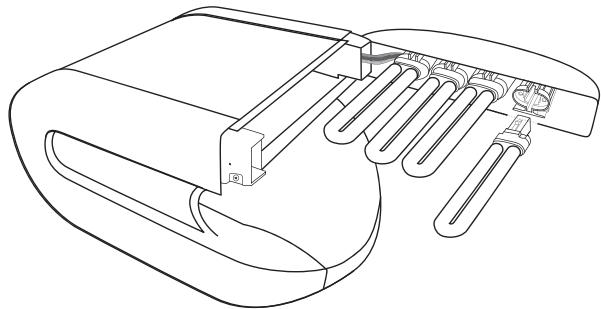

- Do NOT open the housing of the appliance (except when changing the UV lamps). If live connections are touched and/or the electrical or mechanical construction is altered, there will be an increased risk of electric shock.

Risks from ultraviolet light (UV-Light)

WARNING

Risk of injury from ultraviolet light (UV-Light)!

Looking directly into the UV light from the UV lamps in this appliance can cause eye injuries and diminish the power of your vision!

NEVER look directly into the ultraviolet light from the UV lamps.
If the UV lamps are not in use, switch them off.
Non-users, and especially children, may not be present during the operation of the appliance.

Risks from solvent-containing substances

WARNING

Risks of damage to health from solvent-containing substances and vapours!

The inhalation of solvent-containing substances and vapours can damage your health!

Do not breathe in the vapours from solvent-containing substances (e.g. acetone).
Ensure there is adequate ventilation when interacting with solvent-containing substances.
Pay heed to the instructions on the containers of the solvent-containing substances.

WARNING

Risks of health damage from chemical substances!

The improper handling of chemical substances can lead to serious health damage!

If swallowed, IMMEDIATELY seek medical attention!
In cases of allergic reactions, consult a doctor immediately!
In the event of contact with the eyes or mucous membranes, contact a doctor immediately!

Appliance and Accessories

NOTICE

See in addition the illustrations on the fold-out side.

UV appliance with 4 built-in UV lamps
2 On/Off switch
3 Operating indicator "POWER"/Standby
4 Operating indicator "180 seconds"
Time preselect button "180 seconds"
6 Operating indicator "120 seconds"
Time preselect button "120 seconds"
8 Operating indicator "90 seconds"
9 Time preselect button "90 seconds"
10 Start button
11 Nail clippers (for clipping the nail-tips)
12 Cuticle pusher (to push back the cuticle)
Brush (for applying the UV Gel)
14 Sanding block (for smoothing of unevenness)
Polishing file fine (for polishing the nails "shine")
Polishing file medium (for polishing the nails "condition")
Polishing file coarse (for polishing the nails "clean")
18 Sand sheet file (for filing nails)
19 Nail Tips (artificial finger nails)
Finishing solution (for final treatment and for cleaning brushes)
21 Nail Glue (to glue the nail tips on "GLUE")
UV Gel (for topping up nails)
Nail Oil (for care of the nails and cuticles "NAIL CARE")

Setting up and connecting to the power supply

Safety instructions

WARNING

During the commissioning of the appliance personal injury and property damage could occur!

Observe the following safety information to avoid these risks:

• Packaging material should not be used as a play thing. There is a risk of suffocation.
  To avoid damage to people and property, pay heed to the requirements for the installation site and the electrical connection of the appliance.

Items supplied and initial inspection

The appliance is supplied with the following components as standard:

UV appliance with 4 UV lamps and mains power cable
Polishing files, one each of coarse, medium and fine
- Sand sheet file
- Sanding block
- Nail Tips
Cuticle pusher
Brush
- Nail clippers
- 2 Pots of UV Gel ("UV Gel")
Finishing solution ("Finishing")
- 2 Bottles of Nail Glue ("Glue")
- Nail Oil ("Nail Care")
Storage bag
- Operating Instructions

NOTICE

Check the contents to ensure everything has been provided, and for signs of visible damage.
If the contents are incomplete, or have been damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).

Unpacking

Remove all parts of the appliance and these operating instructions from the box.
Remove all packing material.

Disposal of packaging

The packaging protects the appliance against transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces generated waste. Dispos of packaging material that is no longer needed according to the regionally established regulations.

NOTICE

If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance properly for its return.

Requirements for the installation location

For the safe and trouble-free operation of the appliance the following requirements must be met at the installation location:

Place the appliance on a dry, flat and firm surface.
- Do not place the appliance in a damp environment and not in an area at risk from spraywater.
- Do not place the appliance adjacent to a radiator or a raiation heater.
- The mains power socket must be easily accessible, so that the plug can be easily removed in an emergency.

Electrical connection

DANGER

Potentially fatal risk of electrical shocks!

Upon contact with live wires or live components there is a potentially fatal risk!

Pay heed to the following safety information to avoid risks from electrical power:

Do not operate the appliance if the plug or the power cable are damaged.
Connect the appliance exclusively to a correctly fused mains power socket.
Do not touch the appliance and the plug with wet hands.
Avoid water contact with the appliance.
DO NOT open the housing of this appliance. If live connections are touched and/or the electrical or mechanical construction is altered, there will be an increased risk of electric shock.

Before you connect the appliance, compare the connection data (voltage and frequency) on the typeplate of the appliance with that for the intended power source. his data must match, in order to avoid any damage to the appliance.
Ensure that the power cable of the appliance is not damaged and that it is not laid over hot surfaces and/or sharp edges.
Ensure that the power cable is not over-taut or kinked.
Do not let the power cable hang over edges (trip wire effect).
Insert the plug into the mains power socket.

Handling and operation

In this chapter you receive important information for the handling and operation of the appliance.

NOTICE

See also the chapter Appliance and Accessories.

Switching On and Off

Switch the UV appliance 1 on by pressing the On/Off switch 2 to the position "I". The operating indicator 3 lights up and the appliance is ready for use.
Switch the UV appliance ① off by pressing the On/Off switch ② to the position "0". The operating indicator ③ extinguishes.

Functions

Three different treatment times can be set on the appliance:

90 seconds (Button 9)
120 seconds (Button 7)
180 seconds (Button 5)

Switch the UV lamps on by pressing the Start button 10.
Select the desired treatment time and then press the appropriate time preselect button 9, 7 or 5.

NOTICE

The UV lamps switch off automatically after the lapse of the preset time.
Press the time preselect button 9, 7 or 5 and the Start button 10 once again as described above for any further treatments.

Utilisation

IMPORTANT

Risk of property damage from glue and UV gel.

Nail glue ① and UV Gel ② can only be removed with difficulty from furniture surfaces, clothing and carpets.

Cover these work areas with paper or with a hand towel prior to use.

NOTICE

Place the UV appliance 1 on a covered and stable surface.
NEVER place the nail glue 21 and the UV Gel 22 in the close vicinity of the UV appliance 1.
NEVER subject the nail glue 21 and the UV Gel 22 to direct sunlight.

Selecting artificial nails

NOTICE

For the first applications it may be helpful to be assisted by an experienced person.
Before the application, remove all jewelry on the hands.
Clean and dry your hands before the application. We recommend that the hands are washed about 15 - 20 minutes before the application, so that there will be no residual moisture on the nails.
Select a nail tip 19 whose curvature corresponds as closely as possible to the natural curve of your nail.

Select a nail tip 19 which closes exactly at the edge of your natural nail and whereby the sides are parallel to your natural nail.

If necessary, using the nail clippers 11 trim off the end of the nail tip 19 so that the end point (arrow) is covering about a third of your natural nail.

A Free edge

Nail bed

Nail plate

Cuticle

NOTICE

If you use a too small nail tip 19, it can break off more easily. Therefore, select a larger nail tip 19 and then file the sides into the desired form.
Repeat the above described process until you have trimmed all the nails to the desired length and filed them into shape.

Attaching artificial nails

NOTICE

Take note that nails absorb moisture from contact with water. The nails, however, must be completely dry before the application.
Before the application, refrain from using any hand creams or the like, because, to make possible the optimal adhesion of the nail tips 19 the nail surfaces must be completely free from greases.
Push the cuticle back with the cuticle pusher and then remove the transparent skin from the nail plate of your finger.
Now treat the nail surface with the sanding block 14 until the fingernail is no longer shiny.
Remove the sanding dust with a paper towel.
Rub the nails with the finishing solution 20 so that the last remnants of dust and grease are removed.

NOTICE

Under no circumstance should you now touch the nail surfaces with your fingers, if you do, they will become greasy again and this will prevent a good bonding!
Apply a small drop of nail glue 2 to the lower part of the nail tip 19 and distribute it with the aid of the nail glue bottle 2 on the lower surface. Hold the nail tip 19 down so that the nail glue cannot run onto the upper part of the nail tip 19.

NOTICE

Before the first use you must puncture the bottle of nail glue 2 with a pointed object, such as a needle. If, at a later date, the bottle of nail glue has become blocked, it can again be opened for use with a needle.
Now place the nail tip 19 at an angle on the natural nail, so that the predetermined edge of the nail tip 19 lies on the edge of the natural nail.
Now tilt the nail tip with gentle pressure onto the natural nail, so that potential air bubbles are squeezed out.

NOTICE

Wipe excess nail glue 2 off with a cotton swab or a paper towel.

Hold the nail tip firmly for 10-12 seconds and, at the same time, press it down with sufficient pressure onto the natural nail. Ensure that no air bubbles are formed and that the tip is glued on perfectly straight.

NOTICE

There may no longer be a gap under the nail, so that dirt cannot penetrate.
Ensure that no air bubbles or white spots form under the nail tip 19. In this case, take the nail tip 19 off immediately and lay it back on again.
When you have glued all of the artificial nails 19 on, trim them to the desired length with the nail clippers 1. Press the nail clippers 1 together in one squeeze. If you press too slowly, it may happen that the nail tips 19 splitter.

File them into shape with the sand sheet file 18.

NOTICE

File very carefully, because the nail tips 19 are held only with a nail glue 21.
If you are not used to long nails, cut them back a little in order to avoid knocks and the falling off of the nail tips 19.

Matching a nail set

Carefully file the transitions from the artificial nails to the natural nails with the Sand sheet file until they conform to the contour of the natural nail. File only the nail tips! Do not damage your natural nail.
Carefully file the sides of the nail with the Sand sheet file 18 until it is straight and does not exhibit a "wing".
Repeat this step for each individual nail.

Remove the sanding dust with a paper towel.

Application of the UV-Gel

Using the brush 13, take a small amount of UV Gel 22 and then wipe the excess on one side of the brush 18 off on the edge the UV Gel pot.
Apply a thin coating of UV-Gel onto the complete nail. Apply a little more UV Gel to the lower part of the nail, as hereby is how the offset between the natural and the artificial nail is created. Furthermore, the transition from natural to artificial nails is especially sensitive to pressure and knocks, thus more UV Gel must be applied here.

INFORMATION

When you are doing the application do not press too heavily on the brush 13, since the brush 13 could otherwise cause streaking.
Model the first layer of the UV Gel 22 very carefully, as this determines the future shape of the nail. Model the best possible natural nail shape.
Maintain a distance of about 1mm from the cuticle during the application.

NOTICE

Should any UV Gel 22 inadvertently come onto the cuticle or the nail bed, remove it before the hardening, for example, with a cotton wool swab.
Repeat the above process for all nails.

NOTICE

Ensure that the nail is covered evenly with UV Gel 22.

Hardening of the UV-Gel

NOTICE

See also the chapter Handling and operation.

Switch the UV appliance 1 on with the On/Off switch 2.
Press the Start button 10; the UV Lamps will be switched on.
Now select the desired treatment time and then press the appropriate time preselect button 9, 7 or 5. For the first hardening we recommend the time setting of 180 seconds.

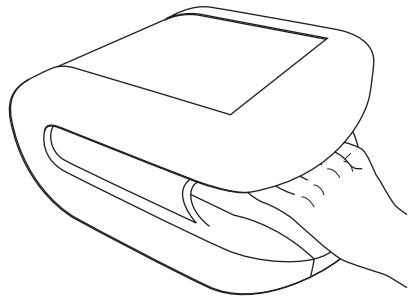

Hold your hand with the nails upward for the duration of the set treatment time in the opening of the UV appliance 1.
Treat the thumbnail separately because, when you hold your hand in the UV unit, the UV light only shines on the side of it.
Repeat the application of the UV Gel 22 and the hardening in the UV appliance 1 as described above once more.

NOTICE

After the expiry of the preselected treatment time the UV lamps are switched off automatically.
The Start button 10 and a time preselect button (9, 7 or 5) must be activated again for each new treatment.

Examine each nail, after the application and hardening of all coatings, for unevenness, small scratches or ridges.
If you discover unevenness, apply a further thin layer of UV Gel 22 and harden the nail with the setting of 120 seconds or 90 seconds (depending on the amount of applied UV Gel 22).

Even after the last hardening of the Gel layer, the nails may feel a feel sticky ("sweat-layer" or polymerization layer).

Moisten a cottonwool ball or paper towel with finishing solution 20 and wipe it over the nail.

Afterwards, delustre each nail with the sanding block 14.
Finally, using the polishing files 17, 16 and 15, polish each individual nail until the nail surface is shiny.

Topping up

NOTICE

Because the natural nail grows, over time the attachment of the artificial nail can raise itself. For this reason the gap between the cuticle and the nail attachment must be topped up from time to time.
A topping up is required about every 2 - 3 weeks.
Using the sand sheet file 16, file around the attachments of the hardened gel.
Use the sanding block 14 until the nail is no longer shiny.
When done, reapply UV Gel 22 and harden it again.

NOTICE

In this regard, see the previous chapters Application of the UV-Gel and Hardening of the UV-Gel

Removal of artificial nails

IMPORTANT

Risk of damaging the natural nail surface!

A forcible breaking-off of the nail tips 19 can cause damage to the natural nail surfaces!

Do not break the nail tips off of the natural nails.
Remove the nail tips 19 only in accordance with the following description.
First trim the nails all the way back with the nail clippers 11.
Then file the nail tips 19 off with the sand sheet file 18.
Afterwards, polish your natural nails with the various polishing files 17, 15 and 15.
Finally, apply a little nail oil 23 to care for your natural nails.

Care

Regularly file the attachments and nail edges.
Polish the nails once a week.
- Every night apply nail oil to the nails and also rub it in and around the cuticles.
Use a hand cream regularly.
- When applying nail varnish, use both a lower layer and an upper layer.
- Do not use an acetone-based nail polish remover for removing nail polish, because this would loosen and damage the artificial nails.
Wear rubber gloves when using detergents or bleaching agents.
- Wear a pair of rubber gloves for all work/activities that may damage the nails.

Cleaning

Safety instructions

DANGER

Potentially fatal risk of electrical shocks!

Disconnect the plug from the mains power socket before you start cleaning the appliance.

IMPORTANT

Damage to the appliance!

To avoid irreparable damage, ensure that no moisture can penetrate inside the UV appliance 1 when you are cleaning it.

Cleaning the appliance

Clean the surfaces of the UV appliance 1 only with a soft and dry cloth.

Cleaning accessories

NOTICE

Clean the brush 13 immediately after each use.
Always close all bottles and tubs after use.

Hold the brush 18 in the finishing solution 20 and then wipe it off on a paper towel.
Afterwards, swirl the brush 13 in the nail oil 28, so as to keep its bristles supple.

NOTICE

Remove the nail oil 23 before each new utilisation of the brush 18.
To remove the nail oil dip the brush in the finishing solution and then wipe it on a paper towel.

Exchanging the UV Lamps

DANGER

Potentially fatal risk of electrical shocks!

Disconnect the plug from the mains power socket before you start with the exchange of the UV lamps!

NOTICE

The UV lamps may ONLY be replaced with lamps of the same type. The specifications for the precise lamp type are given in the chapter "Technical Data".
Unscrew the two screws on the sides of the appliance with a cross-head screwdriver.

Pull the front appliance cover with the ultraviolet lamps carefully from the appliance, thereby paying heed to the cable connection on the side.
Carefully pull the defective UV lamp out of its socket.

Insert the new UV lamp into the socket.
Slide the appliance cover with the UV lamps back onto the appliance, thereby ensuring that the cable connection on the side does not get snagged or trapped.
Re-attach the appliance cover with the two side screws.

Troubleshooting

In this chapter you will receive important information for malfunction localization and remedies. Observe the instructions in order to avoid risks and damage.

Safety instructions

WARNING

Observe the following safety information to avoid risks and property damage:

Repairs to electronic appliances may only be carried out by specialists who have been trained by the manufacturer. Considerable risk to the consumer and damage to the appliance can occur as a result of incompetent repairs.

Malfunction causes and remedies

The following table will help with localizing and remedying minor malfunctions:

Defect	Possible cause	Solution
Appliance does not switch on.	The plug is not connected.	Insert the plug into the mains power socket.
	Mains power socket does not supply any voltage.	Check the fuses.
UV Gel 2 does not harden sufficiently.	The selected treatment time too short.	Select a longer treatment time.
	One or more UV lamps are defective.	In this case, contact Customer Services.
	Too much UV-Gel 2 applied.	Apply less UV Gel 2.
	The nails were not directly under the UV lamps.	Hold the hand correctly in the UV appliance 1.
After hardening, a "sweat layer" remains on the nails.	Occurrence of a "sweat-layer" caused by polymerization.	Remove the "sweat layer" with the finishing solution 20.
The artificial nails are soft/loosened.	Loosening of the artificial nails by products with a high acetone concentration.	Apply no products with a high acetone concentration.
The artificial fingernails show unevenness.	Pressure on the brush 13 too high when applying the UV Gel 2.	Do not press too hard on the brush 13 when you are applying the UV Gel 2.
	UV Gel 2 unevenly applied.	Apply a further and thinner layer of UV Gel 22 and then harden it.
A UV lamp does not glow.	UV lamp defect.	Replace the defective UV lamp.

NOTICE

If you cannot solve the problem with the aforementioned solutions, please contact Customer Services.

Storage/Disposal

Storage

IMPORTANT

Health risks from solvent-containing substances!

Solvent-containing substances and their vapours can damage your health!

Carefully close all containers holding the accompanying substances.
Store the accompanying substances out of the reach of children.
Should you decide not use the appliance for an extended period, disconnect it from the mains power supply and store it in a clean and dry location away from direct sunlight and out of the reach of children.
Store all substances in a clean, dry and cool location away from direct sunlight and out of the reach of children.

Disposing of the appliance

UNDER NO CIRCUMSTANCES should you throw the appliance or the substances into normal household waste. This product is subject to the provisions of the European Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance and the substances via an approved waste disposal company or your communal waste disposal centre. The chemical substances are subject to special waste treatment. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Appendix

Notes on the EC Declaration of Conformity

With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

The complete original declaration of conformity can be obtained from the importer.

Technical data

Model	Nail Studio SNS 45 A1
Operating voltage	220 - 240 V / ~ 50 Hz
Power consumption	45 W
Operating temperature	+5 - +45	°C
Humidity (no condensation)	5 - 90	%
Dimensions (W x H x D):	23 x 27.5 x 14	cm
Weight	1777	g
Number of UV Lamps	4
UV Lamp Type	UV-9W-L 365 nm, 9 W
UV-type of the appliance	UV-A Lamp
Automatic switch-off times	after 90, 120 and 180 seconds

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, not for transport damages, wearing parts or for damage to fragile components, e.g. switches or UV Lamps.

This product is for domestic use only and is not intended for commercial applications. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 54344

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 54344

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Sisällysluettelo

Johdanto. 36

Kynsitippien irrottaminen

HUOMIO
