USER MANUAL Orlando Kogan

Line drawing of a wooden table with slatted panels and four legs (no text or symbols)

ORLANDO WOOD BED

SINGLE

SLORLAWBSNA, SLORLAWBSWA

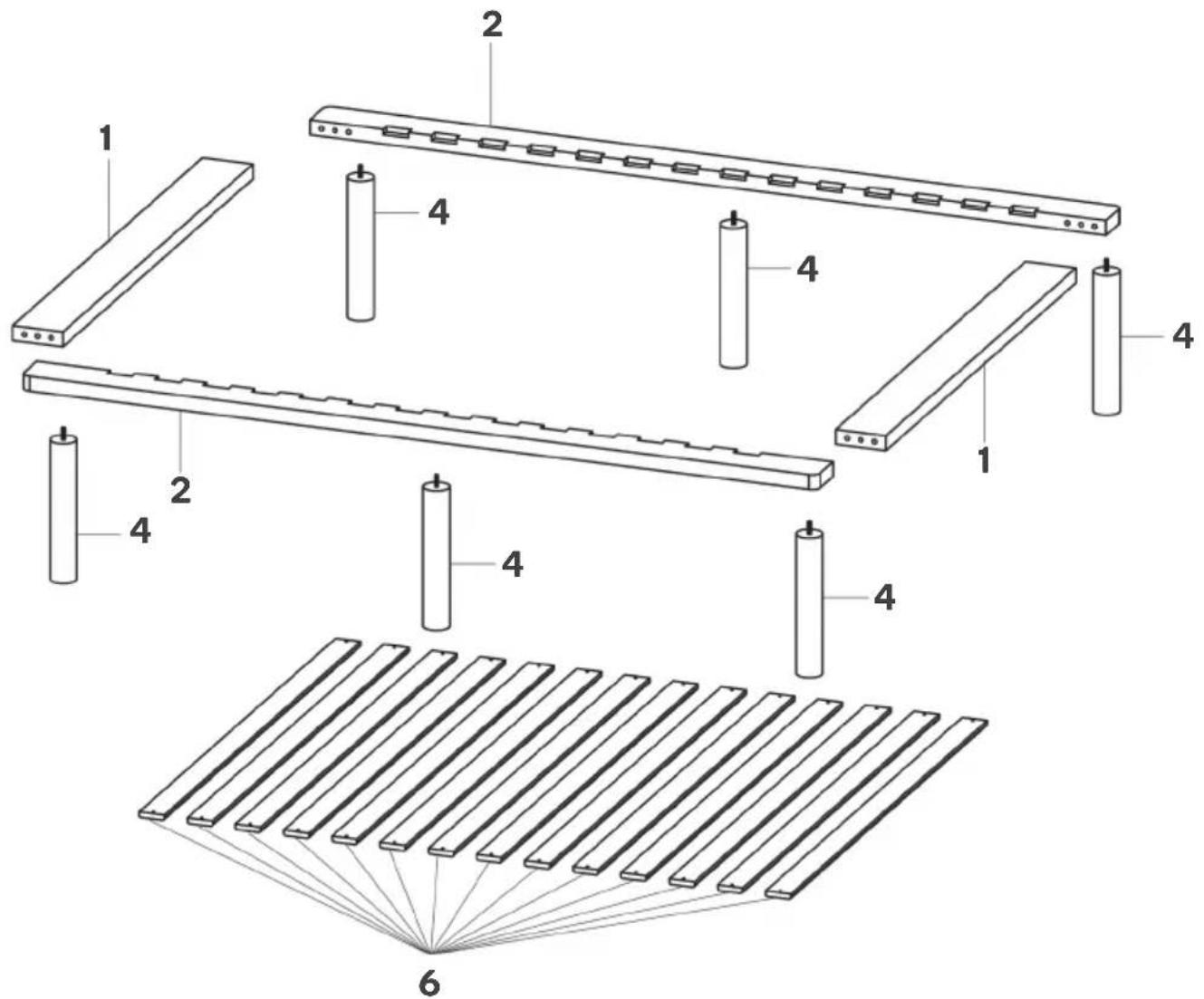

COMPONENTS

Technical diagram of a multi-layered electronic component with numbered parts and a fan base, likely for assembly or manufacturing purposes.

Hardware

A Ú4Û

B (x8)

C (x8)

D (x8)

E (x8)

F (x8)

G (x1)

J (x52)

N (x6)

ASSEMBLY

Step 1: Secure A into the middle hole either side of part 1.

Repeat this process with the remaining part labelled 1. This will create two end assemblies.

Note:

Do not use power tools to assemble this bed as it may damage the components.

A (x4)

A 1 A

x2

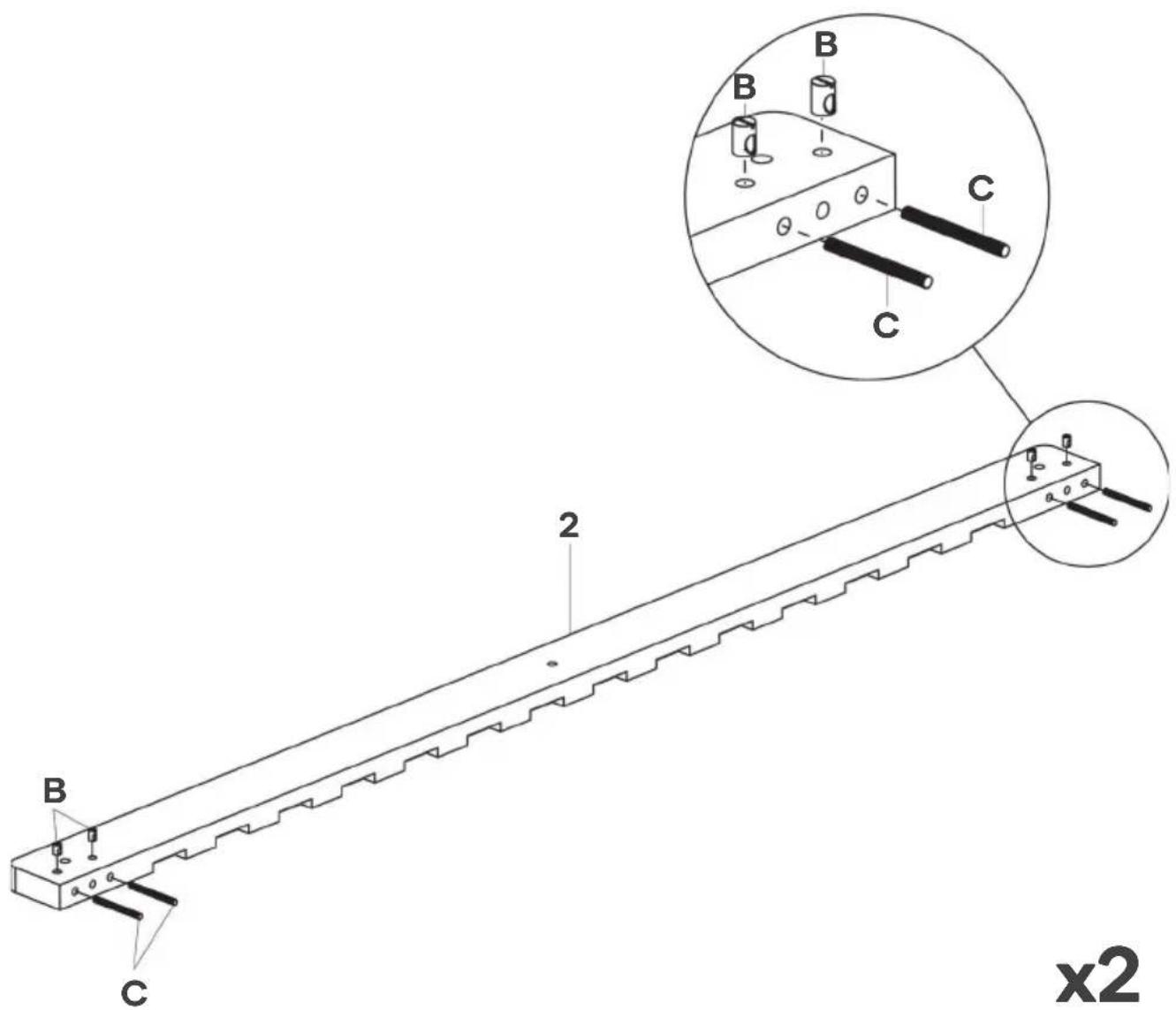

Step 2: Ensuring the hole on B is facing outward, secure B into one part labelled 2. Insert C into B as shown below.

Repeat this process with the remaining part labelled 2. This will create two side assemblies.

B (x8)

C (x8)

B C 2 x2

x2

Step 3: Align the holes on end assemblies and connect them to the side assemblies. This will result in C to protrude through the holes on the top of the side assemblies.

Inside one top hole, insert D, E and F over C. Using the G wrench, tighten F to secure into place. Repeat this process with the remaining seven top holes.

D (x8)

E (x8)

F (x8)

G (x1)

Technical diagram of a mechanical assembly with labeled components and cross-sectional views

x8

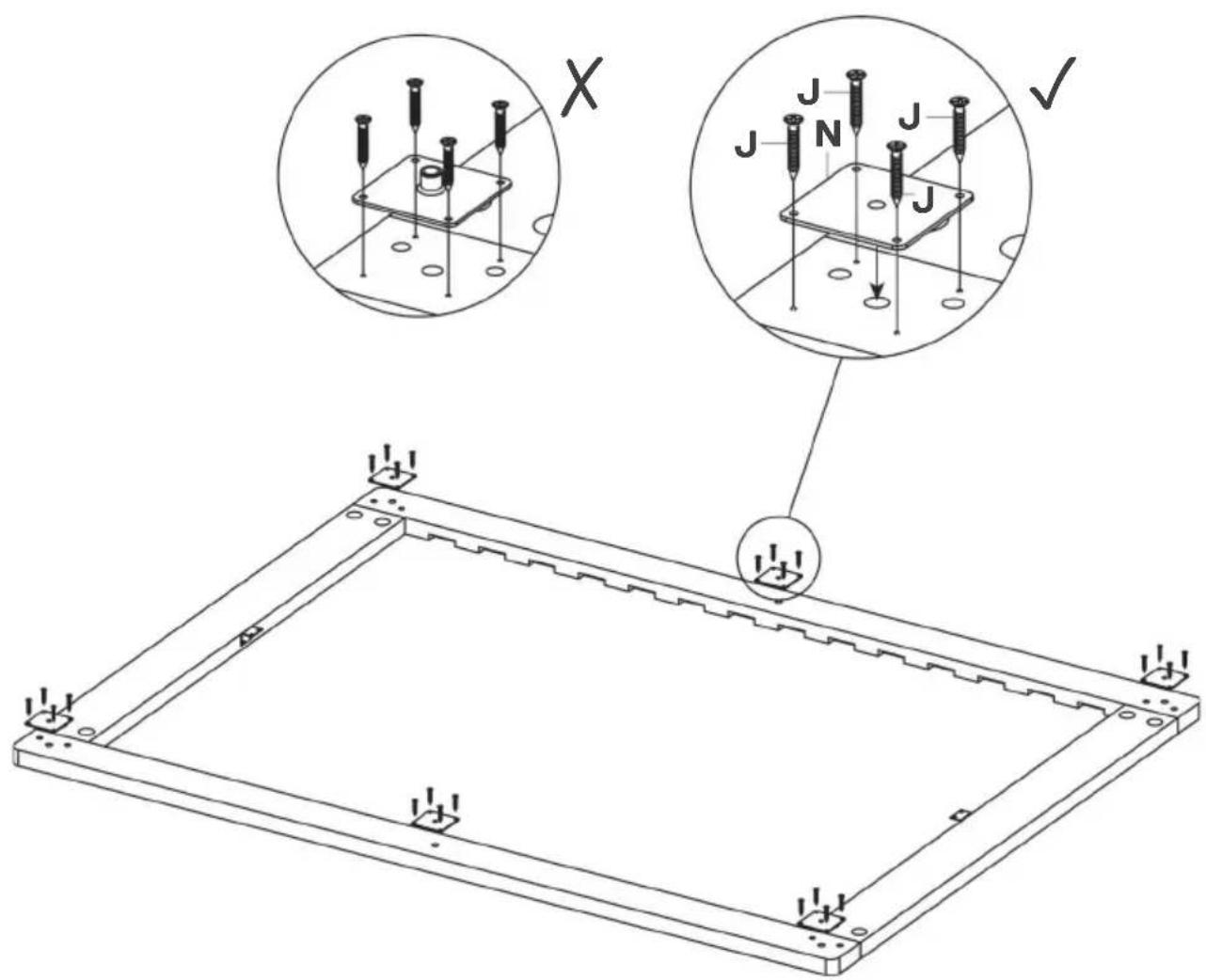

Step 4: Ensuring N is facing down, align and insert N into the holes shown in the example below. Using a Phillips screwdriver (not supplied), secure N with J screws.

Two technical illustrations: a screw and a plate with a knob, both labeled with magnified views (no text or symbols on the objects themselves)

Technical diagram showing a 3D panel assembly with labeled components and cross-sectional views (X, √)

Step 5: Twist and secure parts labelled 4 onto the side and end assemblies as shown below.

Technical diagram of a mechanical assembly with multiple 4-pin cylindrical components mounted on a rectangular frame.

Step 6: Using a Phillips screwdriver (not supplied), secure parts labelled 6 onto the bed with J screws.

J (x28) 6 J

Line drawing of a wooden table frame with slatted sides and supports (no text or symbols)

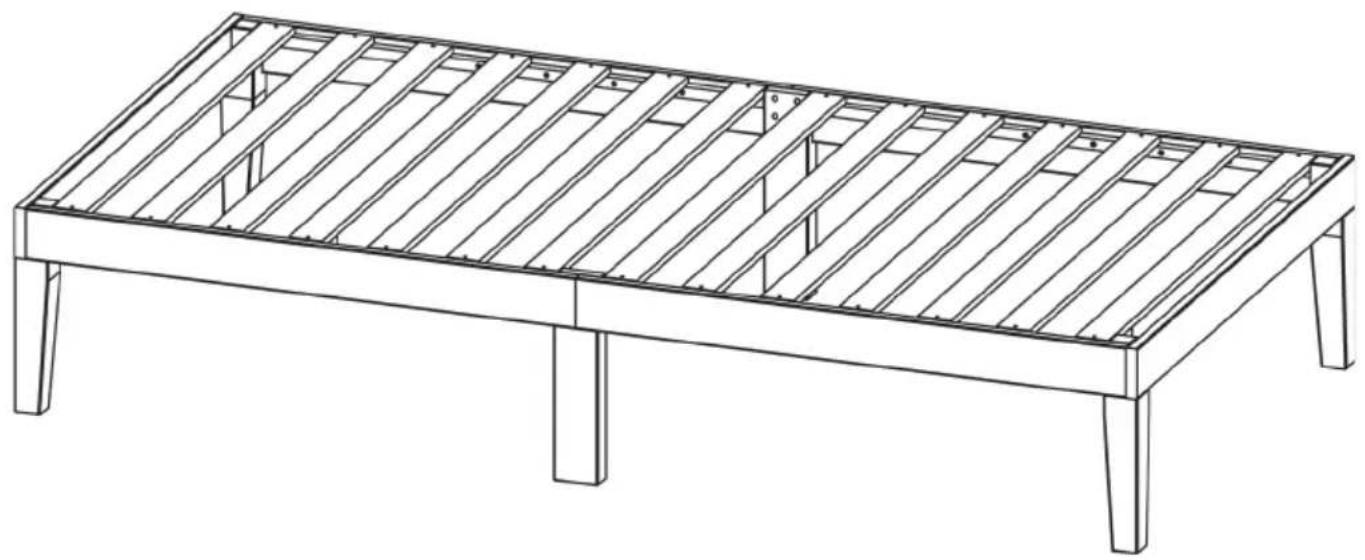

Assembly complete.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
