Product Type	Bed Frame
Brand	Kogan
Model	William
Category	Bed
Available Sizes	Twin, Full, Queen, King
Material	Engineered wood and metal frame
Weight Capacity	500 lbs (227 kg)
Overall Dimensions (Queen)	60" x 80" x 14" (152 x 203 x 36 cm)
Mattress Required	Not included
Assembly Required	Yes
Assembly Time	30-45 minutes
Tools Included	Allen key and instructions
Recommended Mattress Thickness	8-12 inches (20-30 cm)
Frame Type	Platform bed with slats
Slat Material	Wooden slats with fabric covering
Center Support Legs	Yes (for Queen and King sizes)
Headboard Included	Yes
Footboard Included	Yes
Color Options	Black, White, Espresso
Cleaning Instructions	Wipe with a damp cloth and mild detergent; avoid harsh chemicals
Warranty	1 year limited warranty
Product Weight (Queen)	60 lbs (27 kg)
Safety Features	Anti-slip slat system; stable metal support

Frequently Asked Questions - William Kogan

How long does assembly take?

Assembly typically takes 30-45 minutes. The frame comes with an Allen key and step-by-step instructions. It's recommended to have two people for easier setup.

Do I need a box spring?

No, the William bed frame is a platform bed with wooden slats. It provides adequate support for any mattress type, including memory foam, latex, and innerspring mattresses.

What is the weight capacity?

The weight capacity is 500 lbs (227 kg) for Queen and King sizes. Smaller sizes have slightly lower capacity. The frame is designed for long-lasting durability.

Can I use it without a headboard?

The William bed includes a headboard and footboard. If you prefer not to attach the headboard, you can leave it off, but the frame is designed to be used with both.

What size mattress fits?

The bed is available in Twin, Full, Queen, and King sizes. It fits standard US mattress sizes. Recommended mattress thickness is 8-12 inches.

How do I clean the frame?

Wipe the frame with a damp cloth and mild soap. Avoid abrasive cleaners or soaking the fabric on the slats. Dry immediately to prevent moisture damage.

Does the bed make noise?

The frame is designed to be quiet. The slats have a non-slip fabric covering to reduce noise. If you hear squeaks, check that all bolts are tightened properly.

Is the slat spacing suitable for all mattresses?

Yes, the slat spacing is 2.5 inches apart, which meets the requirements for most foam and hybrid mattresses. For older innerspring mattresses, you may consider a bunkie board if sagging occurs.

What is the warranty coverage?

The bed comes with a 1-year limited warranty against manufacturing defects. This covers structural components but normal wear and tear are not included.

Are replacement parts available?

Yes, you can contact Kogan customer support for replacement parts such as slats, center legs, or hardware. Ensure you have your order number ready.

USER MANUAL William Kogan

Line drawing of a metal frame structure with supports and slats (no text or symbols)

WILLIAM WOOD BED

DOUBLE/QUEEN/KING

OVWILLWBDNA, OVVILLWBQNA, OVVILLWBKNA, OVVILLWBDWA, OVVILLWBQWA, OVVILLWBKWA

COMPONENTS

Hardware

A 50mm M6 screw (x16)

B 35mm M6 screw (x12)

C Dowel (x8)

D 30mm M4 screw (x28)

E 16mm M4 screw (x8)

F 60mm M7 screw (x4)

G Bracket (x2)

H Allen key (x1)

ASSEMBLY

Step 1: Align one part labelled 3 level with parts labelled 1 and 2. Using the Allen key (H), secure the part labelled 3 to parts labelled 1 and 2 with 50mm M6 screws (A).

Repeat this process with the remaining parts labelled 1, 2 and 3. This will create two end assemblies.

Note:

Do not use power tools to assemble this bed as it may damage the components.

Two types of screw-like mechanical parts: a standard screw and a zigzag bracket (no text or symbols)

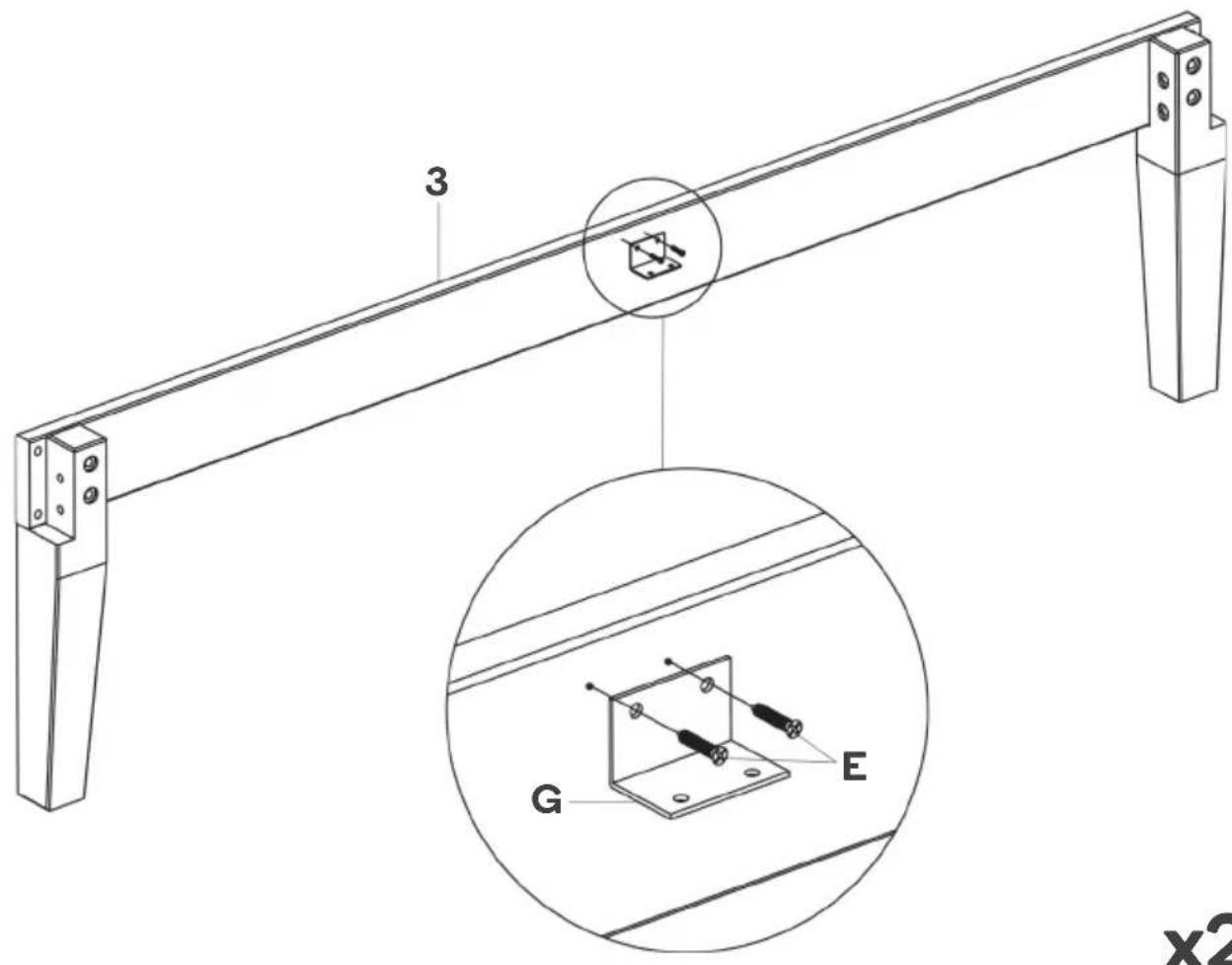

Step 2: Align the holes on one bracket (G) with those on one end assembly. Using a Phillips screwdriver (not supplied), secure 16mm M4 screws (E) through.

Repeat this process with the remaining end assembly.

Two types of metal screw and bracket diagrams: standard screw (E, x4) and 2D view (G, x2), with no text or symbols on the shapes themselves.

x2

Step 3: Align one each of the parts labelled 4 and 5 with one part labelled 6. Using the Allen key (H), secure the pieces (4, 5, 6) together with 35mm M6 screws (B).

Repeat this process with the remaining parts labelled 4, 5 and 6. This will create two side assemblies.

x2

Step 4: Connect the holes on the side assemblies to those on the end assemblies using the dowels (C).

C (x8)

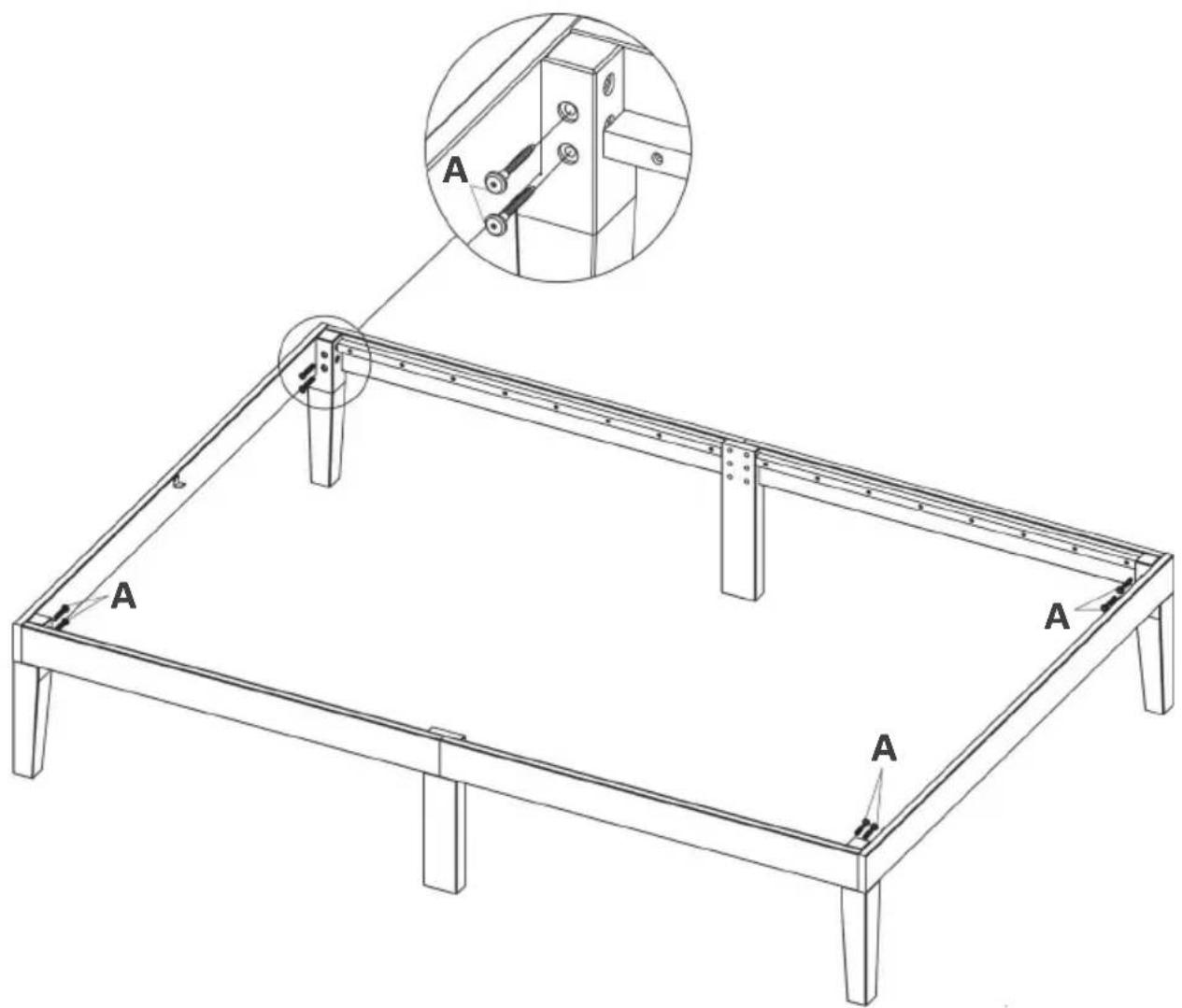

Step 5: Using the Allen key (H), secure each corner of the side and end assemblies with 50mm M6 screws (A).

Step 6: Align the holes on parts labelled 7 with parts 8 and 9 as shown below. Using the Allen key (H), secure 60mm M7 screws (F) through. This creates the middle assembly.

Step 7: Using a Phillips screwdriver (not supplied), secure the middle assembly to the end assemblies with 16mm M4 screws (E).

E (x4)

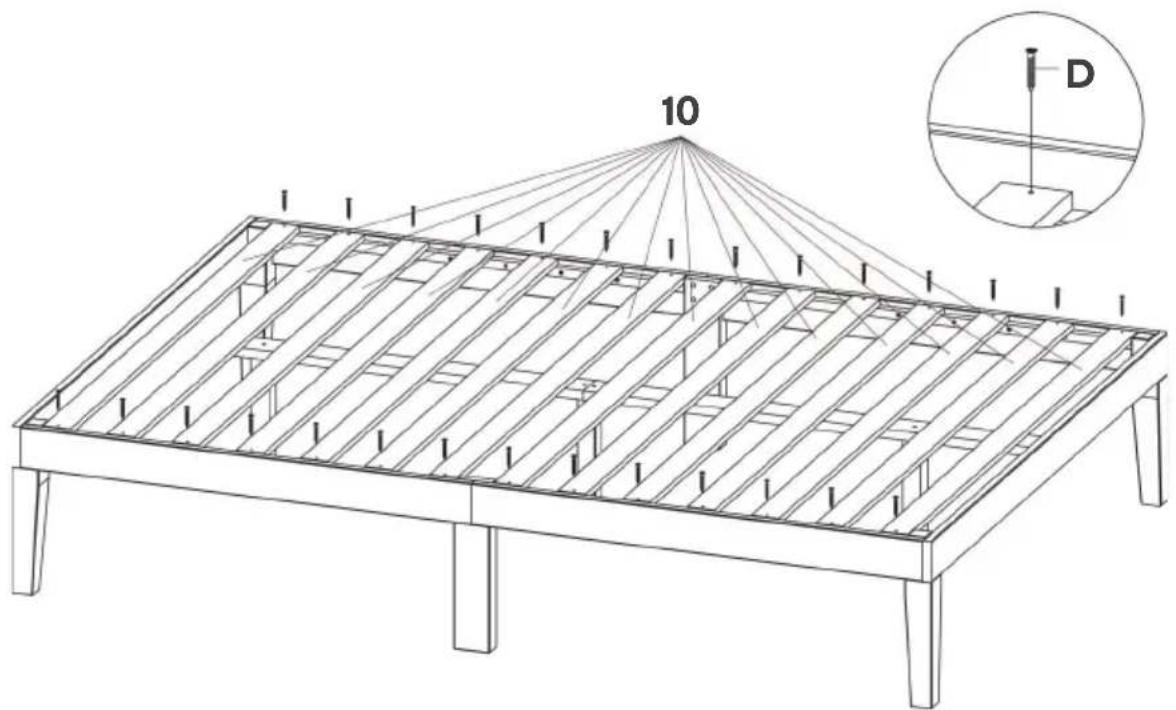

Step 8: Using a Phillips screwdriver (not supplied), secure parts labelled 10 onto the bed with 30mm M4 screws (D).

D (x28)

Line drawing of a wooden table frame with slatted panels and supports (no text or symbols)

Assembly complete.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
