USER MANUAL OVWILLWBSNA Kogan

natural_image Line drawing of a wooden table frame with slatted sides and support legs (no text or symbols)

WILLIAM WOOD BED

SINGLE

OVWILLWBSNA, OVWILLWBSWA

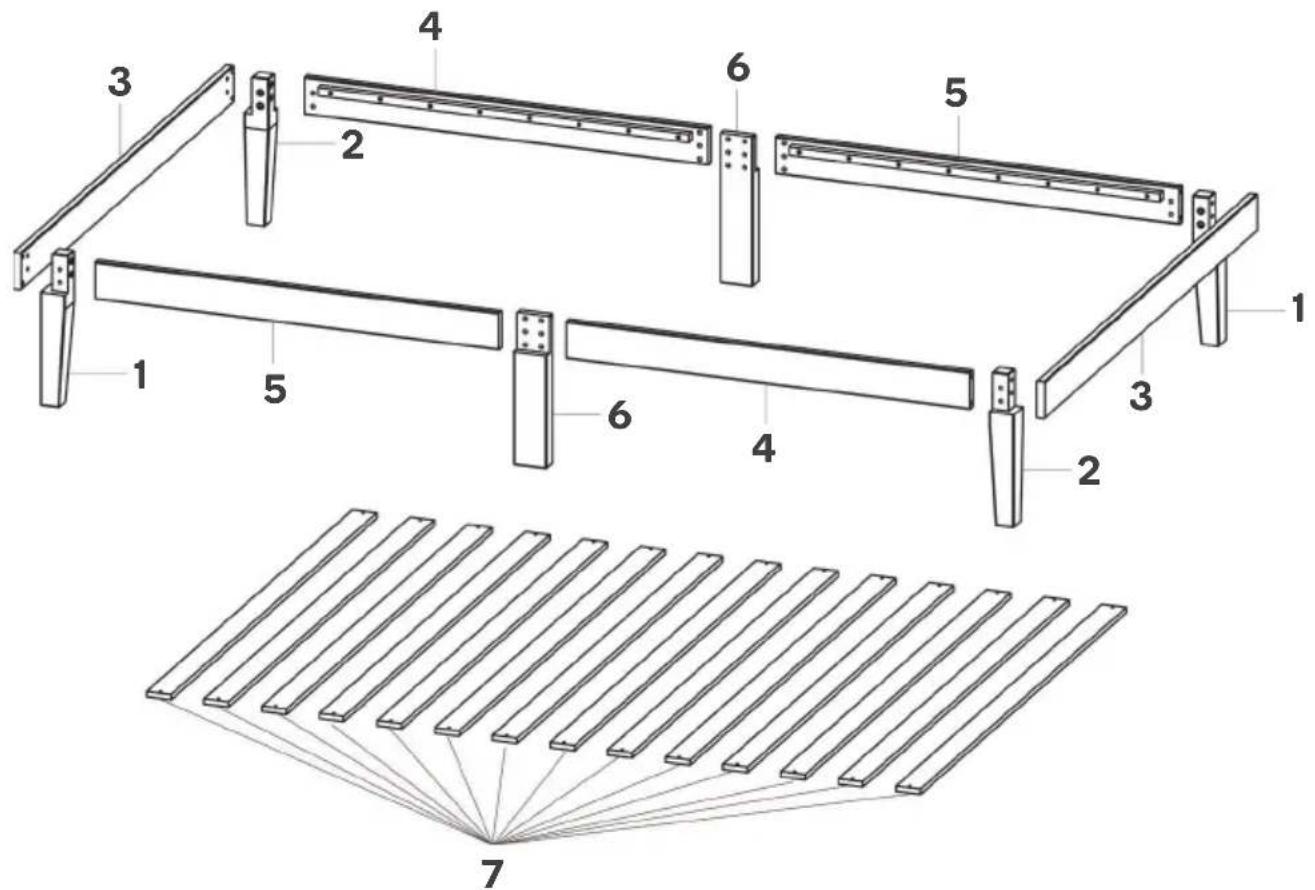

COMPONENTS

Kogan OVWILLWBSNA - COMPONENTS - 1

text_image Technical diagram of a structural frame assembly with numbered components and a separate view of a panel array labeled 7.

Hardware

Kogan OVWILLWBSNA - Hardware - 1
A 50mm M6 screw (x16)

Kogan OVWILLWBSNA - Hardware - 2
B 35mm M6 screw (x12)

Kogan OVWILLWBSNA - Hardware - 3
C Dowel (x8)

Kogan OVWILLWBSNA - Hardware - 4
D 30mm M4 screw (x28)

Kogan OVWILLWBSNA - Hardware - 5
H Allen key (x1)

ASSEMBLY

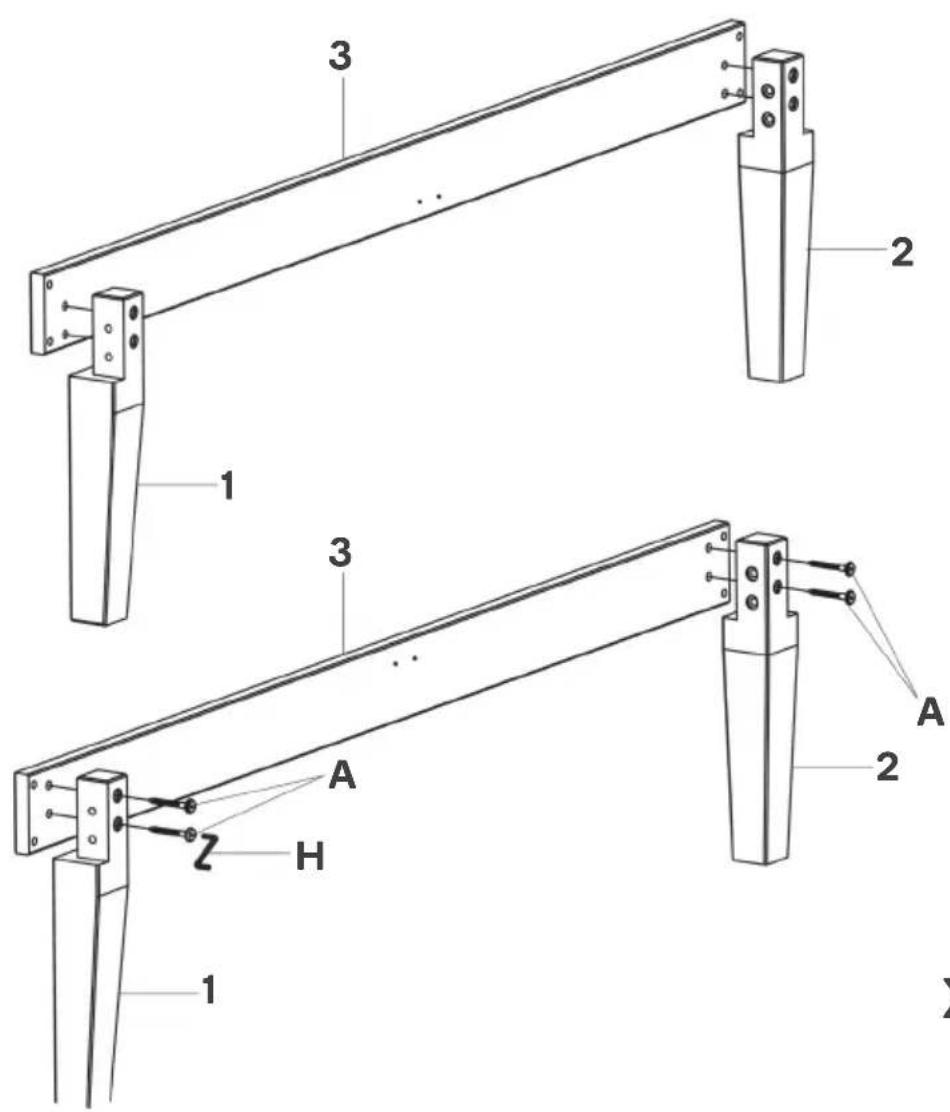

Step 1: Align one part labelled 3 with parts labelled 1 and 2. Using the Allen key (H), secure the part labelled 3 to parts labelled 1 and 2 with 50mm M6 screws (A).

Repeat this process with the remaining parts labelled 1, 2 and 3. This will create two end assemblies.

Note:

Do not use power tools to assemble this bed as it may damage the components.

Kogan OVWILLWBSNA - Note: - 1

natural_image Two types of screws labeled A (x8) and H (x1), shown side by side without any text or symbols on the screws themselves.

Kogan OVWILLWBSNA - Note: - 2

text_image 1 2 3 3 A H Z 1 2 A

x2

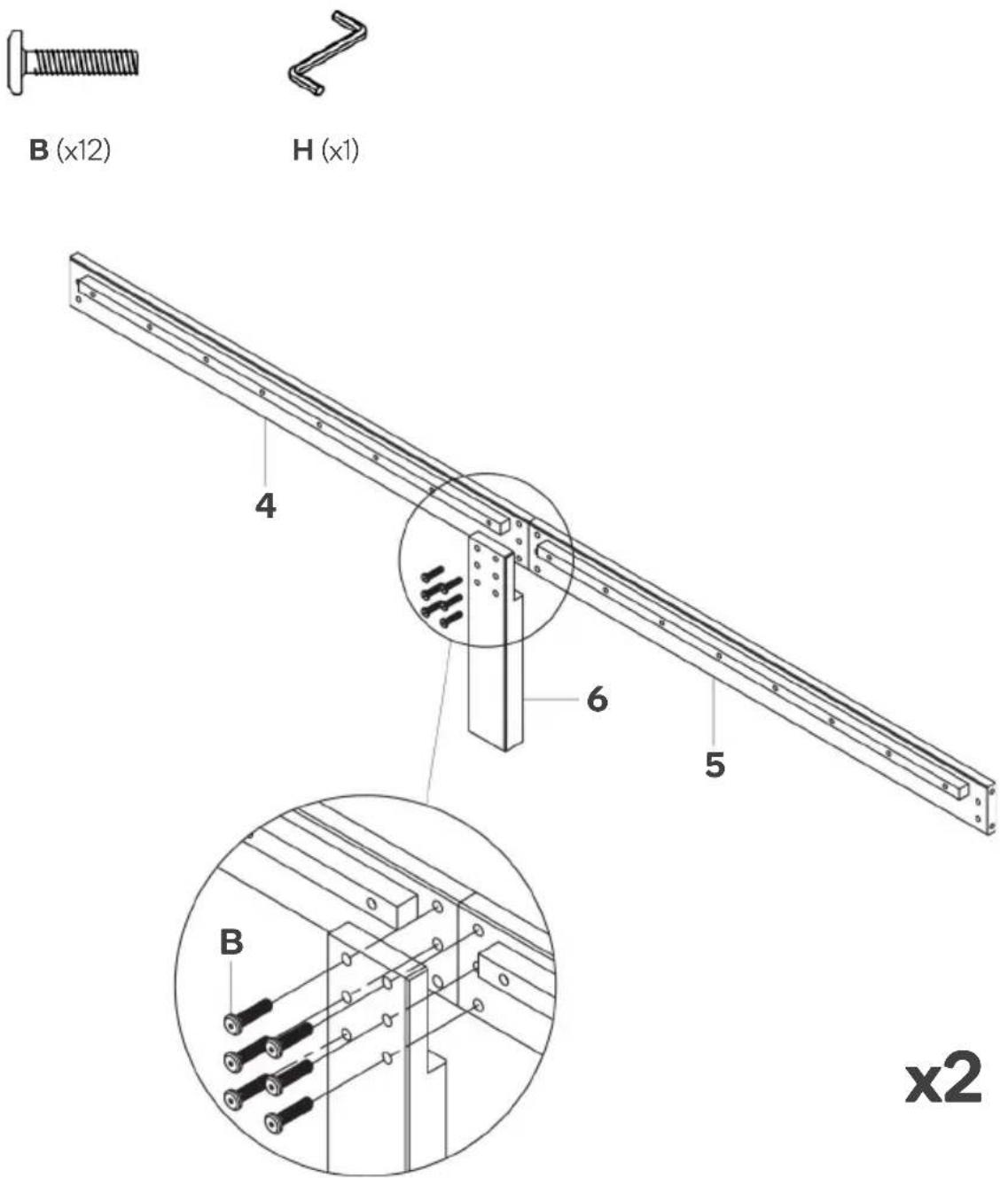

Step 2: Align one each of the parts labelled 4 and 5 with one part labelled 6. Using the Allen key (H), secure the pieces (4, 5, 6) together with 35mm M6 screws (B).

Repeat this process with the remaining parts labelled 4, 5 and 6. This will create two side assemblies.

Kogan OVWILLWBSNA - Note: - 3

Step 3: Connect the holes on the side assemblies to those on the end assemblies using the dowels (C).

Kogan OVWILLWBSNA - Note: - 4

text_image C (x8) C C C

Step 4: Using the Allen key (H), secure each corner of the side and end assemblies with 50mm M6 screws (A).

Kogan OVWILLWBSNA - Note: - 5

text_image A (x8) H (x1) A A A

Step 5: Using a Phillips screwdriver (not supplied), secure parts labelled 7 onto the bed with 30mm M4 screws (D).

Kogan OVWILLWBSNA - Note: - 6
D (x28)

Kogan OVWILLWBSNA - Note: - 7

text_image 7 D

Kogan OVWILLWBSNA - Note: - 8

natural_image Line drawing of a rectangular metal frame structure with supports and slats (no text or symbols)

Assembly complete.
