USER MANUAL 99-7625B AXESS

Interior view of a car dashboard with digital display and control panel (no visible text or symbols)

Infiniti G37 2008-2013

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DIN radio provision with pocket
- ISO DDIN radio provision
- Painted matte black

KIT COMPONENTS

• A) Radio trim panel with HVAC controls • B) Radio brackets • C) Upper keypad • D) Pocket • E) (2) Panel clips • F) (6) #8 x 3/8" Phillips screws
• Axxess interface and harness (not shown)

A

B

C

•

•

F

TABLE OF CONTENTS

Dash Disassembly 2-3

Kit Preparation 4

Kit Assembly

-ISO DIN radio provision with pocket ....5

-ISO DDIN radio provision....6

Axxess Interface Installation 7-12

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Included with kit.

Antenna Adapter: 40-NI12

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Torx driver

Attention! With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections are secure before cycling the ignition to test this product.

DASH DISASSEMBLY

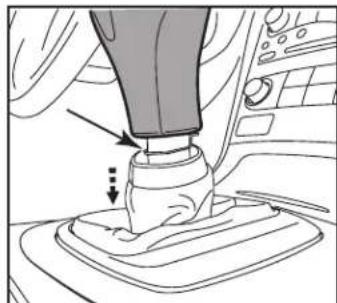

1. Slide the shifter boot down and remove clip holding shifter knob and remove shifter knob. (Figure A)

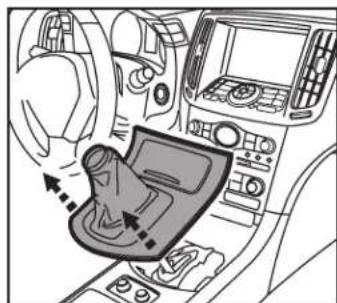

2. Unclip and remove shifter boot trim panel. (Figure B)

Diagram of a hand pressing a button on a car gear (no text or symbols present)

(Figure A) (Figure C)

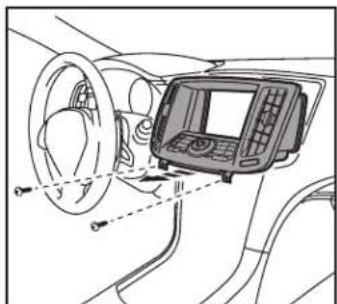

1. Remove (2) screws at the bottom of the radio/climate control panel and remove panel. (Figure C)
2. Remove (2) screws at the bottom of the factory display panel and remove panel with the vents. (Figure D)

Continued on next page

Interior view of a car dashboard with control panel and directional arrows indicating traffic flow (no text or symbols)

Interior view of a car dashboard with steering wheel and GPS monitor (no text or symbols visible)

(Figure D)

Interior view of a car dashboard with a hand valve and control panel (no text or symbols visible)

(Figure B)

DASH DISASSEMBLY (CONT.)

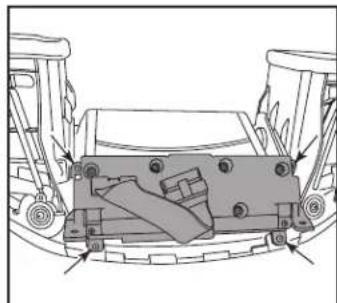

1. Remove the (4) Philips screws securing the factory controls in the panel removed in step 4 and save for Kit Assembly. (Figure E)
2. Remove (4) Phillips screws securing the radio chassis and a/c amp bracket assembly then remove the assembly from the dash. (Figure F)

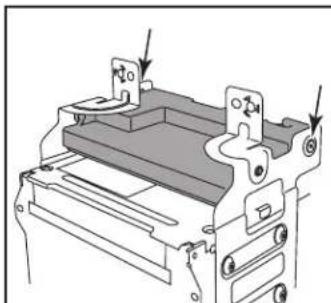

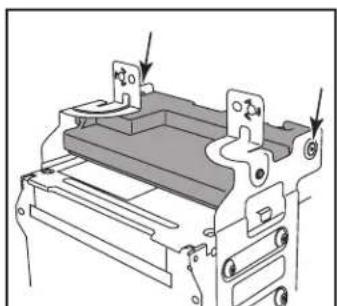

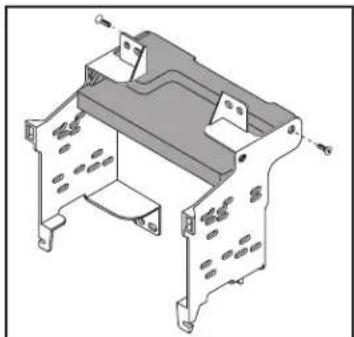

3. Remove (2) Torx screws securing the a/c amp module to the radio chassis/ bracket assembly and save for Kit Assembly. (Figure G)

Technical diagram of a mechanical assembly with no visible text or symbols

(Figure E)

Interior view of a car showing the internal components of a vehicle's air vent (no text or symbols visible)

(Figure F)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

(Figure G)

Continue to Kit Preparation

KIT PREPARATION

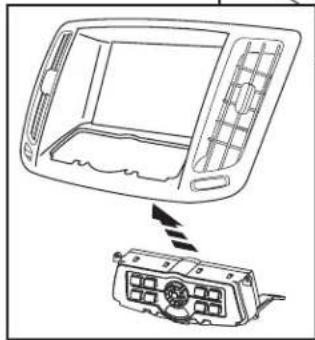

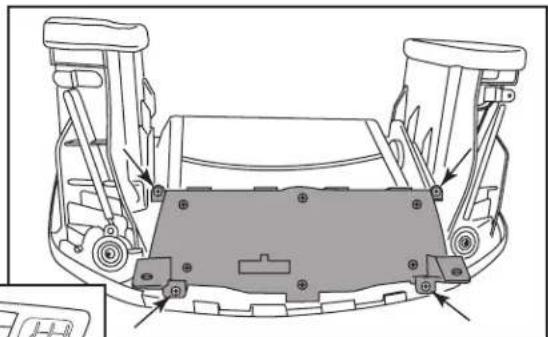

1. Attach the upper keypad to the factory display panel using the factory hardware. (Figure A)
2. Attach the a/c amp to the radio brackets using the factory hardware. (Figure B)

Continue to Kit Assembly

Technical line drawing of a vehicle chassis with visible structural components and mounting points (no text or symbols)

(Figure A)

Isometric technical drawing of a mechanical housing or bracket assembly (no text or symbols visible)

(Figure B)

Diagram showing a car air vent with airflow direction and component layout (no text or symbols)

KIT ASSEMBLY

ISO DIN radio provision with pocket

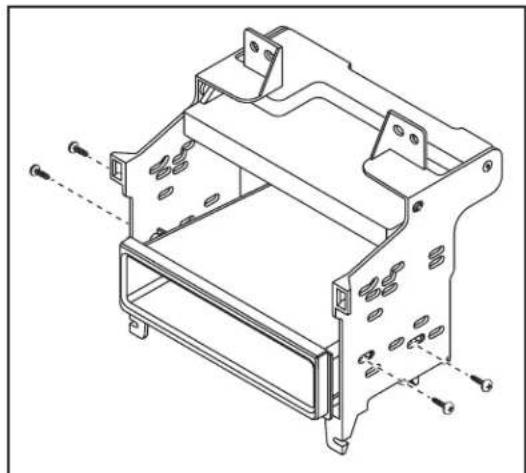

1. Attach the pocket to the radio bracket assembly using the provided (4) #8 x 3/8" screws. (Figure A)

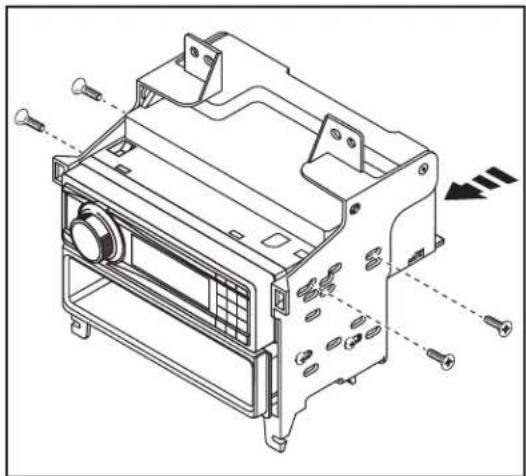

2. Slide the aftermarket radio into the completed assembly and secure with screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna plug in the dash and make all necessary connections to the radio. Metra recommends using the proper mating adapters from Metra and/or AXXESS.

Continue to Axxess Interface Installation

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

(Figure A) (Figure B)

Technical line drawing of a mechanical device housing with screws and a control panel (no text or symbols)

KIT ASSEMBLY

ISO DDIN radio provision

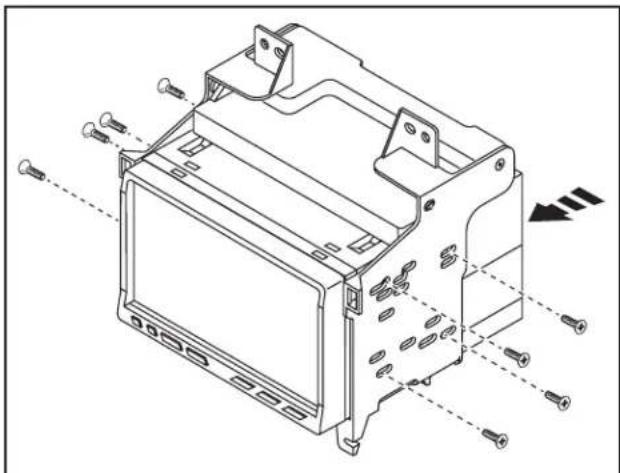

1. Slide the aftermarket radio between the radio bracket assembly and secure with the screws supplied with the radio. (Figure A)

2. Locate the factory wiring harness and antenna plug in the dash and make all necessary connections to the radio. Metra recommends using the proper mating adapters from Metra and/or AXXESS.

Continue to Axxess Interface Installation

Technical line drawing of a mechanical housing with bolted components and mounting holes (no text or symbols)

(Figure A)

AXXESS INTERFACE INSTALLATION

INTERFACE FEATURES

• Retains factory screen
• Retains factory back up camera
• Retains factory AUX in
• Retains personalization features
• Ability to add aftermarket backup camera or additional video input
• Works in amplified or non-amplified models
• Prewired ASWC-1 harness included (ASWC-1 sold separately)

INTERFACE COMPONENTS

• Axxess Interface
  • 7625 harness
  • 16, 20, and 32-pin to 12 and 22-pin harness
  • 14-pin to 4, 16, and 18-pin extension harness
  • 14-pin to 14-pin extension harness wrapped in black tape
  • 12-pin harness with (4) RCA jacks
  • 20-pin to 24-pin extension harness wrapped in black tape

TABLE OF CONTENTS

Connections......8-13
For models with a Bose sound system....8-9
For models without a Bose sound system 10-11
Installation....13
Programming....14
Adjustments....14
Final assembly 15
Troubleshooting....15

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Small flat blade screwdriver • Tape • Wire cutter • Zip ties

CONNECTIONS

From the 7625 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Red wire to the accessory wire.
• Connect the Orange wire to the illumination wire. (If the aftermarket radio has no illumination wire, tape off the Orange wire).
• Tape off and disregard the White/Blue wire, it will not be used in this application.

The following (2) wires are for an aftermarket multimedia/navigation radio that provides these wires (if not required, tape them off and disregard them):

• Connect the Blue/Pink wire to the speed sense wire (if applicable).
• Connect the Green/Purple wire with a female bullet connector to the reverse wire (if applicable).
• Connect the Green/Purple wire with a male bullet connector, to the Green/Purple wire with a female bullet connector. Only connect this wire if the Green/Purple wire with a male bullet connector has a wire populated on the factory side.

For models without a BOSE sound-system:

• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.

For models with a BOSE sound-system:

• Tape off and disregard the White, White/Black, Gray, Gray/Black, Green, Green/Black, Purple, Purple/Black wires, they will not be used in this application.
• If you wish to retain the factory AUX-IN jack, connect the Red and White RCA jacks labeled "AUX input", to the AUX-IN jack (if applicable).
• Tape off and disregard the Red and White RCA jacks labeled "FROM DVD", they will not be used in this application.

Continued on next page

CONNECTIONS (CONT.)INSTALLATION

• Tape off and disregard the Yellow RCA jack labeled FROM DVD, it will not be used in this application.
• If you wish to add an aftermarket backup camera or external video source, connect the Yellow RCA jack labeled "Backcam" into the desired source.
  • 12-pin pre-wired ASWC-1 harness:

This harness is to be used along with the optional ASWC-1 (not included) to retain steering wheel audio controls. If the ASWC-1 is not being used, disregard this harness. If it will be used, please refer to the ASWC-1 instructions for radio connections and programming.

Note: Disregard the harness that comes with the ASWC-1.

Note: Disregard the RCA jack labeled "FROM DVD", it will not be used in this application.

From the 12-pin harness with (4) jacks to the aftermarket radio (for BOSE sound-systems only):

• Connect the Blue/White wire to the amp turn on wire (this wire must be connected to hear sound from the factory amplifier).
• Connect the White, Gray, Green, and Purple RCA jacks to the audio outputs. White is left front, Gray is right front, Green is left rear, and Purple is right rear.

Concerning the radio trim panel with HVAC controls and upper keypad. The radio trim panel with HVAC controls has two connectors:

• Connect one end of the 14-pin to 14-pin extension harness wrapped in cloth tape, to the connector on the left side (driver's side of the vehicle as you are looking at the front of the panel). The other end will connect to the Axxess interface.
• Connect the 14-pin connector of the 14-pin to 4, 16, and 18-pin extension harness, to the connector on the right side (passenger side of the vehicle as you are looking at the front of the panel). The 18-pin connector will connect to the upper keypad. The 4 and 16-pin harness will connect to the (2) harnesses previously removed from the factory radio/climate control panel removed in step 3 of disassembly.
• Connect the 20-pin connector of the 20-pin to 24-pin extension harness wrapped in black tape to the 20-pin harness removed from the factory radio/climate control panel. The 24-pin connector will then connect into the Axxess interface.
• Connect the 22-pin harness of the 7625 harness into the Axxess interface.
• With the key in the off position, connect the 16, 20, and 32-pin harness of the 7625 harness into the vehicle.

Note: The 16-pin harness must be connected for the factory back-up camera to function. There are (2) 16-pin connectors available in the dash. Use the 16-pin connector that is grouped with the factory radio connectors; the ones which were connected to the back of the factory radio chassis.

• With all connections completed, reconnect the negative battery terminal and test the 99-7625B for proper operation.
  Note: If using the ASWC-1, connect it after you test the 99-7625B, with the key in the off position.
• Mount the new radio assembly into the dash and reassemble the dash in reverse order of disassembly.

SCREEN OPERATION

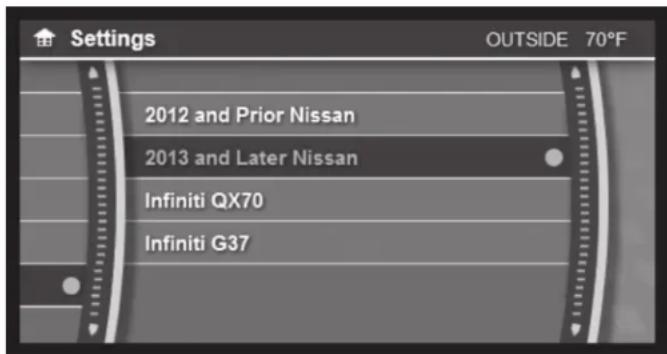

Vehicle selection:

Settings OUTSIDE 70°F 2012 and Prior Nissan 2013 and Later Nissan Infiniti QX70 Infiniti G37

• The included interface is designed to auto-detect what vehicle it is in. In the settings menu, there is an option of forcing the vehicle type to the interface.
• Go to - SETTINGS>MISCELLANEOUS>SELECT VEHICLE

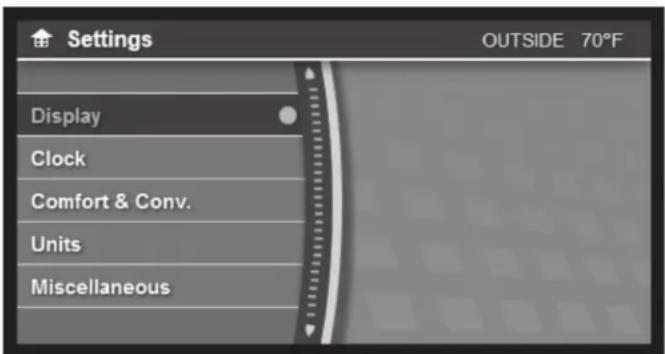

Settings:

Settings OUTSIDE 70°F Display Clock Comfort & Conv. Units Miscellaneous

All button functions are retained and are controlled in the same manner that the factory buttons were controlled. (example: Tire Pressure, Fuel Economy, Brightness, Clock Setting, etc).

Continued on the next page

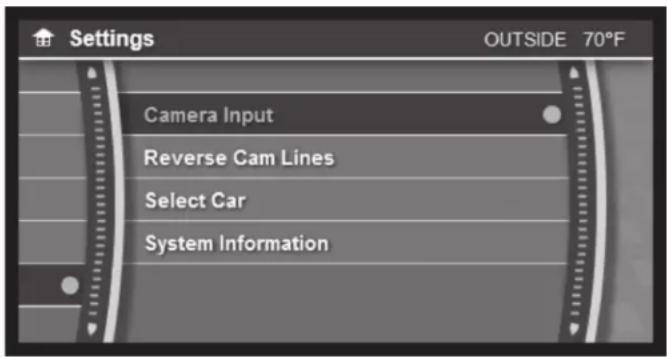

Backup camera/AUX video settings:

Settings OUTSIDE 70°F Camera Input Reverse Cam Lines Select Car System Information

- Camera Input

• Go to - SETTINGS> MISCELLANEOUS>CAMERA INPUT>AFTERMARKET CAMERA
• The factory equipped back-up camera will continue to function without any additional wiring or programming. The interface is shipped in this mode.
• If the vehicle does not come equipped with a factory backup camera, an aftermarket camera can be used. If an aftermarket camera is installed, the settings will need to be changed to reflect this.

Note:

1. The aftermarket camera will be activated by the vehicle's reverse signal, which is sent to the Axxess interface.
2. The camera input can also be used as an AUX video in. The blank button on the far right of the radio trim panel with HVAC controls will toggle the AUX video on or off.

Note: The AUX video will only work with the vehicle in PARK.

• Reverse Camera Lines
• Go to – SETTINGS>MISCELLANEOUS> REVERSE CAM LINES
• On or off.

Note: By default, the back-up lines for the camera are set to off.

Continued on the next page

UPDATING PROCEDURE

• Download and install the WebXXpress software update from axxessinterfaces.com.
• Connect the USB-MINI-CAB update cable (sold separately) between the 99-7625B and the computer. The cable will connect into the port on the rear of the kit labeled "A".

Note: The 99-7625B will need to be powered up to be updated.

- From the Start Menu of the computer, click on "USB Bootloader", and then click "Update Board". The software will begin to download at this point.

Note: If 30 seconds elapses before you finish this step, you will need to remove power from the 99-7625B, then reapply power, and then start the update process again.

Note: Please note which firmware downloaded to the interface. This will help in troubleshooting, if need be.

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills to enrolling in the most recognized and respected

enrolling in the most recognized and resp mobile electronics school in our industry.

Log onto www.installerinstitute.edu or call

386-672-5771 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Interior view of a car dashboard with digital display and control panel (no visible text or symbols)

Infiniti G37 2008-2013

Diagram of a hand pressing a button on a car gear (no text or symbols)

(Figura A) (Figura C)

Interior view of a car dashboard with control panel and directional arrows indicating traffic flow (no text or symbols)

Interior view of a car showing steering wheel, dashboard, and GPS monitor (no text or symbols visible)

(Figura D)

Interior view of a car dashboard with a hand valve and control panel (no text or symbols visible)

(Figura B)

DESMONTAJE DEL TABLERO (CONT.)

Technical diagram of a mechanical assembly with no visible text or symbols

(Figura E)

Interior view of a car showing the internal components of a vehicle's rear seat and dashboard (no text or symbols visible)

(Figura F)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

(Figura G)

Technical line drawing of a vehicle chassis with visible structural components and mounting points (no text or symbols)

(Figure A)

Technical line drawing of a mechanical housing or bracket component (no text or symbols)

(Figura B)

Diagram showing a car air vent with airflow direction and component layout (no text or symbols)

ENSAMBLE DEL KIT

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

(Figura A) (Figura B)

Technical line drawing of a mechanical device housing with screws and a control panel (no text or symbols)

ENSAMBLE DEL KIT

Technical line drawing of a mechanical housing with bolted components and mounting holes (no text or symbols)

(Figura A)

Conexiones a realizar 8-13
For models with a Bose sound system....8-9
For models without a Bose sound system 10-11
Installation 13
Programming....14
Adjustments....14
Final assembly 15
Troubleshooting....15

Settings OUTSIDE 70°F 2012 and Prior Nissan 2013 and Later Nissan Infiniti QX70 Infiniti G37

Settings OUTSIDE 70°F Display Clock Comfort & Conv. Units Miscellaneous

Settings OUTSIDE 70°F Camera Input Reverse Cam Lines Select Car System Information

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills to enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.edu or call 208,670-5771 (for more information and take place

toward a better tomorrow.
