AIR PURIFIER with Humidifying Function

Please read before operating your new Air Pu

Some odors ingredients absorbed by the filter may become separated and may be discharged through the air outlet and result in additional odor. De- pending on the usage environment, especially when the product is used in a condition significantly more severe than household use, this odor may be- come strong in a shorter period than expected.

In this case we recommend purchasing the optional replacement filter kit FZ-P30SFU.

+ The air purifier is designed to remove air-suspended dust and odor, but not harmful gases (for example, carbon monoxide contained in cigarette smoke). lf the odor sources still exist, it cannot completely remove the odor (for example, odors from construction materials and pet odors).

+ Itis suggested to open the window a bit when you are smoking in order to facilitate ventilation.

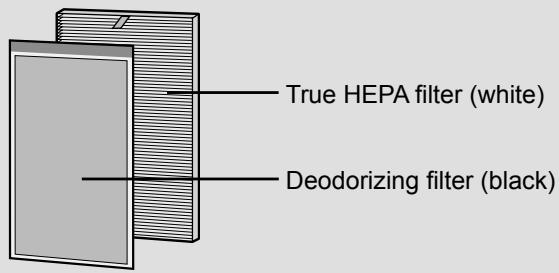

E True HEPA filter (white)

Deodorizing filter (black)

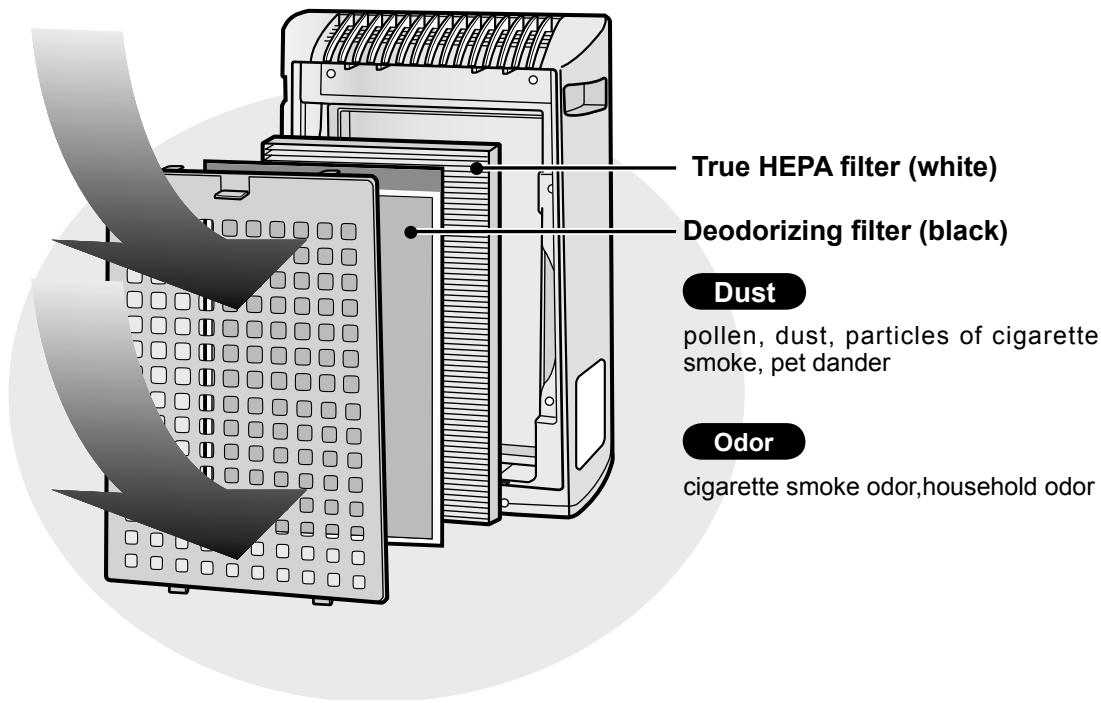

pollen, dust, particles of cigarette smoke, pet dander

cigarette smoke odor,household odor

large airborne particles. IMPORTANT SAFETY INSTRUCTIONS .E-6 Îe

DECREASES ODORS ü A + WARNING... E6

Deodorizing filer absorbs many common + CAUTIONS CONCERNING OPERATION .E-7 [El

+ INSTALLATION GUIDELINESE-7 J REDUCES POLLEN & MOLD*

True HÉPA filer traps 99.97% of particles + FILTER GUIDELINES E-7

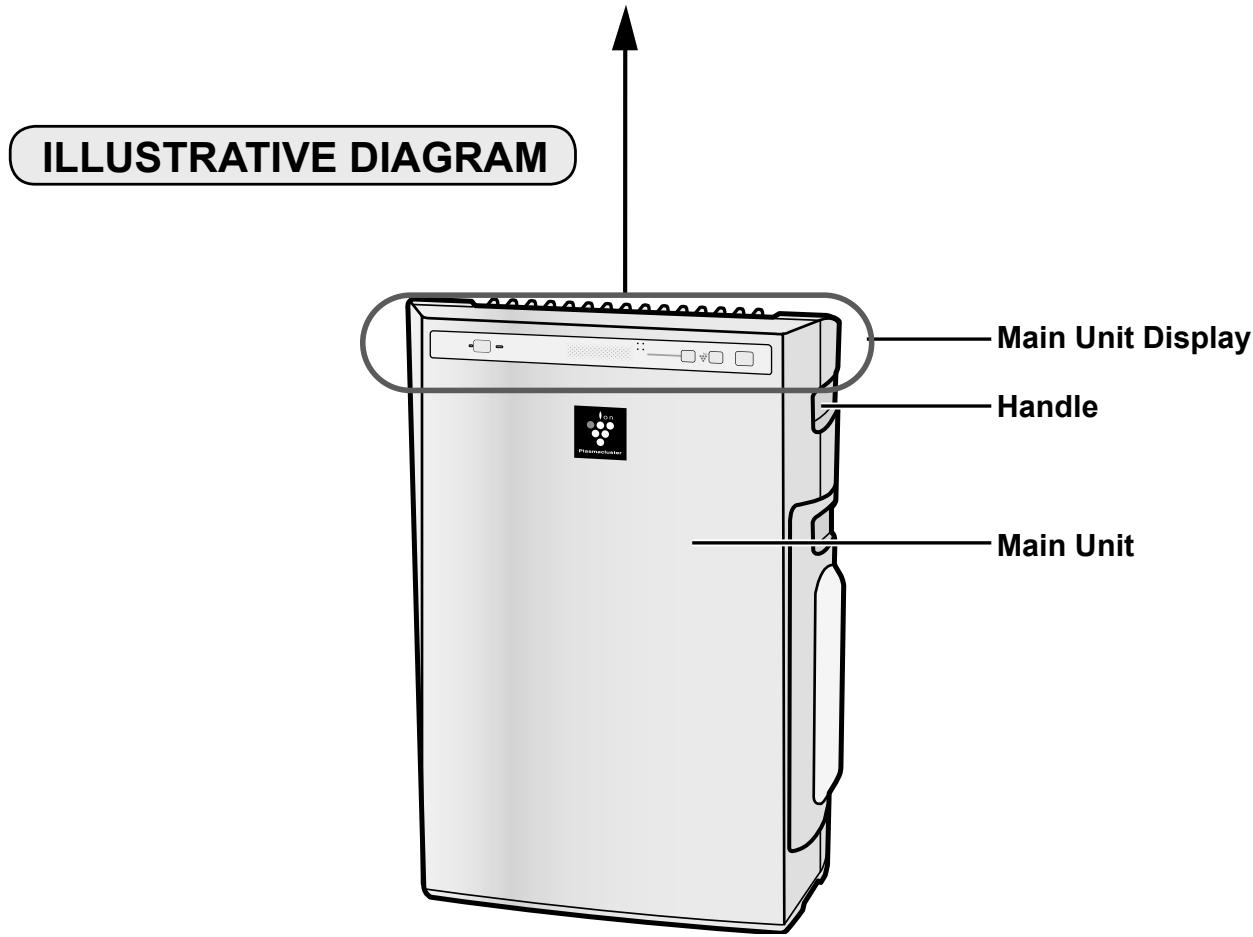

as small as 0.3 microns. PART NAMES FRESHENS . + MAIN UNIT DISPLAY Plasmacluster refreshes the air similar to + ILLUSTRATIVE DIAGRAM

the way nature cleans the environment by emitting a balance of positive and negative ions.

HUMIDIFIES | PREPARATION... Runs up to 10 hours per filling.** + FILTER INSTALLATION

gynen air is drawn through the filter sys- + REFILLING WATER TANK L **Room size : up to 124 sq. ft. OPERATION cree Ve

: . + MAIN UNIT OPERATION Sensor Technology continuously monitors

air quality, automatically adjusting opera- CARE AND MAINTENANCE a esed on detected air purity and hu- + FILTER INDICATOR LIGHT …

+ BACK PANEL AND SENSORS L _J.__* WATER TANK HUMIDIFYING TRAY HUMIDIFYING FILTEI Declaration of Conformity + FILTER REPLACEMENT GUIDELINES.

SHARP AIR PURIFIER KC-830U This device complies with Part 18 of FCC rules. TROUBLESHOOTING Responsible Party: SHARP ELECTRONICS CORPORATION SPECIFICATIONS Sharp Plaza,

Mahwah, New Jersey 07495-1163

Declaration of Conformity

SHARP AIR PURIFIER KC-830U This ISM device complies with Canadian Thank you for purchasing the SHARP Air Puri- ICES-001 fier. Please read this manual carefully for the

Responsible Party: correct usage information. Before using this ENS ELECIRONIOS Où CANADA DL . product, be sure to read the section: “Impor- ritannia Roa asl ississauga, Ontario tant Safety Instructions.”

L4Z 1W9 Canadi 7 n ec TEL: (905) 5687140 After reading this manual, retain it in a conven-

ient location for future reference.

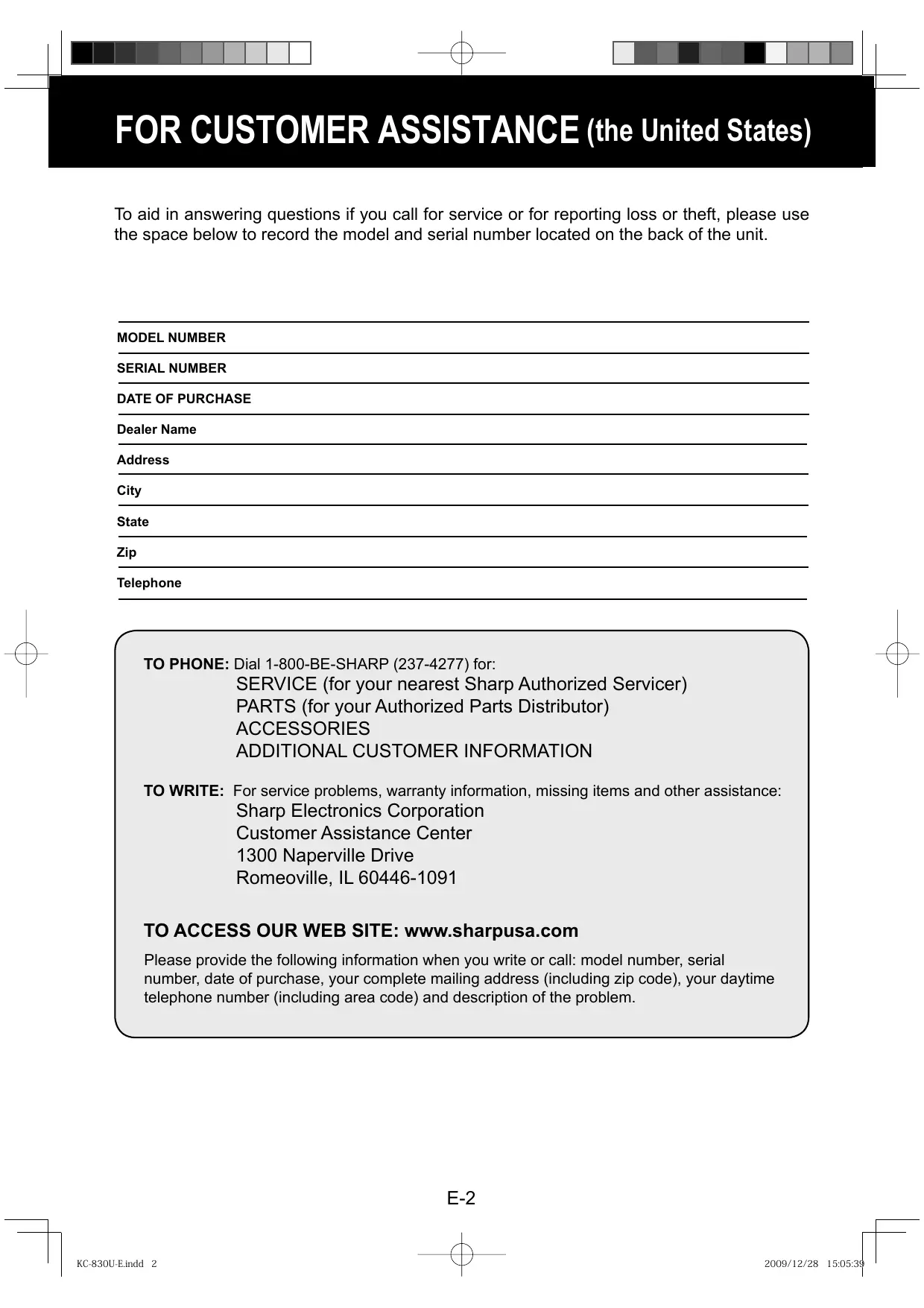

D FOR CUSTOMER ASSISTANCE (the United States)

To aid in answering questions if you call for service or for reporting loss or theft, please use the space below to record the model and serial number located on the back of the unit.

MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE Dealer Name

( à TO PHONE: Dial 1-800-BE-SHARP (237-4277) for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor)

ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091

TO ACCESS OUR WEB SITE: www.sharpusa.com

Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem.

D CONSUMER LIMITED WARRANTY CONSUMER LIMITED WARRANTY FOR US. USERS SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product"), when shipped in its original container, will be free from defective workmanship and_ materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufac- tured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction:

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and pro- vide proof of purchase to the servicer.

ENGLISH The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those de- scribed herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfilment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE Your Product Model Number & Description: KC-83OU Air Purifier. Be sure to have this information available when you need service for your Product.

One (1) year parts and labor from date of purchase.

Warranty Period for this Produ Additional Item(s) Excluded From Warranty Appearance items of the Product, filters, accessories, or any printed

Coverage: materials. Product which has been used for rental and/or commercial purposes. Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To

find the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP.

What to Do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP, OR VISIT OUR WEBSITE AT

To aid in answering questions if you call for service or for reporting loss or theft, please use the space below to record the model and serial number located on the back side of the unit.

TO PHONE: Dial 1-905-568-7140 for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor)

ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance:

Sharp Electronics of Canada Ltd. Customer Care

335 Britannia Road East Mississauga, Ontario L4Z 1W9

TO ACCESS OUR WEB SITE: www.sharp.ca

Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including Postal Code), your daytime tel- ephone number (including area code) and description of the problem.

LIMITED WARRANTY Consumer Electronics Products Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called Sharp") gives the following express warranty to the first consumer purchaser for this

Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such T defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as a specified herein. } This warranty shall not apply to: e (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owners manual.

Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, fiers, belts, ribbons, cables and

Any cosmetic damage to he surface or exterior that has been defaced or caused by normal wear and tear.

Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

Any product received without appropriate model, serial number and CSA/cUL markings.

Any products used for rental or commercial purposes.

Any installation, setup and/or programming charges. Should this Sharp product fai to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an cT Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the TT

screen size of 27° or larger and on any Sharp Over-the-Range Microwave Oven

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is. authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a

material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of

information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of

n the manner and period of time described herein, constitute complete fulfilment of al obligations and responsibilties of Sharp to

the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise

WARRANTY PERIODS: Parts & Labour (exceptions noted)

Audio Product 1 year Camcorder 1 year

Projector 1 year (lamp 90 days)

Microwave Oven 1 year (magnetron component-4 additional years) Air Purifier 1 year

Portable Air Conditioner 1 year

Plasmacluster lon Generator 1 year

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East Mississauga, Ontario L4Z LW9

For more information on this Warranty, Sharp Extended Warranty SHARP Offers, Sharp Canada Products, Accessory Sales, Dealer or Service Locations, please call (905) 568-7140 Visit our Web site: www.sharp.ca

D IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of electrical shock, fire or injury to persons:

+ Read all instructions before using the unit. + Use only a 120 volt outlet. + The air purifier has a polarized plug (one blade is wider than the other). This plug will fit in a polar-

ized outlet only one way. If the plug does not fit into the outlet, reverse it. If it still does not fit, con- tact a qualified electrician or service person.

Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened.

Periodically remove dust from the power plug.

Do not insert fingers or foreign objects into the intake or air outlet.

When removing the power plug, always hold the plug and never pull the cord.

Electrical shock and/or fire from short circuit may occur as a result.

Do not remove the plug when your hands are wet.

Do not use this unit near gas appliances or fireplaces.

Remove the power plug from the wall outlet before cleaning the unit and when not using the unit.

Electrical shock from bad insulation and/or fire from short circuit may occur as a result.

When refilling the Water Tank, cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical shock and/or fire from a short circuit may result.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp Authorised Service Centre or similarly qualified person in order to avoid a hazard.

Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity conditions, such as a bathroom.

Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.

Only Sharp Authorised Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs.

+ When carrying the unit, remove the Water Tank and Humidifying Tray first and hold the unit by han- dles on both sides.

Do not drink the water in the Humidifying Tray or Water Tank.

Change the water in the Water Tank daily with fresh tap water and regularly clean the Water Tank and Humidifying Tray. (See E-14 and E-15). When unit is not in use, dispose of the water in the Water Tank and Humidifying Tray. Leaving water in the Water Tank and/or Humidifying Tray may result in mold, bacteria and bad odors.

In rare cases, this bacteria may cause harmful physical effects.

This appliance is not intended for use by persons (including children) with reduced physical, sen- sory or mental capabilities, or lack of experience and knowledge, unless they have been given su- pervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.

NOTE - Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interfer-

ence by one or more of the following measures:

+ Reorient or relocate the receiving antenna.

+ Increase the separation between the unit and radio/TV receiver.

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected.

+ Consult the dealer or an experienced radio/TV technician for help.

This product fulfils the requirement of the International standard CISPR 11.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency in the form of

electromagnetic radiation for electro-discharge machining equipment.

Class B equipment means that the equipment suitable to be used in domestic establishments.

D CAUTIONS CONCERNING OPERATION Do not block the intake and/or air outlet.

Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam.

Always operate the unit in an upright position.

Always hold the handles on both sides of the unit when moving it.

Holding the back panel when carrying may cause it to detach, thus dropping the unit and resulting in bodily injury.

Do not operate the unit without the filters, Water Tank, and Humidifying Tray properly in- stalled.

Do not wash and reuse the filters.

Not only does it not improve filter performance, it may cause electrical shock or malfunction.

Clean the exterior with a soft cloth only.

Do not use volatile fluids and/or detergents.

The unit surface may be damaged or cracked.

In addition, the sensors may malfunction as a result.

Frequency of maintenance required (descaling) will depend on the hardness or the impuri- ties of the water that you use; the harder the water the more often descaling will be neces- sary.

+ Keep the unit away from water.

INSTALLATION GUIDELINES

+ During the operation of the product, please place the unit at least 6.5ft. (2m) away from equipment utilizing electrical waves such as televisions, radios or wave clocks.

- Avoid use in locations where furniture, fabrics or other items may come in contact with and restrict the air intake and/or air outlet.

- Avoid use in locations where the unit is exposed to condensation or rapid temperature changes. (Use under appropriate conditions between 41 - 95°F (5 - 35°C) in the room.)

(fitis unavoidable please allow unit to stand for 1 hour before switching on.)

+ Place on a stable surface with sufficient air circulation. When placing the unit on a heavily carpeted area, it may cause the unit to vibrate slightly.

+ Avoid use in locations where grease or oily smoke is generated (such as in a kitchen, etc.). The unit surface may crack or the sensor may malfunction as a result.

+ Place the unit about 1-2 ft. (30 - 60cm) away from the wall in order to ensure proper airflow.

The wall directly behind the air outlet may become dirty over time. When using the unit for an ex- tended period of time in the same location, periodically clean the wall and protect the wall with a vinyl sheet, etc. to prevent the wall from becoming dirty.

+ Follow the instructions in this manual for correct care and maintenance of the filters. Use only filters designed for this product.

Filter Indicator Light CLEAN SIGN RE TEN The sensor continuously monitors the air and changes color depending on air purity.

ENGLISH True HEPA E filter (white)

D O Remove the filters

@ Install the filters

e quality of the filters they are installed in the main unit and packed ic bags. Be sure to remove the filters from the plastic bags before using

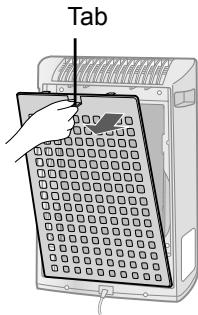

1 Remove the Back Panel. Pull the tab at the top of the Back Panel.

2 Remove the Deodorizing filter and True HEPA filter from the

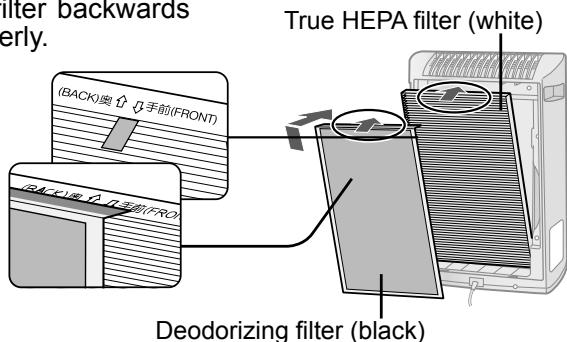

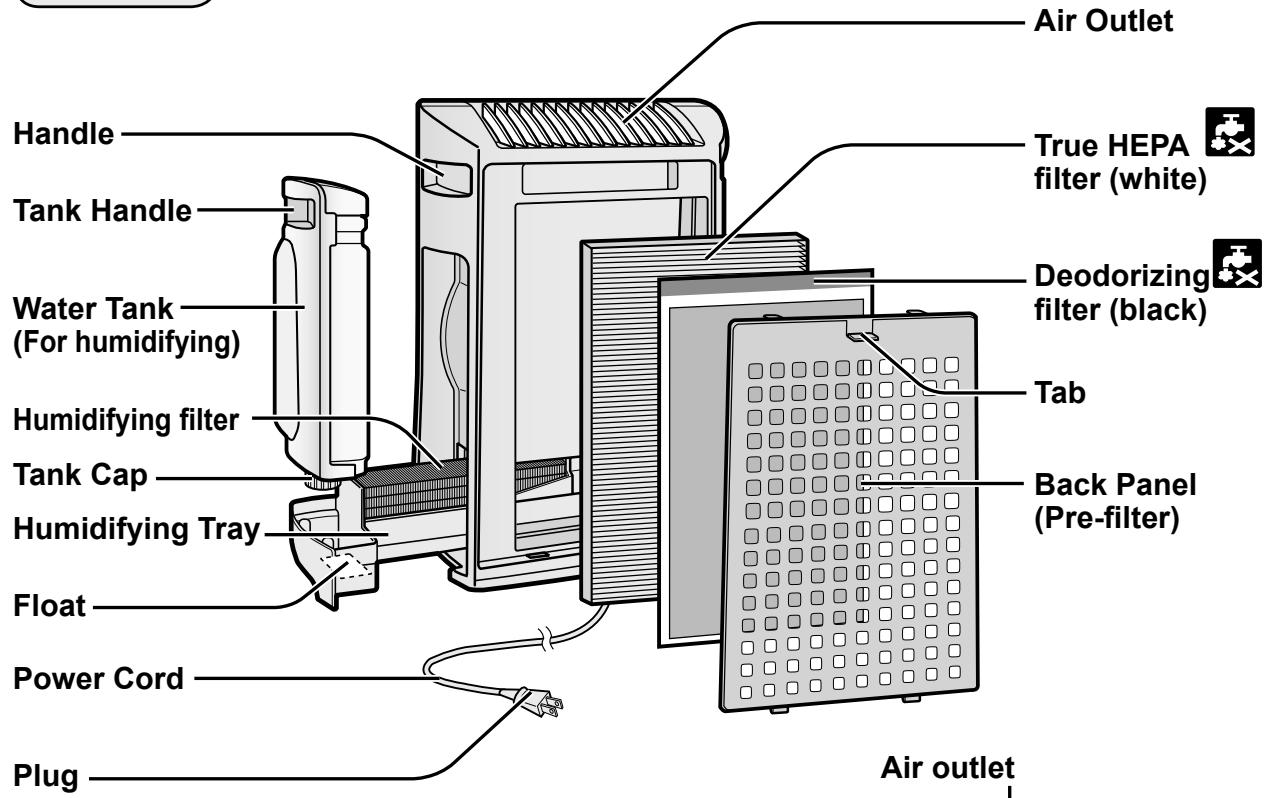

Place the True HEPA filter (white) and Deodorizing filter (black) within the main unit.

Do not install the True HEPA filter backwards True HEPA filter (white) or the unit will not operate properly.

Deodorizing filter (black)

2 Replace the Back Panel to the main unit.

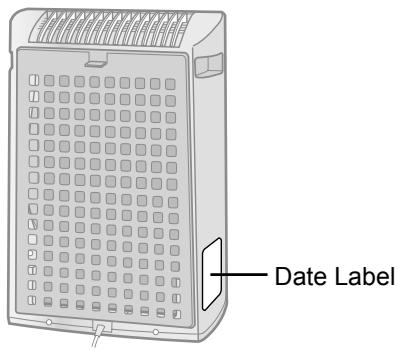

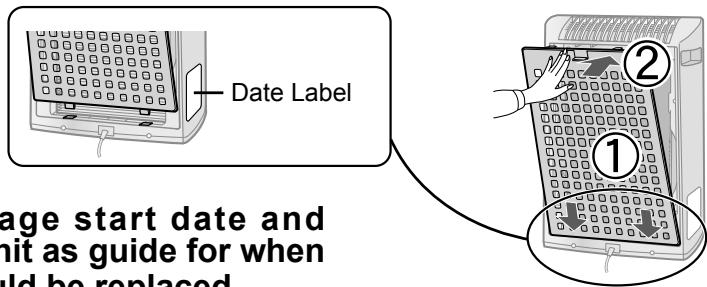

3 Fill in the usage start date and place on the unit as guide for when the filters should be replaced.

r REFILLING THE WATER TANK The unit can be used in the Clean Air Mode without o putting water in the Water Tank. When using in the Hu- CA

midify Mode, the Water Tank should be filled with water.

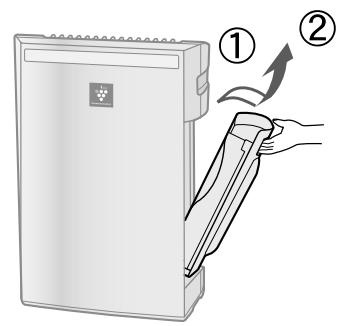

1 Remove the Water Tank by unlatching the Op.

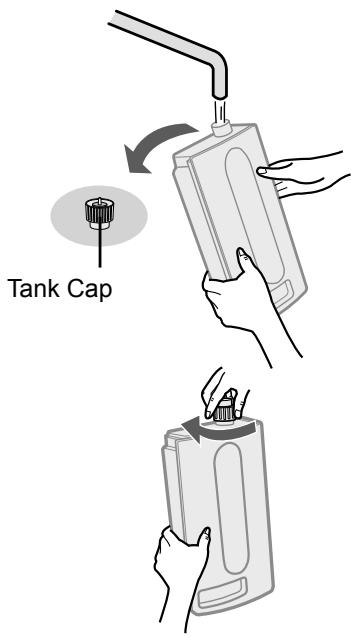

2 Remove the Tank Cap and carefully fill the Water Tank with tap water.

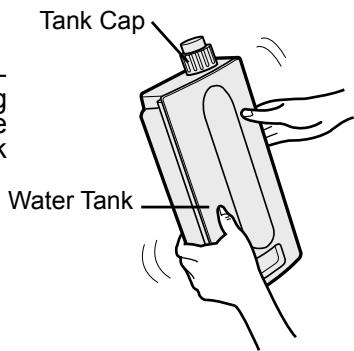

Change the water in the Water Tank every day with fresh tap water. "ce

3 After filling, securely tighten the Tank Cap. PLES

+ Check to see that there is no water leaking.

- Be sure to wipe off any excess water on the outside of the Water Tank.

+ When carrying the Water Tank, hold it with both hands so that the Water Tank opening is facing up.

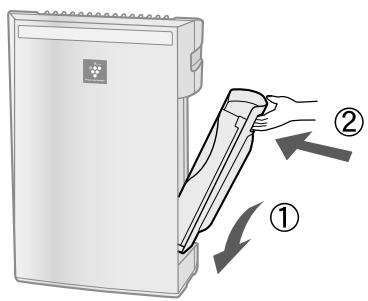

4 Replace the Water Tank in the unit.

The top latch will “click” in place when the Water Tank is properly installed.

+ Do not expose the unit to water. Short circuit and/or electrical shock may occur as a result.

+ Do not use hot water 104 °F (40 °C), chemical agents, aromatic substances, dirty water, or other damaging substances, deformation and/or malfunction may occur.

fresh tap water. Use of other water sources may promote the growth of mold, fun-

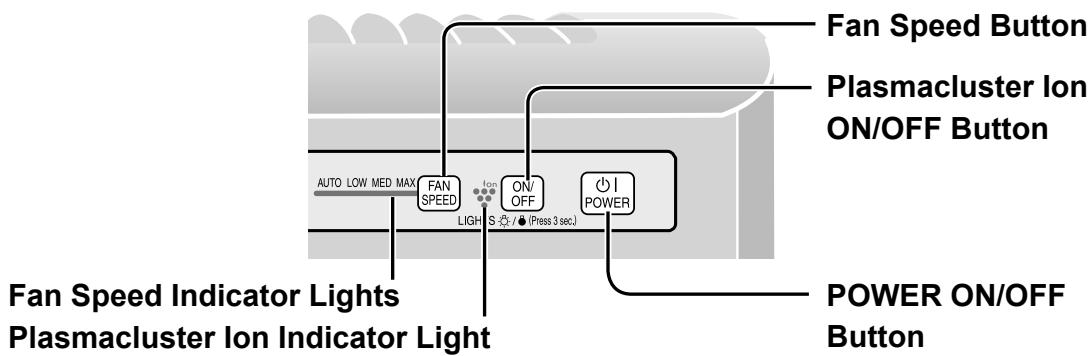

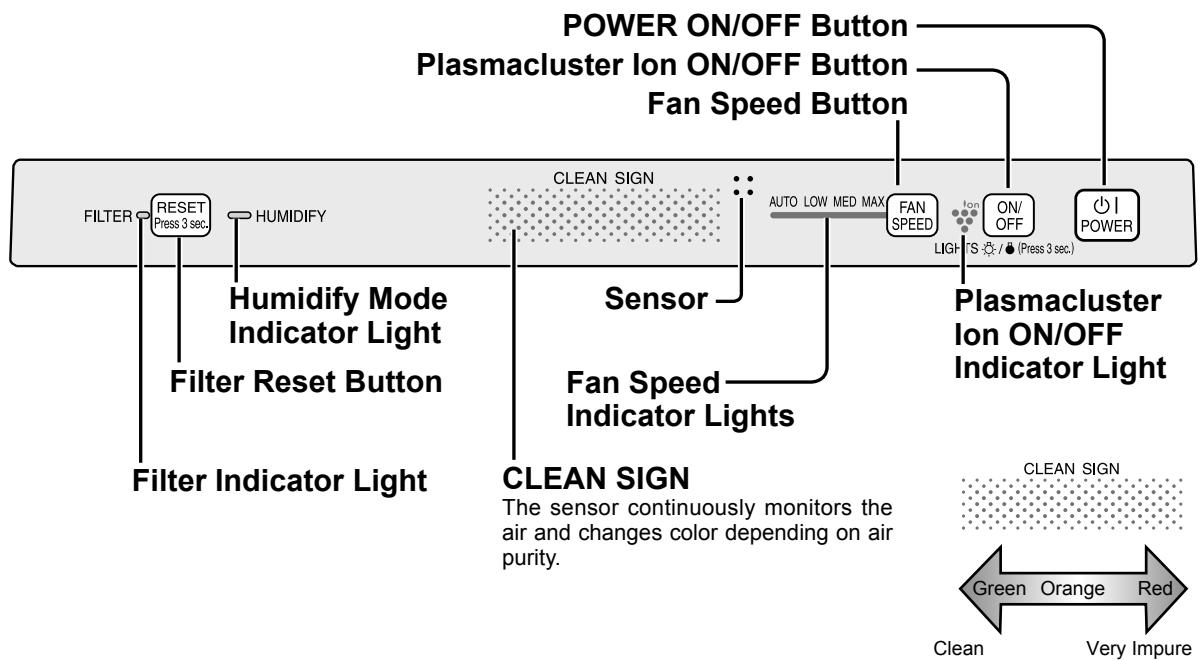

Plasmacluster lon ON/OFF Button

Fan Speed Indicator Lights POWER ON/OFF Plasmacluster lon Indicator Light Button

To select Clean Air mode, be sure the water tank and humidifying tray are empty. To select Clean Air plus Humidify mode, fill the water tank and install on the unit.

ol Power ON/OFF Button D + Press to start operation (short beep) and stop operation POW (long beep) + Plasmacluster Indicator Light and Fan Speed Indicator Light turn on/off.

+ Unless the power cord has been unplugged, the opera- tions starts in the previous mode it was operated in.

FAN Fan Speed Button -+ Press the Fan Speed Button to select the desired fan EED speed. Indicator Lights will show the fan speed cur- rently selected. - The operation mode can be switched as below. The fan speed is automatically switched The unit will operate quietly using (between HIGH and FEU depending on the minimal air intake. amount of impurities in the air. The sensor

detects impurities for efficient air purfication.

MAX MED The unit will operate at a fan speed The unit will operate at a fan speed of MAX. of MEDIUM.

lon ( ON/ Plasmacluster lon ON/OFF Button OFF Press the Plasmacluster lon ON/OFF Button to turn

Plasmacluster lon Mode ON and OFF. When Plasmacluster lon is ON, the Plasmacluster lon Indicator Light will turn on.(blue)

D CARE AND MAINTENANCE To maintain optimum performance of this air purifier, please clean the unit including the sensor and filters periodically.

When cleaning the unit, be sure to first unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result.

FILTER INDICATOR LIGHT The Filter Indicator Light will illuminate as a reminder to perform maintenance of the

Back Panel/Pre-filter, Sensor, and Humidifying Filter. The Indicator Light will turn on after approximately 720 hours of use.

After performing maintenance, reset the Filter Indicator.

1 Plug the unit in, turn power ON.

2 Press the RESET button for 3 seconds. - The Filter Indicator Light will go off.

+ Even if the Filter Indicator Light is already off, the RESET button should be pressed to reset the maintenance timer.

L BACK PANEL and SENSOR Whenever dust accumulates Care Cycle on the unit or every 2 months

Gently remove dust from the sensor opening and the back panel, using a vacuum cleaner attachment or similar tool.

<When the back panel has stubborn dirt>

1 In case of heavy dirt, soak the back panel in water with a small amount of kitchen detergent.

(Approx. 10min.) (Avoid scrubbing the back panel when washing.)

2 Rinse the back panel repeatedly with clean water to remove the solution residue.

Drip dry the panel to remove excess water. Back Panel

D CARE AND MAINTENANCE

(ECS TES Every day when Humidifying | Tank Cap

Rinse the inside of the tank by leaving a small amount of luke- warm water inside, closing the tank cap firmly, and shaking the tank. Mild household detergents may be used to clean the inside of the tank, but detergent should be diluted and the tank should be thoroughly rinsed to remove all detergent residue.

(Note the Water Tank is not dishwasher safe.)

NS UNIT ECS TIC Whenever dust accumulates on the unit or every 2 months To prevent dirt or stains on the unit, clean regularly. If stains are allowed to remain, they may become difficult to remove. Wipe with a dry, soft cloth For stubborn stains or dirt, use a soft cloth dampened with warm water. Do not use volatile fluids Benzene, paint thinner, polishing powder, may damage the surface. Do not use detergents

- HUMIDIFYING TRAY the tray.

Remove the Water Tank and Humidifying Tray.

Unlatch the Water © Tank first, then re- S (@] move the tray. Use both hands when pulling out the Hu- midifying Tray to avoid spilling water.

Remove the Humidifying filter from the Humidifying Tray. Drain accumulated wa- ter by tilting the Humidifying Tray slowly.

D Humidifying filter

3 Rinse the inside of the Humidifying Tray with lukewarm water to remove

impurities. + Do not remove the Styrofoam float.

- Clean difficult-to-reach parts with a cotton- tipped swab or tooth brush.

Frequency of maintenance cycle will depend on the hardness of the water. Avoid spilling water when removing or cleaning

Ç When Water Deposits are Difficult to Remove

1 Fill Humidifying Tray half-

way with lukewarm water,

add a small amount of mild

kitchen detergent, and leave

to soak for about 30 min- utes.

ENGLISH Dilute detergent according to instructions on the container. Clean difficult-to-reach parts with a cotton swab or tooth brush.

Rinse the Humidifying Tray with lukewarm wa- ter.

+ Rinse until all detergent residue is removed.

* Inadequate rinsing may cause the detergent odor or changes in the shape/color of the main unit.

+ Use only mild kitchen detergents to clean the Humidifying Tray. Use of non-designated chemicals or deter- gents can cause deformation, tar- nishing, cracking (water leakage).

If the Styrofoam float comes off, replace by inserting the tabs of the Float into the holes in the Humidifying Tray as shown in the

diagram. @ Insert the tab of the float into the hole.

@ Insert the float below this tab.

@ Insert the tab on the other side of the float into the hole.

D CARE AND MAINTENANCE When cleaning the unit, be sure to first unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result.

- HUMIDIFYING FILTER Frequency of maintenance cycle will depend on the hardness or the impurities of the water that you use; the harder the water the more often descaling will be necessary.

Pay attention not to spill water when cleaning the filter.

NS Once a month or when the Filter Indicator Light is on.

Remove the Water Tank and Humidifying Tray. (See E-15)

Remove the Humidifying filter from the Humidifying Tray.

Avoid spilling water from the Humidifying Tray.

Preparing the descaling solu- tion.

Citric acid, available at some drugstores, or 100 % bottled lemon juice are used for descaling. Choose either one to use, and prepare the descaling solution.

<For using citric acid>

Dissolve 3 teaspoons of citric acid and 2 1/2 cups of lukewarm water in a suitable container, and stir well.

<For using lemon juice>

100 % bottled lemon juice can be used for descaling. Use only 100 % bottled lemon juice with no pulp (strain juice if necessary). Combine 1/4 cup lemon juice and 3 cups of lukewarm water in a con- tainer large enough to hold the Humidify- ing filter and stir well.

Pre-soak the Humidifying filter in the solution for 30 minutes before cleaning.

When using lemon juice, it is recommend- ed to pre-soak longer than citric acid.

Rinse the Humidifying filter re- peatedly with lukewarm water to remove all the solution resi- due.

Inadequate rinsing may cause odor and affect the performance and/or appear- ance of the unit.

*Do not scrub the Hu- midifying filter, rinse gently under lukewarm water only.

Attach the Humidifying filter to the Humidifying Tray, and re- place the Humidifying Tray in the unit.

-The Humidifying filter does not need to be oriented in any particular position(forward/backward, up/down)

+-When not using the unit for a long period of time, dry the Humidi- fying filter com- pletely before replacing.

Plug in the unit, turn power ON, and press the Filter Reset Button on the display for more than 3 seconds to reset.

You may notice reddish-brown or white deposits forming on the surface of the Humidifying filter. These impuri- ties (calcium, etc.) are due to the im- purities contained in tap water; this is not a defect. Replace the Humidifying filter when it is covered completely in white deposits.

Filter life varies depending on the room environment, usage, and loca- tion of the unit.

If dust or odor persist, replace the filters.

(Refer to “Please read before operating your new Air Purifier”)

Guide for filter replacement timing

- The presence of cigarette smoke, pet dander and other concentrated airborne particles may cause the filters to become clogged more quickly. Please check the filters regularly and replace as needed.

We recommend to replace the filters more frequently if the product is used in a condition significantly more severe than normal household use.

-True HEPA filter -- About 2 years after opening -Deodorizing filter About 2 years after opening -Humidifying filter About 1 year after opening

REPLACING THE FILTER

1 See page E-10,11 and E-15,16 for directions on how to install the filter when replacing.

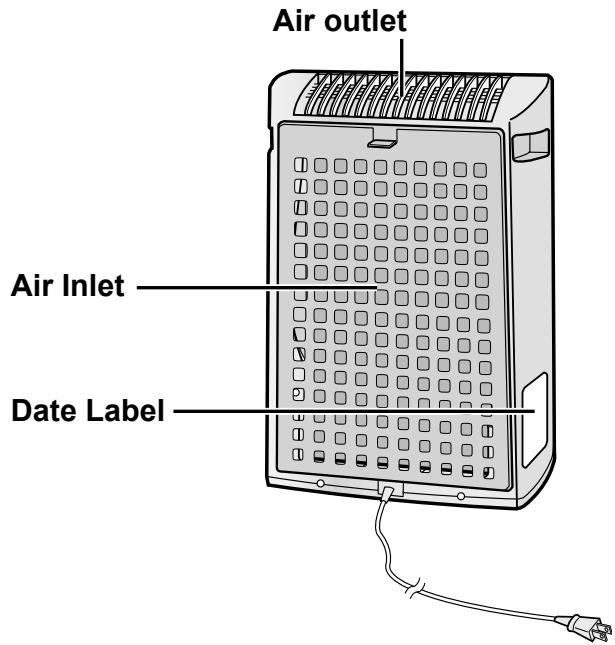

2 Fill in the usage start date of the filter on the Date Label.

de Date Label Replacement Filters

Model : FZ-P30SFU Model : FZ-P30MFU -True HEPA filter : 1 unit -Humidifying filter : 1 unit -Deodorizing filter : 1 unit

True HEPA filter (white)

Deodorizing filter (black)

Please consult your dealer for purchase of replacement filter.

Disposal of Filter Please dispose of the replaced filter according to the local disposal laws and regulations.

True HEPA filter materials : Deodorizing filter materials : -Filter : Polypropylene -Polypropylene, Polyester, Activated charcoal -Frame : Polyester Humidifying filter materials :

D TROUBLESHOOTING Before calling for service, please review the Troubleshooting chart below, since the problem may not

be a unit malfunction.

SYMPTOM REMEDY(not a malfunction)

Odors and smoke are not removed.

+ Clean or replace the filters if they appear to be heavily soiled. (See E-13,17)

The Clean Sign illuminates green even when the air is impure.

- The air could be impure at the time the unit was plugged in. Unplug the unit, wait one minute, and plug the unit in again.

The Clean Sign illuminates orange or red even when the air is clean.

+ Sensor operation is affected if the odor sensor openings are dirty or clogged. Gently clean the sensor openings. (See E-13)

A clicking or ticking sound is heard from the unit.

+ Clicking or ticking sounds may be audible when the unit is generating Plasmacluster ions.

The discharged air has an odor.

+ Check to see if the filters are heavily soiled.

+ Clean or replace the filter.

+ Plasmacluster Air Purifiers may produce a slight odor. This is normal and is a result of the Plasmacluster lons refreshing the air.

The unit does not operate when cigarette smoke is in the air.

+ Is the unit installed in a location that is difficult for the sensor to detect cigarette smoke?

- Are the sensor openings blocked or clogged? (In this case, clean the openings.) (See E-13)

Filter Indicator Light is illuminated.

+ After cleaning or replacing the filters, connect the power cord to an outlet and press the Filter Reset Button for 3 seconds.

The Humidify Mode Indicator Light does not illuminate when the tank is not empty.

+ Check Styrofoam float for impurities. Clean the Humidi- fying Tray. Ensure unit is located on a level surface. Check to see if the Humidifying Tray and Water Tank are correctly installed.

Water level in the tank does not decrease or decreases slowly.

+ Check to see if the Humidifying Tray and Water Tank are correctly installed. Check the Humidifying filter.

+ Clean or replace the filter when it is heavily soiled. (See E-15, E-16, E-17)

The Clean Sign lights change colour frequently.

+ The Clean Sign lights automatically change colors as impurities are detected by the sensor.

Flashing of the Fan Speed Indicator Light 'LOW".

- Turn power OFF to cancel the error display, wait one minute, and then turn power ON.

+ Abnormal fan motor.

True HEPA filter / Deodorizing filter

375mm(W)x205mm(D)x535mm(H) 143/4in(Wx81/8in(D}x211/8in(H)

*1 Size of a room which is appropriate for operating the unit at maximum fan speed.

[ à Standby Power In order to operate the electrical circuits while the power plug is inserted in the

wall outlet, this product consumes about 0.3W of standby power.

For energy saving, unplug the power cord when the unit is not in use.
