USER MANUAL KC-A60EUW SHARP

High-Density 7000

Device of this mark is a trademark of Sharp Corporation.

Plasmacluster is a registered trademark or a trademark of Sharp Corporation.

Free standing type

with Humidifying Function

OPERATION MANUAL

AIR PURIFIER

MANUAL DE INSTRUÇÕES

Air Purifier with

Humidifying Function

* The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm³, which is measured around the center of a room with the “high-density plasmcluster 7000” applicable floor area (at 1.2 m height above the floor) at the medium wind volume in humidifying & air purifying mode, or in air purifying mode, when a humidifier/air purifier or an air purifier using the high-density plasmcluster ion evolving device is placed close to a wall. This product is equipped with a device corresponding to this capacity.

Please read before operating your new Air Purifier

The air purifier draws in room air from the air intake, passes the air through a Pre-Filter, a Washable Deodorizing Filter and a HEPA Filter inside of the unit, then discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the filter and also helps absorb odours.

The Washable Deodorizing Filter gradually absorbs odours as they pass through the filter.

Some odours absorbed by the filters may break down over time, resulting in additional odour. Depending on the usage environment, especially when the product is used in extreme environments (significantly more severe than normal household use), this odour may become strong in a shorter period than expected. If the odour persists, the filters should be replaced.

NOTE

- The air purifier is designed to remove air-suspended dust and odour, but not harmful gases (for example, carbon monoxide contained in cigarette smoke). If the source of the odour still exists, the air purifier may not completely remove the odour.

(Common illustration has used "KC-A60EU".)

FEATURES

Unique Combination of Air Treatment Technologies

Triple Filtration System + Plasmacluster + Humidification

TRAPS DUST*

Washable pre-filter traps dust and other large airborne particles.

DECREASES ODOURS

Washable deodorizing filter absorbs many common household odours.

REDUCES POLLEN & MOLD*

HEPA filter traps 99.97% of particles as small as 0.3 microns.

FRESHENS

Plasmacluster treats the air similar to the way nature cleans the environment by emitting a balance of positive and negative ions.

HUMIDIFIES

Runs up to 10 hours per filling.**

*When air is drawn through the filter system.

**Room size:

up to 48 m² (KC-A60EU)

up to 38 m² (KC-A50EU)

up to 26 m² (KC-A40EU)

Sensor Technology continuously monitors air quality, and automatically adjusts operation based on detected air purity and humidity.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ... E-2

• WARNING • CAUTIONS CONCERNING OPERATION • INSTALLATION GUIDELINES • FILTER GUIDELINES

PART NAMES.....E-4

• FRONT / BACK
• MAIN UNIT DISPLAY • ILLUSTRATIVE DIAGRAM

PREPARATION......E-6

• FILTER INSTALLATION • REFILLING THE WATER TANK

OPERATION ...... E-8

• CLEAN AIR & HUMIDIFY
• CLEAN AIR
• CLEAN ION SHOWER • FAN SPEED • PLASMACLUSTER ION ON/OFF

USEFUL FUNCTION ...... E-10

• LIGHTS CONTROL - CHILD LOCK • SOUND INDICATOR SETTING • ADJUSTMENT OF SENSOR DETECTION SENSITIVITY

CARE AND MAINTENANCE ...... E-11

• FILTER INDICATOR - CARE INDEX • HUMIDIFYING DISINSTALLATION - WATER TANK • HUMIDIFYING FILTER • HUMIDIFYING TRAY AND COVER - BACK PANEL • DEODORIZING FILTER - UNIT • FILTER REPLACEMENT

TROUBLESHOOTING ...... E-16

SPECIFICATIONS ...... E-19

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING – To reduce the risk of electrical shock, fire or injury to persons:

- Read all instructions before using the unit.

- Use only a 220~240 volt outlet.

- Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loose.

- Periodically remove dust from the plug.

- Do not insert fingers or foreign objects into the air intake or air outlet.

- When removing the power plug, always hold the plug and never pull on the cord. Electrical shock and/or fire from a short circuit may result.

- Be careful not to damage the power cord, as it may cause electric shock, excess heat, or fires.

- Do not remove the plug when your hands are wet.

- Do not use this unit near gas appliances or fireplaces.

- When refilling the Water Tank, cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical shock and/or fire from a short circuit may result.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp authorized Service Centre, or similarly qualified person in order to avoid a hazard.

- Only a Sharp Authorized Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs.

- Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air, or in locations where the unit may get wet, such as a bathroom.

- Be cautious when cleaning the unit. Strong corrosive cleansers may damage the exterior.

- When carrying the unit, remove the Water Tank and Humidifying Tray first and hold the unit by handles on both sides.

- Do not drink the water in the Humidifying Tray or Water Tank.

- Change the water in the Water Tank daily with fresh tap water and regularly clean the Water Tank and Humidifying Tray. (See E-12 and E-13). When the unit is not in use, dispose of the water in the Water Tank and Humidifying Tray. Leaving water in the Water Tank and/or Humidifying Tray may result in mold, bacteria, and bad odours. In rare cases, this bacteria may cause harmful physical effects.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.

NOTE – Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation distance between the unit and radio/TV receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters, or where it may come into contact with steam.
• Always operate the unit in an upright position.
• Hold the unit by using the handles on both sides when moving. Do not move when the unit is in operation.
• Do not move or change the direction of the main unit while dragging the casters.
• Lift it up and move such as a tatami mat, a floor which gets damaged easily, an uneven place, and thick-poled carpet.
• When moving by the caster, move it in a horizontal direction.
• Turn the appliance off and remove the water tank before moving, taking care not to catch your fingers.
• Do not operate the unit without the filters, water tank, and humidifying tray properly installed.
• Do not wash and reuse the HEPA filter.

Not only does it not improve filter performance, it may cause electric shock or malfunction.

Clean the exterior with a soft cloth only.

Do not use volatile fluids and/or detergents.

The unit surface may be damaged or cracked.

In addition, the sensors may malfunction as a result.

• The frequency of maintenance required (descaling) will depend on the hardness or impurities of the water you use; the harder the water, the more often descaling will be necessary.
• Keep the unit away from water.

INSTALLATION GUIDELINES

• When using the unit, place it at least 2m away from equipment utilizing electric waves such as televisions or radios to avoid electrical interference.
• Avoid a location where the sensor is exposed to direct wind.

The unit may not operate properly.

• Avoid use in locations where furniture, fabrics, or other items may come in contact with and restrict the air intake and/or air outlet.
• Avoid use in locations where the unit is exposed to condensation or drastic temperature changes. Appropriate conditions are when room temperature is between 5 – 35 °C.
• Place on a stable surface with sufficient air circulation.

When placing the unit on a heavily carpeted area, the unit may vibrate slightly.

Place the unit on an even surface to avoid water leakage from the Water Tank and/or Humidifying Tray.

• Avoid locations where grease or oily smoke is generated. The unit surface may crack or the sensor may malfunction as a result.
• Place the unit about 30 cm (1 ft) away from the wall in order to ensure proper airflow.

The wall directly behind the air outlet may become dirty over time. When using the unit for an extended period of time in the same location, periodically clean the wall and protect the wall with a vinyl sheet, etc. to prevent the wall from becoming dirty.

FILTER GUIDELINES

- Follow the instructions in this manual for correct care and maintenance of the filters.

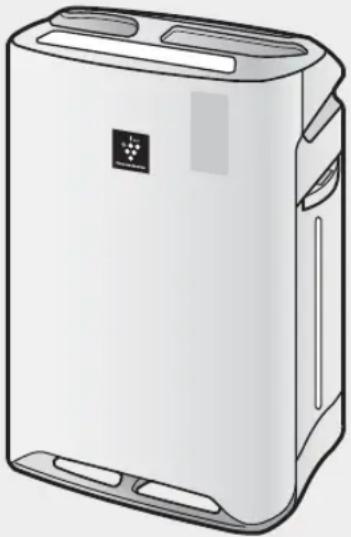

FRONT / BACK

1 Main Unit Display (Ref.E-5)
2	Front Monitor
3	Main Unit

(Shape of plug depends on country.)

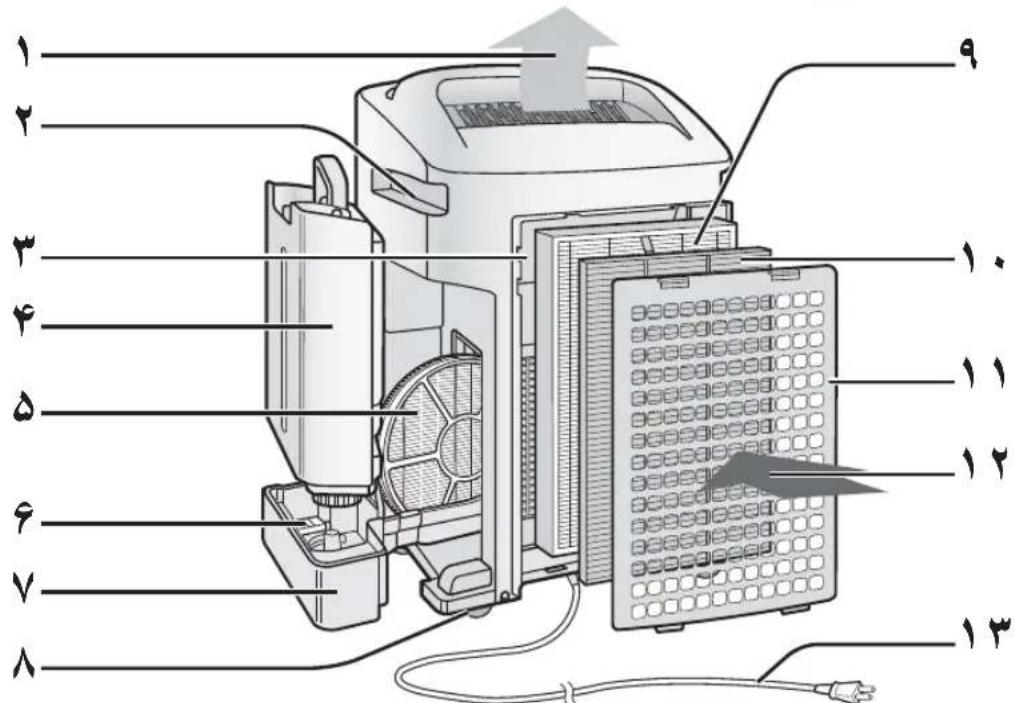

1 Air Outlet 6 Float
2 Handle (2 Locations)	7 Humidifying Tray
3 Sensor (Internal)•Dust Sensor•Temperture / Humidity Sensor•Odour Sensor(KC-A60EU•KC-A50EU ONLY)	8 Caster (4 Locations)
	9 HEPA Filter (white)
	10 Deodorizing Filter (black)
	11 Back Panel (Pre-Filter)
	12 Air Inlet
4 Water Tank 13 Power Cord / Plug

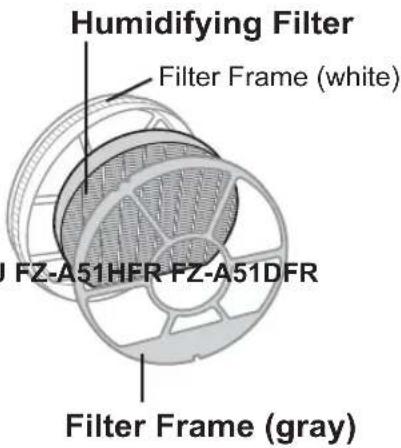

5 Humidifying Filter

INCLUDED

• Operation manual - Slipper

×4

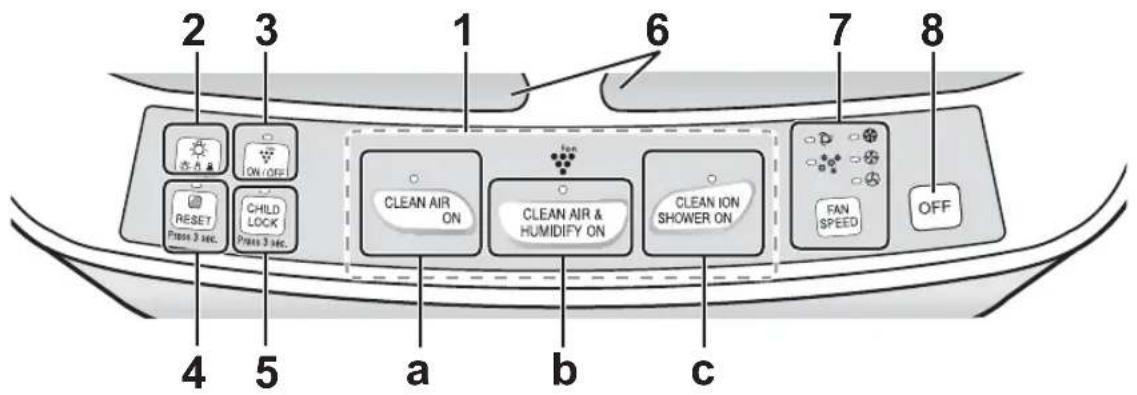

MAIN UNIT DISPLAY

1 POWER ON Button
a CLEAN AIR MODE Button / INDICATOR LIGHT (green)
b CLEAN AIR & HUMIDIFY MODE Button / INDICATOR LIGHT (green)
c CLEAN ION SHOWER MODE Button / INDICATOR LIGHT (green)
2 LIGHT CONTROL Button 5 CHILD-LOCK Button /INDICATOR LIGHT (green)
3 Plasmacluster Ion ON / OFF Button /INDICATOR LIGHT (green)	6 Plasmacluster Sign
4 FILTER RESET Button /INDICATOR LIGHT (red)	7 FAN SPEED Button /INDICATOR LIGHT (green)
	8 POWER OFF Button

ILLUSTRATIVE DIAGRAM

FILTER INSTALLATION

1

Remove the Back Panel.

HEPA filter (White)

Deodorizing filter (Black)

2

Remove the Filters from the plastic bag.

3

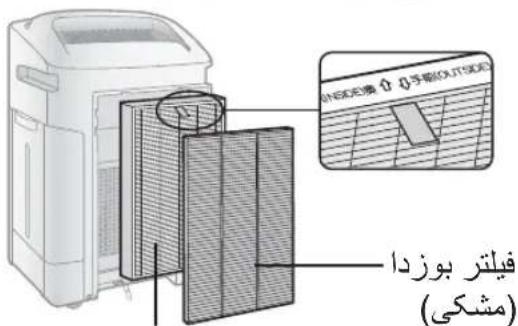

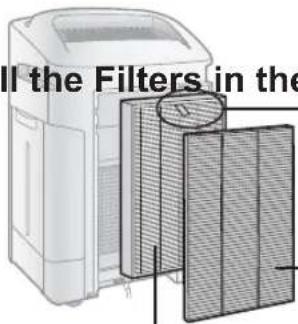

Install the Filters in the order as shown.

Deodorizing filter (Black)

HEPA filter (White)

4

HEPA filter (White)

4

Click

Install the Back Panel.

5

Fill in the usage start date on the Date Label.

Date Label.

REFILLING THE WATER TANK

When using the Clean Air & Humidify Mode, or the Clean ION Shower Mode.

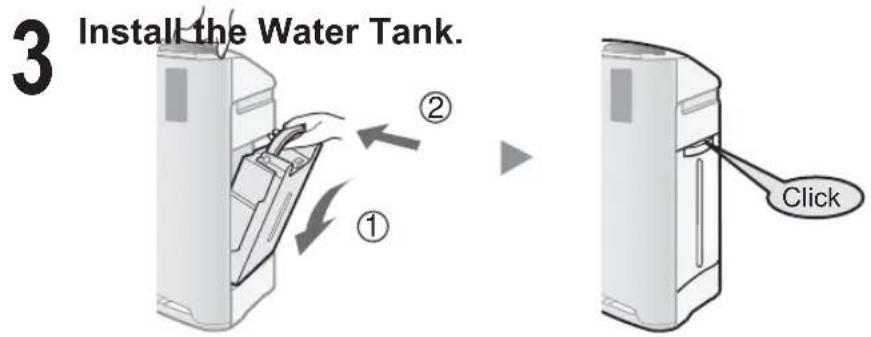

Remove the Water Tank.

CAUTION

• Check to see that there is no water leaking.
• Be sure to wipe off any excess water on the outside of the Water Tank.
• When carrying the Water Tank, hold it with both hands so that the Water Tank opening is facing up.

CAUTION

• Do not expose the unit to water. Short circuit and/or electrical shock may occur as a result.
• Do not use hot water (40 °C), chemical agents, aromatic substances, dirty water, or other damaging substances, deformation and/or malfunction may occur.
• Use only fresh tap water. Use of other water sources may promote the growth of mold, fungus and/or bacteria.

CLEAN AIR & HUMIDIFY

Using to quickly clean the air, reduce odours and to humidify.

START

- Select the desired fan speed. (Ref. E-9)

- Unless the power cord has been unplugged, the operations start in the previous mode it was operated in.

NOTE

• Fill the Water Tank. (Ref. E-7) - When the Water Tank is empty, the unit will operate in "CLEAN AIR MODE" and is flashing (red).

STOP

About Automatic Humidify Mode

The Temperature/Humidity sensors automatically detect and adjust humidity according to changes in room temperature. Depending on the size and humidity of the room, humidity may not reach 55~65 %. In such cases, it is recommended that CLEAN AIR & HUMIDIFY/MAX MODE be used.

Temperature Humidity
~18 °C 65 %
18 °C~24 °C 60 %
24 °C~ 55 %

CLEAN AIR

Using when additional humidity is not required.

START

• Select the desired fan speed. (Ref. E-9)
• Unless the power cord has been unplugged, the operations start in the previous mode it was operated in.

STOP

CLEAN ION SHOWER

Releases high-density Plasmacluster ions and discharges strong air flow for 60 minutes.

START

NOTE

• If the "Plasmacluster ion" is OFF, the plasmacluster ion will not be released.
• When the operation finishes, the unit will return to the prior operation mode. It is possible to switch this mode to another while operating. However, the CLEAN ION SHOWER mode will not function after switching mode.

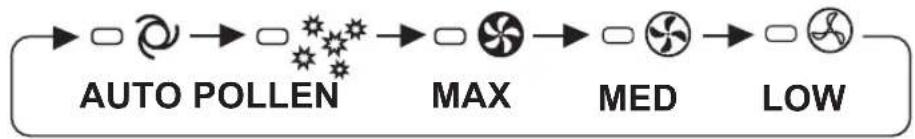

FAN SPEED

Select the desired fan speed.

NOTE

AUTO

The fan speed is automatically switched (between HIGH and LOW) depending on the amount of impurities in the air. The sensors detect impurities for efficient air purification.

POLLEN

The unit will operate at High Level for 10 minutes, then will alternate between MEDIUM and HIGH.

PLASMACLUSTER ION ON/OFF

When Plasmacluster is ON, both the Indicator Light and Plasmacluster Indicator Light turn on.

ON

USEFUL FUNCTIONS

LIGHT CONTROL

Use this function to select the desired brightness.

CHILD LOCK

Operation of the unit display will be locked. It is the same method as starting operation.

ON CANCELLATION

SOUND INDICATOR SETTING

The unit can be set to give an audible signal when the Water Tank is empty.

ON

(with the unit OFF)

CANCELLATION

(with the unit OFF)

ADJUSTMENT OF SENSOR DETECTION SENSITIVITY

If the DUST MONITOR and ODOUR MONITOR is constantly red, reduce sensitivity; if it is constantly green, increase sensitivity.

RED……SET to "LOW" GREEN…SET to "HIGH"

1

more 3 sec.

(with the unit OFF)

2

3

CAUTION

• If the power OFF Button is not pushed within 8 seconds of adjusting sensor sensitivity, the setting will be saved automatically.
• The sensor sensitivity setting will be saved even if the unit is unplugged.

FILTER INDICATOR

The Indicator Light will turn on after approximately 720 hours. (30 days × 24 hours = 720)

Press 3 sec.

Reminder to perform maintenance of parts below.

After performing maintenance, reset the Filter Indicator. (Ref. E-12)

Press for more than 3 seconds.

CARE INDEX

- The Filter Indicator light turns on.

Humidifying Filter (Ref. E-12)

Water Tank (Ref. E-12) Humidifying Tray (Ref. E-13)

• Notice an unpleasant odour from the air outlet.
• Filter performance appears to have decreased and/or odour persists.

Deodorizing Filter (Ref. E-14)

HUMIDIFYING DISINSTALLATION

After maintenance, replace the parts accurately.

WATER TANK

Rinse the inside with a small amount of water.

CAUTION

- Do not shake the Water Tank while holding the carrying handle.

Clean inside of the water tank with a soft sponge and the tank cap with a cotton swab or a toothbrush.

Toothbrushes, tank cap

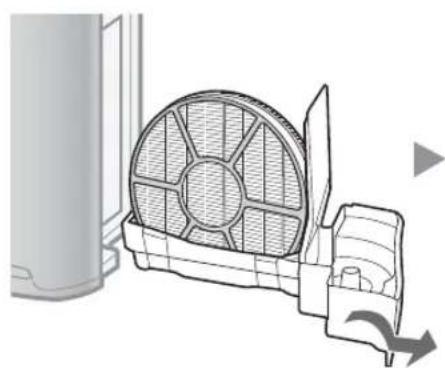

HUMIDIFYING FILTER

Rinse with plenty of water.

CAUTION

• Do not remove the Humidifying Filter from a filter frame.
• Avoid spilling water from the Humidifying Tray.

1. Soak in water with the descaling solution about 30 minutes.

CAUTION

When using lemon juice, soak time more longer.

1. Remove the descaling solution with plenty of water.

Descaling solution

• Citric acid (available at some drugstores) • 100% bottled lemon juice with no pulp.

2 1/2 cups of water

3 cups of water

HUMIDIFYING TRAY AND COVER

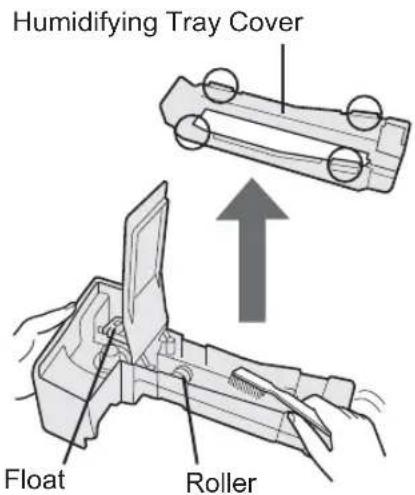

1. Remove the Humidifying Tray Cover.
2. Rinse the inside of the Humidifying Tray and the Humidifying Tray Cover with a toothbrush.

CAUTION

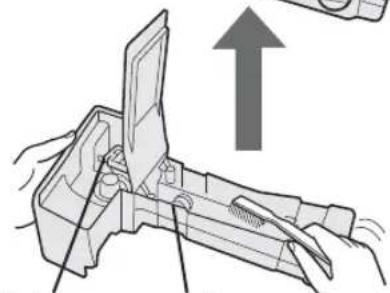

• Do not remove the Float and the Roller.
• If the Float and/or the Roller comes off. (Ref. E-17)

NOTE: For stubborn dirt...

TRAY

1. Fill the tray halfway with water.
2. Add a small amount of kitchen detergent.
3. Soak for 30 minutes.
4. Rinse off the kitchen detergent with clean water.

COVER

1. Soak in water with a small amount of kitchen detergent for about 30 minutes.
2. Rinse off the kitchen detergent with clean water.

Clean hard-to-reach parts with a cotton swab or toothbrush.

CAUTION

DO NOT use the detergents shown on E-14.

They may cause deformation, tarnishing, or cracking (water leakage).

BACK PANEL

Gently remove dust with a vacuum cleaner attachment or similar tool.

NOTE: For stubborn dirt...

1. Soak in water with kitchen detergent for about 10 minutes.

CAUTION

DO NOT scrub the back panel hard.

1. Rinse off the kitchen detergent with clean water.
2. Dry the filter completely in a well-ventilated area.

CARE AND MAINTENANCE

DEODORIZING FILTER

HAND WASH ONLY!

DO NOT DRY IN CLOTHES DRYER!

1

Remove the dust on the DEODORIZING FILTER.

2

Rinse the DEODORIZING FILTER with water.

CAUTION

• When washing the filter for the first time, the rinse water may be brown. This does not affect deodorization performance.
• Avoid bending or folding the filter when washing.

3

Remove as much of the moisture as possible.

4

When possible, dry outdoors.

Dry the filter completely in a well ventilated area.

(about 6 hours to dry out)

CAUTION

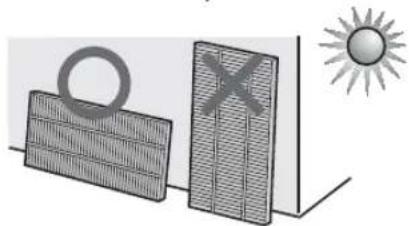

• Avoid drying filter outdoors during inclement weather (e.g. rain or cold temperatures).
• Do not allow filter to freeze.
• If filter is dried indoors, take precautions, such as placing towels, etc under the filter to prevent water damage to the floor.

UNIT

Wipe with a dry, soft cloth.

CAUTION

• Do not use volatile fluids (benzine, paint thinner, polish powder) as they may damage the surface. • Do not use detergents; detergent ingredients may damage the unit.

FILTER REPLACEMENT

Replacement timing

Filter life will vary depending on the room environment, usage, and location of the unit. If dust or odor persists, replace the filter.

(Refer to "Please read before operating your new Air Purifier")

The following filter life and replacement period is based on the condition of smoking 5 cigarettes per day and the dust collection/deodorization power is reduced by half compared with that of a new filter.

We recommend replacing the filter more frequently if the product is used in conditions significantly severer than normal household use.

• HEPA filter: About 10 years after opening - Deodorizing filter*: About 10 years after opening • Humidifying filter: About 10 years after opening

* Washable deodorizing filter can be repeatedly used after washing, or it can be replaced.

Replacement Filter Model

Please consult your dealer for purchase of replacement filter.

AIR PURIFIER MODEL	REPLACEMENT FILTER MODEL
	HEPA Filter : 1 unit	Deodorizing Filter : 1 unit	Humidifying Filter : 1unit
KC-A40EU FZ-A41HFR FZ-A41DFR			FZ-A61MFRK
KC-A60EU FZ-A61HFR FZ-A61DFR

NOTE

Use the date label as a reminder for next replacement.

Disposal of Filters

Please dispose of used filters according to any local laws and regulations.

HEPA Filter material:

• Filter: Polypropylene
• Frame: Polyester

Deodorizing Filter material:

• Deodorizer: Activated charcoal
• Filter: Polyester, Rayon

Humidifying Filter material:

• Filter: Rayon, Polyester

TROUBLESHOOTING

Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction.

SYMPTOM REMEDY (not a malfunction)
Odours and smoke are not removed.	·Clean or replace the fi Iters if they appear to be heavily soiled. (Ref. E-11,E-12,E-14)
The Front Monitor illuminates green even when the air is impure.	·The air could be impure at the time the unit was plugged in. Unplug the unit, wait one minute, and plug the unit in again.
The Front Monitor illuminates orange or red even when the air is clean.	·Sensor operation is affected if the dust sensor openings are dirty or clogged. Gently clean the dust sensors. (Ref. E-4).
A clicking or ticking sound is heard from the unit.	·Clicking or ticking sounds may be audible when the unit is generating ions.
The discharged air has an odour.	·Check to see if the fi Iters are heavily soiled. ·Clean or replace the fi Iters. ·Plasmacluster Air Purifiers emit small traces of ozone which may produce an odour.
The unit does not operate when cigarette smoke is in the air.	·Is the unit installed in a location that is difficult for the sensor to detect cigarette smoke? ·Are the dust sensor openings blocked or clogged? (In this case, clean the openings.) (Ref. E-4)
Filter Indicator Light is illuminated.	·After replacing filters, connect the power cord to an outlet and press the Filter Reset Button. (Ref. E-11)
The Front Monitor are turned off.	·Check to see if the Lights OFF Mode selected. If so, then press the Lights Control Button to activate the indicator lights. (Ref. E-10)
The Water Supply Indicator Light does not illuminate when the tank is empty.	·Check Styrofoam float for impurities. Clean the HumidifyingTray. Ensure unit is located on a level surface.
Water lever in the tank does not decrease or decreases slowly.	·Check to see if the Humidifying Tray and Water Tank are correctly installed. Check the Humidifying Filter. ·Clean or replace the fi Iter when it is heavily soiled. (Ref. E-14 and E-15).
The Front Monitor lights change colour frequently.	·The Front Monitor lights automatically change colours as impurities are detected by the dust sensor and odour sensor.

SYMPTOM REMEDY (not a malfunction)

When the Roller / Float was removed.

• Install the Roller / Float in order below.

ROLLER

Fix the roller in the tray from side way.

NOTE

Check the direction of the roller.

AUTO RESTART

After a power failure, automatically resume the operation when the power recovers.

Auto Restart can be set.

- Even when the plug is unplugged or the breaker is thrown during the operation, the operation resumes at the previous operation mode and settings if the power recovers.

ON

(with the unit OFF)

CANCELLATION

(with the unit OFF)

(simultaneously for more than 3 sec.)

If the ⚙️ lamp lights up for 10 seconds, the setting is complete.

TROUBLESHOOTING

ERROR DISPLAY If error occurs again, contact the Sharp Service Centre.

DIGITAL INDICATION	LAMP INDICATION ERROR	DETAILS REMEDY
E2	Flashing of the Clean Air & Humidify Indicator Light.	Abnormal humidity fi Iter.	Verify if the Humidifying Filter, Humidifying Tray and Water Tank are properly installed and then turn power ON again.
C1	Flashing of the Fan Speed Indicator Light ' ☺'.	Abnormal fan motor.	Turn power OFF to cancel the error display, wait one minute, and then turn power ON.
C3	- Abnormal temperature	temperature-humidity sensor.	Unplug the unit, wait one minute, and plug the unit in again.
C4	-
C5	Flashing of the Clean Ion Shower Indicator Light.	Problem in circuit board.
C6	Flashing of the Clean Air Indicator Light.
C7	Flashing of the Fan Speed Indicator Light ' ☺'
C8	Flashing of the Fan Speed Indicator Light ' ☺.

Model KC-A60EU KC-A50EU KC-A40EU
Power supply 220 ~ 240 V 50/60 Hz
Fan Speed Adjustment		MAX MED LOW MAX MED LOW				W MAX MED LOW
CLEAN AIR	Fan Speed (m3/hour)	396	270	84	306	216	60	216	168	48
	Rated Power (W)	60	22	5.3	42	18	4.3	25	15	4
	Noise Level (dBA)	49	40	19	49	41	16	46	40	16
CLEAN AIR & HUMIDIFY	Fan Speed (m3/hour)	366	270	120	288	216	90	180	144	60
	Rated Power (W)	44	24	9	36	20	7	4	19	13
	Noise Level (dBA)	47	40	24	47	41	23	42	35	20
	Humidifi cation (mL/hour)*1	730	600	300	600	500	250	450	400	200
Recommended Room Size (m2)*2 ~48		~38				~26
High density Plasmacluster ion recommended room size (m2)*3		~35				~28				~21
Water Tank Capacity (L)		4.0				3.6				3.0
Sensors		Dust/Odour/Temperature & Humidity								Dust/Temperature & Humidity
Filter type	Dust collection	HEPA with Microbial control *4
	Deodorization	Washable Deodorizing
Cord Length (m)		2.0
Dimensions (mm)		416 (W) × 295 (D) × 643 (H)				399 (W) × 273 (D) × 603 (H)				382 (W) × 242 (D) × 570 (H)
Weight (kg)		11.0				9.2				8.1

*1 • Humidification Amount changes in accordance with indoor and outdoor temperature and humidity. Humidification Amount increases as temperatures rise or humidity decreases. Humidification Amount decreases as temperatures decrease or humidity rises. • Measurement Condition: 20 °C, 30 % humidity (JEM1426) *2 • The Recommended Room Size is appropriate for operating the unit at maximum fan speed. - The Recommended Room Size area indicates the space where a certain amount of dust particles can be removed in 30 minutes. *3 - Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the center of the room (at a height of approximately 1.2 meters from the floor) when the product is placed next to a wall and run at the MED operation position. *4 - The filter removes more than 99.97% of particles of 0.3-micron dust. (JEM1467) Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this

product consumes about 0.9 W of standby power.

For energy conservation, unplug the power cord when the unit is not in use.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

DISPLAYS ON THE MAIN UNIT

Plastic bag.

3

NOTE

COVER

2

NOTE

MAIN UNIT DISPLAY

Remove plastic.

3

CAUTION

PLASMACLUSTER ON/OFF

Press 3 sec. or more.

COVER

FILTER REPLACEMENT

NOTE

CONTROL PANEL

PLASMACLUSTER IONS ON/OFF

COVER

CAUTION

A50EU FZ-A51HFR FZ-A51DFR Filter frame (gray)

HEPA filter Washable deodorizing filter

TROUBLESHOOTING

NOTE

MAIN UNIT DISPLAY

1 Przycisk WŁĄCZNIKA
a	Przycisk trybu CLEAN AIR (OCZYSZCZANIA POWIETRZA) / KONTROLKA (zielona)
b	Przycisk trybu CLEAN AIR & HUMIDIFY (OCZYSZCZANIA I NAWILŻANIA POWIETRZA) / KONTROLKA (zielona)
c	Przycisk trybu CLEAN ION SHOWER (STRUMIENIA CZYSTYCH JONÓW) / KONTROLKA (zielona)
2	Przycisk STEROWANIA OŚWIETLENIEM	5	Przycisk CHILD LOCK (BLOKADY RODZICIELSKIEJ)/KONTROLKA (zielona)
3	Przycisk WŁ./WYŁ. generatora jonów Plasmacluster / KONTROLKA (zielona)	6	Znak Plasmacluster
4	Przycisk RESETOWANIA FILTRÓW / KONTROLKA (czerwona)	7	Przycisk FAN SPEED (PRĘDKOŚCI WENTYLATORA) / KONTROLKA (zielona)
		8	Przycisk WYŁĄCZNIKA

SCHEMATIC DIAGRAM

3

WARNING

COVER

R-4

NOTE

STOP

COVER

Pt-4

MAIN UNIT DISPLAY

plastic.

3

Install the Rear Panel.

5

tank

LID

Remove dust from the DEODORIZING FILTER.

2

CAUTION

NOTE

MAIN CONTROL DISPLAY

Rinse with plenty of water.

CAUTION

LID

Dry and soft

CAUTION

### (###)		1746.11
(###)		31(###)×26(###)×26(173)		66(###)×11(###)×2(173)		174(###)×14(###)×10(173)
### (###)		*
###	###	###
	###	AEDH#
###		###				###
(###)		~				~
(###)		~				~
###	###	~				~
###	###	174				~
###	###	174				~
###	###	174				~
###	###	174				~
###	###	174				~
###	###	174				~
###	###	174
###	###	174
###	###	174
###	###	174
###	###	174
###	###	174
###	###	174
###	###	1	174
###	###	174
###	###	174
###	###	174
###	###	174
###	###	174
###	###	174
###	###	1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2

Device

Connection

Lid

Front panel

Back panel

Water tank

Mouthwash tank lid

Humidification filter

Descaling solution

Light control

CLEAN AIR & HUMIDIFY ON

Caution

(White) HEPA filter

Deodorizing filter (black)

(White) HEPA filter

Included with the device

Instruction manual

Heel

Device

Cover

Humidification tray cover

Float roller

Back panel

Back panel

Water tank

Humidifier device

CLEAN AIR & HUMIDIFY ON

Note

Stop

OFF

1m

Warning

Internal parts

Installation Guide

Protective Parts

High-Density 7000

Device of this mark is a trademark of Sharp Corporation.

Plasmacluster is a registered trademark or a trademark of Sharp Corporation.

Model without stand

Floor-standing type
