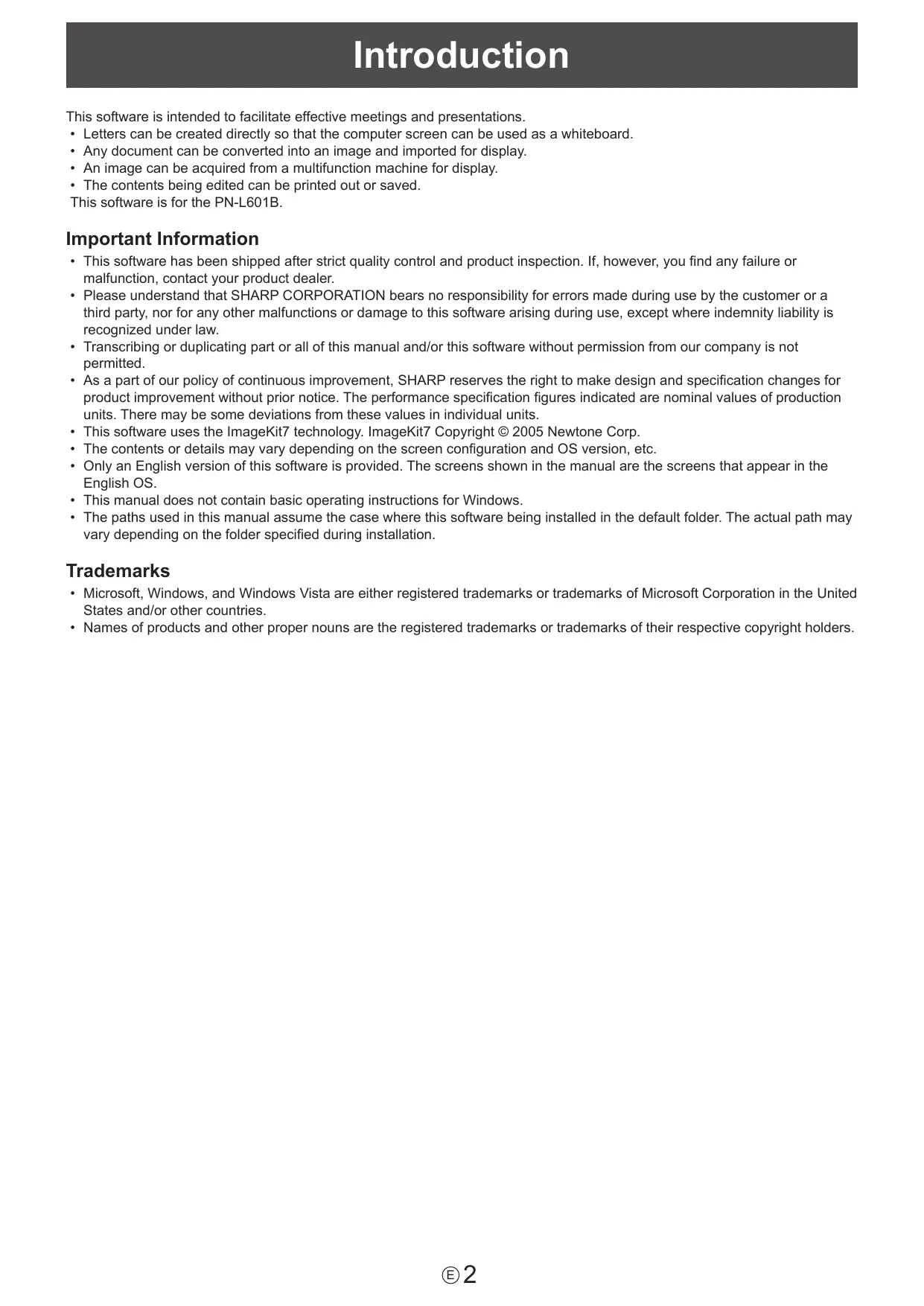

Introduction. Starting and Exiting the Software Pen Software modes and how to start the modes …… 3 Exiting the software. Layout of Basic Screen Toolbar function button: Saving and Opening a File. Saving data …… Opening the whiteboard file Edit Operations … Changing the sheet to edit (whiteboard mode) Drawing with a Pen Erasing a drawn line. Editing an object. Undoing/redoing operation. Deleting an object … Enlarging the view of the screen .

Importing a Document as an Image (Pen Software Printer Driver). . Acquiring an Image From a Multifunction Machine 18 Using the Network Scanner Tool to acquire an image Printing Custom

Installing the Pen Software … Installing the Network Scanner Tool

This software is intended to facilitate effective meetings and presentations.

+ Letters can be created directly so that the computer screen can be used as a whiteboard. + Any document can be converted into an image and imported for display.

+ An image can be acquired from a multifunction machine for display.

+ The contents being edited can be printed out or saved.

This software is for the PN-L601B.

Important Information

+ This software has been shipped after strict quality control and product inspection. If, however, you find any failure or malfunction, contact your product dealer.

Please understand that SHARP CORPORATION bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this software arising during use, except where indemnity liability is recognized under law.

Transcribing or duplicating part or all of this manual and/or this software without permission from our company is not permitted.

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

This software uses the ImageKit7 technology. ImageKit7 Copyright © 2005 Newtone Corp.

The contents or details may vary depending on the screen configuration and OS version, etc.

Only an English version of this software is provided. The screens shown in the manual are the screens that appear in the English OS.

This manual does not contain basic operating instructions for Windows.

The paths used in this manual assume the case where this software being installed in the default folder. The actual path may vary depending on the folder specified during installation.

+ Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. + Names of products and other proper nouns are the registered trademarks or trademarks of their respective copyright holders.

Starting and Exiting the Software

Pen Software modes and how to start the modes

+ The use of a secondary display is not supported.

+ Whiteboard mode and overlay mode cannot be started at the same time. To change modes, exit the current mode and start the other mode.

+ To prevent the Windows taskbar from moving, lock it.

You can use the screen as a whiteboard. The work area is displayed for each “sheet”. By changing the sheet, you can edit data on another screen.

Starting whiteboard mode

Follow the steps below to start the software.

+ On the desktop, touch the “SHARP Pen Software” shortcut icon sé) twice quickly (or double-click the icon). + Click the “Start” button, and then select “AI Programs” - “SHARP Pen Software” - “SHARP Pen Software”.

+ Touch a whiteboard file (a file saved in the SWS format) twice quickly (or double-click the file).

The board is shown as transparent.

The work area consists of a single screen.

Your drawing will appear on the transparent board placed over the screen, so that you can write comments directly on the items displayed on the screen. Note, however, that you cannot operate the screen shown behind the transparent board.

Starting overlay mode Follow the steps below to start the software.

+ On the desktop, touch the “SHARP Pen Software (Overlay mode)" shortcut icon () twice quickly (or double-click the icon). + Click the “Start” button, and then select “AI Programs” - “SHARP Pen Software” - “SHARP Pen Software (Overlay mode)”.

Exiting the software Touch the Eu “Quit” button.

When there is no data which is being edited and is not saved The software is exited.

When there is data which is being edited and is not saved

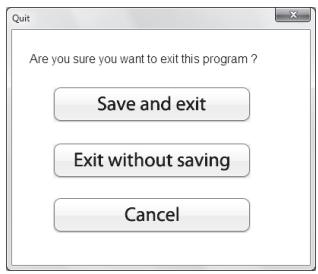

A confirmation dialog box appears.

When you touch “Save and exit”, a dialog box appears to allow you to specify the destination to save the data. Confirm the saving format, specify the destination, and save the data. (Page 7)

When you touch “Exit without saving”, the software is terminated without saving the data.

Are voue pouvant eut program

Exit without saving |

Layout of Basic Screen

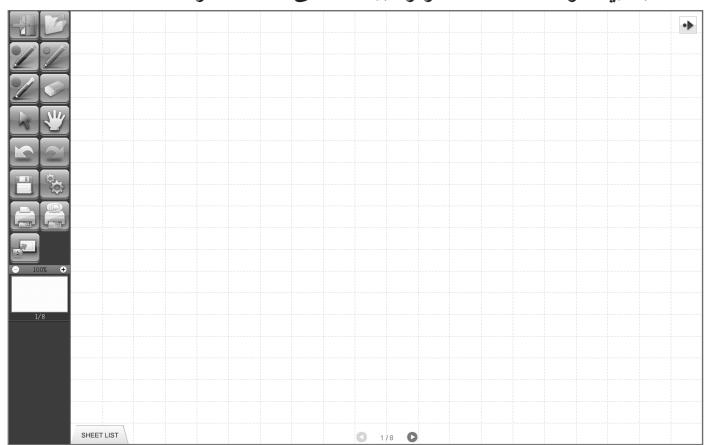

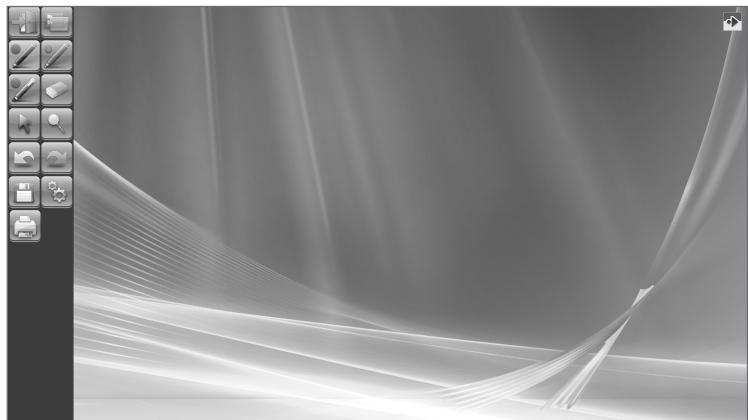

Screen example: Whiteboard mode

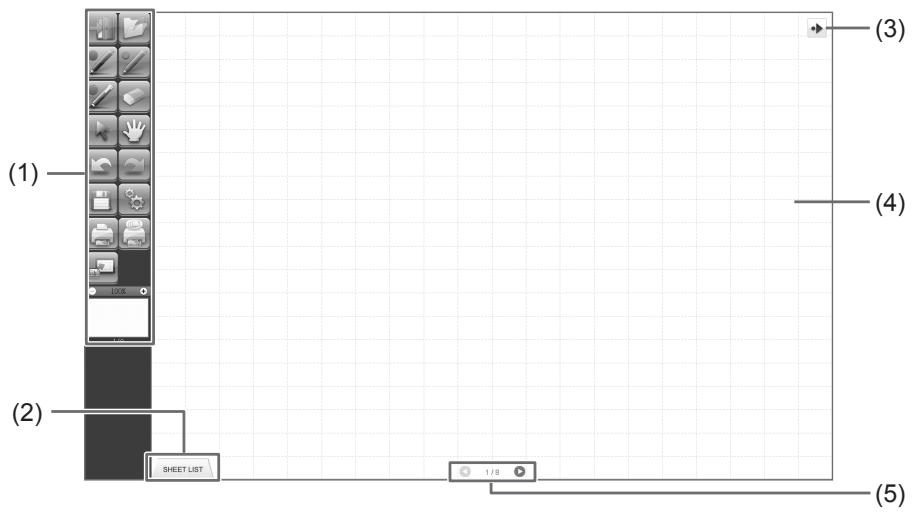

(1) Toolbar Used to switch functions. (Page 6)

(2) SHEET LIST This is displayed only in the whiteboard mode. Touch this tab to display the list of sheets shown as thumbnail images. (Page 8)

(3) Move toolbar icon

This appears on the side opposite to the toolbar, and can be touched to move the toolbar to that side. (The icon and the toolbar will switch places.)

Work area. You can write letters, draw lines, and paste images here. The board can be displayed in two modes: whiteboard mode and overlay mode. The latter is transparent, showing the background.

[res + The background color and grid used in the whiteboard mode can be changed. (Page 20)

(5) Sheet navigation buttons/Page No.

This is displayed only in the whiteboard mode. Touch the sheet navigation button to change the displayed sheet. (Page 8) The number shown at the center is the page No. of the current sheet.

Toolbar function buttons

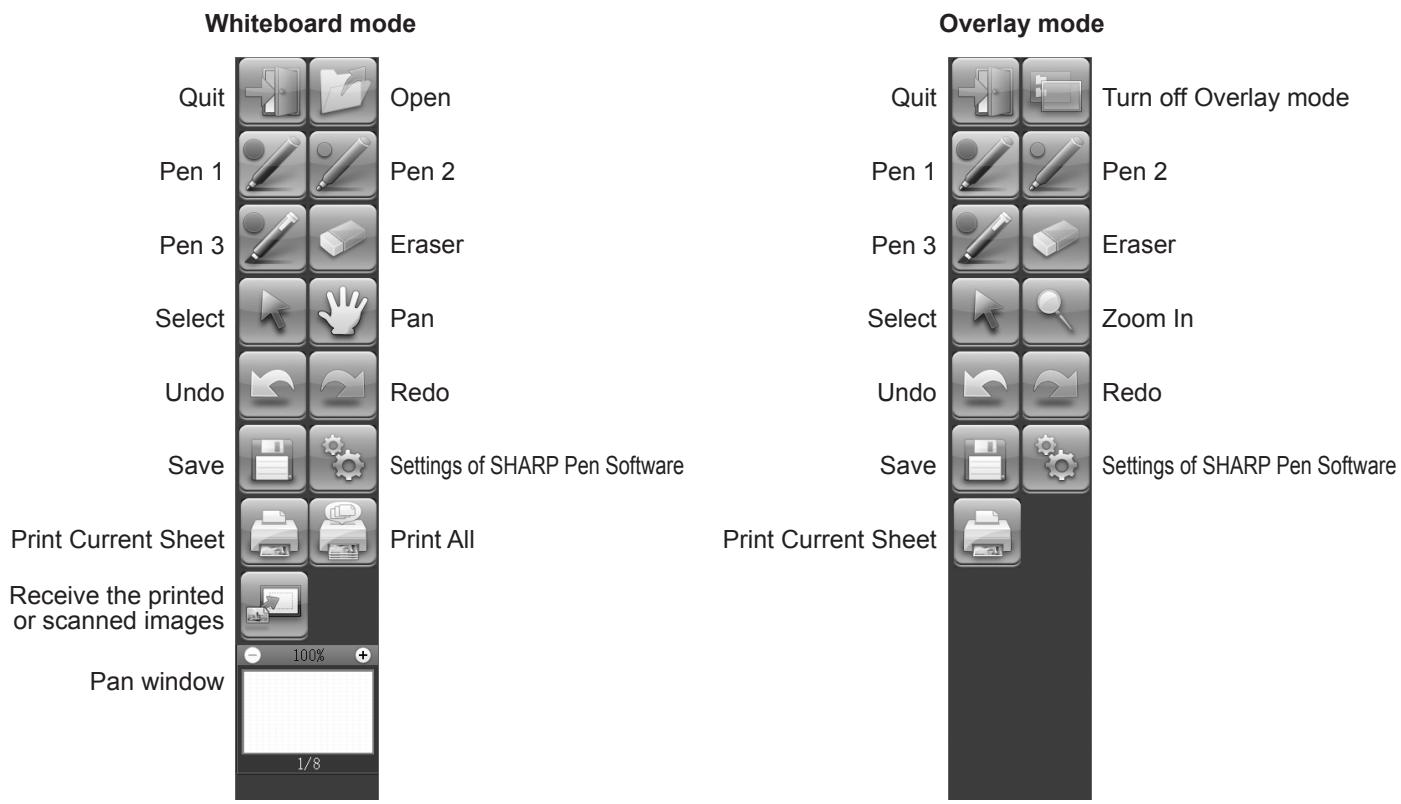

The functions of the toolbar are shown as buttons. Touch a button to select the function of that button. The function buttons that appear on the toolbar vary depending on the mode.

Select Pan Undo Redo En Save Settings of SHARP Pen Software Save a Settings of SHARP Pen Software Print Current Sheet Print AIl Print Current Sheet Fe Receive the printed or scanned images Pan window Button Function Page Quit Exit this software. 4 Open“ Open a whiteboard file. 7 Turn off overlay mode. Turn off Overlay mode*? By disabling the board function temporarily, you can operate something other than - the software (files, other application software, etc.). Pens 1 to 3 Draw lines. 10 Eraser Erase hand-drawn lines. 11 Select Select an object. 12 Pan“ Enlarge the view of the whiteboard, change the display position, and change pages. 8,15 Zoom In*? Enlarge part of the screen in overlay mode. 16 Undo Cancel the immediately preceding operation. 14 Redo Redo the immediately preceding canceled operation. 14 Save Save the data being edited. 7 Senngs of SHARP Pen Set this software according to the user's preference. 20 oftware Print Current Sheet Print the displayed sheet. 19 Print AI Print all sheets. 19 Receive the printed or Paste an image file acquired from the Pen Software printer driver or a multifunction 17,18 scanned images* machine onto the board. ! P. ñ ai This shows a thumbnail image of the displayed sheet. Operate inside this window to an window 15

enlarge the view of the board or move the display position.

*1 Only appears in whiteboard mode. *2 Only appears in overlay mode.

Saving and Opening a File

Data can be saved in the following file formats:

File format Description

Data on the whiteboard is saved in the SWS format. The saved data can be re-edited with this software.

The working screen is saved as a screen shot. The data is converted into the different file

PDF, BMP, JPEG, PNG format so that it cannot be re-edited with the software.

In the whiteboard mode

Data can be saved in any of the file formats above.

All sheets will be saved. (A sheet without data will not be saved.)

When data is saved in BMP, JPEG, or PNG format, each sheet is saved in a separate file.

In the overlay mode Data can be saved in PDF, BMP, JPEG, or PNG format.

1. Touch the E “Save” button. 2. Select the file format from the drop-down list.

This function automatically backs up the whiteboard file at specified intervals.

(The automatic backup cannot be used for the data in the overlay mode.)

You can change whether to enable/disable the automatic backup and the backup interval time. (Page 20)

Opening the whiteboard file

When whiteboard mode is started, a new whiteboard file opens. (If you start the software by directly touching a whiteboard file, the whiteboard file opens.)

To open a saved whiteboard file, touch the E “Open” button and select the file. (If the data being edited is not saved, the file saving confirmation dialog box appears.)

Changing the sheet to edit (whiteboard mode)

In the whiteboard mode, each screen is displayed on a sheet. To change the sheet, touch the sheet navigation button at the bottom of the screen. The number shown at the center is the page No. of the current sheet.

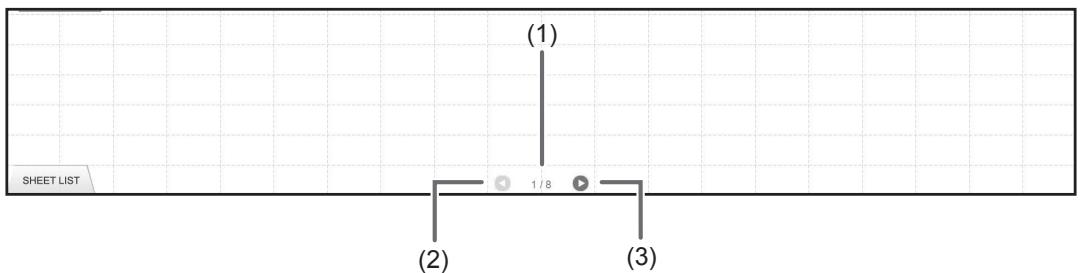

(1) Page No. of the current sheet

(2) Sheet navigation button (Previous) Touch this button to display the previous sheet. When the first sheet is displayed, this button is disabled.

(3) Sheet navigation button (Next) Touch this button to display the next sheet. When the last sheet is displayed, this button is disabled.

& Changing the sheet by dragging the screen

A sheet can be changed by dragging when the zoom (enlargement percentage) is 100%.

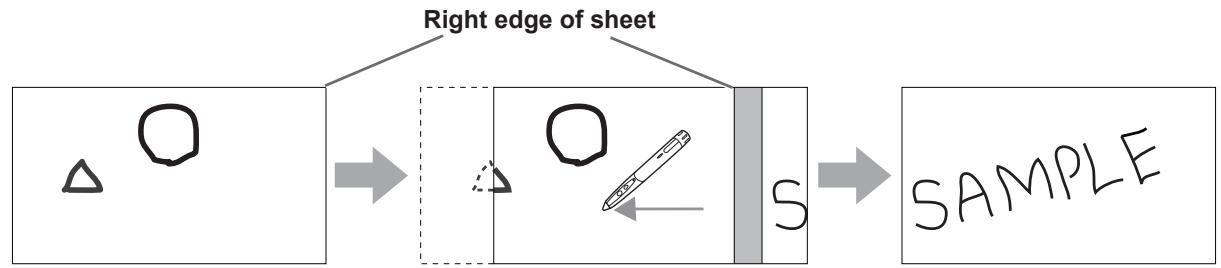

1. Touch the KZ “Pan” button. 2. Drag horizontally with the touch pen.

-+ Drag to the right to show the previous sheet. -+ Drag to the left to show the next sheet.

= Changing the sheet by referring to thumbnail images / Editing the sheet

Thumbnails of each sheet appear in “SHEET LIST” in the bottom left corner of the screen. A thumbnail can be touched to change to that sheet. The sheets can be edited, including adding, deleting, copying, and moving sheets.

1. Touch “SHEET LIST” in the lower left corner of the screen. The list of the thumbnail images of the sheets is displayed.

2. Touch the thumbnail image of the sheet you want to display. The screen changes to the selected sheet.

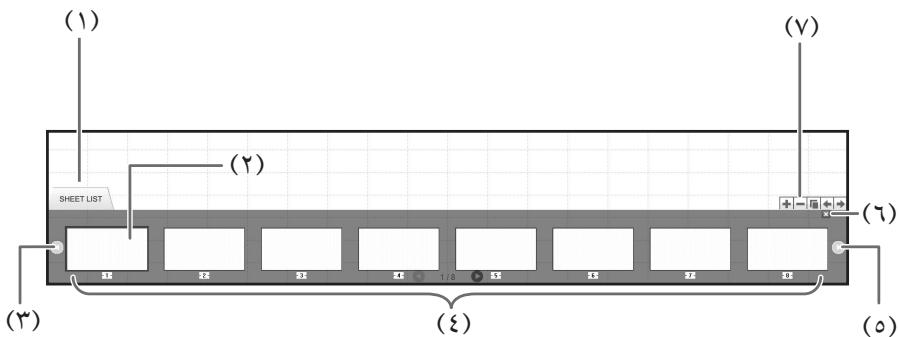

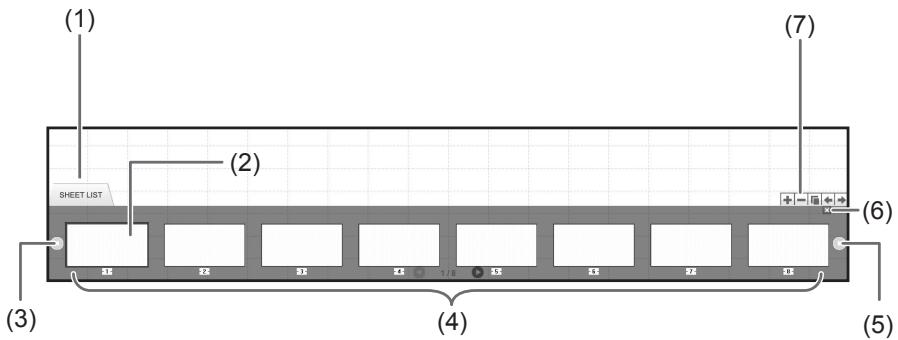

(1) SHEET LIST (2) Currently selected sheet

(3) Thumbnail navigation button (Previous) (4) Thumbnail images

(5) Thumbnail navigation button (Next)

(6) Touch this button to close the sheet list.

(7) [F: Add a new sheet to the right of the selected sheet.

elete the selected sheet.

opy the selected sheet and insert it on the right of the selected sheet. love the selected sheet one to the left.

[æ: Move the selected sheet one to the right.

1. Touch any of the 2 “Pen 1” to “Pen 3” buttons.

2. Draw on the board.

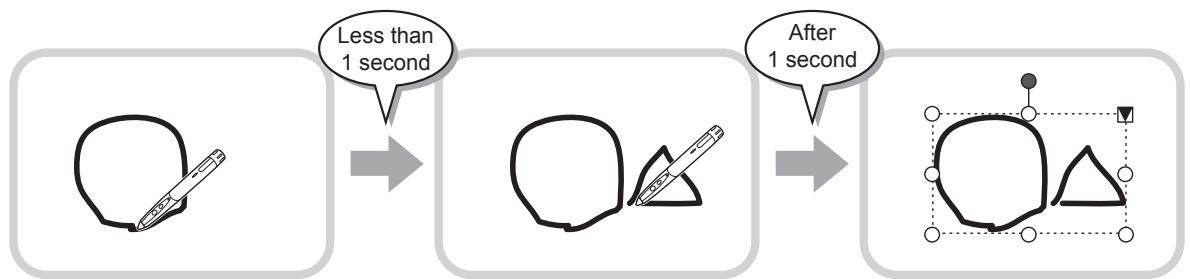

The drawn shape will be determined as an object 1 second" after you lift the touch pen from the board. If you start drawing another object within 1 second” after you lift the touch pen from the board, the drawn shapes will be determined to be a single object even though they are separate.

* This period can be changed. (Page 20)

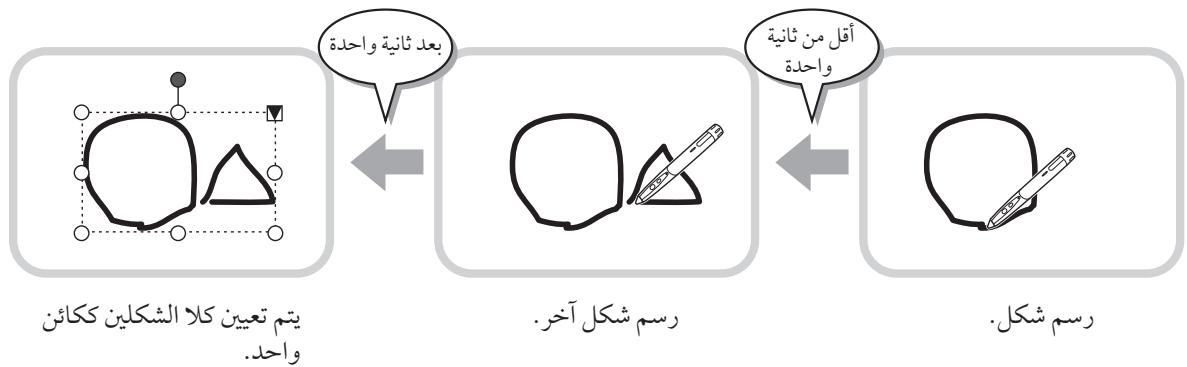

Draw a shape. Draw another shape. Both shapes are determined as a single object.

+ You can switch through “Pen 1” to “Pen 3” and “Eraser” by repeatedly pressing Function Button 2 of the touch pen. To change functions using Function Button 2, select the touch panel driver “Properties”, and set “Function Button 2” to “Pen Software Link” on the “OPERATION SETTING” tab.

+ For details about objects, refer to page 12.

+_In certain cases, such as when a button on the toolbar is touched, the drawn shape will be fixed as an object before the specified time elapses after the touch pen is lifted from the board.

= Changing the color and thickness of the pen The “Pen 1” to “Pen 3" palettes can be used to change the pen function settings. To display the palette, touch the button of the selected pen once again.

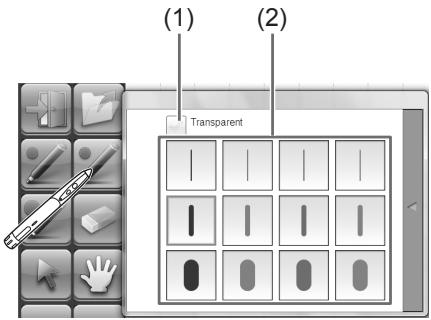

(1) Check this box to make the line transparent. The pen icon changes when this setting is enabled. Normal Transparent

a (2) Set the color and thickness of the line. The palette is closed.

[res + The method of closing the palette can be changed. (Page 20)

Erasing a drawn line

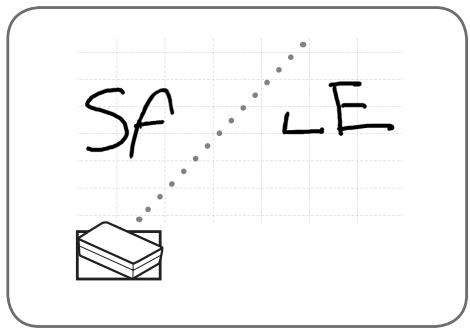

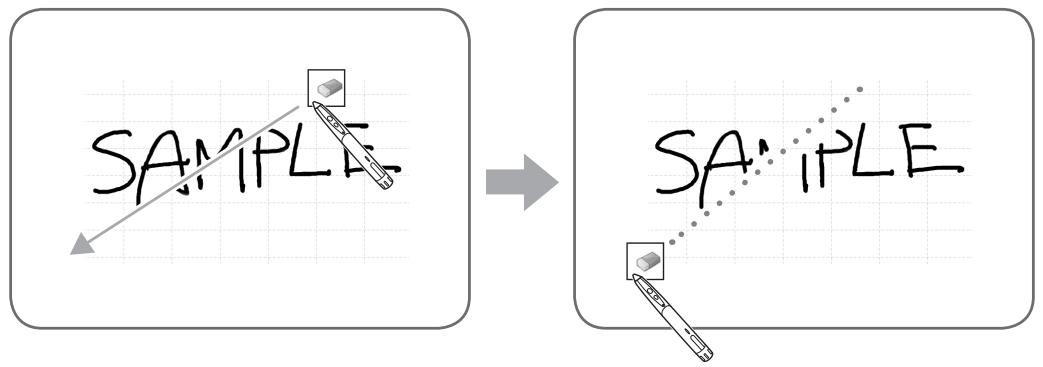

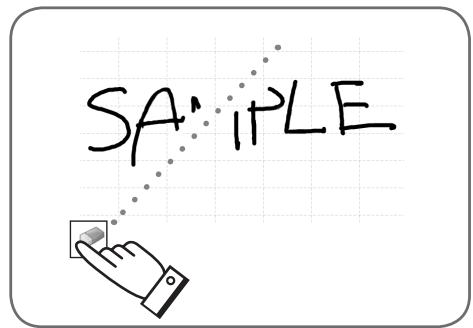

1. Touch the (= “Eraser” button. 2. With the pen touching the screen, move the pen.

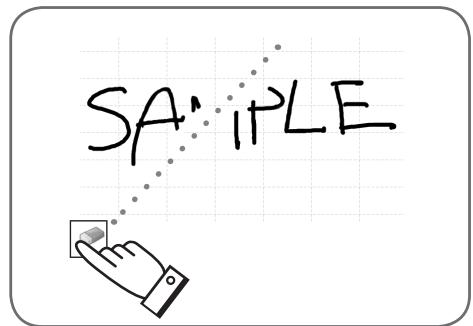

The part you move over is erased.

You can switch through “Pen 1” to “Pen 3” and “Eraser” by repeatedly pressing Function Button 2 of the touch pen. To change functions using Function Button 2, select the touch panel driver “Properties”, and set “Function Button 2” to “Pen Software Link” on the “OPERATION SETTING” tab. The eraser function can erase only the objects drawn with the pen function. You cannot use the “Eraser” button to erase pasted images. You cannot use it either to erase the edges of a line to make the line thinner. Even if you erase the edges only, the entire width of the line will be erased. An object drawn with the pen function cannot be erased if it is part of a group. When “Auto Pen/Eraser Mode Switching” is enabled (page 20), you can erase with the eraser or your finger when one of “Pen 1” to “Pen 3” or “Eraser” is selected. Touch the screen with the eraser or your finger, and after the cursor changes to the eraser, move the eraser or your finger. You can set the eraser size for erasing with the eraser or your finger to the touched area of the screen, or to the size selected on the palette.

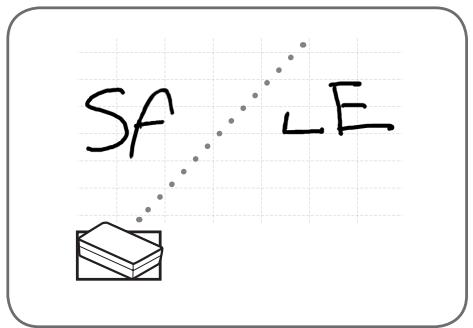

When "The area you touch (or cover)" When “The selected size in Eraser

is selected Palette” is selected

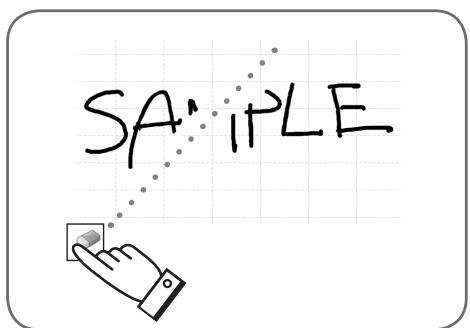

S With Windows Vista/7, the display changes as follows when the “Eraser” button is selected in the overlay mode. The display returns to normal when the function other than the “Eraser” button is selected.

- The computer screen in the background is hidden even by translucent objects.

- An object is surrounded with a white line.

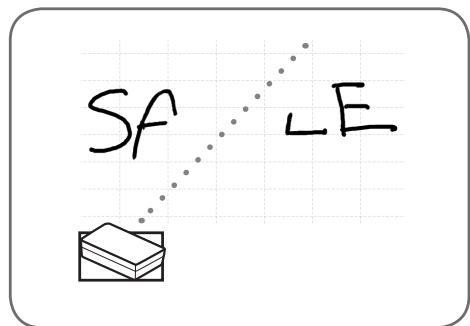

# Changing the eraser size

The size of the eraser can be changed by selecting it from the palette for the “Eraser” button. To display the palette, touch the B “Eraser” button again while it is in the selected state.

[res + The method of closing the palette can be changed. (Page 20)

The drawn lines and the images pasted on the board are handled in the software as an “object”.

x Selecting an object You need to select an object before editing it. 1. Touch the bel “Select” button. 2. Touch an object. The object is selected.

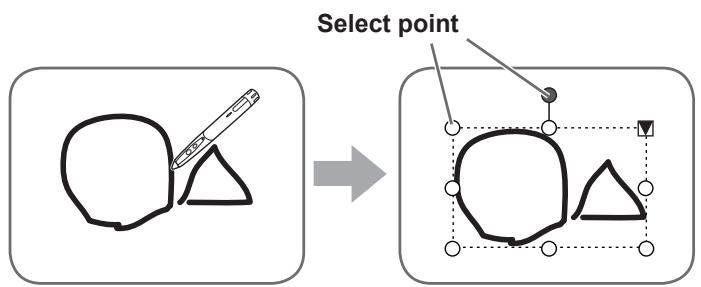

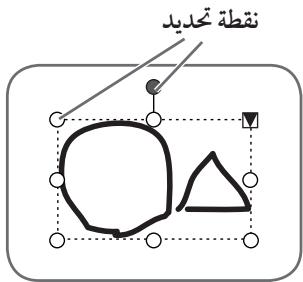

Select point When you select an object and then touch [W] the

expansion menu appears to allow you the following edit operations:

+ Rotate Touch an object. Selected object * Order :

oct + Cancel selection

Touch an area where The area of the object is + Grou something is drawn. You indicated with a dotted line, p cannot select an object by and symbols called select + Ungroup touching the area where points appear on the vertices + Property nothing is drawn. and sides of the area.

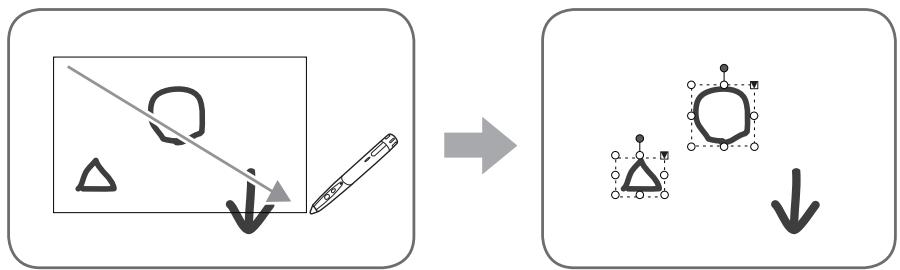

By specifying an area by dragging, you can select several objects inside the area. (Objects which are not entirely included in the area are not selected.)

= Grouping objects You can edit several selected objects as one object. 1. Select objects to be grouped.

2. Select “Group” from the expansion menu.

Canceling the grouping 1. Select the grouped objects. 2. Select “Ungroup” from the expansion menu.

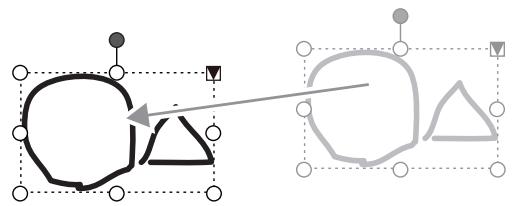

# Moving an object You can move an object by selecting the object and dragging it.

# Enlarging/reducing an object 1. Select an object. 2. Drag the select point. - Dragging the select point on the vertex enlarges/reduces the object with the same aspect ratio. - Dragging the select point on the side enlarges/reduces the object in the direction of either width or height. - The line width remains the same after the object is enlarged/reduced. Select point

# Rotating an object 1. Select an object. 2. Drag the select point at the center top.

Or, select “Rotate Right”, “Rotate Left” or “Rotate 180 degrees” from “Rotate” in the expansion menu.

You can copy an object to the clipboard.

1. Select an object.

2. Select “Copy” from the expansion menu.

You can cut an object and save it to the clipboard. 1. Select an object.

& Pasting an object To paste the object in the clipboard, select “Paste” in the expansion menu.

& Changing the order of objects You can change the order of the object placement. 1. Select an object. 2. Select the object placement from “Order” in the expansion menu. - Bring to Front _ : The object moves to the front. + Send to Back : The object moves to the back. * Bring forward : The object moves one forward. + Send backward_: The object moves one backward.

Object placement order

When several objects overlap, the objects at the back are hidden behind the objects in front. To show the hidden part, change the placement order of the objects.

(3) O) (1) Object placed in front of the other objects @) (2) Object placed second from the front object @) (3) Object placed at the back of the other objects

Undoing/redoing operation Touching the E “Undo” button cancels the preceding drawing or editing operation.

Touching the = “Redo” button repeats the operation canceled with the “Undo” button.

[res + Up to 50 actions can be undone.

1. Select an object. 2. Select “Delete” from the expansion menu. The selected object disappears.

Enlarging the view of the screen

The steps for enlarging the view of the screen vary depending on the mode.

= Enlarging the screen in whiteboard mode

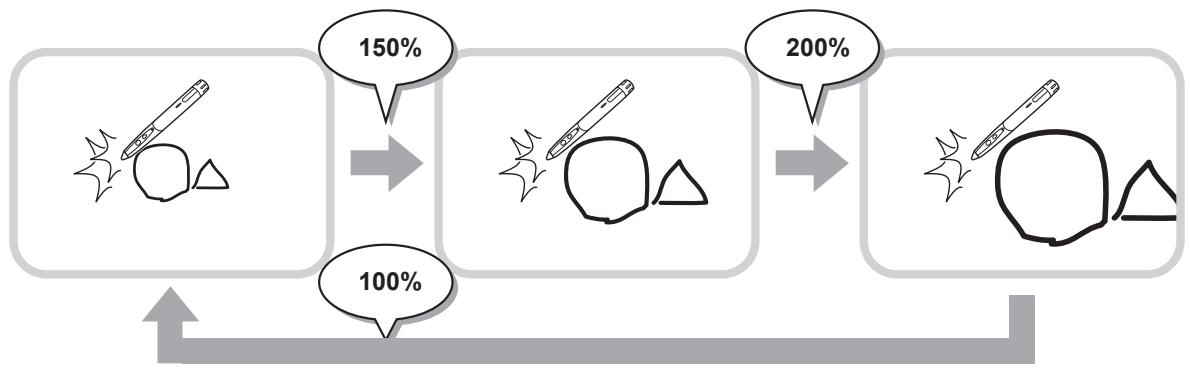

Double-click to enlarge the screen

1. Touch the K2 “Pan” button.

2. Quickly touch the part of the board that you want to enlarge twice (double-click). Each time you double-click, the view changes in the order 100% > 150% > 200%, centered on the click position. Double-clicking at 200% returns the view to 100%.

Changing the display position when the view is enlarged To change the display position, drag on the screen with KZ “Pan” selected.

Enlarging the view of the screen with the pan window A thumbnail of the current sheet appears in the pan window on the toolbar.

(1) Magnification Shows the current screen magnification.

Touch to enlarge or reduce the view between 100% and 400% in increments of 50%. (3) Pan window Shows a thumbnail of the current sheet. Double-click to change the view in the order 100% > 150% > 200%, centered on the

double-click position.

(4) Display frame Shows the area that is displayed on the screen. To move the area that is displayed, drag the display frame.

& Enlarging the screen in overlay mode You can enlarge part of the screen and display it. 1. Touch the EN “Zoom In” button. 2. Touch the board. The area around the touched point is enlarged and displayed.

Touch the point to enlarge. The area around the point is enlarged.

Importing a Document as an Image

Pen Software Printer Driver

A document of any application can be converted into an image and displayed on the whiteboard. A document is imported as an image similar to an image printed by a printer.

= In the software application 1. In the software application, open the document that you wish to import. 2. Select the print command and open the print settings screen. For details, see the manual for the software application. 3. Change the printer to “Send print data to SHARP Pen Software”, and select print settings.

*+ “Paper Size”, “Orientation”, and “Resolution” can be selected. + When you have finished selecting settings, touch “OK”. 4. Execute printing.

The printed document will be converted into an image and sent to the Pen Software.

Œ In the Pen Software (whiteboard mode) When the image has been sent, the (ee | “Receive the printed or scanned images” button will blink.

5. Touch the E “Receive the printed or scanned images” button. The first sheet of the acquired image appears.

Les + It may not be possible to correctly convert documents from some software applications.

+ The “Resolution” setting of the Pen Software printer driver should normally be set to 120 dpi. If set to a higher setting, operations such as enlarging, reducing, and scrolling the sheet may not take place smoothly.

Acquiring an Image From a Multifunction Machine

Ifa SHARP multifunction machine is connected to the same network as the computer on which the Pen Software is installed, an image scanned on the multifunction machine can be acquired onto the whiteboard.

+ Supports the Network Scanner Tool 3.3 or higher (as of August, 2010). + For details, contact your dealer or nearest authorized service representative for the multifunction machine. + For the procedures for using the multifunction machine, see the manual for the multifunction machine.

Using the Network Scanner Tool to acquire an image

The first time you use the Network Scanner Tool, install the Network Scanner Tool on the computer on which the Pen Software has been installed and configure the Network Scanner Tool settings. (Page 23)

To acquire an image from a multifunction machine, the Network Scanner Tool must be running on your computer.

Use JPEG for the scan send format.

# In the multifunction machine 1. Place the document in the multifunction machine. 2. Select a destination stored in the Network Scanner Tool. 3. Select JPEG for the scan send format. 4. Execute scanning. The document will be scanned and sent to the Pen Software.

Œ In the Pen Software (whiteboard mode) When the image has been sent, the HE “Receive the printed or scanned images” button will blink.

5. Touch the E “Receive the printed or scanned images” button. The first sheet of the acquired image appears.

To print only the currently displayed sheet, touch th E “Print Current Sheet” button. To print all sheets on the whiteboard, touch the El Print AI!” button. (Whiteboard mode only) Store the print settings ahead of time.

+ The operation tools of the software, such as the toolbars and tabs will not be printed. + In the whiteboard mode, a sheet with no data will not be printed.

x Register the settings for printing

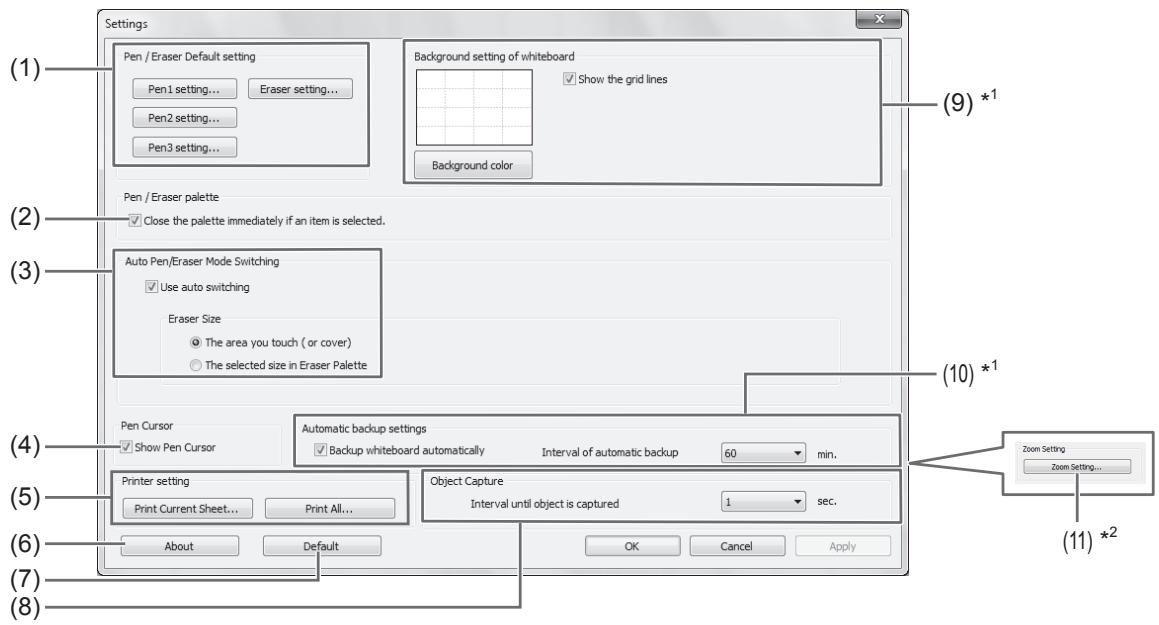

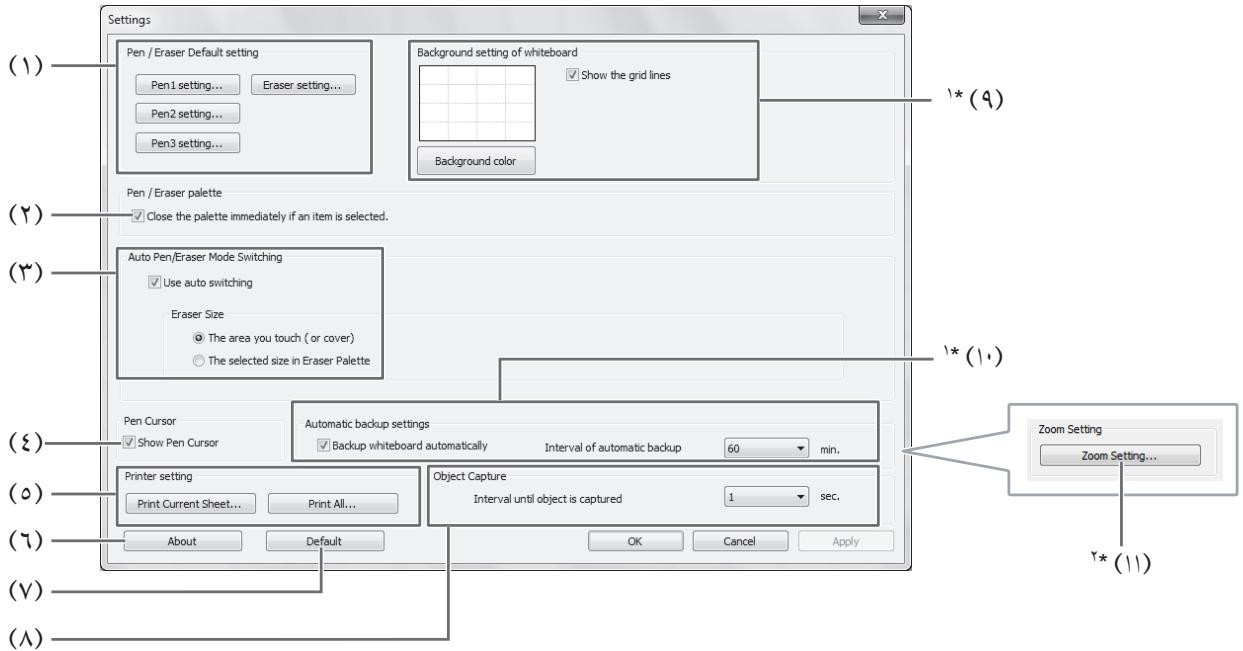

1. In the “Settings” dialog box (page 20), touch “Print Current Sheet” or “Print All”. 2. Specify the print settings. (See below.)

3. When you finish adjusting the settings, touch “OK”.

== = « a ce Fr 3 Go 2) Es ons rent Hasard ne emreane @) pars ns GB) ——: Ca) =) Poster: [ropagt =

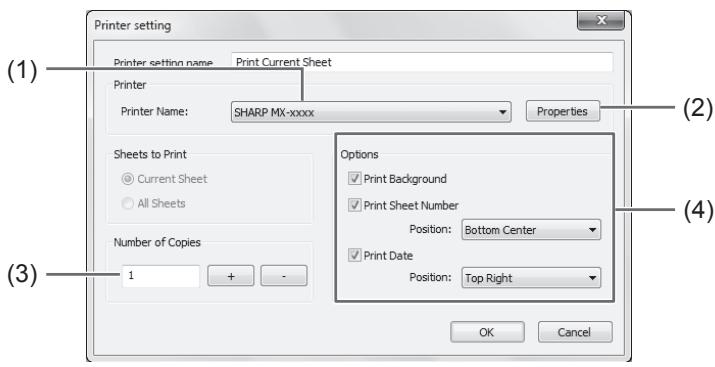

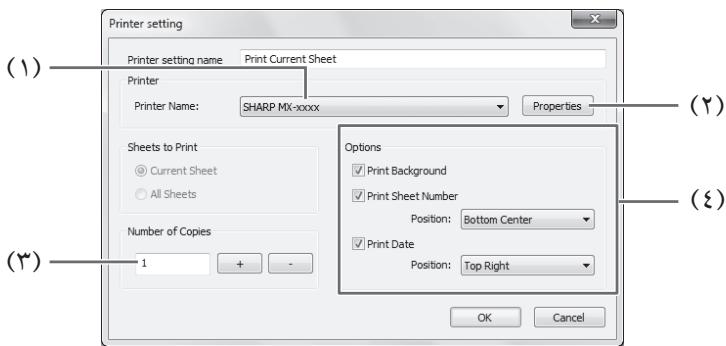

(1) Printer Name Select the printer to be used for printing.

(2) Properties Set the printer details. The setting options depend on the printer. For the setting options, refer to the instruction manual of the printer.

(3) Number of Copies Specify the number of copies to print.

(4) Options + Print Background : Select this to print the color that is set for the whiteboard background. (Only when in whiteboard mode) + Print Sheet Number : Select this to print page numbers, and select the “Position”. (Only when in whiteboard mode) + Print Date : Select this to print the print date, and select the “Position”. Les

+ “Sheets to Print” cannot be changed.

Customizing the Settings

You can customize various settings of this software.

The settings are the same in both whiteboard mode and overlay mode. However, the contents of the screen will vary depending on which mode is started.

1. Touch the “Settings of SHARP Pen Software” button. 2. Set the options as necessary. (See below.) 3. When you finish adjusting the settings, touch “OK”.

Sctongs ED &) Paname Dear drag are

— se ins Pen settng. {Eraser setong. Œ “

*1 Only appears in whiteboard mode. *2 Only appears in overlay mode.

(1) Pen/Eraser Default setting Set the initial color and thickness of “Pen 1” to “Pen 3”, and the initial size of the “Eraser”.

(2) Pen/Eraser palette

Select this to have the palettes of “Pen 1” to “Pen 3” and “Eraser” close when a pattern is selected from a palette. If the checkmark is removed, M must be clicked to close the palette.

(3) Auto Pen/Eraser Mode Switching

To use this function, select this to have the pen automatically switch to the eraser when the screen is touched with the eraser

or your finger in pen mode. Set the eraser size that is applied in “Eraser Size”.

+ The area you touch (or cover) : When using an eraser or other object and the area of contact on the screen is at least 1-9/16 inch (4 cm) x 1-9/16 inch (4 cm), erase the area of contact.

+ The selected size in Eraser Palette : Erase with the selected eraser size regardless of the amount of contact on the screen.

+ To use this function, select the touch panel driver “Properties”, and configure the settings on the “OPERATION SETTING” tab as shown below. For information on the touch panel driver, see the Touch Panel Driver Operation Manual.

- Set “Input Mode Setting” to “Standard”. If set to other than “Standard”, the pen/eraser auto switching function cannot be used.

- If you have selected “The area you touch (or cover)", set “Detect Eraser Area” to “Enable”.

(4) Pen Cursor Set whether to show a cursor when you draw with the pen function.

(5) Printer setting Register the settings for printing. (Page 19)

(6) About The version information of this software is displayed.

(7) Default Reset the settings to the initial values.

(8) Interval until object is captured Set the period until a hand-drawn line is determined as an object.

(9) Background setting of whiteboard

+ Preview : The image of the whiteboard with the current setting is displayed. + Background color : Set the background color of the whiteboard. + Show the grid lines : Select to show the grid on the whiteboard.

(10) Automatic backup settings

Specify whether to back up data automatically in the whiteboard mode. To use the automatic backup, specify the interval.

The operations in this section require administrator privilege.

Installing the Pen Software

# Installing .NET Framework 2.0 or later

.NET Framework 2.0 or later must be installed on the computer on which the Pen Software will be used. Download and install .NET Framework from Microsoft's website.

ΠInstalling the Pen Software 1. Exit all running software applications.

2. Insert the supplied CD-ROM into the CD-ROM drive of the computer. 3. Double-click the setup program.

+ 32-bit operating system: \PenSoftware\eng\setup.exe + 64-bit operating system: \PenSoftware\eng_x64\setup_x64.exe 4. For the remainder of the procedure, follow the instructions shown on the screen.

+ When the “User Account Control” dialog box appears, click “Yes” (or “Allow”). + When a security warning screen (The publisher could not be verified.) appears, click “Allow”.

When installation is finished, shortcut icons for whiteboard mode (sd) and overlay mode (1) will be created on the desktop.

The Pen Software printer driver will also be added. (Page 17)

# Uninstalling 1. Exit all running software applications. 2. Click the “Start” button and select “Control Panel”. 3. Click “Uninstall a program”. - If you are using icon view (Classic View), double-click “Programs and Features”. + When Windows XP is used, click “Add or Remove Programs”. (In the classic view, double-click “Add or Remove Programs”.) 4. Select “SHARP Pen Software” and click “Uninstall”. When Windows XP is used, click “Remove”. 5. For the remainder of the procedure, follow the instructions shown on the screen. When the “User Account Control” dialog box appears, click “Continue”.

This completes the uninstallation process.

Installing the Network Scanner Tool

The Network Scanner Tool is used to acquire an image from a SHARP multifunction machine connected to the same network.

# Installing the Network Scanner Tool

The Network Scanner Tool is not included on the provided CD-ROM. Use the Network Scanner Tool (Version 3.3 or later) that is provided with the multifunction machine. (If already installed, there is no need to reinstall.)

For details on installing and using the Network Scanner Tool, see the Network Scanner Tool user's guide. For questions

on the compatibility of your multifunction machine or the Network Scanner Tool, contact your dealer or authorized service representative.

H Configuring settings for the Network Scanner Tool The folder that will be used to acquire images scanned from the multifunction machine must be stored as a destination in the multifunction machine's address book. When creating a profile, select “Move File to Folder”’and set the folder (below) for acquiring images in “Details”. + Windows Vista/7: Startup drive:\ProgramData\SHARP\PenSoftware\JPEG + Windows X Startup drive:\Documents and Settings\AIl Users\ Application Data\SHARP\PenSoftware\JPEG

# Uninstalling Exit the Network Scanner Tool from the taskbar, open the uninstall screen as explained on page 22, and remove “Network Scanner Too!” (or “Sharpdesk”).

Receive the printed or scanned images

Settings of SHARP Pen Software

Turn off Overlay mode

Settings of SHARP Pen Software

Lorsque “The area you touch (or Lorsque “The selected size in Eraser

(9) Background setting of whiteboard

+ Preview : L'image du tableau blanc avec le réglage actuel est affichée. + Background color : Réglez la couleur de l'arrière-plan du tableau blanc. + Showthe grid lines : Sélectionnez pour faire apparaître la grille sur le tableau blanc.

(10) Automatic backup settings

© NU NN © &ù PR w w ND

Cuando toque “Exit without saving”, se saldrä del software sin guardar los datos.

Are yousur vouwant to euttns progam ?

| Saveandexit | Exit without saving

Receive the printed or scanned images

Settings of SHARP Pen Software

Print Current Sheet Fe

(9) Background setting of whiteboard

+ Preview : Se exhibe la imagen de la pizarra con el ajuste actual. + Background color : Ajuste el color de fondo de la pizarra. + Show the grid lines : Seleccione para mostrar la grilla en la pizarra.

(10) Automatic backup settings

Receive the printed or scanned images

Settings of SHARP Pen Software

Turn off Overlay mode

Settings of SHARP Pen Software

Wenn “The area you touch (or cover)” Wenn “The selected size in Eraser

PR CR ll (6) ES "| { ox |

(9) Background setting of whiteboard

+ Preview : Das Bild auf dem Whiteboard mit der gegenwärtigen Einstellung wird angezeigt. + Background color : Einstellen der Hintergrundfarbe des Whiteboards. + Show the grid lines : Einstellung, ob das Whiteboard mit einem Gitter gezeigt werden soll.

(10) Automatic backup settings

MARIE ER ÉE ESA PRÉ AIAUER AFRO RE

fé “Save and exit” Ji, ALAN, mL SARA HT RROLEL. BAR AE RER, HE HERRLE, AVE UERGE. CE TH)

fé “Exit without saving” Ji, RAF AMAR NUE FARÉLIE.

Ave yausue ou vario eutins progan ?

Exit without saving_ |

Save Settings of SHARP Pen Software

Print Current Sheet Print All

Receive the printed or scanned images

4 Quit <iEH > BEHHHARTE. Open <4TJF >" FTIF AOL TE. Turn off Overlay mode XIE MUR. _ CRIE Et D DEL PTR EURE, ADM E AE LAS A CCAES HALIFAX AE) Ce La D MR. 10 Eraser < HEBRAs > HER LRÆ il Select <HEFE > mo 12 Pan <>" D'eNSDONÉRE D ENTRE POULE 8, 15 Zoom In < EX > LRU, HEXBRAR AR. 16 Undo_< Ji > BOBINE. 14 Redo € TA > ART — NRC AT MRTE 14

Save < {RAF > RAA TEST AE T Settings of SHARP Pen Software

CPE EU EE > ROME FAP A RE ICRA 20 Print Current Sheet nie

TETE HAUT ENNE SE 19 Print All ne

TEE >" FERA. 19 Receive the printed or

MIDMEHREEER PHRUMTRER. OR FR nb Re, GR RUE, BR PH. MDN BU ANIME, LL MEAJHSSE ER FERRER SIDE RETARDER, ER AA EUR CR EEE A HE “The area you touch (or cover)” Æf ME “The selected size in Eraser Palette” Aj

Cancel selection (HKMSÏEFE) Group (3744)

DESET LR NR. 2. ARR TRIER “Delete”. HE MDN SUR.

MZ Pen Software (HR)

mere, El “Recoive the printed or scanned images” HHI2 HR.

5. #ttt M “receive the printed or scanned images” #th.

+ ARCS IAE, SRE DENT AT.

FF Network Scanner Too! 3RAN EX HAE Network Scanner Tool Hf, #f Network Scanner Tool TE L##%%#1 Pen Software HJWSTRLE, PURE Network Scanner Tool IH. (5% 23 D)

HMS DRENLRE ER, ASE SNL EST Network Scanner Tool.

nm ÆS DEN es 2 LE 2. SÈFFÆ Network Scanner Tool #44) AL. 3. SRE JPEG EH AAA. 4 HUTIHE. JCPHTEF HR IX Pen Software.

M ZÆ Pen Software ( ÉÂRÈR) À

FIBUR EN “Receive the printed or scanned images” FX#I2Æ TIR.

5. #ttt M “receive the printed or scanned images” #th. HE LB —3R ER

+ “Sheets to Print” ÆÿAHiX.

ER CAE REC EAN AE, BÉRENS FRS E E AOBE CT 3 DAT)

“Settings of SHARP Pen Software” ff. 2. SHVEMM. (WMTFÆ. ) 3. RATÉ, RÉ “OK”.

UE, “Pen 1” #] “Pen 3” LLUX “Eraser” HIS XMI.

—#f “Input Mode Setting” #X “Standard”. Mt HD “Standard”, JWIATEMÉE / BASÉE. —HURCS£#ET “The area you touch (or cover)”, HI “Detect Eraser Area” #4 “Enable”.

(5) Printer setting SEMTENXE. (3 19 1)

Interval until object is captured

+ Preview & MER ADD EE FU CR PA(Ee. + Background color + BÉARNUTS EDS.

Automatic backup settings HER, JE HS) AU BAL HS, MARI.

Network Scanner Tool HF MERE I É HET NE & DEP LARER PH H 2% Network Scanner Tool

godes oi Ds Le 5 A NI Cët, Ci

Quit " L Turn off Overlay mode Quit " LA Open

Receive the printed or scanned images

Settings of SHARP Pen Software

SA es OL I DEN oil gladul as SN Cr io) LV ee PUIS AU LV qe es SE is cs

eee 45 ANS, 405 alt 8, all UN aol 35 il LALUI xs (an (v)

oi is / LS dy ads BE ee a

Adeil Ll5 (Paster s4 ALL (LI AU Y®

Parng to Front + Send to Back + Bring forward + end backward +

ddl 2 5 (Deleter 22 .Y

Pen Software J| Je us 5) pe I g ali aaudi sé nu

(Solar 3 abs) Pen Software LI ‘Receive the printed or scanned images) E-> QÉ 8e 8) pall Je)! dus

(Receive the printed or scanned images) E) ,; oi .e ele Jp 3) pal DNS I

“Receive the printed or scanned images? É] 51 24 4 «3, all JL de (Receive the printed or scanned images: Æ] , oh oh 0

CR EE — — mn CO Dam Te on [82] (Où)

Default (v) NI all Je lotte VI Ones êole

Interval until object is captured (A) AS At pepe Les jee de GA ce

Background setting of whiteboard (4)

gi ole Yi 8e pe ol ed 58e : Preview + ol Tir 3 LALE 0 ire : Background color + eo le 3 GT QUE Ÿ oo4e : Show the grid lines +
