Product type	Digital multifunction office printer (copier, printer, scanner)
Brand	SHARP
Model	AL-2041
Dimensions (L x W x H)	802 x 445 x 358 mm
Weight	17.1 kg (approximate)
Power supply	Local voltage ±10% (see nameplate)
Power consumption	Max. 1.0 kW
Main functions	Copy, print, scan
Copy resolution	600 x 300 dpi (Auto/Manual), 600 x 600 dpi (Photo)
Print resolution	600 dpi
Scan resolution	600 x 600 dpi
Memory	32 MB
Paper capacity	250-sheet tray, 50-sheet bypass tray
Output tray	200 sheets
Copy/print speed	20 pages/min (A4)
First copy time	Approx. 8.0 s (without user program 24)
Reproduction ratio	25% to 400% (platen), 50% to 200% (SPF)
Interface	USB 2.0 High Speed
Consumables	Toner/developer cartridge AL-214TD (approx. 4000 pages), drum cartridge AL-100DR (approx. 18000 pages)
Noise level	Copy mode: 6.1 B (LwA), standby: 3.2 B; sound pressure: 49 dB(A) copy mode, 19 dB(A) standby
Operating conditions	Temperature: 10°C to 30°C, humidity: 20% to 85%
Safety	Class 1 laser device (IEC 60825-1)
Maintenance	Clean regularly with a soft dry cloth; avoid dust and moisture; do not touch the green surface of the drum

Frequently Asked Questions - AL-2041 SHARP

How to install the toner/developer cartridge?

Open the front cover, remove the protective pins, shake the cartridge horizontally 4 to 5 times, remove the cover, insert it until it clicks, then close the front and side covers.

How to load paper in the tray?

Pull out the tray, release the pressure plate lock, adjust the paper guides, fan the paper and insert it under the hooks, then push the tray back into the device.

What to do in case of a paper jam?

Open the front and side covers, carefully remove the jammed paper, taking care of the hot fusing unit. Close the covers. If the jam persists, consult the user manual.

How to clean the device?

Use a soft dry cloth. Do not use chemicals. Avoid touching the green surface of the drum. For full cleaning, refer to the user guide.

Which consumables are compatible with the AL-2041?

Use only genuine SHARP supplies: toner/developer cartridge AL-214TD (approx. 4000 pages) and drum cartridge AL-100DR (approx. 18000 pages).

How to resolve a print quality issue (streaks, spots)?

Clean the drum, check that the toner cartridge is properly inserted and not empty, ensure the paper is suitable (not folded, not damp) and that the guides are correctly adjusted.

Where to find the device serial number?

The serial number is on the nameplate located at the rear of the device. It is required for any support or spare parts request.

How to save energy with this device?

Use the auto standby mode. Turn off the device when not in use. Consult the user settings (user program 24) to adjust the standby delays.

Is it possible to use the device in a country with a different voltage?

No, the device must only be used with the voltage indicated on the nameplate. Using an incompatible voltage can irreparably damage the device.

How to contact SHARP technical support?

Contact your SHARP dealer or SHARP directly. You can request a paper user manual by fax at (+33) 3.89.74.87.78 indicating the model, serial number and desired language.

USER MANUAL AL-2041 SHARP

Line drawing of a printer with paper inside, showing internal structure (no text or symbols)

DIGITAL MULTIFUNCTIONAL SYSTEM START GUIDE

Line drawing of a printer with open lid and internal compartments (no text or symbols)

DIGITAALINEN MONITOIMIJÄRJESTELMÄ ALOITUSOPAS

DIGITALT MULTIFUNKSJONSSYSTEM STARTVEILEDNING

DIGITALT MULTIFUNKTIONSSYSTEM STARTMANUAL

Required in IEC-950 (EN 60 950) - Europe

- The equipment should be installed near an accessible socket outlet for easy disconnection.

Required in Appendix ZB of BS 7002 (En 60 950) — United Kingdom

MAINS PLUG WIRING INSTRUCTIONS

The mains lead of this equipment is already fitted with a mains plug which is either a non-rewireable (moulded) or a rewireable type. Should the fuse need to be replaced, a BSI or ASTA approved fuse to BS1362 marked 🏠 or ⬆ and of the same rating as the one removed from the plug must be used.

Always refit the fuse cover after replacing the fuse on the moulded plug. Never use the plug without the fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the plug supplied either cut-off the moulded plug (if this type is fitted) or remove by undoing the screws if a rewireable plug is fitted and fit an appropriate type observing the wiring code below.

DANGER: The fuse should be removed from the cut-off plug and the plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW: Earth

BLUE: Neutral

BROWN: Live

As the colours of the wires in this mains lead may not correspond with coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND YELLOW must be connected to the terminal in the plug which is marked with the letter E, or by the safety earth symbol ≡ , or coloured green or green-and-yellow.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If you have any doubt, consult a qualified electrician.

WARNING: THIS APPARATUS MUST BE EARTHED.

DIGITAL MULTIFUNCTIONAL SYSTEM START GUIDE

Technical line drawing of two mechanical device enclosures (no text or symbols)

This guide explains how to install the machine, and indicates important points to note for installation and usage. Read and understand this guide to ensure that you install the machine correctly. The Operation Guide for the machine is on the accompanying CD-ROM. The procedure for viewing the guide is explained in "5. HOW TO USE THE OPERATION GUIDE". After installation, read the Operation Guide to make full use of all the machine has to offer.

1. PREPARING THE UNIT FOR INSTALLATION

1 Be sure to hold the handles on both sides of the unit to unpack the unit and carry it to the installation location.

Technical line drawing of a mechanical device with internal components and a belt (no text or symbols)

2 Check if the following components and accessories are included.

Line drawing of a mechanical device with attached components (no text or symbols)

Start Guide (This sheet)

Power cord

Software CD-ROM

Operation Guide CD-ROM

TD cartridge

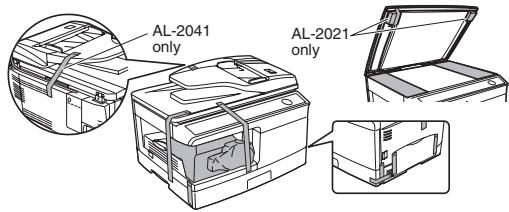

3 Remove the protective materials.

AL-2041 only AL-2021 only

2. INSTALLING THE TD CARTRIDGE

1 Open the multi-bypass tray, and then open the side cover.

Technical diagram showing a device with numbered components and directional arrows indicating motion or assembly.

2 Remove the CAUTION tape from the front cover and remove the two protective pins from the fusing unit by pulling the strings upward one at a time.

Technical line drawing of a mechanical assembly with no visible text or symbols

CAUTION tape

Protective pins

3 Push gently on both sides of the front cover to open the cover.

Illustration of a printer being inserted into a paper airplane (no text or symbols visible)

4 Hold the cartridge on both sides and shake it horizontally four or five times. Hold the tab of the protective cover and pull the tab to your side to remove the cover.

4 - 5

5 Gently insert the TD cartridge until it locks in place.

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating force direction (no text or symbols present)

6 Close the front cover and then the side cover by pressing the round projections near the side cover open button.

Illustration of a printer's internal structure with arrows indicating process (no text or symbols)

Line drawing of a hand inserting a device into a computer case (no text or symbols visible)

Caution

When closing the covers, be sure to close the front cover securely and then close the side cover. If the covers are closed in the wrong order, the covers may be damaged.

3. LOADING PAPER

1 Raise the handle of the paper tray and pull the paper tray out until it stops.

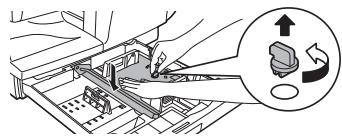

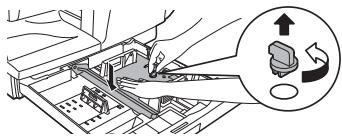

2 Rotate the pressure plate lock in the direction of the arrow to remove it while pressing down the pressure plate of the paper tray.

Diagram illustrating a mechanical assembly process with labeled components and an inset showing a device with directional arrows.

3 Store the pressure plate lock which has been removed in step 2. To store the pressure plate lock, rotate the lock to fix it on the relevant location.

4 Squeeze the lever of paper guide (A) and slide the guide to match with the width of the paper. Move paper guide (B) to the appropriate slot as marked on the tray.

(B) (A)

5 Fan the paper and insert it into the tray. Make sure the edges go under the corner hooks.

Architectural floor plan showing building layout and structural elements (no text or labels)

6 Gently push the paper tray back into the unit.

Note

• Be sure that paper is free of rips, dust, wrinkles, and curled or bent edges.
• Make sure all the paper in the stack is the same size and type.
• When loading paper, ensure there is no space between the paper and the guide, and check if the guide is not set too narrow causing the paper to bend. Loading paper in these ways will result in document skew or a paper jam.

If you use the unit in a country other than the country where the unit was purchased, you will need to make sure that your local power supply is compatible with your model. If you plug the unit into an incompatible power supply, irreparable damage to the unit will result.

1 Ensure that the power switch of the unit is in the OFF position.

OFF

2 Insert the attached power cord into the power cord socket at the rear of the unit.

Line drawing of a mechanical component with a cable inserted into a housing (no text or symbols)

Plug the other end of the power cord into the nearest outlet.

Caution

• Only insert the power cord into a properly grounded wall socket.
• Do not use extension cords or power strips.

3 Turn the power switch on the left side of the unit to the "ON" position.

ON

About the scan head

The scan head lamp remains on constantly when the unit is in the ready condition (when the start ( 8 ) indicator is illuminated). The unit adjusts the scan head lamp periodically to maintain copying quality. At this time, the scan head moves automatically. This is normal and does not indicate unit trouble.

5. HOW TO USE THE OPERATION GUIDE

Detailed explanations of the functions that can be used on the machine are provided in the Operation Guide in PDF format.

1 Insert the supplied CD-ROM into your computer's CD-ROM drive.

2 Display the contents of the CD-ROM, and open the Operation Guide file.

Manual
English

* To view the Operation Guide in PDF format, Adobe® Reader® or Acrobat® Reader® of Adobe Systems Incorporated is required. Adobe® Reader® can be downloaded from the following URL:

http://www.adobe.com/

A paper form operation manul can be obtained from your authorized SHARP dealer or upon request by contacting SHARP.

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

or by fax [phone]

Please inform the model name, the serial number of the machine and the language needed. Do not forget to add your name and your address.

SPECIFICATIONS

		AL-2021	AL-2041
Type		Digital multifunctional system, desk-top type
Copy / printer system		Dry, electrostatic transfer
Originals		Sheets, bound documents
Printer function		Available
Scanner function		Available
Paper tray		250 sheets
Multi-bypass tray		50 sheets
Paper output tray		200 sheets *1
Original sizes	Document glass/SPF	Max. A4
Original feed	Document glass	1 sheet
	SPF	-	Up to 50 sheets
Copy / printing size		A6 to A4 *2
Image loss		Max. 4 mm *3Max. 4.5 mm*4
Copy speed *5		20 pages/min. (A4)
Print speed *6		20 pages/min. (A4)
Continuous copying		Max. 99 pages subtractive counter
First-copy time *7 (Approximately)		8.0 seconds (When user program 24 is set to OFF)10.7 seconds (When user program 24 is set to ON)
Warm-up time *8 (Approximately)		0 seconds
Copy ratio	Document glass	Variable: 25% to 400% in 1% increments(total 376 steps)Fixed: 50%, 70%, 86%, 100%, 141%, 200%
	SPF	-	Variable: 50% to 200% in1% increments(total 151 steps)Fixed: 50%, 70%,86%, 100%,141%, 200%
Exposure system	Document glass	Moving optical source, slit exposure (stationary platen) with automatic exposure
	SPF	-	Moving original
Fusing system		Heat rollers
Development system		Magnetic brush development
Light source		Cold cathode fluorescent lamp
Resolution	Copier	600 x 300 dpi (Auto/Manual mode)600 x 600 dpi (Photo mode)
	Printer	600 dpi
	Scanner	600 x 600 dpi
Gradation	Scan	256 levels
	Output	2 levels
Bit depth		1 bit or 8 bit/pixel

		AL-2021	AL-2041
Type		Digital multifunctional system, desk-top type
Copy / printer system		Dry, electrostatic transfer
Originals		Sheets, bound documents
Printer function		Available
Scanner function		Available
Paper tray		250 sheets
Multi-bypass tray		50 sheets
Paper output tray		200 sheets *1
Original sizes	Document glass/SPF	Max. A4
Original feed	Document glass	1 sheet
	SPF	-	Up to 50 sheets
Copy / printing size		A6 to A4 *2
Image loss		Max. 4 mm *3Max. 4.5 mm*4
Copy speed *5		20 pages/min. (A4)
Print speed *6		20 pages/min. (A4)
Continuous copying		Max. 99 pages subtractive counter
First-copy time *7 (Approximately)		8.0 seconds (When user program 24 is set to OFF)10.7 seconds (When user program 24 is set to ON)
Warm-up time *8 (Approximately)		0 seconds
Copy ratio	Document glass	Variable: 25% to 400% in 1% increments(total 376 steps)Fixed: 50%, 70%, 86%, 100%, 141%, 200%
	SPF	-	Variable: 50% to 200% in1% increments(total 151 steps)Fixed: 50%, 70%,86%, 100%,141%, 200%
Exposure system	Document glass	Moving optical source, slit exposure (stationary platen) with automatic exposure
	SPF	-	Moving original
Fusing system		Heat rollers
Development system		Magnetic brush development
Light source		Cold cathode fluorescent lamp
Resolution	Copier	600 x 300 dpi (Auto/Manual mode)600 x 600 dpi (Photo mode)
	Printer	600 dpi
	Scanner	600 x 600 dpi
Gradation	Scan	256 levels
	Output	2 levels
Bit depth		1 bit or 8 bit/pixel

		AL-2021	AL-2041
Sensor		Colour CCD
Scanning speed		Max. 2.88 ms/line
Memory		32 MB
Power supply		Local voltage ±10% (For this machine's power supply requirement, see the name plate located on the back of the machine.)
Power consumption		Max. 1.0 kW
Overall dimensions	Width	802 mm
	Depth	445 mm
Weight (Approximately) *9		15.5 kg	17.1 kg
Unit dimensions	Width	518 mm
	Depth	445 mm
	Height	298 mm	358 mm
Operating conditions		Temperature: 10°C to 30°C Humidity: 20% to 85%
Emulation		SHARP SPLC(Sharp Printer Language with Compression)
Interface port		USB interface (USB 2.0 Hi Speed)
Noise level		Sound power level LwACopying mode: 6.1 BStandby mode: 3.2 BSound pressure level LpA (reference) (Bystander positions) Copying mode: 49 dB (A) Standby mode: 19 dB (A) Sound pressure level LpA (reference) (Operator position) Copying mode: 52 dB (A) Standby mode: 19 dB (A) Noise emission measurement in accordance with ISO7779.

*1 When standard A4 paper is used under the operating conditions.
*2 Feed paper lengthwise only.
*3 Leading and trailing edges.
*4 Along the other edges in totals.
*5 When making multiple duplex copies, the copy speed will vary based on the environment conditions.
*6 Print speed during printing of the second sheet and following sheets when using A4 plain paper in the tray 1 and performing continuous one-sided printing of the same page.
*7 First copy time may vary depending on the status of the machine.
*8 Warm-up time may vary depending on some environments.
*9 Not including TD and drum cartridges.

Note

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

ABOUT SUPPLIES AND OPTIONS

When ordering supplies, please use the correct part numbers as listed below.

Note

Be sure to use only genuine SHARP parts and supplies.

GENUINE SUPPLIES

For best copying results, be sure to use only SHARP products.

Only genuine SHARP consumables carry the Genuine Supplies label.

Supply list

Supply	Part number	Usable life
TD cartridge	AL-214TD	Approx. 4,000 sheets*
Drum cartridge	AL-100DR	Approx. 18,000 sheets

* Based on copying onto letter size paper at 5% toned area (The life of the TD cartridge which has been included in the unit at the factory is approximately 2,000 sheets.)

MSDS (Material Safety Data Sheet)

The MSDS (Material Safety Data Sheet) can be viewed at the following URL address: http://www.sharp-world.com/corporate/info/index.html

USB interface cable

Please purchase the appropriate cable for your computer. Use a shielded cable.

CAUTIONS

Caution label on the unit

The label (⚠️, ⬆) in the fusing area of the unit indicates the following:

Caution, risk of danger

Caution, hot surface

Cautions on using

Follow the cautions below when using this unit.

Warning:

• The fusing area is hot. Exercise care in this area when removing misfed paper.
• Do not look directly at the light source. Doing so may damage your eyes.
• Unit power must be turned off before installing any supplies.

! Caution:

• Place the unit on a firm, level surface.
• Do not install the unit in a humid or dusty location.
• When the unit is not used for a long time, for example during prolonged holidays, turn the power switch off and remove the power cord from the outlet.
• When moving the unit, be sure to turn the power switch off and remove the power cord from the outlet.
• Do not switch the unit rapidly on and off. After turning the unit off, wait 10 to 15 seconds before turning it back on.
• Do not cover the unit with a dust cover, cloth or plastic film while the power is on. Doing so may prevent heat radiation, damaging the unit.
• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• The socket-outlet shall be installed near the unit and shall be easily accessible.

Important points when selecting an installation site

Do not install your unit in areas that are:

• damp, humid, or very dusty
  • exposed to direct sunlight
• poorly ventilated
• subject to extreme temperature or humidity changes, e.g., near an air conditioner or heater.

Be sure to allow the required space around the unit for servicing and proper ventilation.

Cautions on handling

Be careful in handling the unit as follows to maintain the performance of this unit.

10 cm

10 cm

Do not drop the unit, subject it to shock or strike it against any object. Do not expose the drum cartridge to direct sunlight.

- Doing so will damage the surface (green portion) of the drum cartridge, causing smudges on copies.

Store spare supplies such as drum cartridges and TD cartridges in a dark place without removing from the package before use.

- If they are exposed to direct sunlight, smudges on copies may result.

Do not touch the surface (green portion) of the drum cartridge.

- Doing so will damage the surface of the cartridge, causing smudges on copies.

CAUTION:

Do not install the machine in a location with poor air circulation.

A small amount of ozone is created inside the machine during printing. The amount of ozone created is not sufficient to be harmful; however, an unpleasant odor may be noticed during large copy runs, and thus the machine should be installed in a room with a ventilation fan or windows that provide sufficient air circulation. (The odor may occasionally cause headaches.)

* Install the machine so that people are not directly exposed to exhaust from the machine. If installed near a window, ensure that the machine is not exposed to direct sunlight.

Supply and Consumables

The supply of spare parts for a repair of the appliance is guaranteed for at least 7 years following the termination of production. Spare parts are those parts of the apparatus which may break down within the scope of ordinary use of the product, whereas those parts which normally exceed the life of the product are not considered spare parts. Consumables also, are available for 7 years following the termination of production.

In some areas, the "POWER" switch positions are marked "I" and "O" on the copier instead of "ON" and "OFF".

If your copier is so marked, please read "I" for "ON" and "O" for "OFF".

Caution!

For a complete electrical disconnection, pull out the main plug. The socket-outlet shall be installed near the equipment and shall be easily accessible.

Shielded interface cables must be used with this equipment to maintain compliance with EMC regulations.

Laser information

Wave length	780 nm+15 nm-10 nm
Pulse times	12.88 μs ±12.88 ns/7 mm
Output power	Max 0.2 mW

At the production line, the output power of the scanner unit is adjusted to 0.18 MILLIWATT PLUS 5% and is maintained constant by the operation of the Automatic Power Control (APC).

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This Digital Equipment is CLASS 1 LASER PRODUCT (IEC 60825-1 Edition 1.2-2001)

This product is designed for commercial application only and as such it falls outside the scope of Regulation (EC) 1275/2008 implementing EU Directive 2005/32/EC on eco-design requirements for standby and off mode electric power consumption. Sharp does not recommend the product for domestic application and will not accept any liability for such use.

Products that have earned the ENERGY STAR ^® are designed to protect the environment through superior energy efficiency.

The products that meet the ENERGY STAR ^® guidelines carry the logo shown above.

The products without the logo may not meet the ENERGY STAR ^® guidelines.

SOFTWARE LICENSE

The SOFTWARE LICENSE will appear when you install the software from the CD-ROM. By using all or any portion of the software on the CD-ROM or in the unit, you are agreeing to be bound by the terms of the SOFTWARE LICENSE.

Trademark acknowledgements

• Microsoft ^® , Windows ^® , Windows ^® 2000, Windows ^® XP, Windows Vista ^® , Windows 7 ^® and Internet Explorer ^® are registered trademarks or trademarks of Microsoft Corporation in the U.S.A. and other countries.
• Adobe ^ , the Adobe ^ logo, Acrobat ^ , the Adobe ^ PDF logo, and Reader ^TM are registered trademarks or trademarks of Adobe Systems Incorporated in the United States and other countries.
• IBM, PC/AT, and PowerPC are trademarks of International Business Machines Corporation.
• Sharpdesk is a trademark of Sharp Corporation.
• All other trademarks and copyrights are the property of their respective owners.

Do not make copies of anything which is prohibited from copying by law. The following items are normally prohibited from copying by national law. Other items may be prohibited by local law.

● Money

● Stamps

● Bonds

● Stocks

● Bank drafts

- Checks

● Passports

● Driver's licences

Emission density (measured according to RALUZ122: Edition Jun.2006)

Measured chemicals	Condition of copier	Colour mode	Diffusion speed
Ozone	When copier is in operation	Black and white	1.5 gm/h or less
Dust		Black and white	4.0 gm/h or less
Styrene		Black and white	1.0 gm/h or less
Benzene		Black and white	0.05 gm/h or less
TVOC		Black and white	10 gm/h or less
	When on standby	-	2.0 gm/h or less

Technical line drawing of two mechanical device enclosures (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Line drawing of a printer with hands operating the cover (no text or symbols)

Illustration of a hand operating a mechanical device with a tool inserted (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating direction (no text or symbols present)

Diagram of a printer's internal structure with arrows indicating assembly or cleaning steps (no text or symbols present)

Line drawing of a computer monitor with an open rear panel and a hand inserting a cable (no text or symbols)

Achtung

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or force.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a plug inserted (no text or symbols)

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

Technical line drawing of two mechanical device enclosures (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram illustrating a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Illustration of a printer being inserted into a paper airplane (no text or symbols visible)

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating force direction (no text or symbols present)

Illustration of a printer with hands inserting a paper into the cover (no text or symbols present)

Line drawing of a hand inserting a device into a computer case (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a cable inserted (no text or symbols)

5. INFORMATIONS RELATIVES AU MODE D'EMPLOI

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

Attention, surface chaude

Line drawing of a mechanical device with hands operating it (no text or symbols)

Diagram showing a hand operating a device with labeled parts, including numbered annotations ①, ②, and ③.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

OPGELET tape

Beschermende pins

Line drawing of a printer with hands operating the cover (no text or symbols)

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating motion (no text or symbols present)

Illustration of a printer's internal structure with hands operating it, showing no text or symbols.

Line drawing of a computer monitor with an open screen and a hand inserting a cable (no text or symbols)

Technical diagram showing a hand operating a mechanical device with an inset magnified view highlighting the component.

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a cable inserted (no text or symbols)

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANKRIJK

of per fax [phone]

Line drawing of a container with hands holding an attached handle (no text or symbols)

Diagram showing a hand inserting a component into a computer monitor, labeled with parts ①, ②, and ③.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Cinta de precaución

Clavijas protectoras

Line drawing of a printer with hands operating the cover (no text or symbols)

Illustration of a hand operating a mechanical device with a tool, no text or symbols visible

Diagram of a printer's internal mechanism showing hand placement and paper feeding (no text or symbols)

Illustration of a printer with hands operating the cover and inserting a paper into the cover (no text or symbols present)

Line drawing of a hand inserting a device into a computer case (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical assembly with an arrow indicating direction, no visible text or symbols

Technical line drawing of a mechanical component with a cable inserted (no text or symbols)

Technical line drawing of two mechanical device enclosures (no text or symbols)

Line drawing of a mechanical device with clamping mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly with no visible text or symbols

Nastro CAUTION

Illustration of hands operating a mechanical device with a paper sheet (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with an arrow indicating direction (no text or symbols present)

Illustration of a printer being inserted into a paper holder (no text or symbols visible)

Illustration of a printer's internal structure with hands operating it, showing no text or symbols.

Line drawing of a computer monitor with an open rear panel and a hand inserting a cable (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or force.

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a cable inserted (no text or symbols)

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

Technical line drawing of two mechanical device enclosures (no text or symbols)

Line drawing of a mechanical component with hands fastening a part (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Netledning

Technical diagram showing a device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of an internal mechanical assembly (no text or symbols)

FORSIGTIG-side

Diagram of a mechanical assembly with arrows indicating force or movement (no text or symbols present)

Beskyttelsesstifter

Illustration of a printer being inserted into a paper airplane (no text or symbols visible)

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating force direction (no text or symbols present)

Illustration of a printer with hands inserting a paper into the cover (no text or symbols present)

Line drawing of a hand inserting a device into a computer case (no text or symbols visible)

Line drawing of a hand pressing down on a car front panel (no text or symbols)

2 Drej trykpladelåsen i pilens retning for at fjerne den, mens der trykkes ned på papirbakkens trykplade.

Diagram illustrating a mechanical assembly process with labeled components and an upward arrow indicating motion direction.

Architectural floor plan diagram showing structural layout and ventilation system (no text or labels)

Technical line drawing of a mechanical component with a cable inserted (no text or symbols)

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANKRIG

eller via fax [phone]

Technical line drawing of two mechanical device enclosures (no text or symbols)

Line drawing of a hand inserting a device into a rectangular box (no text or symbols)

Line drawing of a portable electronic device with attached cables (no text or symbols)

Virtajohto

Technical diagram showing a hand operating a computer with labeled parts and directional arrows indicating operation.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

HUOMIO-teippi

Suojatapit

Illustration of a printer being inserted into a slot, showing mechanical components and paper layout (no text or symbols)

Illustration of a hand inserting a card into a machine (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating force direction (no text or symbols present)

Illustration of a printer's internal structure with hands operating it (no text or symbols visible)

Line drawing of a computer monitor with an open lid and a hand inserting a cable (no text or symbols)

Huomio

Diagram illustrating a mechanical assembly process with labeled components and an inset showing a device with directional arrows.

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Technical line drawing of a mechanical component with a plug and connector (no text or symbols)

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

tai faksilla (+33) 3.89.74.87.78

In some areas, the "POWER" switch positions are marked "I" and "O" on the copier instead of "ON" and "OFF".

If your copier is so marked, please read "I" for "ON" and "O" for "OFF". Caution!

For a complete electrical disconnection, pull out the main plug. The socket-outlet shall be installed near the equipment and shall be easily accessible.

Technical line drawing of two mechanical device enclosures (no text or symbols)

Technical line drawing of a mechanical component with hands fastening (no text or symbols)

Startveiledning (Dette arket)

Technical diagram showing a device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Sikkerhetstape

Beskyttelsesnåler

Illustration of a printer being inserted into a paper airplane (no text or symbols visible)

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Mechanical assembly diagram showing a hand pressing down on a component with an arrow indicating force direction (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with a blue bowl (no text or symbols visible)

Line drawing of a computer monitor with an open rear panel showing internal components (no text or symbols)

Forsiktig

Diagram illustrating a mechanical assembly process with an inset showing a device and directional arrows indicating movement or force.

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a cable inserted (no text or symbols)

Diagram showing a CD/DVD conversion process from a circular disc to a desktop computer tower

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

eller via (+33) 3.89.74.87.78

Technical line drawing of two mechanical device enclosures (no text or symbols)

1. FÖREBEREDA APPARATEN FÖR INSTALLATION

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

Strömkabel

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Skyddstejp

Skyddstift

Line drawing of a printer with hands operating the cover (no text or symbols present)

Illustration of hands operating a mechanical device with a paper clip (no text or symbols visible)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Diagram of a printer's internal structure with arrows indicating assembly or operation (no text or symbols present)

Line drawing of a computer monitor with an open screen and a hand inserting a cable (no text or symbols)

Diagram of a hand pressing down on a device component (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or force.

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Technical line drawing of a mechanical component with an inset view labeled 'AV' (no text or symbols beyond label)

Technical line drawing of a mechanical component with a plug inserted (no text or symbols)

Diagram showing a CD/DVD conversion process from a circular disc to a desktop computer with monitor and keyboard

SHARP Manufacturing France - Customer Documentation Department

Route de Bollwiller

68 360 SOULTZ - FRANCE

eller via fax [phone]
