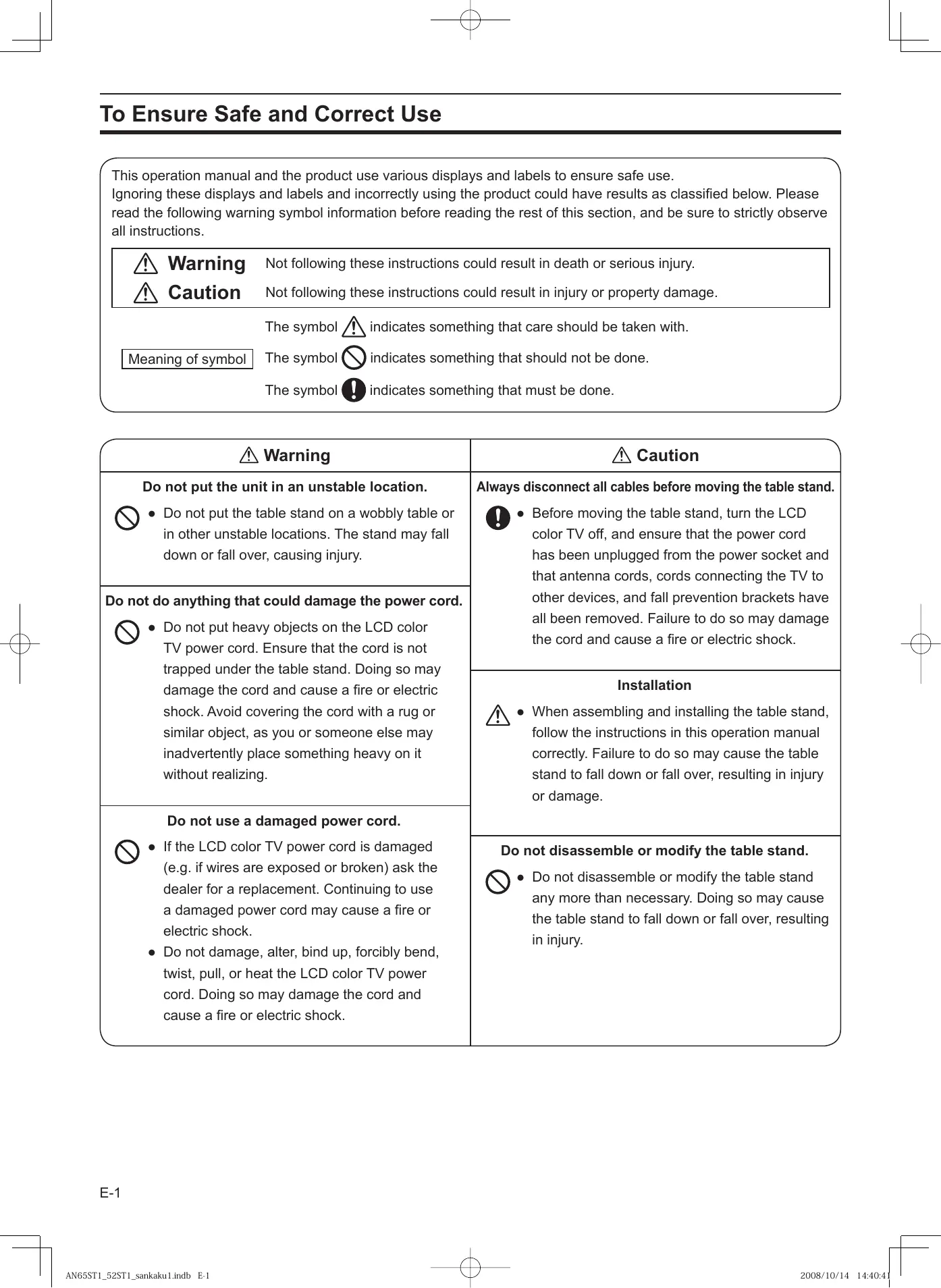

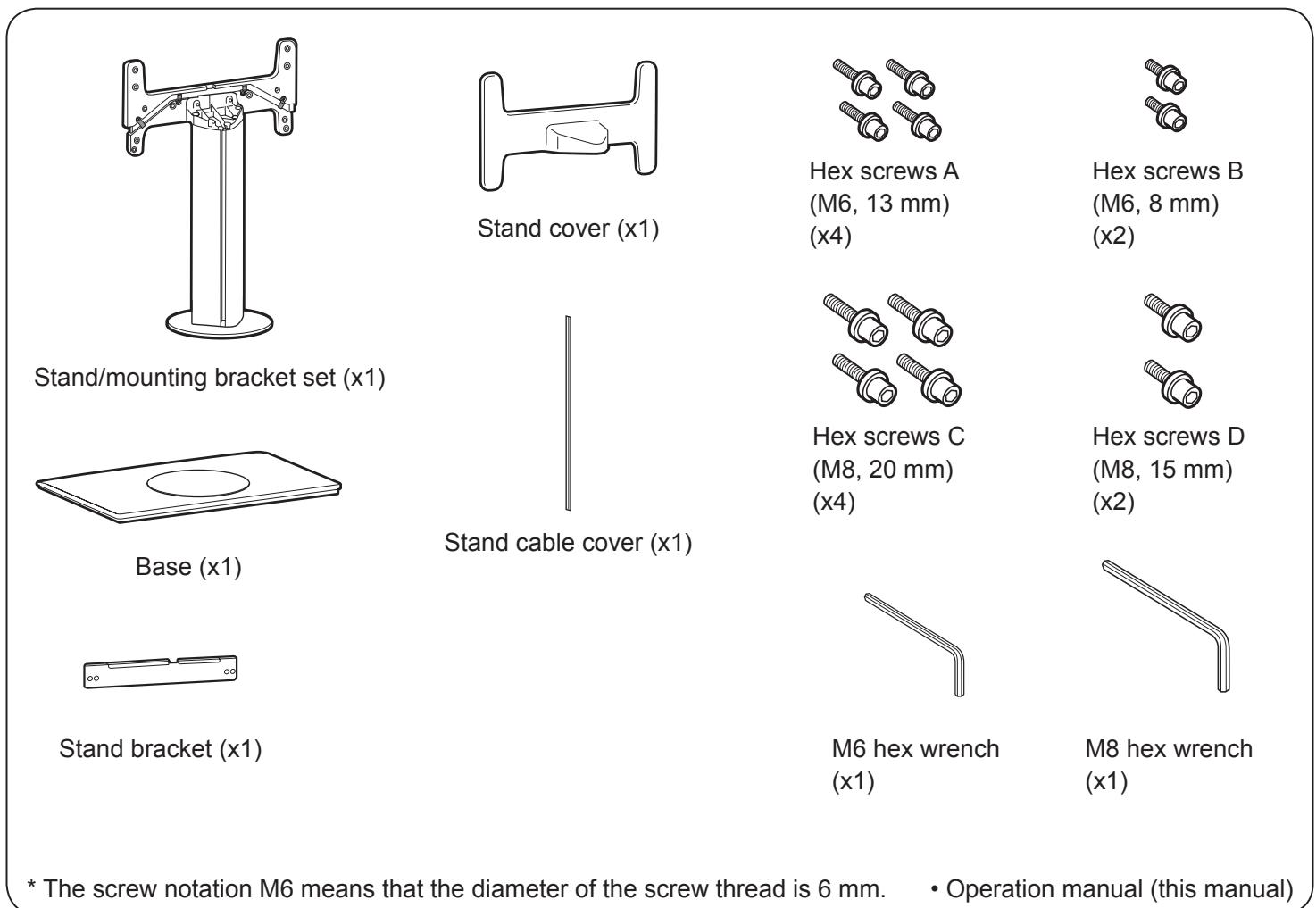

• The screw notation M6 means that the diameter of the screw thread is 6 mm. M8 hex wrench (x1)

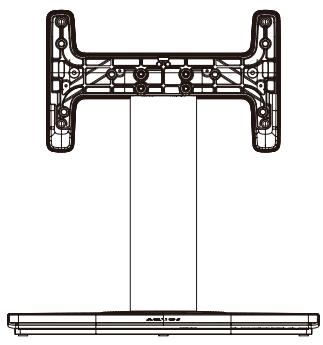

• Operation manual (this manual) Assembling the Table Stand Preparations

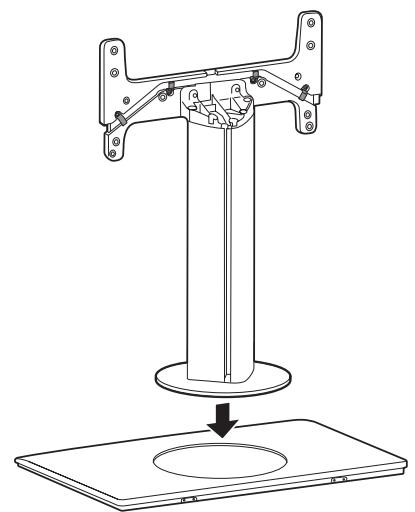

• Before attaching the table stand, remove all cables from the LCD color TV. the stand/mounting bracket set 1 Attach to the base. (You can use the packing material to facilitate the process. Refer to “Assembling the Table Stand by Using the Packing Material” on page E-4.) the stand to the base using 4 2 Fix included M6 hex screws (A). (Use the included M6 hex wrench.) E-2 AN65ST1̲52ST1̲sankaku1.indb E-2 2008/10/14 14:40:42 Attaching the Table Stand to the LCD Color TV

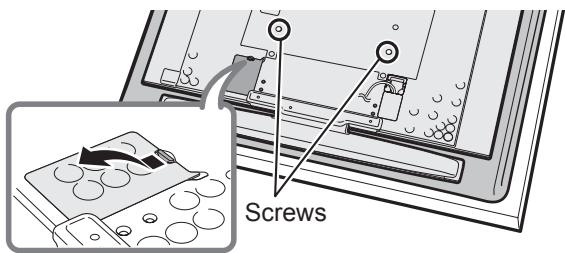

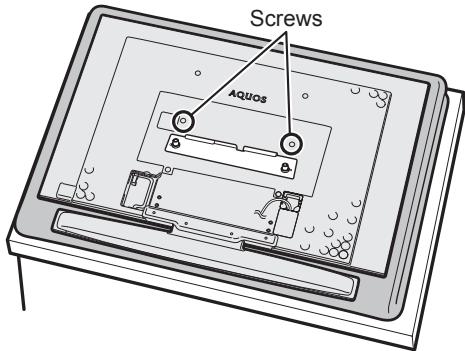

Remove the 2 screws indicated and the terminal cover from the back of the LCD color TV. (Store the screws in a safe place after removing them.)

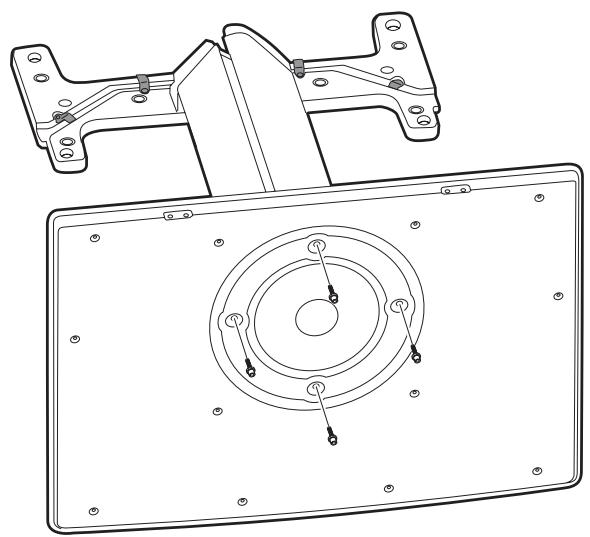

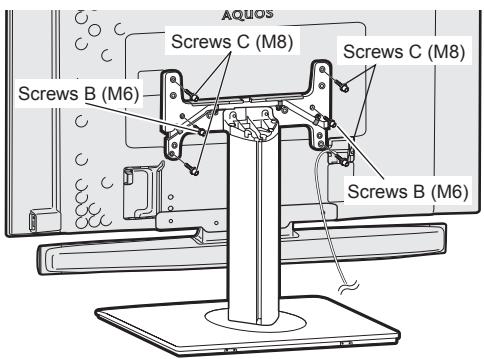

Attach the stand bracket to the back of the LCD color TV using 2 included M8 hex screws (D).

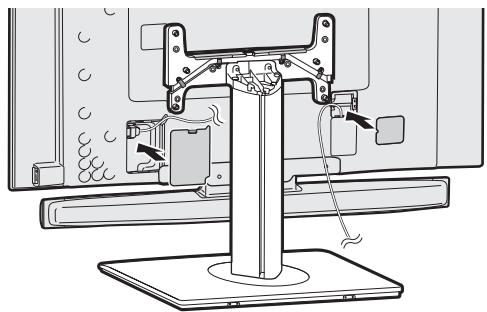

Connect the cables, reattach the terminal cover, and attach the power cord cover included with the LCD color TV to the back of the LCD color TV.

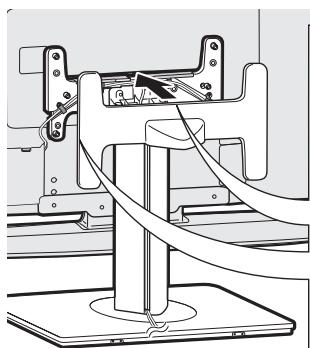

Feed the cables through the groove in the stand and attach the included stand cable cover. (Organize the cables with the cable clamps on the stand.)

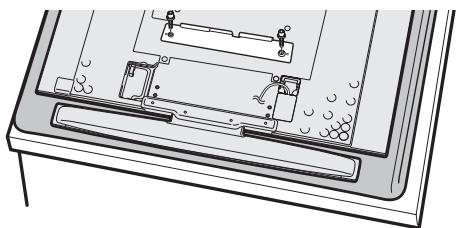

• Only for the case of a 52-inch LCD color TV, you need to remove 2 more screws. Screws Cable clamp

• Place the LCD color TV on a blanket or other thick, soft cloth during installation.

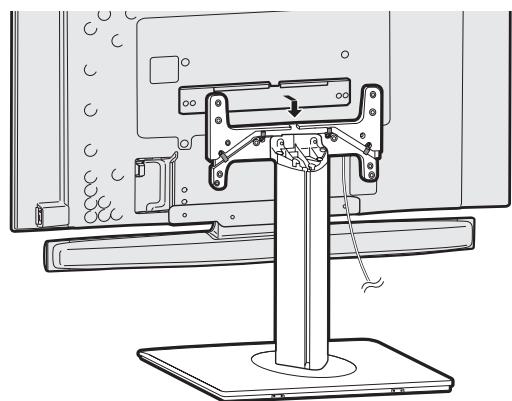

Stand cable cover Hook the stand bracket attached to the LCD color TV over the mounting bracket on the stand and attach it temporarily.

Attach the included stand cover to the stand. When you attach options, you can remove this cover and run the cable through the groove.

• Take care not to get the power cord caught between the brackets.
• As the LCD color TV is only temporarily attached at this stage, do not lay it down. ● Adjusting the angle of the TV
• The stand can be swiveled vertically 20° to either side. Hold the stand firmly when adjusting the angle. E-3 AN65ST1̲52ST1̲sankaku1.indb E-3 2008/10/14 14:40:43 Assembling the Table Stand by Using the Packing Material

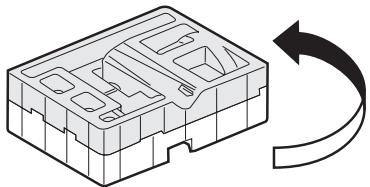

Engage the two parts of the material and place them upside-down.

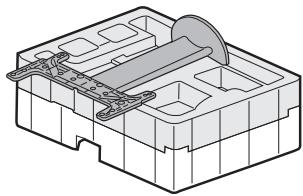

Set the stand/mounting bracket set in the appropriate grooves in the material.

Set the base in the groove and attach it to the stand/mounting bracket set.

Fix the stand to the base using 4 included M6 hex screws (A). (Use the included M6 hex wrench.) Align the U marks of the stand/mounting bracket set to the line on the bottom of the base. ENGLISH

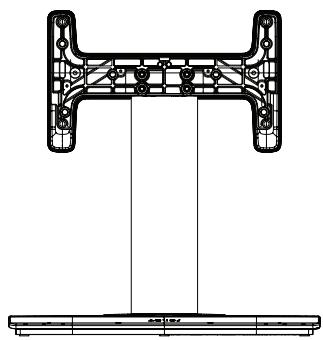

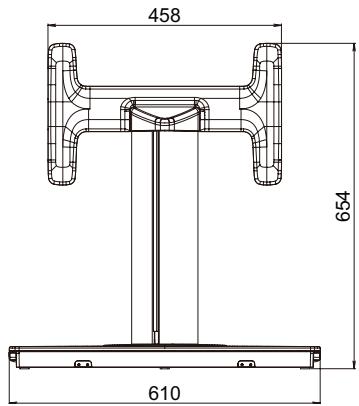

Rear AN-52ST1 Weight: 17.5 kg
