USER MANUAL FP-N40CX SHARP

Approximately the same numbers of positive and negative ions are discharged.

• FILTER GUIDELINES .................................. E-7 Plenty of negative ions exist in natural surroundings such as waterfalls or forests. In this mode, negative ions will be released in an increased rate, in order to bring the room air close to this natural environment.

• AUTO Plasmacluster Ion Mode The unit will switch between Clean Mode and Ion Control Mode automatically depending on the amount of impurities in the air detected by the dust and odor sensor.

It collects large particles.

2) Washable Active Carbon Filter

Its deodorizing performance can be maintained by washing.

3) Tr u e H E PA ( H i g h E f f i c i e n c y

Particulate Air) Filter with antibacterial Apatite Filter High-efficiency particle collection including pollen and dust. FILTER MAINTENANCE Some odor ingredients absorbed by the filters may become separated and may be discharged through the air outlet and result in additional odor. Depending on the usage environment, the air outlet odor may become strong after several months. In this case, clean the Washable Active Carbon Filter. (Refer to E-14) If this odor persists, this is because the odor components absorbed by the HEPA Filter have come off the filter. Purchase the optional filter FZN40HFU and replace the original filters.

SPECIFICATIONS ................................. E-20 Thank you for purchasing the SHARP FP-N40CX. Please read this manual carefully for the correct usage information. Before using this product, be sure to read the section: “Safety Precautions.” After reading this manual, retain it in a convenient location for future reference. This product is for household use only. E-1 ENGLISH FEATURES FOR YOUR PROTECTION (the United States) To aid in answering questions if you call for service or for reporting loss or theft, please record below the model and serial number located on the back side of the unit. MODEL NUMBER SERIAL NUMBER

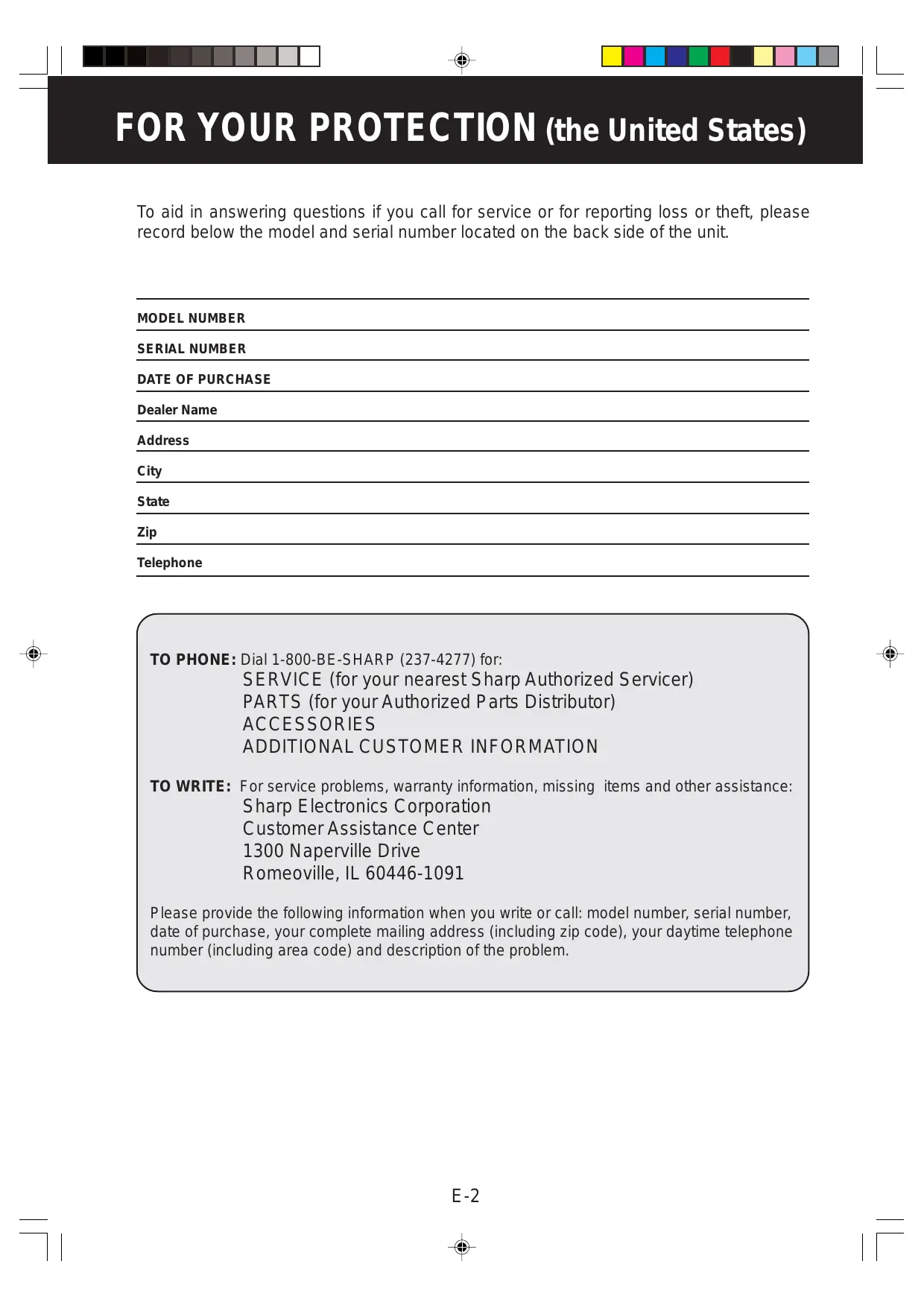

Dealer Name Address City State Zip Telephone TO PHONE: Dial 1-800-BE-SHARP (237-4277) for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES

ADDITIONAL CUSTOMER INFORMATION

TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. E-2

CONSUMER LIMITED WARRANTY

CONSUMER LIMITED WARRANTY FOR THE U.S. USERS SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFlC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Your Product Model Number & Description: FP-N40CX Air Purifier. Be sure to have this information available when you need service for your Product. Warranty Period for this Product: One (1) year parts and labor from date of purchase. Additional Item(s) Excluded From Warranty Coverage (If any): Appearance items of the Product, filter, or accessories, or any printed materials. Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP. What to Do to Obtain Service: Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home, and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available. TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, GO TO OUR WEBSITE AT www.sharpusa.com

Sharp Plaza, Mahwah, New Jersey 07430-2135 E-3 ENGLISH In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. FOR YOUR PROTECTION (Canada) To aid in answering questions if you call for service or for reporting loss or theft, please record below the model and serial number located on the back side of the unit. MODEL NUMBER SERIAL NUMBER

Dealer Name Address City Province Postal Code Telephone TO PHONE: Dial 1-905-568-7140 for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES

ADDITIONAL CUSTOMER INFORMATION

TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics of Canada Ltd. Customer Care 335 Britannia Road East Mississauga, Ontario L4Z 1W9 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including Postal Code), your daytime telephone number (including area code) and description of the problem. E-4

LIMITED WARRANTY Consumer Electronics Products Congratulations on your purchase! Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer: This warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined in the owner’s manual. (b) Any Sharp product tampered with modified, adjusted or repaired by any party other than Sharp, Sharp’s Authorized Service Centres or Sharp’s Authorized Servicing Dealers. (c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to head cleaning tapes and chemical cleaning agents. (d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and paper. (e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. (f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid spillage. (g) Any product received without appropriate model, serial number and CSA/cUL markings. (h) Any products used for rental or commercial purposes. (i) Any installation, setup and/or programming charges. Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over-the-Range Microwave Oven. This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. WARRANTY PERIODS: Audio Products Camcorder DVD Products LCD Projector LCD TV Microwave Oven Television Products VCR Products Vacuum Cleaner Air Purifier Parts & Labour (exceptions noted) 1 year 1 year 1 year 1 year (lamp 90 days) 1 year 2 years (magnetron component-3 additional years) 1 year (picture tube component-1 additional year) 1 year 1 year 1 year (filters) To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact: SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East Mississauga, Ontario L4Z 1W9 SERVICE

TH R For more information on this Warranty, Sharp Canada Products, Accessory Sales, Dealer or Service Locations, please call (905) 568-7140 Visit our Web site: www.sharp.ca

STOMER SAT ENGLISH Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein. SAFETY PRECAUTIONS

RISK OF ELECTRIC SHOCK

• These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
• To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet. Do not alter the plug in any way.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loose. Electrical shock, short circuit and/or fire may occur as a result.
• Do not damage, break, coat, forcefully bend, pull, twist, bundle, pinch or place heavy objects on the power cord. If the power cord is damaged, fire and/or electrical shock may occur as a result.
• Use AC 120V only. Fire and/or electrical shock may occur as a result.
• Do not modify. Repair and disassembly of this product are to be performed by authorized service personnel only. Fire, electrical shock and/or bodily injury may occur if not. For repair, contact your dealer or the nearest Sharp Service Center.
• Periodically remove dust from the power plug Accumulated dust on the power plug may cause bad insulation from humidity, etc. Fire and/or electrical shock may occur as a result.
• When cleaning the unit, be sure to remove the power plug from the wall outlet. In addition, never handle the power plug with wet hands. Electrical shock and/or bodily injury may occur as a result.
• Do not use the unit where there are oil ingredients such as cooking oil, in the air. Cracking of the unit surface may occur as a result.
• Do not wipe the unit with benzene or paint thinner. Also, do not spray insecticides on the unit. Cracking, electrical shock and/or fire may occur as a result.
• Do not operate the unit when using indoor smoke-generating insecticides. Chemical ingredients may accumulate within the unit and then discharge from the air outlet when the unit operates. Discharge of such chemicals may be unhealthy to your body.
• Do not allow the unit to intake flammable gases, sparks from lit cigarettes, incense, etc. The unit may ignite as a result.
• Do not use the unit where it is humid, such as in a bathroom, or where the unit may get wet. Electrical shock and/or malfunction may occur as a result.
• Do not insert fingers or foreign objects into the intake or air outlet. Electrical shock and/or malfunction may occur as a result.
• When removing the power plug, always hold the plug and never pull the cord. Electrical shock and/or fire from short circuit may occur as a result.
• Ventilate when using the unit along with a heating appliance. Carbon monoxide poisoning may occur as a result.
• Remove the power plug when not using the unit. Electrical shock from bad insulation and/or fire from short circuit may occur as a result.
• If the power cord is damaged, it must be replaced by the manufacturer , its service agent or similarly qualified person in order to avoid a hazard.
• The batteries must be removed from the remote control before it is disposed and the batteries must be disposed of safely. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. E-6

• Do not block the intake and air outlet.
• Do not use the unit near or on hot objects, such as a stove. Also, do not use the unit where it may come into contact with steam.
• Do not use the unit on its side. Deformation, malfunction and/or overheating of the motor may occur as a result.
• Do not install when there is generation of oily residue, such as in a kitchen.
• Do not use detergent when cleaning the unit. The unit surface may become damaged or cracked. In addition, the sensor may malfunction as a result.
• Do not operate the unit without the filter. It will have no purification effect. In addition, it becomes the cause of the trouble.
• Do not wash and reuse HEPA filter. Not only it does not improve filter performance, it may cause electric shock or malfunction.
• Let Washable Active Carbon Filter dry thoroughly after cleaning it. Wet filter may damage HEPA filter, and it may cause strong odor.
• When transporting the unit, always hold the handle on the back of the unit. Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in bodily injury.

REMOTE CONTROL LIMITATIONS

DO NOT USE THE REMOTE CONTROL IN THE FOLLOWING LOCATIONS

• Any location where there is inverter lighting equipment or electronic spontaneous lighting equipment The remote control may become inoperative. In this case, move away from such lighting equipment or change direction.
• Location exposed to direct sunlight The unit may not receive signals from the remote control. The unit may not respond to the signals of the remote control if the ends of fluorescent lighting become black or lights flicker due to the depletion of service life; however, this is not a malfunction of the remote control or the main unit. In this case, replace the lighting with new fluorescent tubes. INSTALLATION GUIDELINES
• Leave at least 7 feet (2m) of space from equipments which involve electric wave such as televisions, radios or wave clocks. Electrical interference may occur if not.
• Leave at least 2 feet (60cm) of space from the wall The motor may overheat, causing malfunction if not.
• Avoid a location where sensor is exposed to direct wind The unit may not operate properly.
• Avoid a location where curtains, etc., come into contact with the intake or air outlet. Curtains, etc., may become dirty or malfunction may occur as a result. EFFECTIVE OPERATION
• Place on a stable surface with sufficient air circulation FILTER GUIDELINES
• Do not wash and reuse the True HEPA Filter. It does not work effectively, and may become a cause of electric shock.
• The wall behind the air outlet may become dirty as time passes. When using the unit for extensive period in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In addition, periodically clean the wall, etc. E-7 ENGLISH CAUTIONS CONCERNING THE OPERATION OF THIS PRODUCT PART NAMES

AUTO SILENT MED HIGH MAX POLLEN

CLEAN-SIGN Plasmacluster CLEAN-SIGN LIGHT Remote Control Receiver Odor Sensor

• Detects odors such as tobacco smoke, pets, cosmetics, etc.
• It can not detect odorless pollen and dust. The color changes according to the air condition. Clean (Green) Slightly Impure (Orange) Very Impure (Red)

ABOUT THE CLEAN-SIGN

• The Odor sensor displays a CLEAN-SIGN depending on relative changes to the environment from the time the power plug is inserted into the wall outlet and thereafter.
• When the air is extremely impure at the time the power plug is inserted, the CLEAN-SIGN may light green since the impure condition is the environment against which the sensor bases the impurity rate on. In this case, operate the unit for a while in Clean Mode first, then switch to the desired operation mode. See Page E-13
• To reset the base impurity rate of the CLEAN-SIGN remove and insert the power plug.
• The light can be turned off using ‘Display ON/OFF’ Button on the remote control. Please turn off the light it is not needed. See Page E-13 MODE-ON/OFF Button See Page E-12 (Used to select operations or turn the unit off) Main Unit Band See Page E-11 True HEPA Filter (white) See Page E-17 (Dust Collection Filter with Anti-Bacterial Apatite Filter sheet covering its front surface) Washable Active Carbon Filter (black) See Page E-14 (Deodorization filter) Pre-Filter Front Panel Remote Control See Page E-13 Hook Stand See Page E-9 (Be sure to mount for tabletop installation) Thumbscrew E-8

Plasmacluster ion operation is selected using the remote control. Please mount the stand before use. 1 Remove the Front Panel. Blue light

• At this time, also remove the Pre-Filter, Washable Active Carbon Filter and the True HEPA Filter. Front Panel When the Plasmacluster ion operation is in Clean Mode, or in AUTO Plasmacluster Ion Mode and the air in the room is impure, the light will activate and the unit will operate in Clean Mode. Green light

When the Plasmacluster ion operation is in the Ion Control Mode, or in AUTO Plasmacluster Ion Mode and the air in the room is clean, this light will activate and the unit will operate in Ion Control Mode. Light off the unit with its front 2 Place side facing down on a flat BACK and stable surface.

• Place a soft cloth, etc., to prevent damaging the unit. Handle Air Outlet the tabs on the stand 3 Insert into the holes on the main unit and fix the stand using the included thumbscrews (2 units). Power Cord Power Plug

• Do not insert the thumbscrews forcibly or diagonally. Otherwise, the screws may not be tightened correctly. ACCESSORIES Remote Control (1 unit) Stand (1 unit) Tabs Battery (AA battery X 2 ) Thumbscrews (2 pieces) Located on bottom of stand

• Operation manual Thumbscrews E-9 Holes ENGLISH

There are no Plasmacluster ions being generated.

• The light can be turned off by using the ‘Display ON/ OFF Button’ on the Remote Control. (Please turn off the light when not required.) PREPARATION Be sure to remove the power plug from the wall outlet. FILTER INSTALLATION To maintain the quality of the filters, they are placed in the main unit within plastic bags. Be sure to remove the filters from the plastic bags before using the unit.

Filters Removal 1 Place the unit facing up Lay the unit on a flat surface such as a table, making sure that the stand does not contact the surface. 2 Remove the Front Panel Place so that stand does not touch surface. Soft cloth Table, etc.

Press in the hook on the bottom of the Front Panel and lift to remove.

Hook Pre-Filter the Pre-Filter, and then re3 Remove move the Washable Active Carbon Filter (black) and True HEPA Filter (white) from the plastic bags. The Washable Active Carbon Filter is reinforced with cardboard to prevent it losing its shape. Washable Active Carbon Filter

INSERTING BATTERIES IN THE REMOTE CONTROL

the 1 Remove back cover Press and slide the back cover to remove. 2 Insert batteries Insert batteries with and as shown below. the back 3 Close cover E-10 Battery Information

• The batteries for this remote control are for initial use only . Change the batteries when necessary.
• Incorrect usage of the batteries may cause battery fluid leakage and/or damage. Take care of the following when handling:
• When replacing the batteries, replace both batteries with new ones of the same type. (Use 2 AA manganese batteries.)
• When not using the unit or remote control for an extended period, remove the batteries. (This prevents malfunction of the remote control from battery fluid leakage.)
• The batteries of the accessory are for initial use only and may be depleted within 1 year. outlet.

Filter Installation True HEPA Filter Tabs the True HEPA Filter is removed 1 After from the plastic bag, and place it in the main unit with the tabs facing up. (See the diagram to the right.)

removing the Washable Active 2 After Carbon Filter from the plastic bag, Ensure the bands are uppermost place it on top of the True HEPA Filter with the bands (2 places) located in the upper most corners. Washable Active Carbon Filter place the Pre-Filter through the 3 Next, bands (2 places) located in the corners of the Washable Active Carbon Filter. Band Insert the tabs of the Pre-Filter into the associated holes of the main unit. Holes in the main unit Pre-Filter in the usage start date on the Date 4 Fill Label, which can be found near the upper edge of the Pre-Filter. Tab(4 places) Use the date as a guide for your Filter Replacement schedule. Date Label

• Operate with the remote control facing the main unit (Receiver).
• The signal range is about 23 feet (front).
• Make sure there are no objects blocking the path of the signal.
• A beep sound will be heard from the main unit when a signal is received. NOTE
• Avoid dropping or damaging the remote control. In addition, be sure the remote control avoids moisture or place in direct sunlight or near a electric heater, etc., otherwise a malfunction may occur. E-11 Receiver Transmitter ENGLISH Ensure that the filter is installed correctly. Do not install the filter backwards or the unit will not operate properly. OPERATION For the first 30 seconds after the power plug is inserted into the wall outlet, the unit will check the conditions of the air. If operation is set to ON during this time, the CLEAN SIGN LIGHT will alternately flash in green, orange and red.

AUTO SILENT MED HIGH MAX POLLEN

CLEAN-SIGN OFF TIMER Plasmacluster Plasmacluster Indicator Light The unit will start operating when the MODE-ON / OFF Button is pressed. The unit will begin operating in the AUTO Mode. (fan level)

• While operating the Plasmacluster Indicator Light will be on. To switch operating controls, press the MODE-ON / OFF Button until the desired control is activated. (Your desired control will have its Indicator Light lit.) For the best results of the room environment, set your operation control as desired. Stop AUTO operation POLLEN mode operation The fan level is automatically switched (HIGH, MEDIUM, SILENT) depending on the amount of impurities in the air. The sensors detect the impurities for efficient air purification. The unit will operate at High level for 10 minutes, then will alternate between MEDIUM and HIGH. SILENT operation MEDIUM to MAX operation The unit will operate quietly using minimal air intake. The unit will operate at a fan level of MEDIUM, HIGH or MAX. 10 minutes: High fan level 20 minutes: Medium fan level 20 minutes: High fan level E-12 Operations available with the Remote Control

REMOTE CONTROL OPERATION

• When you press the POWER ON/OFF Button, a short beep will sound and operation will start. As the initial operation mode, it automatically goes to the AUTO (Fan level) and AUTO Plasmacluster Ion Mode.
• To stop operation, press the POWER ON/OFF Button again. A long beep will sound and operation will stop. Transmitter POWER ON/OFF Button Auto (Fan Level) Button Filter Reset Button

When you have cleaned the Washable Active Carbon Filter and re-inserted into the main unit, press the Filter Reset Button with an instrument with a point such as a pen. FILTER RESET Fan Control OFF

AUTO MANUAL POLLEN TIMER

The fan level switches automatically depending on the amount of impurities in the air. Pollen Mode Operation Button DISPLAY ON/OFF The unit operates effectively when you suspect there is pollen in the air. See Page E-12 Manual (Fan Level) Button The fan level can be switched between Silent, Medium, High and Max. Display ON/OFF Button Switches the Plasmacluster Indicator Light and CLEANSIGN Light either ON or OFF.

• The Plasmacluster Indicator Light is turned on for about 3 seconds by pressing the Plasmacluster Ion Select Button (except for the OFF Button) during “Display OFF” mode. Off Timer Button Plasmacluster Used to set the Off Timer. The set time switches every time the button is pressed as shown below. CLEAN AUTO OFF ION CONTROL 1 hour 4 hours Cancel 8 hours

• The indicator light shows the remaining time.
• The unit will cease operating when the timer is up. Plasmacluster Ion mode Selections Auto Clean When pressed, the unit will switch between Clean Mode and the Ion Control Mode automatically depending on the amount of impurities in the air as detected by the odor sensor. Clean Mode will operate for about 1 minute when the Auto function is selected. When pressed, the unit will constantly operate in the Clean Mode, in which the same numbers of positive and negative ions are discharged. (The Plasmacluster Indicator Light is blue.) Ion Control Off When pressed, the unit will constantly operate in Ion Control Mode. Ion balance is maintained in the room environment by increasing the ratio of negative ions. (The Plasmacluster Indicator Light is green) The generation of ions will cease and the Plasmacluster Indicator Light will go out. If the room is damp or has a mold problem, operate the unit in Clean Mode. E-13 ENGLISH Used to start AUTO operation of the unit. A short beep will signal that the unit is on and a long beep means that the unit is off.

CARE AND MAINTENANCE

WASHABLE ACTIVE CARBON FILTER CARE

HAND WASH ONLY! DO NOT TUMBLE DRY! the filter to 3 Allow soak approximately 30 minutes before washing. Care Cycle If the filter surface is very dirty, scrub with an old toothbrush or the like. When the Filter Indicator Light comes on, this indicates that the filter needs to be cleaned. If the unit is kept on 24 hours a day then the Filter Indicator Light will activate in about 2 months. The Filter Indicator Light is for reference. Clean the filter as often as necessary when odor persists.

• The operating time is recorded continuously, even if the power plug is disconnected to move the unit to another room or for some other reason.

Remove visible dirt with a vacuum cleaner. CAUTION Handle with care to prevent damage to the activated carbon particles. thoroughly with 4 Rinse clean water CAUTION If rinsing in a container, be sure to rinse 3 to 4 times so that the odor is rinsed thoroughly from the filter. If not rinse thoroughly enough, an odor may remain. a large container with 2 Fill warm water, add a mild household detergent and stir. Dilute as indicated on the detergent container. 5 Remove excess water The filter will be soaked with water after rinsing. To decrease drying time, wrap the filter in an old thick hand towel so that excess water can be removed. It may take 1 or 2 days to dry. CAUTION CAUTION Some black powder (activated carbon) may adhere to the towel. It is harmless, but you may want to use an old towel.

• Do not use any cleaner other than mild (pH neutral) household detergent.
• Make sure that the Washable Active Carbon Filter does not come into direct contact with undiluted detergent. E-14 FILTER CLEANING the filter out6 Dry doors if possible in Clean the top surface of the Pre-Filter lightly with a vacuum cleaner. a well ventilated area. Pre-Filter CAUTION
• Let the filter dry thoroughly. If used while the filter is still moist, then the air that is exhausted from the main unit will have an odor. It may take 1 or 2 days to dry.
• Dry the filter outdoors in a well ventilated area. If dried indoors, it may give an odor. In addition, the water dripping off the filter may soil your floor.
• Make sure that the activated carbon has not shifted to one side inside the filter. If it has, distribute it evenly with your fingers.
• Dry the filter as shown in the above illustration. The wet filter is heavy. Fix it securely for drying to make sure it does not fall down.
• The filter takes longer to dry in winter, on rainy days. Wash it on a day when the weather is good and dry it in the sun. Move it indoors at night to prevent freezing.

• The True HEPA Filter is damaged easily. Do not bring it into direct contact with the nozzle of a vacuum cleaner or wash it with water. The True HEPA Filter should never be washed or cleaned. 7 Reinstalling the Filter and Restart Reinstall the filter as shown on Page E-11.
• The filter air may have an odor until the filter is completely dry. the Washable Active Carbon 8 Once Filter has been cleaned, connect the power cord to the outlet and use a pointed instrument to activate the Filter Reset on the Remote Control, pointing the Remote Control toward the receiver on the main unit, (Refer to page E-13)
• Once the Filter Reset Button has been activated, you will hear a beep sound that means that the unit has been reset.
• The Filter indicator light will then go out automatically. Filter Reset Button FILT

(To maintain optimum performance of this product, please clean the unit including its sensor and fiters periodically.) When cleaning the unit, be sure to unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result. MAIN UNIT To prevent dirt or stains on the main unit, clean as often as necessary. If stains are allowed to remain, they may become hard to clean. Wipe with a dry, soft cloth For stubborn stains or dirt, use a soft cloth dampened with warm water. Do not use volatile fluids Benzene, paint thinner, polishing powder, etc., may damage the unit surface. Do not use detergents Detergent ingredients may damage the unit surface. Keep the unit dry Never apply water to the unit. ODOR SENSOR Odor Sensor The sensitivity of the sensors will become unstable if the odor sensor is dirty or blocked. Remove dust from the surfaces of the sensor openings using a vacuum cleaner. FILTER E-16 OFF TIMER

• The replacement period differs depending on the usage hours and loca- tion of installation. odor ingredients absorbed by the filters may become separated and may be discharged through the air outlet and result in additional odor. Depending on the usage environment, the air outlet odor may become strong after several months. If dust or odors cannot be removed easily, replace the filters.

• Some (Refer to E-1 FILTER MAINTENANCE)

• The following filter life and replacement period is based on the condition that smoking 10 cigarettes per day and the dust collection/deodorization power is reduced by half than that of new filters. For more information on filter life, please contact Sharp.
• True HEPA Filter About 5 years after opening
• Washable Active Carbon Filter About 5 years after opening

See page E-10 for directions on how to install the filters when replacing.

Fill in the usage start date of the filters on the Date Label, which can be found near the upper edge of the Pre-Filter. After replacing the filters: Be sure to press the Reset Button on the Remote Control with the power cord connected to the outlet. A short beep will be heard and the operation hours stored in the memory will be reset. The Filter Indicator Light will then go out automatically. Replacement Filters

• True HEPA Filter: 1 unit
• Washable Active Carbon Filter: 1 unit Model: FZ-N40HFU For replacement filters contact Sharp for information (U.S.A.) 1-800-BE-SHARP or website at www.sharpusa.com (Canada) (905)568-7140 or website at www.sharp.ca Disposal of Filters Please dispose of replaced filters according to the local disposal laws and regulations. True HEPA Filter materials:

ODOR SENSOR GUIDELINES

• The odor sensor responds to cigarette and pet odors, as well as other scents such as Insecticide, cosmetics, spray, alcohol, or sudden changes in temperature or humidity.
• When the unit is in Auto Mode and room is in a closed environment the sensor will respond to some odors by increasing the air flow. If you do not desire increased air flow, please adjust the sensitivity of the sensor. FILTER RESET
• Once the Washable Active Carbon Filter has been cleaned or replaced, connect the power cord to the outlet and use a pointed instrument to activate the Filter Reset on the Remote Control. Once the Filter Reset Button has been activated, you will hear a beep sound that means that the unit has been reset. If the Filter Indicator Light is on, it will then go out automatically.

GUIDE FOR WASHABLE ACTIVE CARBON FILTER

• Can this filter be washed? When should I wash this filter?

• Yes! The Active Carbon Filter is washable. Generally, you should wash it every 2 months or if odor persists.

• Will washing improve the filter’s performance?

• After time the filter will loose its deodorizing ability. When washed, the filter will be restored to a nearly new working level of deodorization.

• When does Washable Active Carbon Filter need replacement?

• Sharp recommends to replace filters 5 years after opening. Even if washed regularly (every 2 months), the Washable Active Carbon Filter usually needs to be replaced 5 years after opening the filter package. Replace your True HEPA Filter at the same time you replace the Washable Active Carbon Filter since the deodorizing performance will slowly decrease with repeated washing. Please refer to E-14 page for directions on how to clean your Washable Active Carbon Filter. E-18 TROUBLESHOOTING SYMPTOM REMEDY (not a malfunction) The Remote Control does not work

• Have the batteries been depleted?
• Are the batteries inserted correctly?
• Is a fluorescent lighting in the room flickering due to service life? (Refer to E-7,E-10) Odors and smoke are not removed

• Clean the filters if they appear to be heavily soiled. (Refer to E-14,E-15) The CLEAN-SIGN Light lights green even when the air is impure

• The air could be impure at the time the unit was plugged in. (Refer to E-8) The CLEAN-SIGN Light lights orange or red even when the air is clean

• The sensitivity of the sensor becomes unstable when the opening of the dust sensor is dirty or is clogged. Clean the dust around the sensor opening using a vacuum cleaner. (Refer to E-16) The Plasmacluster Indicator Light remains green (blue) and does not change

• When in Clean Mode ( or Ion Control Mode), the Plasmacluster Indicator Light color will not change. A clicking or ticking sound is heard from the unit

• Clicking sound is emitted when the unit is in the Ion Control Mode. If the sound is irritating, set the unit away from you.
• Ticking sound is emitted when the unit is generating ions. If the sound is irritating, such as when sleeping, set the unit away from you. The discharged air has an aroma or odor.

• Check to see if the filters are heavily soiled. Care the Washable Active Carbon Filter or replace filters.
• Check to see if the Washable Active Carbon Filter is dried thoroughly after cleaning it.
• Very low concentration of ozone generated by the Plasmacluster ion generator may have an odor. This is harmless and will not affect the human body. Also, the ozone will break down quickly and will not accumulate in the room environment. The unit does not operate when cigarette smoke is in the air.

• Is the unit installed in a location that is difficult for the sensors to detect cigarette smoke?
• Are the odor sensor openings blocked or clogged? (In this case, clean the openings.) (Refer to E-16) The Filter Indicator Light remains activated even after washing or replacing filter.

• After cleaning or replacing filters, connect the power cord to an outlet and press the Filter Reset Button on the main unit or on the remote control. (Refer to E-15) The Plasmacluster Indicator Light or the CLEAN-SIGN Light will not activate.

• Check to see if the Display OFF Mode on the Remote Control is selected. If so, then press the Display ON/OFF Button on the Remote Control to activate the indicator light. (Refer to E-13) E-19 ENGLISH Before calling for repair, please review the list below, since the problem may not be a unit malfunction. SPECIFICATIONS Fan Level Operation Model Power supply Fan Level Adjustment Rated Power Fan Level CFM (m3/min.) Applicable Floor Surface CADR(Dust/Smoke/Pollen) Cord Length Dimensions MAX 25 W 141 (4.0) FP-N40CX 120V / 60Hz HIGH MEDIUM 14 W 106 (3.0) 60 (1.7) SILENT 18 (0.5) 253 sq.ft.* (23m2) 157 / 163 / 156

16-3/8 in.(W)x7-15/16 in.(D)x22-1/2 in(H)(with stand) 415mm(W)x201mm(D)x572mm(H)
