USER MANUAL FPK50U SHARP

This product earned the ENERGY STAR by meeting strict energy e󰀩ciency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product. The energy e󰀩ciency of this ENERGY STAR qualied model is measured based on a ratio between the model’s CADR for Dust and the electrical energy it consumes, or CADR/Watt. ENGLISHFRANÇAIS “Plasmacluster” and “Device of a cluster of grapes” are registered trademarks of Sharp Corporation in Japan, USA and elsewhere. ESPAÑOL The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm

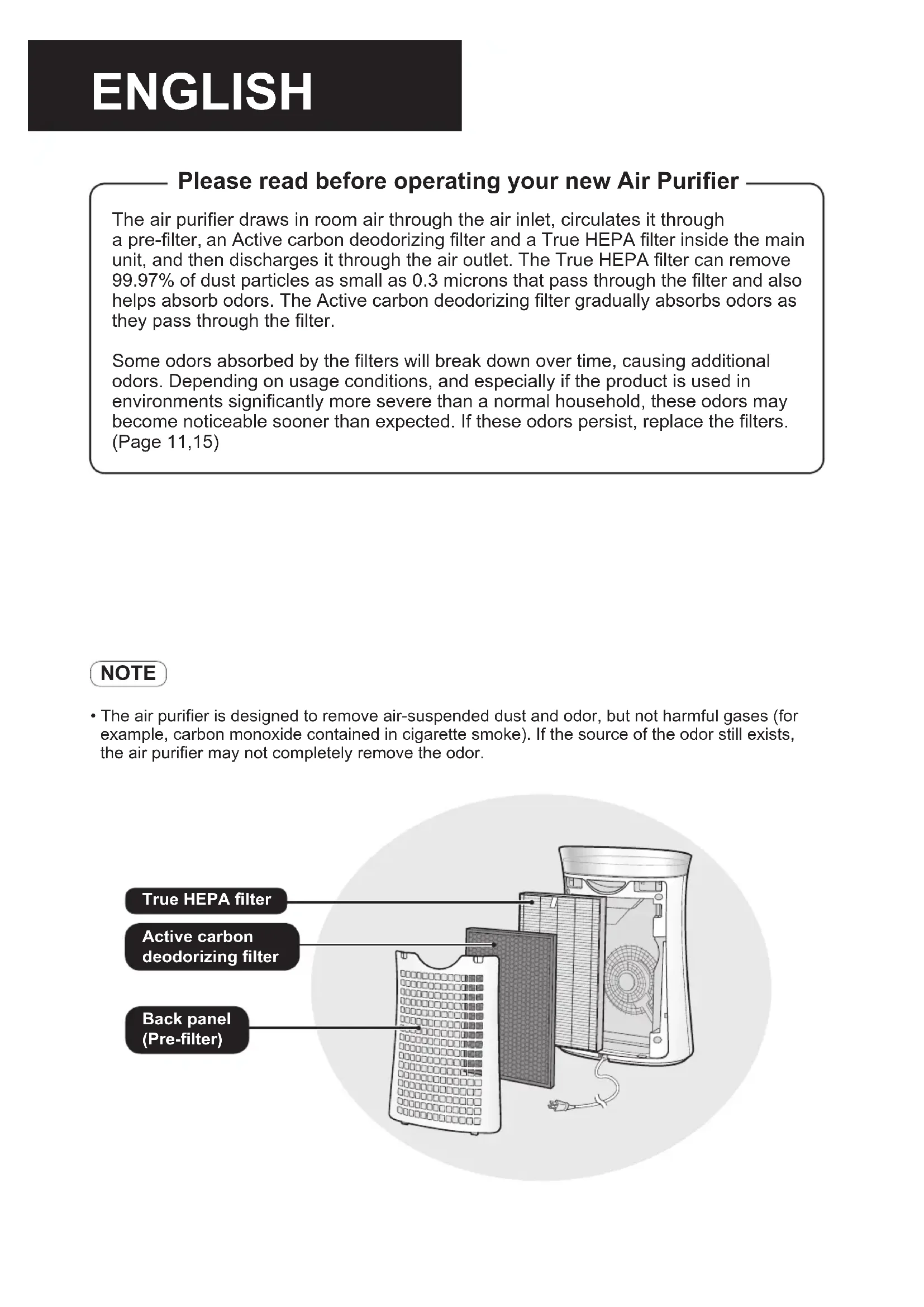

OM_FP-K50U_EN.indd 1 2019/09/05 10:14:36Please read before operating your new Air Purier

• The air purier is designed to remove air-suspended dust and odor, but not harmful gases (for example, carbon monoxide contained in cigarette smoke). If the source of the odor still exists, the air purier may not completely remove the odor. The air purier draws in room air through the air inlet, circulates it through a pre-lter, an Active carbon deodorizing lter and a True HEPA lter inside the main unit, and then discharges it through the air outlet. The True HEPA lter can remove 99.97% of dust particles as small as 0.3 microns that pass through the lter and also helps absorb odors. The Active carbon deodorizing lter gradually absorbs odors as they pass through the lter. Some odors absorbed by the lters will break down over time, causing additional odors. Depending on usage conditions, and especially if the product is used in environments signicantly more severe than a normal household, these odors may become noticeable sooner than expected. If these odors persist, replace the lters. (Page 11,15) NOTE True HEPA lter Back panel (Pre-lter) ENGLISH Active carbon deodorizing lter OM_FP-K50U_EN.indd 2 2019/09/05 10:14:36ENGLISH EN-1 Thank you for purchasing this SHARP Air Purier. Please read this manual carefully before using the air purier. After reading, keep the manual in a convenient location for future reference. FOR CUSTOMER ASSISTANCE (U.S)

EN-17 CONTENTS FEATURES Unique Combination of Air Treatment Technologies Triple Filtration System + Plasmacluster Ion TRAPS DUST* Pre-lter traps dust and other large airborne particles. DECREASES ODORS Active carbon deodorizing lter absorbs many common household odors.

REDUCES POLLEN & MOLD*

True HEPA lter traps 99.97% of particles as small as 0.3 microns. FRESHENS Plasmacluster refreshes the air similar to the way nature cleans the environment by emitting a balance of positive and negative ions. *When air is drawn through the lter system. Declaration of ConformitySHARP AIR PURIFIER FP-K50UThis device complies with Part 18 of FCC rules.Responsible Party:SHARP ELECTRONICS CORPORATION 100 Paragon Drive, Montvale, NJ 07645, U.S.ADeclaration of ConformitySHARP AIR PURIFIER FP-K50UCAN ICES-1/NMB-1Responsible Party:SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East Mississauga, Ontario L4Z 1W9 CanadaTEL: (905) 568-7140OM_FP-K50U_EN.indd 1 2019/09/05 10:14:36EN-2 FOR CUSTOMER ASSISTANCE (the United States)

REGISTER YOUR PRODUCT

Registering your new product is easy and offers benefi ts that help you get the most out of your Sharp product including: Convenience: If you ever need warranty support, your product information is already on fi le. Communication: Stay up to date with important notifi cations and special offers from SHARP. Support: Quickly access support content including Owners Manuals, FAQ’s, How-to Videos, and much more. 3 EASY WAYS TO REGISTER TODAY! PRODUCT SUPPORT If you have questions about the setup or operation of your product, please refer to the corresponding section within this manual. Additionally, visit www.sharpusa.com/support to access exclusive content about your product including: FAQ’s and How-To Videos Find or Request Service Purchase an Extended Warranty Downloads including the Installation Guide, Spec Sheet, and Owner’s Manual CONTACT US If at any time you have questions or comments concerning your SHARP product, please contact the SHARP Customer Assistance Center. We are available to assist you through multiple contact methods for your convenience: Scan this QR Code on your smart phone Visit http://www.sharpusa.com/register ONLINE Visit our sites to learn more about your product atsharpusa.com and sbl.sharpusa.comSee the Contact Us section on our sites U.S. | www.sharpusa.com/support Contact a Sharp Advisor on the phoneContact a Sharp Advisor on the phone CALL US US 800-BE-SHARP 800-237-4277Mon-Fri: 7am-7pm CSTSat-Sun: 9am-7pm CST CALL US US 800-BE-SHARP 800-237-4277Mon-Fri: 7am-7pm CSTSat-Sun: 9am-7pm CST EMAIL Available 24/7US: sharpusa.com CHAT ONLINE Mon-Fri: 7am-7pm CSTSat-Sun: 9am-7pm CST SCAN Use the camera or QR code scanning application on your smart phone customer_assistance_consumer_us(EN)_取説用_2019June_mono.indd 1 2019/06/10 11:37:11 OM_FP-K50U_EN.indd 2 2019/09/05 10:14:36EN-3 ENGLISH CONSUMER LIMITED WARRANTY (the United States) CONSUMER LIMITED WARRANTY FOR U.S. USERSSHARP ELECTRONICS CORPORATION warrants to the rst consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modied in design or construction.In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulllment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES THE DISTRICT OF COLUMBIA AND PUERTO RICO.Your Product Model Number & Description:Warranty Period for this Product:Additional Item(s) Excluded From WarrantyCoverage:Where to Obtain Service:What to Do to Obtain Service:FP-K50U Air Purier. Be sure to have this information available when you need service for your Product.One (1) year parts and labor from date of purchase.Appearance items of the Product, lters, accessories, or any printed materials. Product which has been used for rental and/or commercial purposes.From a Sharp Authorized Servicer located in the United States. To nd the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP.Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.TO OBTAIN SERVICE, SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP, OR VISIT OUR WEBSITE AT www.sharpusa.comSAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR AIR PURIFIER EVER REQUIRE WARRANTY SERVICE.

SHARP ELECTRONICS CORPORATION

100 Paragon Drive, Montvale, NJ 07645, U.S.A. OM_FP-K50U_EN.indd 3 2019/09/05 10:14:37EN-4 FOR CUSTOMER ASSISTANCE (Canada) To aid in answering questions if you call for service or for reporting loss or theft, please use the space below to record the model and serial number located on the side of the unit. Model Number: Serial Number: Date of Purchase: Dealer Name: Address: City: Province: Postal Code: Telephone: PRODUCT SUPPORT If you have questions about the setup or operation of your product, please refer to the corresponding section within this manual. Additionally, visit http://sharp.ca/support-home.aspx to access exclusive content about your product including: Find a Dealer Find Service Locations Downloads including the Installation Guide, Spec Sheet, and Owner’s Manual CONTACT US If at any time you have questions or comments concerning your SHARP product, please contact the SHARP Customer Assistance Center. We are available to assist you through multiple contact methods for your convenience: http://sharp.ca/contact-emailus.aspx CA | sharp.ca/support-home.aspx Contact a Sharp Advisor on the phone CALL US CA 877-278-6709Mon-Fri: 7am-7pm CST EMAIL Available 24/7 See the Contact Us section on our site. SUPPORT SITE Product Downloads, Service Locator, Where to Buy, Toner Recycling Program and more. customer_assistance_consumer_ca(EN)_取説用_2019June_mono.indd 1 2019/06/10 11:38:49 OM_FP-K50U_EN.indd 4 2019/09/05 10:14:37EN-5 ENGLISH CONSUMER LIMITED WARRANTY (Canada

ENGLISH OM_FP-K50U_EN_genko.indd 5 2019/06/17 15:49:12 Sharp Electronics of Canada Ltd. (“Sharp”) warrants to the first purchaser for this Sharp brand product (“Product”), when shipped in its original container and sold or distributed in Canada by Sharp or by an authorized Sharp dealer, and Product was not sold “as is” or “sales final” that the Product will during the applicable warranty period, be free from defects in material and workmanship, and will within the applicable warranty period, either repair the defective Product or provide the first purchaser a replacement of the defective Product.Conditions: This limited warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined in the owner’s manual or other applicable Product documentation. (b) Any defects caused or repairs required as a result of any Product that has been tampered with, modified, adjusted or repaired by any person other than Sharp, a Sharp authorized service centre or a Sharp authorized servicing dealer. (c) Any defects caused or repairs required as a result of the use of the Product with items not specified or approved by Sharp, including but not limited to chemical cleaning agents. (d) Any replacement of accessories required through normal use of the Product, including but not limited to, remote controls, AC adapters, batteries, temperature probe, trays, filters, belts, ribbons, cables and paper.(e) Any cosmetic damage to the Product surface or exterior that has been defaced or caused by normal wear and tear. (f) Any defects caused or repairs required as a result of damage caused by any external or environmental conditions, including but not limited to, transmission line/power line voltage or liquid spillage or acts of God. (g) If the serial number or model number affixed to Product has been removed, defaced, changed, altered or tampered with. (h) This limited warranty will not apply if the Product has been used or is being used in a commercial setting or application; this warranty is meant solely for the non-commercial, household use of the Product by consumers in their home or residence.(i) Any installation, delivery, setup and/or programming charges(j) The removal and reinstallation of Over-The-Range Microwave, Microwave Drawer or Steam Oven if it is installed in an inaccessible location or requiring removal of cupboards, handles or other cosmetic parts, or is not installed in accordance with installation instructions included with Product. How to get service: Warranty service may be obtained upon delivery of the Product, together with proof of purchase (including date of purchase) and a copy of this limited warranty statement, to an authorized Sharp service centre or an authorized Sharp servicing dealer. In home warranty service will be carried out to locations accessible by on-road service vehicle and within 50 km of an authorized Sharp service centre on any Over-The-Range Microwave Oven, Microwave Drawer Oven or Steam Oven. The servicer may if necessary take the unit for repair at the servicer's facility. No other person (including any Sharp dealer or service centre) is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. The purchaser will be responsible for any and all removal, reinstallation, transportation and insurance costs incurred with exception for Over-The-Range Microwave Oven, Microwave Drawer Oven or Steam Oven whereby Sharp will be responsible for the removal and reinstallation. The express warranties in this limited warranty are, except for consumer purchasers domiciled in Quebec, in lieu of and, except to the extent prohibited by applicable law, Sharp disclaims all other warranties and conditions, express or implied, whether arising by law, statute, by course of dealing or usage of trade, including, without limitation, implied warranties or conditions of merchantability and/or quality, fitness for a particular use or purpose, and/or noninfringement. Limitations (not applicable to consumer purchasers domiciled in Quebec to the extent prohibited under Quebec law): (a) Sharp shall not be liable for any incidental, special, consequential, economic, exemplary or indirect damages of any kind or nature (including lost profits or damages for loss of time or loss of use or loss of data) arising from or in any connection with the use or performance of a Product or a failure of a Product, even if Sharp is aware of or has been advised of the possibility of such damages; (b) the remedies described in this limited warranty constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Some provinces may not allow the exclusion or limitation of certain damages, or limits on the duration or voiding of implied warranties or conditions; in such provinces, the exclusions and limits herein may not apply. This limited warranty is, except for consumer purchasers domiciled in Quebec, governed by the laws of the Province in Canada in which the purchaser has purchased the Product. For consumer purchasers domiciled in Quebec this limited warranty is governed by the laws of Quebec. WARRANTY PERIODS (calculated from the date of original purchase): Parts & Labour (exceptions noted) Microwave Oven 1 year (magnetron - 4 additional years) Steam Oven 1 year Small Kitchen Appliances 1 year Air Purifiers 1 year To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, or for more information on this Limited Warranty, Sharp Extended Warranty Offers, Sharp Canada Products or Accessory Sales, please contact Sharp:• By writing to Sharp Electronics Of Canada Ltd. at 335 Britannia Road East Mississauga, Ontario L4Z 1W9• Calling: at 905-568-7140• Visiting our Web site: www.sharp.caTHIS LIMITED WARRANTY IS VALID ONLY IN CANADA LIMITED WARRANTY Consumer Electronics Products Congratulations on your purchase! OM_FP-K50U_EN.indd 5 2019/09/05 10:14:37EN-6

IMPORTANT SAFETY INSTRUCTIONS 1

Read and save these instructions before using this product. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of re, electric shock, and injury to persons, including the following: WARNING

1. Read all instructions before using the product.

2. Use the product only for intended household use as described in this manual.

Any other use not recommended by the manufacturer may cause re, electric shock, or injury to persons.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.

4. Never operate the product if the power cord or plug is damaged or the product

is malfunctioning or damaged.

5. If the power cord or plug is damaged, it must be replaced by the manufacturer,

its service agent or a Sharp authorized Service Center in order to avoid a hazard. Contact the nearest Service Center for any problems, adjustments, or repairs.

6. Do not repair or disassemble the product yourself.

7. Follow the instructions a to h below for the power cord or plug. It may cause

short circuit, excessive heat, electric shock or re. a. Use only AC 120 volt outlet. b. Do not use the product if the power cord or plug is damaged or the connection to the wall outlet is loosened. c. Always turn o󰀨 the product before unplugging the power plug. d. Always unplug the product before moving or maintaining it, opening the back panel, changing the lters and whenever the product is not in use. e. Be sure to pull the power plug and not the power cord. f. Do not touch the power plug with wet hands when inserting or unplugging from the wall outlet. g. Periodically remove dust from the power plug. h. Always observe the following not to damage the power cord.

• Do not run cord under carpeting. Do not cover the power cord with throw rugs, runners, or similar coverings.

• Do not put heavy things on the power cord or pinch it.

• Do not run the power cord under furniture or other appliances.

• Run the power cord away from tra󰀩c area and where it will not be tripped over. OM_FP-K50U_EN.indd 6 2019/09/05 10:14:37EN-7 ENGLISH

IMPORTANT SAFETY INSTRUCTIONS 2

8. The product has a polarized plug (one blade is wider than the other). To

reduce the risk of electric shock, this plug is intended to t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician or service person. Do not attempt to defeat this safety feature.

9. Do not use this product near gas appliances, re places, candle re, incense

or sparks from lit cigarettes.

10. Do not operate the product in a room with ammable gas, such as oily residue

11. Do not expose the product to rain, or use near water, in a bathroom, laundry

area or other damp location.

12. Do not insert ngers or foreign objects into the air inlets or air outlets.

13. Do not look into the air outlets.

NOTE - Radio or TV Interference If the product should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation distance between the product and radio/TV receiver.

3. Connect the product into an outlet on a circuit di󰀨erent from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m³. OM_FP-K50U_EN.indd 7 2019/09/05 10:14:37EN-8

1. Place the product on a level and stable surface with su󰀩cient air circulation.

When placed on heavy carpet, the product may vibrate slightly.

2. Avoid a location where the sensors are exposed to direct breeze or draft if the

product has sensors. The product may not operate properly.

3. Avoid use in locations where furniture, fabrics, or other items may come in

contact with and restrict the air inlets and/or outlets.

4. Avoid locations exposed to direct sunlight. It may cause to change shape or

color of the product.

5. Avoid locations where the product is exposed to condensation or drastic

changes in temperature. Use under appropriate conditions between 32 - 95 ºF (0 – 35 ºC).

6. Avoid use in locations where greasy or oily smoke is generated. (such as

in a kitchen, etc.). The main unit surface may crack and the sensors may malfunction as a result.

7. The dust collecting ability of the product is e󰀨ective even when the product is

as close to 1.2 inches (3 cm) from the wall, but the surrounding walls or oor may get dirty. Please place the product at a distance from the wall. The wall directly behind the air outlets and the oor or rug on which the product placed may become dirty over time. When using the product for an extended period of time at the same location, periodically clean the walls, the oor or the rug.

CAUTIONS CONCERNING FILTER

1. Follow the instructions in this manual for lter installation and maintenance.

2. Take out the lters from the plastic bag before placing the lter in the main

3. Do not operate the product without the lters properly installed.

4. Do not wash and reuse the True HEPA lter

and the Active carbon deodorizing lter

Washing will not improve lter performance and can also cause electric shock or operating malfunctions.

5. Do not operate the product in rooms where aerosol insecticides are present.

It may cause the odor of insecticide to remain in the product and emitted from the air outlets.

CAUTIONS CONCERNING OPERATION

1. Do not block the air inlets or air outlets.

2. Always operate the product in an upright position.

3. Always hold the handle of the product when moving it.

4. Always lift up the product when moving it on easily damaged ooring, an

1. Follow the instructions in this manual for maintenance. (Page 14,15)

2. Clean the exterior with a soft cloth only.

3. Do not use volatile uids and/or detergents.

The main unit surface may be damaged or cracked with strong corrosive cleansers, benzine, paint thinner, polishing powder or grease. In addition, the sensors may malfunction as a result if the product has sensors.

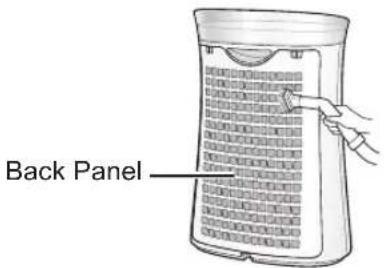

4. Do not scrub the back panel (pre-lter) hard during its maintenance.

5. When replacing lters or any accessories, use specied parts in this manual.

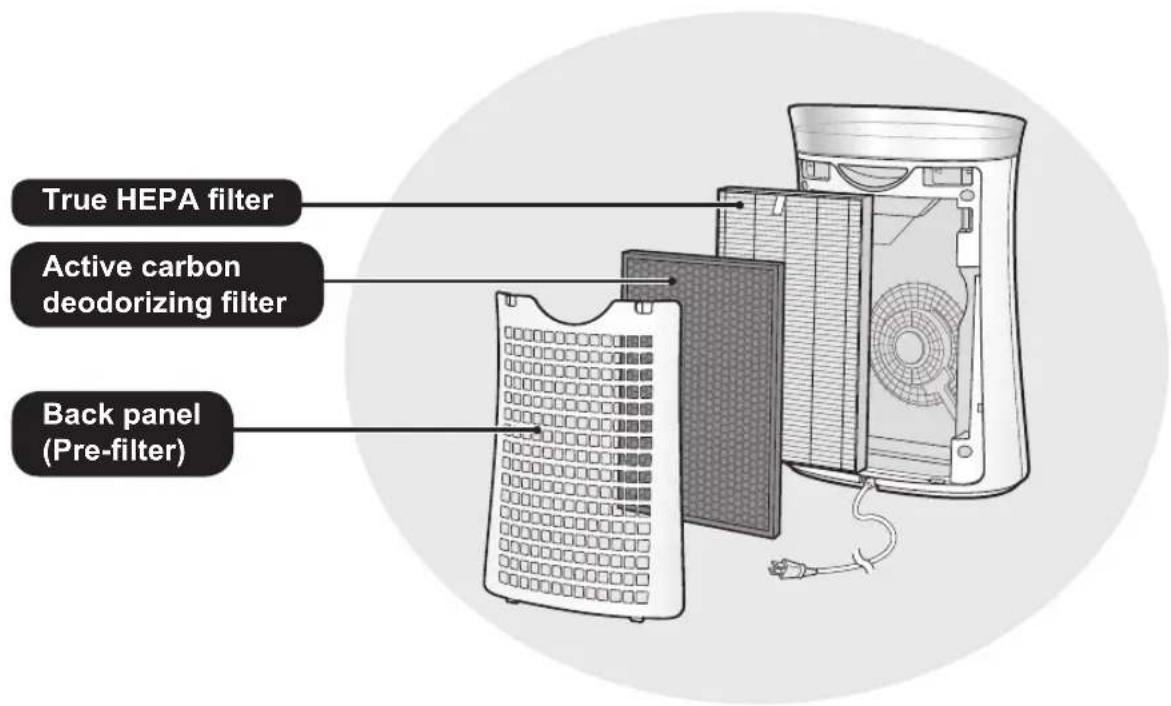

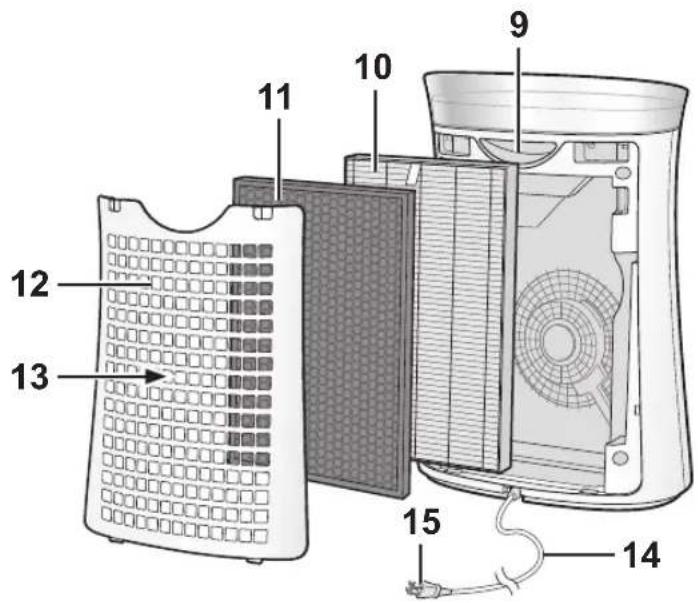

Active Carbon Deodorizing Filter

Green : It is not necessary to maintain the lter. Red : It is necessary to maintain the lter.

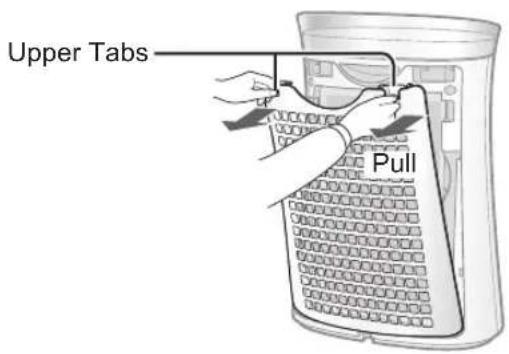

Remove the back panel (pre-lter).

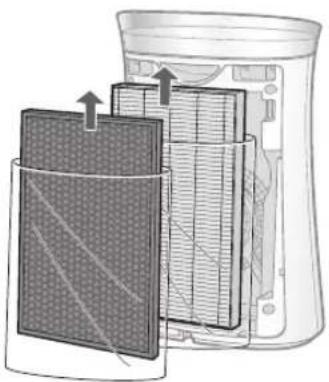

Take out the lters from the plastic bag.

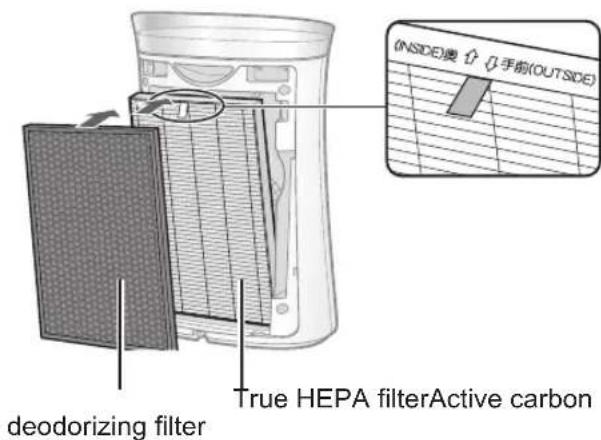

Place the lters within the main unit. Do not install the lters backwards or the product will not operate properly.

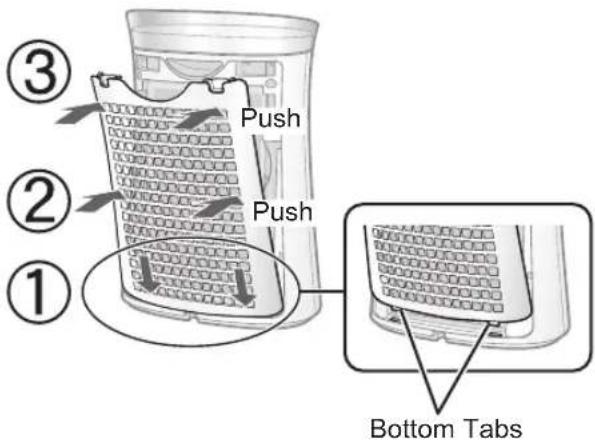

Replace the back panel to the main unit

• To maintain the quality of the lter, it is installed in the main unit and packaged in a plastic bag.• Be sure to stop operation and unplug the product before lter installation or replacement. Push Bottom Tabs Push True HEPA lterActive carbon deodorizing lter• Do not operate the product without the lter. NOTE OM_FP-K50U_EN.indd 11 2019/09/05 10:14:38EN-12 OPERATION 1

PLASMACLUSTER EXPRESS CLEAN

• Unless the power plug has been unplugged, the operation will Auto Resume in the previous mode it was operating in. Example: if the power is lost during operation, the operation will resume to previous operation mode and settings if power is restored.

• The Plasmacluster Ion can not be turned OFF while operating in PLASMACLUSTER EXPRESS CLEAN.

• When the operation nishes, the product will return to the prior operation mode. It is possible to change to the other fan modes or turn the product OFF while operating in PLASMACLUSTER EXPRESS CLEAN.

• The product will operate very quietly with low fan speed.

• PLASMACLUSTER SIGN will turn o󰀨 automatically in SLEEP mode. Although the sign is o󰀨, the plasmacluster ion is still being dispersed into the air, unless it is turned o󰀨 using the fan speed MODE button.

• FILTER MAINTENANCE SIGN will turn o󰀨 automatically when it is green. FILTER MAINTENANCE SIGN will be dimmed when it is red and the lter needs to be maintained. NOTE NOTE NOTE OM_FP-K50U_EN.indd 12 2019/09/05 10:14:39EN-13 ENGLISH OPERATION 2 LIGHT CONTROL Plasmacluster Ion ON/OFF OFF TIMER CANCELLATION Select the length of time you want, with the product on. The product automatically stops once the selected time is reached. You can set FILTER MAINTENANCE SIGN and PLASMACLUSTER SIGN to OFF when their SIGN is bright. ON OFF

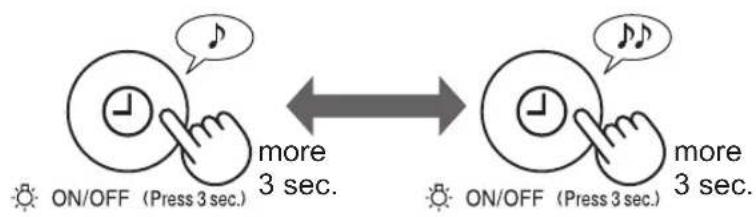

• Light control is ON even though it is set as OFF if the product is turned OFF by POWER ON/OFF button.

• In SLEEP mode, LIGHT ON/OFF button is disabled.

• Even though the light control is OFF, FILTER MAINTENANCE SIGN will be dimmed when it is red and the lter needs to be maintained. When plasmacluster ion is ON, the PLASMACLUSTER SIGN will turn blue. more 3 sec. OFF more 3 sec. more 3 sec. NOTE OM_FP-K50U_EN.indd 13 2019/09/05 10:14:39EN-14

CARE AND MAINTENANCE 1

• To maintain optimum performance of this air purier, please clean the product including the lter periodically.

• Be sure to stop operation and unplug the product before any maintenance or replacing accessories. Gently remove dust from the back panel, using a vacuum cleaner attachment or similar tool. Back PanelBack Panel MAIN UNIT Wipe with a dry, soft cloth. For stubborn stains or dirt, use a soft cloth dampened with warm water.
• Do not use volatile uids. Benzine, paint thinner, polishing powder, etc. , may damage the surface.
• Do not use detergents. Detergent ingredients may damage the main unit.

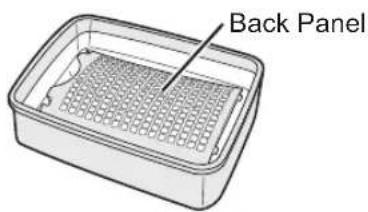

1. Add a small amount of dish detergent to water and

soak for about 10 minutes.

2. Rinse o󰀨 the dish detergent with clean water.

3. Completely dry the lter in a well-ventilated area.

How to clean hard to remove dirt NOTE Be careful not to apply too much force to the pre-lter.

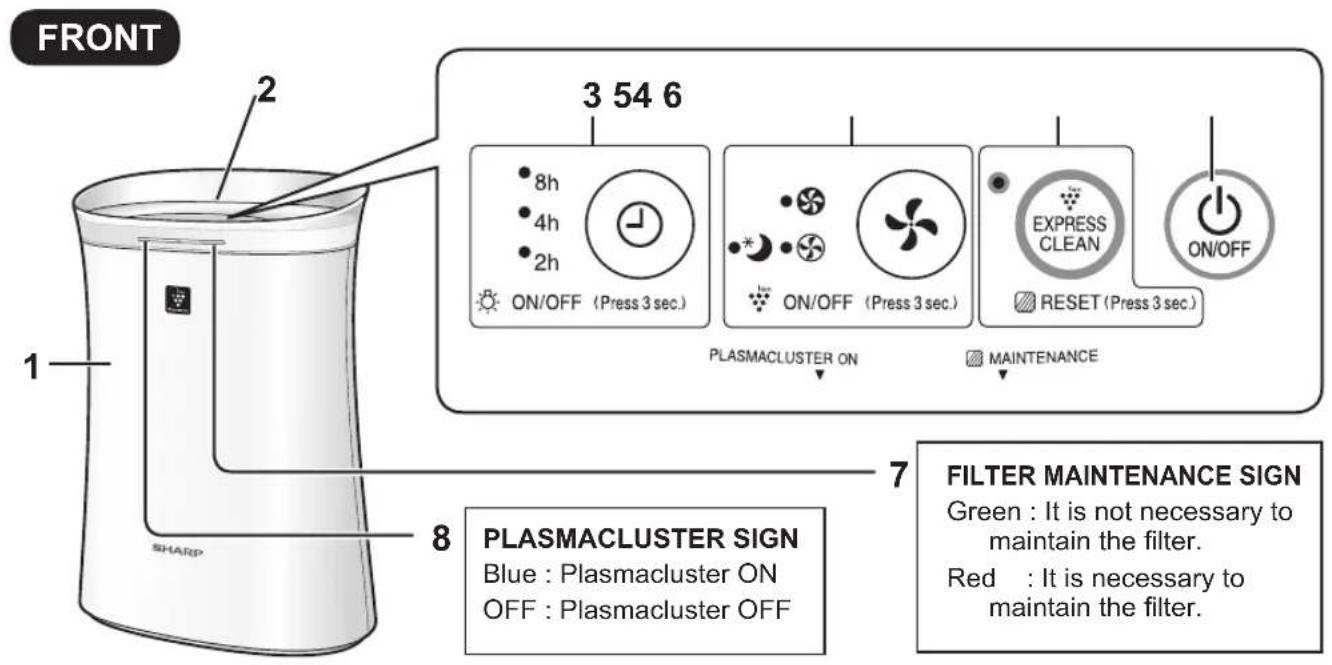

FILTER MAINTENANCE SIGN

MAINTENANCE NOTE NOTE The FILTER MAINTENANCE SIGN changes from red to green. The FILTER MAINTENANCE SIGN will turn red* when it is time to maintain the back panel (pre-lter) . *This sign will turn red after approximately 720 hours operating. (30 days × 24 hours = 720 hours) After maintenance, connect the power plug to the wall outlet and press POWER ON/OFF button, then PLASMACLUSTER EXPRESS CLEAN button for 3 seconds.

Disposal of Filters Please dispose replaced lter according to the local disposal laws and regulations. True HEPA lter materials : • Filter : Polypropylene • Frame : Polyester Active carbon deodorizing lter materials : • Polypropylene, Polyester, Activated charcoal Do not wash and reuse replaced lter. Filter Name Maintenance Cycle Max Service Life Replacement Filter Model True HEPA lter Whenever dust accumulates, when odor emanates from the air outlet, or once a month. 2 years* FZ-K50HFU Active carbon deodorizing lter FZ-K50DFU *According to Japan Electric Manufacture’s Association JEM 1467, the Max service life is based on the equivalent condition of the smoke from 5 cigarettes per day whereby the dust collection/deodorization power is reduced by half compared with that of new lter. It is recommended to replace the lter more frequently under more severe conditions. FILTERS

• Do not WASH in water and DRY in the sunlight.

• The lter is fragile, be careful not to apply too much force. True HEPA lter Perform maintenance only on the side with the tag. Do not clean the opposite side; otherwise, the lter will be damaged. Active carbon deodorizing lter The maintenance can be applied to both sides. Tag

REPLACEMENT AND MAINTENANCE CYCLE

MAINTENANCE NOTE NOTE REPLACEMENT See page 11 for directions on how to install the lter when replacing.

• Please consult your dealer for purchase of replacement lter.

• Use only lter designed for this product. Record the date when you replace the lters on the back cover of this manual. FZ-K50HFU : 1 unit FZ-K50DFU : 1 unit Scan the QR code for product information and accessories. U.S. only Canada only Gently remove dust from the lter with a vacuum cleaner attachment or similar tool. OM_FP-K50U_EN.indd 15 2019/09/05 10:14:40EN-16 TROUBLESHOOTING Before calling for service, please review the list below, since the problem may not be the product malfunction. SYMPTOM REMEDY (not a malfunction) Odors and smoke are not removed.

• Clean or replace the lter if they appear to be heavily soiled. (Page 11,14,15) The discharged air has an odor.

• Check to see if the lters are heavily soiled. Clean or replace the lters. Smell from a new lter.

• Immediately after removing the plastic bag, a slight odor may occur. This odor is not harmful for lter performance or human exposure. A clicking or ticking sound is heard from the product.

• Clicking or ticking sounds may be audible when the product is generating ions. The FILTER MAINTENANCE SIGN is turned o󰀨.

• Check to see if the lights OFF mode is selected. Press OFF TIMER button for 3 seconds to turn light ON. (Page 13)

• Check to see if the SLEEP mode is selected. The FILTER MAINTENANCE SIGN and PLASMACLUSTER SIGN are turned o󰀨 automatically after the SLEEP mode is selected. Operation started automatically after my power was restored.

• This model has Auto Resume function, where the operation resumes at the previous operation mode and settings if the power is restored.

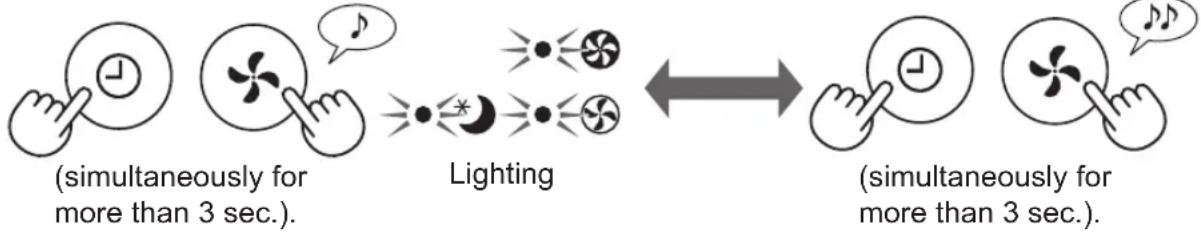

(default) (with the product OFF) (simultaneously for more than 3 sec.). OFF (with the product OFF)

• If the Fan Speed indicator lights illuminate for 10 seconds, the setting is completed. NOTE (simultaneously for more than 3 sec.). Lighting OM_FP-K50U_EN.indd 16 2019/09/05 10:14:41EN-17 ENGLISH SPECIFICATIONS Model FP-K50U Power supply 120V / 60Hz Fan Speed Operation Fan Speed Adjustment MAX MED SLEEP Rated Power (W) 41 8.0 2.5 Fan Speed (CFM) 180 88 32 Noise Level (dBA)*1 51 36 22 Standby Power (W) 0.3 Recommended Room Size*2 259 sq. ft.

High Density Plasmacluster Ion Recommended Room Size*3 248 sq. ft.

CADR (Dust/Smoke/Pollen) 171 / 167 / 188 Filter type Dust collection True HEPA lter Deodorization Active carbon deodorizing lter Cord Length 6.6 ft.

Standby Power In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this product consumes of standby power. For energy saving, unplug the power cord when the product is not in use. *1 Noise level is measured based on the JEM 1467 standard of the Japan Electrical Manufacturers’ Association. *2 Size of a room which is appropriate for operating the product at maximum fan speed. *3 Room size in which approximately 7000 ions per cubic centimeter can be measured in the center of the room when the product is placed close to a wall, is operating on MED mode, and is at a height of approximately 1.2 meters from the oor. OM_FP-K50U_EN.indd 17 2019/09/05 10:14:41Veuillez lire ces instructions avant de faire fonctionner votre nouveau puricateur d’air
